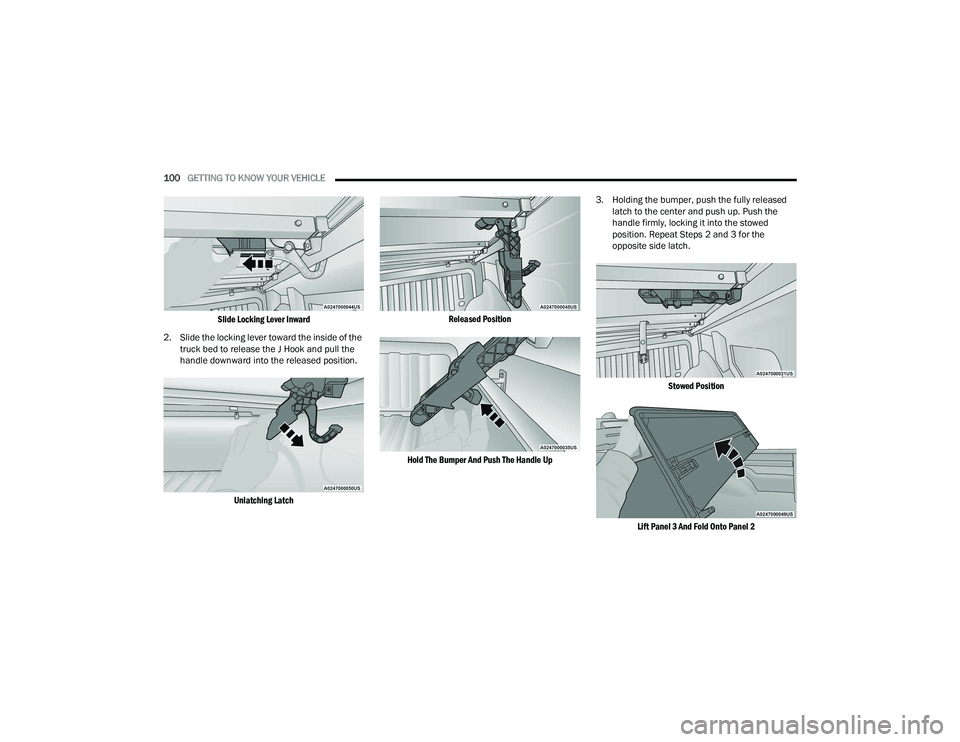

100GETTING TO KNOW YOUR VEHICLE

Slide Locking Lever Inward

2. Slide the locking lever toward the inside of the truck bed to release the J Hook and pull the
handle downward into the released position.

Unlatching Latch Released Position
Hold The Bumper And Push The Handle Up
3. Holding the bumper, push the fully released
latch to the center and push up. Push the
handle firmly, locking it into the stowed
position. Repeat Steps 2 and 3 for the
opposite side latch.

Stowed Position
Lift Panel 3 And Fold Onto Panel 2

22_DT_OM_EN_USC_t.book Page 100

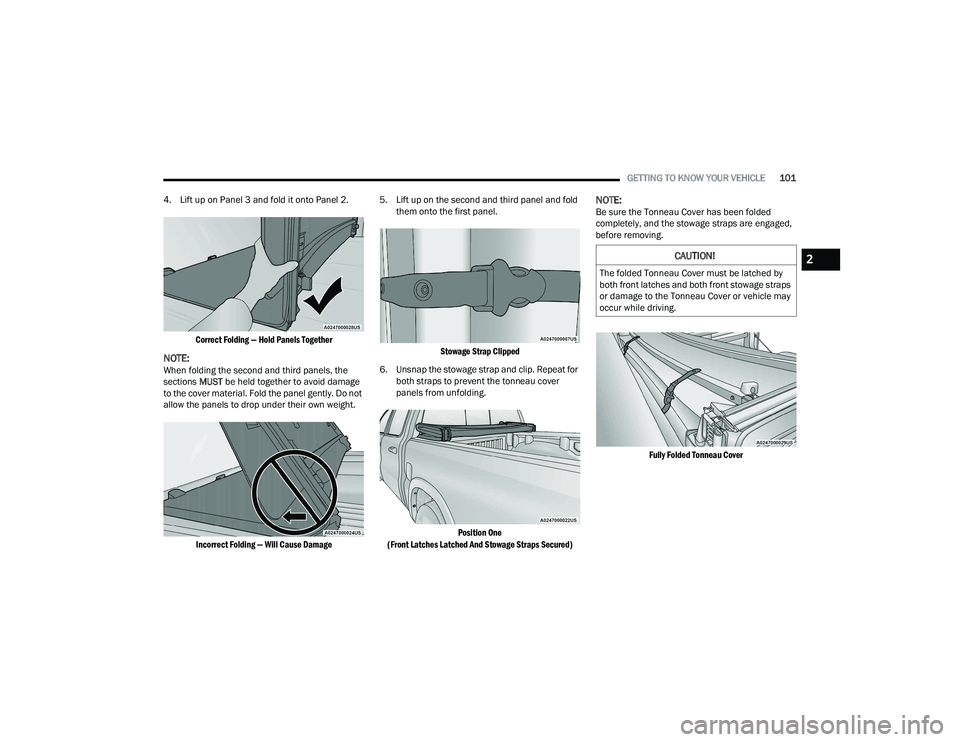

GETTING TO KNOW YOUR VEHICLE101
4. Lift up on Panel 3 and fold it onto Panel 2.

Correct Folding — Hold Panels Together

NOTE:When folding the second and third panels, the
sections MUST be held together to avoid damage
to the cover material. Fold the panel gently. Do not
allow the panels to drop under their own weight.

Incorrect Folding — Will Cause Damage
5. Lift up on the second and third panel and fold
them onto the first panel.

Stowage Strap Clipped

6. Unsnap the stowage strap and clip. Repeat for both straps to prevent the tonneau cover
panels from unfolding.

Position One
(Front Latches Latched And Stowage Straps Secured)

NOTE:Be sure the Tonneau Cover has been folded
completely, and the stowage straps are engaged,
before removing.

Fully Folded Tonneau Cover

CAUTION!
The folded Tonneau Cover must be latched by
both front latches and both front stowage straps
or damage to the Tonneau Cover or vehicle may
occur while driving.
2

22_DT_OM_EN_USC_t.book Page 101

102GETTING TO KNOW YOUR VEHICLE
NOTE:The vehicle can be driven with the Tonneau in the
folded position or can be completely removed.

Slide Locking Lever Inward

7. Slide the locking lever toward the inside of the truck bed to release the J Hook and pull the
handle downward into the released position.

Unlatching Latch Released Position
Hold The Bumper And Push The Handle Up

8. Holding the bumper, push the fully released latch to the center and push up. Push the
handle firmly, locking it into the stowed
position. Repeat Steps 2 & 3 for the opposite
side latch.
9. With two people, remove the cover.TRI-FOLD TONNEAU COVER
I
NSTALLATION
To install the Tonneau Cover follow these steps:

1. Position the Tonneau Cover on the truck bed
and center using the locating bumpers.

2. Locate the front pair of Tonneau Cover latches on the underside of the Cover. Slide the
locking lever toward the inside of the truck bed
and release the latch from the stowed
position, and pull the handle downward into
the released position. Do this for both the
left and right side.

Location of Front Latches

22_DT_OM_EN_USC_t.book Page 102

GETTING TO KNOW YOUR VEHICLE103

Slide Locking Lever Towards Inside Of Truck Unlatching Latch Released Position

3. Swing the J Hook from the handle and push the handle to the center and up, ensuring that
the J Hook is under the truck flange. Push up
on the handle firmly, locking it into the latched
position.
J Hook Under Truck Flange

NOTE:Make sure the bumper is in front of the truck
flange bead.
1 — Front Of Truck
2 — J Hook
2

22_DT_OM_EN_USC_t.book Page 103

104GETTING TO KNOW YOUR VEHICLE

Pull Handle Downward

4. Pull down on the handle to ensure the Slide Locking Lever is fully engaged. Do this for both
the left and right side.
5. Unclip the stowage straps, and re-snap them to the bow. 6. Unfold the Tonneau Cover to the second panel
position.

Incorrect Folding — Will Cause Damage

NOTE:When folding the second and third panels, the
sections MUST be held together to avoid damage
to the cover material. Fold the panel gently. Do not
allow the panels to drop under their own weight.

Second Panel Position

NOTE:Unfold the panel gently, and do not allow the
panels to drop under their own weight.

22_DT_OM_EN_USC_t.book Page 104

GETTING TO KNOW YOUR INSTRUMENT PANEL107
BASE / MIDLINE INSTRUMENT CLUSTER
D
ESCRIPTIONS — GASOLINE

1. Tachometer

Indicates the engine speed in revolutions
per minute (RPM x 1000).
2. Voltmeter
When the vehicle is in the RUN state, the
gauge indicates the electrical system
voltage. The pointer should stay within the
normal range if the battery is charged. If the
pointer moves to either extreme left or right
and remains there during normal driving,
the electrical system should be serviced.
NOTE:In vehicles equipped with Stop/Start, a reduced
voltage may be present during an Autostop.
3. Instrument Cluster Display
When the appropriate conditions exist, this
display shows the instrument cluster
display messages Ú page 114.
The display always shows one of the main
menu items after ignition on. 4. Oil Pressure Gauge
The pointer should always indicate the oil
pressure when the engine is running. A
continuous high or low reading under
normal driving conditions may indicate a
lubrication system malfunction. Immediate
service should be obtained from an autho
-
rized dealer.
NOTE:In vehicles equipped with Stop/Start, an oil
pressure indication of zero is normal during an
Autostop.
5. Speedometer
Indicates vehicle speed.
6. Temperature Gauge
The pointer shows engine coolant tempera -
ture. The pointer positioned within the
normal range indicates that the engine
cooling system is operating satisfactorily.
The pointer will likely indicate a higher
temperature when driving in hot weather,
up mountain grades, or when towing a
trailer. It should not be allowed to exceed
the upper limits of the normal operating
range. 7. Fuel GaugeThe pointer shows the level of fuel in the
fuel tank when the ignition is in the ON/RUN
position.
 The fuel pump symbol points to
the side of the vehicle where the
fuel door is located.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized
dealer for service if your vehicle overheats
Ú page 423.
CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge
reads “H,” pull over and stop the vehicle. Idle the
vehicle with the air conditioner turned off until
the pointer drops back into the normal range. If
the pointer remains on the “H,” turn the engine
off immediately and call an authorized dealer for
service.
3

22_DT_OM_EN_USC_t.book Page 107

GETTING TO KNOW YOUR INSTRUMENT PANEL109
PREMIUM INSTRUMENT CLUSTER
D
ESCRIPTIONS — GASOLINE

1. Tachometer

Indicates the engine speed in revolutions
per minute (RPM x 1000).
2. Instrument Cluster Display
When the appropriate conditions exist, this
display shows the instrument cluster
display messages Ú page 114.
The display always shows one of the main
menu items after ignition on.
3. Speedometer
Indicates vehicle speed. 4. Temperature Gauge
The pointer shows engine coolant tempera
-
ture. The pointer positioned within the
normal range indicates that the engine
cooling system is operating satisfactorily.
The pointer will likely indicate a higher
temperature when driving in hot weather,
up mountain grades, or when towing a
trailer. It should not be allowed to exceed
the upper limits of the normal operating
range. 5. Fuel Gauge
The pointer shows the level of fuel in the
fuel tank when the ignition is in the ON/RUN
position.
 The fuel pump symbol points to
the side of the vehicle where the
fuel door is located.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized
dealer for service if your vehicle overheats
Ú page 423.
CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge
reads “H,” pull over and stop the vehicle. Idle the
vehicle with the air conditioner turned off until
the pointer drops back into the normal range. If
the pointer remains on the “H,” turn the engine
off immediately and call an authorized dealer for
service.
3

22_DT_OM_EN_USC_t.book Page 109

GETTING TO KNOW YOUR INSTRUMENT PANEL121
Trailer Tow — If Equipped
Push and release the up or down arrow
button until the Trailer Tow menu item is
highlighted in the instrument cluster display. Push
and release the right or left arrow button to
cycle through the following trailer tow information:
Trip (trailer specific) Distance: Push and hold
the OK button to reset the distance.
Integrated Trailer Brake Module (ITBM):
Braking Output
Trailer Type
ITBM Gain
Trailer Light Check: Push and hold the OK
button to begin the Trailer Light Test sequence
Ú page 223.
Trailer Tire Pressure Monitoring: The Instrument
Cluster Display will display the Trailer Tire Pres -
sure for a connected trailer with sensors that
match the active trailer profile. When a low tire
is present, the low tire value will be displayed in
red, and the affected low tire will have a red
glow. “Trailer Tire Low“ will be displayed on the
center bottom of the Instrument Cluster Display
screen.
Audio
Push and release the up or down arrow
button until the Audio Menu icon/title is
highlighted in the instrument cluster display. This
menu will display the audio source information,
including the Song name, Artist name, and audio
source with an accompanying graphic.
Phone Call Status
When a call is incoming, a Phone Call Status
pop-up will display on the screen. The pop-up will
remain until the phone is answered or ignored.
NOTE:The call status will temporarily replace the
previous media source information displayed on
the screen. When the pop-up is no longer
displayed, the display will return to the last used
screen.
Stored Messages
Push and release the up or down arrow
button until the Messages Menu item is
highlighted. This feature shows the number of
stored warning messages. Push and release the
right or left arrow button to cycle through
stored messages.
Settings
Head-Up Display (HUD) – If Equipped
NOTE:The HUD feature Settings are available at any
vehicle speed Úpage 122.
Screen Setup Driver Selectable Items
Push and release the up or down arrow
button until the Settings Menu Icon/Title is
highlighted in the instrument cluster display. Push
and release the OK button to enter the submenus
and follow the prompts on the screen as needed.
The Settings feature allows you to change what
information is displayed in the instrument cluster
as well as the location that information is
displayed.
NOTE:The Settings feature is only available when the
vehicle speed is less than 5 mph.
3

22_DT_OM_EN_USC_t.book Page 121

122GETTING TO KNOW YOUR INSTRUMENT PANEL
Current Gear
Off (D)
On (D1, D2, D3,...) Odometer
No Decimal Point
Decimal Point
Defaults (Restores All Settings To Default Settings)
Cancel
Restore
HEAD-UP DISPLAY (HUD) —
I
F EQUIPPED
NOTE:The HUD feature Settings are available at any
vehicle speed.
Push and release the up or down arrow
button until the Settings Menu icon/title is
highlighted in the instrument cluster display. Push
and release the left or right arrow button
until the HUD Menu icon/title is highlighted in the
instrument cluster display. Push and release the
OK button to enter HUD. Use the up or down
arrow button to select a setting, then push and
release the OK button to adjust the setting.
Upper Left or Right
None Time Current Econ
Compass Range Trip A Distance
Outside Temp Average Econ Trip B Distance
Trailer Trip –
If Equipped Oil Pressure –
If EquippedOil
Temperature –
If Equipped
Trailer Brake –
If Equipped Coolant Temp
– If EquippedBattery
Voltage –
If Equipped
Transmission
Temperature –
If Equipped Oil Life –
If Equipped
Favorite Menus
Speedometer Vehicle Info Performance
Off Road
Driver Assist
(show/hide) –
If EquippedFuel Economy
(show/hide)
Trip Info
(show/hide) Trailer Tow –
If Equipped
(show/hide)Audio (show/
hide)
Messages
(Stored) Settings Diagnostics
Left Side and Right Side – If Equipped
NoneRange To
EmptyAverage Econ
Oil Temp Transmission
TempCoolant Temp
Oil Life Menu Icon
Lower Left and Lower Right – If Equipped
None Time Current Econ
Compass Range To
EmptyTrip A Distance
Outside Temp Average Econ Trip B Distance
Trailer Trip – If
Equipped Trailer Brake –
If Equipped
Oil Pressure
Coolant
Temperature Oil
TemperatureBattery
Voltage
Transmission
Temperature Oil Life

22_DT_OM_EN_USC_t.book Page 122

126GETTING TO KNOW YOUR INSTRUMENT PANEL
while operating the vehicle. Chimes will also
accompany the 75, 50 and 25 mile remaining
distances. The DEF Low telltale will be on contin -
uously until DEF fluid is topped off.
Engine Will Not Restart Refill DEF — This
message will display when the DEF driving range
is less than one mile, DEF fluid top off is
required or the engine will not restart. The
message will be displayed in the instrument
cluster display during vehicle start up, and it will
be accompanied by a single chime. The DEF Low
telltale will be illuminated continuously until
DEF fluid tank is filled with a minimum of
two gallons of DEF.
DIESEL EXHAUST FLUID (DEF) FAULT
W
ARNING MESSAGES
There are different messages which are displayed
if the vehicle detects that the DEF system has been
filled with a fluid other than DEF, has experienced
component failures, or when tampering has been
detected.
When the DEF system needs to be serviced the
following warnings will display:
Service DEF System See Dealer — This message
will display when the fault is initially detected
and each time the vehicle is started. The
message will be accompanied by a single chime
and the Malfunction Indicator Light. We recom -
mend you drive to the nearest authorized dealer and have your vehicle serviced immediately. If
not corrected in 50 miles, vehicle will enter the
“Engine Will not restart in XXX mi Service DEF
See dealer” warning stage and message.
Incorrect DEF Detected See Dealer
— This
message will display if the DEF system has
detected the incorrect fluid has been introduced
to the DEF tank. The message will be accompa -
nied by a single chime. We recommend you
drive to your nearest authorized dealer and
have your vehicle serviced immediately. If not
corrected in 30 miles, vehicle will enter the
“Engine Will not restart in XXX mi Service DEF
See dealer” warning stage and message.
Engine Will Not Restart in XXX mi Service DEF
See Dealer — This message is first displayed if
the fault detected is not serviced after 50 miles
of operation. It is also displayed at 150 miles,
125 miles and 100 miles. System service is required within the displayed mileage. The
message will be displayed during vehicle start
up with an updated distance mileage, and it will
be accompanied by a single chime. Starting at
100 miles, remaining range will be continuously
displayed while operating the vehicle. Chimes
will also accompany the 75, 50 and 25 mile
remaining distances. We recommend you drive
to the nearest authorized dealer and have your
vehicle serviced immediately.
Engine Will Not Restart Service DEF System See
Dealer — This message will display if DEF
system issue detected is not serviced during the
allowed period. Your engine will not restart
unless your vehicle is serviced by an authorized
dealer. This message will be displayed when
under 1 mile until engine will not start and each
time the vehicle is started, and will be continu -
ously displayed. The message will be accompa -
nied by a single chime. Your Malfunction
Indicator Light will be continuously illumined.
We highly recommend you drive to the nearest
authorized dealer if the message appears while
engine is running.
Engine Will Not Start Service DEF System See
Dealer — This message will display when the
fault detected is not serviced after the Engine
will not restart Service DEF System See Dealer
message is displayed on the next subsequent
restart. Your engine will not start unless your
vehicle is serviced by an authorized dealer.
The message will be accompanied by a single
chime. Your Malfunction Indicator Light will be
continuously illuminated. If the message
appears and you can not start the engine, we
recommend having your vehicle towed to the
nearest authorized dealer immediately.

22_DT_OM_EN_USC_t.book Page 126
