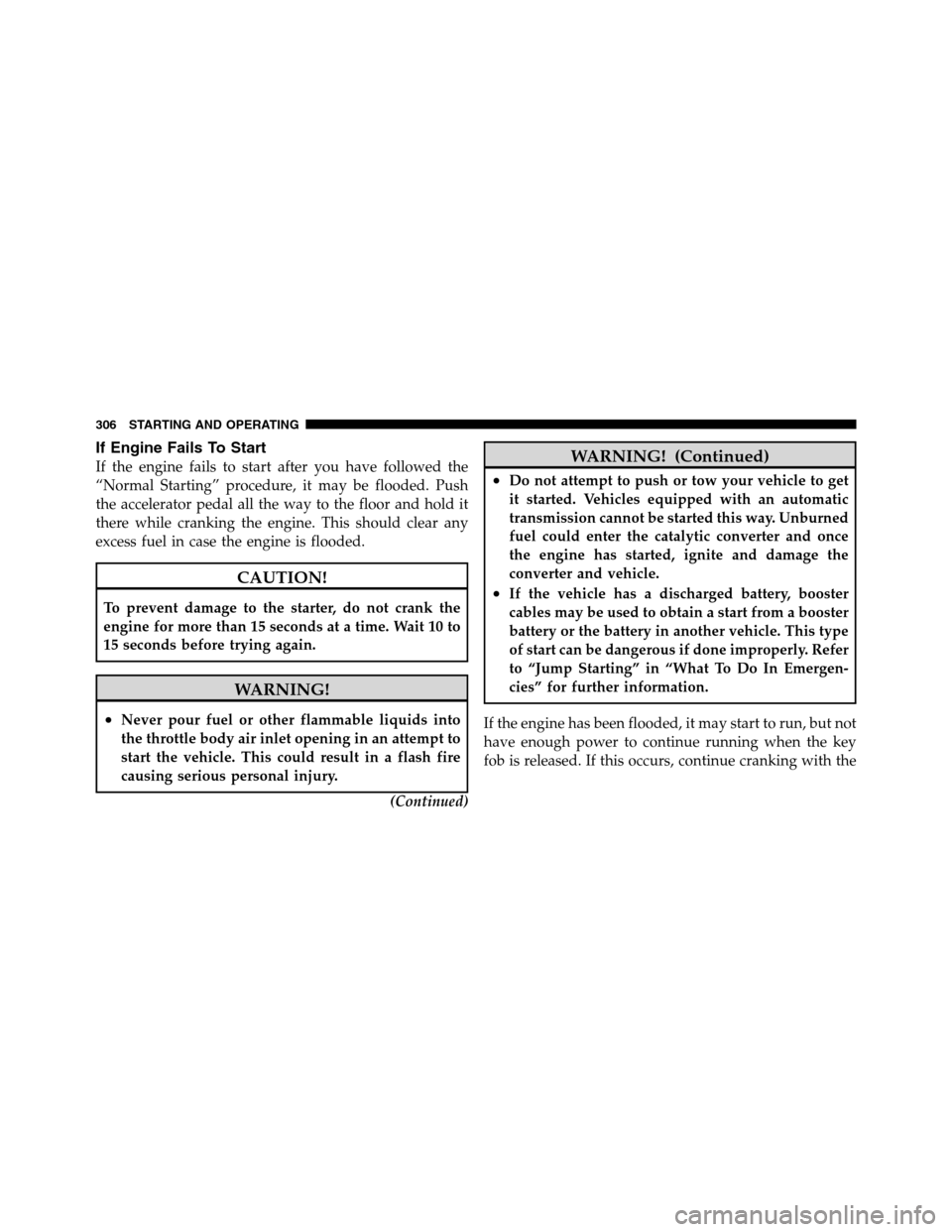

If Engine Fails To Start
If the engine fails to start after you have followed the
“Normal Starting” procedure, it may be flooded. Push
the accelerator pedal all the way to the floor and hold it
there while cranking the engine. This should clear any
excess fuel in case the engine is flooded.
CAUTION!
To prevent damage to the starter, do not crank the
engine for more than 15 seconds at a time. Wait 10 to
15 seconds before trying again.
WARNING!
•Never pour fuel or other flammable liquids into
the throttle body air inlet opening in an attempt to
start the vehicle. This could result in a flash fire
causing serious personal injury.
(Continued)
WARNING! (Continued)
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transmission cannot be started this way. Unburned
fuel could enter the catalytic converter and once
the engine has started, ignite and damage the
converter and vehicle.
•If the vehicle has a discharged battery, booster
cables may be used to obtain a start from a booster
battery or the battery in another vehicle. This type
of start can be dangerous if done improperly. Refer
to “Jump Starting” in “What To Do In Emergen-
cies” for further information.
If the engine has been flooded, it may start to run, but not
have enough power to continue running when the key
fob is released. If this occurs, continue cranking with the
306 STARTING AND OPERATING

Key Ignition Park Interlock
This vehicle is equipped with a Key Ignition Park Inter-
lock which requires the shift lever to be placed in PARK
prior to turning the key fob to the LOCK position. The
key fob can only be removed from the ignition switch
when the ignition is in the LOCK position and once
removed the shift lever is locked in PARK.
Brake/Transmission Shift Interlock System
This vehicle is equipped with a Brake Transmission Shift
Interlock System (BTSI) that holds the shift lever in the
PARK position when the ignition switch is in the LOCK
position. To move the shift lever out of the PARK
position, the ignition switch must be turned to any other
switch position (ACC, ON, or START) (engine running or
not) and the brake pedal must be pressed.
Brake/Transmission Interlock Manual Override
Column Shifter – If Equipped
There is an override for the BTSI that allows you to move
the shift lever out of the PARK position if an electrical
system malfunction occurs (e.g., dead battery).
1. Turn the key fob to the ACC or ON position without
starting the engine.
2. Tilt the steering wheel to the full up position
3. Firmly set the parking brake.
4. Press and maintain firm pressure on the brake pedal.
5
STARTING AND OPERATING 309

5. Using a screwdriver or other suitable tool, press and
hold the override tab through the access port (ringed
circle) on the bottom of the steering column.6. Move the shift lever into the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
Center Console Shifter – If Equipped
There is an override for the BTSI that allows you to move
the shift lever out of the PARK position if an electrical
system malfunction occurs (e.g., dead battery). To access
the override, use a flat-bladed screwdriver to carefully
remove the override cover which is located on the right
of the shift lever gate.
1. Turn the key fob to the ACC or ON position without
starting the engine.
2. Firmly set the parking brake.
3. Press and maintain firm pressure on the brake pedal.
Interlock Manual Override
310 STARTING AND OPERATING

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for the purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws applying to
vehicles under tow must be observed.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the vehicle’s battery is discharged, see Brake/
Transmission Interlock Manual Override (under Starting
and Operating, Automatic Transmission) for instructions
on shifting the automatic transmission out of the PARK
position for towing.CAUTION!
•Do not attempt to use sling type equipment when
towing. When securing the vehicle to a flat bed
truck, do not attach to front or rear suspension
components. Damage to your vehicle may result
from improper towing.
•If the vehicle being towed requires steering, the
ignition must be in the ON/RUN or ACC position,
not in the LOCK position.
Towing Without the Ignition Key Fob
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. The only ap-
proved method of towing without the ignition key is
with a flatbed truck. Proper towing equipment is neces-
sary to prevent damage to the vehicle.
6
WHAT TO DO IN EMERGENCIES 509

the SELECT button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the Malfunction Indicator Light (MIL).
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine.
2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
520 MAINTAINING YOUR VEHICLE

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
•Disconnect the Ignition-Off Draw (IOD) fuse located in
the Integrated Power Module, located in the engine
compartment. The IOD cavity includes a snap-in re-
tainer that allows the fuse to be disconnected without
removing it from the fuse block.
•As an alternative to the above steps you may discon-
nect the negative cables from both batteries.
•Any time you store your vehicle or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.NOTE:
•When reinstalling the IOD fuse push firmly until fully
seated; the gauges in the instrument cluster will do a
full sweep when the ignition switch is turned to the
RUN position. This is a normal condition.
•When the vehicle is shipped from the factory, the IOD
fuse is in the up or extracted position. If the radio,
interior lamps, keyless entry or other features do not
work with the key OFF, check the position of the fuse
(or check to see if the fuse is blown) to ensure that it is
fully seated. When the IOD fuse is extracted, the
instrument cluster in the odometer window will dis-
playNO FUSE.”
558 MAINTAINING YOUR VEHICLE

Fluid Level Check...................543,544
Fluid Type........................543,572
Gear Ranges.......................... 311
Shifting............................. 316
Special Additives...................... 546
Torque Converter...................... 316
Axle Fluid..........................541,572
Axle Lubrication (Axle Fluid)............... 541
Back-Up Camera........................ 147
Battery............................... 526
Keyless Transmitter Replacement (RKE)....... 24
Saving Feature (Protection)............... 127
Belts, Seat............................40,84
Body Builders Guide....................... 6
Body Mechanism Lubrication............... 529
B-Pillar Location........................ 407
Brake Assist System...................... 392
Brake Control System, Electronic............. 390Brake Fluid.........................539,572
Brake System........................390,539
Anti-Lock (ABS)....................... 390
Fluid Check.......................... 539
Master Cylinder....................... 539
Parking............................. 387
Warning Light........................ 215
Brake/Transmission Interlock............... 309
Break-In Recommendations, New Vehicle........ 81
Bulb Replacement....................... 559
Bulbs, Light..........................86,559
Cab Top Clearance Lights.................. 565
Calibration, Compass..................... 237
Camera, Rear........................... 147
Camper............................... 193
Capacities, Fluid........................ 569
Caps, Filler
Oil (Engine).......................... 524
10
INDEX 603

Transmission........................... 311
Automatic...................... 311,316,543
Fluid............................... 572
Maintenance......................... 543
Shifting............................. 308
Transmitter Battery Service
(Remote Keyless Entry).................... 24
Transmitter, Garage Door Opener (HomeLink) . . 151
Transmitter Programming (Remote Keyless Entry) . 20
Transmitter, Remote Keyless Entry (RKE)........ 20
Tread Wear Indicators.................... 416
Trip Odometer.......................210,211
Turn Signals...................128,206,559,562
UCI Connector.......................270,276
Uconnect™ (Hands-Free Phone)............. 100
Uniform Tire Quality Grades................ 598
Universal Consumer Interface
(UCI) Connector......................270,276Universal Transmitter..................... 151
Untwisting Procedure, Seat Belt.............. 47
Utility Rails, Rear Cargo Area............... 191
Variance, Compass....................... 237
Vehicle Identification Number (VIN)............ 7
Vehicle Loading......................408,446
Vehicle Modifications/Alterations.............. 7
Vehicle Storage.......................296,558
Video Entertainment System™
(Rear Seat Video System).................. 282
Voice Recognition System (VR).............. 100
Voltmeter............................. 215
Warning Lights
(Instrument Cluster Description)..........202,206
Warnings and Cautions..................... 6
Warranty Information..................... 596
Washers, Windshield..................130,530
10
INDEX 619
