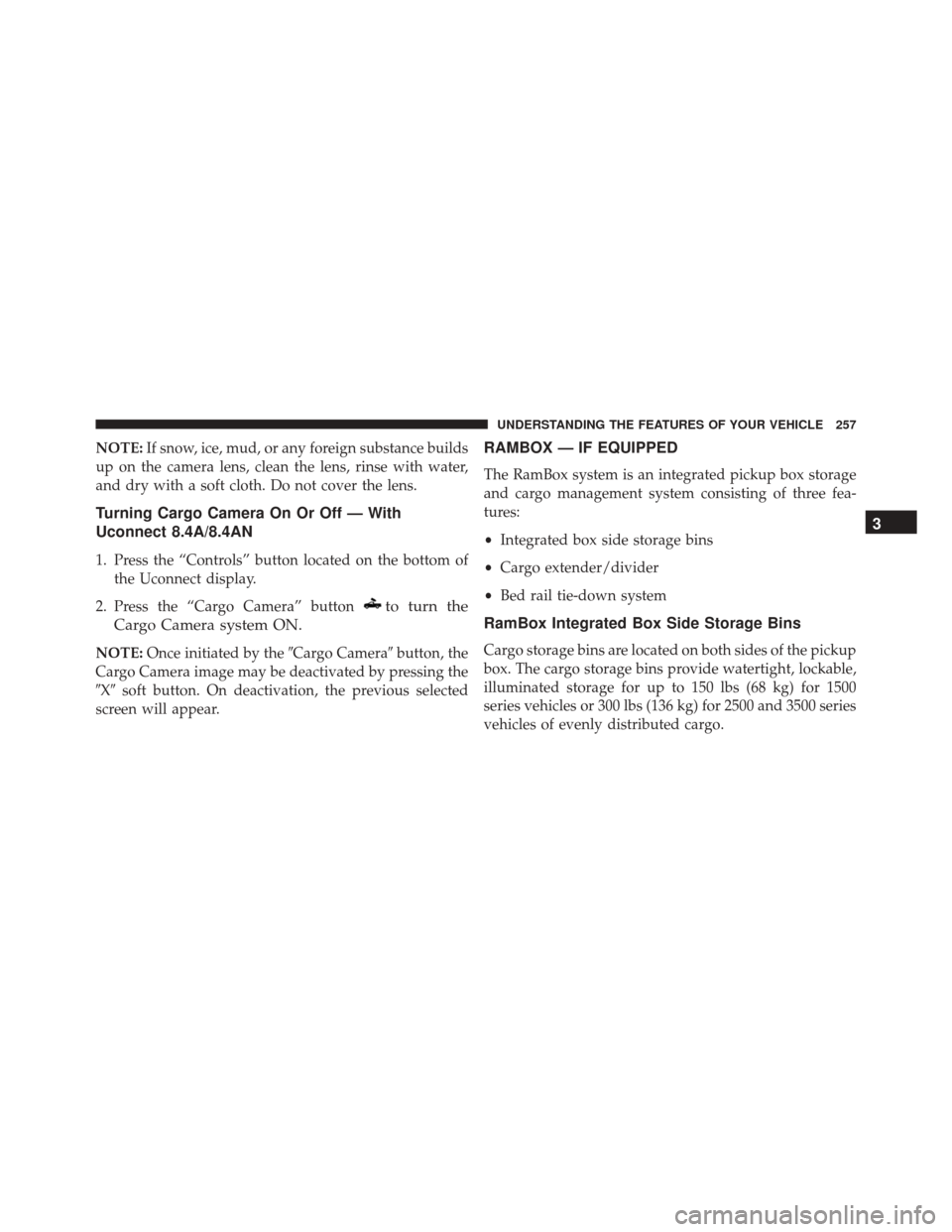

NOTE:If snow, ice, mud, or any foreign substance builds
up on the camera lens, clean the lens, rinse with water,
and dry with a soft cloth. Do not cover the lens.
Turning Cargo Camera On Or Off — With
Uconnect 8.4A/8.4AN
1. Press the “Controls” button located on the bottom of the Uconnect display.
2. Press the “Cargo Camera” button
to turn the
Cargo Camera system ON.
NOTE: Once initiated by the Cargo Camerabutton, the
Cargo Camera image may be deactivated by pressing the
X soft button. On deactivation, the previous selected
screen will appear.
RAMBOX — IF EQUIPPED
The RamBox system is an integrated pickup box storage
and cargo management system consisting of three fea-
tures:
• Integrated box side storage bins
• Cargo extender/divider
• Bed rail tie-down system
RamBox Integrated Box Side Storage Bins
Cargo storage bins are located on both sides of the pickup
box. The cargo storage bins provide watertight, lockable,
illuminated storage for up to 150 lbs (68 kg) for 1500
series vehicles or 300 lbs (136 kg) for 2500 and 3500 series
vehicles of evenly distributed cargo.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 257

CAUTION!
Failure to follow the following items could cause
damage to the vehicle:
•Assure that all cargo inside the storage bins is
properly secured.
• Do not exceed cargo weight rating of 150 lb (68 kg)
1500 series vehicles or 300 lbs (136 kg) for 2500 and
3500 series vehicles per bin.
To open a storage bin with the RamBox unlocked, push
and release the button located on the lid. The RamBox lid
will open upward to allow hand access. Lift the lid to
fully open.
NOTE: RamBox will not open when the pushbutton is
pushed if the RamBox is locked.
RamBox Cargo Storage Bins
258 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The interior of the RamBox will automatically illuminate
when the lid is opened. In addition to the automatic
illumination switch, there is a manual on/off switch
located at the rear of each storage bin. Pushing the switch
once will turn off the bin lights, pushing the switch again
will turn the lights back on.CAUTION!
Leaving the lid open for extended periods of time
could cause the vehicle battery to discharge. If the lid
is required to stay open for extended periods of time,
(Continued)
RamBox Pushbutton And LockRamBox Light Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 259

CAUTION!(Continued)
it is recommended that the bin lights be turned off
manually using the on/off switch.
Cargo bins feature two removable drain plugs (to allow
water to drain from bins). To remove plug, pull up on the
edge. To install push plug downward into drain hole.
NOTE: Provisions are provided in the bins for cargo
dividers and shelf supports. These accessories (in addi-
tion to other RamBox accessories) are available from
MOPAR.
Locking And Unlocking RamBox
Push and release the LOCK or UNLOCK button on the
RKE transmitter to lock and unlock all doors, the tailgate
and the RamBox (if equipped). Refer to “Remote Keyless
Entry” for further details. The RamBox storage bins can
be locked using the vehicle key. To lock and unlock the storage bin, insert the key into the keyhole on the
pushbutton and turn clockwise to lock or counterclock-
wise to unlock. Always return the key to the upright
(vertical) position before removing the key from the
pushbutton.
CAUTION!
•
Ensure cargo bin lids are closed and latched before
moving or driving vehicle.
• Loads applied to the top of the bin lid should be
minimized to prevent damage to the lid and
latching/hinging mechanisms.
• Damage to the RamBox bin may occur due to
heavy/sharp objects placed in bin that shift due to
vehicle motion. In order to minimize potential for
damage, secure all cargo to prevent movement and
protect inside surfaces of bin from heavy/sharp
objects with appropriate padding.
260 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:In the event of an individual being locked inside
the storage bin, the storage bin cover can be opened from
inside of the bin by pulling on the glow-in-the-dark lever
attached to the storage bin cover latching mechanism.
Bed Extender — If Equipped
The bed extender has three functional positions:
• Storage Position
• Divider Position
• Extender Position
Storage Position
The storage position for the bed extender is at the front of
the truck bed which maximizes the bed cargo area when
not in use.
To install the bed extender into the storage position,
perform the following: 1. Make sure the center handle is unlocked using the
vehicle key and rotate the center handle vertically to
release the extender side gates.
Center Handle And Lock
1 — Center Handle Lock
2 — Handle
262 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

5. Lock the center handle using the vehicle key to securethe panel into place.
Divider Position
The divider position is intended for managing your cargo
and assisting in keeping cargo from moving around the
bed. There are 11 divider slots along the bed inner panels
which allow for various positions to assist in managing
your cargo.
To install the bed extender into a divider position per-
form the following:
1. Make sure the center handle is unlocked using thevehicle key and rotate the center handle vertically to
release the extender side gates.
Side Gates Closed
264 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. With the side gates open, position the extender so theoutboard ends align with the intended slots in the
sides of the bed. 3. Rotate the side gates closed so that the outboard ends
are secured into the intended slots of the bed.
4. Rotate the center handle horizontally to secure the side gates in the closed position.
Center Handle And Lock
1 — Center Handle Lock
2 — Handle
Aligning Gate To Slots
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 265

5. Lock the center handle to secure the panel into place.
Extender Position
The extender position allows you to load the bed of the
truck beyond the tail gate. The bed extender will add an
additional 15 in (38 cm) in the back of the truck whenadditional cargo room is needed. The extender position
utilizes a locating pin and rotating handle located on both
sides of the truck bed near the tailgate.
Side Gates Closed
Extender Position
266 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To install the bed extender into the extender position
perform the following:
1. Lower the tailgate.
2. Make sure the center handle is unlocked and rotate thecenter handle vertically in order to release the ex-
tender side gates.
3. Fit the end of the side gate ends onto the pin and handle.
Extender Installation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 267

4. Rotate the handles to the horizontal position to secureinto place.WARNING!
To reduce the risk of potential injury or property
damage:
•Cargo must be secured.
• Do not exceed cargo load rating of your vehicle.
• Secure all loads to truck utilizing cargo tie downs.
• Extender should not be used as cargo tie down.
• When vehicle is in motion do not exceed 150 lbs
(68 kg) load on the tailgate.
• The bed extender is not intended for off road use.
• When not in use, the extender/divider should be in
stowed or divider position with the tailgate closed.
• When in use all handles are to be in the locked
position.
Locking Tab
