Ram 2500 2019 Owner's Manual

GETTING TO KNOW YOUR VEHICLE 109
4. Watch for the HomeLink indicator to change flash rates.When it changes, it is programmed. It may take up to 30
seconds or longer in rare cases. The garage door may
open and close while you are programming.
5. Press and hold the programmed HomeLink button and observe the indicator light.
NOTE: •If the indicator light stays on constantly, programmingis complete and the garage door/device should acti -
vate when the HomeLink button is pressed.
• To program the two remaining HomeLink buttons, repeat each step for each remaining button. DO NOT
erase the channels.
If you unplugged the garage door opener/device for
programming, plug it back in at this time. Reprogramming A Single HomeLink Button (Canadian/
Gate Operator)
To reprogram a channel that has been previously trained,
follow these steps:
1. Cycle the ignition to the ON/RUN position.
2. Press and hold the desired HomeLink button until the
indicator light begins to flash after 20 seconds. Do not
release the button.
3. Without releasing the button, proceed with “Canadian/ Gate Operator Programming” step 2 and follow all
remaining steps.
2

110 GETTING TO KNOW YOUR VEHICLE
Using HomeLink

To operate, push and release the programmed HomeLink
button. Activation will now occur for the programmed device
(i.e. garage door opener, gate operator, security system, entry
door lock, home/office lighting, etc.) The hand-held transmitter
of the device may also be used at any time.

Security
It is advised to erase all channels before you sell or turn in
your vehicle.
To do this, push and hold the two outside buttons for 20
seconds until the orange indicator flashes. Note that all chan-
nels will be erased. Individual channels cannot be erased.
The HomeLink Universal Transceiver is disabled when the
Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLink, here are
some of the most common solutions:
• Replace the battery in the Garage Door Opener hand-held transmitter. • Push the LEARN button on the Garage Door Opener to
complete the training for a Rolling Code.
• Did you unplug the device for programming and remember to plug it back in?
If you have any problems, or require assistance, please call
toll-free1-800-355-3515 or, on the Internet at HomeLink.com
for information or assistance.
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and with
Innovation, Science and Economic Development Canada
license-exempt RSS standard(s). Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

NOTE:
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.

GETTING TO KNOW YOUR VEHICLE 111
INTERNAL EQUIPMENT
Storage
Glove Compartment
The glove compartment is located on the passenger side of
the instrument panel and features both an upper and lower
storage area.
NOTE:
Not all vehicles are equipped with a door over the upper
storage area.Glove Compartment
If equipped with a covered upper glove compartment, push
the release button to open.
To open the lower glove compartment, pull the release
handle.
1 — Upper Glove Compartment Release Button (If Equipped)
2 — Upper Glove Compartment
3 — Lower Glove Compartment
2

112 GETTING TO KNOW YOUR VEHICLE
Door Storage
Front Door Storage — If Equipped
Storage areas and bottle holders (driver’s side only) are
located in the door trim panels.Front Door Storage Rear Door Storage — If Equipped
Storage compartments are located in both the driver and
passenger rear door trim panels.
Rear Door Storage

GETTING TO KNOW YOUR VEHICLE 113
Center Storage Compartment — If Equipped
The center storage compartment is located between the
driver and passenger seats. The storage compartment
provides an armrest and contains both an upper and lower
storage area.Center Storage Compartment Pull on the upper handle on the front of the armrest to raise
the cover. The upper storage area contains a USB power
outlet located at the rear of the area that can be used to power
small electrical devices, refer to “Electrical Power Outlets”
for further information.WARNING!
• This armrest is not a seat. Anyone seated on the armrest could be seriously injured during vehicle operation, or
a collision. Only use the center seating position when
the armrest is fully upright.
• In a collision, the latch may open if the total weight of the items stored exceeds about 10 lbs (4.5 kg). These
items could be thrown about endangering occupants of
the vehicle. Items stored should not exceed a total of 10
lbs (4.5 kg).
2

114 GETTING TO KNOW YOUR VEHICLE
With the upper lid closed, pull on the lower handle to open
the lower storage bin. The lower bin contains a power
inverter outlet located in the forward portion of the lower
bin. There is also a “fill line” located long the rear inside wall
of the lower bin. Contents above the “fill line” may interfere
with cupholder placement if equipped with a premium
center console.
Forward Portion Of Lower Storage Bin Premium Center Console — If Equipped
The premium center console is equipped with two front
storage bins located in front of the center storage compart
-
ment. These storage bins may be equipped with tandem
doors. Push the front bin to access the cupholders. Or push
the rear bin to access the coinholder/small storage bin.
Center Console Tandem Doors— If Equipped
WARNING!
Do not operate this vehicle with a console compartment
lid in the open position. Driving with the console
compartment lid open may result in injury in a collision.
1 — Push Front Bin Access
2 — Push Rear Bin Access

GETTING TO KNOW YOUR VEHICLE 115
Tandem Doors Open PositionPush the release button at the front of the cupholder bin to
slide tray rearward for access of front lower storage bin, or
forward to access the rear lower storage bin with the center
console lid in the open position.
Push Release Button To Slide Tray
1 — Front Bin Open
2 — Rear Bin Open
2

116 GETTING TO KNOW YOUR VEHICLE

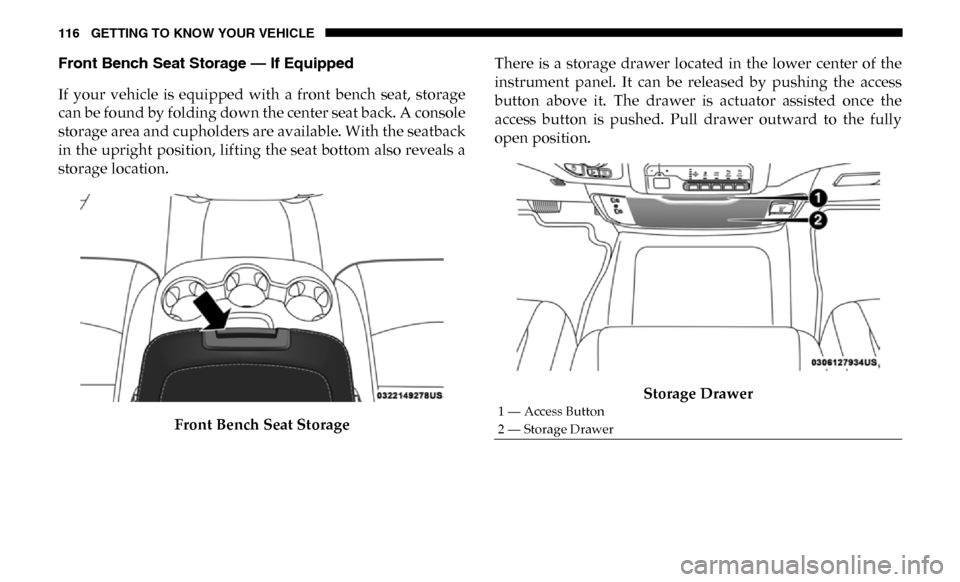

Front Bench Seat Storage — If Equipped
If your vehicle is equipped with a front bench seat, storage
can be found by folding down the center seat back. A console
storage area and cupholders are available. With the seatback
in the upright position, lifting the seat bottom also reveals a
storage location.Front Bench Seat Storage There is a storage drawer located in the lower center of the
instrument panel. It can be released by pushing the access
button above it. The drawer is actuator assisted once the
access button is pushed. Pull drawer outward to the fully
open position.
Storage Drawer
1 — Access Button
2 — Storage Drawer

GETTING TO KNOW YOUR VEHICLE 117
Seatback Storage
Located in the back of both the driver and passenger front
seats are pockets that can be used for storage.Driver’s Side Seatback Storage Second Row In-Floor Storage Bin — If Equipped
In-floor storage bins are located in front of the second row
seats and can be used for extra storage. The storage bins have
removable liners that can be easily removed for cleaning.
To open the in-floor storage bin, lift upward on the handle of
the latch and open the lid.
In-Floor Storage Bin Latch
2

118 GETTING TO KNOW YOUR VEHICLE
NOTE:
The front seat may have to be moved forward to fully open
the lid.Opened Storage Bin
Each storage bin also contains two hooks for securing cargo.
These hooks should be used to secure loads safely when the
vehicle is moving. In-Floor Storage Bin Hooks
NOTE:
The maximum load limit for each hook is 250 lbs (113 kg).
