fold seats Ram 2500 2019 Owner's Manual

GETTING TO KNOW YOUR VEHICLE 119
Storage Bin (Regular Cab)
The storage bin is located behind the front seats and runs the
length of the cab.Storage Bin Fold Flat Load Floor — If Equipped
Crew Cab models with a 60/40 rear seat may be equipped
with a folding load floor.
WARNING!
Do not operate the vehicle with loose items stored on the
load floor. While driving or in an accident you may
experience abrupt stopping, rapid acceleration, or sharp
turns. Loose objects stored on the load floor may move
around with force and strike occupants, resulting in
serious or fatal injury. 2

122 GETTING TO KNOW YOUR VEHICLE
Below Rear Seat Storage (Crew Cab)
The Crew Cab models provide additional storage under the
rear seats. Lift the seats to access the storage compartment.
To open the storage compartments, unsnap the securing
snap located at either side of the load floor and lift upward
on the fold flat lid.Crew Cab Storage
NOTE:
For more information on storage and the fold flat floor, refer
to “Fold Flat Load Floor” in this section.Cupholders
Front Seat Cupholders
For vehicles equipped with a center console, two cupholders
are located in front of the console storage bin.
Front Cupholders
NOTE:
If the vehicle is equipped with a premium center console
with double (tandem) doors, push the front bin door to
access the cupholders.

GETTING TO KNOW YOUR VEHICLE 123
Vehicles Equipped With 40/20/40 Seats
The cupholders are located on the backside of the center
portion of the front seat (20). Fold down the center section of
the front seat to gain access to the cupholders.Front Cupholders With Bench Seat Rear Cupholders — If Equipped
Some vehicles are equipped with rear cupholders located in
the center armrest.
Rear Armrest Cupholder
2

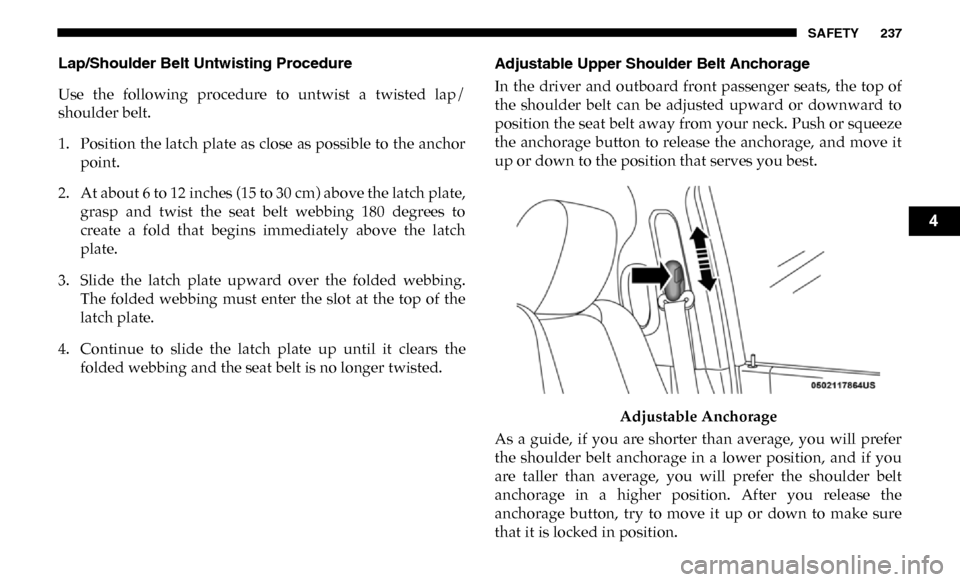

SAFETY 237
Lap/Shoulder Belt Untwisting Procedure
Use the following procedure to untwist a twisted lap/
shoulder belt.
1. Position the latch plate as close as possible to the anchorpoint.
2. At about 6 to 12 inches (15 to 30 cm) above the latch plate, grasp and twist the seat belt webbing 180 degrees to
create a fold that begins immediately above the latch
plate.
3. Slide the latch plate upward over the folded webbing. The folded webbing must enter the slot at the top of the
latch plate.
4. Continue to slide the latch plate up until it clears the folded webbing and the seat belt is no longer twisted. Adjustable Upper Shoulder Belt Anchorage
In the driver and outboard front passenger seats, the top of
the shoulder belt can be adjusted upward or downward to
position the seat belt away from your neck. Push or squeeze
the anchorage button to release the anchorage, and move it
up or down to the position that serves you best.
Adjustable Anchorage
As a guide, if you are shorter than average, you will prefer
the shoulder belt anchorage in a lower position, and if you
are taller than average, you will prefer the shoulder belt
anchorage in a higher position. After you release the
anchorage button, try to move it up or down to make sure
that it is locked in position.
4

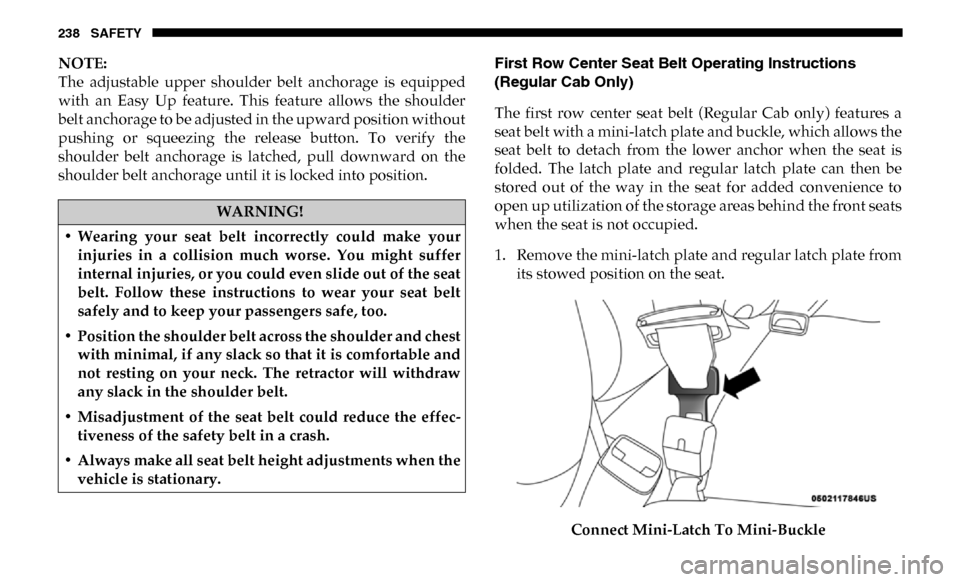

238 SAFETY
NOTE:
The adjustable upper shoulder belt anchorage is equipped
with an Easy Up feature. This feature allows the shoulder
belt anchorage to be adjusted in the upward position without
pushing or squeezing the release button. To verify the
shoulder belt anchorage is latched, pull downward on the
shoulder belt anchorage until it is locked into position.First Row Center Seat Belt Operating Instructions
(Regular Cab Only)
The first row center seat belt (Regular Cab only) features a
seat belt with a mini-latch plate and buckle, which allows the
seat belt to detach from the lower anchor when the seat is
folded. The latch plate and regular latch plate can then be
stored out of the way in the seat for added convenience to
open up utilization of the storage areas behind the front seats
when the seat is not occupied.
1. Remove the mini-latch plate and regular latch plate from
its stowed position on the seat.
Connect Mini-Latch To Mini-Buckle
WARNING!
• Wearing your seat belt incorrectly could make your injuries in a collision much worse. You might suffer
internal injuries, or you could even slide out of the seat
belt. Follow these instructions to wear your seat belt
safely and to keep your passengers safe, too.
• Position the shoulder belt across the shoulder and chest with minimal, if any slack so that it is comfortable and
not resting on your neck. The retractor will withdraw
any slack in the shoulder belt.
• Misadjustment of the seat belt could reduce the effec -
tiveness of the safety belt in a crash.
• Always make all seat belt height adjustments when the vehicle is stationary.

682
Enhanced Accident Response Feature ......................... 255, 498
Entry System, Illuminated ....................................................... 76
Ethanol...................................................................................... 568
Exhaust Gas Cautions .................................................... 286, 570
Exhaust System ............................................................... 286, 520
Exterior Lighting ....................................................................... 67 Exterior Lights ................................................................... 67, 289 F
Filters Air Cleaner ........................................................................... 509Air Conditioning ........................................................... 93, 512
Engine Oil..................................................................... 509, 572
Engine Oil Disposal ............................................................ 508
Flashers Turn Signals ........................................................... 71, 191, 289
Flash-To-Pass ............................................................................. 69
Flat Tire Changing .................................................. 469, 531, 548
Flat Tire Stowage .................................................... 483, 531, 548
Fluid Capacities ....................................................................... 571
Fluid Leaks ............................................................................... 289
Fluid Level Checks Brake ..................................................................................... 527
Fluid, Brake .............................................................................. 574
Fluids And Lubricants ........................................................... 572
Fog Lights........................................................................... 71, 451
Fold Flat Load Floor ............................................................... 119 Fold-Flat Seats ...........................................................................40
Forward Collision Warning................................................... 216
Four Wheel Drive .................................................................... 309
Four-Way Hazard Flasher .....................................................440
Freeing A Stuck Vehicle .........................................................494
Front Axle (Differential) .........................................................529
Fuel ............................................................................................567 Adding ..................................................................................408
Additives ..............................................................................568
Clean Air...............................................................................568
Ethanol ..................................................................................568
Filler Cap (Gas Cap)............................................................ 410
Gasoline ................................................................................567Light ...................................................................................... 186
Materials Added ..................................................................568
Methanol...............................................................................568
Octane Rating...............................................................567, 572Requirements ...............................................................567, 571Tank Capacity ......................................................................571
Fuses..........................................................................................457 G
Garage Door Opener (HomeLink) ........................................104
Gas Cap (Fuel Filler Cap) .......................................................410
Gasoline, Clean Air .................................................................568
Gasoline, Reformulated..........................................................568
General Information ...............................................................230

688
Schedule, Maintenance .......................................................... 499
Seat Belt Reminder.................................................................. 179
Seat Belts .......................................................................... 231, 287Adjustable Shoulder Belt ................................................... 237
Adjustable Upper Shoulder Anchorage .......................... 237
Adjustable Upper Shoulder Belt Anchorage................... 237
Automatic Locking Retractor (ALR) ................................ 243
Child Restraints ................................................................... 258Energy Management Feature ............................................ 242
Extender................................................................................ 241
Front Seat...................................................................... 231, 235
Inspection ............................................................................. 287
Lap/Shoulder Belt Operation ........................................... 235
Lap/Shoulder Belt Untwisting ......................................... 237Operating Instructions ....................................................... 235
Pregnant Women................................................................. 242
Pretensioners........................................................................ 242
Reminder .............................................................................. 232
Seat Belt Extender ............................................................... 241Seat Belt Pretensioner ......................................................... 242
Seat Belt Reminder .............................................................. 232Untwisting Procedure ........................................................ 237
Seat Belts Maintenance........................................................... 562
Seats ................................................................................ 40, 42, 44 Adjustment....................................................................... 40, 44Easy Entry .............................................................................. 48 Folding Floor ........................................................................119
Head Restraints .....................................................................51
Memory...................................................................................45
Power ......................................................................................43
Rear Folding ...........................................................................40
Reclining Rear ........................................................................43
Tilting ......................................................................................40
Security Alarm ...................................................................32, 181
Selection Of Coolant (Antifreeze) .........................................572
Sentry Key Key Programming .................................................................30
Sentry Key (Immobilizer).........................................................30
Sentry Key Replacement ..........................................................31
Service Assistance ...................................................................673
Service Contract.......................................................................675
Service Manuals ......................................................................677
Shifting...................................................................................... 299 Automatic Transmission ....................................................301
Transfer Case .......................................................................316Transfer Case, Shifting Into Transfer Case
Neutral (N) ...........................................................................433
Transfer Case, Shifting Out Of Transfer Case
Neutral (N) ...........................................................................435
Side Steps, Power ......................................................................35
Signals, Turn ..............................................................71, 191, 289
Siri..............................................................................................666
