88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

LIGHTS
The headlight switch is located on the left side of the
instrument panel, next to the steering wheel. The head-
light switch controls the operation of the headlights,
parking lights, instrument panel lights, cargo lights and
fog lights (if equipped).Your vehicle is equipped with plastic headlight and fog
light (if equipped) lenses that are lighter and less suscep-
tible to stone breakage than glass lights. Plastic is not as
scratch resistant as glass and therefore different lens
cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
CAUTION!
Do not use abrasive cleaning components, solvents,
steel wool or other abrasive materials to clean the
lenses.
Headlight Switch Location
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:The engine must be running before the head-
lights will turn on in the Automatic Mode.
Headlight Delay
To aid in your exit, your vehicle is equipped with a
headlight delay that will leave the headlights on for
approximately 90 seconds. This delay is initiated when
the ignition is turned OFF while the headlight switch is
on, and then the headlight switch is cycled off. Headlight
delay can be cancelled by either turning the headlight
switch on then off, or by turning the ignition ON.
The headlight delay time is programmable on vehicles
equipped with an Electronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle Information Center
(EVIC)/Customer-Programmable Features (SETUP)” in
“Understanding Your Instrument Panel” for further
information.
Parking Lights and Panel Lights
To turn on the parking lights and instrument panel
lights, rotate the headlight switch clockwise to the
parking light symbol. To turn off the parking lights,
rotate the headlight switch back to the O (Off) position.
Fog Lights — If Equipped
The fog lights are turned on by rotating the headlight
switch to the parking light or headlight position and
pushing in the headlight rotary control.
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The fog lights will operate only when the parking lights
are on or when the vehicle headlights are on low beam.
An indicator light located in the instrument cluster will
illuminate when the fog lights are on. The fog lights willturn off when the switch is pushed a second time, when
the headlight switch is rotated to the off position, or the
high beam is selected.
Interior Lights
Courtesy and dome lights are turned on when the front
doors are opened, when the dimmer control (rotating
wheel on the bottom of the switch) is rotated to the far
right detent position, or if equipped, when the UNLOCK
button is pressed on the Remote Keyless Entry (RKE)
transmitter. When a door is open and the interior lights
are on, rotating the dimmer control all the way left, to the
OFF detent, will cause all the interior lights to go out.
This is also known as thePartymode because it allows
the doors to stay open for extended periods of time
without discharging the vehicle’s battery.
Fog Light Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125

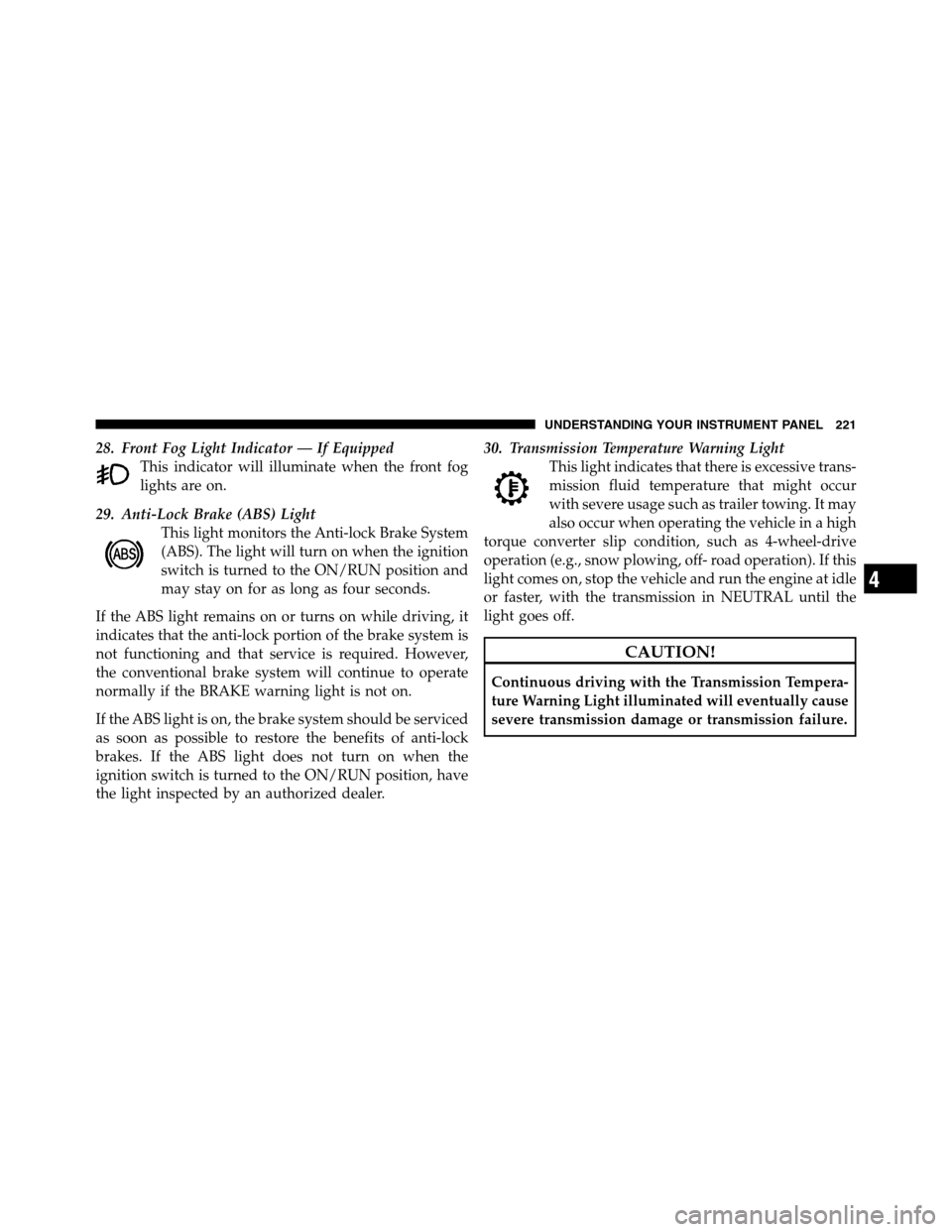

28. Front Fog Light Indicator — If Equipped
This indicator will illuminate when the front fog
lights are on.
29. Anti-Lock Brake (ABS) Light
This light monitors the Anti-lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON/RUN position and
may stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the anti-lock portion of the brake system is
not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of anti-lock
brakes. If the ABS light does not turn on when the
ignition switch is turned to the ON/RUN position, have
the light inspected by an authorized dealer.30. Transmission Temperature Warning Light
This light indicates that there is excessive trans-
mission fluid temperature that might occur
with severe usage such as trailer towing. It may
also occur when operating the vehicle in a high
torque converter slip condition, such as 4-wheel-drive
operation (e.g., snow plowing, off- road operation). If this
light comes on, stop the vehicle and run the engine at idle
or faster, with the transmission in NEUTRAL until the
light goes off.
CAUTION!
Continuous driving with the Transmission Tempera-
ture Warning Light illuminated will eventually cause
severe transmission damage or transmission failure.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 221

NOTE:In many temperature positions, the BI-LEVEL
mode is designed to provide cooler air out of the panel
outlets and warmer air from the floor outlets.
Floor Mode
Air comes from the floor outlets. A slight amount of
air is directed through the defrost and side window
demister outlets.
Mix Mode
Air comes from the floor, defrost and side window
demist outlets. This mode works best in cold or
snowy conditions. It allows you to stay comfortable
while keeping the windshield clear.
Defrost Mode
Air comes from the windshield and side window
demist outlets. Use Defrost mode with maximum
blower and temperature settings for best windshield and
side window defrosting.NOTE:While operating in the other modes, the system
will not automatically sense the presence of fog, mist or
ice on the windshield. Defrost mode must be manually
selected to clear the windshield and side glass.
The Air Conditioning (A/C) button allows the
operator to manually activate or deactivate the air
conditioning system. When in A/C mode and the
ATC is set to a cool temperature, dehumidified air flows
through the air outlets. If Economy mode is desired, press
the A/C button to turn off the A/C mode in the ATC
display and deactivate the A/C system.
NOTE:
•If the system is in Mix, Bi-Level or Defrost Mode, the
A/C can be turned off, but the A/C system shall
remain active to prevent fogging of the windows.
•If fog or mist appears on the windshield or side glass,
select Defrost mode and increase blower speed.
294 UNDERSTANDING YOUR INSTRUMENT PANEL

WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle is equipped with plastic headlights and fog
lights (if equipped) that are lighter and less susceptible to
stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments which may
scratch the elements. When cleaning the rearview mirror,
spray cleaner on the towel or rag that you are using. Do
not spray cleaner directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
550 MAINTAINING YOUR VEHICLE

REPLACEMENT BULBS
LIGHT BULBS – Interior Bulb No.
Overhead Console Lamps............... TS212-2
Dome Lamp...........................7679
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
LIGHT BULBS – Exterior Bulb No.
Backup................................ 921
Center High Mounted Stop Lamp (CHMSL)..... 921
Fog Lamp.............................9145
Dual Headlamp......................... H13
Quad Headlamp – Low Beam............... H11
Quad Headlamp – High Beam..............9005
Side Marker (Dual Headlamp).............3157KSide Marker (Quad Headlamp)............3157NA
Rear License Plate Lamp................... 194
Rear Cargo Lamp........................ 921
Rear Tail/Turn and Stop..................3157K
Cab Roof Marker Lamps.................194NA
Rear Lamp Bar ID Marker Lamp.............. 194
Side Marker Lamps (Dual Rear Wheels)........ 194
BULB REPLACEMENT
Dual or Quad Headlamp/Front Park and Turn
Signal — If Equipped
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Remove the four plastic push-in fasteners that secure
the upper radiator seal to the grille support and both
fender ledges.
7
MAINTAINING YOUR VEHICLE 559

Exhaust Gas Caution...................83,440
Exhaust System.......................83,531
Exterior Lighting........................ 123
Exterior Lights.......................... 86
Filters
Air Cleaner.......................... 526
Engine Oil........................525,571
Engine Oil Disposal.................... 525
Flashers
Turn Signal......................86,128,206
Flat Tire Stowage........................ 500
Flexible Fuel Vehicles
Cruising Range....................... 443
Engine Oil........................... 443
Fuel Requirements..................440,442
Maintenance......................... 444
Replacement Parts..................... 443
Starting............................. 443Flooded Engine Starting................... 306
Fluid, Brake........................... 572
Fluid Capacities......................... 569
Fluid Leaks............................. 86
Fluid Level Checks
Automatic Transmission................. 544
Brake.............................. 539
Power Steering........................ 386
Fluids, Lubricants and Genuine Parts.......... 571
Fog Lights.......................124,221,562
Fold Flat Load Floor..................... 177
Four Wheel Drive....................... 323
Four-Way Hazard Flasher.................. 482
Freeing A Stuck Vehicle................... 505
Front Axle (Differential)................... 541
Fuel................................. 435
Adding............................. 444
Conserving........................231,233
Ethanol............................. 437
10
INDEX 607

Center Mounted Stop................... 564
Check Engine (Malfunction Indicator)........ 219
Courtesy/Reading..................... 149
Daytime Running...................... 127
Electronic Stability Program (ESP) Indicator . . . 399
Exterior.............................. 86
Fog ..........................124,221,562
Four-Wheel Drive Indicator............... 327
Hazard Warning Flasher................. 482
Headlights........................... 123
High Beam........................129,215
High Beam Indicator.................... 215
High Beam/Low Beam Select............. 129
Illuminated Entry....................... 19
Instrument Cluster..................202,206
Interior..........................125,149
Lights On Reminder.................... 127
Low Fuel............................ 214
Oil Pressure.......................... 217Passing............................. 128
Seat Belt Reminder..................... 222
Security Alarm (Theft Alarm).............. 210
Service............................. 559
Side Marker.......................... 568
Theft Alarm (Security Alarm).............. 210
Tire Pressure Monitoring (TPMS)........217,424
Traction Control....................... 399
Transfer Case......................... 327
Turn Signal...................86,128,559,562
Warning (Instrument Cluster Description) . . 202,206
Limited-Slip Differential................360,542
Loading Vehicle......................... 446
Tires ............................... 407
Locks................................. 29
Child Protection........................ 33
Door................................ 29
Power Door........................... 30
Low Tire Pressure System.................. 424
10
INDEX 611
