Ram 3500 2016 Owner's Manual

Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO),
follow these safety tips:
•Do not run the engine in a closed garage or in
confined areas any longer than needed to move
your vehicle in or out of the area.
• If you are required to drive with the trunk/liftgate/
rear doors open, make sure that all windows are
closed and the climate control BLOWER switch is
set at high speed. DO NOT use the recirculation
mode.
(Continued)
WARNING! (Continued)
•If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling
controls to force outside air into the vehicle. Set the
blower at high speed.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 119

Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays, and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify the
system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding seat
belt or retractor condition, replace the seat belt.
Air Bag Warning Light
The Air Bag warning lightwill turn on for four to
eight seconds as a bulb check when the ignition switch
is first turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while driving, have the system inspected at an authorized dealer as
soon as possible. This light will illuminate with a
single chime when a fault with the Air Bag Warning
Light has been detected, it will stay on until the fault
is cleared. If the light comes on intermittently or
remains on while driving, have an authorized dealer
service the vehicle immediately. Refer to “Occupant
Restraints” in “Things To Know Before Starting Your
Vehicle” for further information.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is inoper-
able.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
120 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

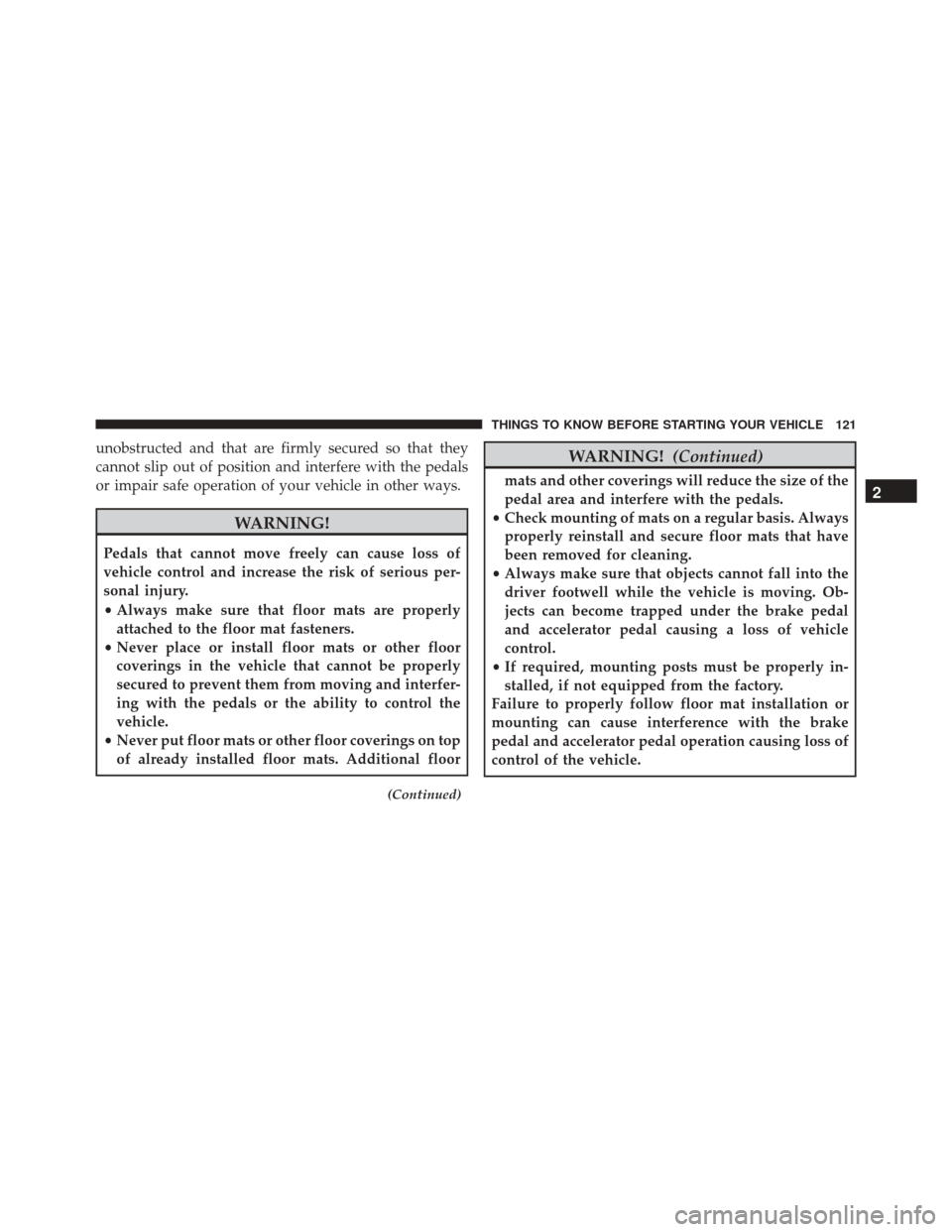

unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
•Always make sure that floor mats are properly
attached to the floor mat fasteners.
• Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and interfer-
ing with the pedals or the ability to control the
vehicle.
• Never put floor mats or other floor coverings on top
of already installed floor mats. Additional floor
(Continued)
WARNING! (Continued)
mats and other coverings will reduce the size of the
pedal area and interfere with the pedals.
• Check mounting of mats on a regular basis. Always
properly reinstall and secure floor mats that have
been removed for cleaning.
• Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
• If required, mounting posts must be properly in-
stalled, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss of
control of the vehicle.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 121

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel bolts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected. The cause
should be located and corrected immediately.
122 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ........................... .130
▫ Inside Day/Night Mirror — If Equipped . . . .130
▫ Automatic Dimming Mirror — If Equipped . . .131
▫ Automatic Dimming Mirror With Rear View
Camera Display — If Equipped ...........138
▫ Outside Mirrors ..................... .138
▫ Outside Mirrors Folding Feature ...........139
▫ Tilt Mirrors In Reverse — If Equipped .......140
▫ Power Folding Outside Mirrors For Standard And
Trailer Tow — If Equipped ..............140▫
Power Mirrors — If Equipped ............142
▫ Heated Mirrors — If Equipped ...........144
▫ Driver’s Outside Automatic Dimming Mirror — If
Equipped .......................... .144
▫ Trailer Towing Mirrors — If Equipped ......144
▫ Illuminated Vanity Mirror — If Equipped . . . .146
▫ “Slide-On-Rod” Features Of Sun Visor — If
Equipped .......................... .146
 SEATS ............................. .147
▫ Driver’s Power Seat — If Equipped ........1473

▫Passenger ’s Power Seat — If Equipped ......149
▫ Power Lumbar — If Equipped ............150
▫ Heated Seats — If Equipped .............150
▫ Ventilated Seats — If Equipped ............153
▫ Manual Seat Adjuster — If Equipped .......154
▫ 40-20-40 Front Bench Seat — If Equipped . . . .155
▫ Mega Cab Rear Seat Features .............156
▫ Head Restraints ..................... .160
 DRIVER MEMORY SEAT — IF EQUIPPED . . . .164
▫ Programming The Memory Feature .........164
▫ Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory .................165
▫ Memory Position Recall .................166 ▫
Easy Entry/Exit Seat ...................167
 TO OPEN AND CLOSE THE HOOD .........168
 LIGHTS ............................ .170
▫ Headlights ......................... .171
▫ Automatic Headlights — If Equipped .......171
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ..............172
▫ Daytime Running Lights (DRL) — If
Equipped .......................... .173
▫ Headlight Delay ..................... .173
▫ Automatic High Beam Headlamp Control — If
Equipped .......................... .174
▫ Parking Lights And Panel Lights ...........176
▫ Fog Lights — If Equipped ...............176
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Lights-On Reminder ...................177
▫ Battery Saver ........................ .177
▫ Interior Lights ...................... .177
▫ Cargo Light With Bed Lights — If Equipped . .180
▫ Multifunction Lever ...................181
▫ Turn Signals ........................ .181
▫ Lane Change Assist ...................182
▫ Flash-To-Pass ....................... .182
▫ High/Low Beam Switch ................182
 WINDSHIELD WIPERS AND WASHERS ......182
▫ Windshield Wipers ....................182
▫ Windshield Wiper Operation .............183
▫ Intermittent Wiper System ...............183 ▫
Windshield Washers ...................183
▫ Mist Feature ........................ .184
▫ Rain Sensing Wipers — If Equipped ........185
 TILT STEERING COLUMN ...............186
 HEATED STEERING WHEEL — IF EQUIPPED .187
 DRIVER ADJUSTABLE PEDALS — IF
EQUIPPED .......................... .189
 ELECTRONIC SPEED CONTROL ...........190
▫ To Activate ......................... .191
▫ To Set A Desired Speed .................192
▫ To Deactivate ....................... .192
▫ To Resume Speed .....................192
▫ To Vary The Speed Setting ...............192
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125

▫To Accelerate For Passing ...............193
 PARKSENSE REAR PARK ASSIST — IF
EQUIPPED .......................... .194
▫ ParkSense Sensors .....................194
▫ ParkSense Warning Display ..............194
▫ ParkSense Display .....................195
▫ Enabling And Disabling ParkSense .........199
▫ Service The ParkSense Rear Park Assist
System ............................ .200
▫ Cleaning The ParkSense System ...........201
▫ ParkSense System Usage Precautions ........201
 PARKSENSE FRONT AND REAR PARK ASSIST —
IF EQUIPPED ........................ .203
▫ ParkSense Sensors .....................204 ▫
ParkSense Warning Display ..............204
▫ ParkSense Display .....................205
▫ Enabling And Disabling Front And/Or Rear
ParkSense .......................... .207
▫ Service The ParkSense Park Assist System . . . .208
▫ Cleaning The ParkSense System ...........209
▫ ParkSense System Usage Precautions ........209
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED .......................... .212
 OVERHEAD CONSOLE — IF EQUIPPED .....215
▫ Courtesy/Reading Lights ...............215
 GARAGE DOOR OPENER — IF EQUIPPED . . .217
▫ Before You Begin Programming HomeLink . . .218
▫ Programming A Rolling Code ............219
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Programming A Non-Rolling Code .........221
▫ Canadian/Gate Operator Programming .....223
▫ Using HomeLink .....................224
▫ Security ........................... .224
▫ Troubleshooting Tips ...................225
▫ General Information ....................226
 POWER SUNROOF — IF EQUIPPED ........226
▫ Opening Sunroof — Manual Mode .........227
▫ Closing Sunroof — Manual Mode ..........227
▫ Opening Sunroof — Express ..............228
▫ Closing Sunroof — Express ...............228
▫ Pinch Protect Feature ...................228
▫ Venting Sunroof — Express ..............228▫
Sunshade Operation ....................229
▫ Wind Buffeting ...................... .229
▫ Sunroof Maintenance ...................229
▫ Ignition Off Operation ..................229
 ELECTRICAL POWER OUTLETS ...........229
 CIGAR LIGHTER AND ASH RECEIVER — IF
EQUIPPED .......................... .235
 POWER INVERTER — IF EQUIPPED ........235
 AUXILIARY SWITCHES — IF EQUIPPED .....236
 CUPHOLDERS ....................... .237
▫ Front Seat Cupholders (40–20–40 Seats) ......237
▫ Front Instrument Panel Cupholders — Floor
Storage Bin ......................... .237
▫ Rear Cupholders — If Equipped ...........238
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

STORAGE ........................... .239
▫ Glove Compartment ...................239
▫ Door Storage ........................ .241
▫ Center Storage Compartment — If Equipped . .242
▫ Second Row In-Floor Storage Bin — If
Equipped .......................... .245
▫ Seatback Storage ..................... .246
▫ Storage (Regular Cab) ..................246
▫ Storage and Seats (Crew Cab) .............247
▫ Plastic Grocery Bag Retainers (Regular Cab
Models) ........................... .247
 REAR WINDOW FEATURES ..............248
▫ Rear Window Defroster .................248
▫ Power Sliding Rear Window — If Equipped . .249 ▫
Manual Sliding Rear Window — If Equipped .249
 FOLD FLAT LOAD FLOOR — IF EQUIPPED . .249
 PICKUP BOX ........................ .254
▫ Cargo Camera — If Equipped ............256
▫ Turning Cargo Camera On Or Off — With
Uconnect 8.4A/8.4AN ..................257
 RAMBOX — IF EQUIPPED ...............257
▫ RamBox Integrated Box Side Storage Bins . . . .257
▫ Locking And Unlocking RamBox ...........260
▫ RamBox Safety Warning .................261
▫ Bed Extender — If Equipped .............262
▫ Bed Rail Tie-Down System ..............269
 SLIDE-IN CAMPERS ....................271
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
