Ram 3500 2017 Diesel Supplement
Manufacturer: RAM, Model Year: 2017, Model line: 3500, Model: Ram 3500 2017Pages: 228, PDF Size: 1.35 MB

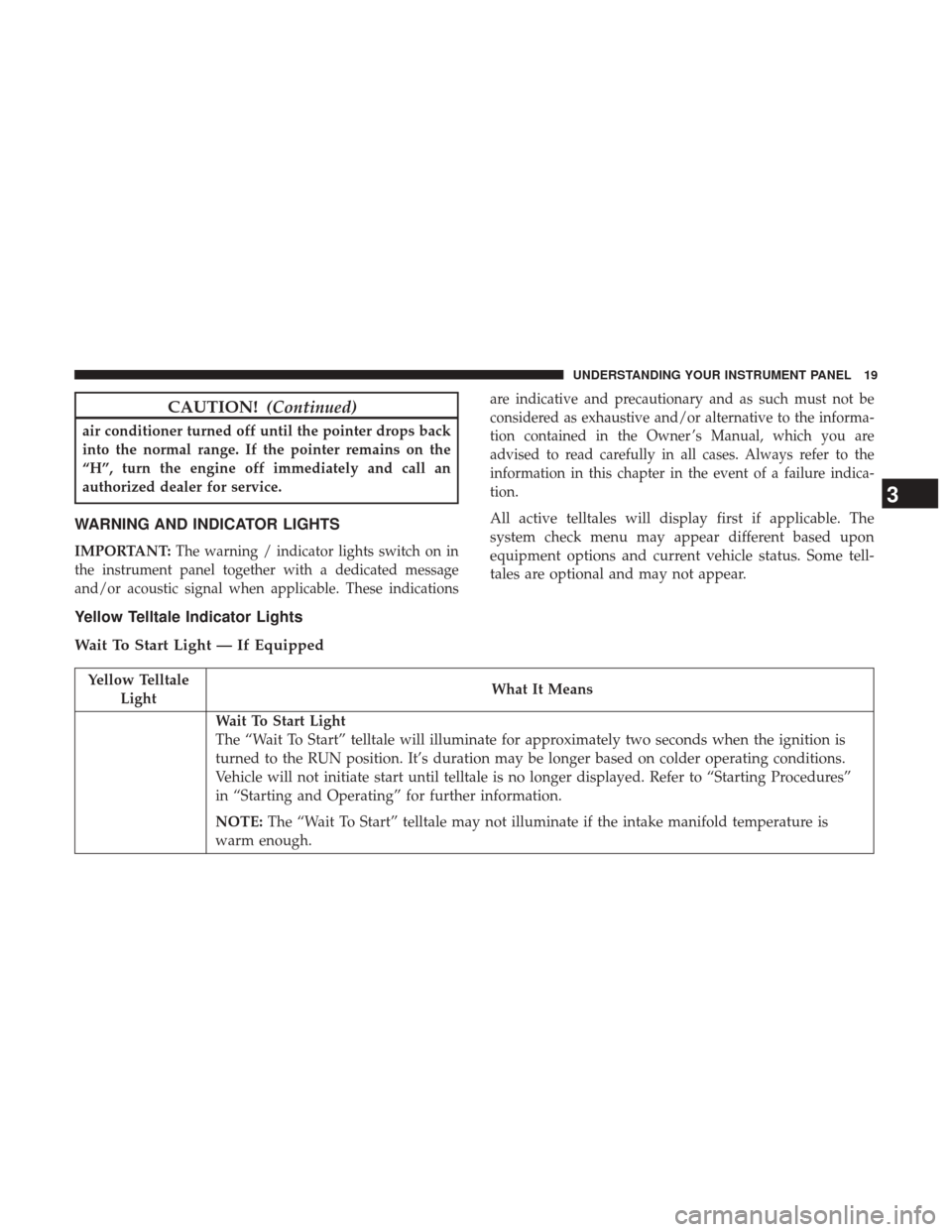

Page 21 of 228
CAUTION!(Continued)
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call an
authorized dealer for service.
WARNING AND INDICATOR LIGHTS
IMPORTANT:The warning / indicator lights switch on in
the instrument panel together with a dedicated message
and/or acoustic signal when applicable. These indications are indicative and precautionary and as such must not be
considered as exhaustive and/or alternative to the informa-
tion contained in the Owner ’s Manual, which you are
advised to read carefully in all cases. Always refer to the
information in this chapter in the event of a failure indica-
tion.
All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some tell-
tales are optional and may not appear.
Yellow Telltale Indicator Lights
Wait To Start Light — If Equipped
Yellow Telltale
Light What It Means
Wait To Start Light
The “Wait To Start” telltale will illuminate for approximately two seconds when the ignition is
turned to the RUN position. It’s duration may be longer based on colder operating conditions.
Vehicle will not initiate start until telltale is no longer displayed. Refer to “Starting Procedures”
in “Starting and Operating” for further information.
NOTE:
The “Wait To Start” telltale may not illuminate if the intake manifold temperature is
warm enough.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 19

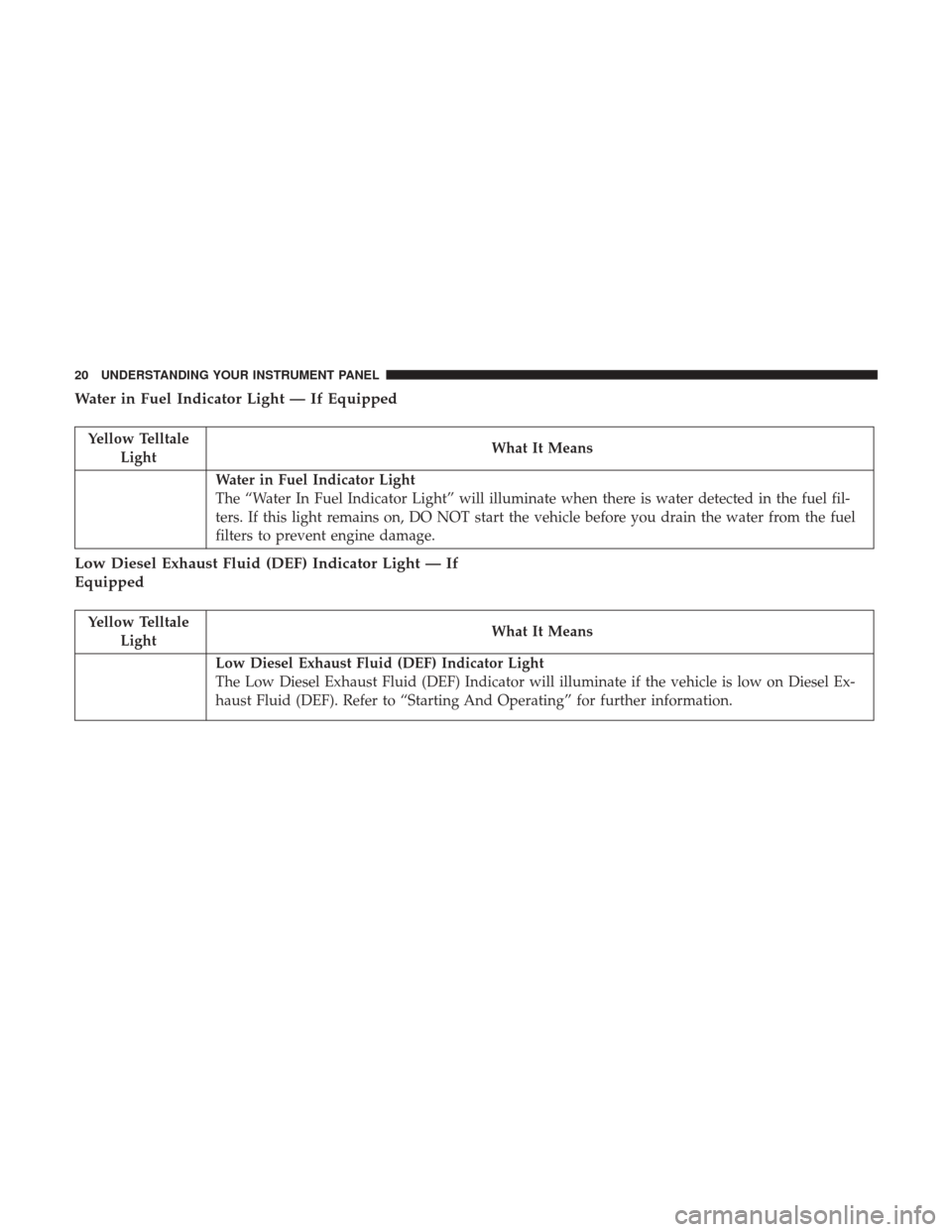

Page 22 of 228
Water in Fuel Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Water in Fuel Indicator Light
The “Water In Fuel Indicator Light” will illuminate when there is water detected in the fuel fil-
ters. If this light remains on, DO NOT start the vehicle before you drain the water from the fuel
filters to prevent engine damage.
Low Diesel Exhaust Fluid (DEF) Indicator Light — If
Equipped
Yellow Telltale
Light What It Means
Low Diesel Exhaust Fluid (DEF) Indicator Light
The Low Diesel Exhaust Fluid (DEF) Indicator will illuminate if the vehicle is low on Diesel Ex-
haust Fluid (DEF). Refer to “Starting And Operating” for further information.
20 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 23 of 228
INSTRUMENT CLUSTER DISPLAY
The Instrument Cluster Display features a driver-
interactive display that is located in the instrument cluster.
This system allows the driver to select a variety of useful
information by pushing the switches mounted on the
steering wheel. The Instrument Cluster Display may con-
sist of the following:
•Digital Speedometer
• Vehicle Info
• Fuel Economy Info
• Trip A
Instrument Cluster Display — Base
Instrument Cluster Display — Premium
3
UNDERSTANDING YOUR INSTRUMENT PANEL 21

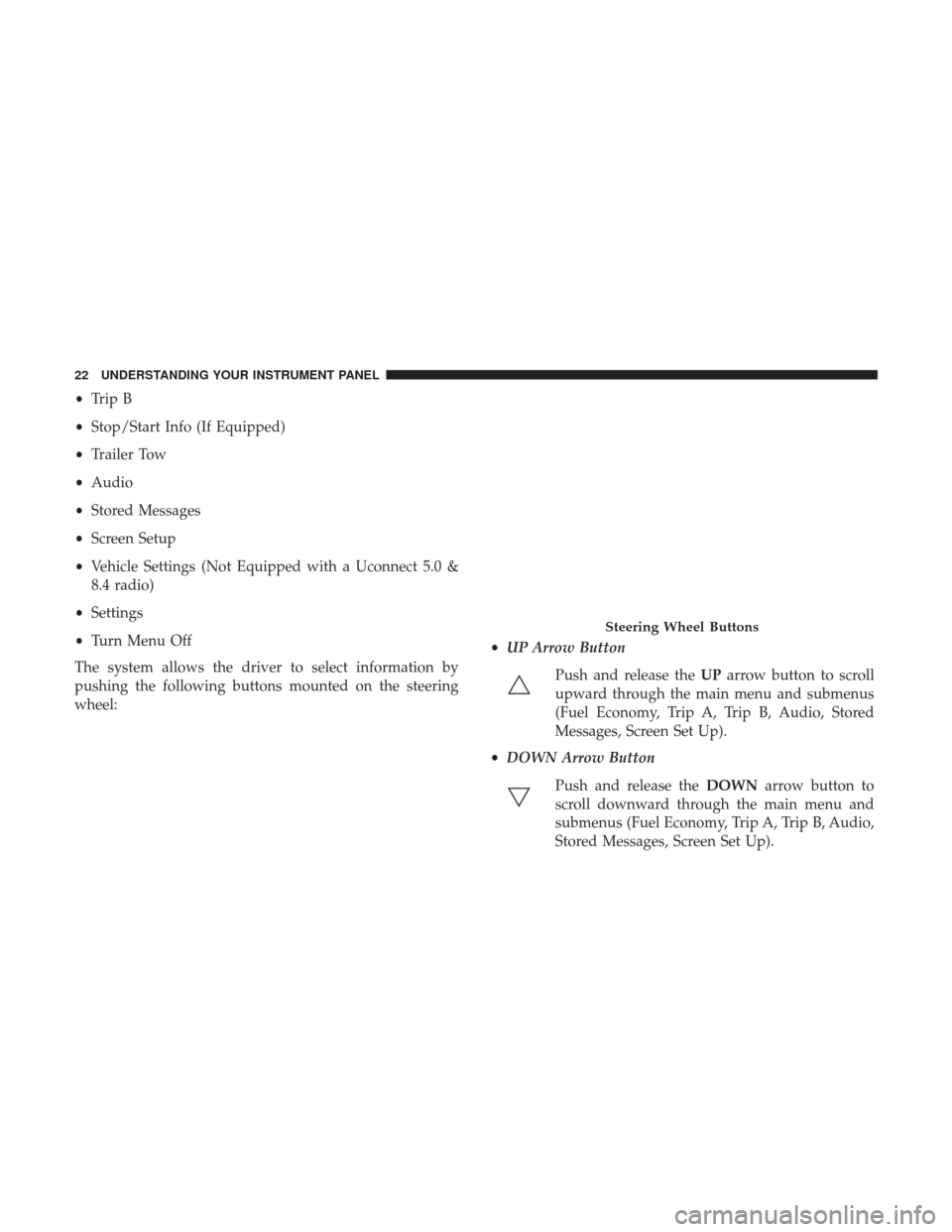

Page 24 of 228
•Trip B
• Stop/Start Info (If Equipped)
• Trailer Tow
• Audio
• Stored Messages
• Screen Setup
• Vehicle Settings (Not Equipped with a Uconnect 5.0 &
8.4 radio)
• Settings
• Turn Menu Off
The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel: •
UP Arrow Button
Push and release the UParrow button to scroll
upward through the main menu and submenus
(Fuel Economy, Trip A, Trip B, Audio, Stored
Messages, Screen Set Up).
• DOWN Arrow Button
Push and release the DOWNarrow button to
scroll downward through the main menu and
submenus (Fuel Economy, Trip A, Trip B, Audio,
Stored Messages, Screen Set Up).
Steering Wheel Buttons
22 UNDERSTANDING YOUR INSTRUMENT PANEL

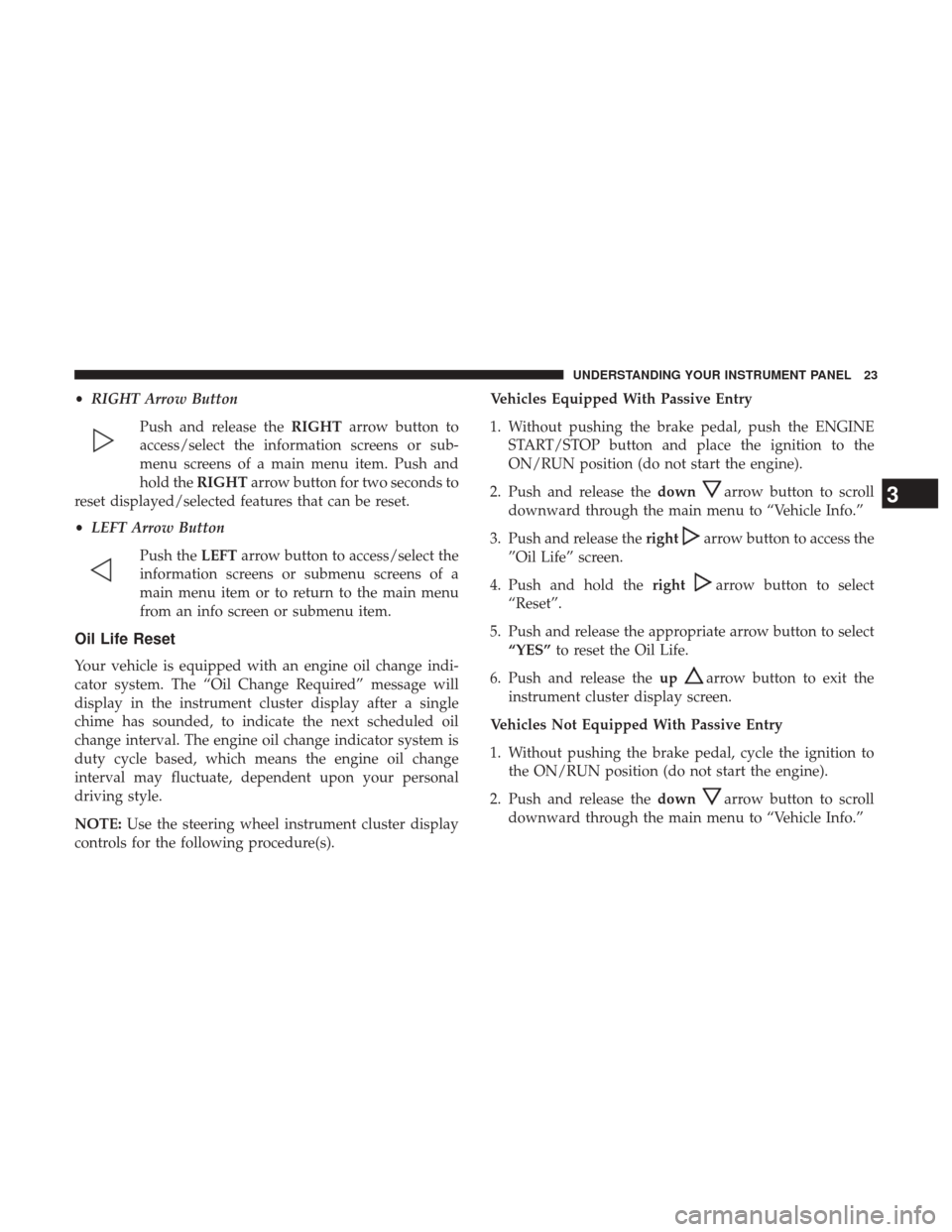

Page 25 of 228
•RIGHT Arrow Button
Push and release the RIGHTarrow button to
access/select the information screens or sub-
menu screens of a main menu item. Push and
hold the RIGHTarrow button for two seconds to
reset displayed/selected features that can be reset.
• LEFT Arrow Button
Push the LEFTarrow button to access/select the
information screens or submenu screens of a
main menu item or to return to the main menu
from an info screen or submenu item.
Oil Life Reset
Your vehicle is equipped with an engine oil change indi-
cator system. The “Oil Change Required” message will
display in the instrument cluster display after a single
chime has sounded, to indicate the next scheduled oil
change interval. The engine oil change indicator system is
duty cycle based, which means the engine oil change
interval may fluctuate, dependent upon your personal
driving style.
NOTE: Use the steering wheel instrument cluster display
controls for the following procedure(s). Vehicles Equipped With Passive Entry
1. Without pushing the brake pedal, push the ENGINE
START/STOP button and place the ignition to the
ON/RUN position (do not start the engine).
2. Push and release the down
arrow button to scroll
downward through the main menu to “Vehicle Info.”
3. Push and release the right
arrow button to access the
”Oil Life” screen.
4. Push and hold the right
arrow button to select
“Reset”.
5. Push and release the appropriate arrow button to select “YES” to reset the Oil Life.
6. Push and release the up
arrow button to exit the
instrument cluster display screen.
Vehicles Not Equipped With Passive Entry
1. Without pushing the brake pedal, cycle the ignition to the ON/RUN position (do not start the engine).
2. Push and release the down
arrow button to scroll
downward through the main menu to “Vehicle Info.”
3
UNDERSTANDING YOUR INSTRUMENT PANEL 23

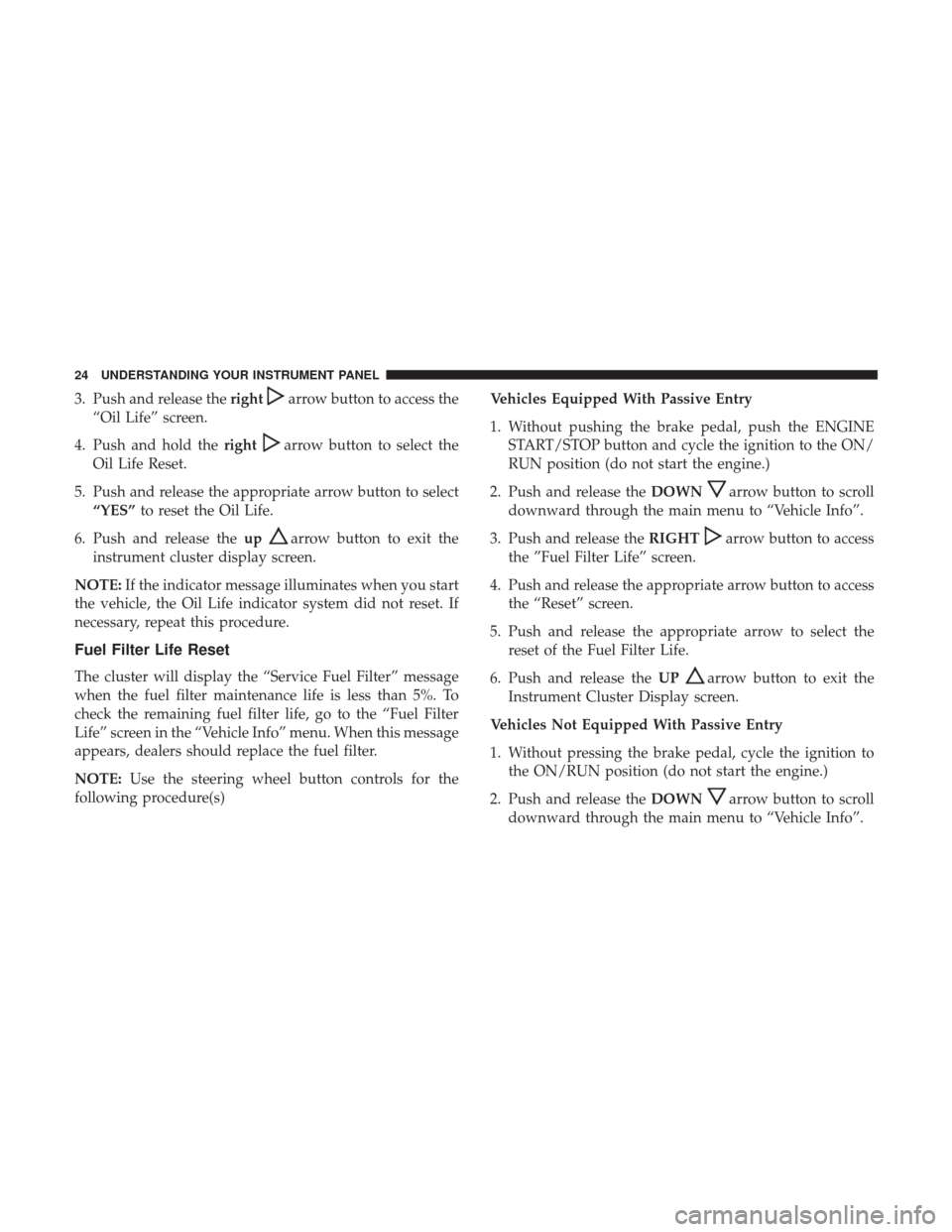

Page 26 of 228
3. Push and release therightarrow button to access the
“Oil Life” screen.
4. Push and hold the right
arrow button to select the
Oil Life Reset.
5. Push and release the appropriate arrow button to select “YES” to reset the Oil Life.
6. Push and release the up
arrow button to exit the
instrument cluster display screen.
NOTE: If the indicator message illuminates when you start
the vehicle, the Oil Life indicator system did not reset. If
necessary, repeat this procedure.
Fuel Filter Life Reset
The cluster will display the “Service Fuel Filter” message
when the fuel filter maintenance life is less than 5%. To
check the remaining fuel filter life, go to the “Fuel Filter
Life” screen in the “Vehicle Info” menu. When this message
appears, dealers should replace the fuel filter.
NOTE: Use the steering wheel button controls for the
following procedure(s) Vehicles Equipped With Passive Entry
1. Without pushing the brake pedal, push the ENGINE
START/STOP button and cycle the ignition to the ON/
RUN position (do not start the engine.)
2. Push and release the DOWN
arrow button to scroll
downward through the main menu to “Vehicle Info”.
3. Push and release the RIGHT
arrow button to access
the ”Fuel Filter Life” screen.
4. Push and release the appropriate arrow button to access the “Reset” screen.
5. Push and release the appropriate arrow to select the reset of the Fuel Filter Life.
6. Push and release the UP
arrow button to exit the
Instrument Cluster Display screen.
Vehicles Not Equipped With Passive Entry
1. Without pressing the brake pedal, cycle the ignition to the ON/RUN position (do not start the engine.)
2. Push and release the DOWN
arrow button to scroll
downward through the main menu to “Vehicle Info”.
24 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 27 of 228
3. Push and release theRIGHTarrow button to access
the ”Fuel Filter Life” screen.
4. Push and release the appropriate arrow button to access the “Reset” screen.
5. Push and release the appropriate arrow to select the reset of the Fuel Filter Life.
6. Push and release the UP
arrow button to exit the
Instrument Cluster Display screen.
NOTE: If the indicator message illuminates when you start
the vehicle, the Fuel Filter indicator system did not reset. If
necessary, repeat this procedure.
Diesel Particulate Filter (DPF) Messages
This engine meets all required diesel engine emissions
standards. To achieve these emissions standards, your
vehicle is equipped with a state-of-the-art engine and
exhaust system. These systems are seamlessly integrated
into your vehicle and managed by the Powertrain Control
Module (PCM). The PCM manages engine combustion to
allow the exhaust system’s catalyst to trap and burn
Particulate Matter (PM) pollutants, with no input or inter-
action on your part.
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be grass
or leaves coming into contact with your exhaust sys-
tem. Do not park or operate your vehicle in areas where
your exhaust system can contact anything that can
burn.
Your vehicle has the ability to alert you to additional
maintenance required on your vehicle or engine. Refer to
the following messages that may be displayed on your
instrument cluster:
• Exhaust Filter XX% Full Safely Drive at Highway
Speeds to Remedy — This message will be displayed in
the instrument cluster if the exhaust particulate filter
reaches 80% of its maximum storage capacity. Under
conditions of exclusive short duration and low speed
driving cycles, your diesel engine and exhaust after-
treatment system may never reach the conditions re-
quired to cleanse the filter to remove the trapped PM. If
this occurs, the “Exhaust Filter XX% Full Safely Drive at
Highway Speeds to Remedy” message will be displayed
in the Instrument Cluster Display. If this message is
displayed, you will hear one chime to assist in alerting
3
UNDERSTANDING YOUR INSTRUMENT PANEL 25

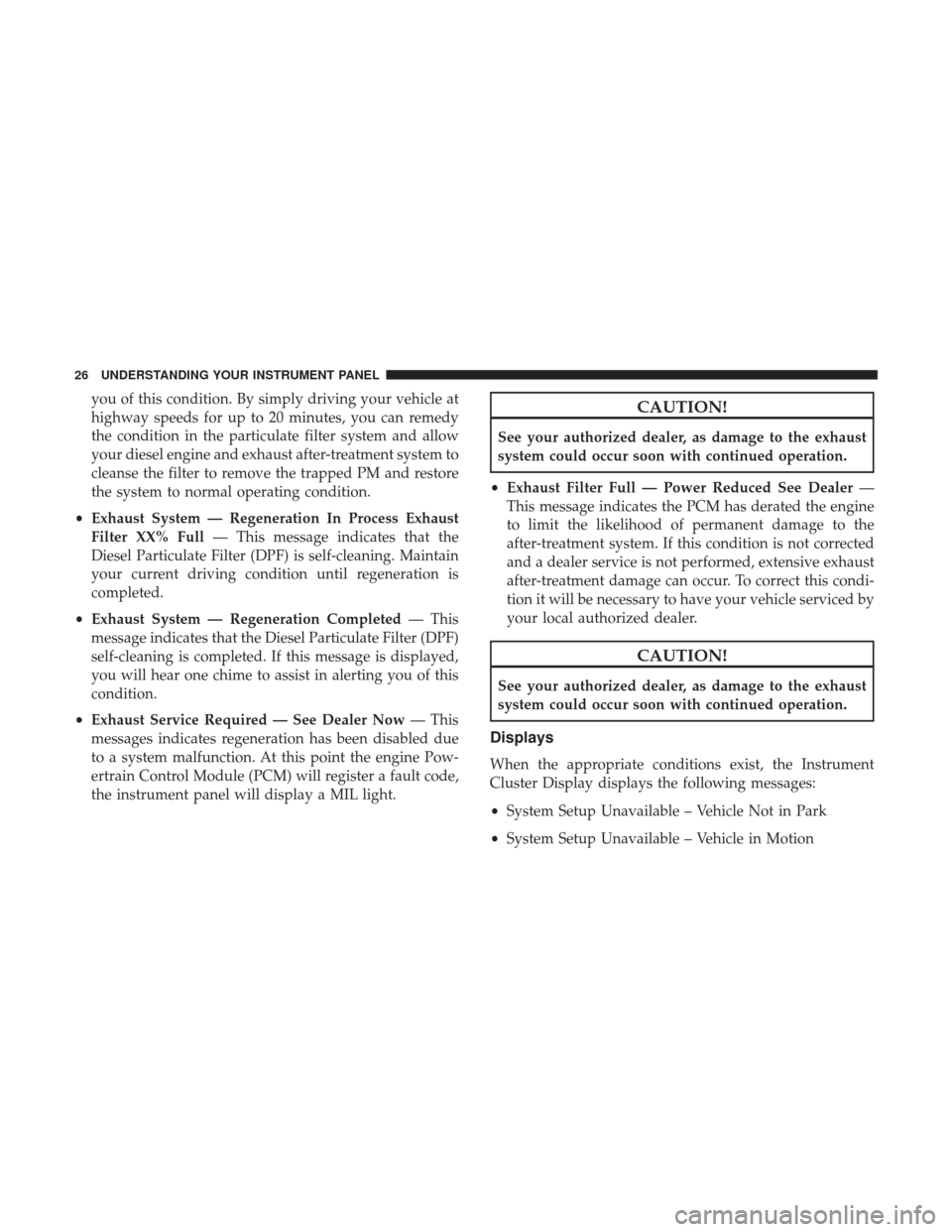

Page 28 of 228
you of this condition. By simply driving your vehicle at
highway speeds for up to 20 minutes, you can remedy
the condition in the particulate filter system and allow
your diesel engine and exhaust after-treatment system to
cleanse the filter to remove the trapped PM and restore
the system to normal operating condition.
• Exhaust System — Regeneration In Process Exhaust
Filter XX% Full — This message indicates that the
Diesel Particulate Filter (DPF) is self-cleaning. Maintain
your current driving condition until regeneration is
completed.
• Exhaust System — Regeneration Completed — This
message indicates that the Diesel Particulate Filter (DPF)
self-cleaning is completed. If this message is displayed,
you will hear one chime to assist in alerting you of this
condition.
• Exhaust Service Required — See Dealer Now — This
messages indicates regeneration has been disabled due
to a system malfunction. At this point the engine Pow-
ertrain Control Module (PCM) will register a fault code,
the instrument panel will display a MIL light.CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
• Exhaust Filter Full — Power Reduced See Dealer —
This message indicates the PCM has derated the engine
to limit the likelihood of permanent damage to the
after-treatment system. If this condition is not corrected
and a dealer service is not performed, extensive exhaust
after-treatment damage can occur. To correct this condi-
tion it will be necessary to have your vehicle serviced by
your local authorized dealer.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
Displays
When the appropriate conditions exist, the Instrument
Cluster Display displays the following messages:
• System Setup Unavailable – Vehicle Not in Park
• System Setup Unavailable – Vehicle in Motion
26 UNDERSTANDING YOUR INSTRUMENT PANEL

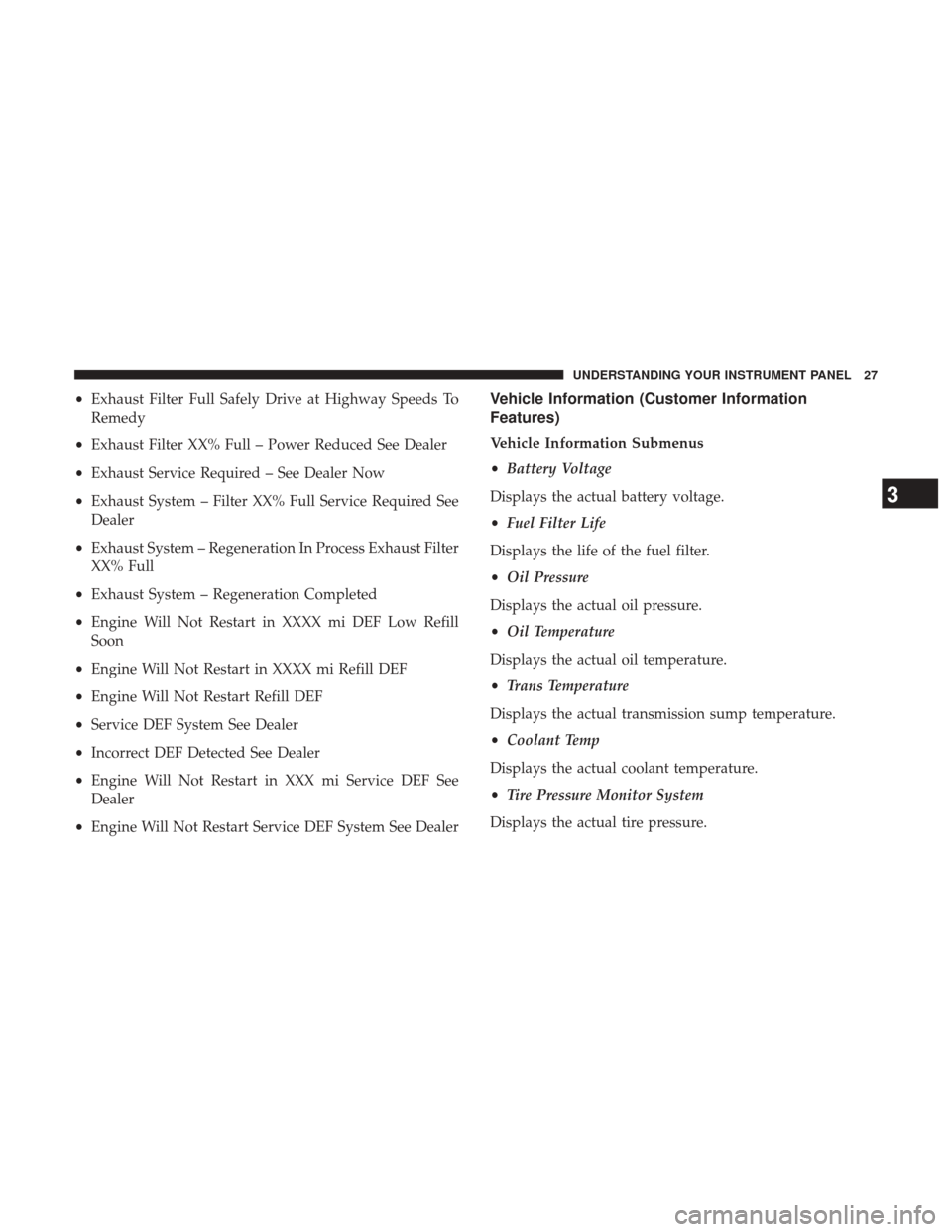

Page 29 of 228
•Exhaust Filter Full Safely Drive at Highway Speeds To
Remedy
• Exhaust Filter XX% Full – Power Reduced See Dealer
• Exhaust Service Required – See Dealer Now
• Exhaust System – Filter XX% Full Service Required See
Dealer
• Exhaust System – Regeneration In Process Exhaust Filter
XX% Full
• Exhaust System – Regeneration Completed
• Engine Will Not Restart in XXXX mi DEF Low Refill
Soon
• Engine Will Not Restart in XXXX mi Refill DEF
• Engine Will Not Restart Refill DEF
• Service DEF System See Dealer
• Incorrect DEF Detected See Dealer
• Engine Will Not Restart in XXX mi Service DEF See
Dealer
• Engine Will Not Restart Service DEF System See DealerVehicle Information (Customer Information
Features)
Vehicle Information Submenus
•Battery Voltage
Displays the actual battery voltage.
• Fuel Filter Life
Displays the life of the fuel filter.
• Oil Pressure
Displays the actual oil pressure.
• Oil Temperature
Displays the actual oil temperature.
• Trans Temperature
Displays the actual transmission sump temperature.
• Coolant Temp
Displays the actual coolant temperature.
• Tire Pressure Monitor System
Displays the actual tire pressure.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 27
Page 30 of 228

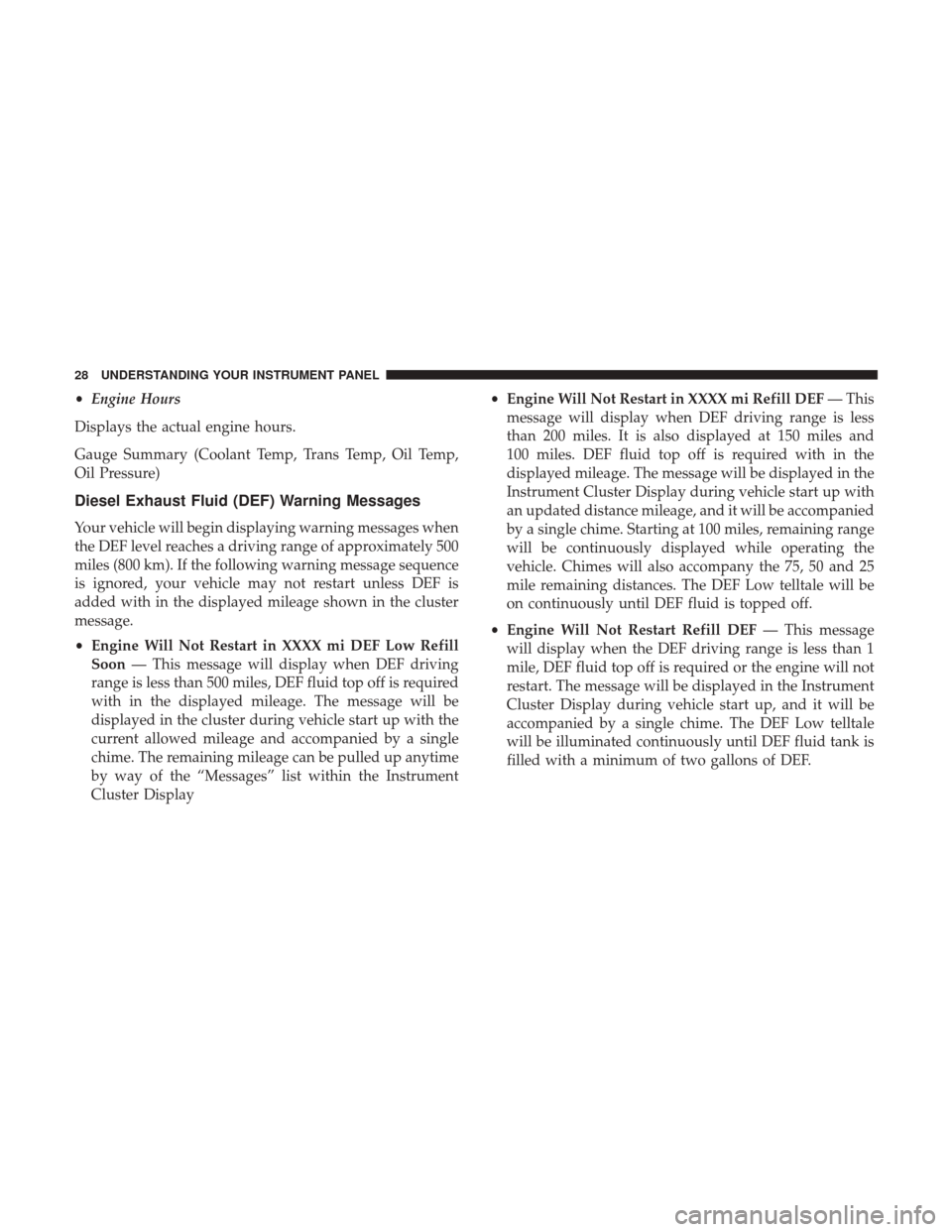

•Engine Hours
Displays the actual engine hours.
Gauge Summary (Coolant Temp, Trans Temp, Oil Temp,
Oil Pressure)
Diesel Exhaust Fluid (DEF) Warning Messages
Your vehicle will begin displaying warning messages when
the DEF level reaches a driving range of approximately 500
miles (800 km). If the following warning message sequence
is ignored, your vehicle may not restart unless DEF is
added with in the displayed mileage shown in the cluster
message.
• Engine Will Not Restart in XXXX mi DEF Low Refill
Soon — This message will display when DEF driving
range is less than 500 miles, DEF fluid top off is required
with in the displayed mileage. The message will be
displayed in the cluster during vehicle start up with the
current allowed mileage and accompanied by a single
chime. The remaining mileage can be pulled up anytime
by way of the “Messages” list within the Instrument
Cluster Display •
Engine Will Not Restart in XXXX mi Refill DEF — This
message will display when DEF driving range is less
than 200 miles. It is also displayed at 150 miles and
100 miles. DEF fluid top off is required with in the
displayed mileage. The message will be displayed in the
Instrument Cluster Display during vehicle start up with
an updated distance mileage, and it will be accompanied
by a single chime. Starting at 100 miles, remaining range
will be continuously displayed while operating the
vehicle. Chimes will also accompany the 75, 50 and 25
mile remaining distances. The DEF Low telltale will be
on continuously until DEF fluid is topped off.
• Engine Will Not Restart Refill DEF — This message
will display when the DEF driving range is less than 1
mile, DEF fluid top off is required or the engine will not
restart. The message will be displayed in the Instrument
Cluster Display during vehicle start up, and it will be
accompanied by a single chime. The DEF Low telltale
will be illuminated continuously until DEF fluid tank is
filled with a minimum of two gallons of DEF.
28 UNDERSTANDING YOUR INSTRUMENT PANEL
