Ram 3500 Chassis Cab 2019 Owner's Manual

GETTING TO KNOW YOUR VEHICLE 109

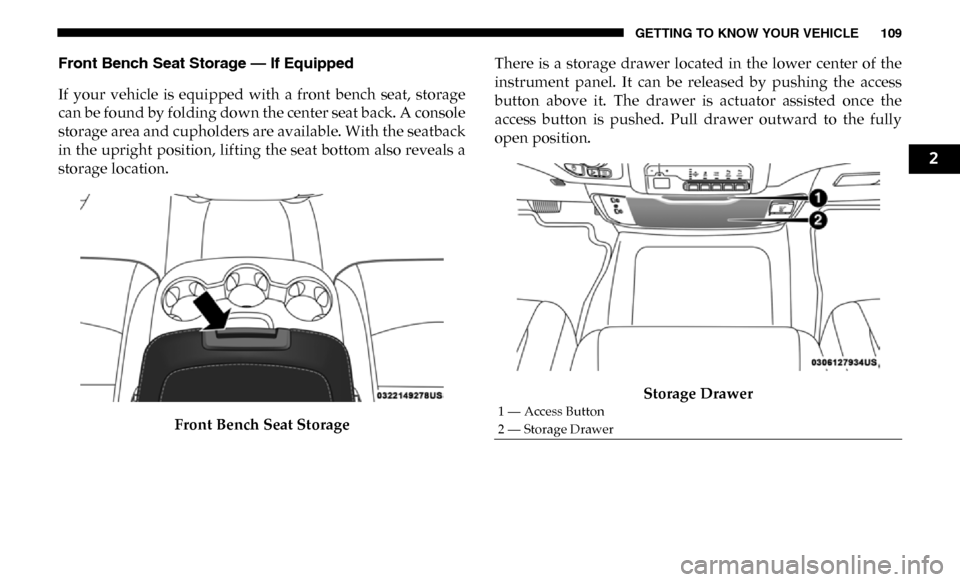

Front Bench Seat Storage — If Equipped
If your vehicle is equipped with a front bench seat, storage
can be found by folding down the center seat back. A console
storage area and cupholders are available. With the seatback
in the upright position, lifting the seat bottom also reveals a
storage location.Front Bench Seat Storage There is a storage drawer located in the lower center of the
instrument panel. It can be released by pushing the access
button above it. The drawer is actuator assisted once the
access button is pushed. Pull drawer outward to the fully
open position.
Storage Drawer
1 — Access Button
2 — Storage Drawer
2

110 GETTING TO KNOW YOUR VEHICLE
Seatback Storage
Located in the back of both the driver and passenger front
seats are pockets that can be used for storage.Driver’s Side Seatback Storage
Second Row In-Floor Storage Bin — If Equipped
In-floor storage bins are located in front of the second row
seats and can be used for extra storage. The storage bins have
removable liners that can be easily removed for cleaning. To open the in-floor storage bin, lift upward on the handle of
the latch and open the lid.
In-Floor Storage Bin Latch
NOTE:
The front seat may have to be moved forward to fully open
the lid.

GETTING TO KNOW YOUR VEHICLE 111
Opened Storage Bin
Each storage bin also contains two hooks for securing cargo.
These hooks should be used to secure loads safely when the
vehicle is moving. In-Floor Storage Bin Hooks
NOTE:
The maximum load limit for each hook is 250 lbs (113 kg).
2

112 GETTING TO KNOW YOUR VEHICLE
Storage Bin (Regular Cab)
The storage bin is located behind the front seats and runs the
length of the cab.Storage Bin Fold Flat Load Floor — If Equipped
Crew Cab models with a 60/40 rear seat may be equipped
with a folding load floor.
WARNING!
Do not operate the vehicle with loose items stored on the
load floor. While driving or in an accident you may
experience abrupt stopping, rapid acceleration, or sharp
turns. Loose objects stored on the load floor may move
around with force and strike occupants, resulting in
serious or fatal injury.

GETTING TO KNOW YOUR VEHICLE 113

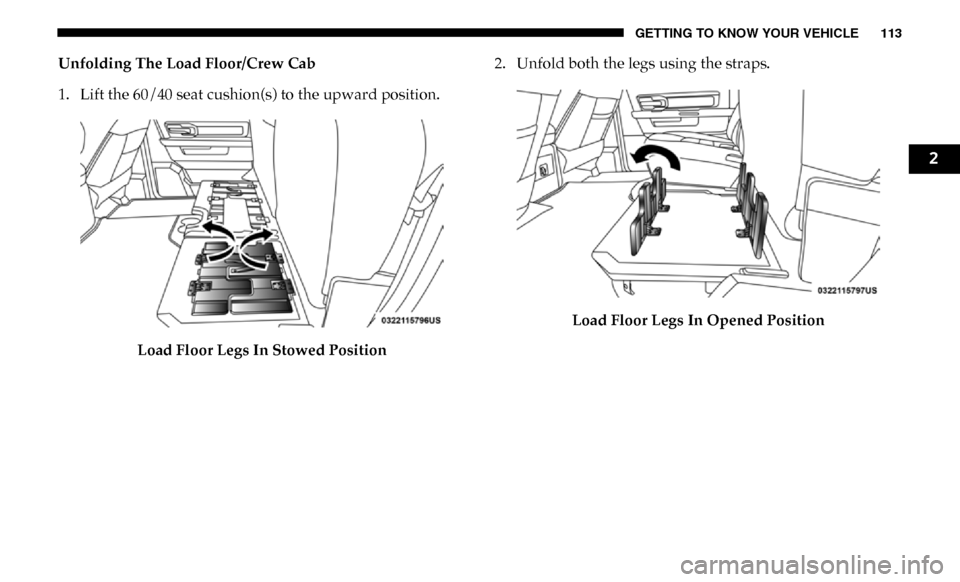

Unfolding The Load Floor/Crew Cab
1. Lift the 60/40 seat cushion(s) to the upward position.Load Floor Legs In Stowed Position 2. Unfold both the legs using the straps.
Load Floor Legs In Opened Position
2

114 GETTING TO KNOW YOUR VEHICLE
3. Lift the front panel until the load floor unfolds into posi-
tion.
Load Floor In Open Position
4. Reverse the procedure to store the load floor.
Positioning The Load Floor For Storage Access Under The
Seat
1. Lift the 60/40 seat cushion(s) to the upward position.
2. Unsnap the securing snap located at either side of the load floor. 3. Lift the load floor up to access storage under the load
floor.
Crew Cab — If Equipped
Load Floor Securing Straps/Crew Cab
4. Reverse the procedure to put the load floor back in the secured down position before you operate the vehicle.
WARNING!
Do not drive with the load floor in the up position.
When stopping fast or in an accident, the load floor
could move to the down position causing serious injury.

GETTING TO KNOW YOUR VEHICLE 115

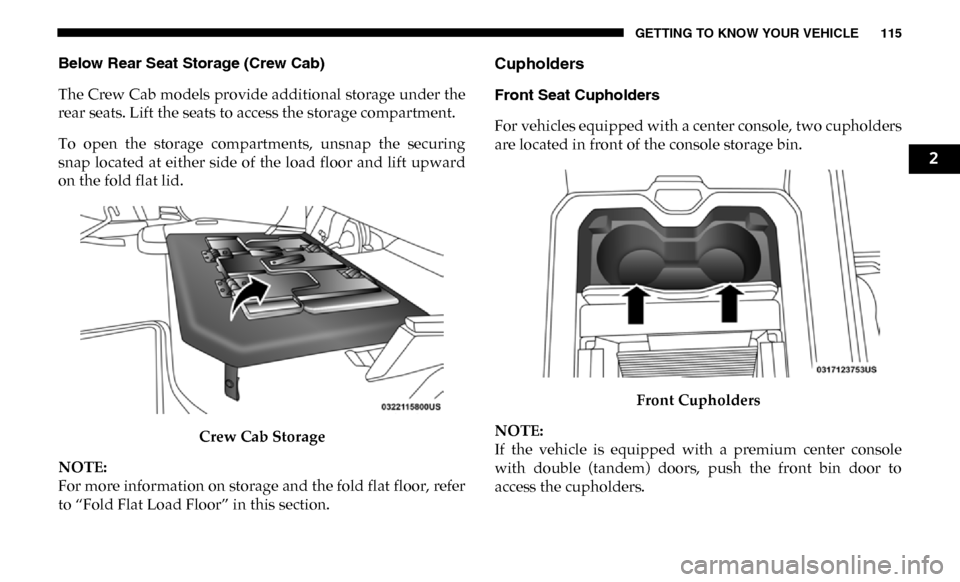

Below Rear Seat Storage (Crew Cab)
The Crew Cab models provide additional storage under the
rear seats. Lift the seats to access the storage compartment.
To open the storage compartments, unsnap the securing
snap located at either side of the load floor and lift upward
on the fold flat lid.Crew Cab Storage
NOTE:
For more information on storage and the fold flat floor, refer
to “Fold Flat Load Floor” in this section.Cupholders
Front Seat Cupholders
For vehicles equipped with a center console, two cupholders
are located in front of the console storage bin.
Front Cupholders
NOTE:
If the vehicle is equipped with a premium center console
with double (tandem) doors, push the front bin door to
access the cupholders.
2

116 GETTING TO KNOW YOUR VEHICLE

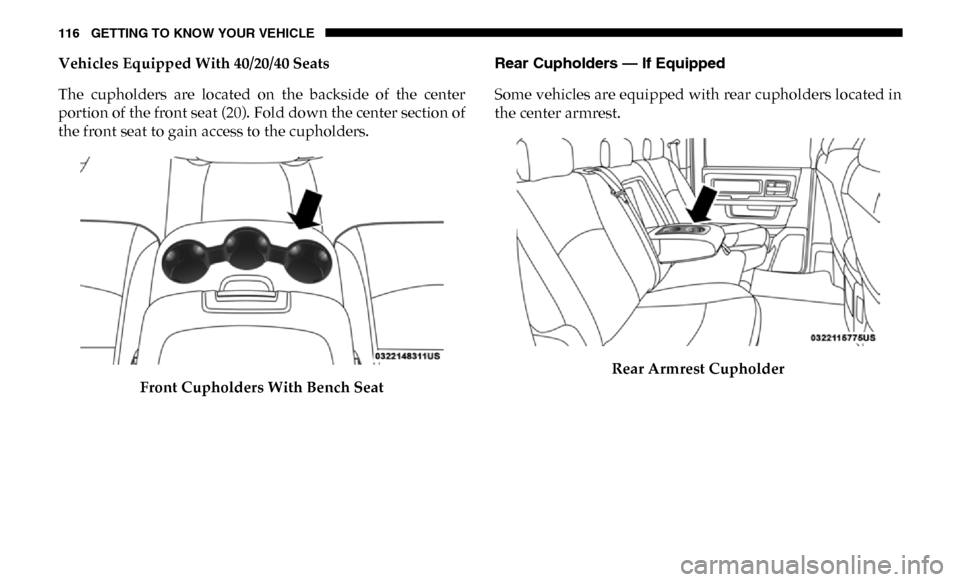

Vehicles Equipped With 40/20/40 Seats
The cupholders are located on the backside of the center
portion of the front seat (20). Fold down the center section of
the front seat to gain access to the cupholders.Front Cupholders With Bench Seat Rear Cupholders — If Equipped
Some vehicles are equipped with rear cupholders located in
the center armrest.
Rear Armrest Cupholder

GETTING TO KNOW YOUR VEHICLE 117
Some vehicles may be equipped with a rear cupholder that
consists of two cup wells for rear passenger convenience.Rear Cup Wells
Electrical Power Outlets

The auxiliary 12 Volt (13 Amp) power outlet can provide
power for in-cab accessories designed for use with the stan -
dard “cigar lighter” plug. The 12 Volt power outlets and 5 Volt
(2.5 Amp) USB Port (Charge Only) have a cap attached to the
outlet indicating “12V DC,” together with either a key symbol,
battery symbol, or USB symbol.
A key symbol indicates that the key must be in the ON/RUN
or ACC positions for the outlet to provide power. The battery
symbol indicates that the outlet is connected to the battery,
and can provide power at all times.
CAUTION!

• Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watts (13 Amps) power rating is
exceeded, the fuse protecting the system will need to be
replaced.

• Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlets as this
will damage the outlet and blow the fuse. Improper use
of the power outlet can cause damage not covered by
your New Vehicle Limited Warranty.2

118 GETTING TO KNOW YOUR VEHICLE

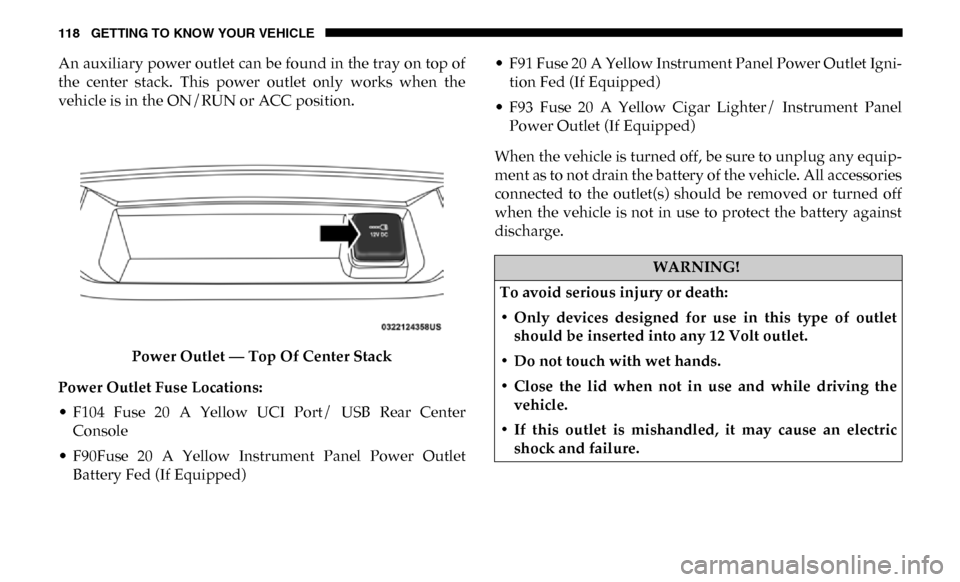

An auxiliary power outlet can be found in the tray on top of
the center stack. This power outlet only works when the
vehicle is in the ON/RUN or ACC position.Power Outlet — Top Of Center Stack
Power Outlet Fuse Locations:
• F104 Fuse 20 A Yellow UCI Port/ USB Rear Center Console
• F90Fuse 20 A Yellow Instrument Panel Power Outlet Battery Fed (If Equipped) • F91 Fuse 20 A Yellow Instrument Panel Power Outlet Igni
-
tion Fed (If Equipped)
• F93 Fuse 20 A Yellow Cigar Lighter/ Instrument Panel Power Outlet (If Equipped)
When the vehicle is turned off, be sure to unplug any equip -
ment as to not drain the battery of the vehicle. All accessories
connected to the outlet(s) should be removed or turned off
when the vehicle is not in use to protect the battery against
discharge.
WARNING!
To avoid serious injury or death:
• Only devices designed for use in this type of outlet should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the vehicle.
• If this outlet is mishandled, it may cause an electric shock and failure.
