load capacity Ram 5500 Chassis Cab 2011 User Guide

actuated brakes. When towing a trailer equipped with
a hydraulic surge actuated brake system, an electronic
brake controller is not required.
•Trailer brakes are recommended for trailers over
1,000 lbs (454 kg) and required for trailers in excess of
2,000 lbs (907 kg).
CAUTION!
If the trailer weighs more than 1,000 lbs (454 kg)
loaded, it should have its own brakes and they
should be of adequate capacity. Failure to do this
could lead to accelerated brake lining wear, higher
brake pedal effort, and longer stopping distances.
WARNING!
•Do not connect trailer brakes to your vehicle’s
hydraulic brake lines. It can overload your brake
system and cause it to fail. You might not have
brakes when you need them and could have an
accident.
•Towing any trailer will increase your stopping
distance. When towing you should allow for addi-
tional space between your vehicle and the vehicle
in front of you. Failure to do so could result in an
accident.
Integrated Trailer Brake Module – If Equipped
Your vehicle may have a Integrated Trailer Brake Module
for electric trailer brakes.
338 STARTING AND OPERATING

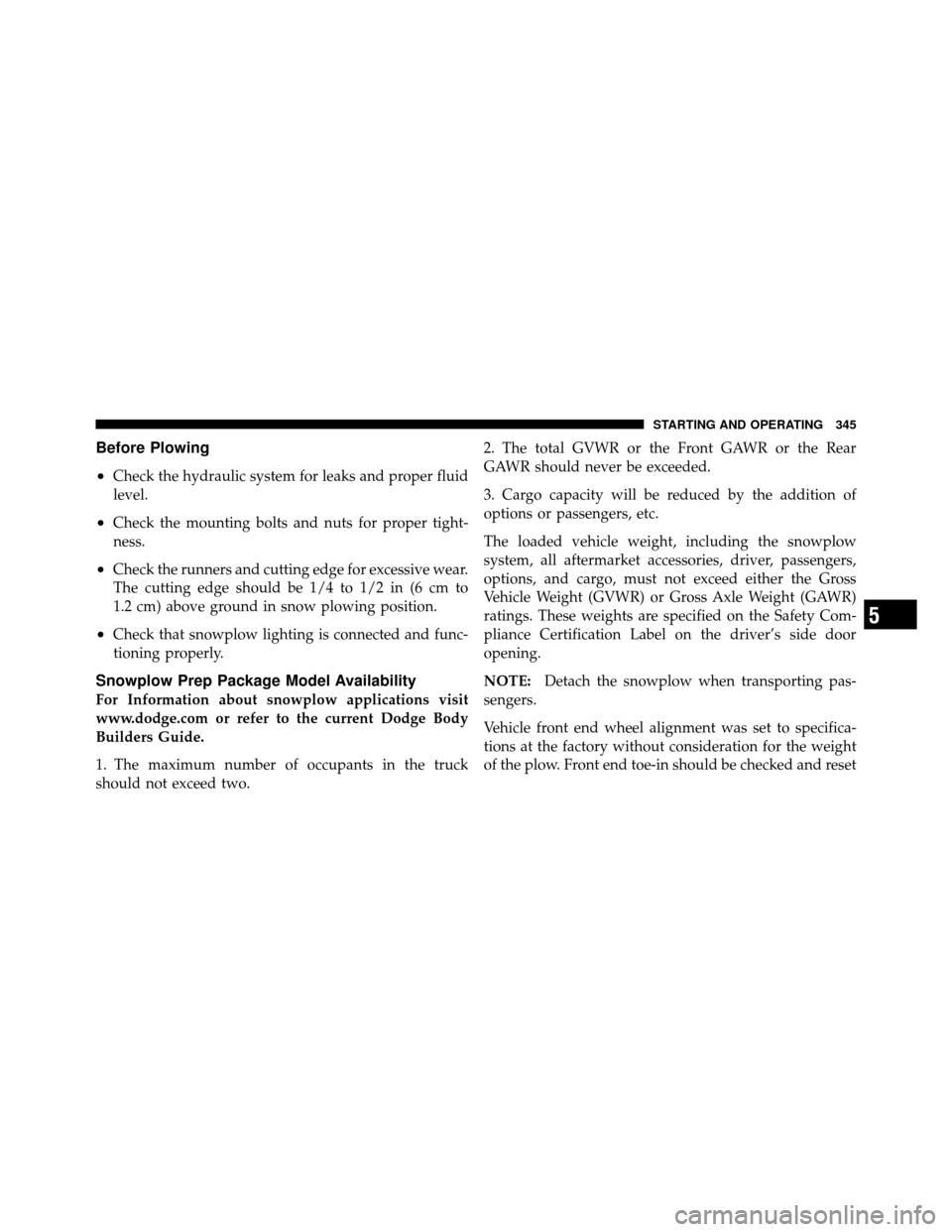

Before Plowing
•
Check the hydraulic system for leaks and proper fluid
level.
•Check the mounting bolts and nuts for proper tight-
ness.
•Check the runners and cutting edge for excessive wear.
The cutting edge should be 1/4 to 1/2 in (6 cm to
1.2 cm) above ground in snow plowing position.
•Check that snowplow lighting is connected and func-
tioning properly.
Snowplow Prep Package Model Availability
For Information about snowplow applications visit
www.dodge.com or refer to the current Dodge Body
Builders Guide.
1. The maximum number of occupants in the truck
should not exceed two.2. The total GVWR or the Front GAWR or the Rear
GAWR should never be exceeded.
3. Cargo capacity will be reduced by the addition of
options or passengers, etc.
The loaded vehicle weight, including the snowplow
system, all aftermarket accessories, driver, passengers,
options, and cargo, must not exceed either the Gross
Vehicle Weight (GVWR) or Gross Axle Weight (GAWR)
ratings. These weights are specified on the Safety Com-
pliance Certification Label on the driver’s side door
opening.
NOTE:
Detach the snowplow when transporting pas-
sengers.
Vehicle front end wheel alignment was set to specifica-
tions at the factory without consideration for the weight
of the plow. Front end toe-in should be checked and reset
5
STARTING AND OPERATING 345

High Speed.......................... 312
Inflation Pressures ..................... 308
Life of Tires .......................... 314
Load Capacity ..................... 303,304
Quality Grading ....................... 454
Radial .............................. 313
Replacement ......................... 315
Rotation ............................ 319
Safety ........................... 297,307
Sizes ............................... 299
Snow Tires ........................... 319
Spinning ............................ 313
Steel Carcass Ply ...................... 310
Tread Wear Indicators ................... 314
Wheel Nut Torque ..................... 364
Tongue Weight/Trailer Weight .............. 334
Torque Converter Clutch .................. 276
Tow Hooks, Emergency ................... 375
Towing ............................... 330 24-Hour Towing Assistance
............... 102
Disabled Vehicle ....................... 376
Guide .............................. 334
Recreational .......................... 347
Weight .............................. 334
Towing Assistance ....................... 102
Traction .............................. 288
Trailer Towing .......................... 330
Cooling System Tips .................... 344
Hitches ............................. 333
Minimum Requirements ................. 335
Mirrors .............................. 86
Trailer and Tongue Weight ............... 334
Wiring .............................. 342
Trailer Towing Guide ..................... 334
Trailer Weight .......................... 334
Transfer Case ........................... 405
Electronically Shifted ................... 280
Fluid ............................... 428
472 INDEX
