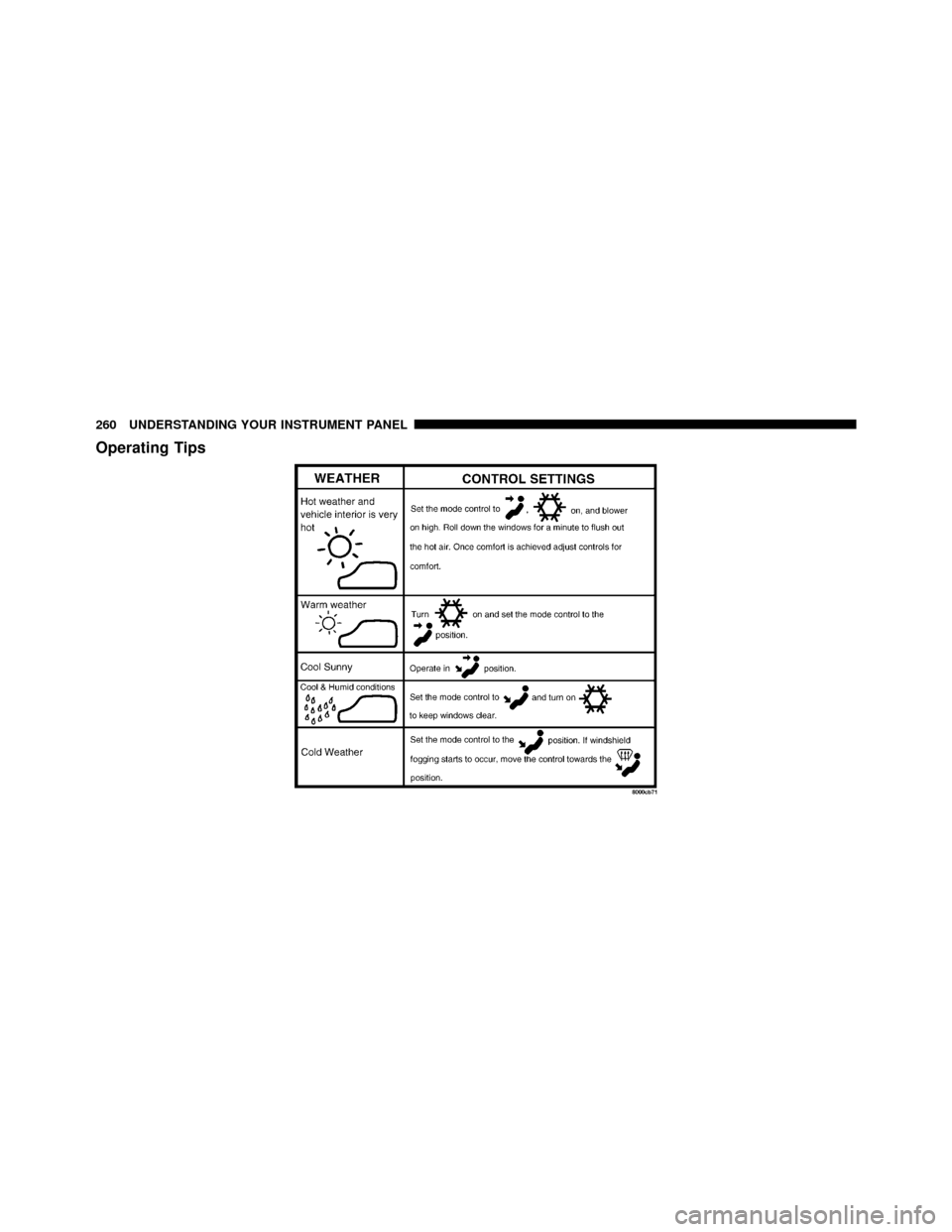

Operating Tips
260 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 265
▫ Normal Starting ..................... 265
▫ Automatic Transmission ............... 265
▫ If Engine Fails To Start ................ 266
▫ After Starting ....................... 267
 Engine Block Heater — If Equipped ........ 267
 Automatic Transmission ................. 268
▫ Key Ignition Park Interlock ............. 269
▫ Brake/Transmission Shift Interlock System . . 269 ▫
Brake/Transmission Interlock Manual
Override .......................... 269
▫ Five–Speed Automatic Transmission (545RFE)
— 5.7L Engine Only .................. 270
 Four-Wheel Drive Operation — If Equipped . . 277
▫ Manually Shifted Transfer Case – If
Equipped .......................... 277
▫ Shifting Procedure – Manually Shifted
Transfer Case ....................... 279
▫ Transfer Case Position Indicator Light ...... 280
5

▫Electronically Shifted Transfer Case
(Four-Position Switch) – If Equipped ....... 280
▫ Shifting Procedure ................... 285
 Limited-Slip Differential ................. 287
 Driving On Slippery Surfaces ............. 288
 Driving Through Water ................. 288
▫ Flowing/Rising Water ................. 289
▫ Shallow Standing Water ............... 289
 Power Steering ....................... 291
▫ Power Steering Fluid Check ............. 292
 Parking Brake ........................ 292
 Brake System ........................ 295
▫ Dual Rear Wheel Models Only ........... 295▫
Four-Wheel Anti-Lock Brake System ....... 295
 Tire Safety Information ................. 297
▫ Tire Markings ....................... 297
▫ Tire Identification Number (TIN) ......... 301
▫ Tire Terminology And Definitions ......... 302
▫ Tire Loading And Tire Pressure .......... 303
 Tires — General Information ............. 307
▫ Tire Pressure ....................... 307
▫ Tire Inflation Pressures ................ 308
▫ Radial Ply Tires ..................... 313
▫ Tire Spinning ....................... 313
▫ Tread Wear Indicators ................. 314
▫ Life Of Tire ........................ 314
262 STARTING AND OPERATING

▫Replacement Tires .................... 315
 Supplemental Tire Pressure Information — If
Equipped ............................ 317
 Tire Chains .......................... 317
 Snow Tires .......................... 319
 Tire Rotation Recommendations ........... 319
▫ Dual Rear Wheels .................... 320
 Fuel Requirements ..................... 321
▫ Reformulated Gasoline ................ 322
▫ Gasoline/Oxygenate Blends ............. 322
▫ E-85 Usage In Non-Flex Fuel Vehicles ...... 323
▫ MMT In Gasoline .................... 323
▫ Materials Added To Fuel ............... 324 ▫
Fuel System Cautions ................. 324
▫ Carbon Monoxide Warnings ............ 325
 Adding Fuel ......................... 326
▫ Loose Fuel Filler Cap Message ........... 327
 Vehicle Loading ...................... 328
▫ Certification Label ................... 328
 Trailer Towing ........................ 330
▫ Common Towing Definitions ............ 330
▫ Trailer Hitch Classification .............. 333
▫ Trailer Towing Weights (Maximum Trailer
Weight Ratings) ..................... 334
▫ Trailer And Tongue Weight ............. 334
▫ Towing Requirements ................. 335
5
STARTING AND OPERATING 263

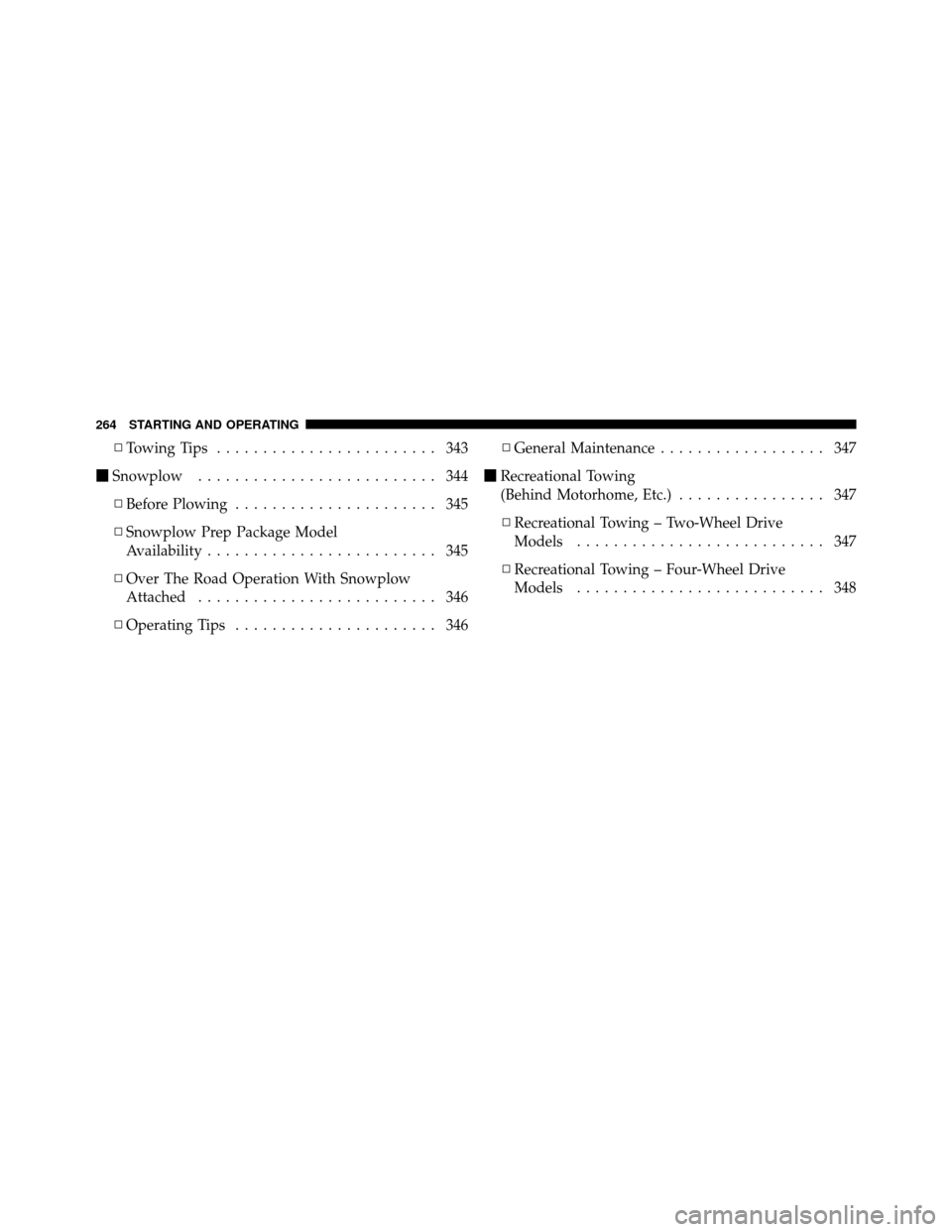

▫Towing Tips ........................ 343
 Snowplow .......................... 344
▫ Before Plowing ...................... 345
▫ Snowplow Prep Package Model
Availability ......................... 345
▫ Over The Road Operation With Snowplow
Attached .......................... 346
▫ Operating Tips ...................... 346 ▫
General Maintenance .................. 347
 Recreational Towing
(Behind Motorhome, Etc.) ................ 347
▫ Recreational Towing – Two-Wheel Drive
Models ........................... 347
▫ Recreational Towing – Four-Wheel Drive
Models ........................... 348
264 STARTING AND OPERATING

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belt.
The starter should not be operated for more than 15-
second intervals. Waiting a few seconds between such
intervals will protect the starter from overheating.
WARNING!
•Accidents can be caused by inadvertently moving
the shift lever or by pressing the accelerator pedal.
This may cause excessive heat in the exhaust
system, resulting in overheating and vehicle fire
which may cause serious or fatal injuries.
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat buildup may
cause serious injury or death.
Normal Starting
Normal starting of either a warm or cold engine is
obtained without pumping or pressing the accelerator
pedal. Turn the key fob to the START position and release
when the engine starts. If the engine fails to start within
10 seconds, turn the key fob to the OFF position, wait five
seconds, then repeat the “Normal Starting” procedure.
Automatic Transmission
Start the engine with the shift lever in the NEUTRAL or
PARK position. Apply the brake before shifting into any
driving range.
NOTE: This vehicle is equipped with a transmission
shift interlocking system. The brake pedal must be
pressed to shift out of PARK.5
STARTING AND OPERATING 265

Tip Start Feature
Do notpress the accelerator. Turn the ignition switch
briefly to the START position and release it. The starter
motor will continue to run but will automatically disen-
gage when the engine is running.
If Engine Fails To Start
If the engine fails to start after you have followed the
“Normal Starting” procedure, it may be flooded. Push
the accelerator pedal all the way to the floor and hold it
there while cranking the engine. This should clear any
excess fuel in case the engine is flooded.
CAUTION!
To prevent damage to the starter, do not crank the
engine for more than 15 seconds at a time. Wait 10 to
15 seconds before trying again.
WARNING!
•Never pour fuel or other flammable liquids into
the throttle body air inlet opening in an attempt to
start the vehicle. This could result in a flash fire
causing serious personal injury.
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transmission cannot be started this way. Unburned
fuel could enter the catalytic converter and once
the engine has started, ignite and damage the
converter and vehicle.
•If the vehicle has a discharged battery, booster
cables may be used to obtain a start from a booster
battery or the battery in another vehicle. This type
of start can be dangerous if done improperly. Refer
to “Jump Starting” in “What To Do In Emergen-
cies” for further information.
266 STARTING AND OPERATING

If the engine has been flooded, it may start to run, but not
have enough power to continue running when the key
fob is released. If this occurs, continue cranking with the
accelerator pedal pushed all the way to the floor. Release
the accelerator pedal and the key fob once the engine is
running smoothly.
If the engine shows no sign of starting after two 15-
second periods of cranking with the accelerator pedal
held to the floor, the “Normal Starting” procedure should
be repeated.
After Starting
The idle speed is automatically controlled and will de-
crease as the engine warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a
grounded, three-wire extension cord.3500 Models — 5.7L Engine Only
The engine block heater cord is routed through the grille
by the right front tow hook.
It includes a removable cap that is secured by a tethered
strap. It also has a c-clip that is used for storage when not
in use for the winter months. During winter months,
remove the heater cord wiring assembly from itself on
the c-clip.
WARNING!
Remember to disconnect the cord before driving.
Damage to the 110-115 Volt electrical cord could cause
electrocution.
5
STARTING AND OPERATING 267

AUTOMATIC TRANSMISSION
CAUTION!
Damage to the transmission may occur if the follow-
ing precautions are not observed:
•Shift into PARK only after the vehicle has come to
a complete stop.
•Shift into or out of REVERSE only after the
vehicle has come to a complete stop and the engine
is at idle speed.
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above
idle speed.
•Before shifting into any gear, make sure your foot
is firmly on the brake pedal.
WARNING!
•It is dangerous to move the shift lever out of PARK
or NEUTRAL if the engine speed is higher than
idle speed. If your foot is not firmly on the brake
pedal, the vehicle could accelerate quickly forward
or in reverse. You could lose control of the vehicle
and hit someone or something. Only shift into
gear when the engine is idling normally and when
your right foot is firmly on the brake pedal.(Continued)
268 STARTING AND OPERATING

WARNING! (Continued)
•Unintended movement of a vehicle could injure
those in and near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine is
running. Before exiting a vehicle, you should
always shift the transmission into PARK, remove
the key fob from the ignition, and apply the
parking brake. Once the key fob is removed from
the ignition, the shift lever is locked in the PARK
position, securing the vehicle against unwanted
movement. Furthermore, you should never leave
unattended children inside a vehicle.
Key Ignition Park Interlock
This vehicle is equipped with a Key Ignition Park Inter-
lock which requires the shift lever to be placed in PARK
prior to rotating the ignition switch to the LOCK posi-
tion. The key fob can only be removed from the ignitionswitch when the ignition switch is in the LOCK position
and once removed the shift lever is locked in PARK.
Brake/Transmission Shift Interlock System
This vehicle is equipped with a Brake Transmission Shift
Interlock System (BTSI) that holds the shift lever in the
PARK position when the ignition switch is in the LOCK
position. To move the shift lever out of the PARK
position, the ignition switch must be turned to any other
ignition switch position (ACC, ON, or START) (engine
running or not) and the brake pedal must be pressed.
Brake/Transmission Interlock Manual Override
There is an override for the BTSI that allows you to move
the shift lever out of the PARK position if an electrical
system malfunction occurs (i.e., dead battery).
1. Turn the ignition switch to the ACC or ON position
without starting the engine.
2. Tilt the steering wheel to the full up position
5
STARTING AND OPERATING 269
