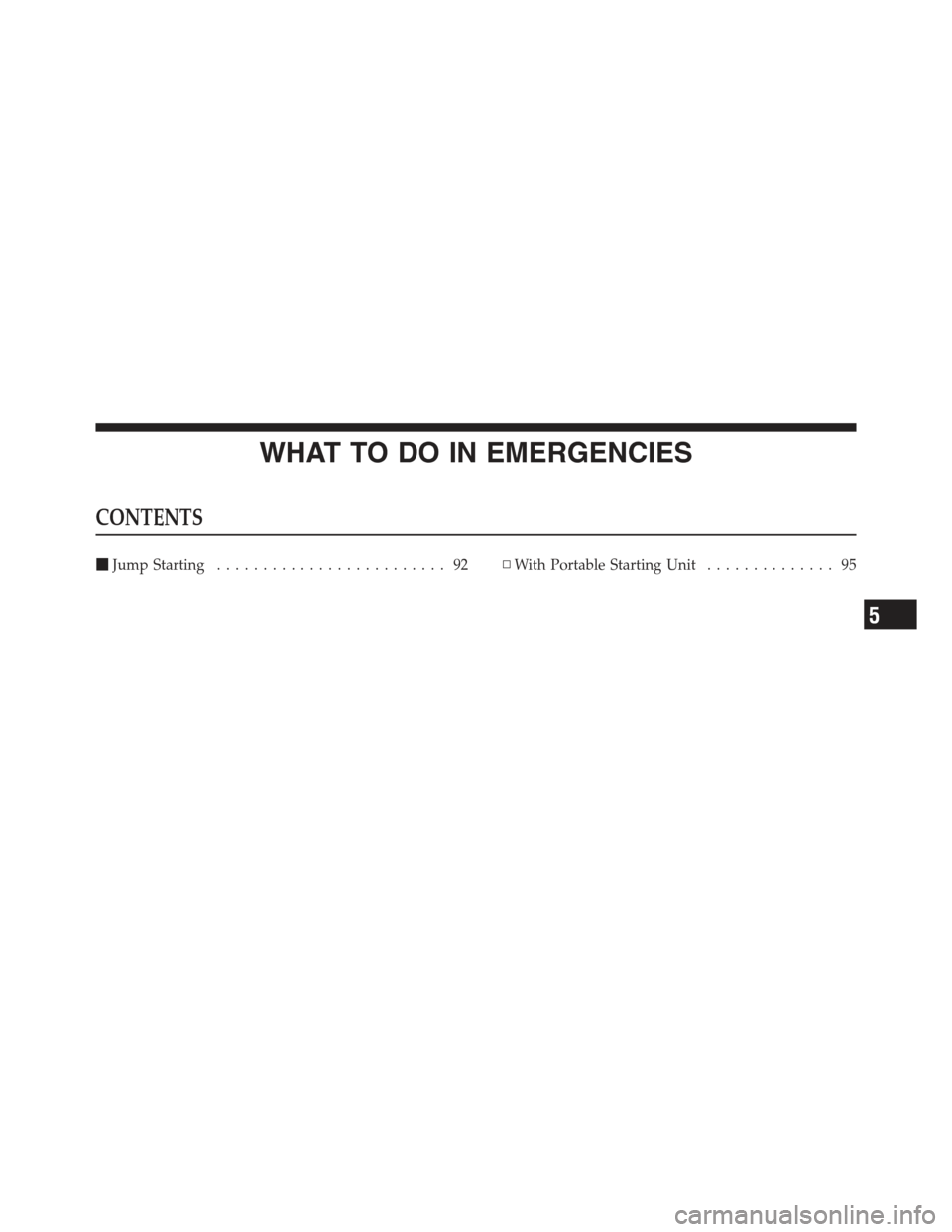

Page 93 of 173
WHAT TO DO IN EMERGENCIES
CONTENTS
Jump Starting ......................... 92 ▫With Portable Starting Unit .............. 95
5
Page 94 of 173
JUMP STARTING
WARNING!
•To prevent personal injury or damage to clothing,
do not allow battery fluid to contact eyes, skin or
fabrics. Do not lean over a battery when connect-
ing jumper cables or allow cable clamps to touch
each other. Keep open flames or sparks away from
battery vent holes. Always wear eye protection
when working with batteries.
•Do not use a booster battery or any other booster
source that has a greater than 12 Volt system, i.e.,
do not use a 24 Volt power source.
NOTE: Replacement batteries should both be of equal
size to prevent damage to the vehicle’s charging system.
Your vehicle is equipped with two 12 Volt batteries. If it
becomes necessary to use a booster battery with jumper cables to start a vehicle’s engine because its batteries are
discharged, the following procedure should be used:
Set the parking brake and place an automatic transmis-
sion in PARK (or NEUTRAL for a manual transmission).
Turn off lights, heater and other electrical loads. Observe
charge indicator (if equipped) in both batteries. If the
indicator (if equipped) is light or yellow on either battery,
replace that battery.
CAUTION!
Use the jump start procedure only when the charge
indicator (if equipped) in both batteries is dark in the
center. Do not attempt jump starting when either
battery charge indicator (if equipped) is bright or
yellow. If the charge indicator (if equipped) has a
green dot in the center, failure to start is not due to a
discharged battery and cranking system should be
checked.
92 WHAT TO DO IN EMERGENCIES

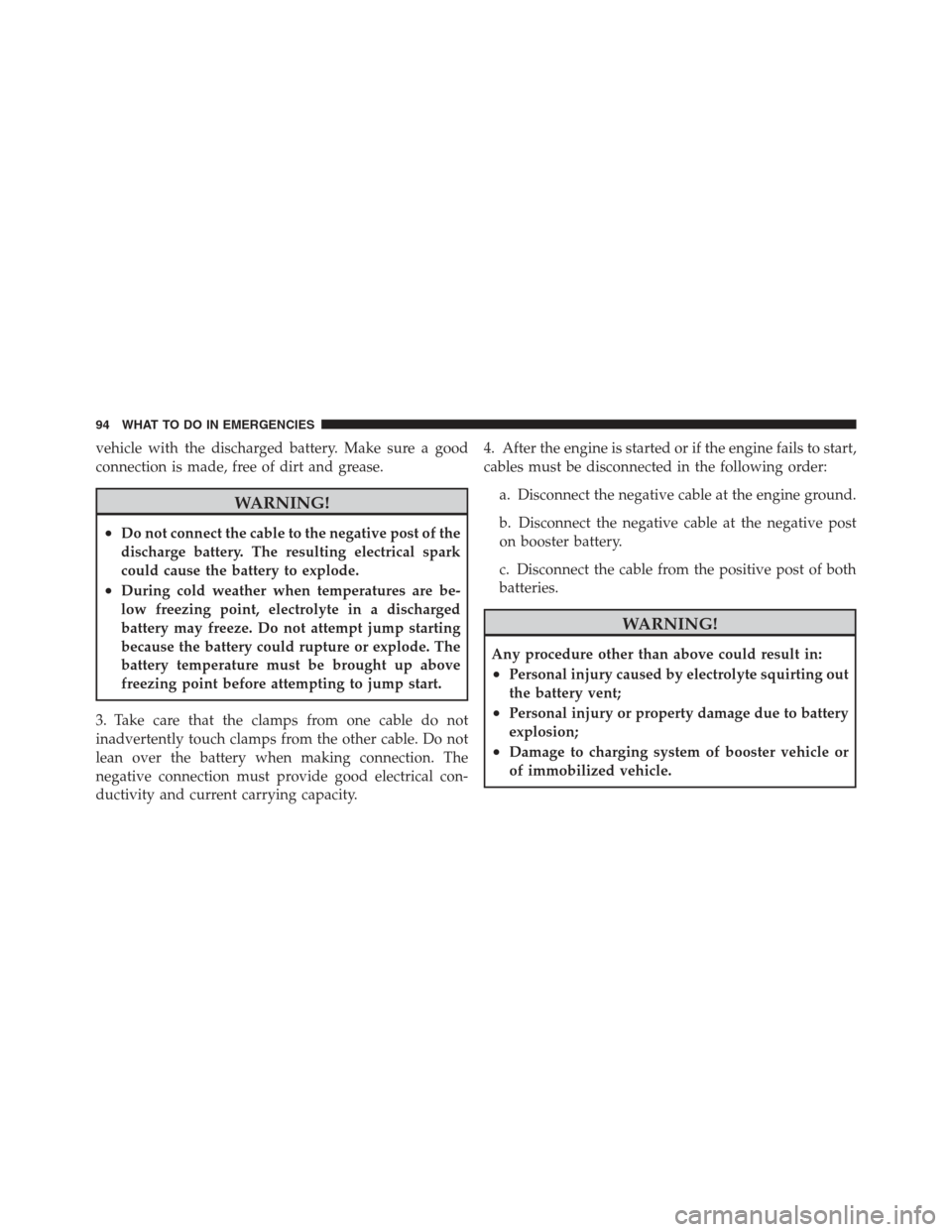

Page 96 of 173
vehicle with the discharged battery. Make sure a good
connection is made, free of dirt and grease.
WARNING!
•Do not connect the cable to the negative post of the
discharge battery. The resulting electrical spark
could cause the battery to explode.
•During cold weather when temperatures are be-
low freezing point, electrolyte in a discharged
battery may freeze. Do not attempt jump starting
because the battery could rupture or explode. The
battery temperature must be brought up above
freezing point before attempting to jump start.
3. Take care that the clamps from one cable do not
inadvertently touch clamps from the other cable. Do not
lean over the battery when making connection. The
negative connection must provide good electrical con-
ductivity and current carrying capacity. 4. After the engine is started or if the engine fails to start,
cables must be disconnected in the following order:
a. Disconnect the negative cable at the engine ground.
b. Disconnect the negative cable at the negative post
on booster battery.
c. Disconnect the cable from the positive post of both
batteries.
WARNING!
Any procedure other than above could result in:
•Personal injury caused by electrolyte squirting out
the battery vent;
•Personal injury or property damage due to battery
explosion;
•Damage to charging system of booster vehicle or
of immobilized vehicle.
94 WHAT TO DO IN EMERGENCIES
Page 167 of 173
Coolant Capacity..................... 133
Coolant Level .................... 1 15,119
Disposal of Used Coolant ............... 119
Drain, Flush, and Refill ................ 116
Inspection .......................... 119
Points to Remember .................. 120
Pressure Cap ........................ 118
Radiator Cap ........................ 118
Selection of Coolant (Antifreeze) ....... 116,134
Diesel Exhaust Brake ...................... 50
Diesel Fuel ............................. 82
Diesel Fuel Requirements ................... 82
Bulk Storage of ....................... 84
Diesel Fuel System, Re-Priming .............. 110
Dipsticks .............................. 100
Disposal .............................. 104
Antifreeze (Engine Coolant) ............. 119
Engine Oil ......................... 104 Draining Fuel/Water Separator Filter
.......... 106
Electronic Range Select (ERS) ..............60,71
Electronic Vehicle Information Center (EVIC) ..... 25
Emergency, In Case of Jump Starting ........................ 92
Engine ................................ 99
Air Cleaner ......................... 104
Block Heater ....................... 35,49
Break-In Recommendations .............. 12
Compartment ........................ 99
Coolant (Antifreeze) .................. 134
Identification ........................ 99
Idling ............................. 44
Jump Starting ........................ 92
Oil ............................ 100,134
Oil Filler Cap ....................... 103
Oil Synthetic ........................ 104
Runaway ........................... 81
8
INDEX 165

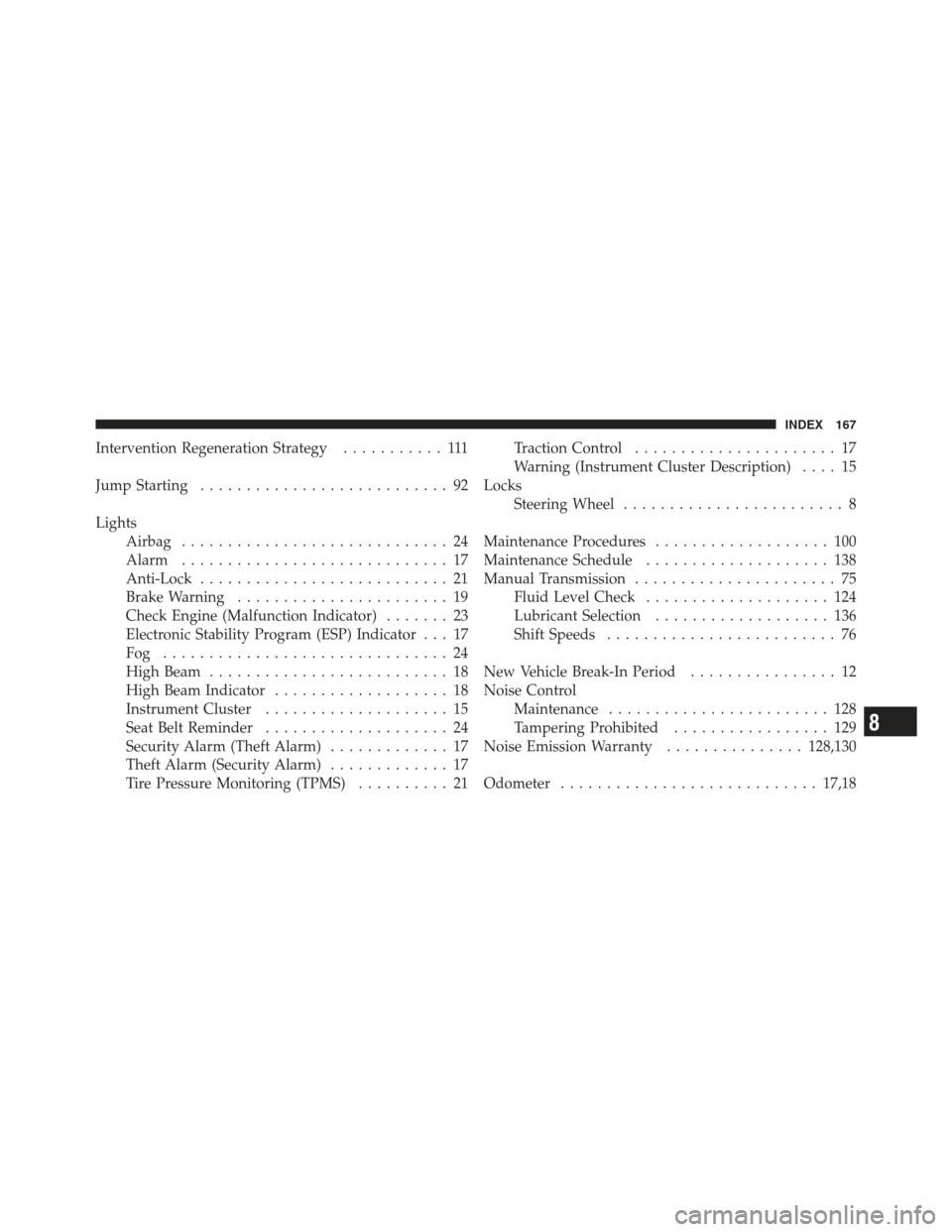

Page 169 of 173
Intervention Regeneration Strategy........... 111
Jump Starting ........................... 92
Lights Airbag ............................. 24
Alarm ............................. 17
Anti-Lock ........................... 21
Brake Warning ....................... 19
Check Engine (Malfunction Indicator) ....... 23
Electronic Stability Program (ESP) Indicator . . . 17
Fog ............................... 24
High Beam .......................... 18
High Beam Indicator ................... 18
Instrument Cluster .................... 15
Seat Belt Reminder .................... 24
Security Alarm (Theft Alarm) ............. 17
Theft Alarm (Security Alarm) ............. 17
Tire Pressure Monitoring (TPMS) .......... 21Traction Control
...................... 17
Warning (Instrument Cluster Description) .... 15
Locks Steering Wheel ........................ 8
Maintenance Procedures ................... 100
Maintenance Schedule .................... 138
Manual Transmission ...................... 75
Fluid Level Check .................... 124
Lubricant Selection ................... 136
Shift Speeds ......................... 76
New Vehicle Break-In Period ................ 12
Noise Control Maintenance ........................ 128
Tampering Prohibited ................. 129
Noise Emission Warranty ...............128,130
Odometer ............................ 17,18
8
INDEX 167
