Ram 5500 Chassis Cab 2012 Owner's Manual

104,000 Miles (169,000 km) or
78 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
104,000 miles (169 000 km).
❏Lube the front drive shaft fitting (4x4
only).
❏Flush and replace engine coolant at
104,000 miles (169,00 km) or 60 months
(whichever occurs first).
❏Flush and replace power steering fluid.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
112,000 Miles (182,000 km) or 84 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
112,000 miles (182 000 km).
❏If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏Lube the front drive shaft fitting (4x4 only).
❏Inspect the brake linings, replace if necessary.
❏Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
SMAINTENANCE SCHEDULES 469

120,000 Miles (195,000 km) or 90 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
120,000 miles (195 000 km).
❏Lube the front drive shaft fitting (4x4 only).
❏Inspect the CV joints.
❏Inspect exhaust system.
❏Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏Change the automatic transmission fluid and filter(s).
❏Replace the accessory drive belt(s).
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S470 MAINTENANCE SCHEDULES

128,000 Miles (208,000 km) or 96 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
128,000 miles (208 000 km).
❏Replace the engine air cleaner filter.
❏Replace the spark plugs.
❏Lube the front drive shaft fitting (4x4 only).
❏Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏Change the transfer case fluid.
❏Inspect the brake linings, replace if necessary.
❏Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
136,000 Miles (221,000 km) or
102 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
136,000 miles (221 000 km).
❏Lube the front drive shaft fitting (4x4
only).
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
SMAINTENANCE SCHEDULES 471

144,000 Miles (234,000 km) or 108 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
144,000 miles (234 000 km).
❏If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏Lube the front drive shaft fitting (4x4 only).
❏Inspect the brake linings, replace if necessary.
❏Inspect the CV joints.
❏Inspect exhaust system.
❏Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
❏Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
152,000 Miles (247,000 km) or
114 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
152,000 miles (247 000 km).
❏Lube the front drive shaft fitting (4x4
only).
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S472 MAINTENANCE SCHEDULES

WARNING!
•You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform
a service job, take your vehicle to a competent
mechanic.
•Failure to properly inspect and maintain your
vehicle could result in a component malfunction
and effect vehicle handling and performance. This
could cause an accident.
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
SMAINTENANCE SCHEDULES 473

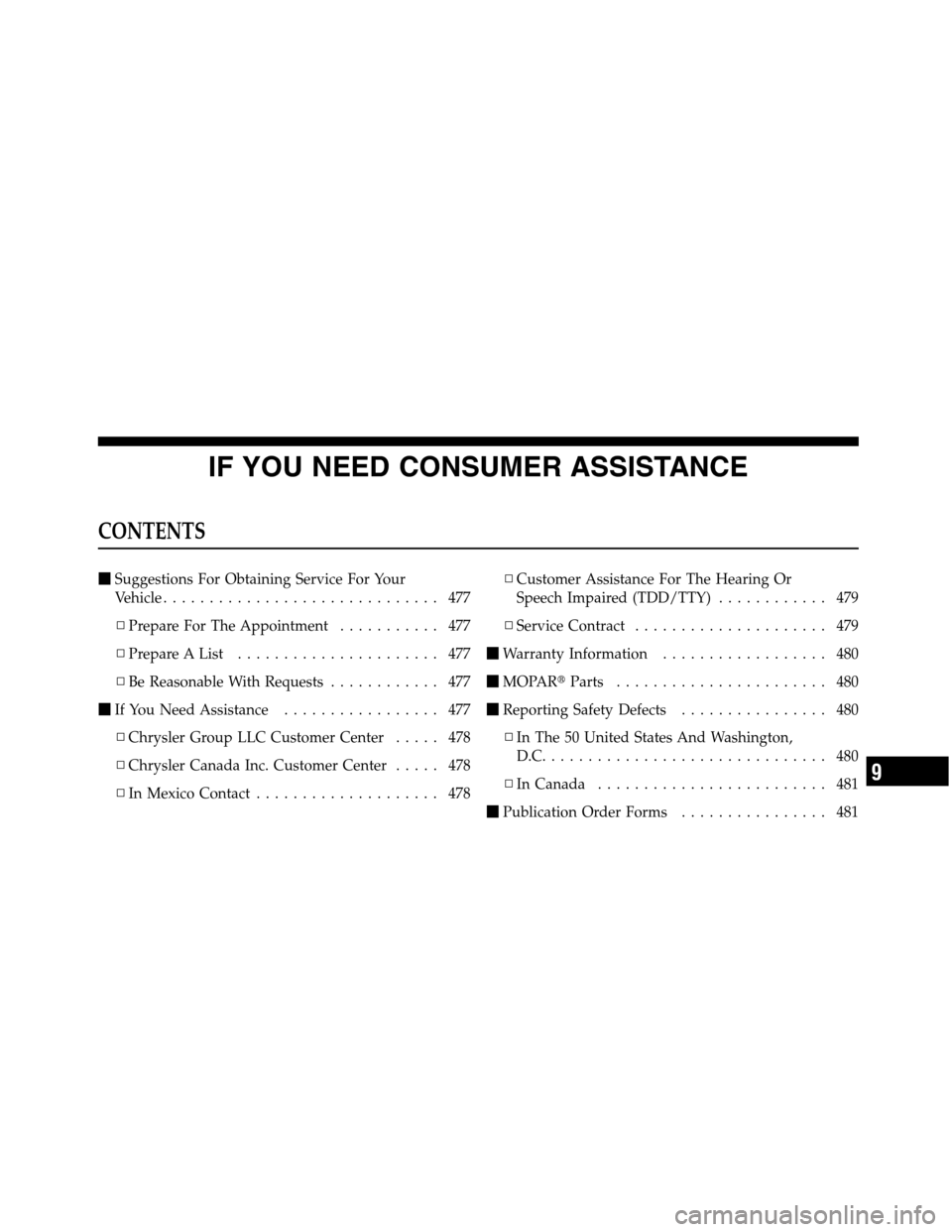

IF YOU NEED CONSUMER ASSISTANCE
CONTENTS
Suggestions For Obtaining Service For Your
Vehicle.............................. 477
▫Prepare For The Appointment........... 477
▫Prepare A List...................... 477
▫Be Reasonable With Requests............ 477
If You Need Assistance................. 477
▫Chrysler Group LLC Customer Center..... 478
▫Chrysler Canada Inc. Customer Center..... 478
▫In Mexico Contact.................... 478▫Customer Assistance For The Hearing Or
Speech Impaired (TDD/TTY)............ 479
▫Service Contract..................... 479
Warranty Information.................. 480
MOPARParts....................... 480
Reporting Safety Defects................ 480
▫In The 50 United States And Washington,
D.C............................... 480
▫In Canada......................... 481
Publication Order Forms................ 481
9

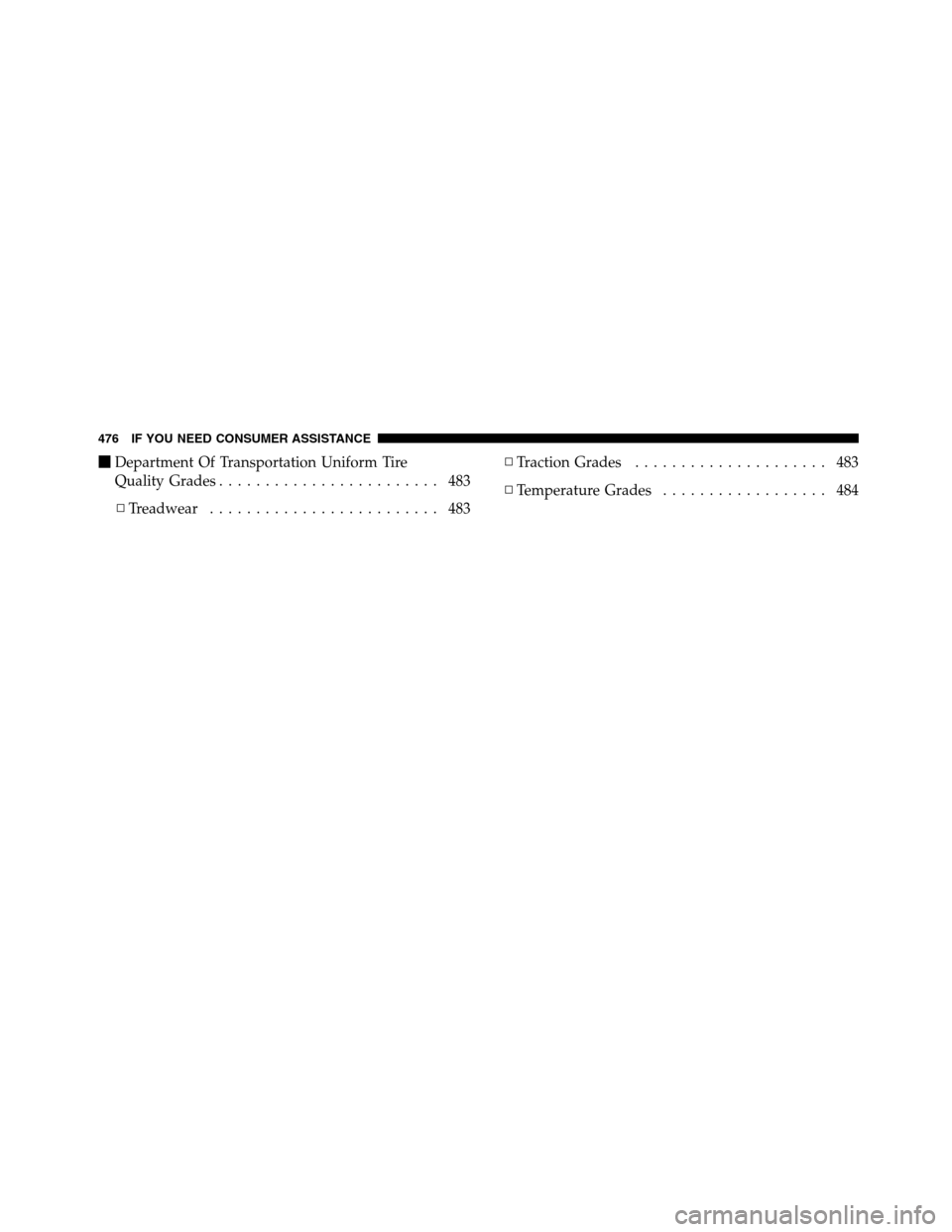

Department Of Transportation Uniform Tire
Quality Grades........................ 483
▫Treadwear......................... 483▫Traction Grades..................... 483
▫Temperature Grades.................. 484
476 IF YOU NEED CONSUMER ASSISTANCE

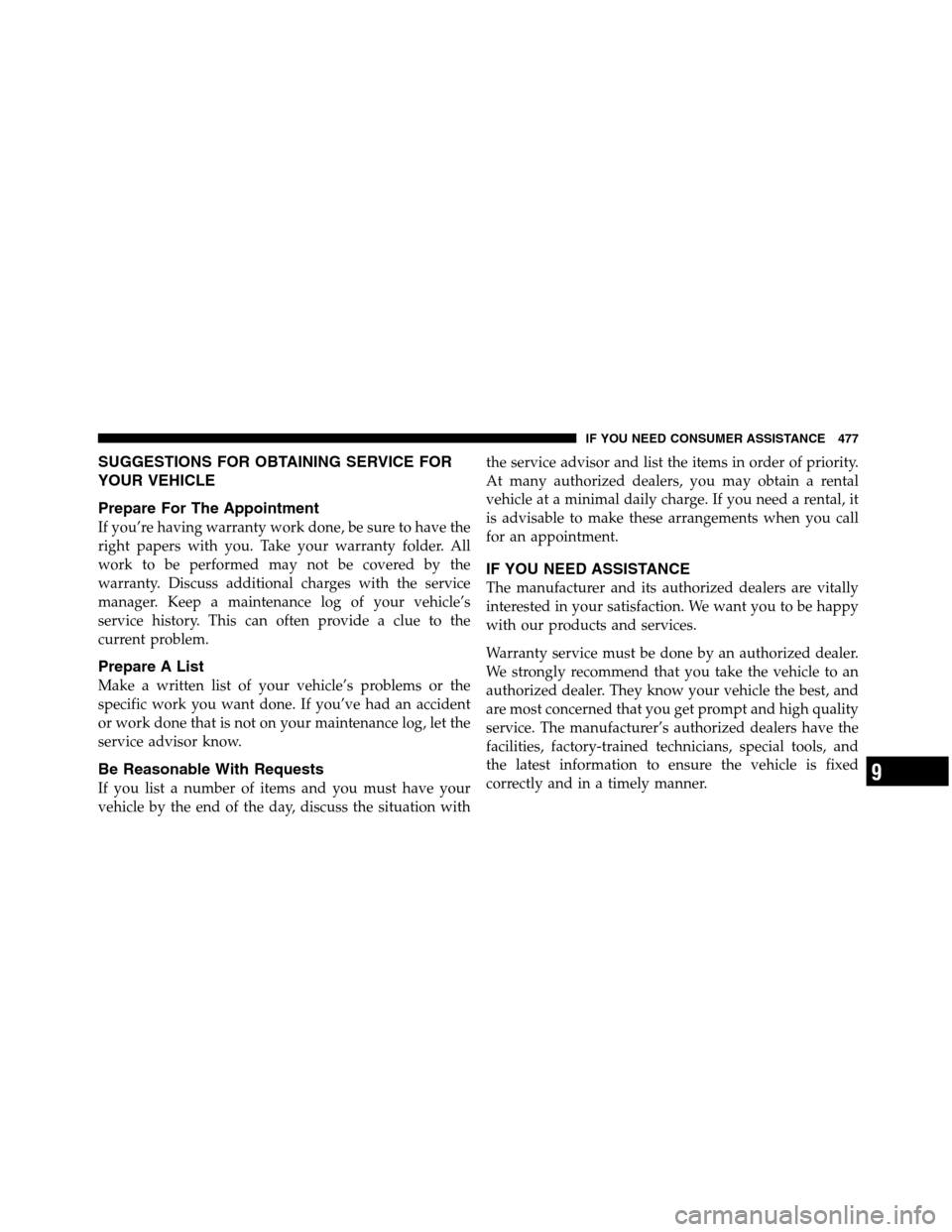

SUGGESTIONS FOR OBTAINING SERVICE FOR
YOUR VEHICLE
Prepare For The Appointment
If you’re having warranty work done, be sure to have the
right papers with you. Take your warranty folder. All
work to be performed may not be covered by the
warranty. Discuss additional charges with the service
manager. Keep a maintenance log of your vehicle’s
service history. This can often provide a clue to the
current problem.
Prepare A List
Make a written list of your vehicle’s problems or the
specific work you want done. If you’ve had an accident
or work done that is not on your maintenance log, let the
service advisor know.
Be Reasonable With Requests
If you list a number of items and you must have your
vehicle by the end of the day, discuss the situation withthe service advisor and list the items in order of priority.
At many authorized dealers, you may obtain a rental
vehicle at a minimal daily charge. If you need a rental, it
is advisable to make these arrangements when you call
for an appointment.
IF YOU NEED ASSISTANCE
The manufacturer and its authorized dealers are vitally
interested in your satisfaction. We want you to be happy
with our products and services.
Warranty service must be done by an authorized dealer.
We strongly recommend that you take the vehicle to an
authorized dealer. They know your vehicle the best, and
are most concerned that you get prompt and high quality
service. The manufacturer’s authorized dealers have the
facilities, factory-trained technicians, special tools, and
the latest information to ensure the vehicle is fixed
correctly and in a timely manner.
9
IF YOU NEED CONSUMER ASSISTANCE 477

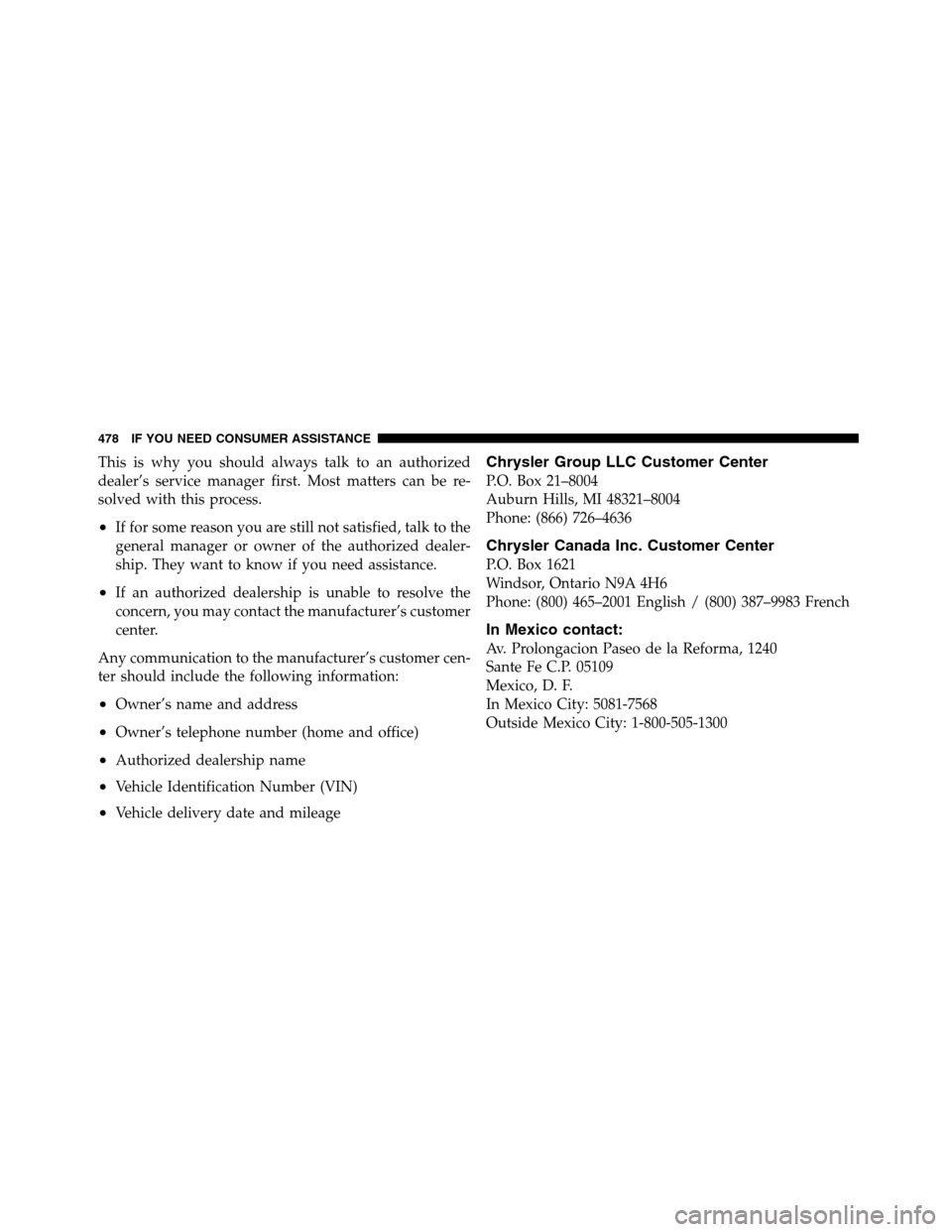

This is why you should always talk to an authorized
dealer’s service manager first. Most matters can be re-
solved with this process.
•If for some reason you are still not satisfied, talk to the
general manager or owner of the authorized dealer-
ship. They want to know if you need assistance.
•If an authorized dealership is unable to resolve the
concern, you may contact the manufacturer’s customer
center.
Any communication to the manufacturer’s customer cen-
ter should include the following information:
•Owner’s name and address
•Owner’s telephone number (home and office)
•Authorized dealership name
•Vehicle Identification Number (VIN)
•Vehicle delivery date and mileage
Chrysler Group LLC Customer Center
P.O. Box 21–8004
Auburn Hills, MI 48321–8004
Phone: (866) 726–4636
Chrysler Canada Inc. Customer Center
P.O. Box 1621
Windsor, Ontario N9A 4H6
Phone: (800) 465–2001 English / (800) 387–9983 French
In Mexico contact:
Av. Prolongacion Paseo de la Reforma, 1240
Sante Fe C.P. 05109
Mexico, D. F.
In Mexico City: 5081-7568
Outside Mexico City: 1-800-505-1300
478 IF YOU NEED CONSUMER ASSISTANCE
