WARNING!
Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in a
collision causing serious injury or death.
Uconnect™ Phone Button
The radio or steering wheel controls (if
equipped) will contain the two control buttons
(Uconnect™ Phone
button and Voice
Command
button) that will enable you
to access the system. When you press the button you will
hear the word Uconnect™ followed by a BEEP. The beep
is your signal to give a command.Voice Command Button
Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The Uconnect™ Phone can be used with any Hands-Free
Profile certified Bluetoothmobile phone. See the
Uconnect™ website for supported phones. Refer to your
mobile service provider or the phone manufacturer for
details.
The Uconnect™ Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect™ Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the Uconnect™ Phone such as “CELL” or caller ID on
certain radios.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

▫Controlling The iPodOr External USB
Device Using Radio Buttons............. 251
▫PlayMode ......................... 251
▫List Or Browse Mode................. 253
▫Bluetooth Streaming Audio (BTSA)........ 255
Uconnect™ Multimedia (Satellite Radio) —
If Equipped (REN/RER/RES Radios Only).... 256
▫System Activation.................... 256
▫Electronic Serial Number/Sirius
Identification Number (ESN/SID)......... 256
▫Selecting Uconnect™ Multimedia
(Satellite) Mode..................... 257
▫Satellite Antenna..................... 257
▫Reception Quality.................... 257▫Operating Instructions - Uconnect™
Multimedia (Satellite) Mode............. 258
▫Operating Instructions - Uconnect™ Phone
(If Equipped)....................... 260
Steering Wheel Audio Controls —
If Equipped.......................... 260
▫Radio Operation..................... 261
▫CD Player......................... 261
CD/DVD Disc Maintenance.............. 262
Radio Operation And Mobile Phones....... 262
Climate Controls...................... 262
▫Manual Heating And Air Conditioning
System............................ 263
▫Automatic Temperature Control (ATC) —
If Equipped........................ 267
4
UNDERSTANDING YOUR INSTRUMENT PANEL 185

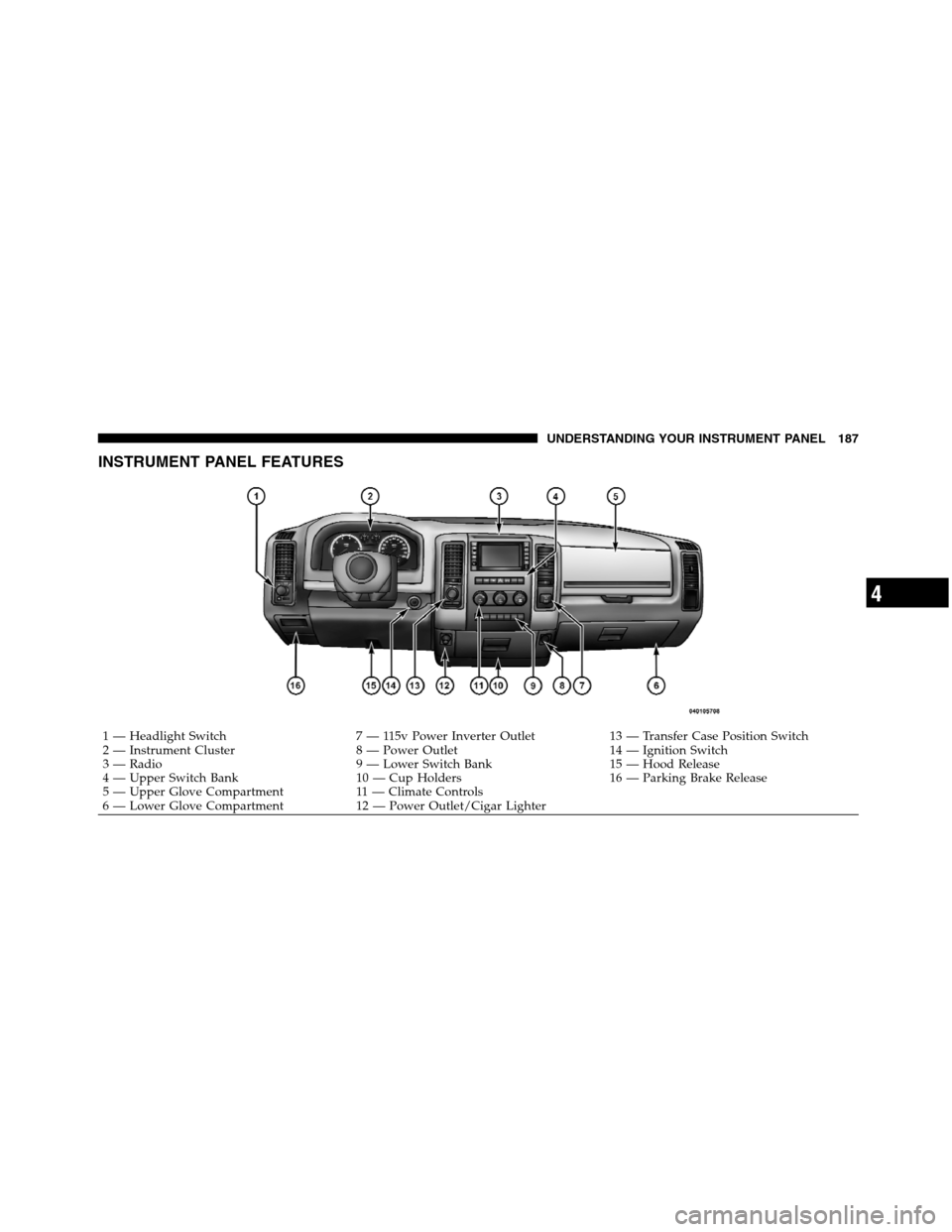

INSTRUMENT PANEL FEATURES
1 — Headlight Switch 7 — 115v Power Inverter Outlet 13 — Transfer Case Position Switch
2 — Instrument Cluster 8 — Power Outlet 14 — Ignition Switch
3 — Radio 9 — Lower Switch Bank 15 — Hood Release
4 — Upper Switch Bank 10 — Cup Holders 16 — Parking Brake Release
5 — Upper Glove Compartment 11 — Climate Controls
6 — Lower Glove Compartment 12 — Power Outlet/Cigar Lighter
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

You may add a second channel to each pushbutton by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2. This
allows a total of 12 Satellite channels to be stored into
pushbutton memory. The channels stored in SET 2
memory can be selected by pressing the pushbutton
twice.
Every time a preset button is used, a corresponding
button number will display.
Buttons1-6
These buttons tune the radio to the channels that you
commit to pushbutton memory (12 Satellite stations).
Operating Instructions - Uconnect™ Phone
(If Equipped)
Refer to “Uconnect™ Phone” in “Understanding The
Features Of Your Vehicle”.
STEERING WHEEL AUDIO CONTROLS —
IF EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel. Reach behind the wheel to
access the switches.
Remote Sound System Controls
(Back View Of Steering Wheel)
260 UNDERSTANDING YOUR INSTRUMENT PANEL

CD/DVD DISC MAINTENANCE
To keep a CD/DVD in good condition, take the following
precautions:
1. Handle the disc by its edge; avoid touching the
surface.
2. If the disc is stained, clean the surface with a soft cloth,
wiping from center to edge.
3. Do not apply paper or tape to the disc; avoid scratch-
ing the disc.
4. Do not use solvents such as benzene, thinner, cleaners,
or anti-static sprays.
5. Store the disc in its case after playing.
6. Do not expose the disc to direct sunlight.
7. Do not store the disc where temperatures may become
too high.NOTE:If you experience difficulty in playing a particu-
lar disc, it may be damaged (i.e., scratched, reflective
coating removed, a hair, moisture or dew on the disc)
oversized, or have protection encoding. Try a known
good disc before considering disc player service.
RADIO OPERATION AND MOBILE PHONES
Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the mobile phone antenna. This condition is
not harmful to the radio. If your radio performance does
not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during mobile phone operation when
not using Uconnect™ (if equipped).
CLIMATE CONTROLS
The Climate Control System allows you to regulate the
temperature, amount, and direction of air circulating
262 UNDERSTANDING YOUR INSTRUMENT PANEL

throughout the vehicle. The controls are located on the
instrument panel below the radio.
NOTE:During snowplow usage on vehicles equipped
with outside temperature display, the display may show
higher temperatures than the outside ambient tempera-
ture. The higher displayed temperature is due to blocked
or reduced airflow to the underhood ambient tempera-
ture sensor caused by the snowplow. In addition, on
vehicles equipped with Automatic Temperature Control
(ATC), it is suggested that the interior cabin temperature
be manually controlled should the system not perform as
desired while in automatic mode. Both the outside tem-
perature display and ATC operation will return to nor-
mal when the snowplow is removed.
Manual Heating And Air Conditioning System
The controls for the manual heating and air conditioning
system in this vehicle consist of a series of outer rotarydials and inner push knobs. These comfort controls can
be set to obtain desired interior conditions.
1 – Front Blower 4 – DEFROST Mode
2 – Temperature Control 5 – Air Conditioning (A/C)
3 – MODE Control 6 – RECIRCULATION Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 263

Adding Engine Coolant (Antifreeze).......... 423
Adding Fuel........................... 346
Adjustable Pedals....................... 158
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 413
Air Conditioner Maintenance............... 415
Air Conditioning........................ 263
Air Conditioning Controls................. 263
Air Conditioning Refrigerant.............415,416
Air Conditioning System.............263,267,415
Air Conditioning, Operating Tips............ 274
Air Pressure, Tires....................325,336
Airbag................................ 54
Airbag Deployment....................... 61
Airbag Light................... 59,60,63,80,201
Airbag Maintenance....................... 62
Airbag, Side............................ 58
Airbag, Window (Side Curtain)............... 58
Alarm (Security Alarm).................... 18
AlarmLight ........................... 193Alarm System (Security Alarm)............... 18
Alarm, Panic............................ 24
Alterations/Modifications, Vehicle............. 7
Antenna, Satellite Radio................245,257
Anti-Lock Warning Light...............202,314
Anti-Theft Security Alarm (Theft Alarm)........ 18
Anti-Theft System........................ 18
Antifreeze (Engine Coolant)................ 422
Capacities.......................... 453
Disposal........................... 425
Appearance Care........................ 435
Ashtray............................... 169
Assistance Towing....................... 108
Auto Down Power Windows................ 36
Automatic Dimming Mirror................. 87
Automatic Door Locks..................... 31
Automatic Headlights.................... 148
Automatic Temperature Control (ATC)......... 267
486 INDEX

Sliding Rear Window.................. 181
Steering........................308,309
Windows........................... 35
Power Steering Fluid..................... 455
Pregnant Women and Seat Belts.............. 53
Programmable Electronic Features............ 218
Programming Transmitters
(Remote Keyless Entry).................... 20
Radial Ply Tires......................... 330
Radiator Cap (Coolant Pressure Cap).......422,424
Radio Operation........................ 262
Radio, Satellite (Uconnect™ studios).......... 256
Rear Axle (Differential).................430,431
Rear Window Features.................... 180
Rear Window, Sliding..................... 181
Reclining Front Seats..................... 138
Recorder, Event Data...................... 64Recreational Towing...................... 368
Shifting into Transfer Case Neutral (N) . . 371,373
Shifting out of Transfer
Case Neutral (N)..................372,376
Reformulated Gasoline.................... 342
Refrigerant............................ 416
Reminder, Seat Belt....................... 52
Remote Control
Starting System....................... 26
Remote Keyless Entry (RKE)................. 20
Remote Sound System (Radio) Controls........ 260
Remote Starting System.................... 26
Replacement Keys........................ 17
Replacement Parts....................... 408
Replacement Tires....................... 334
Reporting Safety Defects................... 480
Resetting Oil Change Indicator...........196,212
Restraint, Head......................... 139
Restraints, Child....................... 65,71
10
INDEX 497
