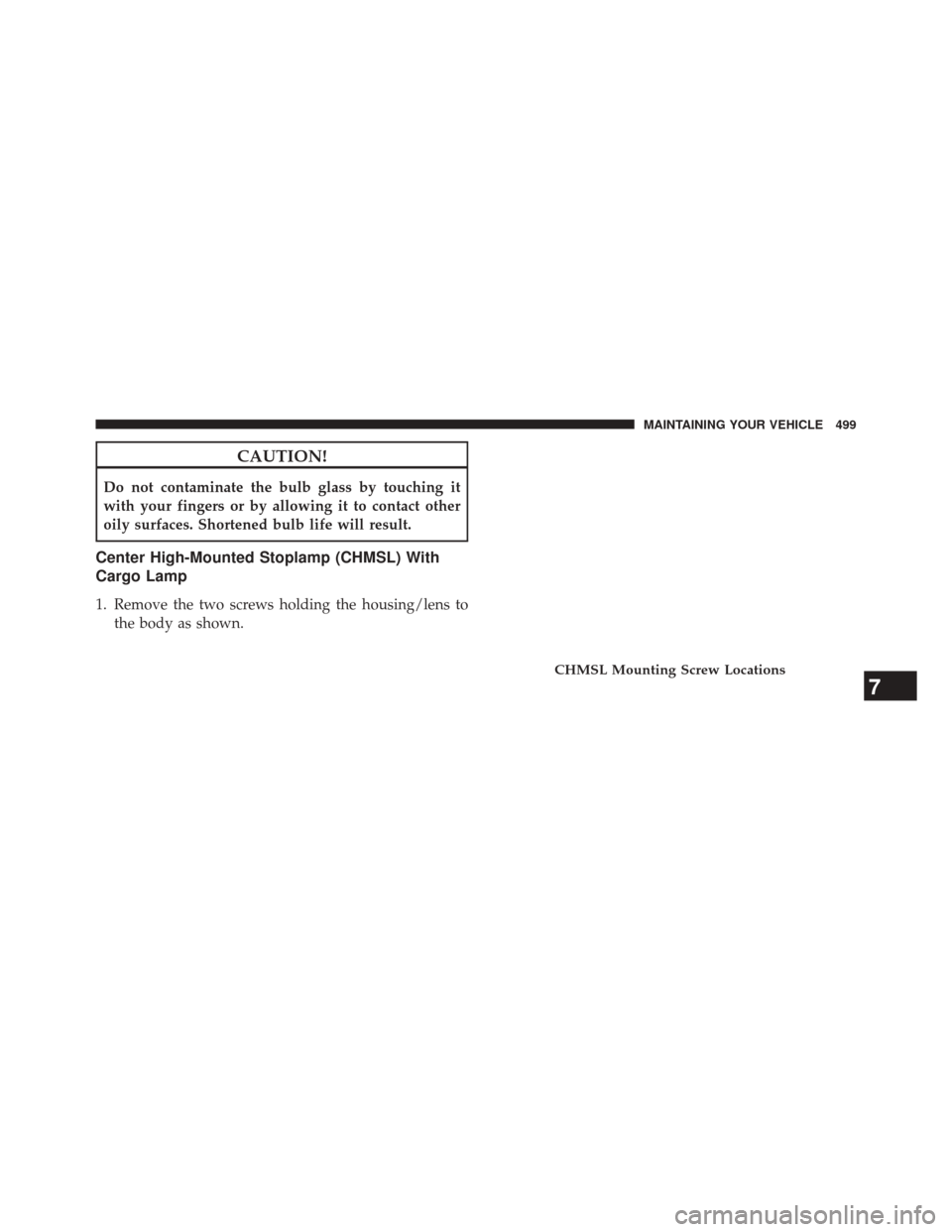

CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
Center High-Mounted Stoplamp (CHMSL) With
Cargo Lamp
1. Remove the two screws holding the housing/lens tothe body as shown.
CHMSL Mounting Screw Locations
7
MAINTAINING YOUR VEHICLE 499

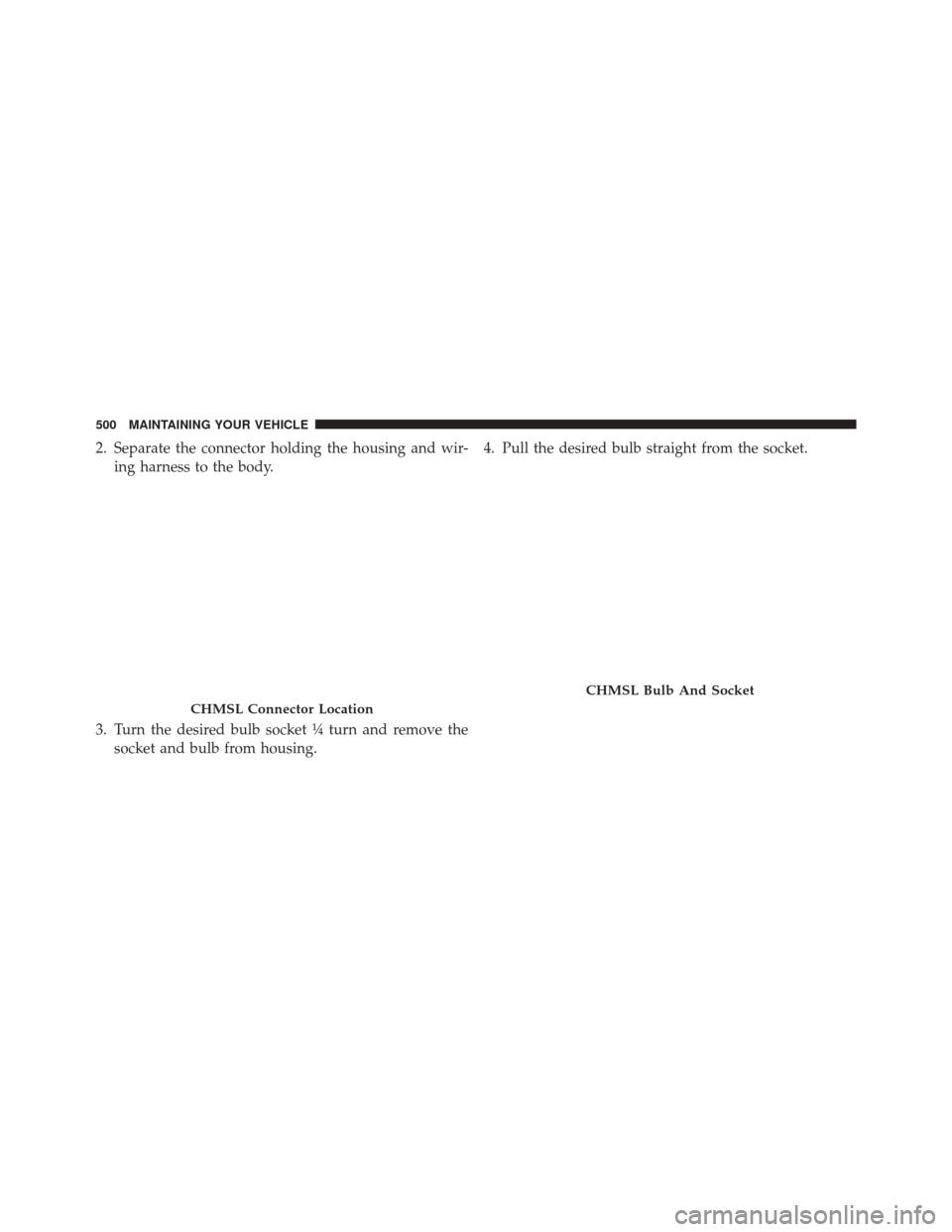

2. Separate the connector holding the housing and wir-ing harness to the body.
3. Turn the desired bulb socket ¼ turn and remove the socket and bulb from housing. 4. Pull the desired bulb straight from the socket.
CHMSL Connector Location
CHMSL Bulb And Socket
500 MAINTAINING YOUR VEHICLE

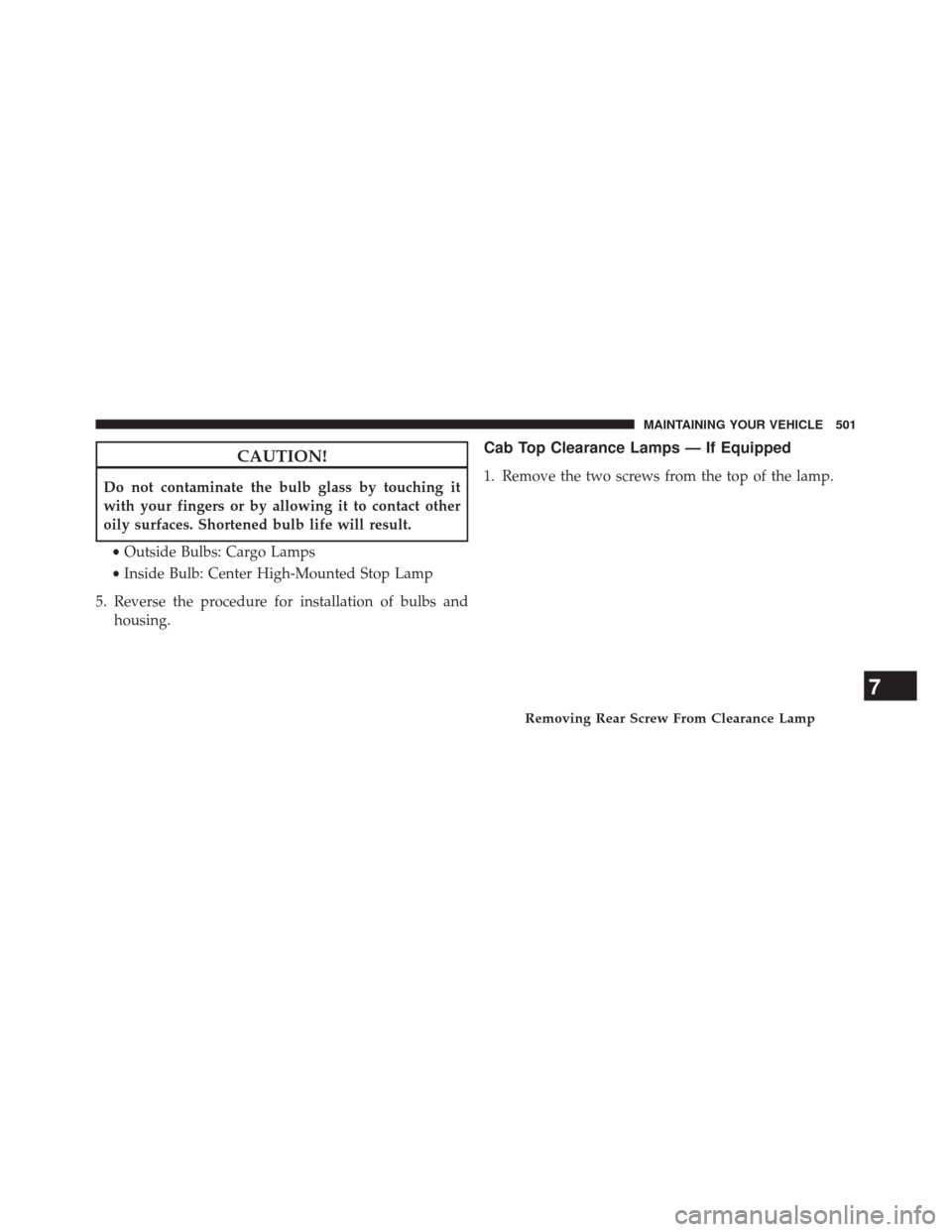

CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.• Outside Bulbs: Cargo Lamps
• Inside Bulb: Center High-Mounted Stop Lamp
5. Reverse the procedure for installation of bulbs and housing.
Cab Top Clearance Lamps — If Equipped
1. Remove the two screws from the top of the lamp.
Removing Rear Screw From Clearance Lamp
7
MAINTAINING YOUR VEHICLE 501

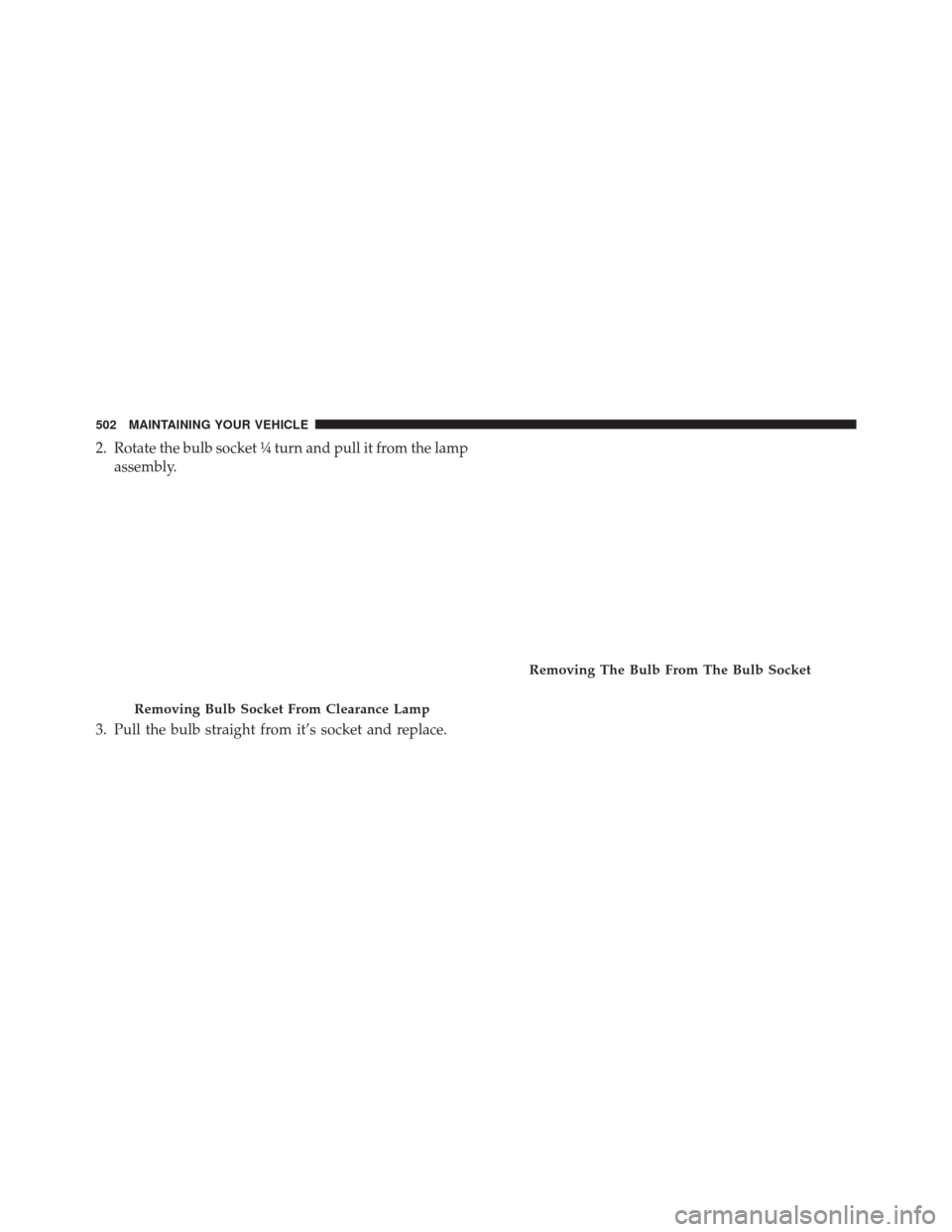

2. Rotate the bulb socket ¼ turn and pull it from the lampassembly.
3. Pull the bulb straight from it’s socket and replace.
Removing Bulb Socket From Clearance Lamp
Removing The Bulb From The Bulb Socket
502 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) Standard Rear Tank 52 Gallons197 Liters
Optional Midship Tank 22 Gallons83 Liters
Engine Oil With Filter
5.7L Engine (SAE 5W-20, API Certified) 7 Quarts6.6 Liters
6.4L Engine (SAE 0W-40, Synthetic API Certified) 7 Quarts6.6 Liters
Cooling System
5.7L Engine (MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile Formula). 18.7 Quarts
17.7 Liters
6.4L Engine (MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile Formula). 18.7 Quarts
17.7 Liters
7
MAINTAINING YOUR VEHICLE 503

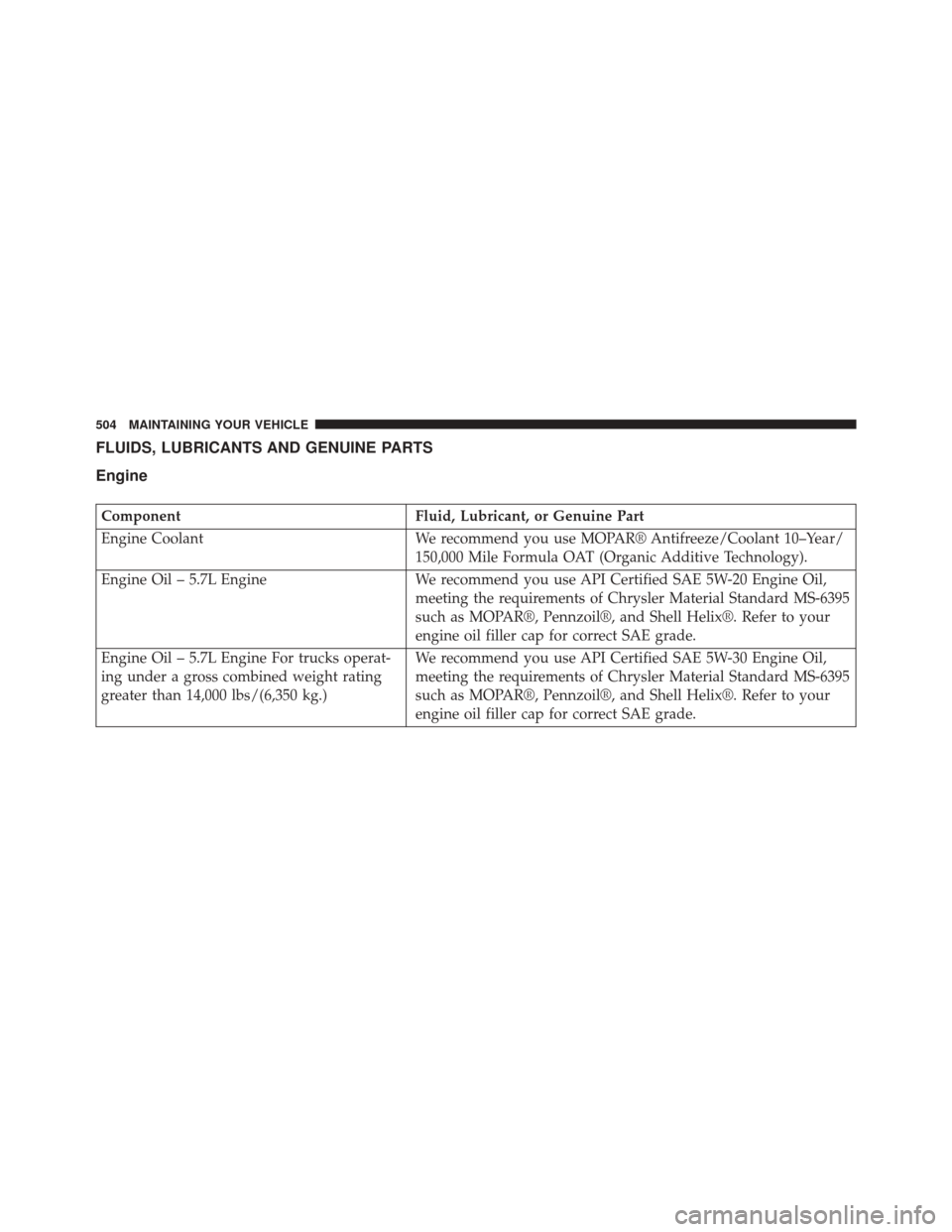

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10–Year/
150,000 Mile Formula OAT (Organic Additive Technology).
Engine Oil – 5.7L Engine We recommend you use API Certified SAE 5W-20 Engine Oil,
meeting the requirements of Chrysler Material Standard MS-6395
such as MOPAR®, Pennzoil®, and Shell Helix®. Refer to your
engine oil filler cap for correct SAE grade.
Engine Oil – 5.7L Engine For trucks operat-
ing under a gross combined weight rating
greater than 14,000 lbs/(6,350 kg.) We recommend you use API Certified SAE 5W-30 Engine Oil,
meeting the requirements of Chrysler Material Standard MS-6395
such as MOPAR®, Pennzoil®, and Shell Helix®. Refer to your
engine oil filler cap for correct SAE grade.
504 MAINTAINING YOUR VEHICLE

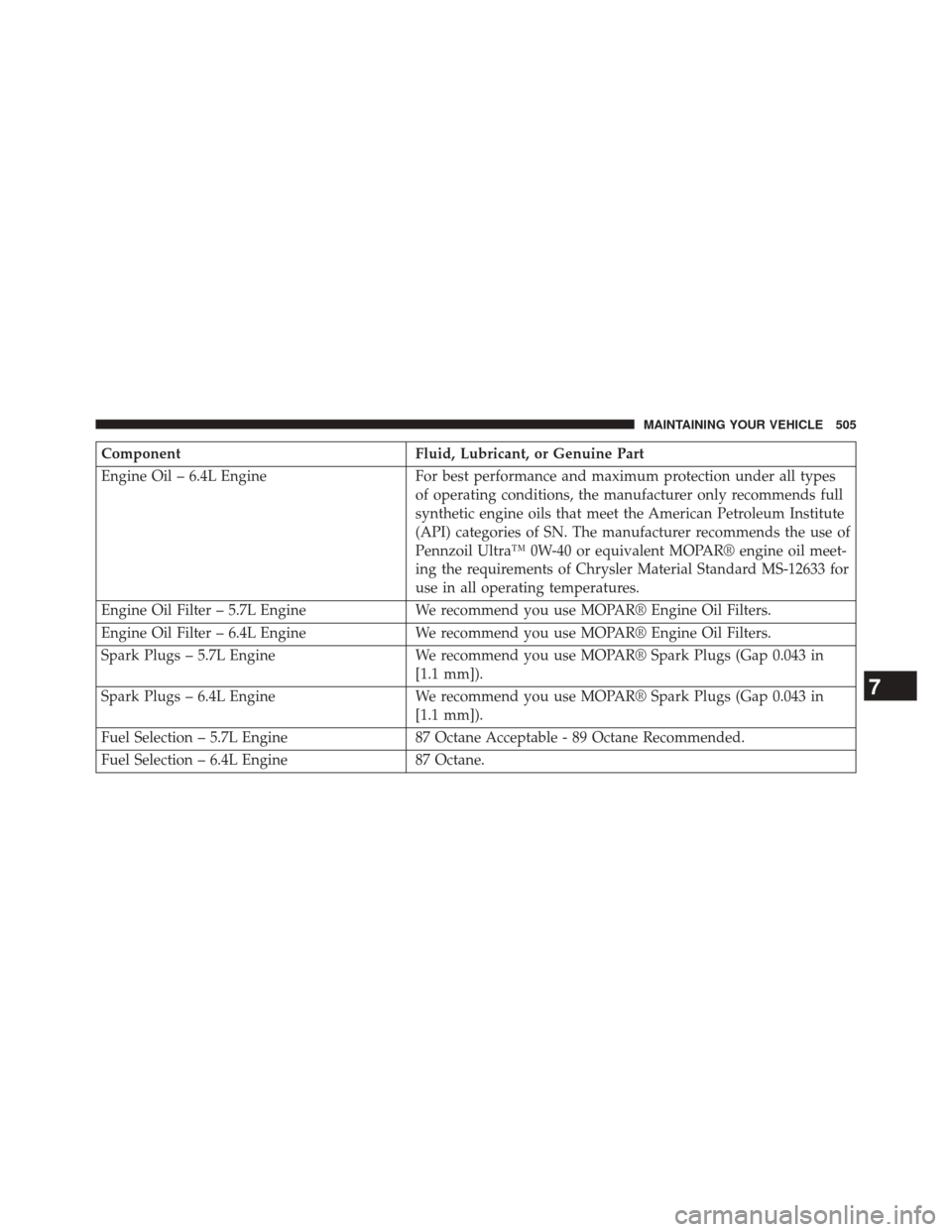

ComponentFluid, Lubricant, or Genuine Part
Engine Oil – 6.4L Engine For best performance and maximum protection under all types
of operating conditions, the manufacturer only recommends full
synthetic engine oils that meet the American Petroleum Institute
(API) categories of SN. The manufacturer recommends the use of
Pennzoil Ultra™ 0W-40 or equivalent MOPAR® engine oil meet-
ing the requirements of Chrysler Material Standard MS-12633 for
use in all operating temperatures.
Engine Oil Filter – 5.7L Engine We recommend you use MOPAR® Engine Oil Filters.
Engine Oil Filter – 6.4L Engine We recommend you use MOPAR® Engine Oil Filters.
Spark Plugs – 5.7L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in
[1.1 mm]).
Spark Plugs – 6.4L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in
[1.1 mm]).
Fuel Selection – 5.7L Engine 87 Octane Acceptable - 89 Octane Recommended.
Fuel Selection – 6.4L Engine 87 Octane.
7
MAINTAINING YOUR VEHICLE 505

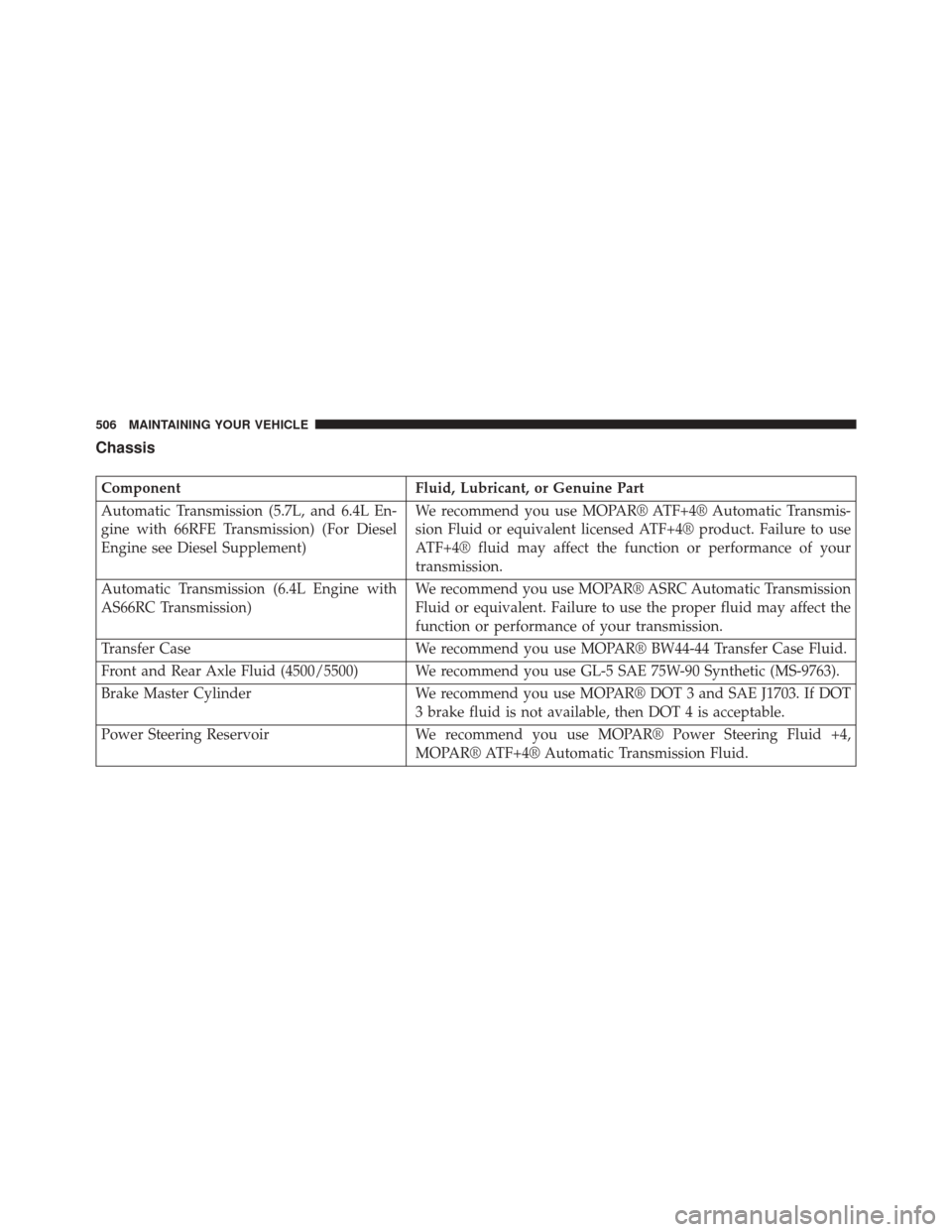

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission (5.7L, and 6.4L En-
gine with 66RFE Transmission) (For Diesel
Engine see Diesel Supplement) We recommend you use MOPAR® ATF+4® Automatic Transmis-
sion Fluid or equivalent licensed ATF+4® product. Failure to use
ATF+4® fluid may affect the function or performance of your
transmission.
Automatic Transmission (6.4L Engine with
AS66RC Transmission) We recommend you use MOPAR® ASRC Automatic Transmission
Fluid or equivalent. Failure to use the proper fluid may affect the
function or performance of your transmission.
Transfer Case We recommend you use MOPAR® BW44-44 Transfer Case Fluid.
Front and Rear Axle Fluid (4500/5500) We recommend you use GL-5 SAE 75W-90 Synthetic (MS-9763).
Brake Master Cylinder We recommend you use MOPAR® DOT 3 and SAE J1703. If DOT
3 brake fluid is not available, then DOT 4 is acceptable.
Power Steering Reservoir We recommend you use MOPAR® Power Steering Fluid +4,
MOPAR® ATF+4® Automatic Transmission Fluid.
506 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE .............508
▫ Maintenance Chart ....................510
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone otherthan your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)” in “Understanding Your
Instrument Panel” for further information.
NOTE:
•
Gasoline Engines
• Under no circumstances should oil change intervals
exceed 8,000 miles (13,000 km) or twelve months,
whichever comes first.
• Severe Duty
• Change Engine Oil at 4000 miles (6,500 km) if the
vehicle is operated in a dusty and off road environ-
ment. This type of vehicle use is considered Severe
Duty
Once A Month Or Before A Long Trip:
• Check engine oil level
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S508 MAINTENANCE SCHEDULES
