Cavity Cartridge Fuse Micro FuseDescription
F25 30 Amp Pink Front Wiper
F26 30 Amp Pink Antilock Brakes/Stability Control Module/
Valves
F28 20 Amp Blue Trailer Tow Backup Lights – If Equipped
F29 20 Amp Blue Trailer Tow Parking Lights – If Equipped
F30 30 Amp Pink Trailer Tow Receptacle
F31 30 Amp Pink
(1500 LD Diesel) Urea Heater Control – If Equipped
F32 30 Amp Pink Drive Train Control Module – If Equipped
F33 20 Amp Blue Special Services Vehicle Only
F34 30 Amp Pink Vehicle System Interface Module #2 –
If Equipped
F35 30 Amp Pink Sunroof – If Equipped
F36 30 Amp Pink Rear Defroster– If Equipped
F37 30 Amp Pink Cummins Diesel Fuel Heater #2 If Equipped
7
MAINTAINING YOUR VEHICLE 539

Cavity Cartridge Fuse Micro FuseDescription
F38 30 Amp Pink Power Inverter 115V AC– If Equipped
F39 30 Amp Pink Vehicle System Interface Module #1–
If Equipped
F41 10 Amp RedActive Grill Shutter — If Equipped
F42 20 Amp Yellow Horn
F44 10 Amp RedDiagnostic Port
F46 10 Amp RedTire Pressure Monitor
F49 10 Amp RedInstrument Panel Cluster
F50 20 Amp YellowAir Suspension Control Module –
If Equipped
F51 10 Amp Red Ignition Node Module / Keyless Ignition
F52 5 Amp TanBattery Sensor
F53 20 Amp Yellow Trailer Tow – Left Turn/Stop Lights
F54 20 Amp YellowAdjustable Pedals
F56 15 Amp Blue Additional Diesel Content – If Equipped
540 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Micro FuseDescription
F57 20 Amp YellowTransmission
F58 20 Amp YellowSpare Fuse
F59 10 Amp RedSCR Relay – If Equipped
F60 15 Amp BlueUnderhood Lamp
F61 10 Amp Red (1500
LD Diesel & Cum- mins Diesel) PM Sensor – If Equipped
F62 10 Amp RedAir Conditioning Clutch
F63 20 Amp YellowIgnition Coils (Gas), Urea Heater
(Cummins Diesel)
F64 25 Amp ClearFuel Injectors / Powertrain
F65 10 Amp RedUSB interface
F66 10 Amp Red Sunroof / Passenger Window Switches /
Rain Sensor
7
MAINTAINING YOUR VEHICLE 541

Cavity Cartridge Fuse Micro FuseDescription
F67 10 Amp Red CD / DVD / Bluetooth Hands-free Module –
If Equipped
F69 15 Amp BlueMod SCR 12V (Cummins Diesel) – If
Equipped
F70 30 Amp GreenFuel Pump Motor
F71 25 Amp ClearAmplifier
F72 10 Amp Red Voltage Stabilizer Modules – If Equipped
F73 20 Amp YellowFuel Transfer Pump (HD Only) – If
Equipped
F74 20 Amp Yellow
(Gas Engine &
1500 LD Diesel)
10 Amp Red (Cum-
mins Diesel Engine) Brake Vacuum Pump Gas/Diesel – If
Equipped
F75 10 Amp RedCoolant Temperature Valve Actuator
F76 10 Amp Red Antilock Brakes/Electronic Stability Control
542 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Micro FuseDescription
F77 10 Amp Red Drivetrain Control Module/Front Axle
Disconnect Module
F78 10 Amp Red Engine Control Module / Electric Power
Steering
F79 15 Amp BlueClearance Lights
F80 10 Amp Red Universal Garage Door Opener / Compass
F81 20 Amp Yellow Trailer Tow Right Turn/Stop Lights
F82 10 Amp Red Steering Column Control Module/ Cruise
Control
F84 15 Amp BlueSwitch Bank/Instrument Cluster
F85 10 Amp RedAirbag Module
F86 10 Amp RedAirbag Module
F87 10 Amp Red Air Suspension-If Equipped / Trailer Tow /
Steering Column Control Module
F88 15 Amp BlueInstrument Panel Cluster
7
MAINTAINING YOUR VEHICLE 543

Cavity Cartridge Fuse Micro FuseDescription
F90/F91 20 Amp Yellow
Power Outlet (Rear seats) Customer Selectable
F9320 Amp YellowCigar Lighter
F94 10 Amp RedShifter / Transfer Case Module
F95 10 Amp RedRear Camera / Park Assist
F96 10 Amp RedRear Seat Heater Switch
F97 25 Amp Clear Rear Heated Seats & Heated Steering Wheel
– If Equipped
F98 25 Amp ClearFront Heated Seats – If Equipped
F99 10 Amp RedClimate Control
F100 10 Amp RedUpfitters – If Equipped
F101 15 Amp Blue Electrochromatic Mirror / Smart High Beams
– If Equipped
F104 20 Amp Yellow Power Outlets (Instrument Panel/Center
Console)
544 MAINTAINING YOUR VEHICLE

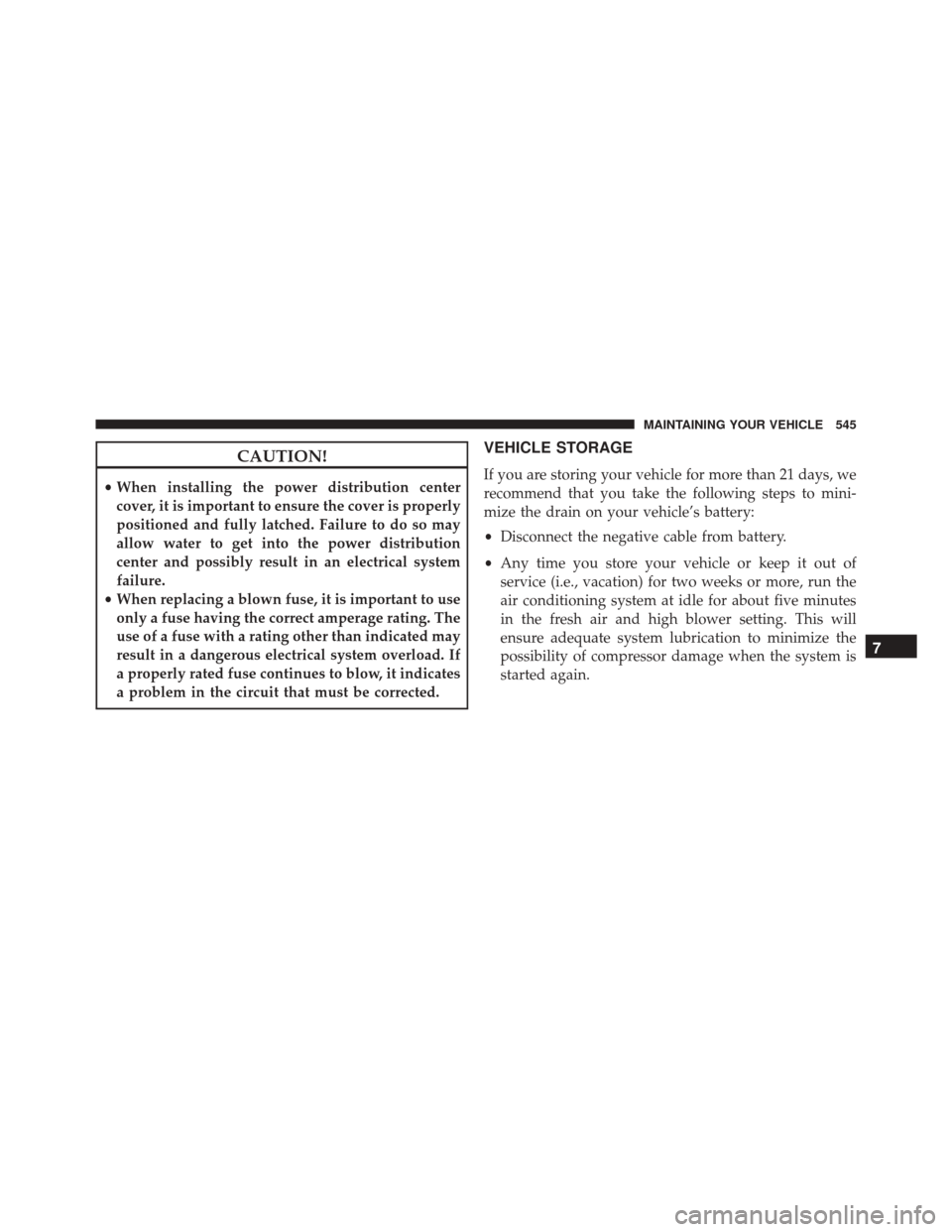

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
• Disconnect the negative cable from battery.
• Any time you store your vehicle or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
7
MAINTAINING YOUR VEHICLE 545

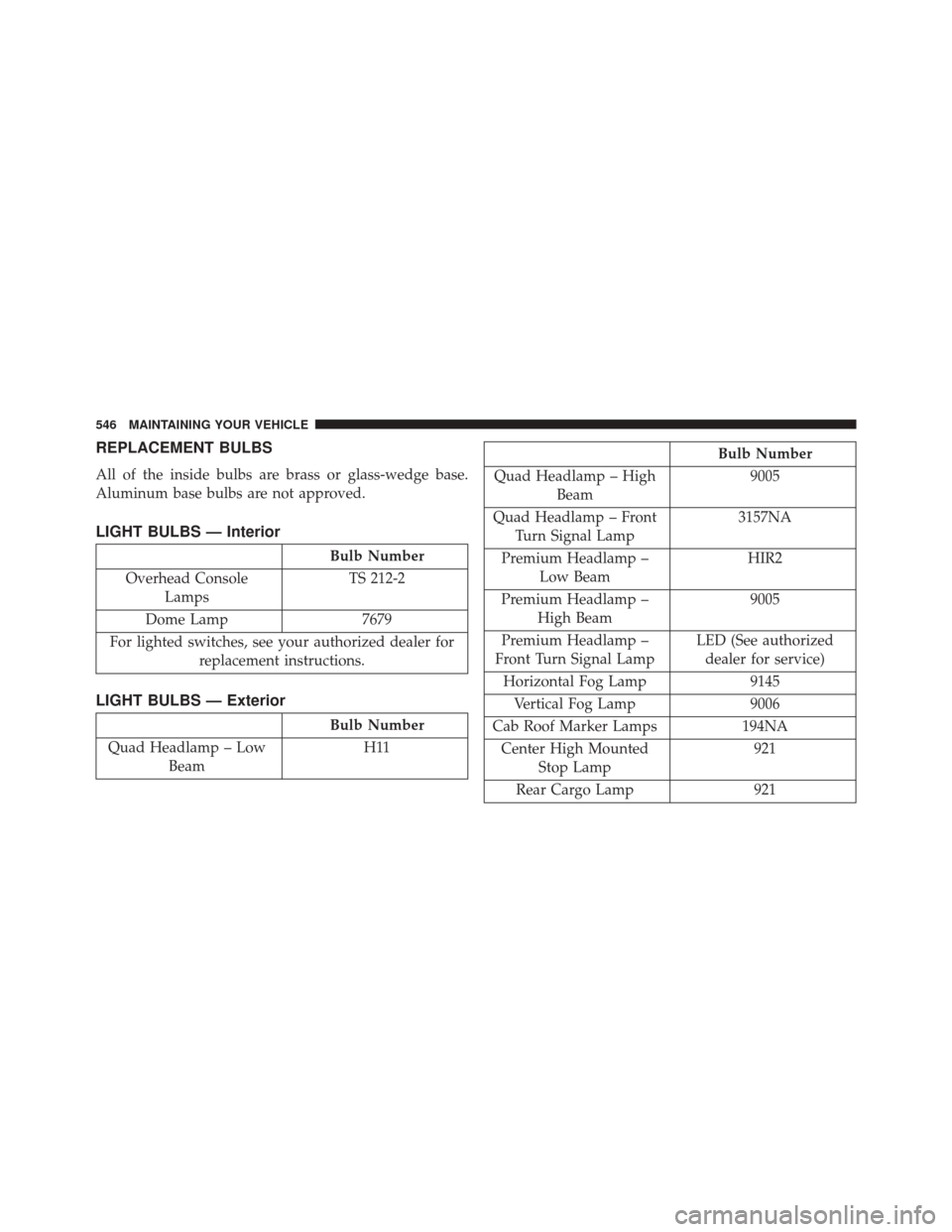

REPLACEMENT BULBS
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
LIGHT BULBS — Interior
Bulb Number
Overhead Console Lamps TS 212-2
Dome Lamp 7679
For lighted switches, see your authorized dealer for replacement instructions.
LIGHT BULBS — Exterior
Bulb Number
Quad Headlamp – Low Beam H11
Bulb Number
Quad Headlamp – High Beam 9005
Quad Headlamp – Front Turn Signal Lamp 3157NA
Premium Headlamp – Low Beam HIR2
Premium Headlamp – High Beam 9005
Premium Headlamp –
Front Turn Signal Lamp LED (See authorized
dealer for service)
Horizontal Fog Lamp 9145 Vertical Fog Lamp 9006
Cab Roof Marker Lamps 194NA Center High Mounted Stop Lamp 921
Rear Cargo Lamp 921
546 MAINTAINING YOUR VEHICLE

Bulb Number
Box Off Tail Lamps –
Stop/Turn/Tail/License Plate 1157
Box Off Tail Lamps – Back Up 1156
BULB REPLACEMENT
NOTE:
Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Base Quad / Premium Bi-Halogen: Low Beam
Headlamp, High Beam Headlamp, Front Park And
Turn — If Equipped
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Remove the six plastic push-in fasteners that secure the upper radiator seal to the grille support and both
fender ledges.
4. Remove the two plastic push-in rivets that secure the upper radiator seal to the radiator.
5. Remove the upper radiator seal from the vehicle.
6. Remove the two headlamp assembly attachment screws.
7
MAINTAINING YOUR VEHICLE 547

7. Reach into the front wheel house ahead of the frontwheel, remove the fastener, and lift the cover over the
access hole in the front of the wheel house splash
shield. Access to the rear of the lamp can be gained
through this access hole. 8. Reach through the access hole of the wheel house
splash shield and lift the slide lock upward far enough
to disengage it from the lock post on the back of the
front lamp unit housing.
Headlamp Assembly Attachment Screw Locations
Slide Lock
