Page 561 of 599

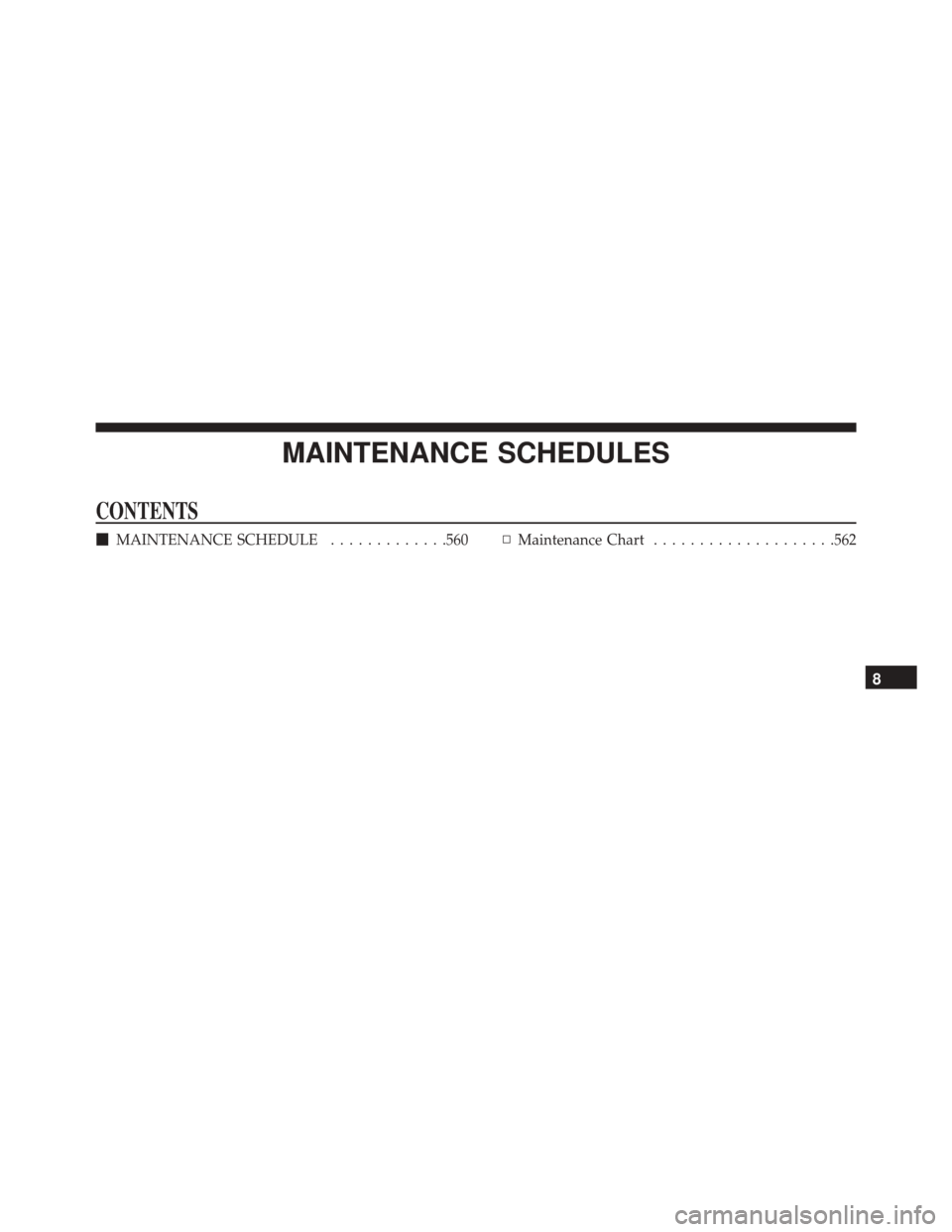

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE .............560▫Maintenance Chart ....................562
8
Page 562 of 599
MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset byreferring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Driver Information Display
(DID)” in “Understanding Your Instrument Panel” for
further information.
NOTE:
•
Gasoline Engines
• Under no circumstances should oil change intervals
exceed 8,000 miles (13,000 km) or twelve months,
whichever comes first.
• Severe Duty
•
Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty
Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
560 MAINTENANCE SCHEDULES
Page 563 of 599
•Check the tire inflation pressures and look for unusual
wear or damage
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and automatic trans-
mission and fill as needed.
• Check function of all interior and exterior lights
Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change oil and filter.
• Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Inspect battery and clean and tighten terminals as
required.
• Inspect automatic transmission fluid if equipped
with dipstick.
• Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
• Inspect engine cooling system protection and
hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions.
• Lube the front drive shaft fitting. 8
MAINTENANCE SCHEDULES 561
Page 564 of 599

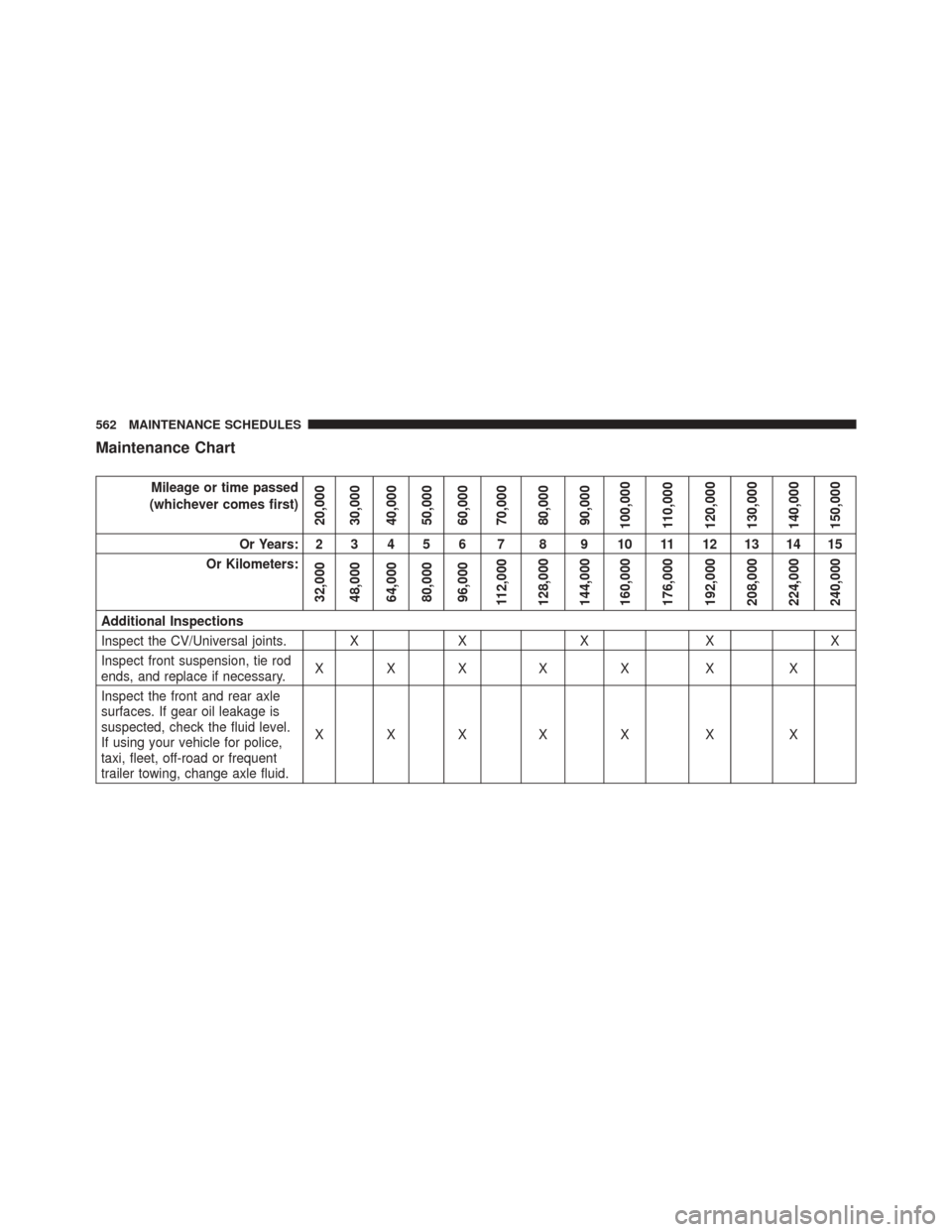

Maintenance Chart
Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional Inspections
Inspect the CV/Universal joints. X XX XX
Inspect front suspension, tie rod
ends, and replace if necessary. XXX X X X X
Inspect the front and rear axle
surfaces. If gear oil leakage is
suspected, check the fluid level.
If using your vehicle for police,
taxi, fleet, off-road or frequent
trailer towing, change axle fluid. XXX X X X X
562 MAINTENANCE SCHEDULES
Page 565 of 599
Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Inspect the brake linings, parking
brake function. XXX X X X X
Additional Maintenance
Replace engine air filter. XX X XX
Replace spark plugs
(5.7L engine).** X
Replace spark plugs
(6.4L engine).** X
Flush and replace the engine
coolant at 10 years or
150,000 miles (240,000 km)
whichever comes first. XX
8
MAINTENANCE SCHEDULES 563
Page 566 of 599
Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000

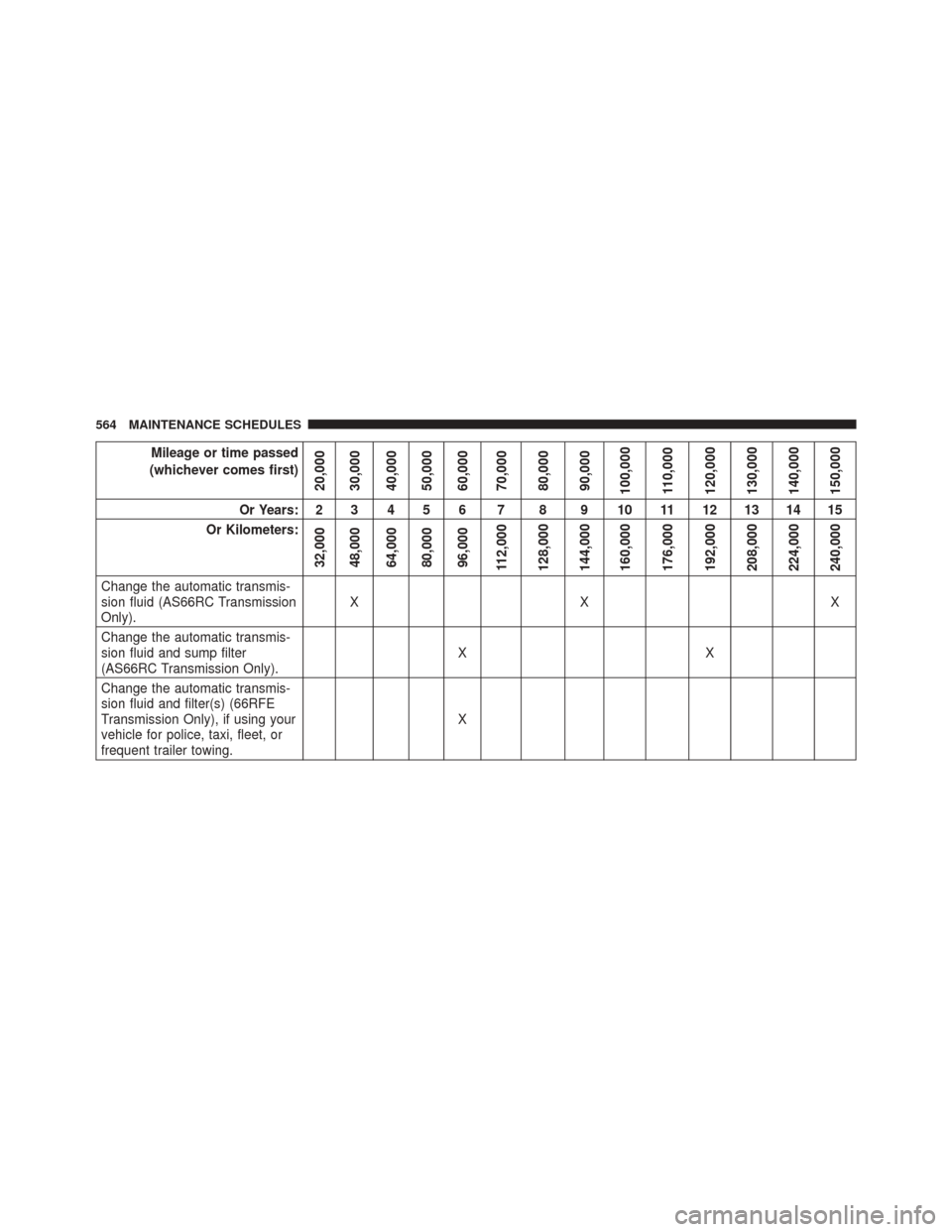

Change the automatic transmis-
sion fluid (AS66RC Transmission
Only). XX X
Change the automatic transmis-
sion fluid and sump filter
(AS66RC Transmission Only). XX
Change the automatic transmis-
sion fluid and filter(s) (66RFE
Transmission Only), if using your
vehicle for police, taxi, fleet, or
frequent trailer towing. X
564 MAINTENANCE SCHEDULES
Page 567 of 599
Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000

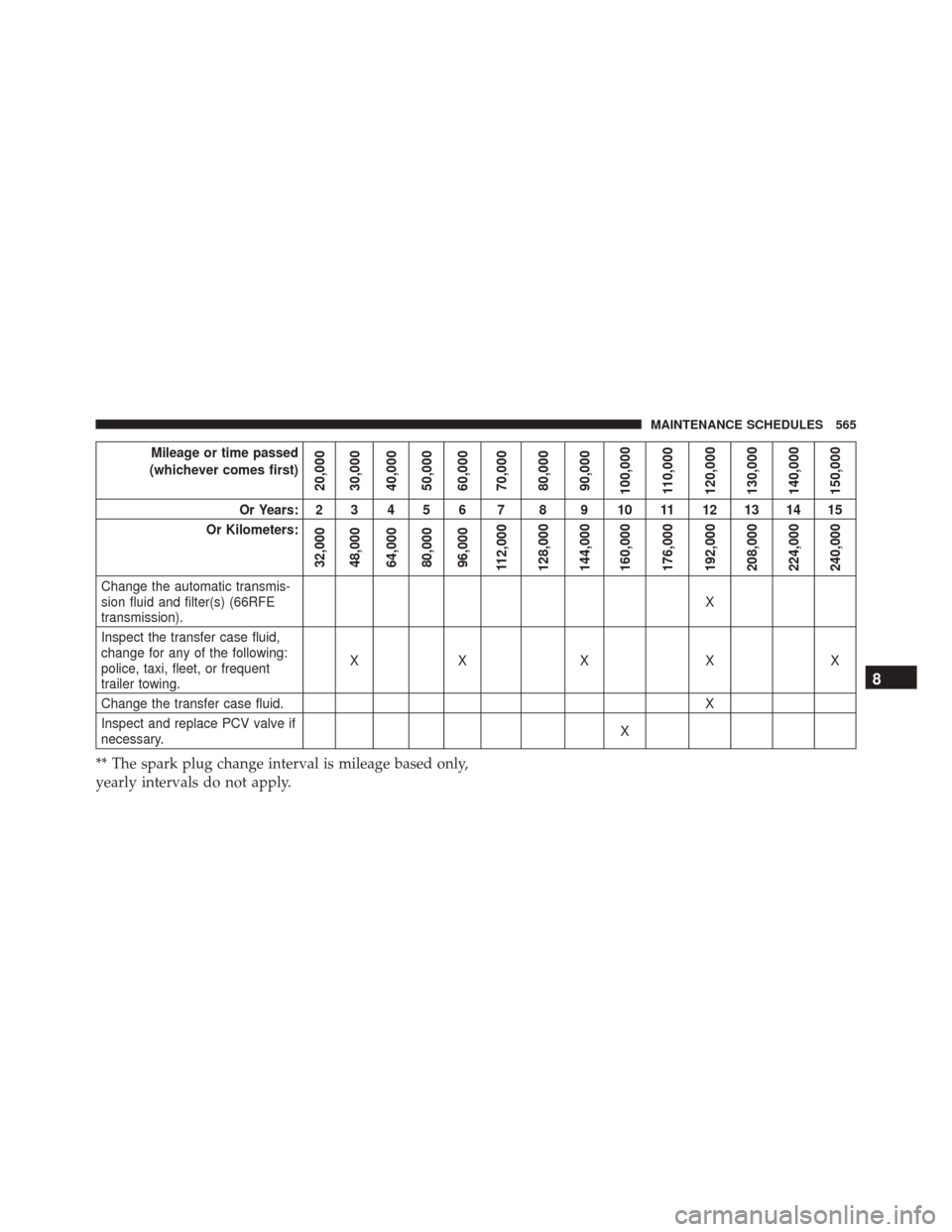

Change the automatic transmis-
sion fluid and filter(s) (66RFE
transmission). X
Inspect the transfer case fluid,
change for any of the following:
police, taxi, fleet, or frequent
trailer towing. XX X X X
Change the transfer case fluid. X
Inspect and replace PCV valve if
necessary. X
** The spark plug change interval is mileage based only,
yearly intervals do not apply.
8
MAINTENANCE SCHEDULES 565
Page 568 of 599
WARNING!
•You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
• Failure to properly inspect and maintain your ve-
hicle could result in a component malfunction and
effect vehicle handling and performance. This
could cause an accident.
566 MAINTENANCE SCHEDULES
Page 569 of 599

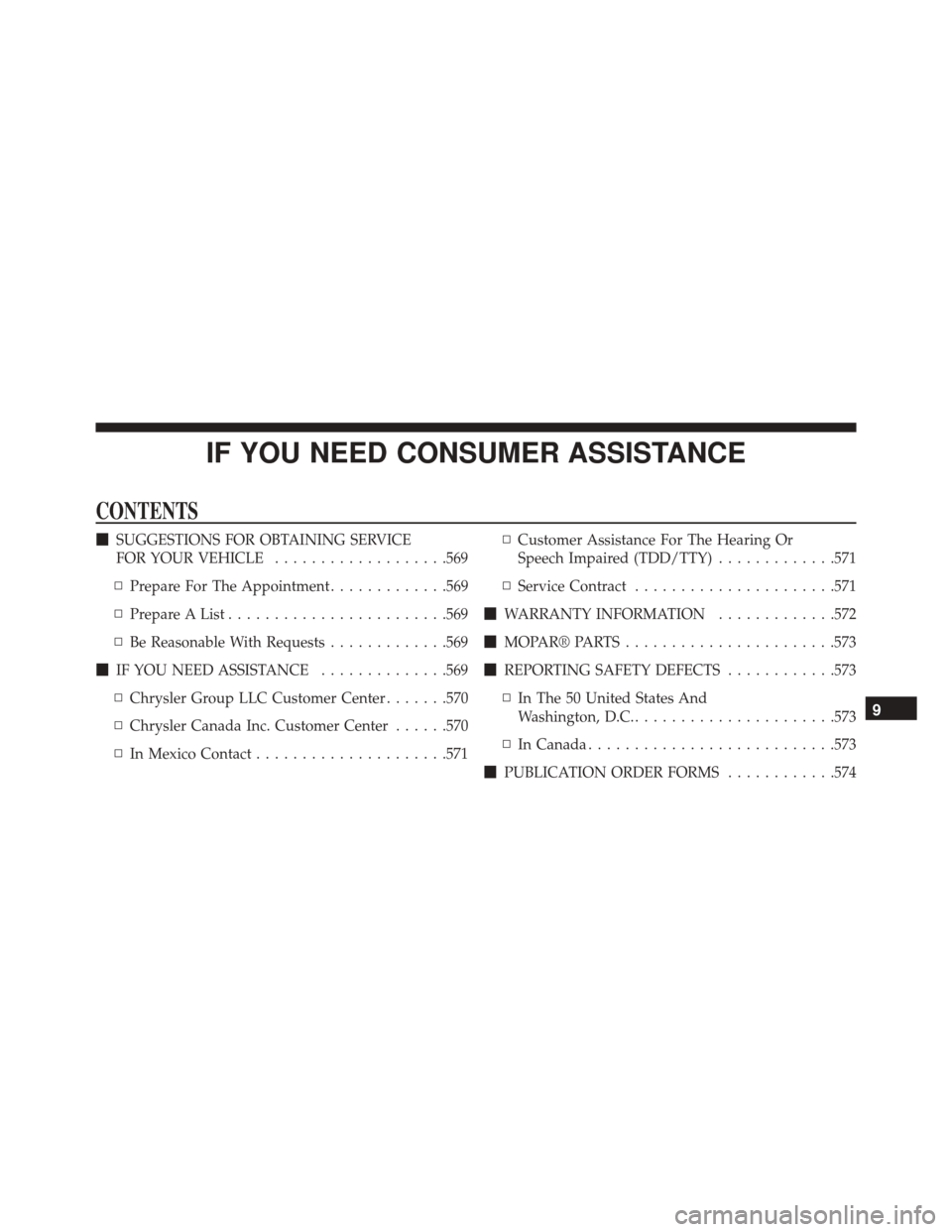

IF YOU NEED CONSUMER ASSISTANCE
CONTENTS
SUGGESTIONS FOR OBTAINING SERVICE
FOR YOUR VEHICLE ...................569
▫ Prepare For The Appointment .............569
▫ Prepare A List ....................... .569
▫ Be Reasonable With Requests .............569
IF YOU NEED ASSISTANCE ..............569
▫ Chrysler Group LLC Customer Center .......570
▫ Chrysler Canada Inc. Customer Center ......570
▫ In Mexico Contact .....................571 ▫
Customer Assistance For The Hearing Or
Speech Impaired (TDD/TTY) .............571
▫ Service Contract ..................... .571
WARRANTY INFORMATION .............572
MOPAR®PARTS.......................573
REPORTING SAFETY DEFECTS ............573
▫ In The 50 United States And
Washington, D.C. ..................... .573
▫ In Canada .......................... .573
PUBLICATION ORDER FORMS ............574
9
Page 570 of 599

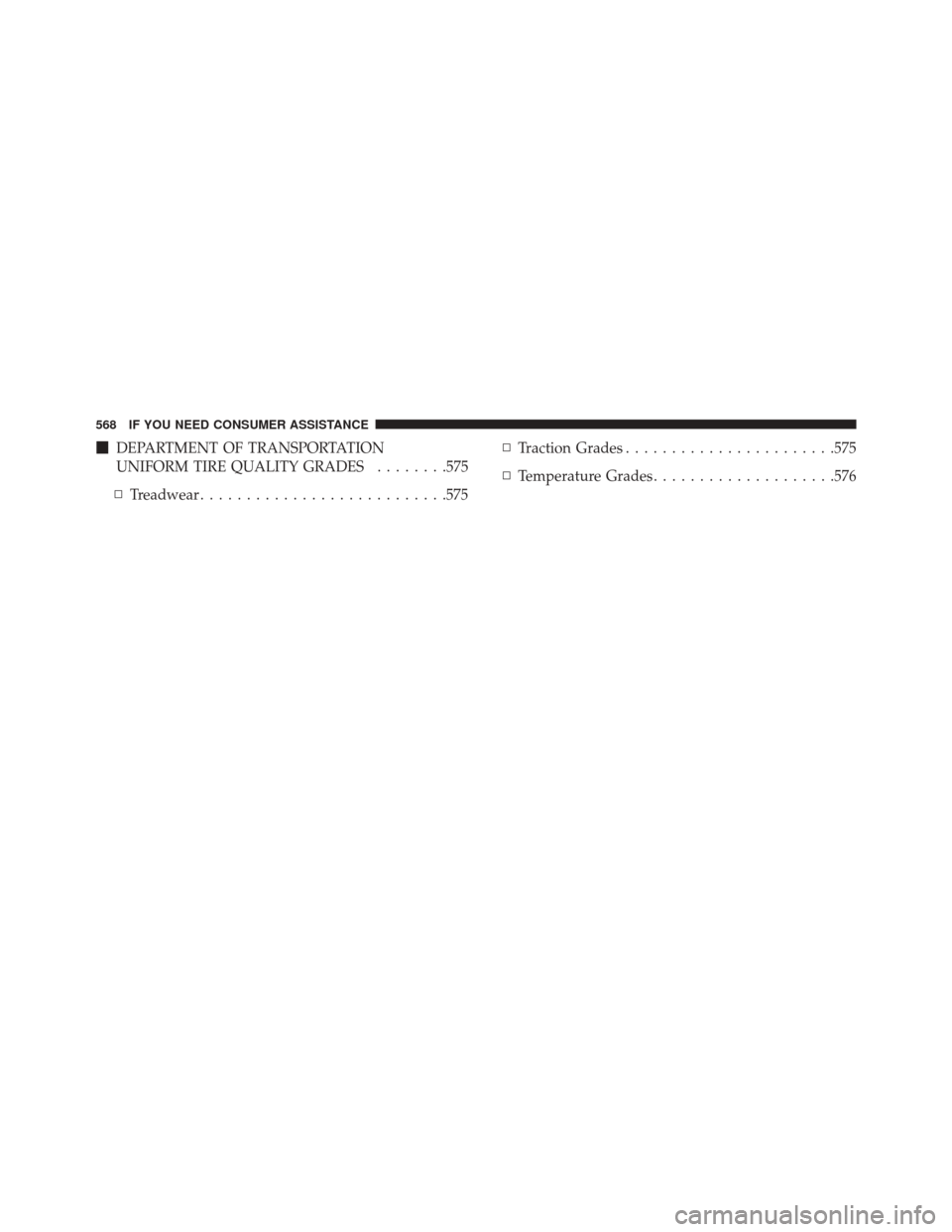

DEPARTMENT OF TRANSPORTATION
UNIFORM TIRE QUALITY GRADES ........575
▫ Treadwear .......................... .575▫
Traction Grades ...................... .575
▫ Temperature Grades ....................576
568 IF YOU NEED CONSUMER ASSISTANCE
