When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may beused, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use MOPAR® Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them. Dry with a soft
cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
7
MAINTAINING YOUR VEHICLE 639

Cleaning The Instrument Panel Cupholders
Removal
Pull the flexible liner from the cupholder drawer starting
at one edge to ease removal.
Cleaning
The liner is top shelf dishwasher safe, or you may follow
the cleaning procedure below.
Soak the liner in a mixture of medium hot tap water and
one teaspoon of mild liquid dish soap. Let soak for
approximately 30 minutes. After 30 minutes, pull the
liner from the water and dip it back into the water about
six times. This will loosen any remaining debris. Rinse
the liner thoroughly under warm running water. Shake
the excess water from the liner and dry the outer surfaces
with a clean soft cloth.
Installation
Place the liner into the cupholder drawer and press the
liner into place so that the retention tabs seat into the
corresponding openings in the drawer.
FUSES
Totally Integrated Power Module
The Totally Integrated Power Module is located in the
engine compartment near the battery. Refer to the appli-
cable “Engine Compartment” illustration in this section.
This center contains cartridge fuses and mini-fuses. A
label that identifies each component may be printed or
embossed on the inside of the cover.
640 MAINTAINING YOUR VEHICLE

CAUTION!
•When installing the Totally Integrated Power Mod-
ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to do
so may allow water to get into the Integrated Power
Module, and possibly result in a electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
The numbers inside the TIPM cover correspond to the
following table.
Totally Integrated Power Module
7
MAINTAINING YOUR VEHICLE 641

CavityCar-
tridge Fuse Mini-
Fuse Description
J1 40 Amp Green — Power Folding Seat
J2 30 Amp Pink — Power Liftgate
Module
J3 30 Amp Pink — Rear Door Module
J4 25 Amp Natural — Driver Door Node
J5 25 Amp Natural — Passenger Door
Node
J6 40 Amp Green — Antilock Brakes
Pump/StabilityControl SystemCavity Car-
tridge Fuse Mini-
Fuse Description
J7 30 Amp Pink — Antilock Brakes
Valve/Stability
Control System
J8 40 Amp Green — Power Memory
Seat – If Equipped
J9 40 Amp Green — Partial Zero Emis-
sions Vehicle
Motor/Flex Fuel – If Equipped
J10 30 Amp Pink — Headlamp Wash/
Manifold Tuning
Valve – If Equipped
642 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description
J11 30 Amp Pink — Power Sliding Door
Module/Anti–TheftModule – IfEquipped
J12 30 Amp Pink HVAC Rear Blower,
Radiator Fan Motor
J13 60 Amp Yellow — Ignition Off Draw
(IOD) – Main
J14 40 Amp Green — Rear Window De-
fogger
J15 40 Amp Green — Front Blower
J17 40 Amp Green — Starter SolenoidCavityCar-
tridge Fuse Mini-
Fuse Description
J18 20 Amp Blue — Powertrain Control
Module TransRange
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink — Front Wiper LO/HI
J21 20 Amp Blue — Front/Rear Washer
J22 25 Amp Natural — Sunroof Module
M1 — 15 Amp BlueRear Center Brake
Lamp/Brake Switch
7
MAINTAINING YOUR VEHICLE 643

CavityCar-
tridge Fuse Mini-
Fuse Description
M2 — 20 Amp YellowFront Fog Lamps
M3 — 20 Amp YellowFront/Rear Axle
Locker, Vacuum Pump Motor
M4 — 10 Amp RedTrailer Tow
M5 — 25 Amp NaturalInverter
M6 — 20 Amp YellowPower Outlet #1
(ACC), Rain Sensor, Cigar Lighter (In-
strument Panel or
with Console Rear)Cavity Car-
tridge Fuse Mini-
Fuse Description
M7 — 20 Amp YellowPower Outlet #2
(BATT/ACC SE- LECT) – Center
Seat or with Con- sole Rear
M8 — 20 Amp YellowFront Heated Seat –
If Equipped
M9 — 20 Amp YellowRear Heated Seat –
If Equipped
644 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description
M10 — 15 Amp BlueIgnition Off Draw
— Video System, Satellite Radio,
DVD, Hands-Free
Module, Universal Garage Door
Opener, Vanity
Lamp, Streaming
Video Module – If Equipped
M11 — 10 Amp RedClimate Control
System
M12 — 30 Amp GreenAmplifier/RadioCavity Car-
tridge Fuse Mini-
Fuse Description
M13 — 20 Amp YellowInstrument Cluster,
SIREN, Clock Mod- ule, Multi-FunctionControl Switch – If Equipped
M14 — 20 Amp YellowTrailer Tow – If
Equipped
M15 — 20 Amp YellowRear View Mirror,
Instrument Cluster, Multi-Function
Control Switch, Tire Pressure Monitor,
Glow Plug Module – If Equipped
7
MAINTAINING YOUR VEHICLE 645

CavityCar-
tridge Fuse Mini-
Fuse Description

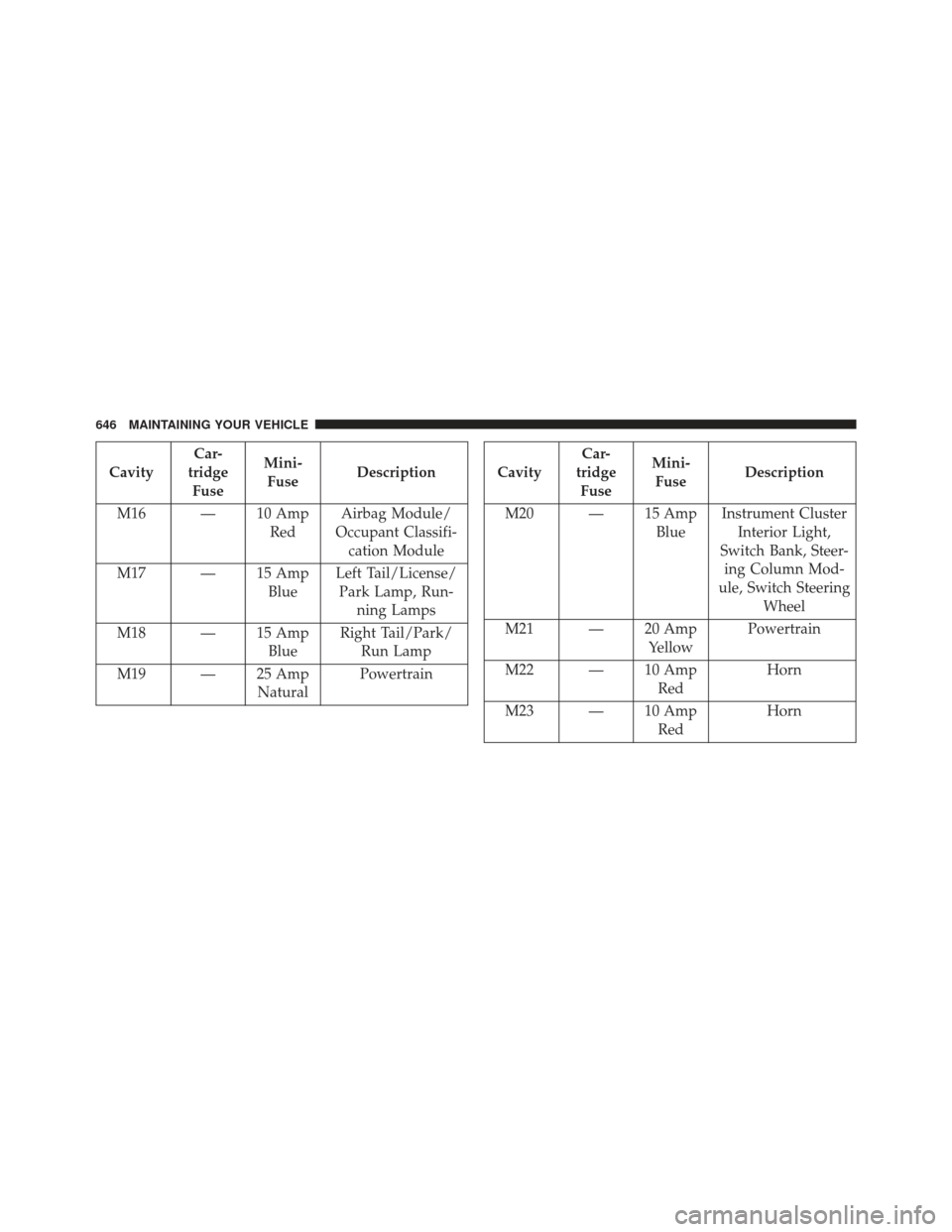

M16 — 10 Amp RedAirbag Module/
Occupant Classifi- cation Module
M17 — 15 Amp BlueLeft Tail/License/
Park Lamp, Run- ning Lamps
M18 — 15 Amp BlueRight Tail/Park/
Run Lamp
M19 — 25 Amp NaturalPowertrainCavityCar-
tridge Fuse Mini-
Fuse Description
M20 — 15 Amp BlueInstrument Cluster
Interior Light,
Switch Bank, Steer- ing Column Mod-
ule, Switch Steering Wheel
M21 — 20 Amp YellowPowertrain
M22 — 10 Amp RedHorn
M23 — 10 Amp RedHorn
646 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description
M24 — 25 Amp NaturalRear Wiper
M25 — 20 Amp YellowFuel Pump, Diesel
Lift Pump – If Equipped
M26 — 10 Amp RedPower Mirror
Switch, Driver Win- dow Switch
M27 — 10 Amp RedWireless Control
Module, Keyless Entry Module
M28 — 10 Amp RedPowertrain, Trans-
mission Control ModuleCavity Car-
tridge Fuse Mini-
Fuse Description
M29 — 10 Amp RedOccupant Classifi-
cation Module
M30 — 15 Amp BlueRear Wiper Mod-
ule, Power Folding Mirror
M31 — 20 Amp YellowBack-Up Lamps
M32 — 10 Amp RedAirbag Module,
THATCHUM – If Equipped
M33 — 10 Amp RedPowertrain
7
MAINTAINING YOUR VEHICLE 647

CavityCar-
tridge Fuse Mini-
Fuse Description
M34 — 10 Amp RedPark Assist, Heater
Climate Control
Module, Headlamp Wash, Compass,
Rear Camera, Door Lamps, Flashlight,
Relay Diesel Cabin Heater, Rad Fan Diesel – IfEquipped
M35 — 10 Amp RedHeated MirrorsCavity Car-
tridge Fuse Mini-
Fuse Description
M36 — 20 Amp YellowPower Outlet #3
(Instrument Panel or with Console Center)
M37 — 10 Amp RedAntilock Brakes,
Stability Control, Stop Lamp, Fuel Pump
M38 — 25 Amp NaturalDoor Lock/Unlock
Motors, Liftgate
Lock/Unlock Mo- tors
The power windows are fused by a 25 Amp circuit
breaker located in the Totally Integrated Power Module.
