climate settings Ram C/V 2013 Owner's Manual

▫Headphones Operation .................412
▫ Blu-ray Headphones Operation ............413
▫ Controls ........................... .414
▫ Replacing The Headphone Batteries .........415
▫ Unwired® Stereo Headphone Lifetime
Limited Warranty .....................416
▫ System Information ....................417
▫ Shared Modes ....................... .417
▫ Information Mode Display ...............418
▫ Numeric Keypad Menu .................419
▫ Station List Menu .....................420
▫ Disc Menu ......................... .421
▫ Display Settings ...................... .421▫
Listening To Audio With The Screen Closed . . .422
▫ Disc Formats ........................ .422
▫ Display ............................ .427
▫ Product Agreement ....................432
 STEERING WHEEL AUDIO CONTROLS —
IF EQUIPPED ........................ .435
▫ Radio Operation ..................... .436
▫ CD Player .......................... .436
 CD/DVD/BLU-RAY DISC MAINTENANCE . . .436
 RADIO OPERATION AND MOBILE
PHONES ........................... .437
 CLIMATE CONTROLS ...................437
▫ Manual Heating And Air Conditioning
System — If Equipped .................437
310 UNDERSTANDING YOUR INSTRUMENT PANEL

2. Rear Blower Control — If Equipped
•Use this control to regulate the amount of air forced
through the rear system in any mode you select. The
rear blower speed increases as you move the control to
the right from the “O” (Off) position. There are seven
blower speeds. To allow the rear overhead control,
turn blower knob fully to the left, past The Ooff
position into the “REAR” control position.
3. Front Blower Control
• Use this control to regulate the amount of air forced
through the system in any mode you select. The
blower speed increases as you move the control to the
right from the “O” (Off) position. There are seven
blower speeds. NOTE:
For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position. Blower control should be left in the ON
position to allow the climate control to either warm or
cool the vehicle.
4. Rear Temperature Control — If Equipped
• Provides temperature control for the rear cabin. Turn
left for cooler or right for warmer temperature settings
in the rear cabin.
5. Right Front Temperature Control
• Provides right front seat occupant with independent
temperature control. Turn left for cooler or right for
warmer temperature settings.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 439

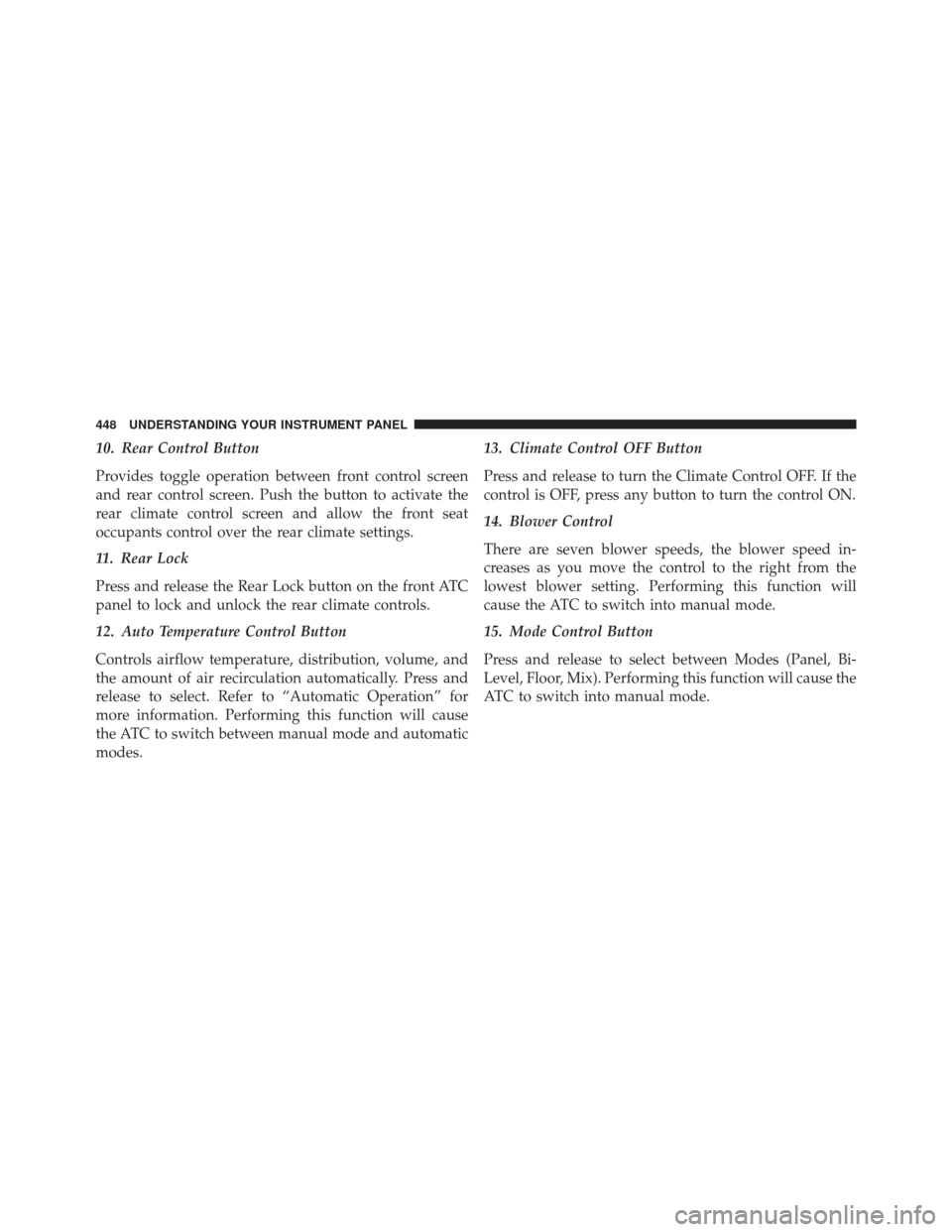

10. Rear Control Button
Provides toggle operation between front control screen
and rear control screen. Push the button to activate the
rear climate control screen and allow the front seat
occupants control over the rear climate settings.
11. Rear Lock
Press and release the Rear Lock button on the front ATC
panel to lock and unlock the rear climate controls.
12. Auto Temperature Control Button
Controls airflow temperature, distribution, volume, and
the amount of air recirculation automatically. Press and
release to select. Refer to “Automatic Operation” for
more information. Performing this function will cause
the ATC to switch between manual mode and automatic
modes.13. Climate Control OFF Button
Press and release to turn the Climate Control OFF. If the
control is OFF, press any button to turn the control ON.
14. Blower Control
There are seven blower speeds, the blower speed in-
creases as you move the control to the right from the
lowest blower setting. Performing this function will
cause the ATC to switch into manual mode.
15. Mode Control Button
Press and release to select between Modes (Panel, Bi-
Level, Floor, Mix). Performing this function will cause the
ATC to switch into manual mode.
448 UNDERSTANDING YOUR INSTRUMENT PANEL

•Air Conditioning (A/C)
The Air Conditioning (A/C) button allows the operator
to manually activate or deactivate the air conditioning
system. When in A/C mode and the ATC is set to a cool
temperature, dehumidified air flows through the air
outlets. If Economy mode is desired, press the A/C
button to turn off the A/C mode in the ATC display and
deactivate the A/C system.
NOTE:
• If the system is in Mix, Floor or Defrost Mode, the A/C
can be turned off, but the A/C system shall remain
active to prevent fogging of the windows.
• If fog or mist appears on the windshield or side glass,
select Defrost mode and increase blower speed.Controlling The Rear Climate Controls From The
Front ATC Panel
The Three-Zone ATC system allows for adjustment of the
rear climate controls from the front ATC panel.
To change the rear system settings:
• Press REAR button to change control to rear control
mode, Rear display (below) will appear. Control func-
tions now operate rear system.
• To return to Front screen, press REARbutton again,
or it will revert to the Front screen after six seconds.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 451
