Ram Cargo Van 2014 Owner's Manual

FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
(Continued)
WARNING! (Continued)
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
• If the replaced fuse blows again, contact an autho-
rized dealer.
• If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
7
MAINTAINING YOUR VEHICLE 609

Totally Integrated Power Module
The Totally Integrated Power Module is located in the
engine compartment near the battery. Refer to the appli-
cable “Engine Compartment” illustration in this section.
This center contains cartridge fuses and mini-fuses. A
label that identifies each component may be printed or
embossed on the inside of the cover.
Totally Integrated Power Module
610 MAINTAINING YOUR VEHICLE

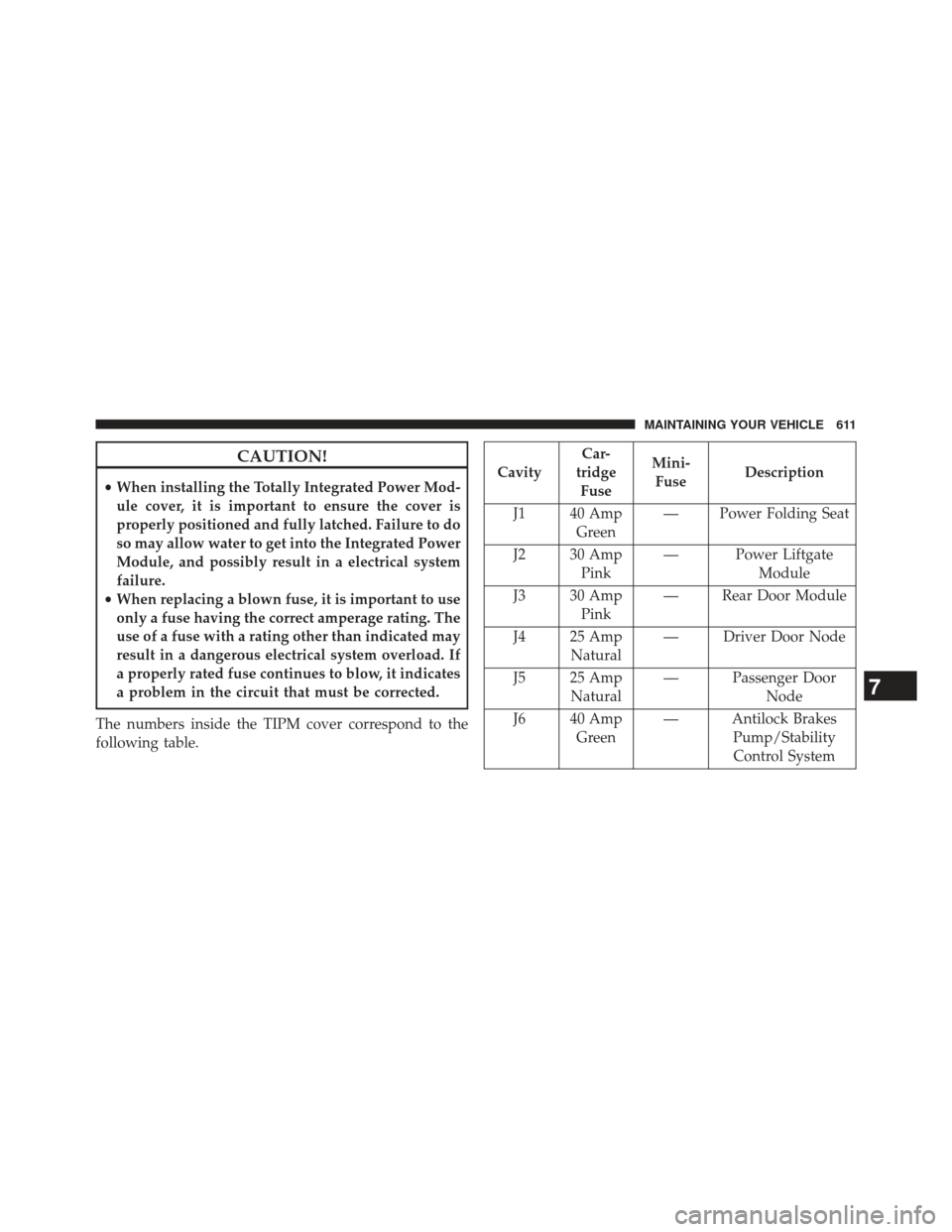

CAUTION!
•When installing the Totally Integrated Power Mod-
ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to do
so may allow water to get into the Integrated Power
Module, and possibly result in a electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
The numbers inside the TIPM cover correspond to the
following table.Cavity Car-
tridge Fuse Mini-
Fuse Description
J1 40 Amp Green — Power Folding Seat
J2 30 Amp Pink — Power Liftgate
Module
J3 30 Amp Pink — Rear Door Module
J4 25 Amp Natural — Driver Door Node
J5 25 Amp Natural — Passenger Door
Node
J6 40 Amp Green — Antilock Brakes
Pump/StabilityControl System
7
MAINTAINING YOUR VEHICLE 611

CavityCar-
tridge Fuse Mini-
Fuse Description
J7 30 Amp Pink — Antilock Brakes
Valve/Stability
Control System
J8 40 Amp Green — Power Memory
Seat – If Equipped
J9 40 Amp Green — Partial Zero Emis-
sions Vehicle
Motor/Flex Fuel – If Equipped
J10 30 Amp Pink — Headlamp Wash/
Manifold Tuning
Valve – If EquippedCavity Car-
tridge Fuse Mini-
Fuse Description
J11 30 Amp Pink — Power Sliding Door
Module/Anti–TheftModule – IfEquipped
J12 30 Amp Pink HVAC Rear Blower,
Radiator Fan Motor
J13 60 Amp Yellow — Ignition Off Draw
(IOD) – Main
J14 40 Amp Green — Rear Window De-
fogger
J15 40 Amp Green — Front Blower
J17 40 Amp Green — Starter Solenoid
612 MAINTAINING YOUR VEHICLE

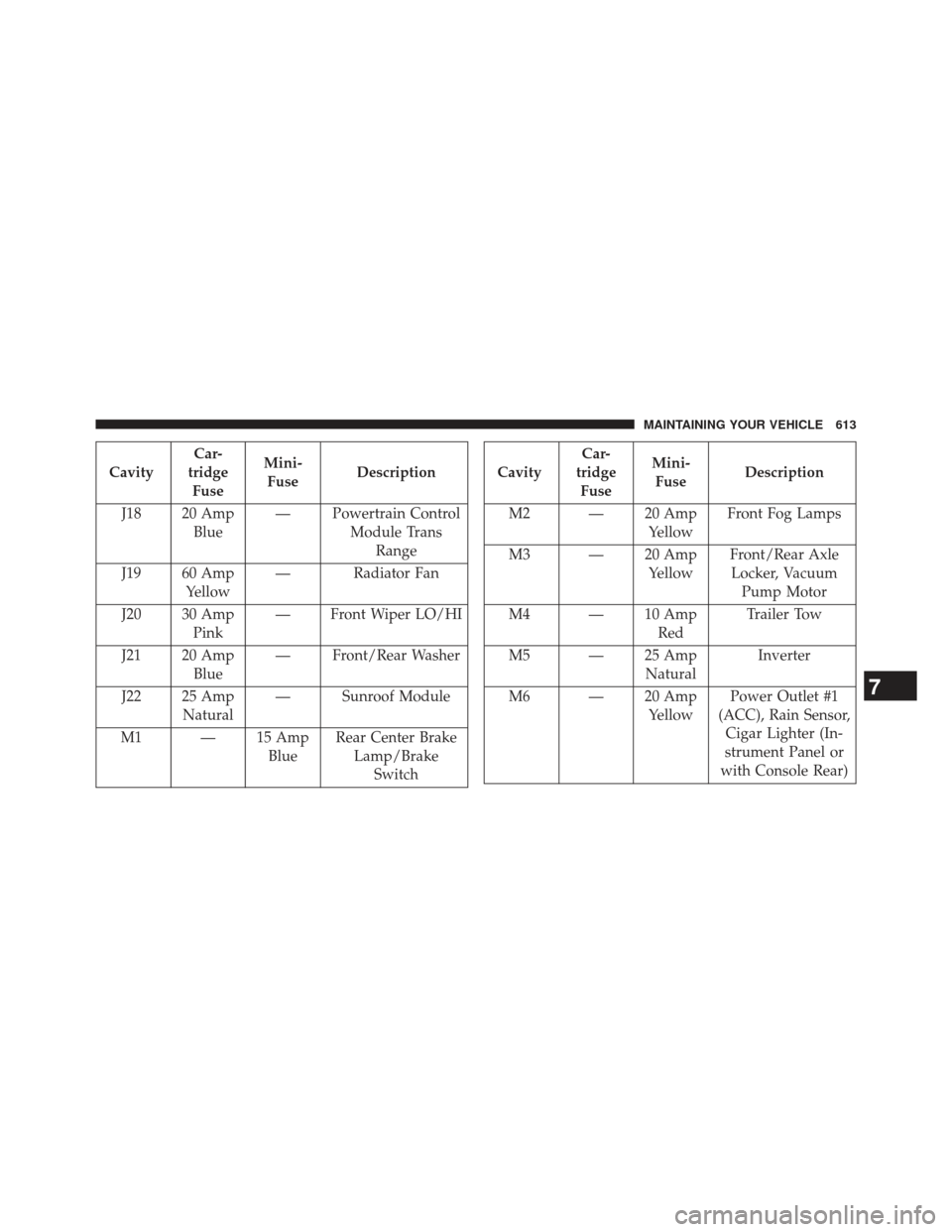

CavityCar-
tridge Fuse Mini-
Fuse Description
J18 20 Amp Blue — Powertrain Control
Module TransRange
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink — Front Wiper LO/HI
J21 20 Amp Blue — Front/Rear Washer
J22 25 Amp Natural — Sunroof Module
M1 — 15 Amp BlueRear Center Brake
Lamp/Brake SwitchCavity Car-
tridge Fuse Mini-
Fuse Description
M2 — 20 Amp YellowFront Fog Lamps
M3 — 20 Amp YellowFront/Rear Axle
Locker, Vacuum Pump Motor
M4 — 10 Amp RedTrailer Tow
M5 — 25 Amp NaturalInverter
M6 — 20 Amp YellowPower Outlet #1
(ACC), Rain Sensor, Cigar Lighter (In-
strument Panel or
with Console Rear)
7
MAINTAINING YOUR VEHICLE 613

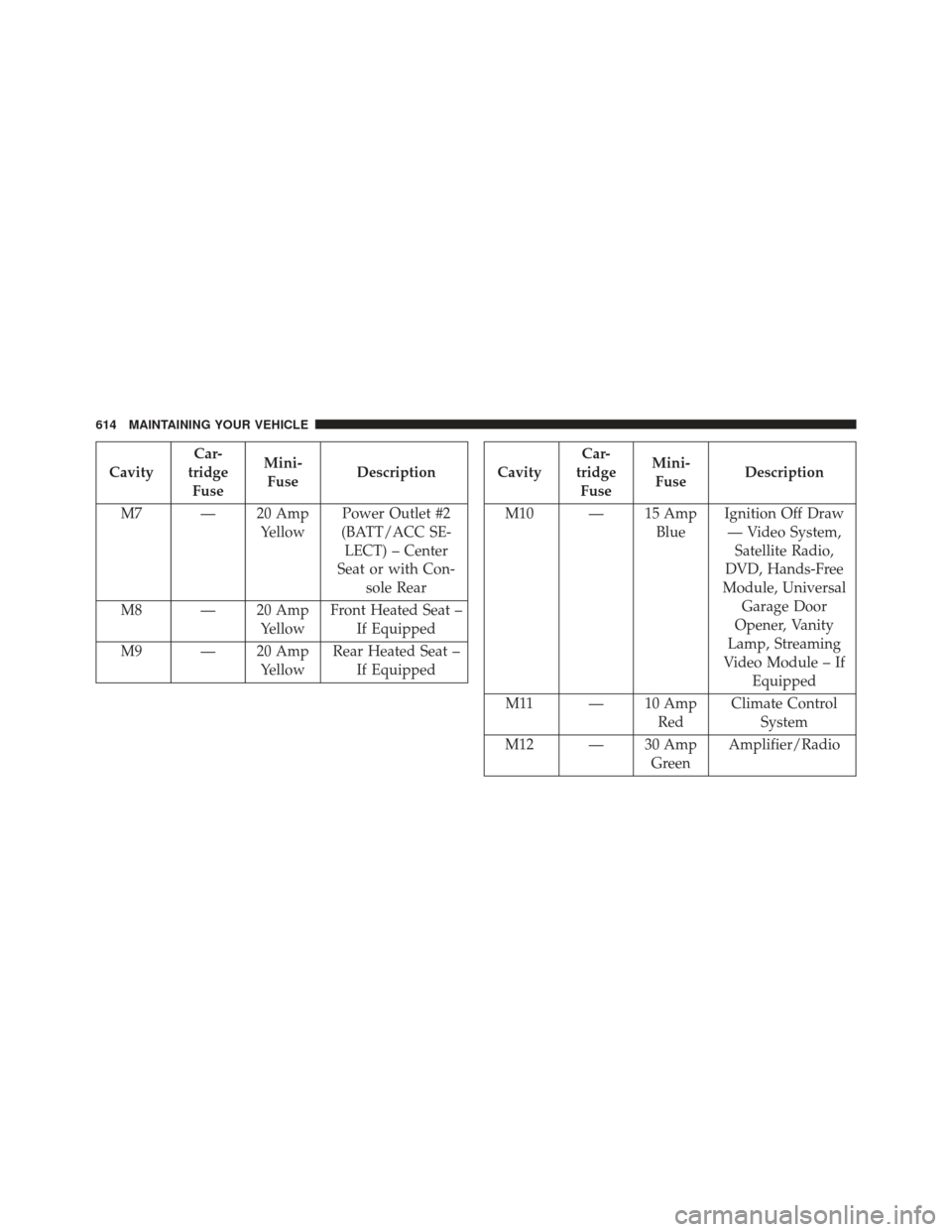

CavityCar-
tridge Fuse Mini-
Fuse Description
M7 — 20 Amp YellowPower Outlet #2
(BATT/ACC SE- LECT) – Center
Seat or with Con- sole Rear
M8 — 20 Amp YellowFront Heated Seat –
If Equipped
M9 — 20 Amp YellowRear Heated Seat –
If EquippedCavity Car-
tridge Fuse Mini-
Fuse Description
M10 — 15 Amp BlueIgnition Off Draw
— Video System, Satellite Radio,
DVD, Hands-Free
Module, Universal Garage Door
Opener, Vanity
Lamp, Streaming
Video Module – If Equipped
M11 — 10 Amp RedClimate Control
System
M12 — 30 Amp GreenAmplifier/Radio
614 MAINTAINING YOUR VEHICLE

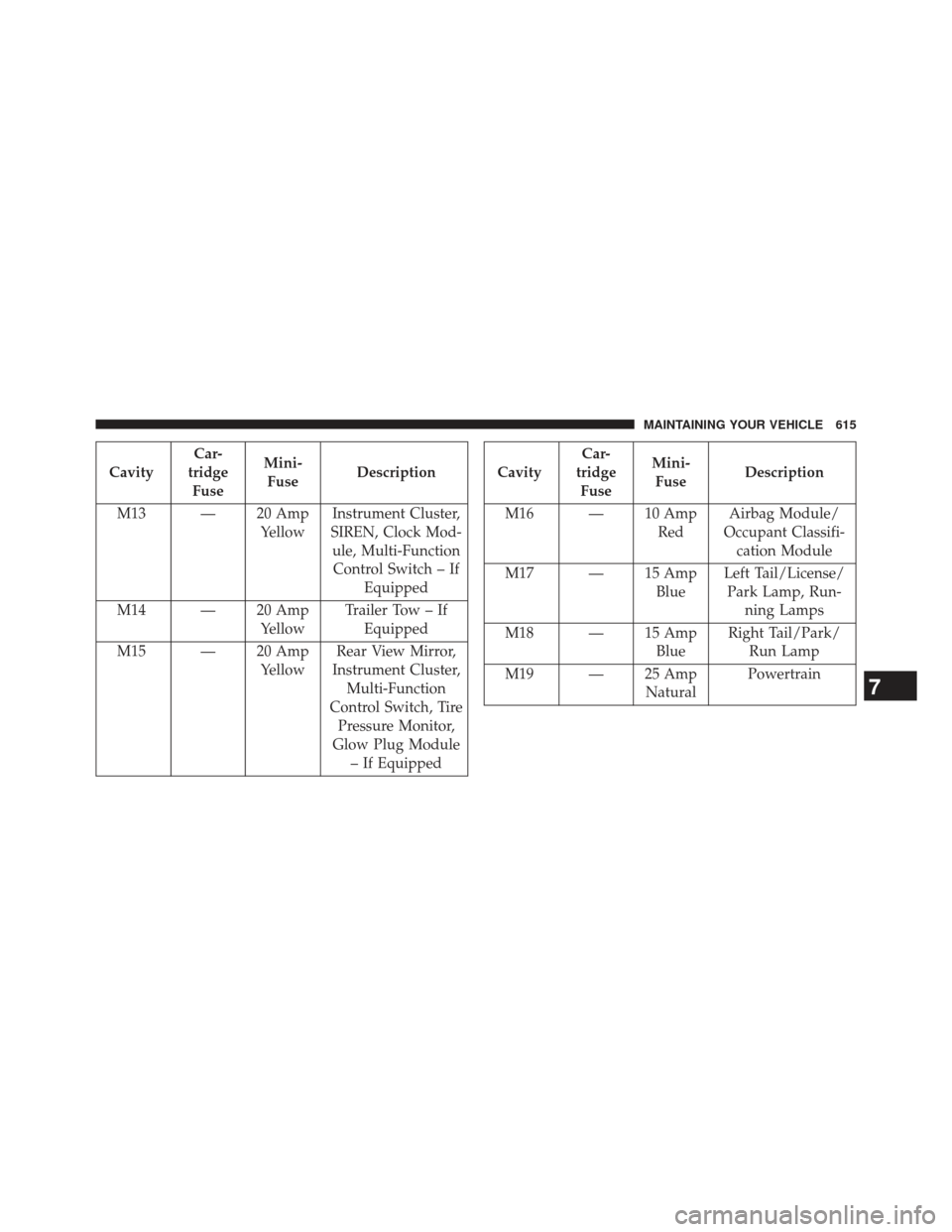

CavityCar-
tridge Fuse Mini-
Fuse Description
M13 — 20 Amp YellowInstrument Cluster,
SIREN, Clock Mod- ule, Multi-FunctionControl Switch – If Equipped
M14 — 20 Amp YellowTrailer Tow – If
Equipped
M15 — 20 Amp YellowRear View Mirror,
Instrument Cluster, Multi-Function
Control Switch, Tire Pressure Monitor,
Glow Plug Module – If EquippedCavity Car-
tridge Fuse Mini-
Fuse Description
M16 — 10 Amp RedAirbag Module/
Occupant Classifi- cation Module
M17 — 15 Amp BlueLeft Tail/License/
Park Lamp, Run- ning Lamps
M18 — 15 Amp BlueRight Tail/Park/
Run Lamp
M19 — 25 Amp NaturalPowertrain
7
MAINTAINING YOUR VEHICLE 615

CavityCar-
tridge Fuse Mini-
Fuse Description
M20 — 15 Amp BlueInstrument Cluster
Interior Light,
Switch Bank, Steer- ing Column Mod-
ule, Switch Steering Wheel
M21 — 20 Amp YellowPowertrain
M22 — 10 Amp RedHorn
M23 — 10 Amp RedHorn
M24 — 25 Amp NaturalRear WiperCavityCar-
tridge Fuse Mini-
Fuse Description
M25 — 20 Amp YellowFuel Pump, Diesel
Lift Pump – If Equipped
M26 — 10 Amp RedPower Mirror
Switch, Driver Win- dow Switch
M27 — 10 Amp RedWireless Control
Module, Keyless Entry Module
M28 — 10 Amp RedPowertrain, Trans-
mission Control Module
M29 — 10 Amp RedOccupant Classifi-
cation Module
616 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description
M30 — 15 Amp BlueRear Wiper Mod-
ule, Power Folding Mirror
M31 — 20 Amp YellowBack-Up Lamps
M32 — 10 Amp RedAirbag Module,
THATCHUM – If Equipped
M33 — 10 Amp RedPowertrainCavityCar-
tridge Fuse Mini-
Fuse Description
M34 — 10 Amp RedPark Assist, Heater
Climate Control
Module, Headlamp Wash, Compass,
Rear Camera, Door Lamps, Flashlight,
Relay Diesel Cabin Heater, Rad Fan Diesel – IfEquipped
M35 — 10 Amp RedHeated Mirrors
7
MAINTAINING YOUR VEHICLE 617

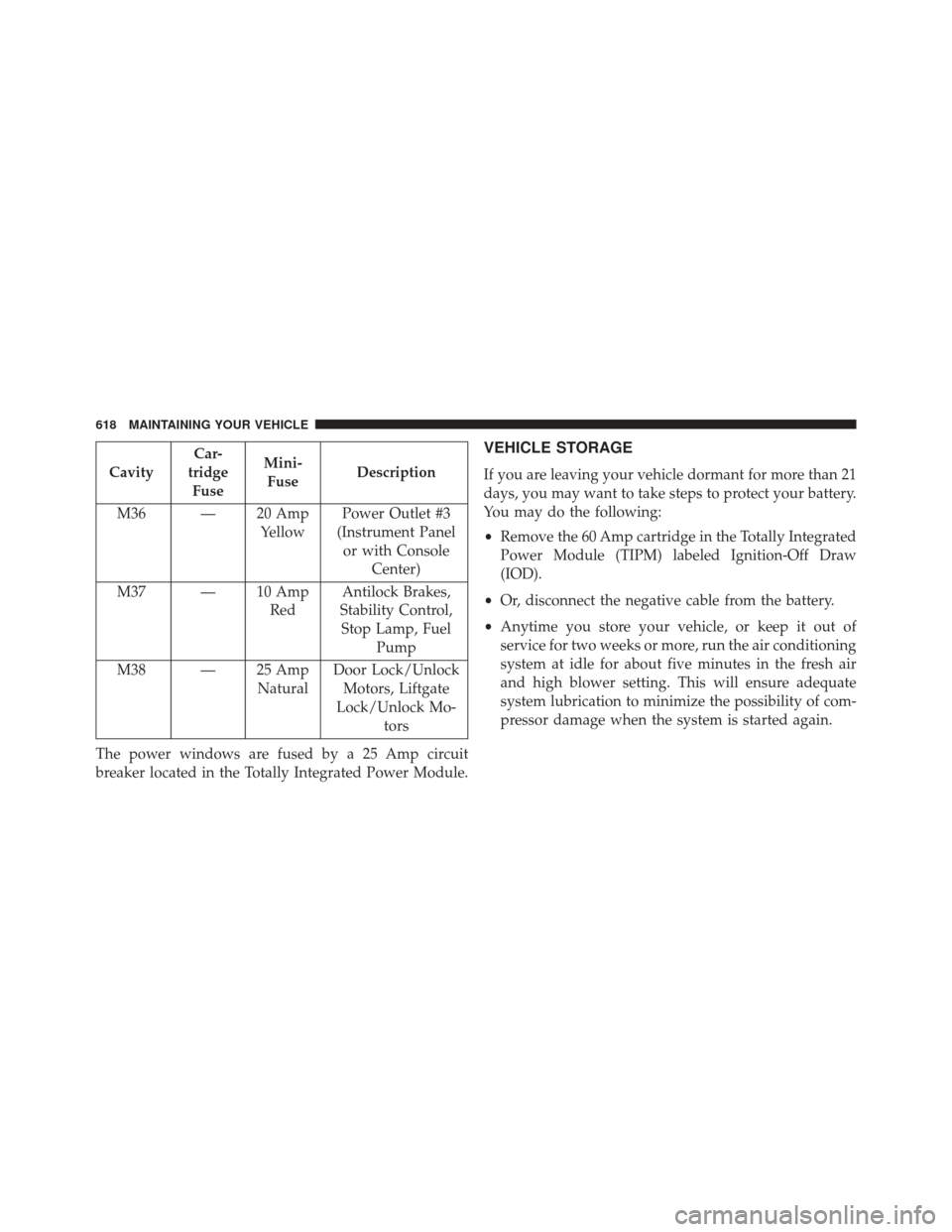

CavityCar-
tridge Fuse Mini-
Fuse Description
M36 — 20 Amp YellowPower Outlet #3
(Instrument Panel or with Console Center)
M37 — 10 Amp RedAntilock Brakes,
Stability Control, Stop Lamp, Fuel Pump
M38 — 25 Amp NaturalDoor Lock/Unlock
Motors, Liftgate
Lock/Unlock Mo- tors
The power windows are fused by a 25 Amp circuit
breaker located in the Totally Integrated Power Module.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take steps to protect your battery.
You may do the following:
• Remove the 60 Amp cartridge in the Totally Integrated
Power Module (TIPM) labeled Ignition-Off Draw
(IOD).
• Or, disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service for two weeks or more, run the air conditioning
system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.
