Noise Systems Maintenance Chart and Service Log Maintenance Log and Service Chart (Gas Engines)
Insert
Month, Day, Year under column mileage closest to the mileage at which service was performed.
MILES 6,000 12,000 18,000 24,000 30,000 36,000 42,000 48,000
KILOME-
TERS 9 600 19 000 29 000 36 000 48 000 58 000 67 000 77 000
Exhaust
system-
inspect
Air cleaner
assembly-
inspect
ODOM-
ETER
READING
PER-
FORMED
BY
PER-
FORMED
AT 448 MAINTAINING YOUR VEHICLE

Noise Systems Maintenance Chart and Service Log Maintenance Log and Service Chart (Gas Engines)
Insert
Month, Day, Year under column mileage closest to the mileage at which service was performed.
MILES 54,000 60,000 66,000 72,000 78,000 84,000 90,000 96,000
KILOME-
TERS 87 000 96 000 106 000 116 000 126 000 135 000 145 000 154 000
Exhaust
system-
inspect
Air cleaner
assembly-
inspect
ODOM-
ETER
READING
PER-
FORMED
BY
PER-
FORMED
AT MAINTAINING YOUR VEHICLE 449
7

Maintenance Log and Service Chart (Diesel Engines)
Noise Systems Maintenance Chart and Service Log — Insert Month, Day, Year under column mileage closest to
the mileage at which service was performed.
MILES 7,500 15,000 22,500 30,000 37,500 45,000 52,500 60,000
KILOME-
TERS 12 000 24 000 36 000 48 000 60 000 72 000 84 000 96 000
Exhaust
system-
inspect
Air cleaner
assembly-
inspect
ODOM-
ETER
READING
PER-
FORMED
BY
PER-
FORMED
AT 450 MAINTAINING YOUR VEHICLE

FUSES (INTEGRATED POWER MODULE)
An integrated Power Module is located in the engine
compartment near the battery. This center contains car-
tridge fuses and mini fuses. A description of each fuse
and component may be stamped on the inside cover
otherwise the cavity number of each fuse is stamped on
the inside cover that corresponds to the following chart. Cavity Cartridge
Fuse Mini
Fuse Description
1 20 Amp
Yellow Power Outlet Console
2 20 Amp
Yellow Cabin Compartment
Node (CCN) Door
Locks/Brake Trans-
mission Shift Interlock
(BTSI)
3––
4 15 Amp
Blue Aisin Transmission
Controls (Diesel Only)
5 20 Amp
Yellow Power Sunroof
6 10 Amp
Red VIST Fan/Wastegate
7 15 Amp
Blue Reverse Lockout Sole-
noid Battery (SRT-10
Only)
Integrated Power Module Location MAINTAINING YOUR VEHICLE 457
7

Cavity Cartridge
Fuse Mini
Fuse Description
8 10 Amp
Red Heated Mirrors
9 30 Amp
Pink Off Road Module
Power
10 5 Amp
Orange Trx-Off Rd Pkg Sen
(Gas Engine Only)
NOTE: Insert a 5 amp fuse in this cavity to enable
the TRX capability.
11 20 Amp
Yellow Ignition Off Draw
(IOD)-Cabin Compart-
ment Node (CCN)/
Radio/Under Hood
Lamp/Wireless Con-
trol Module (WCM)/
Satellite Digital Audio
Receiver (SDARS)/
Hands Free Module
(HFM) Cavity Cartridge
Fuse Mini
Fuse Description
12 30 Amp
Pink Electric Brake
13 25 Amp
Natural Power-Battery
RWAL/ABS Module
Feed
14 15 Amp
Blue Park Lamps Left
15 20 Amp
Yellow Trailer Park Lamps
16 15 Amp
Blue Park Lamps Right
17 – –
18 40 Amp
Green ABS Pump
19 30 Amp
Pink Trailer Tow
20 10 Amp
Red Occupant Restraints
Controller (ORC) 2458 MAINTAINING YOUR VEHICLE

Cavity Cartridge
Fuse Mini
Fuse Description
21 10 Amp
Red Occupant Restraints
Controller (ORC) Pre-
set Carrier
22 2 Amp
Gray IGN Switch Feed
23 10 Amp
Red Engine Control Mod-
ule (ECM)/Wireless
Control Module
(WCM)/HVC
24 20 Amp
Blue Subwoofer Amplifier
(SRT-10 Only)
25 10 Amp
Red Power Mirror
26 20 Amp
Yellow Brake Switch/Center
High Mount Stop
Lamp (CHMSL)
27 40 Amp
Green Power Seats Cavity Cartridge
Fuse Mini
Fuse Description
28 10 Amp
Red Start-NCC/Wireless
Control Module
(WCM)/ABS/RWAL
29 10 Amp
Red Switches/EC Mirror/
Smart Bar
30 15 Amp
Blue Power/Run
31 10 Amp
Red PCM/Transfer Case
Brake
32 10 Amp
Red HVAC/Ajustable
Pedals/Heated Seats
Switch LED/Exhaust
Brake
33 10 Amp
Red Power-IGN Run Misc
34 – – MAINTAINING YOUR VEHICLE 459
7

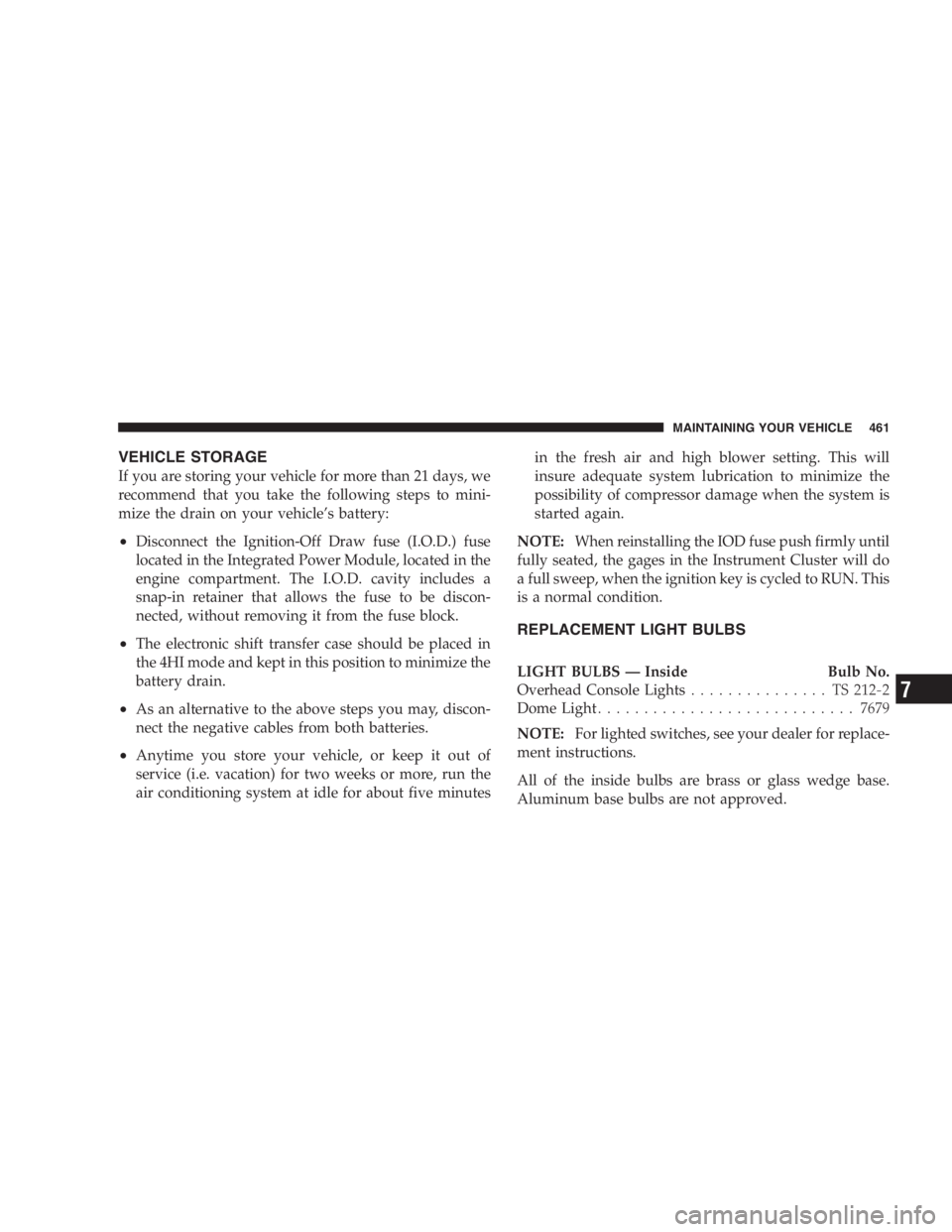

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
• Disconnect the Ignition-Off Draw fuse (I.O.D.) fuse
located in the Integrated Power Module, located in the
engine compartment. The I.O.D. cavity includes a
snap-in retainer that allows the fuse to be discon-
nected, without removing it from the fuse block.
• The electronic shift transfer case should be placed in
the 4HI mode and kept in this position to minimize the
battery drain.
• As an alternative to the above steps you may, discon-
nect the negative cables from both batteries.
• Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes in the fresh air and high blower setting. This will
insure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
NOTE: When reinstalling the IOD fuse push firmly until
fully seated, the gages in the Instrument Cluster will do
a full sweep, when the ignition key is cycled to RUN. This
is a normal condition.
REPLACEMENT LIGHT BULBS
LIGHT BULBS — Inside Bulb No.
Overhead Console Lights ............... TS 212-2
Dome Light ............................ 7679
NOTE: For lighted switches, see your dealer for replace-
ment instructions.
All of the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved. MAINTAINING YOUR VEHICLE 461
7

FLUID AND CAPACITIES
U.S. Metric
Fuel (Appoximate)
6.7L HO Turbo Diesel
Engine
Standard Rear Tank 52 gal. 198 L
Optional Midship Tank 22 gal. 85L
Fuel (Appoximate)
5.7L Gas Engine
Standard Rear Tank 52 gal. 197L
Optional Midship Tank 22 gal. 83L
Engine Oil (with filter)
6.7L HO Turbo Diesel
Engine (SAE 15W-40, API
CJ-4 Certified, that meets
CES 20081 Standards.) 12 qts. 11.4L U.S. Metric
5.7L Gas Engine V-8 (SAE
5W-30, API Certified).
For trucks operating un-
der a gross combined
weight rating greater
than 14,000 lbs. 7.0 qts. 6.6L
5.7L Gas Engine V-8 (SAE
5W-20, API Certified).
For trucks operating un-
der a gross combined
weight rating less than
14,000 lbs. 7.0 qts. 6.6L
Cooling System
6.7L Diesel Engine I-6 22.6 qts. 21.4L
5.7L Gas Engine (Mopar
Antifreeze/Coolant 5
Year/100,000 Mile For-
mula) or equivalent 18.7 qts. 17.7L468 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluids, Lubricants and Genuine Parts
Engine Coolant Mopar  Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Or-
ganic Additive Technology) or equivalent.
6.7L HO Turbo Diesel Engine Oil Use (SAE 15W-40, API CJ-4 Certified, that meets CES 20081 Standards.)
5.7LGas Engine Oil (For trucks
operating under a gross combined
weight rating less than 14,000 lbs.) Use SAE 5W-20, API Certified, meeting material standard MS-6395.
5.7L Gas Engine Oil (For trucks
operating under a gross combined
weight rating greater than 14,000
lbs.) Use SAE 5W-30, API Certified, meeting material standard MS-6395.
Engine Oil Filter ( 5.7L Gas En-
gine ) Mopar  Engine Oil Filter, P/N 5281090 or equivalent.
Engine Oil Filter ( 6.7L Diesel En-
gine ) Mopar  Engine Oil Filter, P/N 05083285AA or equivalent. MAINTAINING YOUR VEHICLE 469
7

Component Fluids, Lubricants and Genuine Parts
Engine Fuel Filter ( 6.7L Diesel
Engine ) Mopar  Fuel Filter, P/N 05183410AA or equivalent. Must meet 7 micron rat-
ing. Using a fuel filter that does not meet the manufacturers filtration and
water separating requirements can severely impact fuel system life and re-
liability.
Crankcase Ventilation Filter ( 6.7L
Diesel Engine ) Mopar  CCV Filter, P/N 68001433AA or equivalent.
Fuel Selection ( 5.7L Gas Engine ) 89 Octane, (R=M)/2 Method, Mid-Grade Preferred (87 Octane acceptable).
Fuel Selection ( 6.7L Diesel En-
gine ) Use good quality diesel fuel from a reputable supplier in your vehicle. Fed-
eral law requires that you must fuel this vehicle with Ultra Low Sulfur High-
way Diesel fuel (15 ppm Sulfur maximum) and prohibits the use of Low Sul-
fur Highway Diesel fuel (500 ppm Sulfur maximum) to avoid damage to the
emissions control system. For most year-round service, No. 2 diesel fuel
meeting ASTM specification D-975 Grade S15 will provide good perfor-
mance. If the vehicle is exposed to extreme cold (below 20°F or -7°C), or is
required to operate at colder-than-normal conditions for prolonged periods,
use climatized No. 2 diesel fuel or dilute the No. 2 diesel fuel with 50% No.
1 diesel fuel. This will provide better protection from fuel gelling or wax-
plugging of the fuel filters. This vehicle is fully compatible with biodiesel
blends up to 5% biodiesel meeting ASTM specification D-975.470 MAINTAINING YOUR VEHICLE
