Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say\6Help\6following
the beep. The UConnect\3 system will play all the options
at any prompt if you ask for help.
To activate the UConnect\3 system from idle, simply press
the PHONE button and follow the audible prompts for
directions. All UConnect\3 system sessions begin with a
press of the PHONE button on the radio control head.
Cancel Command
At any prompt, after the beep, you can say \6Cancel\6and
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) UConnect\3 System to a Cellular Phone
To begin using your UConnect\3 system, you must pair
your compatible Bluetooth\3 enabled cellular phone. To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
UConnect\3
website may also provide detailed instruc-
tions for pairing.
The following are general phone to UConnect\3 system
pairing instructions:
•Press the PHONE button to begin.
•After the \6Ready\6prompt and the following beep, say
\6Setup Phone Pairing.\6
•When prompted, after the beep, say \6Pair a Phone\6and
follow the audible prompts.
•You will be asked to say a four-digit Personal Identi-
fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

•For identification purposes, you will be prompted to
give the UConnect\3system a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone a
priority level between one and seven, with one being
the highest priority. You can pair up to seven cellular
phones to your UConnect\3 system. However, at any
given time, only one cellular phone can be in use,
connected to your UConnect\3 system. The priority
allows the UConnect\3 system to know which cellular
phone to use if multiple cellular phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
UConnect\3 system will use the priority three cellular
phone when you make a call. You can select to use a
lower priority cellular phone at any time (refer to
\6Advanced Phone Connectivity\6 in this section).
Dial by Saying a Number
•
Press the PHONE button to begin.
•After the\6Ready\6prompt and the following beep, say
\6Dial.\6
•The system will prompt you to say the number you
want to call.
•For example, you can say \6234-567-8901\6.
•The UConnect\3system will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After the \6Ready\6prompt and the following beep, say
“Call.\6
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•The system will prompt you to say the name of the
person you want to call.
•After the\6Ready\6prompt and the following beep, say
the name of the person you want to call. For example,
you can say \6John Doe,\6where John Doe is a previ-
ously stored name entry in the UConnect\3 phonebook
or downloaded phonebook. To learn how to store a
name in the phonebook, refer to \6Add Names to Your
UConnect\3 Phonebook,\6 in the phonebook.
•The UConnect\3 system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your UConnect\3 Phonebook
NOTE:Adding names to the UConnect\3 phonebook is
recommended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After the \6Ready\6prompt and the following beep, say
\6Phonebook New Entry.\6
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, say \6Robert Smith\6or
\6Robert\6 instead of \6Bob.\6
•When prompted, enter the number designation (e.g.,
\6Home,\6\6Work,\6\6Mobile,\6 or\6Pager\6). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.
After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

The UConnect\3system will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language. In addition, if equipped and
supported by your phone, UConnect\3 automatically
downloads your mobile phone’s phonebook.
Phonebook Download – Automatic Phonebook
Transfer From Mobile Phone
If equipped and specifically supported by your phone,
UConnect\3 automatically downloads names (text names)
and number entries from the mobile phone’s phonebook.
Specific Bluetooth\3 Phones with Phone Book Access
Profile may support this feature. See UConnect\3 website
for supported phones.
•To call a name from downloaded (or UConnect\3)
Phonebook, follow the procedure in “Call by Saying a
Name” section.
•Automatic download and update, if supported, begins
as soon as the Bluetooth\3 wireless phone connection is
made to the UConnect\3, for example, after you start
the vehicle.
•A maximum of 1000 entries per phone will be down-
loaded and updated every time a phone is connected
to the UConnect\3.
•Depending on the maximum number of entries down-
loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previous downloaded phonebook is available
for use.
•Only the phonebook of the currently connected mobile
phone is accessible.
•Only the mobile phone’s phonebook is downloaded.
SIM card phonebook is not part of the Mobile phone-
book.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•This downloaded phonebook cannot be edited or
deleted on the UConnect\3. These can only be edited on
the mobile phone. The changes are transferred and
updated to UConnect\3on the next phone connection.
Phonebook Download — Single Entry
If equipped and supported by your phone, UConnect \3
allows the user to download entries from their phone via
Bluetooth\3. To use this feature, press the PHONE button
and say “Phonebook Download.” The system prompts,
“Ready to accept “V” card entry via Bluetooth\3…” The
system is now ready to accept phonebook entries from
your phone using the Bluetooth\3 Object Exchange Profile
(OBEX). Please see your phone Owner’s Manual for
specific instructions on how to send these entries from
your phone.
NOTE:
•The phone handset must support Bluetooth\3 OBEX
transfers of phonebook entries to use this feature.
•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth \3,
and you may see a message on the phone display that
the Bluetooth\3 link is busy. In this case, the user must
first disconnect or drop the Bluetooth\3 connection to
the UConnect\3 system, and then send the address
book entry via Bluetooth\3. Please see your phone
Owner ’s Manual for specific instructions on how to
drop the Bluetooth\3 connection.
•If the phonebook entry is longer than 24 characters, it
will only use the first 24 characters.
Edit UConnect\3Phonebook Entries
NOTE:
•Editing names in the phonebook is recommended
when the vehicle is not in motion.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

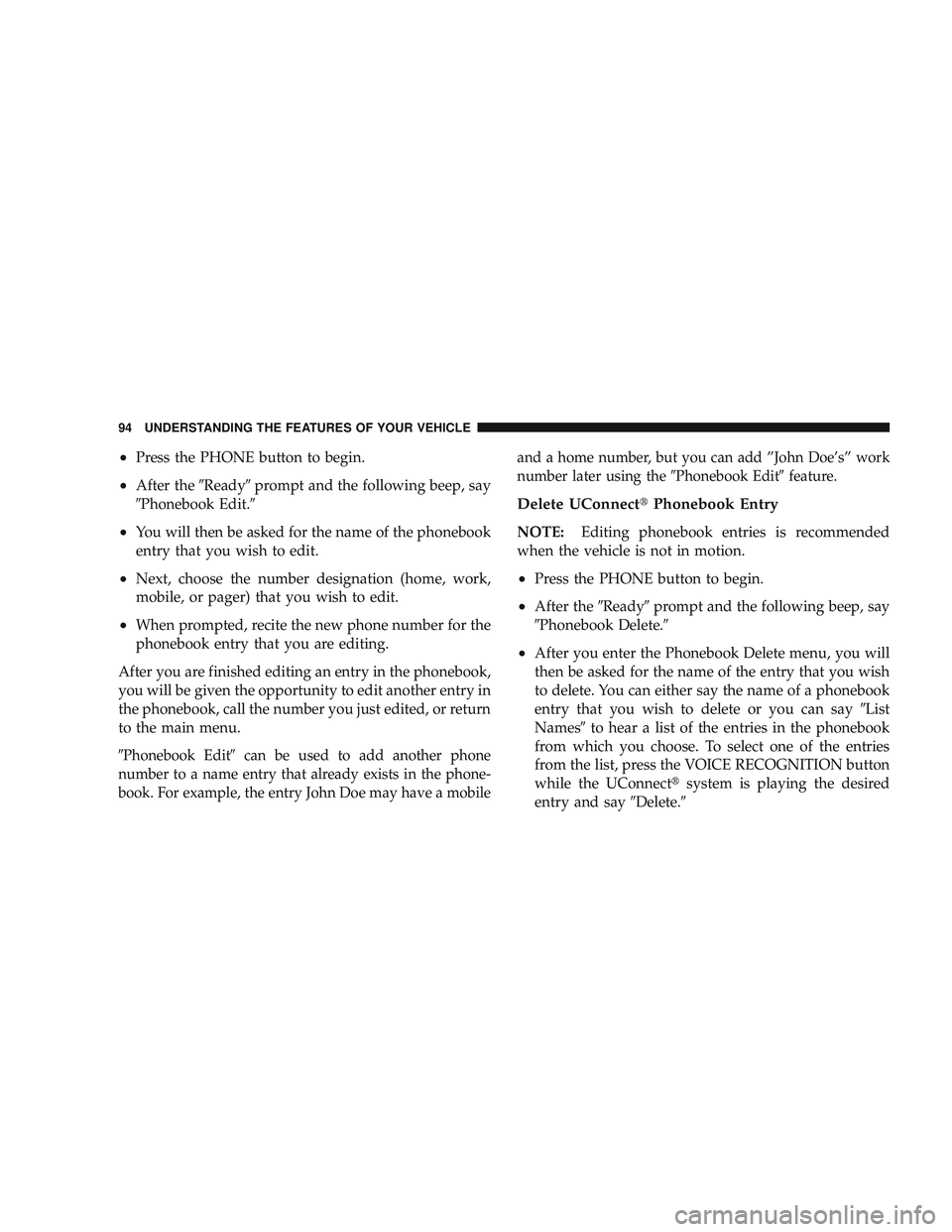

•Press the PHONE button to begin.
•After the\6Ready\6prompt and the following beep, say
\6Phonebook Edit.\6
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing.
After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.
\6
Phonebook Edit\6 can be used to add another phone
number to a name entry that already exists in the phone-
book. For example, the entry John Doe may have a mobile and a home number, but you can add ”John Doe’s” work
number later using the
\6Phonebook Edit\6feature.
Delete UConnect\3 Phonebook Entry
NOTE:Editing phonebook entries is recommended
when the vehicle is not in motion.
•Press the PHONE button to begin.
•After the \6Ready\6prompt and the following beep, say
\6Phonebook Delete.\6
•After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can say \6List
Names\6 to hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press the VOICE RECOGNITION button
while the UConnect\3 system is playing the desired
entry and say \6Delete.\6
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•After you enter the name, the UConnect\3system will
ask you which designation you wish to delete: home,
work, mobile, pager, or all. Say the designation you
wish to delete.
•Note that only the phonebook entry in the current
language is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
Delete/Erase “All” UConnect \3Phonebook Entries
•
Press the PHONE button to begin.
•After the \6Ready\6prompt and the following beep, say
\6Phonebook Erase All.\6
•The UConnect\3 system will ask you to verify that you
wish to delete all the entries from the phonebook.
•After confirmation, the phonebook entries will be
deleted.
•Note that only the phonebook in the current language
is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
List All Names in the UConnect\3 Phonebook
•
Press the PHONE button to begin.
•After the \6Ready\6prompt and the following beep, say
\6Phonebook List Names.\6
•The UConnect\3 system will play the names of all the
phonebook entries, including the downloaded phone-
book entries, if available.
•To call one of the names in the list, press the VOICE
RECOGNITION button during the playing of the
desired name, and say \6Call.\6
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3

NOTE:The user can also exercise \6Edit\6or\6Delete\6
operations at this point.
•The UConnect\3 system will then prompt you as to the
number designation you wish to call.
•The selected number will be dialed.
Phone Call Features
The following features can be accessed through the
UConnect\3 system if the feature(s) are available on your
cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the UConnect\3 system. Check with
your cellular service provider for the features that you
have.
Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your cellular phone, the
UConnect\3 system will interrupt the vehicle audio sys-
tem, if on, and will ask if you would like to answer the
call. Press the PHONE button to accept the call. To reject
the call, press and hold the PHONE button until you hear
a single beep, indicating that the incoming call was
rejected.
Answer or Reject an Incoming Call - Call
Currently in Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
cellular phone. Press the PHONE button to place the
current call on hold and answer the incoming call.
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

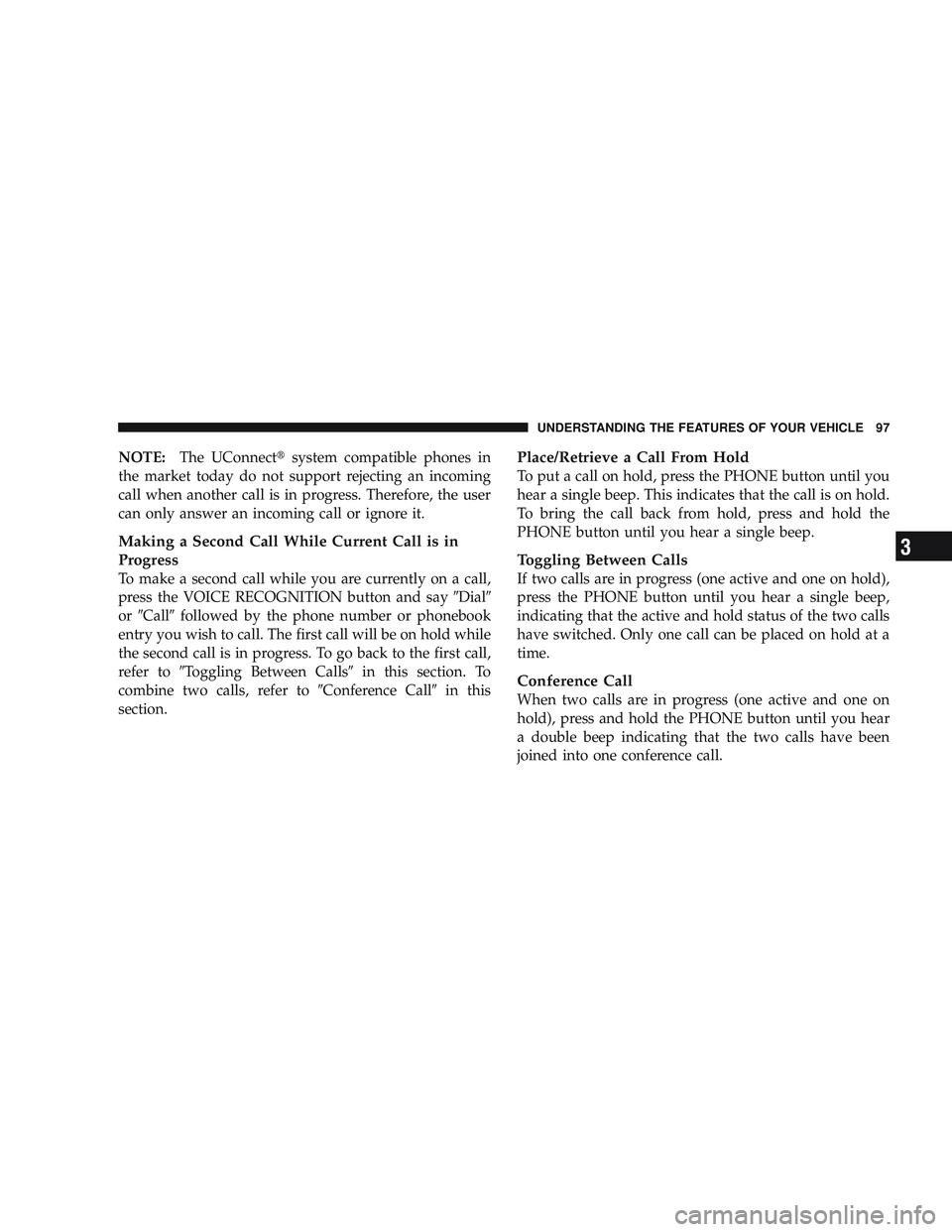

NOTE:The UConnect\3 system compatible phones in
the market today do not support rejecting an incoming
call when another call is in progress. Therefore, the user
can only answer an incoming call or ignore it.
Making a Second Call While Current Call is in
Progress
To make a second call while you are currently on a call,
press the VOICE RECOGNITION button and say \6Dial\6
or \6Call\6 followed by the phone number or phonebook
entry you wish to call. The first call will be on hold while
the second call is in progress. To go back to the first call,
refer to \6Toggling Between Calls\6 in this section. To
combine two calls, refer to \6Conference Call\6in this
section.
Place/Retrieve a Call From Hold
To put a call on hold, press the PHONE button until you
hear a single beep. This indicates that the call is on hold.
To bring the call back from hold, press and hold the
PHONE button until you hear a single beep.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the PHONE button until you hear a single beep,
indicating that the active and hold status of the two calls
have switched. Only one call can be placed on hold at a
time.
Conference Call
When two calls are in progress (one active and one on
hold), press and hold the PHONE button until you hear
a double beep indicating that the two calls have been
joined into one conference call.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3

Three-Way Calling
To initiate three-way calling, press the VOICE RECOG-
NITION button while a call is in progress, and make a
second phone call, as described under\6Making a Second
Call While Current Call is in Progress.\6 After the second
call has established, press and hold the PHONE button
until you hear a double beep, indicating that the two calls
have been joined into one conference call.
Call Termination
To end a call in progress, momentarily press the PHONE
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
If the active call is terminated by the far end, a call on
hold may not become active automatically. This is cell
phone-dependent. To bring the call back from hold, press
and hold the PHONE button until you hear a single beep.
Redial
•
Press the PHONE button to begin.
•After the \6Ready\6prompt and the following beep, say
\6Redial.\6
•The UConnect\3 system will call the last number that
was dialed from your cellular phone.
NOTE: This may not be the last number dialed from the
UConnect\3 system.
Call Continuation
Call continuation is the progression of a phone call on the
UConnect\3system after the vehicle ignition key has been
switched to OFF. Call continuation functionality avail-
able on the vehicle can be any one of three types:
•After the ignition key is switched to OFF, a call can
continue on the UConnect\3 system either until the call
ends, or until the vehicle battery condition dictates
cessation of the call on the UConnect \3system and
transfer of the call to the mobile phone.
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
