RAM CHASSIS CAB 2009 Owners Manual

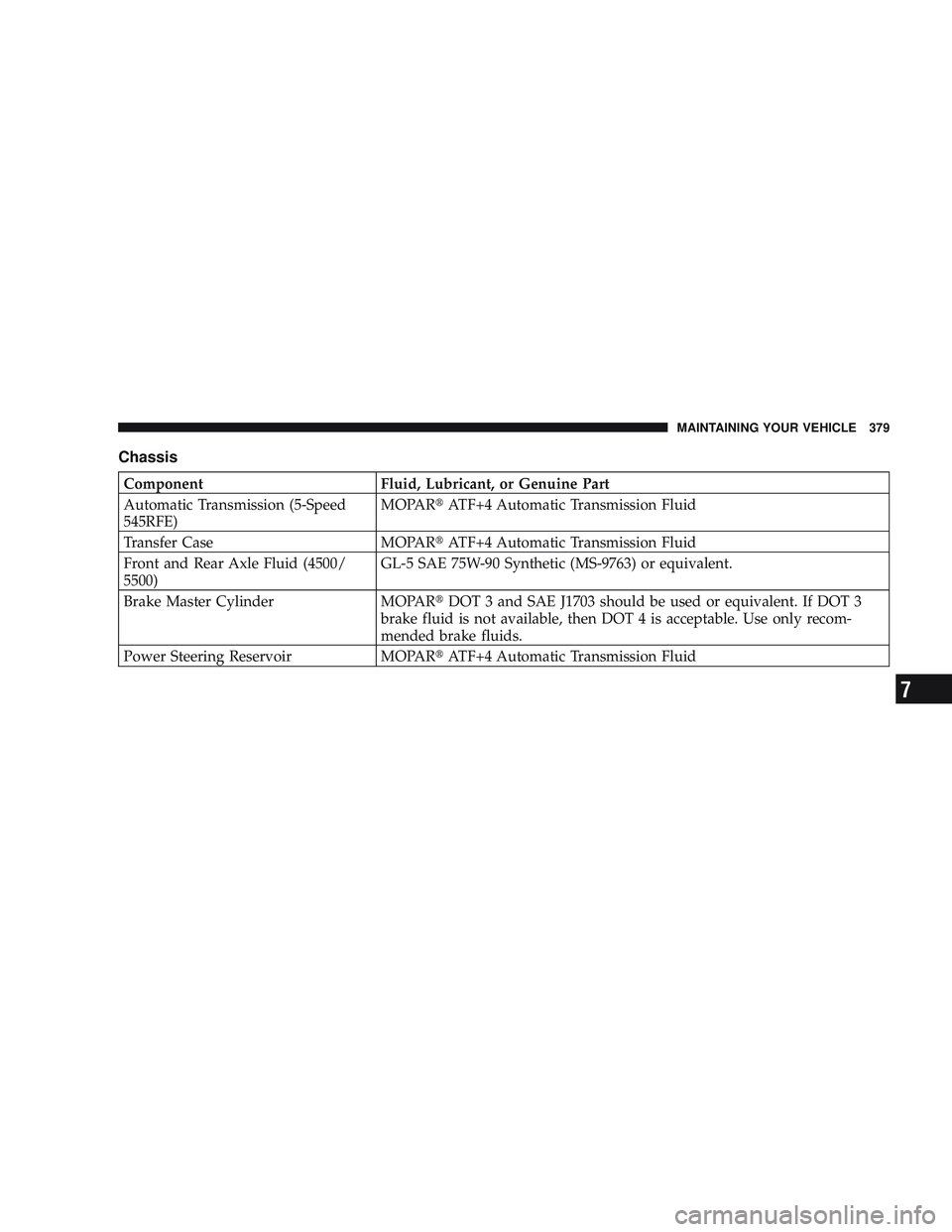

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission (5-Speed
545RFE) MOPAR\3
ATF+4 Automatic Transmission Fluid
Transfer Case MOPAR\3ATF+4 Automatic Transmission Fluid
Front and Rear Axle Fluid (4500/
5500) GL-5 SAE 75W-90 Synthetic (MS-9763) or equivalent.
Brake Master Cylinder MOPAR\3DOT 3 and SAE J1703 should be used or equivalent. If DOT 3
brake fluid is not available, then DOT 4 is acceptable. Use only recom-
mended brake fluids.
Power Steering Reservoir MOPAR\3ATF+4 Automatic Transmission Fluid
MAINTAINING YOUR VEHICLE 379
7

MAINTENANCE SCHEDULES
CONTENTS
\2Emissions Control System Maintenance ...... 382
\2 Maintenance Schedule .................. 382 \4
5.7L Gas Engine ..................... 382
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emissions control
system. These and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE: Maintenance, replacement or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.MAINTENANCE SCHEDULE
5.7L Gas Engine
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
The “Change Oil” message will flash in the instrument
cluster odometer and a single chime will sound, indicat-
ing that an oil change is necessary.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicles oil
if it has been 6 months since your last oil change even
if the oil change indicator message is NOT illumi-
nated.
382 MAINTENANCE SCHEDULES
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 6,000 miles (10,000 km) or 6 months, whichever
comes first.
Your dealer will reset the oil change indicator message
after completing the scheduled oil change. If this sched-
uled oil change is performed by someone other than your
dealer the message can be reset by referring to the steps
described under “Odometer/Trip Odometer” under “In-
strument Cluster Description” in Section 4 of this.
At Each Stop for Fuel
•Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, power steering and transmission and
add as needed.
•Check all lights and other electrical items for correct
operation.
MAINTENANCE SCHEDULES 383
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
•Lubricate outer tie rod ends.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
384 MAINTENANCE SCHEDULES
8
MA I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

6,000 Miles (10,000 km) or
6 Months Maintenance Service
Schedule
\2Change the engine oil and engine oil
filter.
\2 Rotate tires.
\2 Lube front drive shaft fitting (4x4 only).
\2 Lubricate outer tie rod ends.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
12,000 Miles (20,000 km) or 12 Months Maintenance Service
Schedule
\2Change the engine oil and engine oil filter.
\2 Rotate tires.
\2 If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
\2 Inspect the brake linings, replace if necessary.
\2 Lube front drive shaft fitting (4x4 only).
\2 Lubricate outer tie rod ends.
\2 Inspect the CV joints. Perform the first inspection at 12,000 miles (20 000 km) or
12 months.
\2 Inspect exhaust system. Perform the first inspection at 12,000 miles (20 000 km) or
12 months.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 385
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

18,000 Miles (30,000 km) or
18 Months Maintenance
Service Schedule
\2Change the engine oil and engine oil
filter.
\2 Rotate tires.
\2 Lube front drive shaft fitting (4x4 only).
\2 Lubricate outer tie rod ends.
\2 Inspect the front & rear axle fluid.
Change if using your vehicle for police,
taxi, fleet, off-road or frequent trailer
towing.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
24,000 Miles (40,000 km) or 24 Months Maintenance Service
Schedule
\2Change the engine oil and engine oil filter.
\2 Rotate tires.
\2 If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
\2 Inspect the brake linings, replace if necessary.
\2 Lubricate outer tie rod ends.
\2 Inspect the front suspension, tie rod ends, and boot seals, replace if necessary.
\2 Lube front drive shaft fitting (4x4 only).
\2 Inspect the CV joints.
\2 Inspect exhaust system.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
386 MAINTENANCE SCHEDULES
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

30,000 Miles (50,000 km) or
30 Months Maintenance
Service Schedule
\2Change the engine oil and engine oil
filter.
\2 Rotate tires.
\2 Replace the engine air cleaner filter.
\2 Replace the spark plugs (5.7L engine).
\2 Lube front drive shaft fitting (4x4 only).
\2 Lubricate outer tie rod ends.
\2 Inspect the transfer case fluid.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
36,000 Miles (60,000 km) or 36 Months Maintenance Service
Schedule
\2Change the engine oil and engine oil filter.
\2 Rotate tires.
\2 If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
\2 Inspect the brake linings, replace if necessary.
\2 Lube front drive shaft fitting (4x4 only).
\2 Lubricate outer tie rod ends.
\2 Inspect the front & rear axle fluid. Change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 387
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

42,000 Miles (70,000 km) or
42 Months Maintenance
Service Schedule
\2Change the engine oil and engine oil
filter.
\2 Rotate tires.
\2 Lube front drive shaft fitting (4x4 only).
\2 Lubricate outer tie rod ends.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
48,000 Miles (80,000 km) or 48 Months Maintenance Service
Schedule
\2Change the engine oil and engine oil filter.
\2 Rotate tires.
\2 If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
\2 Inspect the brake linings, replace if necessary.
\2 Lubricate outer tie rod ends.
\2 Inspect the front suspension, tie rod ends, and boot seals, replace if necessary.
\2 Lube front drive shaft fitting (4x4 only).
\2 Inspect the CV Joints.
\2 Inspect exhaust system.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
