ESP RAM CHASSIS CAB 2009 Owners Manual

VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name
Chrysler LLC shall be deemed to be deleted and the
name Chrysler Canada Inc. used in substitution therefor.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Your
perceptions are less sharp, your reflexes are slower,
and your judgment is impaired when you have been
drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or op-
tional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
Chrysler LLC reserves the right to make changes in
design and specifications, and/or make additions to or
improvements to its products without imposing any
obligation upon itself to install them on products previ-
ously manufactured.
Copyright © 2008 Chrysler LLC

To cancel the Panic Mode, press and release the PANIC
button on the transmitter a second time, after five sec-
onds. Panic Mode will automatically cancel after three
minutes, or if the vehicle is started and exceeds 15 mph
(24 km/h). During the Panic Mode, the door locks and
RKE systems will function normally. Panic Mode will not
disarm the Vehicle Security Alarm System on vehicles so
equipped.
Programming Additional RKE Transmitters
Refer to “Sentry Key\3Programming” under “Sentry
Key\3” in this section.
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions: 1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. Weak batteries in RKE transmitter. The expected life of
the batteries is from one to two years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Enhanced Accident Response System
If the airbags deploy after an impact and the electrical
system remains functional, vehicles equipped with
power door locks will unlock automatically. In addition,
approximately 10 seconds after the vehicle has stopped
moving, the interior lights will light until the ignition
switch is turned off.
Maintaining Your Airbag Systems
WARNING!
•Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured because the airbags are not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper right side of the instrument panel. Do not
modify the front bumper, vehicle body structure,
or frame.
•You need proper knee impact protection in a
collision. Do not mount or locate any aftermarket
equipment on or behind the knee bolster.
•It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has airbags.
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•The system will prompt you to say the name of the
person you want to call.
•After the\6Ready\6prompt and the following beep, say
the name of the person you want to call. For example,
you can say \6John Doe,\6where John Doe is a previ-
ously stored name entry in the UConnect\3 phonebook
or downloaded phonebook. To learn how to store a
name in the phonebook, refer to \6Add Names to Your
UConnect\3 Phonebook,\6 in the phonebook.
•The UConnect\3 system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your UConnect\3 Phonebook
NOTE:Adding names to the UConnect\3 phonebook is
recommended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After the \6Ready\6prompt and the following beep, say
\6Phonebook New Entry.\6
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, say \6Robert Smith\6or
\6Robert\6 instead of \6Bob.\6
•When prompted, enter the number designation (e.g.,
\6Home,\6\6Work,\6\6Mobile,\6 or\6Pager\6). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.
After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

•After the ignition key is switched to OFF, a call can
continue on the UConnect\3system for a certain dura-
tion, after which the call is automatically transferred
from the UConnect\3 system to the mobile phone.
•An active call is automatically transferred to the
mobile phone after the ignition key is switched to OFF.
UConnect\5System Features
Language Selection
To change the language that the UConnect \3system is
using:
•Press the PHONE button to begin.
•After the \6Ready\6prompt and the following beep, say
the name of the language you wish to switch to
English, Espanol, or Francais.
•Continue to follow the system prompts to complete
the language selection. After selecting one of the languages, all prompts and
voice commands will be in that language.
NOTE:
After every UConnect\3 language change opera-
tion, only the language-specific 32-name phonebook is
usable. The paired phone name is not language-specific
and usable across all languages.
Emergency Assistance
If you are in an emergency and the mobile phone is
reachable:
•Pick up the phone and manually dial the emergency
number for your area.
If the phone is not reachable and the UConnect\3 system
is operational, you may reach the emergency number as
follows:
•Press the PHONE button to begin.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
3

NOTE:
•The towing assistance number dialed is based on the
country where the vehicle is purchased (1-800-528-
2069 for the U.S., 1-877-213-4525 for Canada, 55-14-
3454 for Mexico City and 1-800-712-3040 for outside
Mexico City in Mexico).
•If supported, this number may be programmable on
some systems. To do this, press the PHONE button
and say “Setup”’, followed by “Towing Assistance”.
Paging
To learn how to page, refer to\6Working with Automated
Systems.\6 Paging works properly except for pagers of
certain companies, which time out a little too soon to
work properly with the UConnect\3 system.
Voice Mail Calling
To learn how to access your voice mail, refer to \6Working
with Automated Systems.\6
Working with Automated Systems
This method is used in instances where one generally has
to press numbers on the cellular phone keypad while
navigating through an automated telephone system.
You can use your UConnect\3 system to access a voice
mail system or an automated service, such as a paging
service or automated customer service line. Some ser-
vices require immediate response selection. In some
instances, that may be too quick for use of the UConnect\3
system.
When calling a number with your UConnect \3system
that normally requires you to enter in a touch-tone
sequence on your cellular phone keypad, you can press
the VOICE RECOGNITION button and say the sequence
you wish to enter, followed by the word \6Send.\6For
example, if required to enter your PIN followed with a
pound, (3746#),youcanpresstheVOICE RECOGNI-
TION button and say, \63746#Send.\6Saying a number,
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101
3

or sequence of numbers, followed by\6Send,\6is also to be
used for navigating through an automated customer
service center menu structure, and to leave a number on
a pager.
You can also send stored UConnect\3 phonebook entries
as tones for fast and easy access to voice mail and pager
entries. To use this feature, dial the number you wish to
call and then press the VOICE RECOGNITION button
and say, “Send.” The system will prompt you to enter the
name or number and say the name of the phonebook
entry you wish to send. The UConnect\3 system will then
send the corresponding phone number associated with
the phonebook entry, as tones over the phone.
NOTE:
•You may not hear all of the tones due to cellular phone
network configurations. This is normal.
•Some paging and voice mail systems have system time
out settings that are too short and may not allow the
use of this feature.
Barge In - Overriding Prompts
The “Voice Recognition” button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is asking \6Would you like to pair a phone, clear
a...,\6 you could press the VOICE RECOGNITION button
and say, \6Pair a Phone\6 to select that option without
having to listen to the rest of the voice prompt.
Turning Confirmation Prompts ON/OFF
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the UConnect\3 sys-
tem will not repeat a phone number before you dial it).
•Press the PHONE button to begin.
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Voice Commands
Primary Alternate(s)
zero
one
two
three
four
five
six
seven
eight
nine
star (*)
plus (+)
pound (#)
add location
allVoice Commands
Primary Alternate(s)
call
cancel
confirmation prompts
continue
delete
dial
download
edit
emergency
English
erase all
Espanol
Francais
help
home
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
SEATS
Seats are also a primary part of the Occupant Restraint
System of the vehicle. They need to be used properly for
safe operation of the vehicle.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Low is selected just the lower light will illuminate.
Flashing indicator lights on the switch indicate that the
heated seat system needs servicing. See your authorized
dealer.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat.

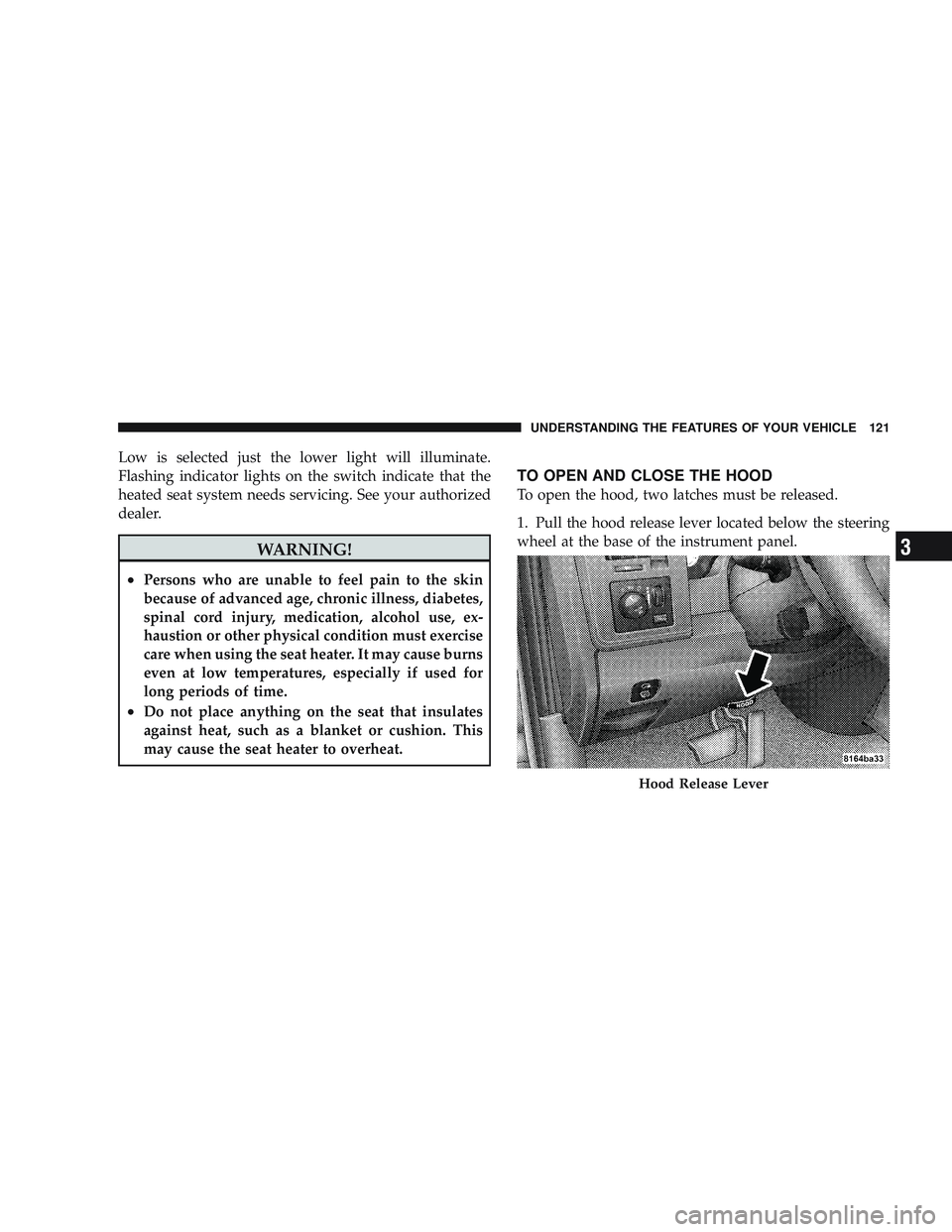

TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the hood release lever located below the steering
wheel at the base of the instrument panel.
Hood Release Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3
