snow chains RAM CHASSIS CAB 2009 Owners Manual

\2Supplemental Tire Pressure Information —
If Equipped .......................... 276
\2 Tire Chains .......................... 276
\2 Snow Tires .......................... 278
\2 Tire Rotation Recommendations ........... 279
\4 Dual Rear Wheels .................... 280
\2 Fuel Requirements ..................... 281
\4 5.7L Gas Engine ..................... 281
\2 Adding Fuel ......................... 285
\4 Loose Fuel Filler Cap (Gas Cap) Message . . . 286
\2 Vehicle Loading ...................... 287
\4 Certification Label ................... 287
\2 Trailer Towing ........................ 289 \4
Common Towing Definitions ............ 289
\4 Trailer Hitch Classification .............. 292
\4 Trailer Towing Weights (Maximum Trailer
Weight Ratings) ..................... 293
\4 Trailer And Tongue Weight ............. 294
\4 Towing Requirements ................. 295
\4 Towing Tips ........................ 299
\2 Snowplow .......................... 300
\4 Before Plowing ...................... 301
\4 Snowplow Prep Package Model Availability . 302
\4 Over The Road Operation With Snowplow
Attached .......................... 303
\4 Operating Tips ...................... 303
\4 General Maintenance .................. 303
STARTING AND OPERATING 219
5

•On 4X2 vehicles, class “U” snow chains are permitted
on the rear wheels only of vehicles equipped with
LT245/70R17, LT265/70R17, and LT235/80R17 size
tires.
•On 4X4 Single Rear Wheel (SRW) vehicles, class “U”
snow chains are permitted on the rear wheels only on
vehicles equipped with LT265/70R17.
CAUTION!
Do not use tire chains on the 4X2 front wheels of
SRW (Single Rear Wheels) equipped with LT245/
70R17, LT265/70R17 tires or 4X4 front tires of vehicles
equipped with LT265/70R17tires. There may not be
adequate clearance for the chains and you are risking
structural or body damage to your vehicle.
SNOW TIRES
Snow tires should be of the same size and type construc-
tion as the front tires. Consult the manufacturer of the
snow tire to determine any maximum vehicle speed
requirement associated with the tire. These tires should
always be operated at the vehicle maximum capacity
inflation pressures under any load condition.
While studded tires improve performance on ice, skid
and traction capability on wet or dry surfaces may be
poorer than that of non-studded tires. Some states pro-
hibit studded tires; therefore, local laws should be
checked before using these tire types.
278 STARTING AND OPERATING

Transfer Case, Shifting into Transfer
Case Neutral (N).................... 305,307
Transfer Case, Shifting out of Transfer
Case Neutral (N) .................... 306,309
Shoulder Belt Upper Anchorage .............. 44
Shoulder Belts ........................... 36
Signals, Turn ........................... 127
Sliding Rear Window Power ............................ 34,154
Snow Chains (Tire Chains) ................. 276
Snow Plow ............................ 300
Snow Tires ............................ 278
Spark Plugs ............................ 378
Speed Control (Cruise Control) .............. 133
Speedometer ........................... 163
Starting ............................... 221
Automatic Transmission ................. 221
Engine Fails to Start .................... 222
Remote .............................. 26 Starting Procedures (Gas Engines)
............ 221
Steel Carcass Ply Tires .................... 269
Steering Power ........................... 252,253
Wheel Lock ........................... 14
Wheel, Tilt ........................... 130
Steering Wheel Mounted Sound
System Controls ......................... 201
Storage, Behind the Seat ................... 148
Storage Compartment, Center Seat .........148,150
Storage, Vehicle ......................... 369
Storing Your Vehicle ...................... 369
Supplemental Tire Pressure Information ........ 276
Synthetic Engine Oil ...................... 340
System, Navigation ...................... 194
System, Remote Starting .................... 26
Tachometer ............................ 163
Temperature Gauge, Engine Coolant .......... 164
422 INDEX

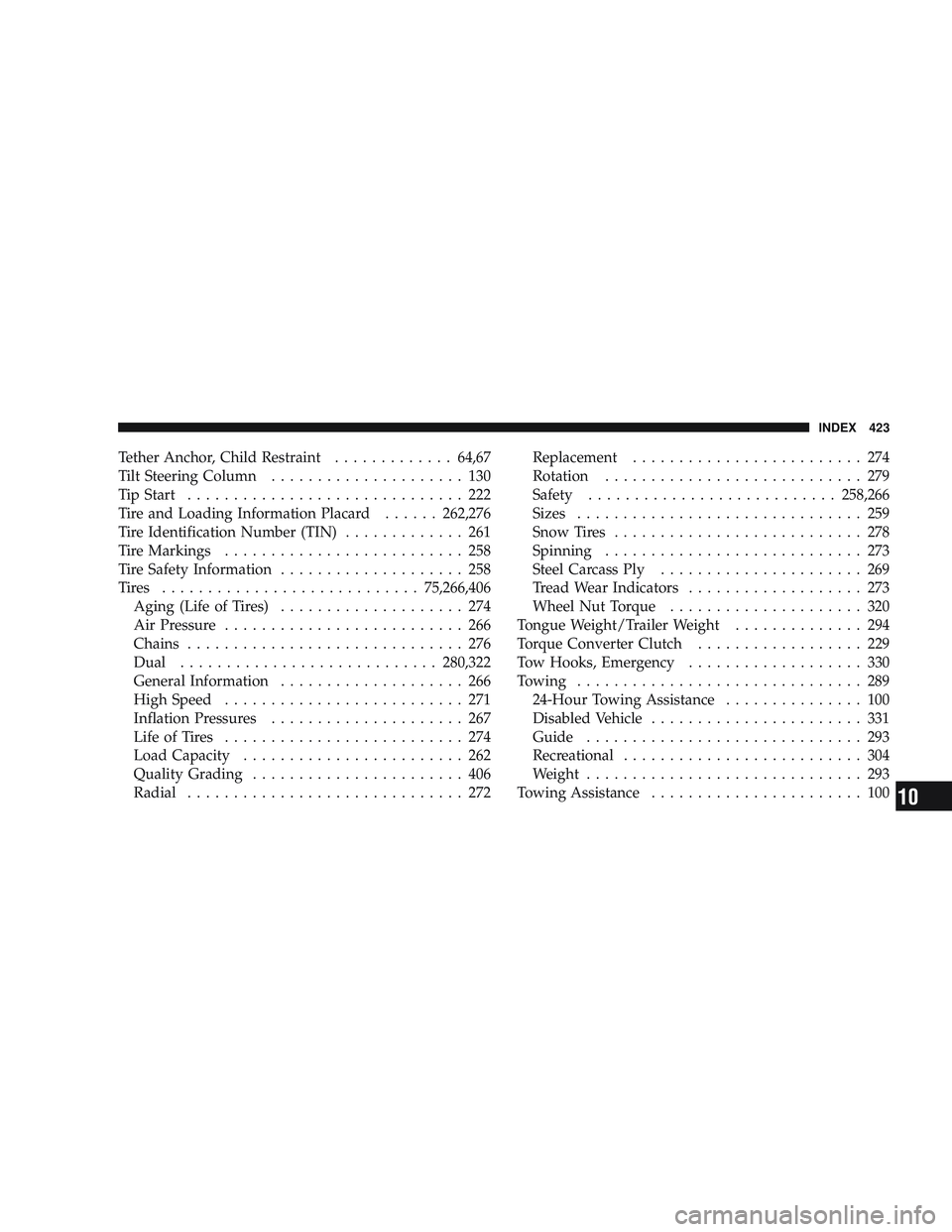

Tether Anchor, Child Restraint.............64,67
Tilt Steering Column ..................... 130
Tip Start .............................. 222
Tire and Loading Information Placard ......262,276
Tire Identification Number (TIN) ............. 261
Tire Markings .......................... 258
Tire Safety Information .................... 258
Tires ............................ 75,266,406
Aging (Life of Tires) .................... 274
Air Pressure .......................... 266
Chains .............................. 276
Dual ............................ 280,322
General Information .................... 266
High Speed .......................... 271
Inflation Pressures ..................... 267
Life of Tires .......................... 274
Load Capacity ........................ 262
Quality Grading ....................... 406
Radial .............................. 272 Replacement
......................... 274
Rotation ............................ 279
Safety ........................... 258,266
Sizes ............................... 259
Snow Tires ........................... 278
Spinning ............................ 273
Steel Carcass Ply ...................... 269
Tread Wear Indicators ................... 273
Wheel Nut Torque ..................... 320
Tongue Weight/Trailer Weight .............. 294
Torque Converter Clutch .................. 229
Tow Hooks, Emergency ................... 330
Towing ............................... 289
24-Hour Towing Assistance ............... 100
Disabled Vehicle ....................... 331
Guide .............................. 293
Recreational .......................... 304
Weight .............................. 293
Towing Assistance ....................... 100
INDEX 423
10
