AUX RAM CHASSIS CAB 2011 Owners Manual

ELECTRICAL POWER OUTLETS
The auxiliary 12 Volt (13 Amp) power outlets can provide
power for in-cab accessories designed for use with the
standard “cigar lighter” plug. The 12 Volt power outlets
have a cap attached to the outlet indicating “12V DC”,
together with either a key symbol or a battery symbol.
A key symbol indicates that the key must be in the ON or
ACC positions for the outlet to provide power. The
battery symbol indicates that the outlet is connected to
the battery, and can provide power at all times.
NOTE:
• To ensure proper operation a MOPAR  knob and
element must be used.
• Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced. The auxiliary power outlets can be found in the following
locations:
• Lower left and lower right of the center stack.
• Inside the top storage tray.
Power Outlet — Floor Storage Bin
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157

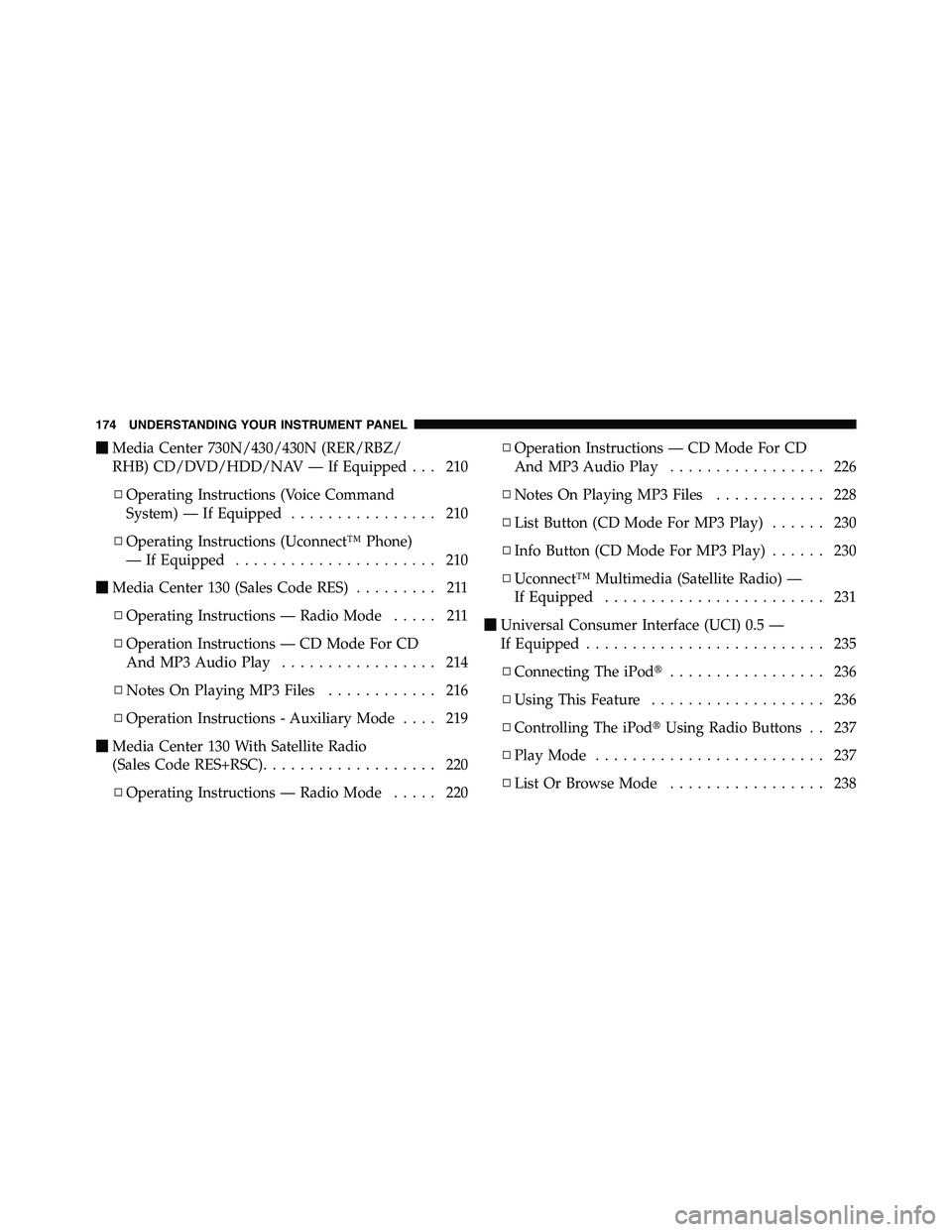

 Media Center 730N/430/430N (RER/RBZ/
RHB) CD/DVD/HDD/NAV — If Equipped . . . 210
▫ Operating Instructions (Voice Command
System) — If Equipped ................ 210
▫ Operating Instructions (Uconnect™ Phone)
— If Equipped ...................... 210
 Media Center 130 (Sales Code RES) ......... 211
▫ Operating Instructions — Radio Mode ..... 211
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 214
▫ Notes On Playing MP3 Files ............ 216
▫ Operation Instructions - Auxiliary Mode .... 219
 Media Center 130 With Satellite Radio
(Sales Code RES+RSC) ................... 220
▫ Operating Instructions — Radio Mode ..... 220 ▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 226
▫ Notes On Playing MP3 Files ............ 228
▫ List Button (CD Mode For MP3 Play) ...... 230
▫ Info Button (CD Mode For MP3 Play) ...... 230
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 231
 Universal Consumer Interface (UCI) 0.5 —
If Equipped .......................... 235
▫ Connecting The iPod  ................. 236
▫ Using This Feature ................... 236
▫ Controlling The iPod  Using Radio Buttons . . 237
▫ Play Mode ......................... 237
▫ List Or Browse Mode ................. 238174 UNDERSTANDING YOUR INSTRUMENT PANEL

To increase the speed of disc loading, it is recommended
to use CD-R media and single-session discs. To create a
single-session disc, enable the “Disc at Once” option
before writing to the disc.
Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack, which
allows the user to plug in a portable device, such as an
MP3 player, or cassette player, and utilize the vehicle’s
audio system to amplify the source and play through the
vehicle speakers.
Pressing the DISC/AUX button will change the mode to
auxiliary device if the AUX jack is connected. NOTE: The AUX device must be turned on and the
device’s volume set to proper level. If the AUX audio is
not loud enough, turn the device’s volume up. If the AUX
audio sounds distorted, turn the device’s volume down.
TIME Button (Auxiliary Mode)
Press this button to change the display to time of day. The
time of day will display for five seconds (when ignition is
OFF).
4 UNDERSTANDING YOUR INSTRUMENT PANEL 219

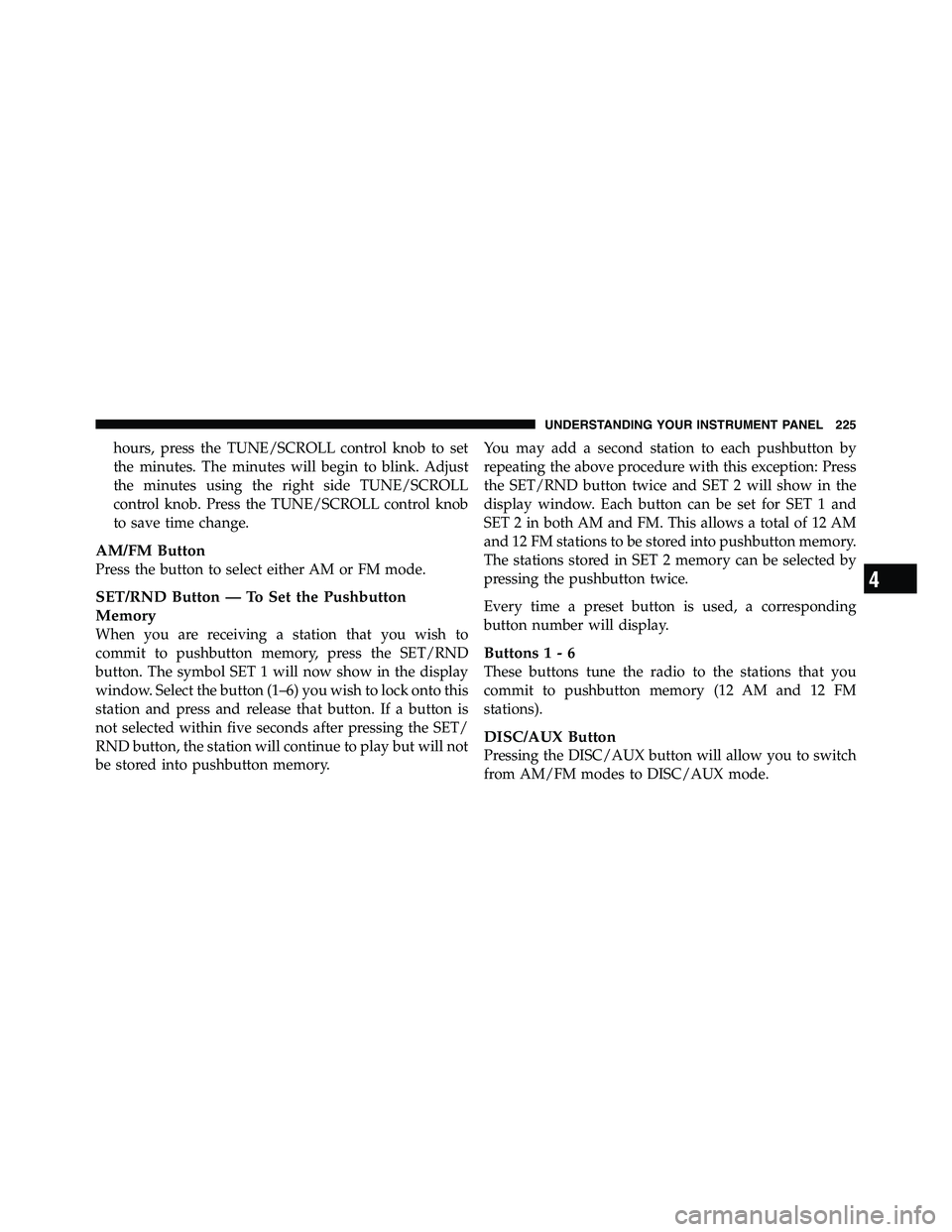

hours, press the TUNE/SCROLL control knob to set
the minutes. The minutes will begin to blink. Adjust
the minutes using the right side TUNE/SCROLL
control knob. Press the TUNE/SCROLL control knob
to save time change.
AM/FM Button
Press the button to select either AM or FM mode.
SET/RND Button — To Set the Pushbutton
Memory
When you are receiving a station that you wish to
commit to pushbutton memory, press the SET/RND
button. The symbol SET 1 will now show in the display
window. Select the button (1–6) you wish to lock onto this
station and press and release that button. If a button is
not selected within five seconds after pressing the SET/
RND button, the station will continue to play but will not
be stored into pushbutton memory. You may add a second station to each pushbutton by
repeating the above procedure with this exception: Press
the SET/RND button twice and SET 2 will show in the
display window. Each button can be set for SET 1 and
SET 2 in both AM and FM. This allows a total of 12 AM
and 12 FM stations to be stored into pushbutton memory.
The stations stored in SET 2 memory can be selected by
pressing the pushbutton twice.
Every time a preset button is used, a corresponding
button number will display.
Buttons 1 - 6
These buttons tune the radio to the stations that you
commit to pushbutton memory (12 AM and 12 FM
stations).
DISC/AUX Button
Pressing the DISC/AUX button will allow you to switch
from AM/FM modes to DISC/AUX mode. 4 UNDERSTANDING YOUR INSTRUMENT PANEL 225

Press and hold the INFO button again for three seconds
to return to  elapsed time  display.
Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack which
allows the user to plug in a portable device such as an
MP3 player or cassette player and utilize the vehicle’s
audio system to amplify the source and play through the
vehicle speakers.
Pressing the AUX button will change the mode to auxil-
iary device if the AUX jack is connected.
NOTE: The AUX device must be turned on and the
device’s volume set to the proper level. If the AUX audio
is not loud enough, turn the device’s volume up. If the
AUX audio sounds distorted, turn the device’s volume
down. TIME Button (Auxiliary Mode)
Press this button to change the display to time of day. The
time of day will display for five seconds (when the
ignition is OFF).
Uconnect™ Multimedia (Satellite Radio) —
If Equipped
Satellite radio uses direct satellite-to-receiver broadcast-
ing technology to provide clear digital sound, coast to
coast. The subscription service provider is Sirius Satellite
Radio. This service offers over 130 channels of music,
sports, news, entertainment, and programming for chil-
dren, directly from its satellites and broadcasting studios.
NOTE: Sirius service is not available in Hawaii and has
limited coverage in Alaska.
System Activation
Sirius Satellite Radio service is pre-activated, and you
may begin listening immediately to the one year of audio
service that is included with the factory-installed satellite 4 UNDERSTANDING YOUR INSTRUMENT PANEL 231

UCI supports Mini, 4G, Photo, Nano, 5G iPod  and
iPhone  devices. Some iPod  software versions may not
fully support the UCI features. Please visit Apple’s
website for software updates.
NOTE:
• If the radio has a USB port, connecting an iPod  to this
port does not play the media. For playing an iPod  ,
use the separate 16–pin connector port (in the glove
compartment on some vehicles).
• Connecting an iPod  to the AUX port located in the
radio faceplate, plays media, but does not use the UCI
feature to control the connected device.

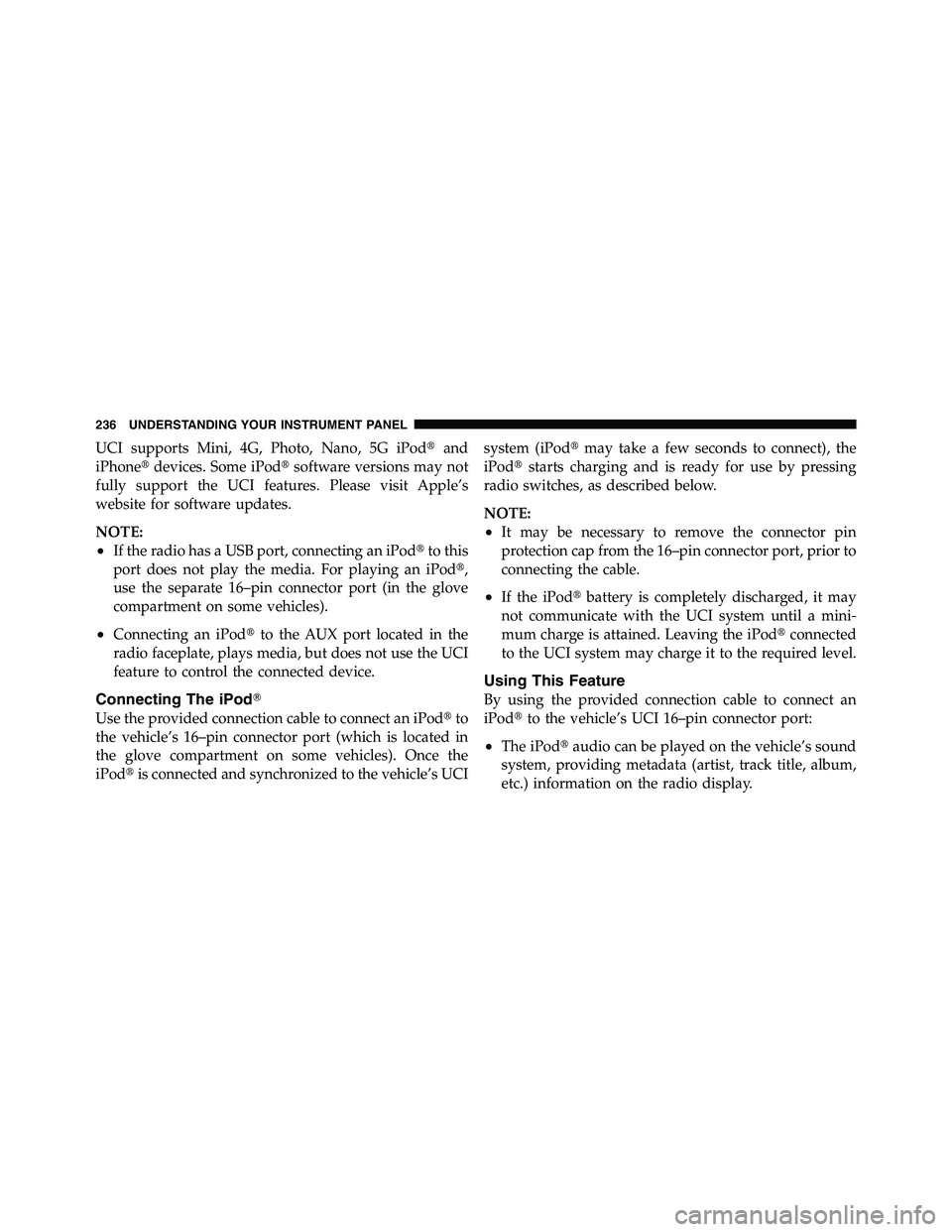

Connecting The iPod
Use the provided connection cable to connect an iPod  to
the vehicle’s 16–pin connector port (which is located in
the glove compartment on some vehicles). Once the
iPod  is connected and synchronized to the vehicle’s UCI system (iPod  may take a few seconds to connect), the
iPod  starts charging and is ready for use by pressing
radio switches, as described below.
NOTE:
• It may be necessary to remove the connector pin
protection cap from the 16–pin connector port, prior to
connecting the cable.
• If the iPod  battery is completely discharged, it may
not communicate with the UCI system until a mini-
mum charge is attained. Leaving the iPod  connected
to the UCI system may charge it to the required level.
Using This Feature
By using the provided connection cable to connect an
iPod  to the vehicle’s UCI 16–pin connector port:
• The iPod  audio can be played on the vehicle’s sound
system, providing metadata (artist, track title, album,
etc.) information on the radio display.236 UNDERSTANDING YOUR INSTRUMENT PANEL

• The iPod  can be controlled using the radio buttons to
Play, Browse, and List the iPod  contents.
• The iPod  battery charges when plugged into the UCI
connector (if supported by the specific iPod  device)
Controlling The iPod  Using Radio Buttons
To get into the UCI (iPod  ) mode and access a connected
iPod  , press the “AUX” button on the radio faceplate.
Once in the UCI (iPod  ) mode, iPod  audio tracks (if
available from iPod  ) start playing over the vehicle’s
audio system.
Play Mode
When switched to UCI mode, the iPod  automatically starts
Play mode. In Play mode, use the following buttons on the
radio faceplate to control the iPod  and display data:
• Use the TUNE control knob to select the next or
previous track.
• Turning it clockwise (forward) by one click, while
playing a track, skips to the next track. • Turning it counterclockwise (backward) by one
click, during the first two seconds of the track, will
jump to the previous track in the list. Turning this
button at any other time in the track, will jump to
the beginning of the current track.
• Jump backward in the current track by pressing and
holding the << RW button. Holding the << RW
button long enough will jump to the beginning of
the current track.
• Jump forward in the current track by pressing and
holding the FF >> button.
• A single press backward << RW or forward FF >> will
jump backward or forward respectively, for five
seconds.
• Use the << SEEK and SEEK >> buttons to jump to the
previous or next track. If the << SEEK button is
pressed during the first two seconds of the track, it will 4 UNDERSTANDING YOUR INSTRUMENT PANEL 237

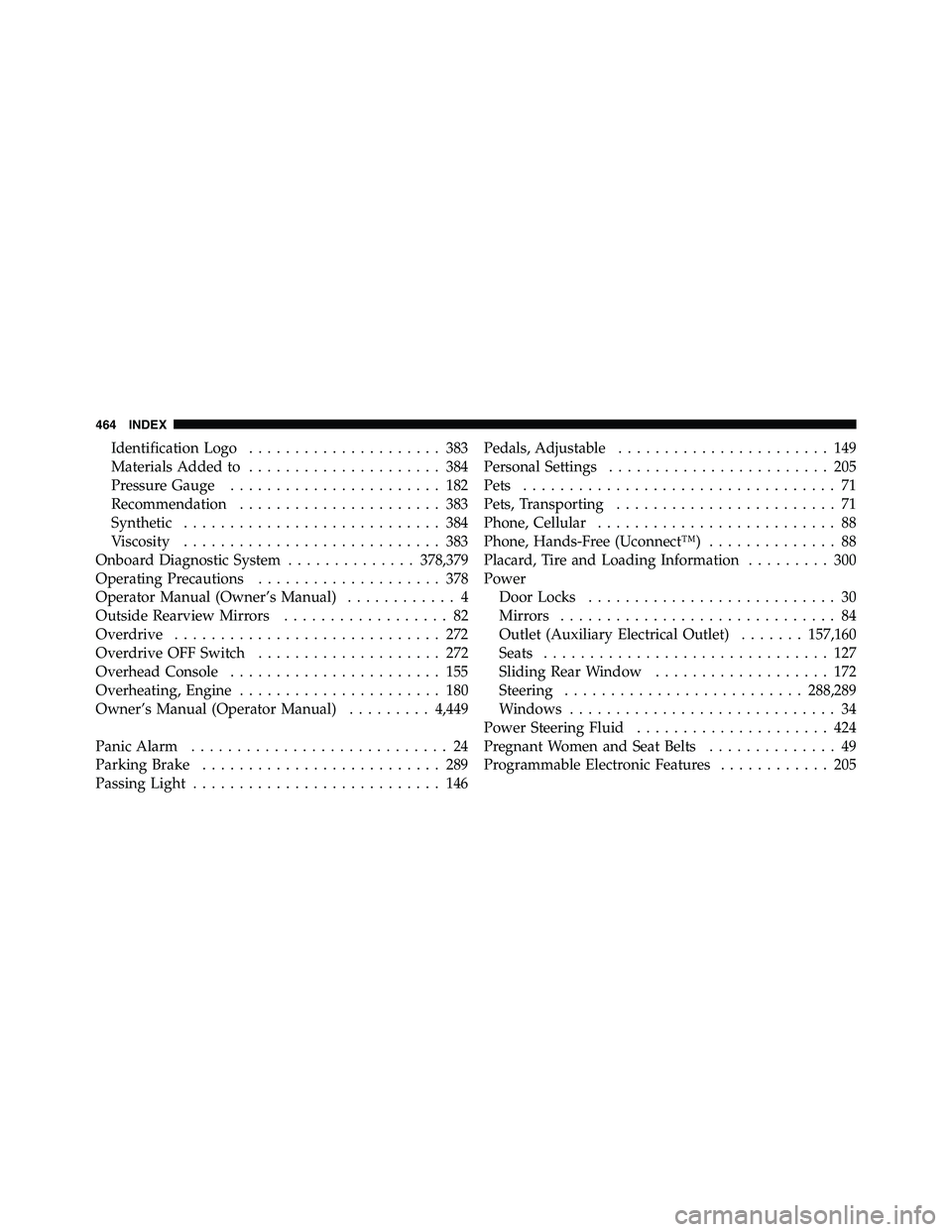

Identification Logo ..................... 383
