E-85 Usage In Non-Flex Fuel Vehicles
Non-FFV vehicles are compatible with gasoline contain-
ing 10% ethanol (E10). Gasoline with higher ethanol
content may void the vehicle’s warranty.
If a Non-FFV vehicle is inadvertently fueled with E-85
fuel, the engine will have some or all of these symptoms:
• operate in a lean mode
• OBD II “Malfunction Indicator Light” on
• poor engine performance
• poor cold start and cold drivability
• increased risk for fuel system component corrosion
To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
• drain the fuel tank (see your authorized dealer)
• change the engine oil and oil filter • disconnect and reconnect the battery to reset the
engine controller memory
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT is a manganese containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emission system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer whether
or not the gasoline contains MMT. It is even more
important to look for gasolines without MMT in Canada,
because MMT can be used at levels higher than those
5 STARTING AND OPERATING 319

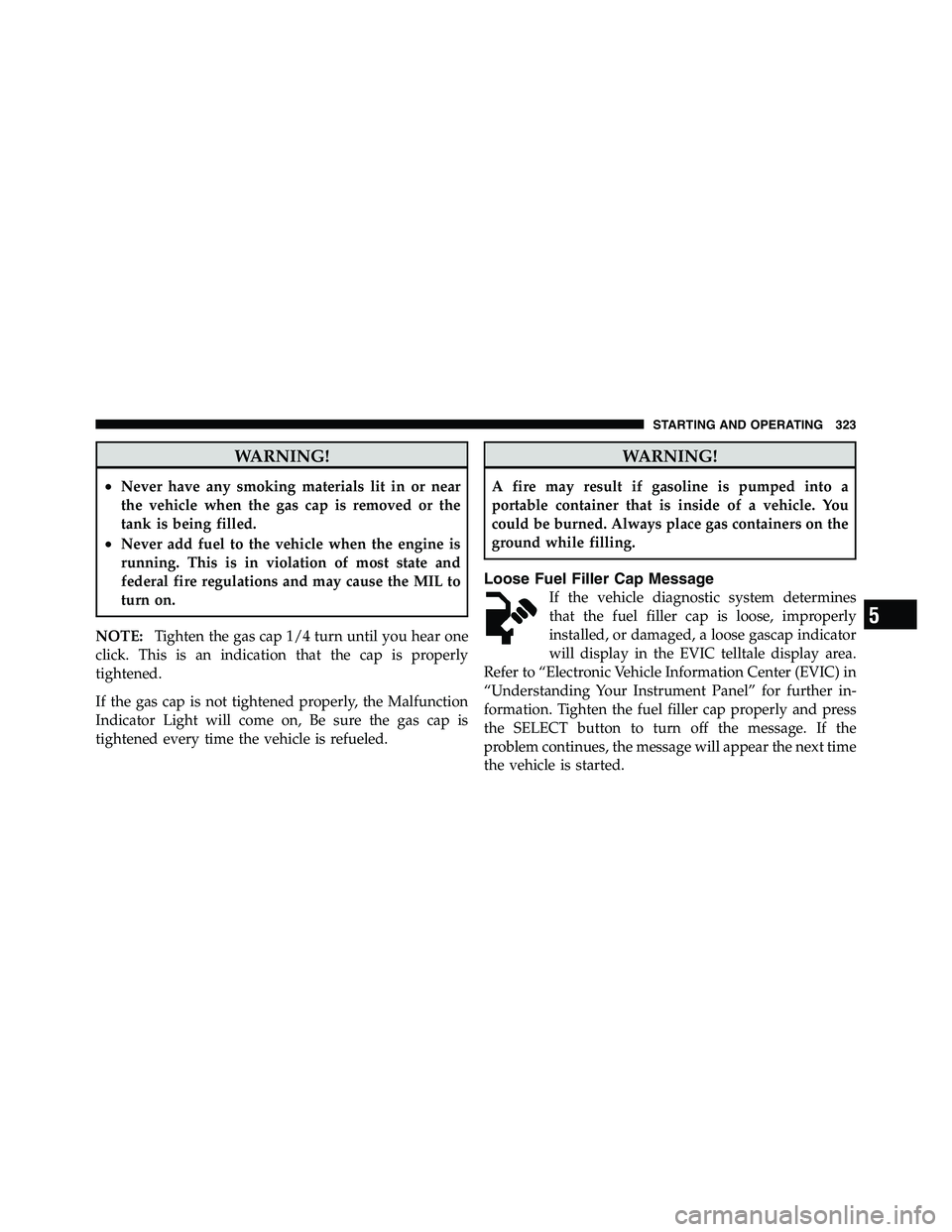

WARNING!• Never have any smoking materials lit in or near
the vehicle when the gas cap is removed or the
tank is being filled.
• Never add fuel to the vehicle when the engine is
running. This is in violation of most state and
federal fire regulations and may cause the MIL to
turn on.
NOTE: Tighten the gas cap 1/4 turn until you hear one
click. This is an indication that the cap is properly
tightened.
If the gas cap is not tightened properly, the Malfunction
Indicator Light will come on, Be sure the gas cap is
tightened every time the vehicle is refueled. WARNING!A fire may result if gasoline is pumped into a
portable container that is inside of a vehicle. You
could be burned. Always place gas containers on the
ground while filling.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines
that the fuel filler cap is loose, improperly
installed, or damaged, a loose gascap indicator
will display in the EVIC telltale display area.
Refer to “Electronic Vehicle Information Center (EVIC) in
“Understanding Your Instrument Panel” for further in-
formation. Tighten the fuel filler cap properly and press
the SELECT button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
5 STARTING AND OPERATING 323

Cavity Cartridge
Fuse Mini
Fuse Description
M19 5 Amp
Ta n Ign R/ACC –
Sunroof/Window Sw
Illum
M20 25 Amp
Natural Frt Wiper
M21 25 Amp
Natural Door Locks
M22 20 Amp
Yellow Fuel Pump
M23 20 Amp
Yellow Bat – Trlr Light/Pre-
Safe #2
M24 20 Amp
Yellow Bat – Trlr Tow BUX/
HGM
M25 10 Amp
Red Bat – J1962 Diag/
Mirrors
M26 10 Amp
Red Bat – Ign Sw, WIN,
PASS Cavity Cartridge
Fuse Mini
Fuse Description
M27 15 Amp
Blue Bat – CHMSL/Brake
Sw
M28 10 Amp
Red Bat – Corax TPM/
PEM/HVAC Htr
Pump
M29 15 Amp
Blue Bat – Folding Mirror
M30 25 Amp
Natural Bat – Inverter
M31 20 Amp
Yellow Bat – Pwr Out #1
M32 20 Amp
Yellow Fr/Rr Washer
M33 15 Amp
Blue Bat – NGC/EATX/
PCM
M34 15 Amp
Blue Bat – CCN/Interior
Light/SCM/Sw Bank412 MAINTAINING YOUR VEHICLE
