Ram ProMaster City 2016 User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

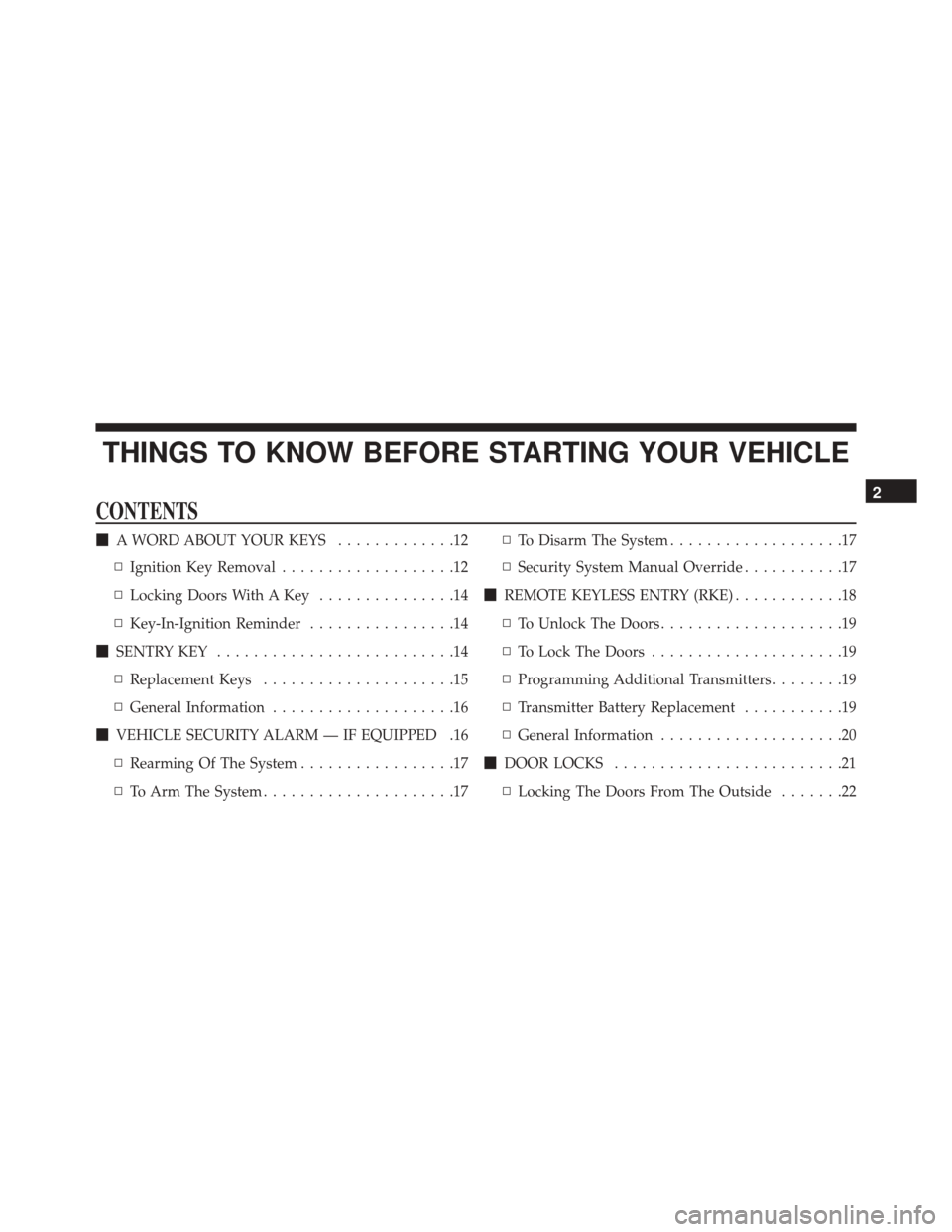

CONTENTS
A WORD ABOUT YOUR KEYS .............12
▫ Ignition Key Removal ...................12
▫ Locking Doors With A Key ...............14
▫ Key-In-Ignition Reminder ................14
 SENTRY KEY ..........................14
▫ Replacement Keys .....................15
▫ General Information ....................16
 VEHICLE SECURITY ALARM — IF EQUIPPED .16
▫ Rearming Of The System .................17
▫ To Arm The System .....................17 ▫
To Disarm The System ...................17
▫ Security System Manual Override ...........17
 REMOTE KEYLESS ENTRY (RKE) ............18
▫ To Unlock The Doors ....................19
▫ To Lock The Doors .....................19
▫ Programming Additional Transmitters ........19
▫ Transmitter Battery Replacement ...........19
▫ General Information ....................20
 DOOR LOCKS .........................21
▫ Locking The Doors From The Outside .......22
2

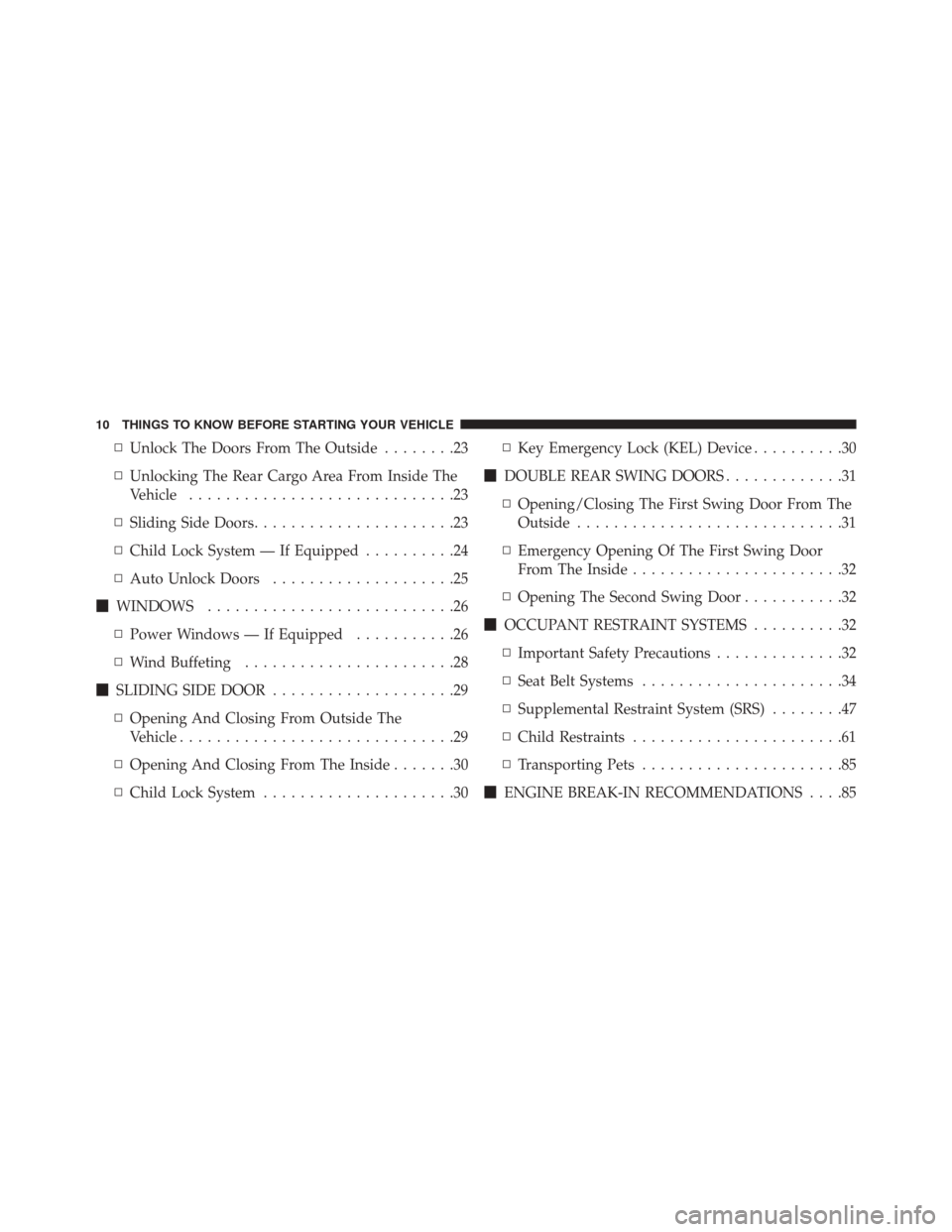

▫Unlock The Doors From The Outside ........23
▫ Unlocking The Rear Cargo Area From Inside The
Vehicle .............................23
▫ Sliding Side Doors ......................23
▫ Child Lock System — If Equipped ..........24
▫ Auto Unlock Doors ....................25
 WINDOWS ...........................26
▫ Power Windows — If Equipped ...........26
▫ Wind Buffeting .......................28
 SLIDING SIDE DOOR ....................29
▫ Opening And Closing From Outside The
Vehicle ..............................29
▫ Opening And Closing From The Inside .......30
▫ Child Lock System .....................30 ▫
Key Emergency Lock (KEL) Device ..........30
 DOUBLE REAR SWING DOORS .............31
▫ Opening/Closing The First Swing Door From The
Outside .............................31
▫ Emergency Opening Of The First Swing Door
From The Inside .......................32
▫ Opening The Second Swing Door ...........32
 OCCUPANT RESTRAINT SYSTEMS ..........32
▫ Important Safety Precautions ..............32
▫ Seat Belt Systems ......................34
▫ Supplemental Restraint System (SRS) ........47
▫ Child Restraints .......................61
▫ Transporting Pets ......................85
 ENGINE BREAK-IN RECOMMENDATIONS ....85
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

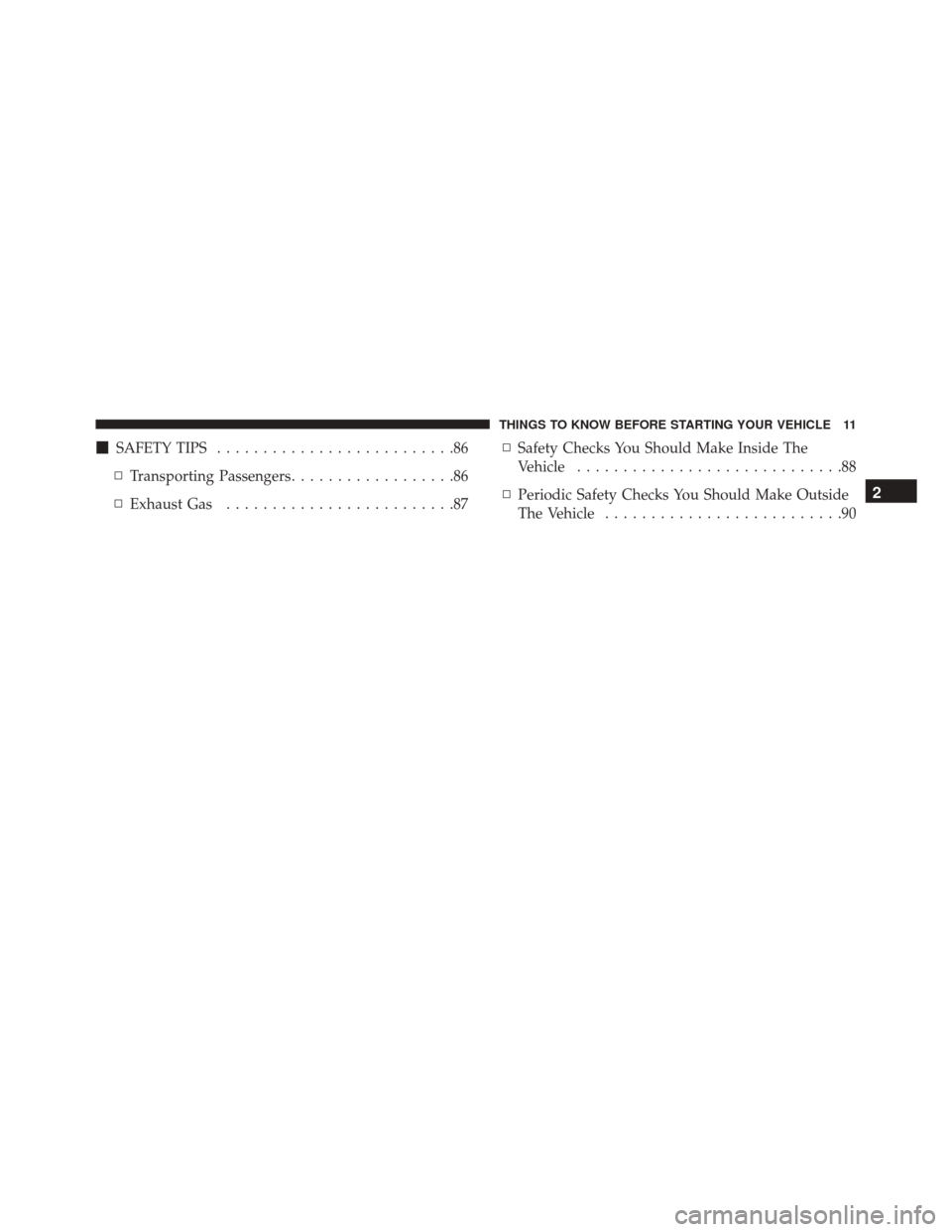

SAFETY TIPS ..........................86
▫ Transporting Passengers ..................86
▫ Exhaust Gas .........................87 ▫
Safety Checks You Should Make Inside The
Vehicle .............................88
▫ Periodic Safety Checks You Should Make Outside
The Vehicle ..........................90
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
The Key Fob contains the Remote Keyless Entry (RKE)
transmitter with an integrated key. To use the mechanical
key, simply push the mechanical key release button.To order duplicate keys, please contact the authorized
studio that sold you your new vehicle: it has the keys
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys.
Ignition Key Removal
1. Place the shift lever in PARK.
2. Rotate the key to the STOP/OFF/LOCK position.
3. Remove the key from the ignition switch lock cylinder.
RKE Transmitter with the Key Blade Released
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•Before exiting a vehicle, always shift the transmis-
sion into PARK, apply the parking brake, and
remove the Key Fob from the vehicle. When leav-
ing the vehicle, always lock your vehicle. In case
you switch off the vehicle and the transmission is
not in PARK position, a warning message will
appear on the cluster which suggests you to shift
the transmission into PARK position and, then, you
can remove the key within 15 seconds. If 15 sec-
onds expire, you have to rotate the key from
OFF/LOCK position to ON/RUN position and
come back to OFF/LOCK position in order to
remove the key.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
(Continued)
Ignition Switch Positions
1 — STOP (OFF/LOCK)
2 — MAR (ACC/ON/RUN)
3 — AVV (START)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

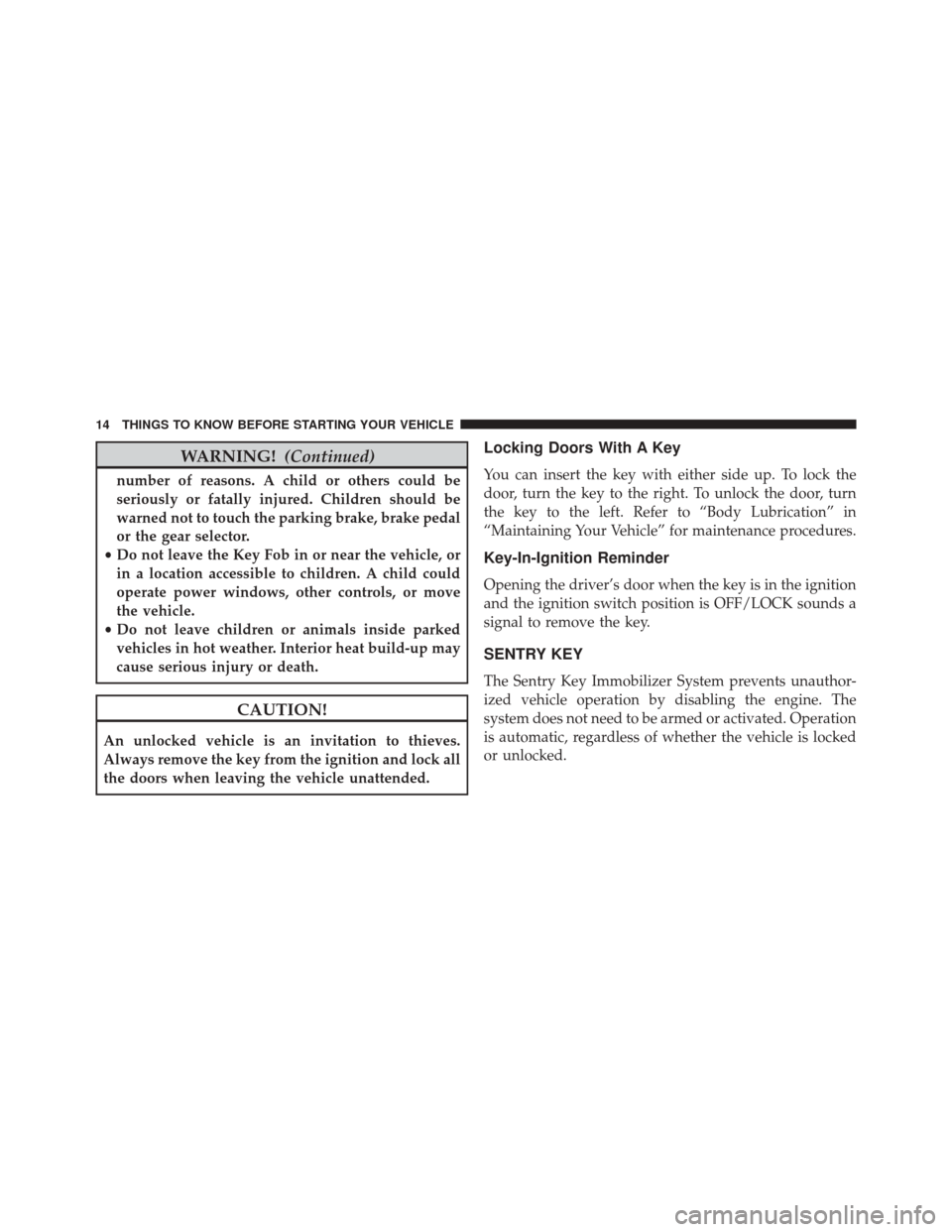

WARNING!(Continued)
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
the doors when leaving the vehicle unattended.
Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key to the right. To unlock the door, turn
the key to the left. Refer to “Body Lubrication” in
“Maintaining Your Vehicle” for maintenance procedures.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition switch position is OFF/LOCK sounds a
signal to remove the key.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

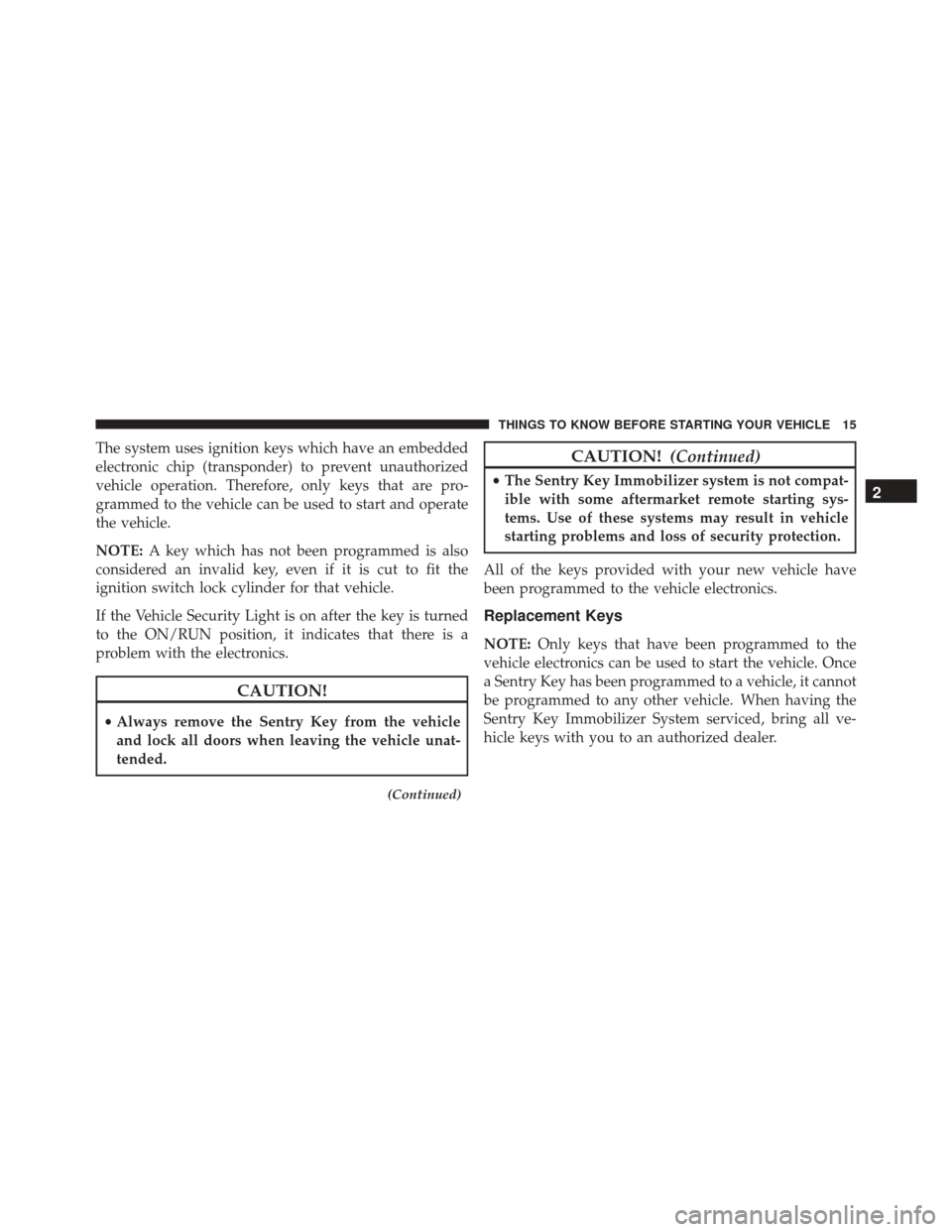

The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle.
NOTE:A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
If the Vehicle Security Light is on after the key is turned
to the ON/RUN position, it indicates that there is a
problem with the electronics.
CAUTION!
• Always remove the Sentry Key from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
(Continued)
CAUTION! (Continued)
•The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it cannot
be programmed to any other vehicle. When having the
Sentry Key Immobilizer System serviced, bring all ve-
hicle keys with you to an authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

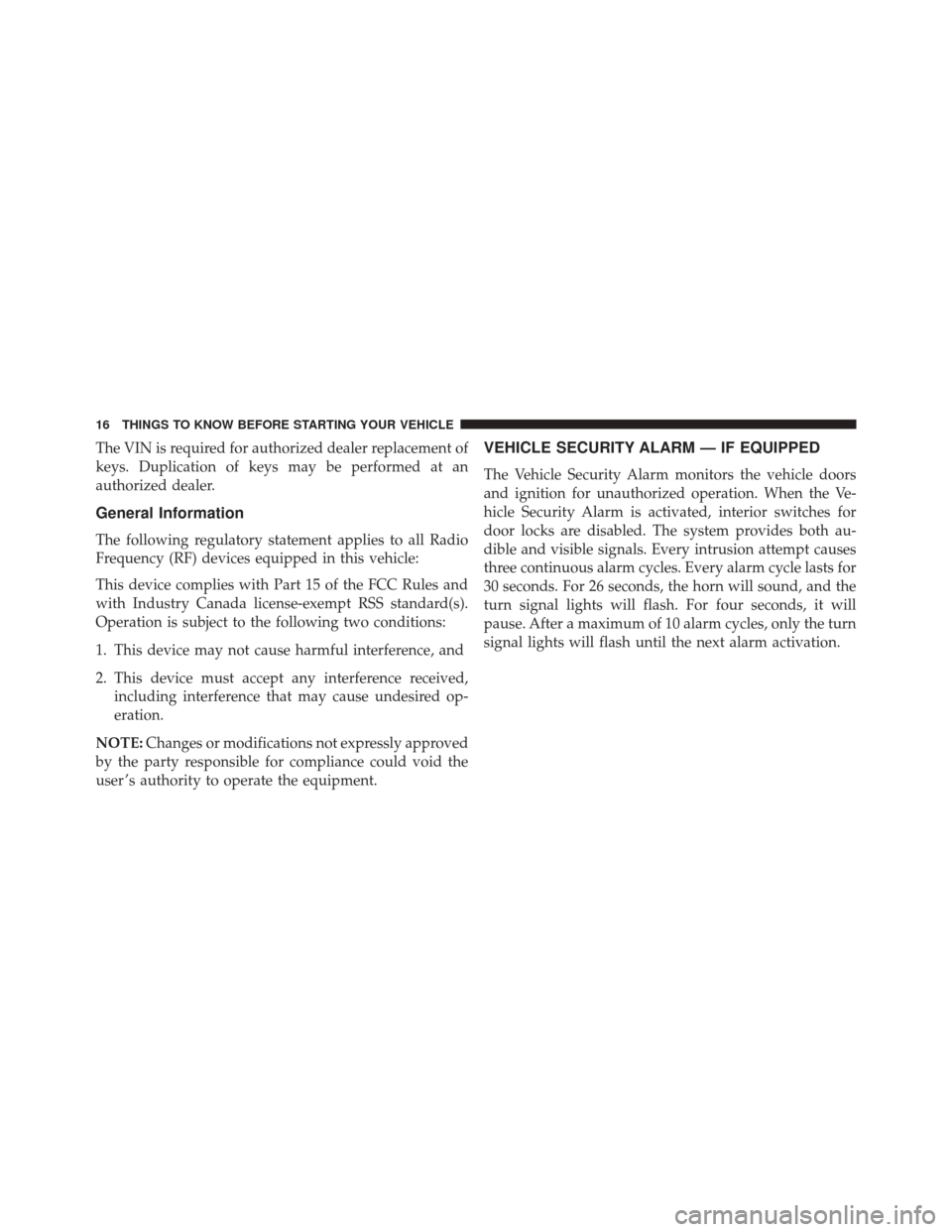

The VIN is required for authorized dealer replacement of
keys. Duplication of keys may be performed at an
authorized dealer.
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
and ignition for unauthorized operation. When the Ve-
hicle Security Alarm is activated, interior switches for
door locks are disabled. The system provides both au-
dible and visible signals. Every intrusion attempt causes
three continuous alarm cycles. Every alarm cycle lasts for
30 seconds. For 26 seconds, the horn will sound, and the
turn signal lights will flash. For four seconds, it will
pause. After a maximum of 10 alarm cycles, only the turn
signal lights will flash until the next alarm activation.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

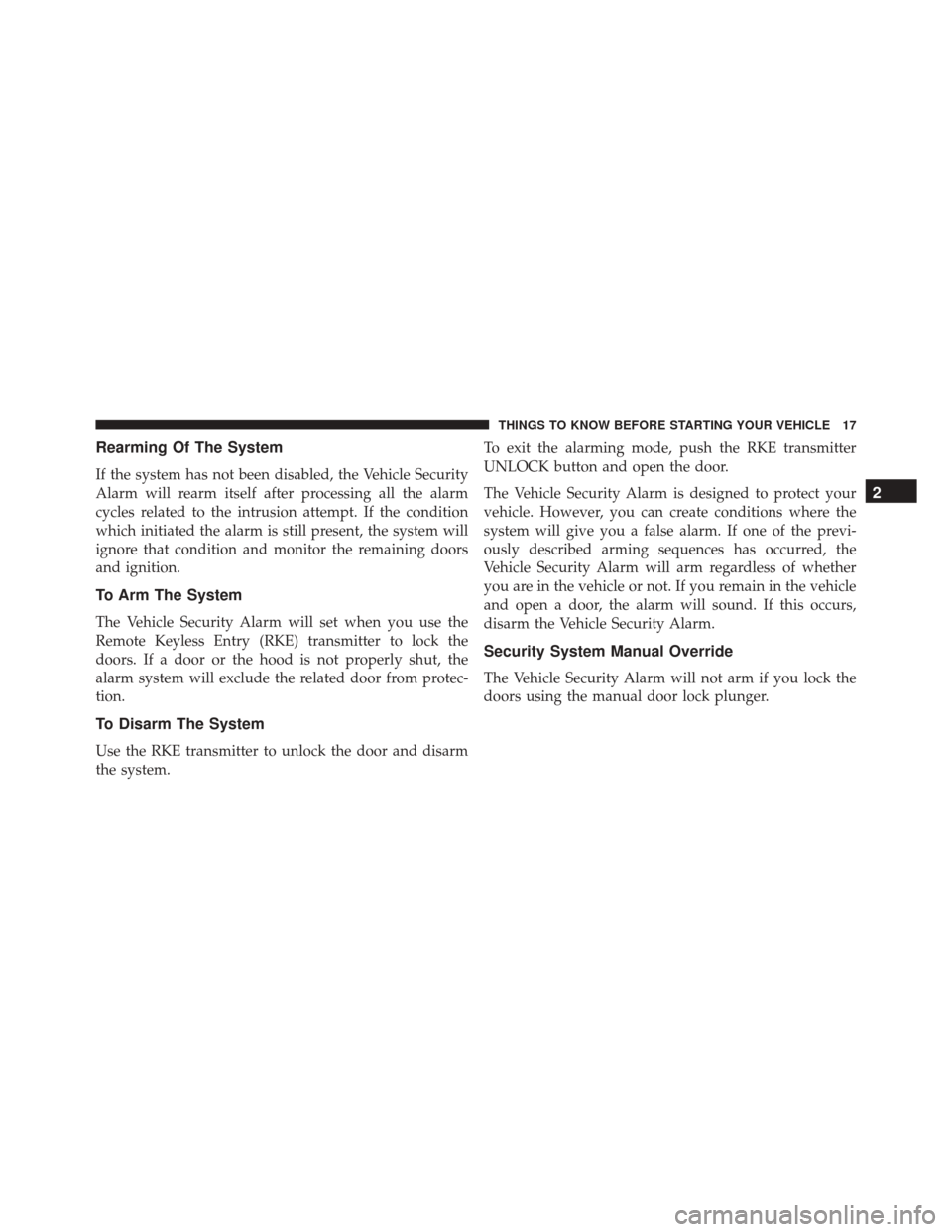

Rearming Of The System
If the system has not been disabled, the Vehicle Security
Alarm will rearm itself after processing all the alarm
cycles related to the intrusion attempt. If the condition
which initiated the alarm is still present, the system will
ignore that condition and monitor the remaining doors
and ignition.
To Arm The System
The Vehicle Security Alarm will set when you use the
Remote Keyless Entry (RKE) transmitter to lock the
doors. If a door or the hood is not properly shut, the
alarm system will exclude the related door from protec-
tion.
To Disarm The System
Use the RKE transmitter to unlock the door and disarm
the system.To exit the alarming mode, push the RKE transmitter
UNLOCK button and open the door.
The Vehicle Security Alarm is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security Alarm.
Security System Manual Override
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors from
distances up to approximately 66 ft (20 m) using a
hand-held Remote Keyless Entry (RKE) transmitter. The
RKE transmitter does not need to be pointed at the
vehicle to activate the system.
NOTE:The line of transmission must not be blocked with
metal objects.
Remote Keyless Entry Transmitter
1 – Mechanical Key Release Button
2 – Driver Passenger Unlock Button
3 – Lock Button
4 – Cargo Lock/Unlock Button
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
