Ram ProMaster City 2016 Owner's Guide

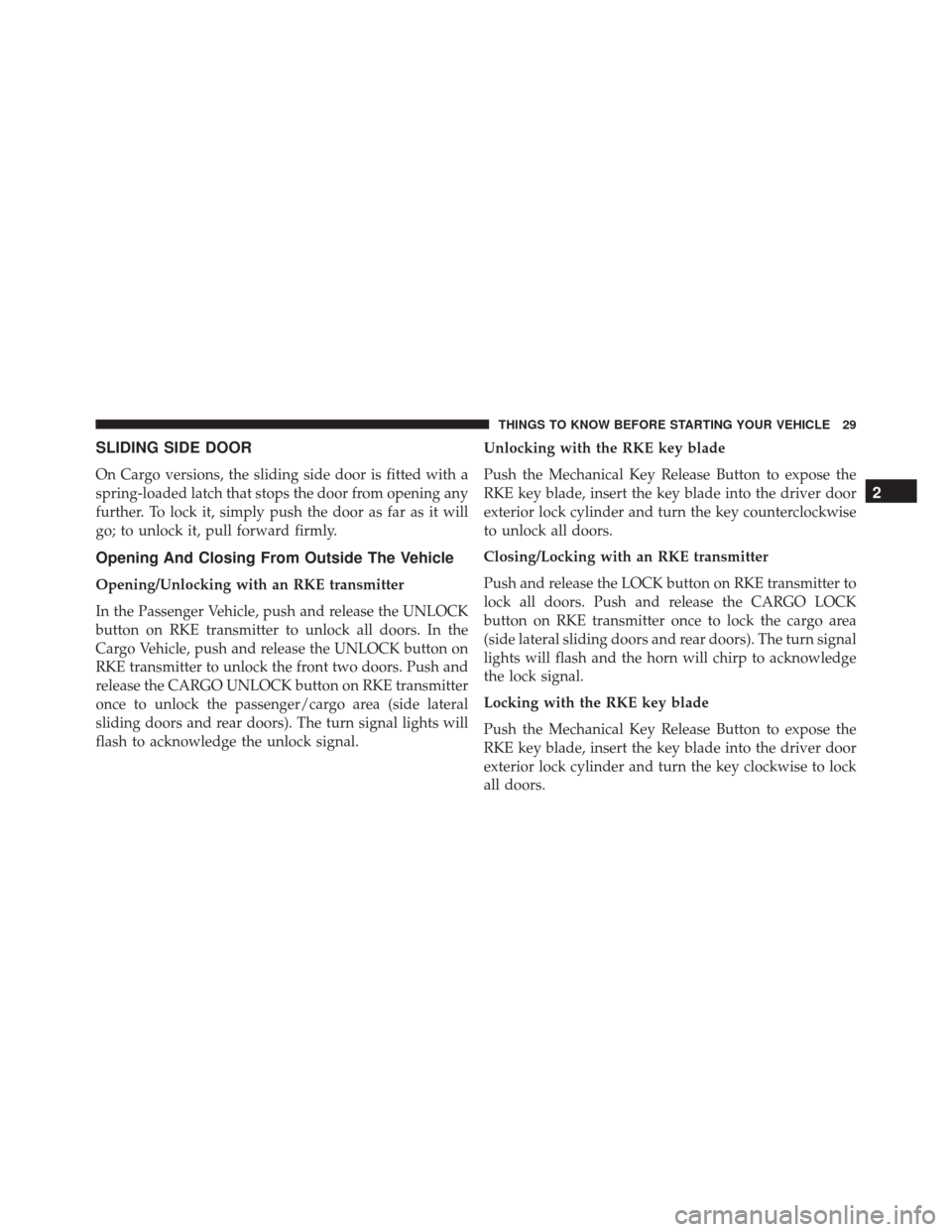

SLIDING SIDE DOOR
On Cargo versions, the sliding side door is fitted with a
spring-loaded latch that stops the door from opening any
further. To lock it, simply push the door as far as it will
go; to unlock it, pull forward firmly.
Opening And Closing From Outside The Vehicle
Opening/Unlocking with an RKE transmitter
In the Passenger Vehicle, push and release the UNLOCK
button on RKE transmitter to unlock all doors. In the
Cargo Vehicle, push and release the UNLOCK button on
RKE transmitter to unlock the front two doors. Push and
release the CARGO UNLOCK button on RKE transmitter
once to unlock the passenger/cargo area (side lateral
sliding doors and rear doors). The turn signal lights will
flash to acknowledge the unlock signal.Unlocking with the RKE key blade
Push the Mechanical Key Release Button to expose the
RKE key blade, insert the key blade into the driver door
exterior lock cylinder and turn the key counterclockwise
to unlock all doors.
Closing/Locking with an RKE transmitter
Push and release the LOCK button on RKE transmitter to
lock all doors. Push and release the CARGO LOCK
button on RKE transmitter once to lock the cargo area
(side lateral sliding doors and rear doors). The turn signal
lights will flash and the horn will chirp to acknowledge
the lock signal.
Locking with the RKE key blade
Push the Mechanical Key Release Button to expose the
RKE key blade, insert the key blade into the driver door
exterior lock cylinder and turn the key clockwise to lock
all doors.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

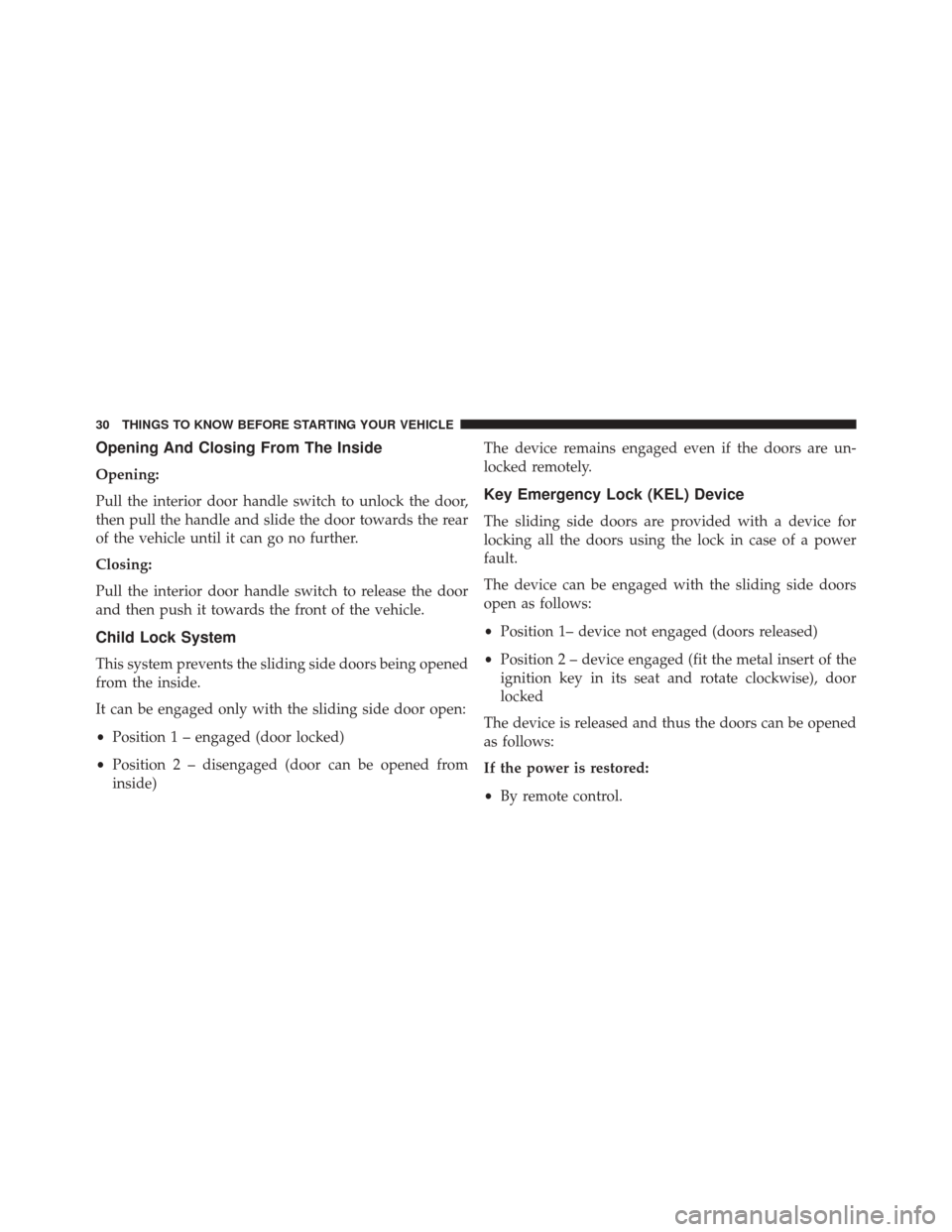

Opening And Closing From The Inside
Opening:
Pull the interior door handle switch to unlock the door,
then pull the handle and slide the door towards the rear
of the vehicle until it can go no further.
Closing:
Pull the interior door handle switch to release the door
and then push it towards the front of the vehicle.
Child Lock System
This system prevents the sliding side doors being opened
from the inside.
It can be engaged only with the sliding side door open:
•Position 1 – engaged (door locked)
• Position 2 – disengaged (door can be opened from
inside) The device remains engaged even if the doors are un-
locked remotely.
Key Emergency Lock (KEL) Device
The sliding side doors are provided with a device for
locking all the doors using the lock in case of a power
fault.
The device can be engaged with the sliding side doors
open as follows:
•
Position 1– device not engaged (doors released)
• Position 2 – device engaged (fit the metal insert of the
ignition key in its seat and rotate clockwise), door
locked
The device is released and thus the doors can be opened
as follows:
If the power is restored:
• By remote control.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

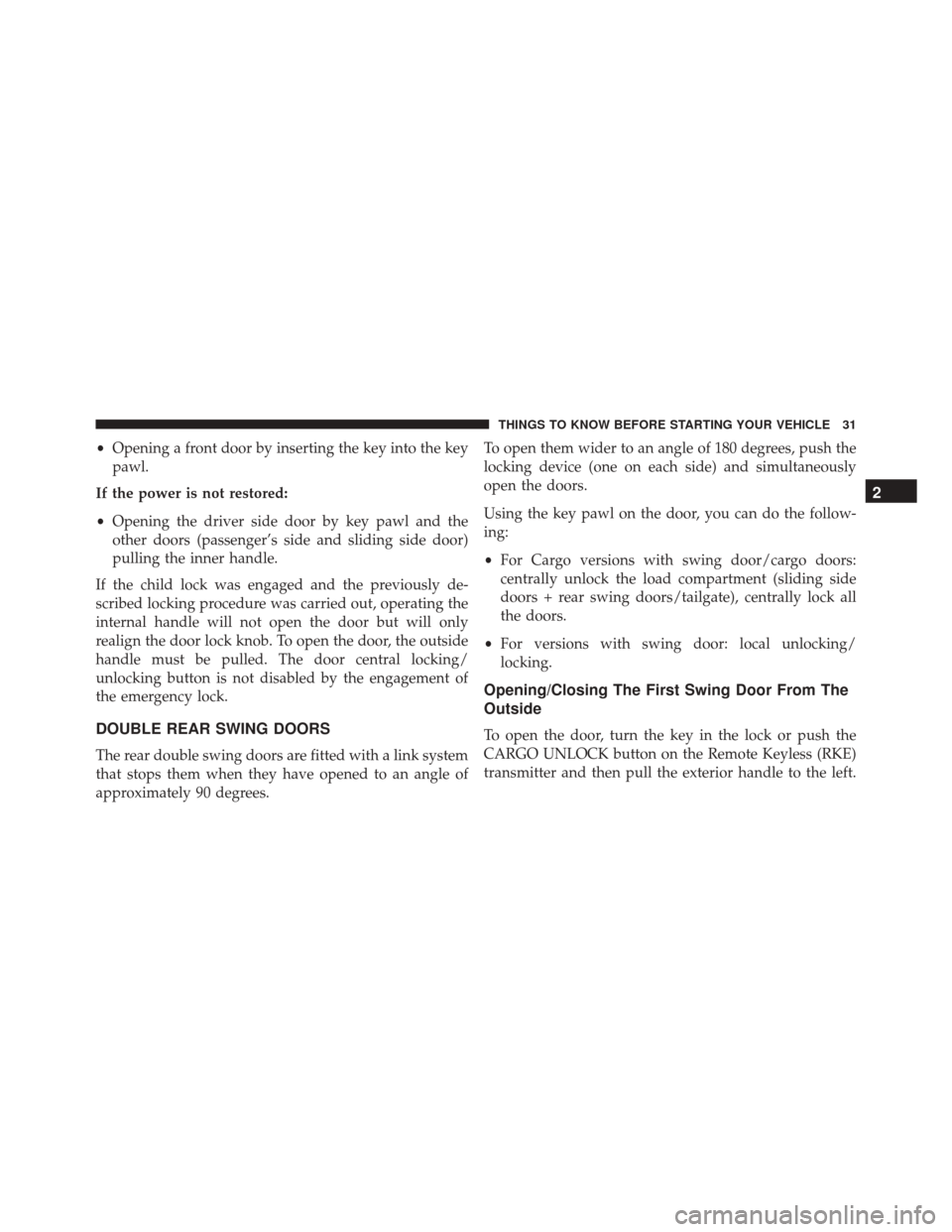

•Opening a front door by inserting the key into the key
pawl.
If the power is not restored:
• Opening the driver side door by key pawl and the
other doors (passenger’s side and sliding side door)
pulling the inner handle.
If the child lock was engaged and the previously de-
scribed locking procedure was carried out, operating the
internal handle will not open the door but will only
realign the door lock knob. To open the door, the outside
handle must be pulled. The door central locking/
unlocking button is not disabled by the engagement of
the emergency lock.
DOUBLE REAR SWING DOORS
The rear double swing doors are fitted with a link system
that stops them when they have opened to an angle of
approximately 90 degrees. To open them wider to an angle of 180 degrees, push the
locking device (one on each side) and simultaneously
open the doors.
Using the key pawl on the door, you can do the follow-
ing:
•
For Cargo versions with swing door/cargo doors:
centrally unlock the load compartment (sliding side
doors + rear swing doors/tailgate), centrally lock all
the doors.
• For versions with swing door: local unlocking/
locking.
Opening/Closing The First Swing Door From The
Outside
To open the door, turn the key in the lock or push the
CARGO UNLOCK button on the Remote Keyless (RKE)
transmitter and then pull the exterior handle to the left.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

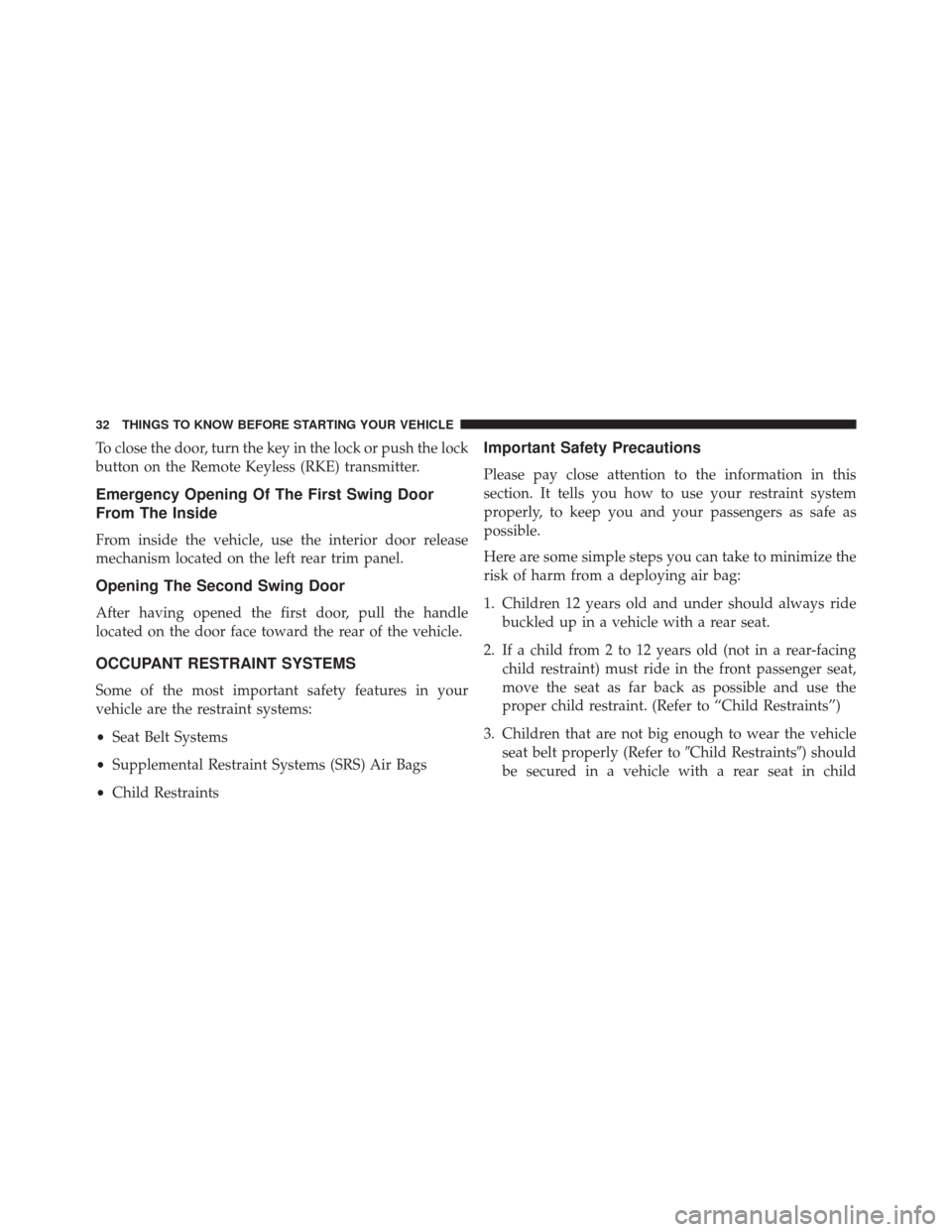

To close the door, turn the key in the lock or push the lock
button on the Remote Keyless (RKE) transmitter.
Emergency Opening Of The First Swing Door
From The Inside
From inside the vehicle, use the interior door release
mechanism located on the left rear trim panel.
Opening The Second Swing Door
After having opened the first door, pull the handle
located on the door face toward the rear of the vehicle.
OCCUPANT RESTRAINT SYSTEMS
Some of the most important safety features in your
vehicle are the restraint systems:
•Seat Belt Systems
• Supplemental Restraint Systems (SRS) Air Bags
• Child Restraints
Important Safety Precautions
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.
Here are some simple steps you can take to minimize the
risk of harm from a deploying air bag:
1. Children 12 years old and under should always ride
buckled up in a vehicle with a rear seat.
2. If a child from 2 to 12 years old (not in a rear-facing child restraint) must ride in the front passenger seat,
move the seat as far back as possible and use the
proper child restraint. (Refer to “Child Restraints”)
3. Children that are not big enough to wear the vehicle seat belt properly (Refer to Child Restraints) should
be secured in a vehicle with a rear seat in child
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

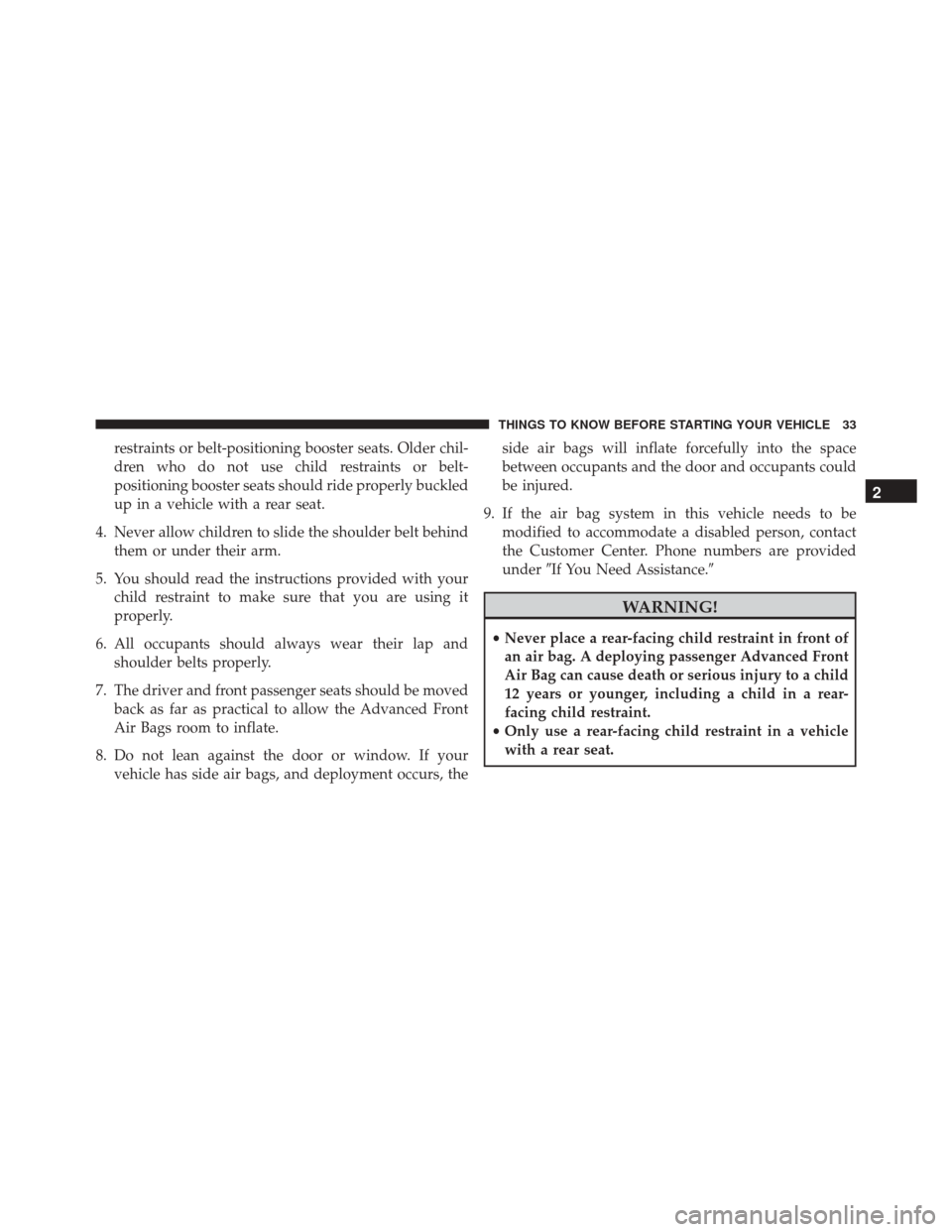

restraints or belt-positioning booster seats. Older chil-
dren who do not use child restraints or belt-
positioning booster seats should ride properly buckled
up in a vehicle with a rear seat.
4. Never allow children to slide the shoulder belt behind them or under their arm.
5. You should read the instructions provided with your child restraint to make sure that you are using it
properly.
6. All occupants should always wear their lap and shoulder belts properly.
7. The driver and front passenger seats should be moved back as far as practical to allow the Advanced Front
Air Bags room to inflate.
8. Do not lean against the door or window. If your vehicle has side air bags, and deployment occurs, the side air bags will inflate forcefully into the space
between occupants and the door and occupants could
be injured.
9. If the air bag system in this vehicle needs to be modified to accommodate a disabled person, contact
the Customer Center. Phone numbers are provided
under If You Need Assistance.
WARNING!
•Never place a rear-facing child restraint in front of
an air bag. A deploying passenger Advanced Front
Air Bag can cause death or serious injury to a child
12 years or younger, including a child in a rear-
facing child restraint.
• Only use a rear-facing child restraint in a vehicle
with a rear seat.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33

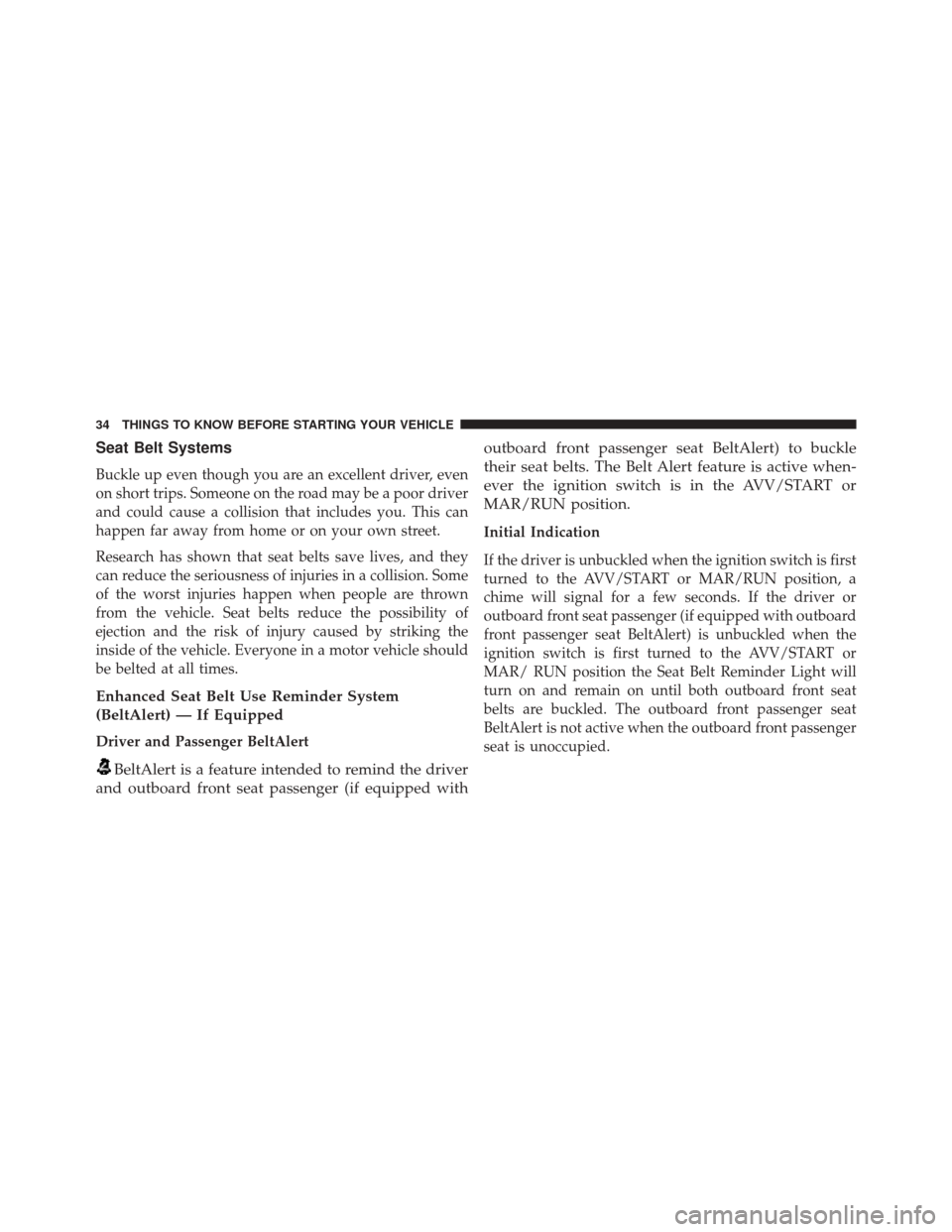

Seat Belt Systems
Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and could cause a collision that includes you. This can
happen far away from home or on your own street.
Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision. Some
of the worst injuries happen when people are thrown
from the vehicle. Seat belts reduce the possibility of
ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.
Enhanced Seat Belt Use Reminder System
(BeltAlert) — If Equipped
Driver and Passenger BeltAlert
BeltAlert is a feature intended to remind the driver
and outboard front seat passenger (if equipped with outboard front passenger seat BeltAlert) to buckle
their seat belts. The Belt Alert feature is active when-
ever the ignition switch is in the AVV/START or
MAR/RUN position.
Initial Indication
If the driver is unbuckled when the ignition switch is first
turned to the AVV/START or MAR/RUN position, a
chime will signal for a few seconds. If the driver or
outboard front seat passenger (if equipped with outboard
front passenger seat BeltAlert) is unbuckled when the
ignition switch is first turned to the AVV/START or
MAR/ RUN position the Seat Belt Reminder Light will
turn on and remain on until both outboard front seat
belts are buckled. The outboard front passenger seat
BeltAlert is not active when the outboard front passenger
seat is unoccupied.
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

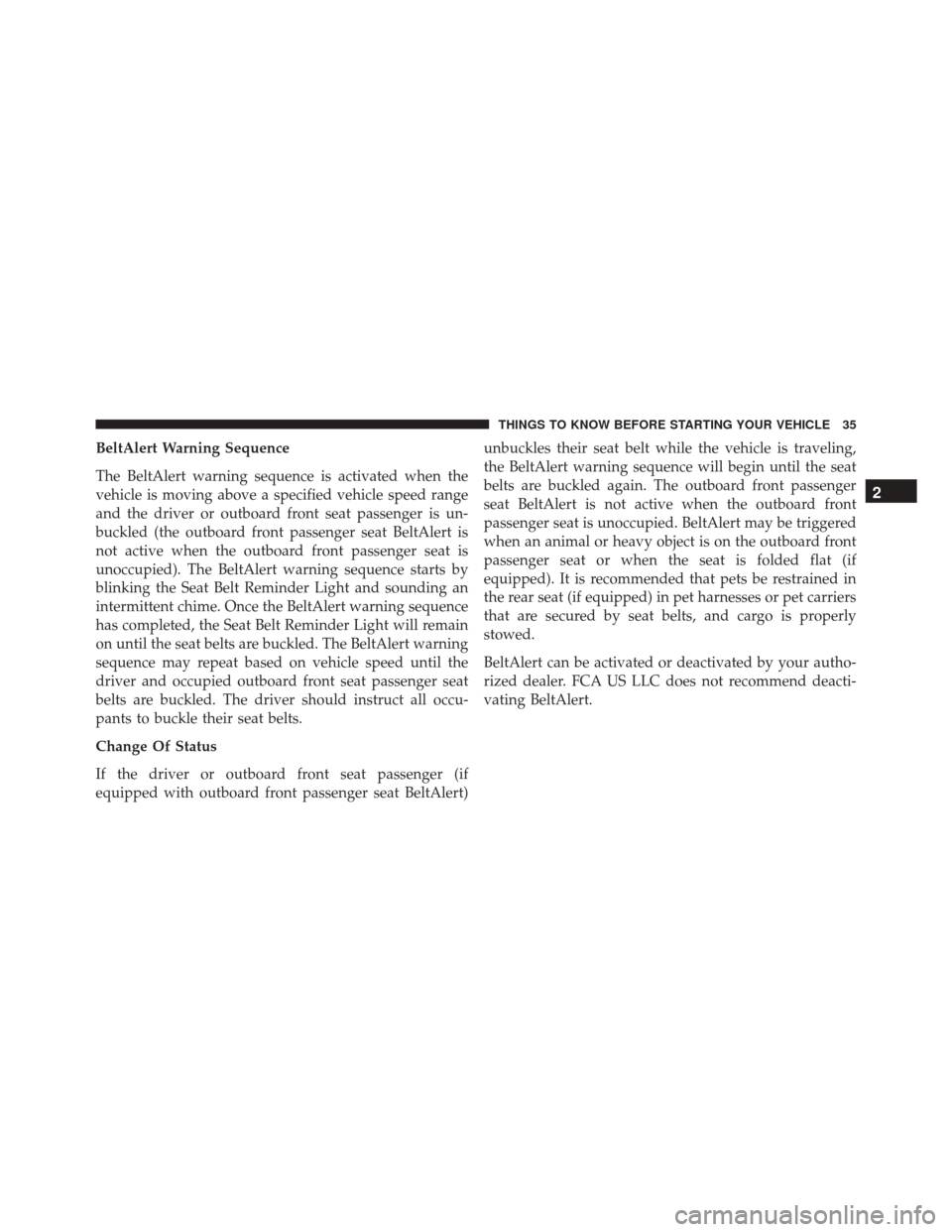

BeltAlert Warning Sequence
The BeltAlert warning sequence is activated when the
vehicle is moving above a specified vehicle speed range
and the driver or outboard front seat passenger is un-
buckled (the outboard front passenger seat BeltAlert is
not active when the outboard front passenger seat is
unoccupied). The BeltAlert warning sequence starts by
blinking the Seat Belt Reminder Light and sounding an
intermittent chime. Once the BeltAlert warning sequence
has completed, the Seat Belt Reminder Light will remain
on until the seat belts are buckled. The BeltAlert warning
sequence may repeat based on vehicle speed until the
driver and occupied outboard front seat passenger seat
belts are buckled. The driver should instruct all occu-
pants to buckle their seat belts.
Change Of Status
If the driver or outboard front seat passenger (if
equipped with outboard front passenger seat BeltAlert)unbuckles their seat belt while the vehicle is traveling,
the BeltAlert warning sequence will begin until the seat
belts are buckled again. The outboard front passenger
seat BeltAlert is not active when the outboard front
passenger seat is unoccupied. BeltAlert may be triggered
when an animal or heavy object is on the outboard front
passenger seat or when the seat is folded flat (if
equipped). It is recommended that pets be restrained in
the rear seat (if equipped) in pet harnesses or pet carriers
that are secured by seat belts, and cargo is properly
stowed.
BeltAlert can be activated or deactivated by your autho-
rized dealer. FCA US LLC does not recommend deacti-
vating BeltAlert.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

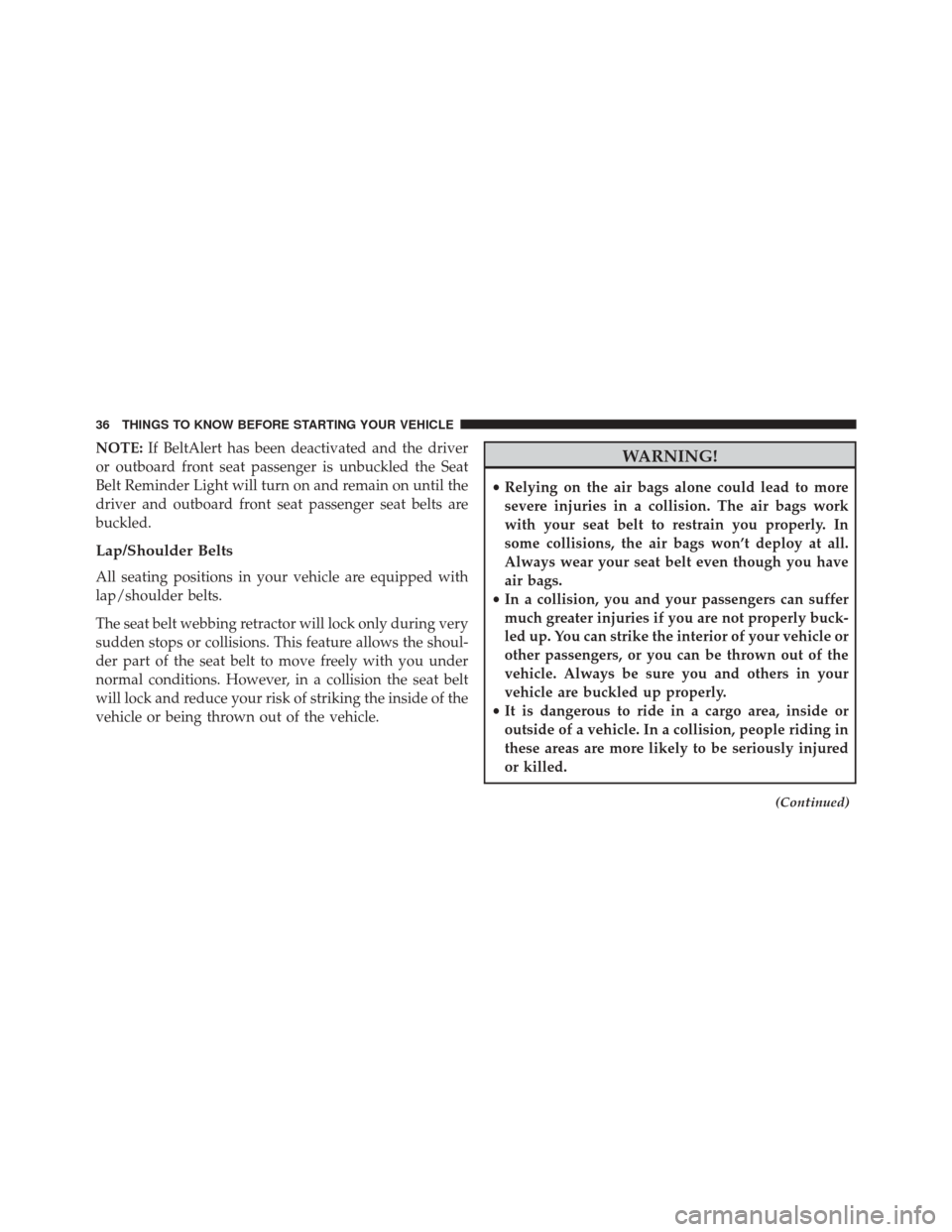

NOTE:If BeltAlert has been deactivated and the driver
or outboard front seat passenger is unbuckled the Seat
Belt Reminder Light will turn on and remain on until the
driver and outboard front seat passenger seat belts are
buckled.
Lap/Shoulder Belts
All seating positions in your vehicle are equipped with
lap/shoulder belts.
The seat belt webbing retractor will lock only during very
sudden stops or collisions. This feature allows the shoul-
der part of the seat belt to move freely with you under
normal conditions. However, in a collision the seat belt
will lock and reduce your risk of striking the inside of the
vehicle or being thrown out of the vehicle.
WARNING!
• Relying on the air bags alone could lead to more
severe injuries in a collision. The air bags work
with your seat belt to restrain you properly. In
some collisions, the air bags won’t deploy at all.
Always wear your seat belt even though you have
air bags.
• In a collision, you and your passengers can suffer
much greater injuries if you are not properly buck-
led up. You can strike the interior of your vehicle or
other passengers, or you can be thrown out of the
vehicle. Always be sure you and others in your
vehicle are buckled up properly.
• It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured
or killed.
(Continued)
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!(Continued)
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
• Wearing your seat belt incorrectly could make your
injuries in a collision much worse. You might
suffer internal injuries, or you could even slide out
of the seat belt. Follow these instructions to wear
your seat belt safely and to keep your passengers
safe, too.
• Two people should never be belted into a single
seat belt. People belted together can crash into one
another in a collision, hurting one another badly.
Never use a lap/shoulder belt or a lap belt for more
than one person, no matter what their size.
(Continued)
WARNING! (Continued)
•A lap belt worn too high can increase the risk of
injury in a collision. The seat belt forces won’t be at
the strong hip and pelvic bones, but across your
abdomen. Always wear the lap part of your seat
belt as low as possible and keep it snug.
• A twisted seat belt may not protect you properly. In
a collision, it could even cut into you. Be sure the
seat belt is flat against your body, without twists. If
you can’t straighten a seat belt in your vehicle, take
it to your authorized dealer immediately and have
it fixed.
• A seat belt that is buckled into the wrong buckle
will not protect you properly. The lap portion could
ride too high on your body, possibly causing inter-
nal injuries. Always buckle your seat belt into the
buckle nearest you.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37

WARNING!(Continued)
•A seat belt that is too loose will not protect you
properly. In a sudden stop, you could move too far
forward, increasing the possibility of injury. Wear
your seat belt snugly.
•
A seat belt that is worn under your arm is dangerous.
Your body could strike the inside surfaces of the
vehicle in a collision, increasing head and neck
injury. A seat belt worn under the arm can cause
internal injuries. Ribs aren’t as strong as shoulder
bones. Wear the seat belt over your shoulder so that
your strongest bones will take the force in a collision.
• A shoulder belt placed behind you will not protect
you from injury during a collision. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.
(Continued)
WARNING! (Continued)
•A frayed or torn seat belt could rip apart in a
collision and leave you with no protection. Inspect
the seat belt system periodically, checking for cuts,
frays, or loose parts. Damaged parts must be re-
placed immediately. Do not disassemble or modify
the seat belt system. Seat belt assemblies must be
replaced after a collision.
Lap/Shoulder Belt Operating Instructions
1. Enter the vehicle and close the door. Sit back and adjust the seat.
2. The seat belt latch plate is above the back of the front seat, and next to your arm in the rear seat (for vehicles
equipped with a rear seat). Grasp the latch plate and
pull out the seat belt. Slide the latch plate up the
webbing as far as necessary to allow the seat belt to go
around your lap.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
