fuel filter Ram ProMaster City 2017 Owner's Manual

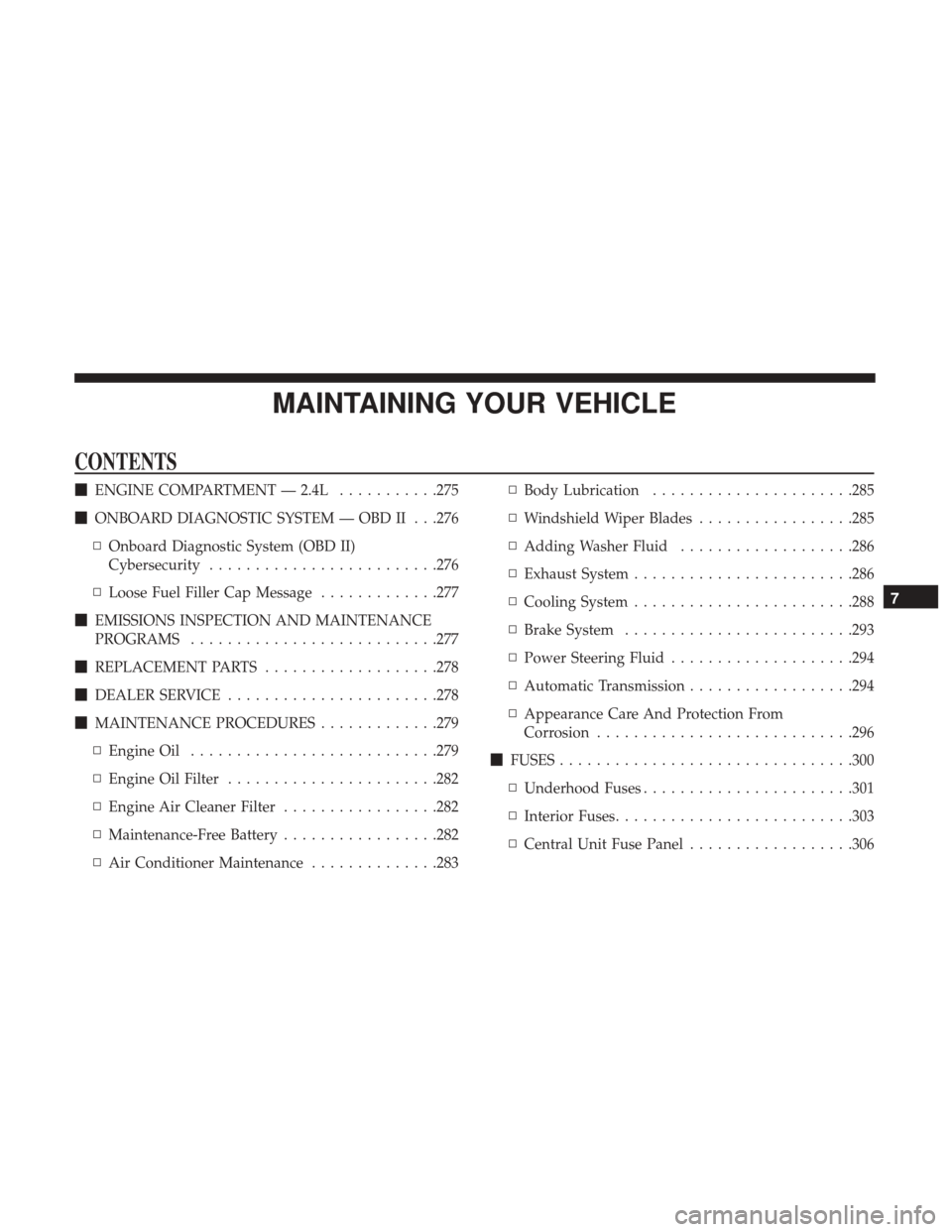

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 2.4L ...........275
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .276
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .276
▫ Loose Fuel Filler Cap Message .............277
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS .......................... .277
 REPLACEMENT PARTS ...................278
 DEALER SERVICE ...................... .278
 MAINTENANCE PROCEDURES .............279
▫ Engine Oil .......................... .279
▫ Engine Oil Filter ...................... .282
▫ Engine Air Cleaner Filter .................282
▫ Maintenance-Free Battery .................282
▫ Air Conditioner Maintenance ..............283▫
Body Lubrication ..................... .285
▫ Windshield Wiper Blades .................285
▫ Adding Washer Fluid ...................286
▫ Exhaust System ....................... .286
▫ Cooling System ....................... .288
▫ Brake System ........................ .293
▫ Power Steering Fluid ....................294
▫ Automatic Transmission ..................294
▫ Appearance Care And Protection From
Corrosion ........................... .296
 FUSES ............................... .300
▫ Underhood Fuses ...................... .301
▫ Interior Fuses ......................... .303
▫ Central
Unit Fuse Panel ..................306
7

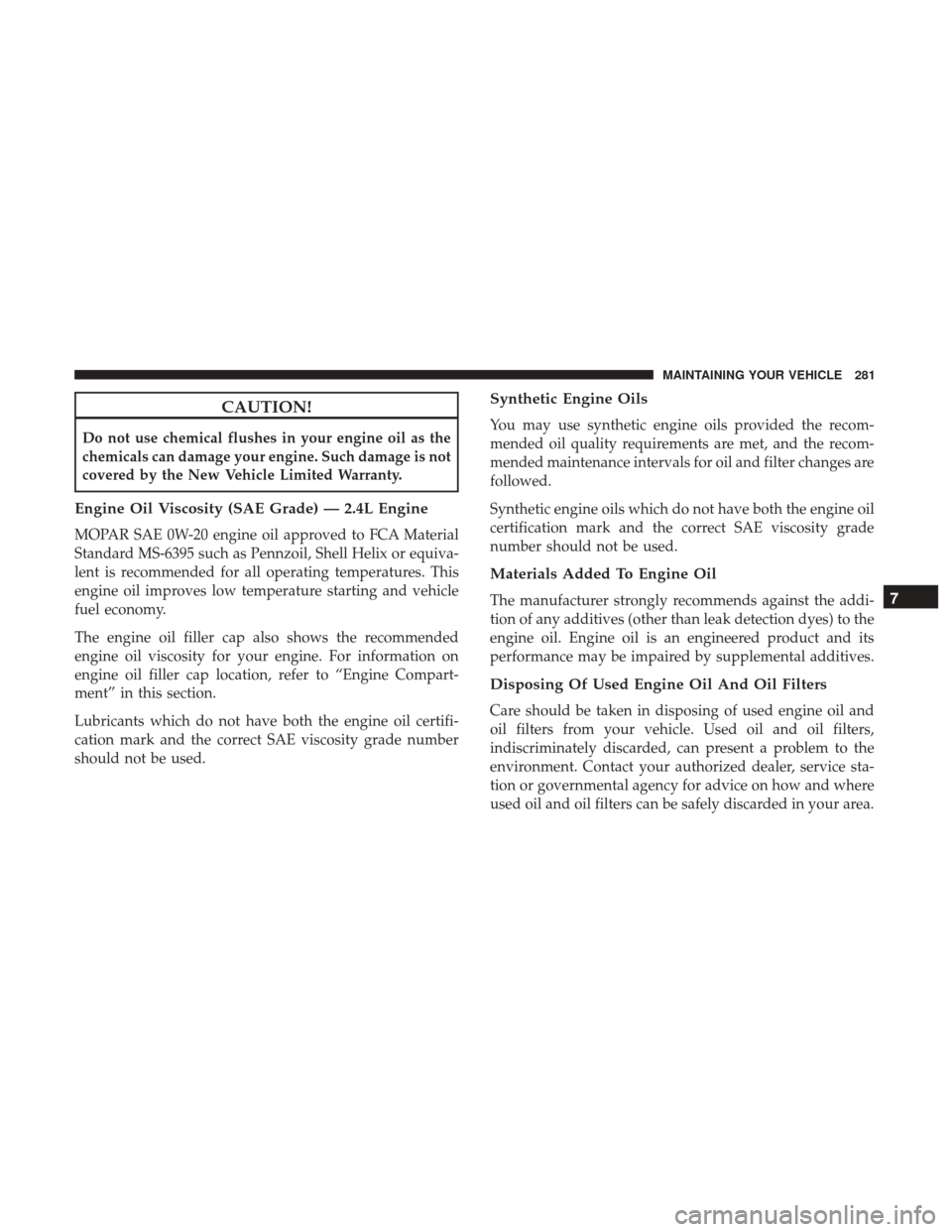

CAUTION!
Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is not
covered by the New Vehicle Limited Warranty.
Engine Oil Viscosity (SAE Grade) — 2.4L Engine
MOPAR SAE 0W-20 engine oil approved to FCA Material
Standard MS-6395 such as Pennzoil, Shell Helix or equiva-
lent is recommended for all operating temperatures. This
engine oil improves low temperature starting and vehicle
fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in this section.
Lubricants which do not have both the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes are
followed.
Synthetic engine oils which do not have both the engine oil
certification mark and the correct SAE viscosity grade
number should not be used.
Materials Added To Engine Oil
The manufacturer strongly recommends against the addi-
tion of any additives (other than leak detection dyes) to the
engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental additives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service sta-
tion or governmental agency for advice on how and where
used oil and oil filters can be safely discarded in your area.
7
MAINTAINING YOUR VEHICLE 281

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
2.4L Engine 16 Gallons60.5 Liters
Engine Oil With Filter
2.4 Liter Engine (SAE 0W-20, API
Certified) 5.5 Quarts
5.2 Liters
Cooling System*
2.4 Liter Engine (MOPAR Antifreeze/
Engine Coolant 10 Year/150,000 Mile
Formula) 7.2 Quarts
6.8 Liters
* Includes heater and coolant reservoir filled to MAX level.
7
MAINTAINING YOUR VEHICLE 313

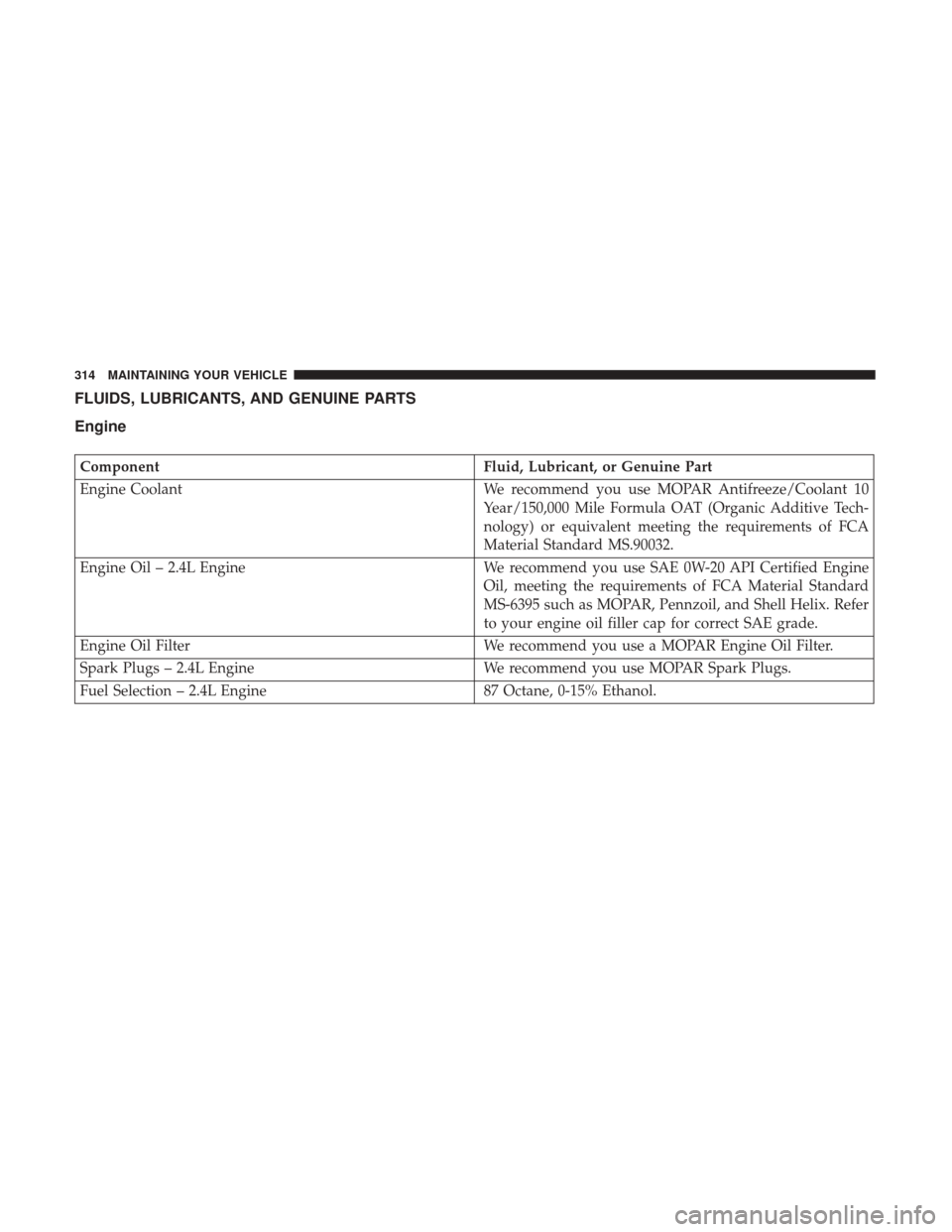

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology) or equivalent meeting the requirements of FCA
Material Standard MS.90032.
Engine Oil – 2.4L Engine We recommend you use SAE 0W-20 API Certified Engine
Oil, meeting the requirements of FCA Material Standard
MS-6395 such as MOPAR, Pennzoil, and Shell Helix. Refer
to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use a MOPAR Engine Oil Filter.
Spark Plugs – 2.4L Engine We recommend you use MOPAR Spark Plugs.
Fuel Selection – 2.4L Engine 87 Octane, 0-15% Ethanol.
314 MAINTAINING YOUR VEHICLE

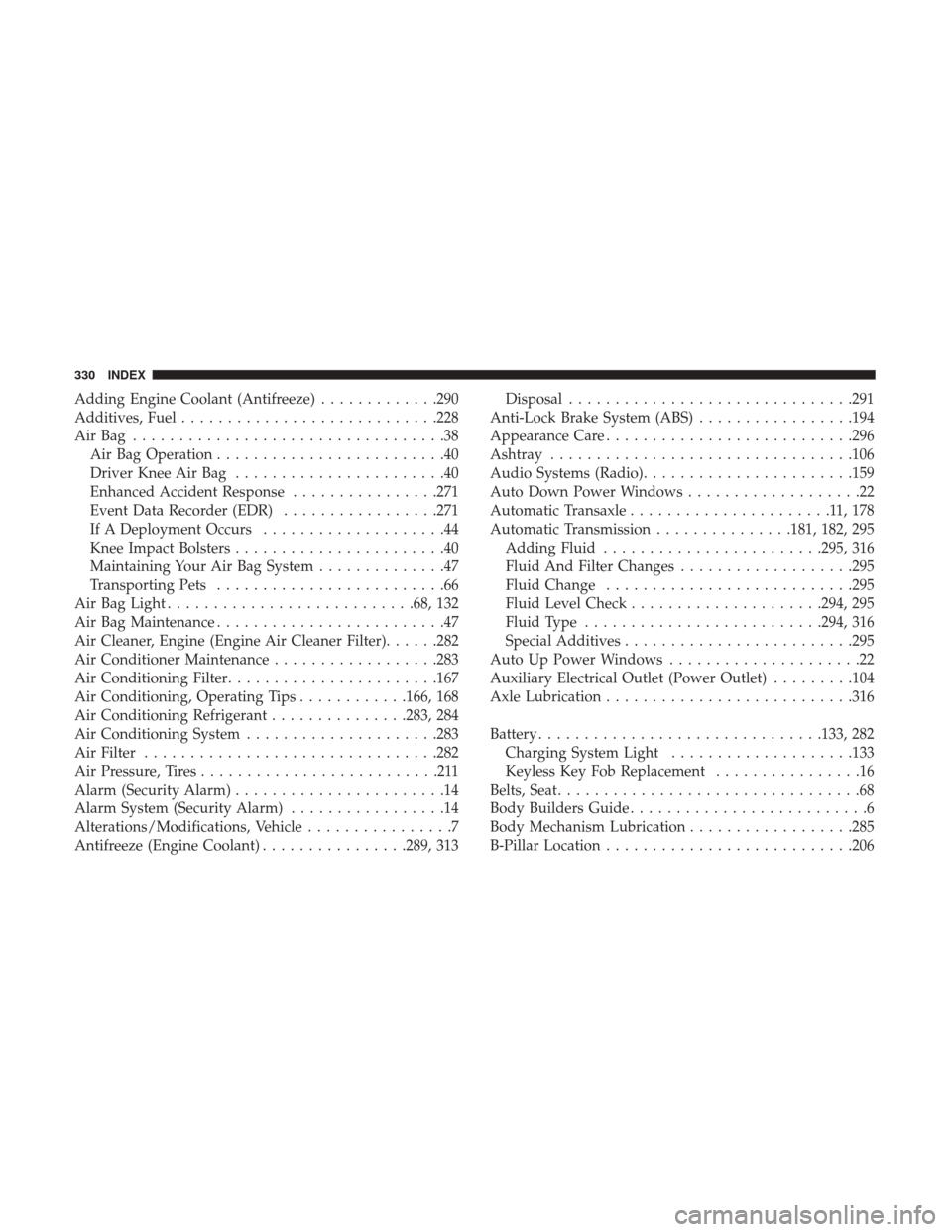

Adding Engine Coolant (Antifreeze).............290
Additives, Fuel ........................... .228
AirBag ..................................38 Air Bag Operation .........................40
Driver Knee Air Bag .......................40
Enhanced Accident Response ................271
Event Data Recorder (EDR) .................271
If A Deployment Occurs ....................44
Knee Impact Bolsters .......................40
Maintaining Your Air Bag System ..............47
Transporting Pets .........................66
Air Bag Light .......................... .68, 132
Air Bag Maintenance .........................47
Air Cleaner, Engine (Engine Air Cleaner Filter) ......282
Air Conditioner Maintenance ..................283
Air Conditioning Filter ...................... .167
Air Conditioning, Operating Tips ............166, 168
Air Conditioning Refrigerant ...............283, 284
Air Conditioning System .....................283
Air Filter ............................... .282
Air Pressure, Tires ..........................211
Alarm (Security Alarm) .......................14
Alarm System (Security Alarm) .................14
Alterations/Modifications, Vehicle ................7
Antifreeze (Engine Coolant) ................289, 313 Disposal
.............................. .291
Anti-Lock Brake System (ABS) .................194
Appearance Care .......................... .296
Ashtray ................................ .106
Audio Systems (Radio) ...................... .159
Auto Down Power Windows ...................22
Automatic Transaxle ......................11,178
Automatic Transmission ...............181, 182, 295
Adding Fluid ....................... .295, 316
Fluid And Filter Changes ...................295
Fluid Change .......................... .295
Fluid Level Check .....................294, 295
Fluid Type ......................... .294, 316
Special Additives ........................ .295
Auto

Up Power Windows .....................22
Auxiliary Electrical Outlet (Power Outlet) .........104
Axle Lubrication .......................... .316
Battery .............................. .133, 282
Charging System Light ....................133
Keyless Key Fob Replacement ................16
Belts, Seat .................................68
Body Builders Guide ..........................6
Body Mechanism Lubrication ..................285
B-Pillar Location .......................... .206
330 INDEX

Emergency, In Case OfFreeing Vehicle When Stuck .................266
Jump Starting .......................... .263
Towing ............................... .268
Emission Control System Maintenance ............277
Engine ................................. .275
Air Cleaner ............................ .282
Block Heater ........................... .180
Break-In Recommendations ..................66
Checking Oil Level ...................... .279
Coolant (Antifreeze) ..................... .314
Cooling .............................. .288
Exhaust Gas Caution ...................68, 229
Fails To Start ........................... .179
Flooded, Starting ........................ .179
Fuel Requirements ....................... .226
Jump Starting .......................... .263
Oil ........................... .279, 313, 314
Oil Filler Cap ....................... .275, 281
Oil Filter .............................. .282
Oil Selection ........................ .280, 313
Oil Synthetic ........................... .281
Overheating ........................... .244
Starting .............................. .178
Engine Oil Viscosity ........................ .281Engine Oil Viscosity Chart
....................281
Enhanced Accident Response Feature ............271
Ethanol ................................. .226
Exhaust Gas Caution .....................68, 229
Exhaust System ........................ .68, 286
Exterior Lights .............................71
Filters Air Cleaner ............................ .282
Air Conditioning ........................ .167
Engine Oil ......................... .282, 314
Engine Oil Disposal ...................... .281
Flashers Hazar
d Warning ........................ .244
Turn Signal ......................... .71, 144
Flash-To-Pass ..............................88
Flooded Engine Starting ..................... .179
Fluid, Brake ............................. .316
Fluid Capacities ........................... .313
Fluid Leaks ...............................71
Fluid Level Checks Brake ................................ .293
Engine Oil ............................ .279
Power Steering ......................... .191
Fluids, Lubricants And Genuine Parts ............314
10
INDEX 333

Capacities............................. .232
Tires................................. .206
Locks ....................................17
Door ..................................17
Lubrication, Body ......................... .285
Lug Nuts ............................... .245
Maintenance Free Battery .....................282
Maintenance Procedures ..................... .279
Maintenance Schedule ...................... .318
Malfunction Indicator Light (Check Engine) . . . .142, 277
Manual, Service ........................... .327
Master Cylinder (Brakes) .....................293
Methanol ............................... .226
Mirrors ..................................75
Electric Powered ..........................77
Electric Remote ...........................77
Exterior Folding ..........................76
Outside ................................75
Rearview ...............................75
Modifications/Alterations, Vehicle ................7
Monitor, Tire Pressure System ..................222
MOPAR Parts ......................... .278, 327
MTBE/ETBE ............................. .226Multi-Function Control Lever
...................87
New Vehicle Break-In Period ...................66
Occupant Restraints .........................26
Octane Rating, Gasoline (Fuel) ..............226, 314
Oil Change Indicator ....................... .127
Oil Change Indicator, Reset ...................127
Oil, Engine ........................... .279, 314
Capacity .............................. .313
Change Interval ........................ .280
Checking ............................. .279
Dipstick .............................. .279
Disposal .............................. .281
Filter ............................. .282, 314
Filter Disposal .......................... .281
Identification Logo ...................... .280
Materials Added To ...................... .281
Pr

essure Warning Light ....................133
Recommendation .....................280, 313
Synthetic ............................. .281
Viscosity .......................... .281, 313
Oil Filter, Change ......................... .282
Oil Filter, Selection ......................... .282
Oil Pressure Light ......................... .133
336 INDEX
