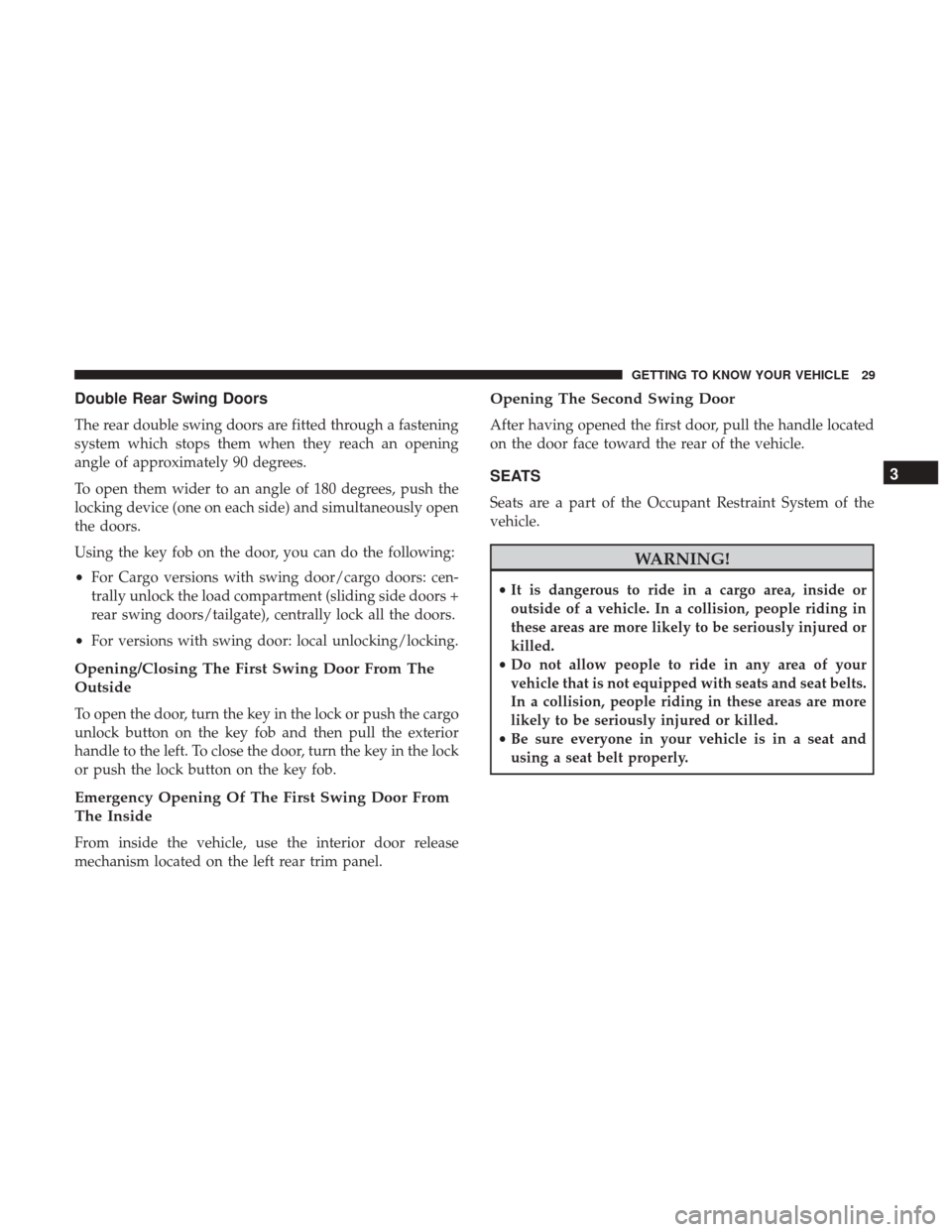

Page 31 of 347
Double Rear Swing Doors
The rear double swing doors are fitted through a fastening
system which stops them when they reach an opening
angle of approximately 90 degrees.
To open them wider to an angle of 180 degrees, push the
locking device (one on each side) and simultaneously open
the doors.
Using the key fob on the door, you can do the following:
•For Cargo versions with swing door/cargo doors: cen-
trally unlock the load compartment (sliding side doors +
rear swing doors/tailgate), centrally lock all the doors.
• For versions with swing door: local unlocking/locking.
Opening/Closing The First Swing Door From The
Outside
To open the door, turn the key in the lock or push the cargo
unlock button on the key fob and then pull the exterior
handle to the left. To close the door, turn the key in the lock
or push the lock button on the key fob.
Emergency Opening Of The First Swing Door From
The Inside
From inside the vehicle, use the interior door release
mechanism located on the left rear trim panel.
Opening The Second Swing Door
After having opened the first door, pull the handle located
on the door face toward the rear of the vehicle.
SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!
•It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or
killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
In a collision, people riding in these areas are more
likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
3
GETTING TO KNOW YOUR VEHICLE 29
Page 32 of 347
Manual Adjustment (Front Seats)
The front driver and passenger seats can be adjusted
forward and rearward, and if equipped, may be reclined
and the height and lumbar can be adjusted.
WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious injury
or death could result from a poorly adjusted seat belt.
Seat Adjustments
1 — Forward/Rearward Adjustment Bar
2 — Height Adjustment Lever
3 — Recliner Knob
4 — Lumbar Knob
30 GETTING TO KNOW YOUR VEHICLE

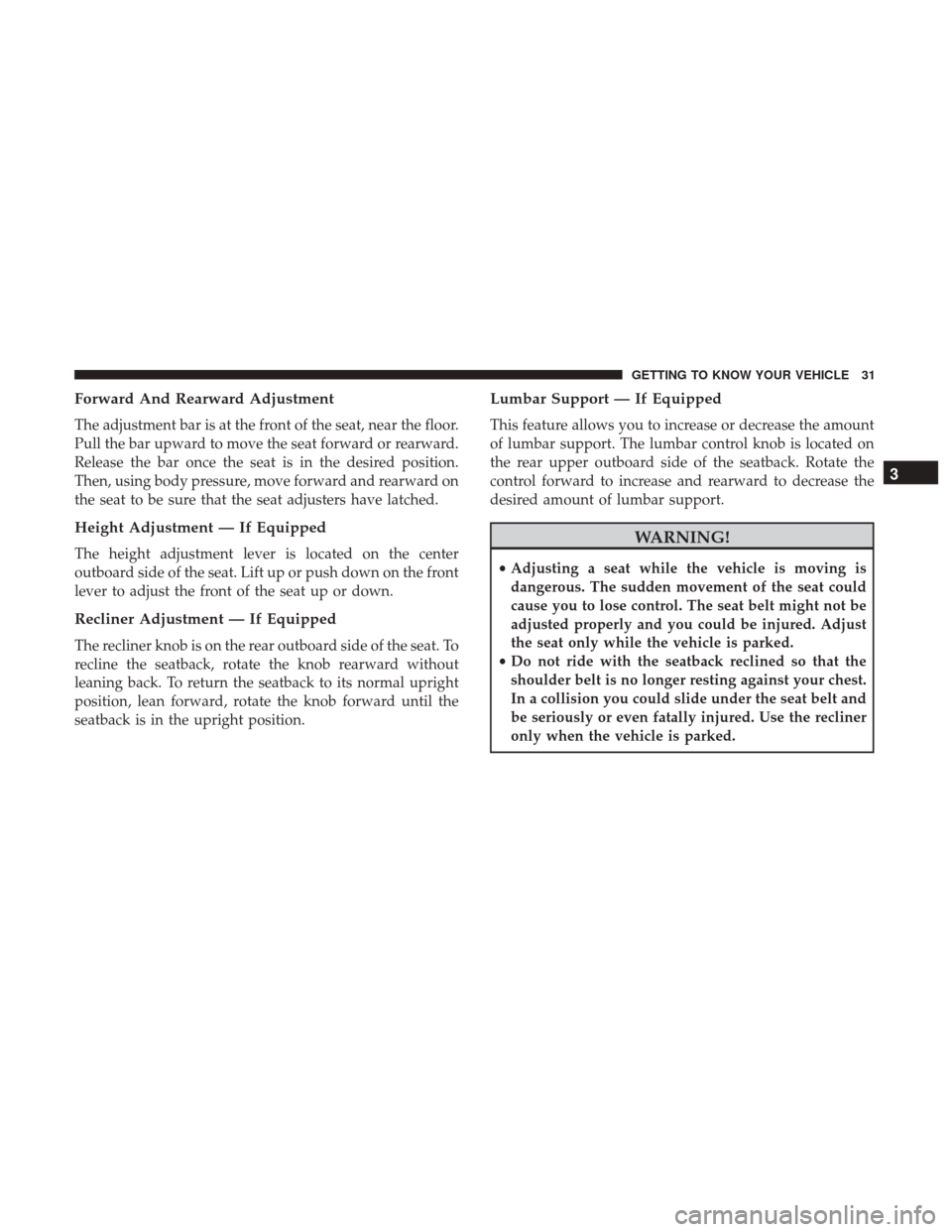

Page 33 of 347
Forward And Rearward Adjustment
The adjustment bar is at the front of the seat, near the floor.
Pull the bar upward to move the seat forward or rearward.
Release the bar once the seat is in the desired position.
Then, using body pressure, move forward and rearward on
the seat to be sure that the seat adjusters have latched.
Height Adjustment — If Equipped
The height adjustment lever is located on the center
outboard side of the seat. Lift up or push down on the front
lever to adjust the front of the seat up or down.
Recliner Adjustment — If Equipped
The recliner knob is on the rear outboard side of the seat. To
recline the seatback, rotate the knob rearward without
leaning back. To return the seatback to its normal upright
position, lean forward, rotate the knob forward until the
seatback is in the upright position.
Lumbar Support — If Equipped
This feature allows you to increase or decrease the amount
of lumbar support. The lumbar control knob is located on
the rear upper outboard side of the seatback. Rotate the
control forward to increase and rearward to decrease the
desired amount of lumbar support.
WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
3
GETTING TO KNOW YOUR VEHICLE 31
Page 64 of 347
CARGO AREA FEATURES
Rear Cargo Tie-Downs
To make it easier to secure your load, there are hooks (if
equipped) fixed to the floor.NOTE:Power washing is not allowed inside the cargo
area.
WARNING!
• To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats and
use seat belts.
(Continued)
Rear Cargo Tie-Downs (Cargo Version)
Rear Cargo Tie-Downs (Passenger Version)
62 GETTING TO KNOW YOUR VEHICLE
Page 77 of 347
•Language
• Buzzer Volume
• Belt Buzzer
• Day Lights
The system allows the driver to select information by
pushing the following buttons mounted on the instrument
panel to the right of the steering column:
• MENU Button
Push and release the MENUbutton for a time longer than
one second to access/select the information screens or submenu screens of a main menu item. Push and hold the
MENU
button for two seconds to reset displayed/selected
features that can be reset.
• UP Arrow Button
Push and release the uparrow button to scroll upward
through the main menu and submenus.
• DOWN Arrow Button
Push and release the downarrow button to scroll down-
ward through the main menu and submenus.
NOTE: If equipped with a Uconnect system, some of the
menu items will be present in the radio head unit. Refer to
“Uconnect Settings” in “Multimedia” for further informa-
tion.
Dimmer:
With headlights on and without entering in the menu, push
the upordown arrow button to increase or decrease the
brightness of the instrument panel, graphics and command
buttons.
Selecting An Option Of The Main Menu With Submenu:
1. Briefly push and release the MENUbutton to display
the first submenu option.
Instrument Cluster Display Control Buttons
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 75

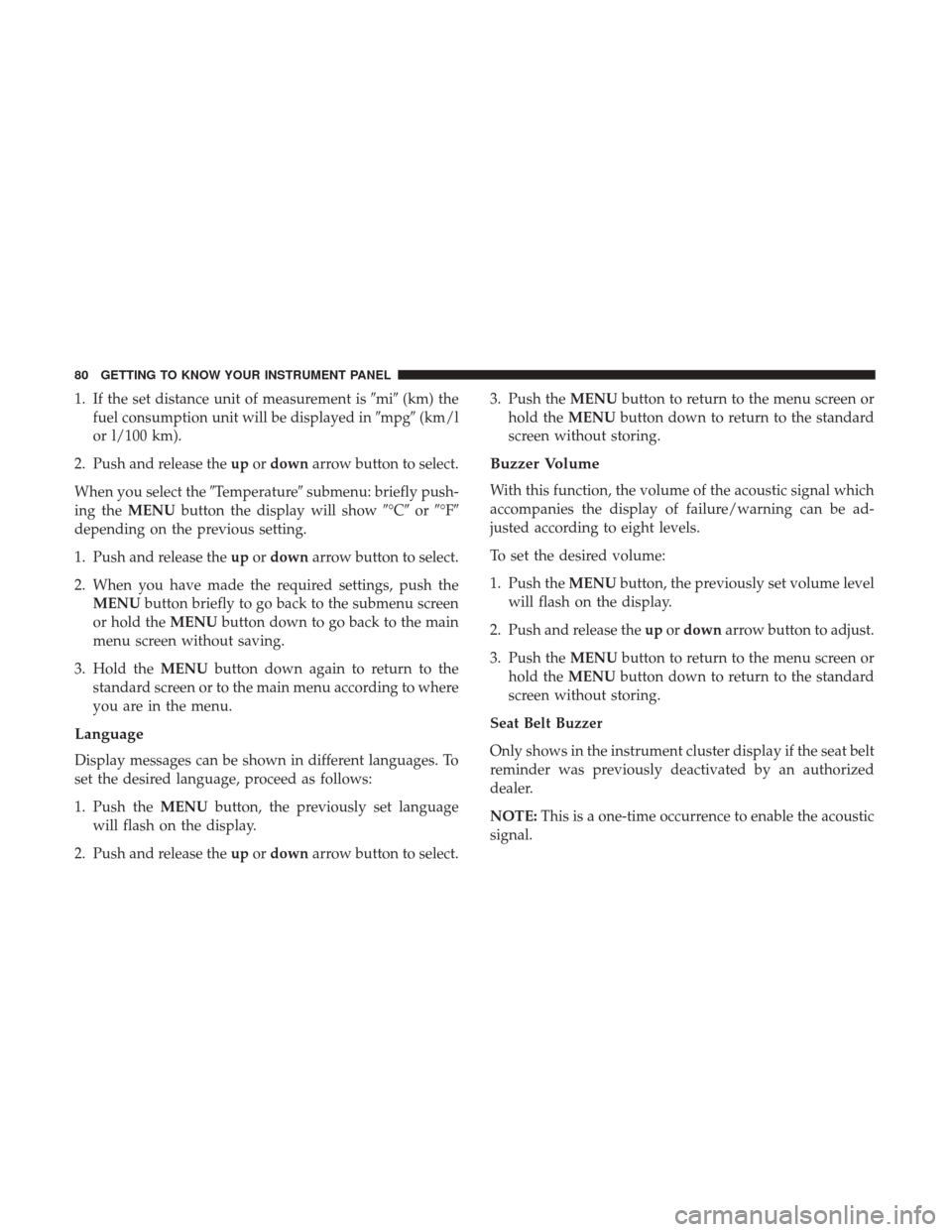

Page 82 of 347
1. If the set distance unit of measurement ismi(km) the
fuel consumption unit will be displayed in mpg(km/l
or l/100 km).
2. Push and release the upordown arrow button to select.
When you select the Temperaturesubmenu: briefly push-
ing the MENU button the display will show °Cor°F
depending on the previous setting.
1. Push and release the upordown arrow button to select.
2. When you have made the required settings, push the MENU button briefly to go back to the submenu screen
or hold the MENUbutton down to go back to the main
menu screen without saving.
3. Hold the MENUbutton down again to return to the
standard screen or to the main menu according to where
you are in the menu.
Language
Display messages can be shown in different languages. To
set the desired language, proceed as follows:
1. Push the MENUbutton, the previously set language
will flash on the display.
2. Push and release the upordown arrow button to select. 3. Push the
MENUbutton to return to the menu screen or
hold the MENUbutton down to return to the standard
screen without storing.
Buzzer Volume
With this function, the volume of the acoustic signal which
accompanies the display of failure/warning can be ad-
justed according to eight levels.
To set the desired volume:
1. Push the MENUbutton, the previously set volume level
will flash on the display.
2. Push and release the upordown arrow button to adjust.
3. Push the MENUbutton to return to the menu screen or
hold the MENUbutton down to return to the standard
screen without storing.
Seat Belt Buzzer
Only shows in the instrument cluster display if the seat belt
reminder was previously deactivated by an authorized
dealer.
NOTE: This is a one-time occurrence to enable the acoustic
signal.
80 GETTING TO KNOW YOUR INSTRUMENT PANEL

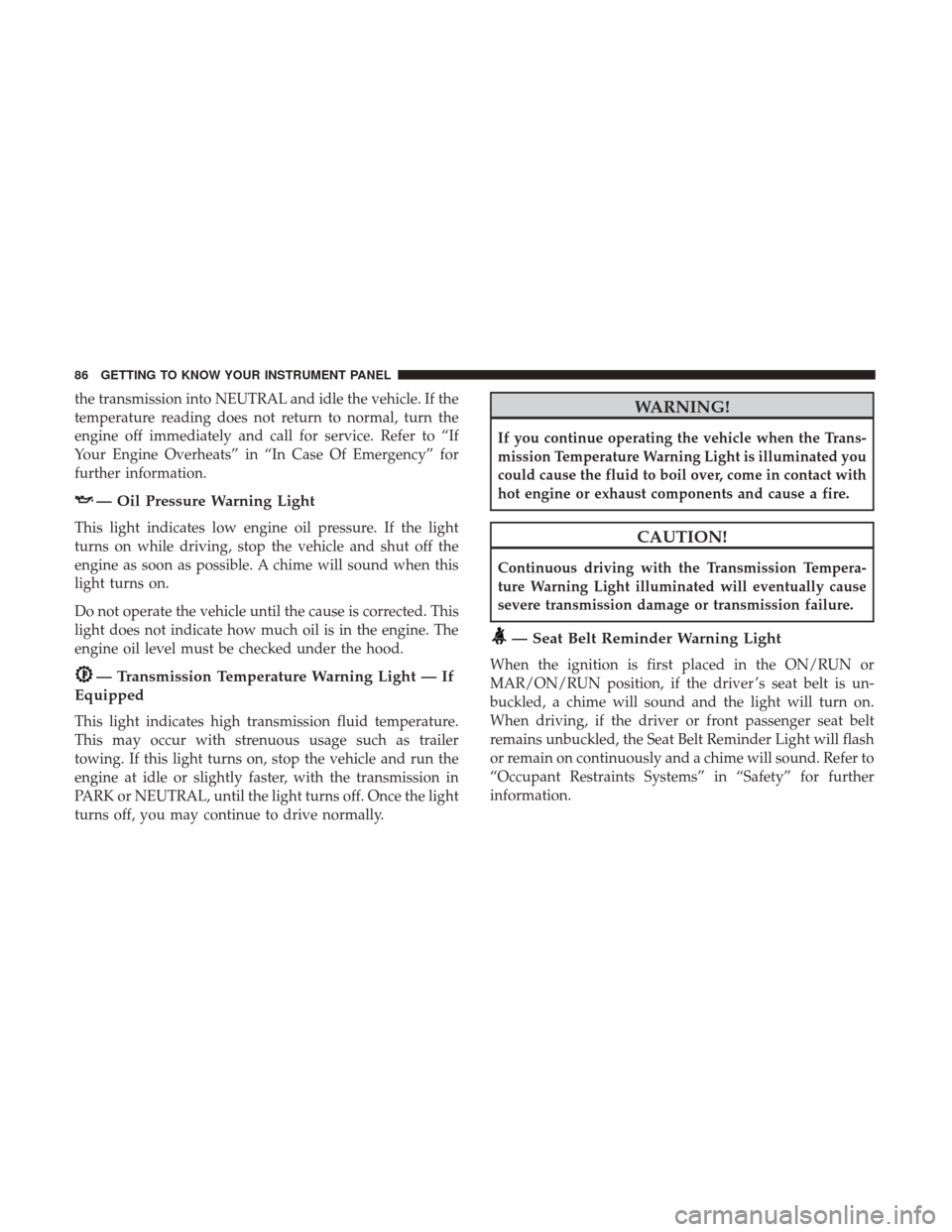

Page 88 of 347
the transmission into NEUTRAL and idle the vehicle. If the
temperature reading does not return to normal, turn the
engine off immediately and call for service. Refer to “If
Your Engine Overheats” in “In Case Of Emergency” for
further information.
— Oil Pressure Warning Light
This light indicates low engine oil pressure. If the light
turns on while driving, stop the vehicle and shut off the
engine as soon as possible. A chime will sound when this
light turns on.
Do not operate the vehicle until the cause is corrected. This
light does not indicate how much oil is in the engine. The
engine oil level must be checked under the hood.
— Transmission Temperature Warning Light — If
Equipped
This light indicates high transmission fluid temperature.
This may occur with strenuous usage such as trailer
towing. If this light turns on, stop the vehicle and run the
engine at idle or slightly faster, with the transmission in
PARK or NEUTRAL, until the light turns off. Once the light
turns off, you may continue to drive normally.
WARNING!
If you continue operating the vehicle when the Trans-
mission Temperature Warning Light is illuminated you
could cause the fluid to boil over, come in contact with
hot engine or exhaust components and cause a fire.
CAUTION!
Continuous driving with the Transmission Tempera-
ture Warning Light illuminated will eventually cause
severe transmission damage or transmission failure.
— Seat Belt Reminder Warning Light
When the ignition is first placed in the ON/RUN or
MAR/ON/RUN position, if the driver ’s seat belt is un-
buckled, a chime will sound and the light will turn on.
When driving, if the driver or front passenger seat belt
remains unbuckled, the Seat Belt Reminder Light will flash
or remain on continuously and a chime will sound. Refer to
“Occupant Restraints Systems” in “Safety” for further
information.
86 GETTING TO KNOW YOUR INSTRUMENT PANEL

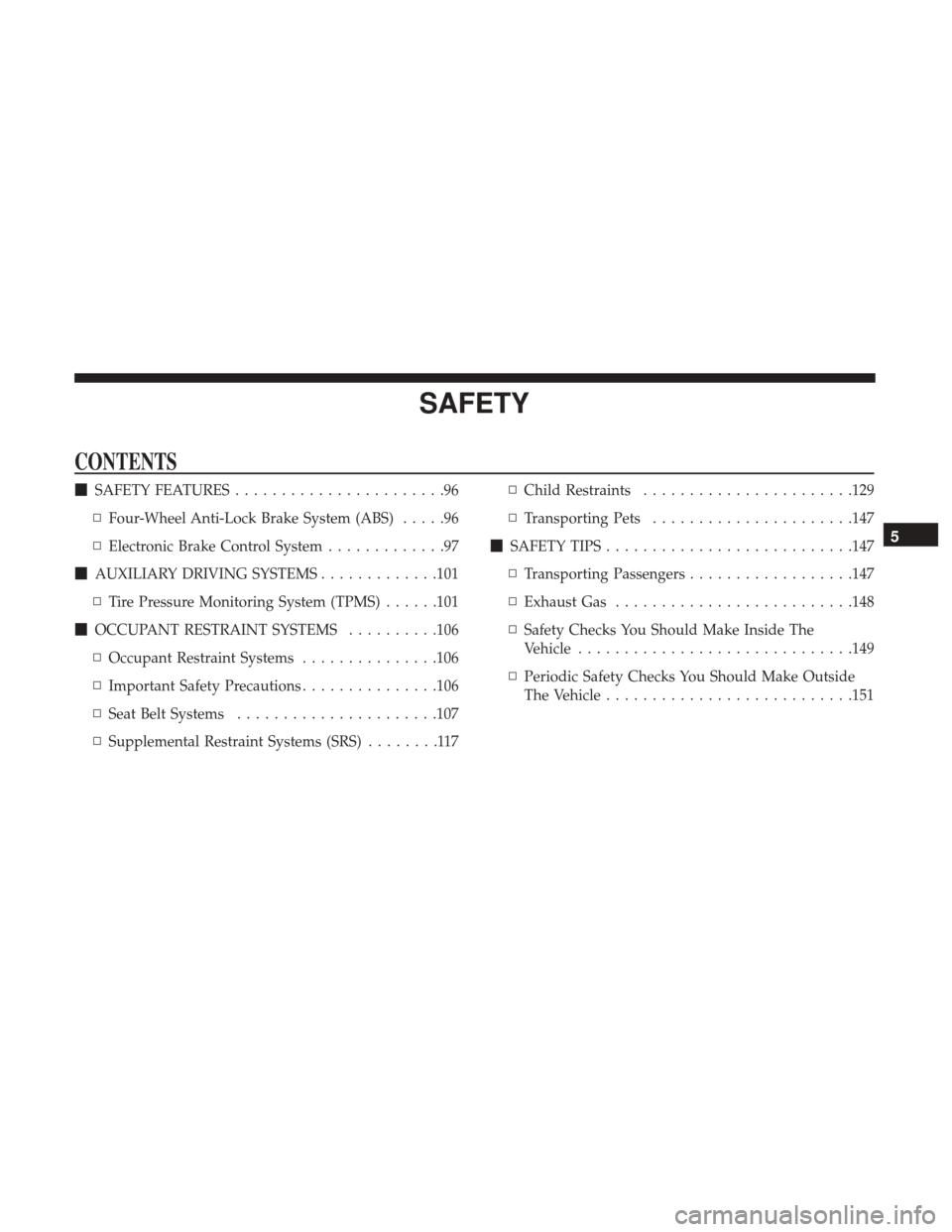

Page 97 of 347
SAFETY
CONTENTS
SAFETY FEATURES .......................96
▫ Four-Wheel Anti-Lock Brake System (ABS) .....96
▫ Electronic Brake Control System .............97
AUXILIARY DRIVING SYSTEMS .............101
▫ Tire Pressure Monitoring System (TPMS) ......101
OCCUPANT RESTRAINT SYSTEMS ..........106
▫ Occupant Restraint Systems ...............106
▫ Important Safety Precautions ...............106
▫ Seat Belt Systems ..................... .107
▫ Supplemental Restraint Systems (SRS) ........117▫
Child Restraints ...................... .129
▫ Transporting Pets ..................... .147
SAFETY TIPS .......................... .147
▫ Transporting Passengers ..................147
▫ Exhaust Gas ......................... .148
▫ Safety Checks You Should Make Inside The
Vehicle ............................. .149
▫ Periodic Safety Checks You Should Make Outside
The Vehicle .......................... .151
5

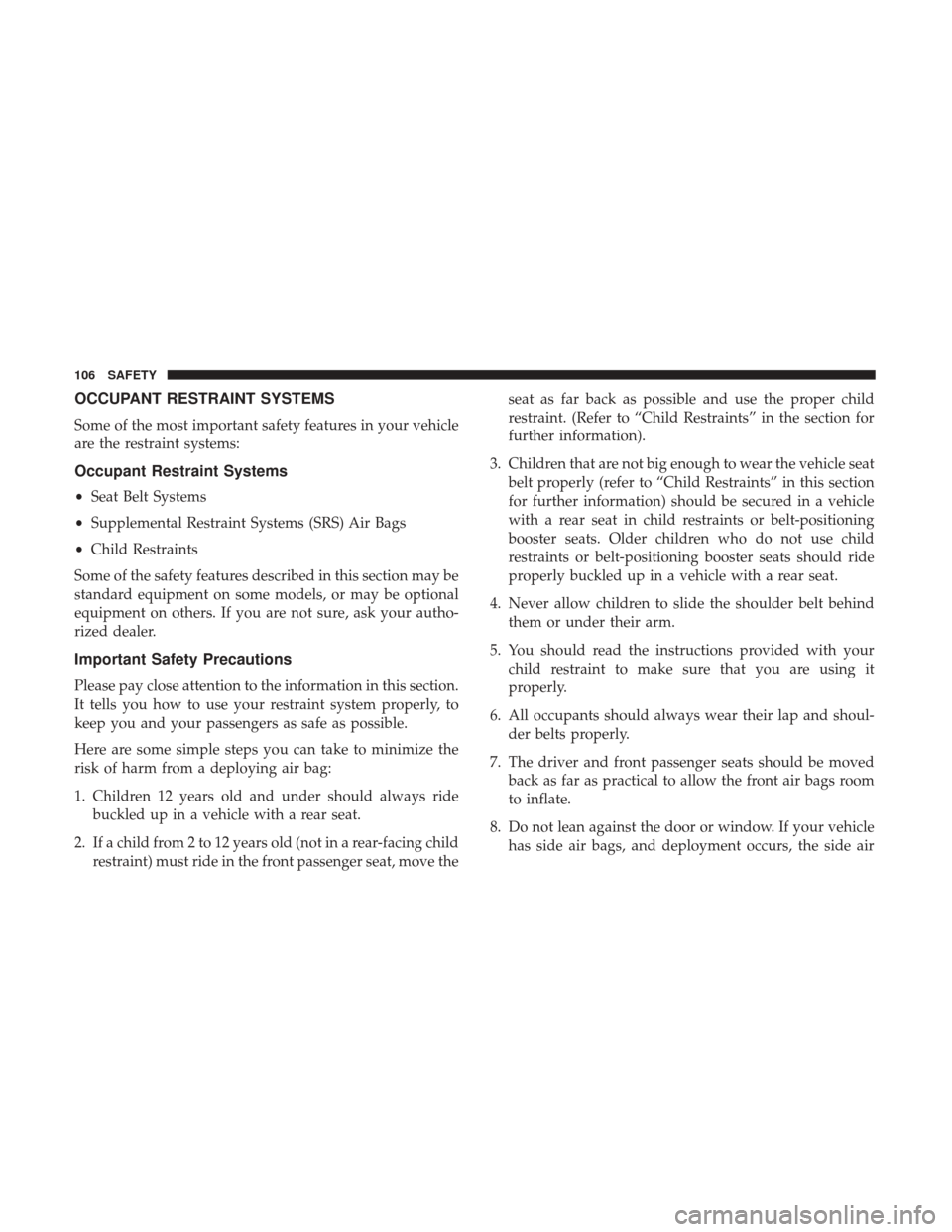

Page 108 of 347
OCCUPANT RESTRAINT SYSTEMS
Some of the most important safety features in your vehicle
are the restraint systems:
Occupant Restraint Systems
•Seat Belt Systems
• Supplemental Restraint Systems (SRS) Air Bags
• Child Restraints
Some of the safety features described in this section may be
standard equipment on some models, or may be optional
equipment on others. If you are not sure, ask your autho-
rized dealer.
Important Safety Precautions
Please pay close attention to the information in this section.
It tells you how to use your restraint system properly, to
keep you and your passengers as safe as possible.
Here are some simple steps you can take to minimize the
risk of harm from a deploying air bag:
1. Children 12 years old and under should always ride buckled up in a vehicle with a rear seat.
2. If a child from 2 to 12 years old (not in a rear-facing child restraint) must ride in the front passenger seat, move the seat as far back as possible and use the proper child
restraint. (Refer to “Child Restraints” in the section for
further information).
3. Children that are not big enough to wear the vehicle seat belt properly (refer to “Child Restraints” in this section
for further information) should be secured in a vehicle
with a rear seat in child restraints or belt-positioning
booster seats. Older children who do not use child
restraints or belt-positioning booster seats should ride
properly buckled up in a vehicle with a rear seat.
4. Never allow children to slide the shoulder belt behind them or under their arm.
5. You should read the instructions provided with your child restraint to make sure that you are using it
properly.
6. All occupants should always wear their lap and shoul- der belts properly.
7. The driver and front passenger seats should be moved back as far as practical to allow the front air bags room
to inflate.
8. Do not lean against the door or window. If your vehicle has side air bags, and deployment occurs, the side air
106 SAFETY
Page 109 of 347

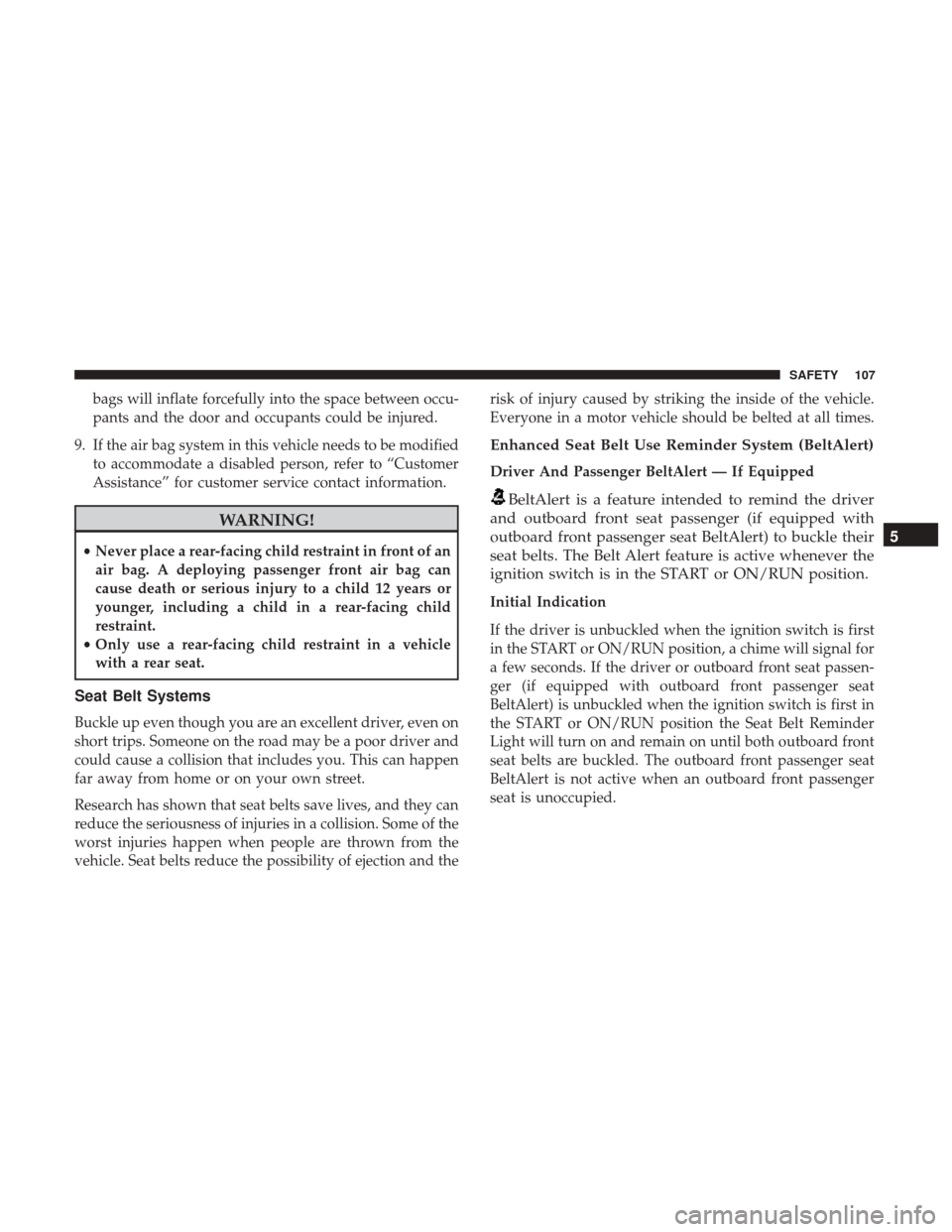

bags will inflate forcefully into the space between occu-
pants and the door and occupants could be injured.
9. If the air bag system in this vehicle needs to be modified to accommodate a disabled person, refer to “Customer
Assistance” for customer service contact information.
WARNING!
•Never place a rear-facing child restraint in front of an
air bag. A deploying passenger front air bag can
cause death or serious injury to a child 12 years or
younger, including a child in a rear-facing child
restraint.
• Only use a rear-facing child restraint in a vehicle
with a rear seat.
Seat Belt Systems
Buckle up even though you are an excellent driver, even on
short trips. Someone on the road may be a poor driver and
could cause a collision that includes you. This can happen
far away from home or on your own street.
Research has shown that seat belts save lives, and they can
reduce the seriousness of injuries in a collision. Some of the
worst injuries happen when people are thrown from the
vehicle. Seat belts reduce the possibility of ejection and the risk of injury caused by striking the inside of the vehicle.
Everyone in a motor vehicle should be belted at all times.
Enhanced Seat Belt Use Reminder System (BeltAlert)
Driver And Passenger BeltAlert — If Equipped
BeltAlert is a feature intended to remind the driver
and outboard front seat passenger (if equipped with
outboard front passenger seat BeltAlert) to buckle their
seat belts. The Belt Alert feature is active whenever the
ignition switch is in the START or ON/RUN position.
Initial Indication
If the driver is unbuckled when the ignition switch is first
in the START or ON/RUN position, a chime will signal for
a few seconds. If the driver or outboard front seat passen-
ger (if equipped with outboard front passenger seat
BeltAlert) is unbuckled when the ignition switch is first in
the START or ON/RUN position the Seat Belt Reminder
Light will turn on and remain on until both outboard front
seat belts are buckled. The outboard front passenger seat
BeltAlert is not active when an outboard front passenger
seat is unoccupied.
5
SAFETY 107
