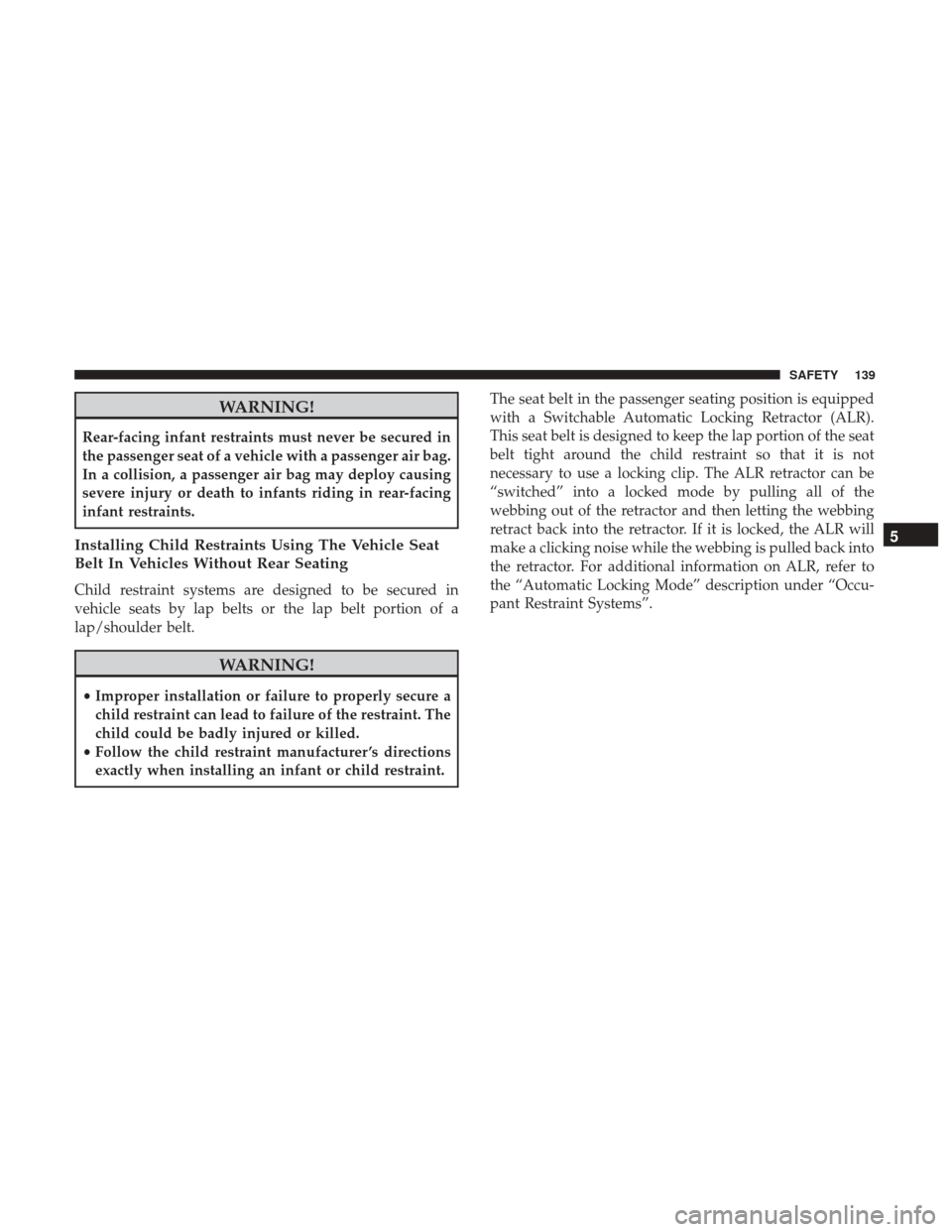

WARNING!
Rear-facing infant restraints must never be secured in
the passenger seat of a vehicle with a passenger air bag.
In a collision, a passenger air bag may deploy causing
severe injury or death to infants riding in rear-facing
infant restraints.
Installing Child Restraints Using The Vehicle Seat
Belt In Vehicles Without Rear Seating
Child restraint systems are designed to be secured in
vehicle seats by lap belts or the lap belt portion of a
lap/shoulder belt.
WARNING!
•Improper installation or failure to properly secure a
child restraint can lead to failure of the restraint. The
child could be badly injured or killed.
• Follow the child restraint manufacturer ’s directions
exactly when installing an infant or child restraint. The seat belt in the passenger seating position is equipped
with a Switchable Automatic Locking Retractor (ALR).
This seat belt is designed to keep the lap portion of the seat
belt tight around the child restraint so that it is not
necessary to use a locking clip. The ALR retractor can be
“switched” into a locked mode by pulling all of the
webbing out of the retractor and then letting the webbing
retract back into the retractor. If it is locked, the ALR will
make a clicking noise while the webbing is pulled back into
the retractor. For additional information on ALR, refer to
the “Automatic Locking Mode” description under “Occu-
pant Restraint Systems”.
5
SAFETY 139

Lap/Shoulder Belt Systems For Installing Child
Restraints In This Vehicle
Installing A Child Restraint With A Switchable
Automatic Locking Retractor (ALR):
Child restraint systems are designed to be secured in
vehicle seats by lap belts or the lap belt portion of a
lap/shoulder belt.
WARNING!
•Improper installation or failure to properly secure a
child restraint can lead to failure of the restraint. The
child could be badly injured or killed.
• Follow the child restraint manufacturer ’s directions
exactly when installing an infant or child restraint.
1. Place the child seat in the center of the seating position.
2. Pull enough of the seat belt webbing from the retractor to pass it through the belt path of the child restraint. Do
not twist the belt webbing in the belt path.
3. Slide the latch plate into the buckle until you hear a “click.”
4. Pull on the webbing to make the lap portion tight against the child seat.
5. To lock the seat belt, pull down on the shoulder part of the belt until you have pulled all the seat belt webbing
out of the retractor. Then, allow the webbing to retract
back into the retractor. As the webbing retracts, you will
hear a clicking sound. This means the seat belt is now in
the Automatic Locking mode.
Automatic Locking Retractor (ALR) Locations For Front
Bucket Seats
ALR = Switchable Automatic Locking RetractorTop Tether Anchorage Symbol
140 SAFETY

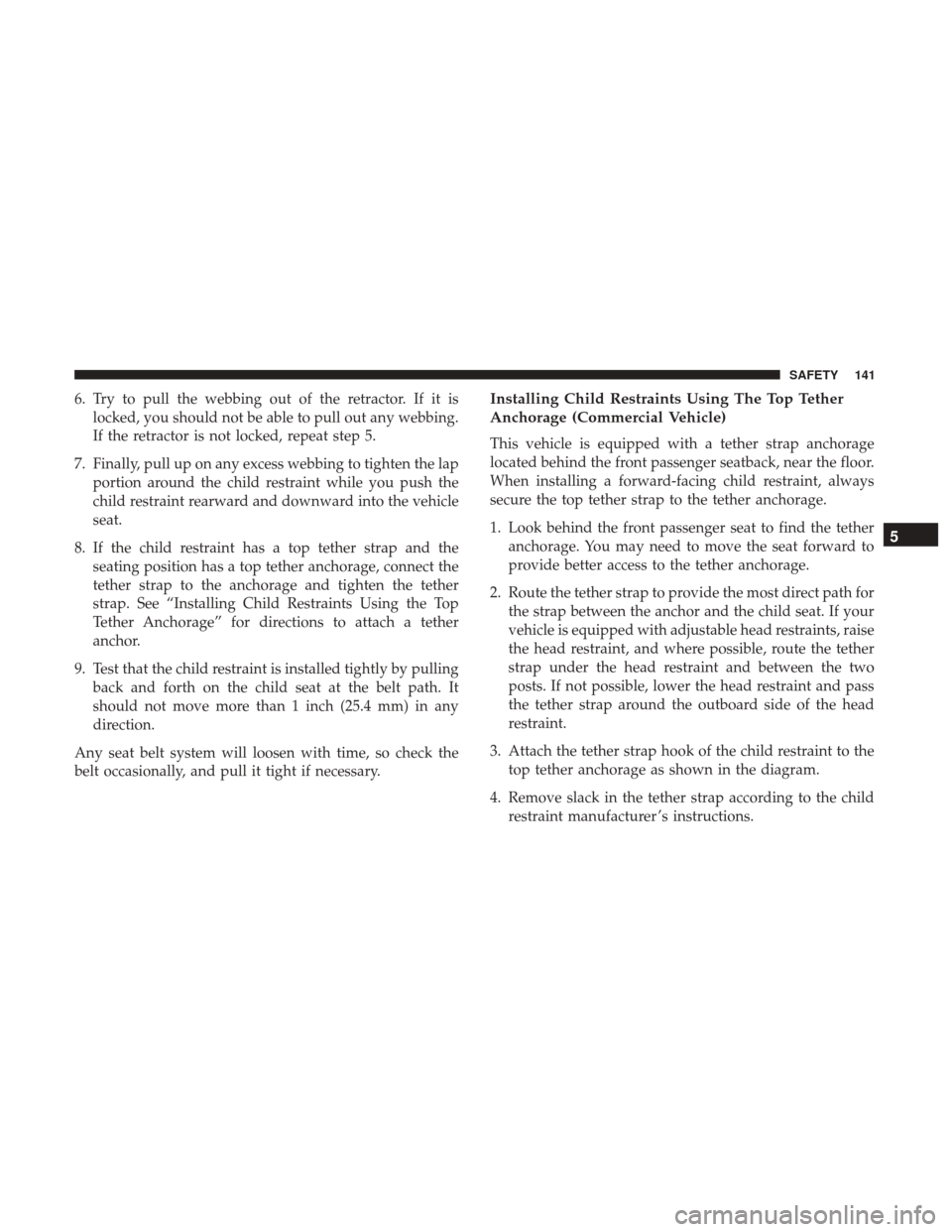

6. Try to pull the webbing out of the retractor. If it islocked, you should not be able to pull out any webbing.
If the retractor is not locked, repeat step 5.
7. Finally, pull up on any excess webbing to tighten the lap portion around the child restraint while you push the
child restraint rearward and downward into the vehicle
seat.
8. If the child restraint has a top tether strap and the seating position has a top tether anchorage, connect the
tether strap to the anchorage and tighten the tether
strap. See “Installing Child Restraints Using the Top
Tether Anchorage” for directions to attach a tether
anchor.
9. Test that the child restraint is installed tightly by pulling back and forth on the child seat at the belt path. It
should not move more than 1 inch (25.4 mm) in any
direction.
Any seat belt system will loosen with time, so check the
belt occasionally, and pull it tight if necessary.Installing Child Restraints Using The Top Tether
Anchorage (Commercial Vehicle)
This vehicle is equipped with a tether strap anchorage
located behind the front passenger seatback, near the floor.
When installing a forward-facing child restraint, always
secure the top tether strap to the tether anchorage.
1. Look behind the front passenger seat to find the tether anchorage. You may need to move the seat forward to
provide better access to the tether anchorage.
2. Route the tether strap to provide the most direct path for the strap between the anchor and the child seat. If your
vehicle is equipped with adjustable head restraints, raise
the head restraint, and where possible, route the tether
strap under the head restraint and between the two
posts. If not possible, lower the head restraint and pass
the tether strap around the outboard side of the head
restraint.
3. Attach the tether strap hook of the child restraint to the top tether anchorage as shown in the diagram.
4. Remove slack in the tether strap according to the child restraint manufacturer ’s instructions.
5
SAFETY 141

WARNING!
An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the child.
Use only the anchorage position directly behind the
child seat to secure a child restraint top tether strap.
Transporting Pets
Air Bags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in a
collision.Pets should be restrained in the rear seat (if equipped) in
pet harnesses or pet carriers that are secured by seat belts.
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
•
Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
• It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Tether Strap Installation
142 SAFETY

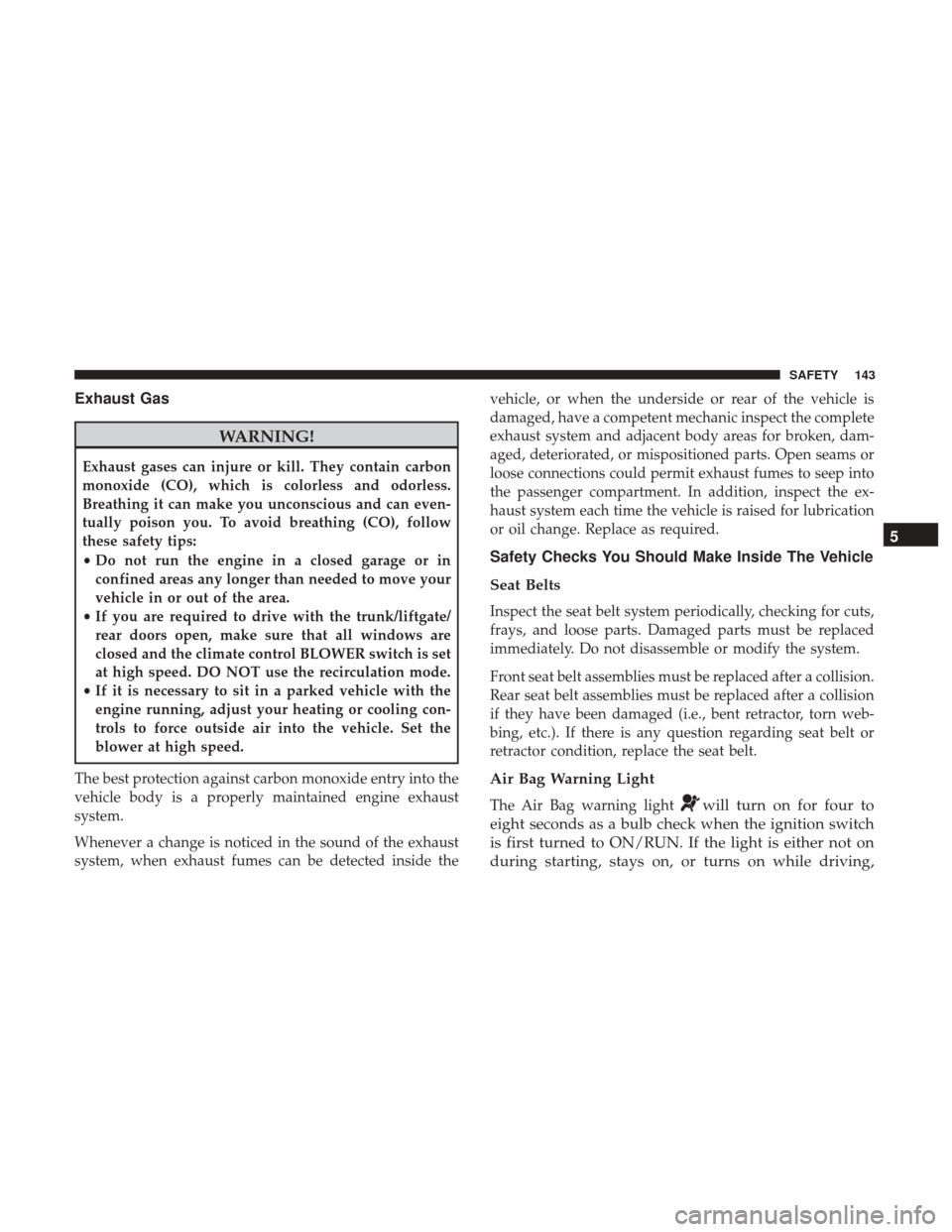

Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can even-
tually poison you. To avoid breathing (CO), follow
these safety tips:
•Do not run the engine in a closed garage or in
confined areas any longer than needed to move your
vehicle in or out of the area.
• If you are required to drive with the trunk/liftgate/
rear doors open, make sure that all windows are
closed and the climate control BLOWER switch is set
at high speed. DO NOT use the recirculation mode.
• If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling con-
trols to force outside air into the vehicle. Set the
blower at high speed.
The best protection against carbon monoxide entry into the
vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the complete
exhaust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams or
loose connections could permit exhaust fumes to seep into
the passenger compartment. In addition, inspect the ex-
haust system each time the vehicle is raised for lubrication
or oil change. Replace as required.
Safety Checks You Should Make Inside The Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a collision.
Rear seat belt assemblies must be replaced after a collision
if they have been damaged (i.e., bent retractor, torn web-
bing, etc.). If there is any question regarding seat belt or
retractor condition, replace the seat belt.
Air Bag Warning Light
The Air Bag warning lightwill turn on for four to
eight seconds as a bulb check when the ignition switch
is first turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while driving, 5
SAFETY 143

have the system inspected at an authorized dealer as
soon as possible. After the bulb check, this light will
illuminate with a single chime when a fault with the Air
Bag System has been detected. It will stay on until the
fault is removed. If the light comes on intermittently or
remains on while driving, have an authorized dealer
service the vehicle immediately.
Refer to “Occupant Restraint Systems” in “Safety” for
further information.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See an autho-
rized dealer for service if your defroster is inoperable.
Floor Mat Safety Information
Always use floor mats designed to fit your vehicle. Only
use a floor mat that does not interfere with the operation of
the accelerator, brake or clutch pedals. Only use a floor mat
that is securely attached using the floor mat fasteners so it
cannot slip out of position and interfere with the accelera-
tor, brake or clutch pedals or impair safe operation of your
vehicle in other ways.
WARNING!
An improperly attached, damaged, folded, or stacked
floor mat, or damaged floor mat fasteners may cause
your floor mat to interfere with the accelerator, brake,
or clutch pedals and cause a loss of vehicle control. To
prevent SERIOUS INJURY or DEATH:
•ALWAYS securely attach
your floor mat using the
floor mat fasteners. DO NOT install your floor mat
upside down or turn your floor mat over. Lightly pull
to confirm mat is secured using the floor mat fasten-
ers on a regular basis.
• ALWAYS REMOVE THE EXISTING FLOOR MAT
FROM THE VEHICLE
before installing any other
floor mat. NEVER install or stack an additional floor
mat on top of an existing floor mat.
• ONLY install floor mats designed to fit your vehicle.
NEVER install a floor mat that cannot be properly
attached and secured to your vehicle. If a floor mat
needs to be replaced, only use a FCA approved floor
mat for the specific make, model, and year of your
vehicle.
• ONLY use the driver ’s side floor mat on the driver ’s
side floor area. To check for interference, with the
(Continued)
144 SAFETY

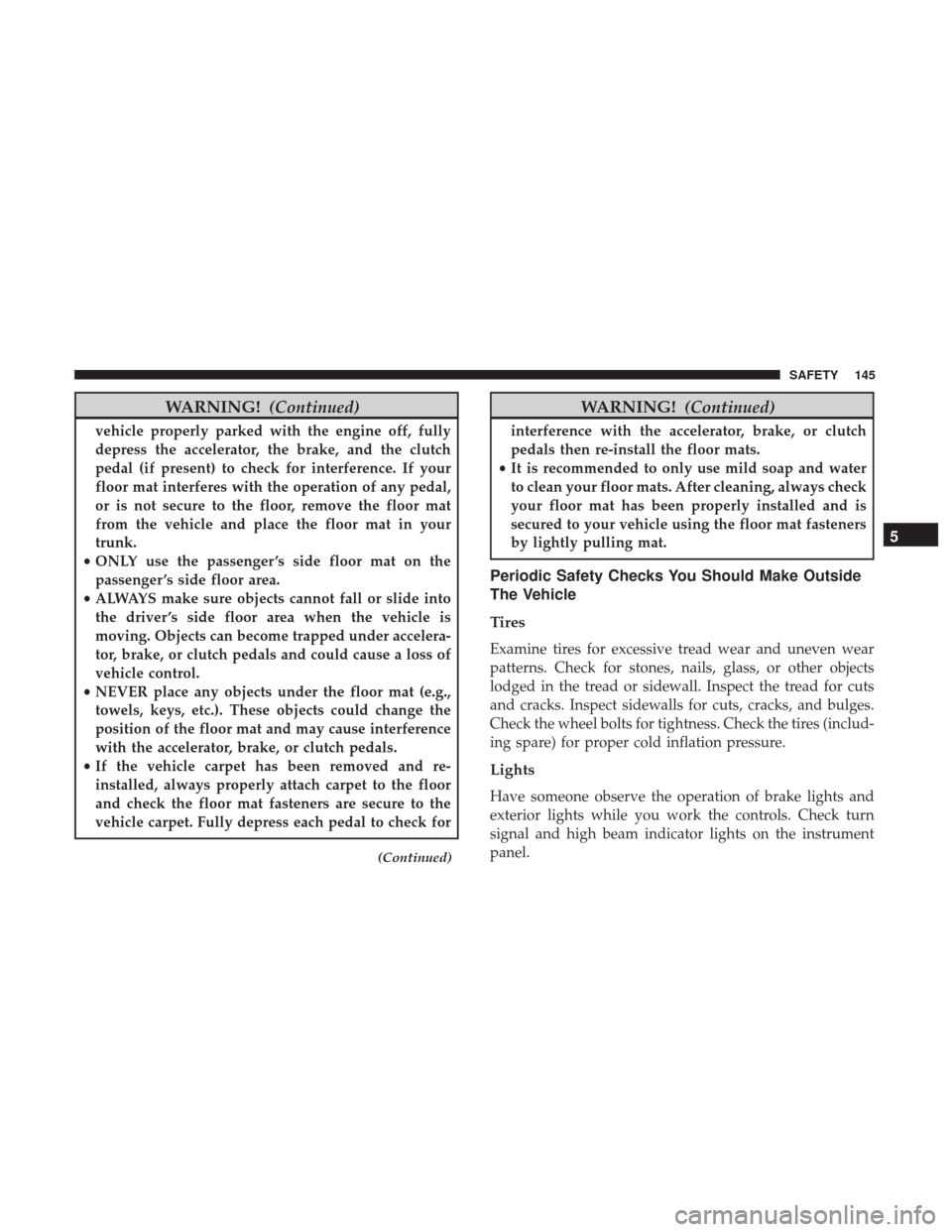

WARNING!(Continued)
vehicle properly parked with the engine off, fully
depress the accelerator, the brake, and the clutch
pedal (if present) to check for interference. If your
floor mat interferes with the operation of any pedal,
or is not secure to the floor, remove the floor mat
from the vehicle and place the floor mat in your
trunk.
• ONLY use the passenger ’s side floor mat on the
passenger ’s side floor area.
• ALWAYS make sure objects cannot fall or slide into
the driver ’s side floor area when the vehicle is
moving. Objects can become trapped under accelera-
tor, brake, or clutch pedals and could cause a loss of
vehicle control.
• NEVER place any objects under the floor mat (e.g.,
towels, keys, etc.). These objects could change the
position of the floor mat and may cause interference
with the accelerator, brake, or clutch pedals.
• If the vehicle carpet has been removed and re-
installed, always properly attach carpet to the floor
and check the floor mat fasteners are secure to the
vehicle carpet. Fully depress each pedal to check for
(Continued)
WARNING! (Continued)
interference with the accelerator, brake, or clutch
pedals then re-install the floor mats.
• It is recommended to only use mild soap and water
to clean your floor mats. After cleaning, always check
your floor mat has been properly installed and is
secured to your vehicle using the floor mat fasteners
by lightly pulling mat.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel bolts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
5
SAFETY 145

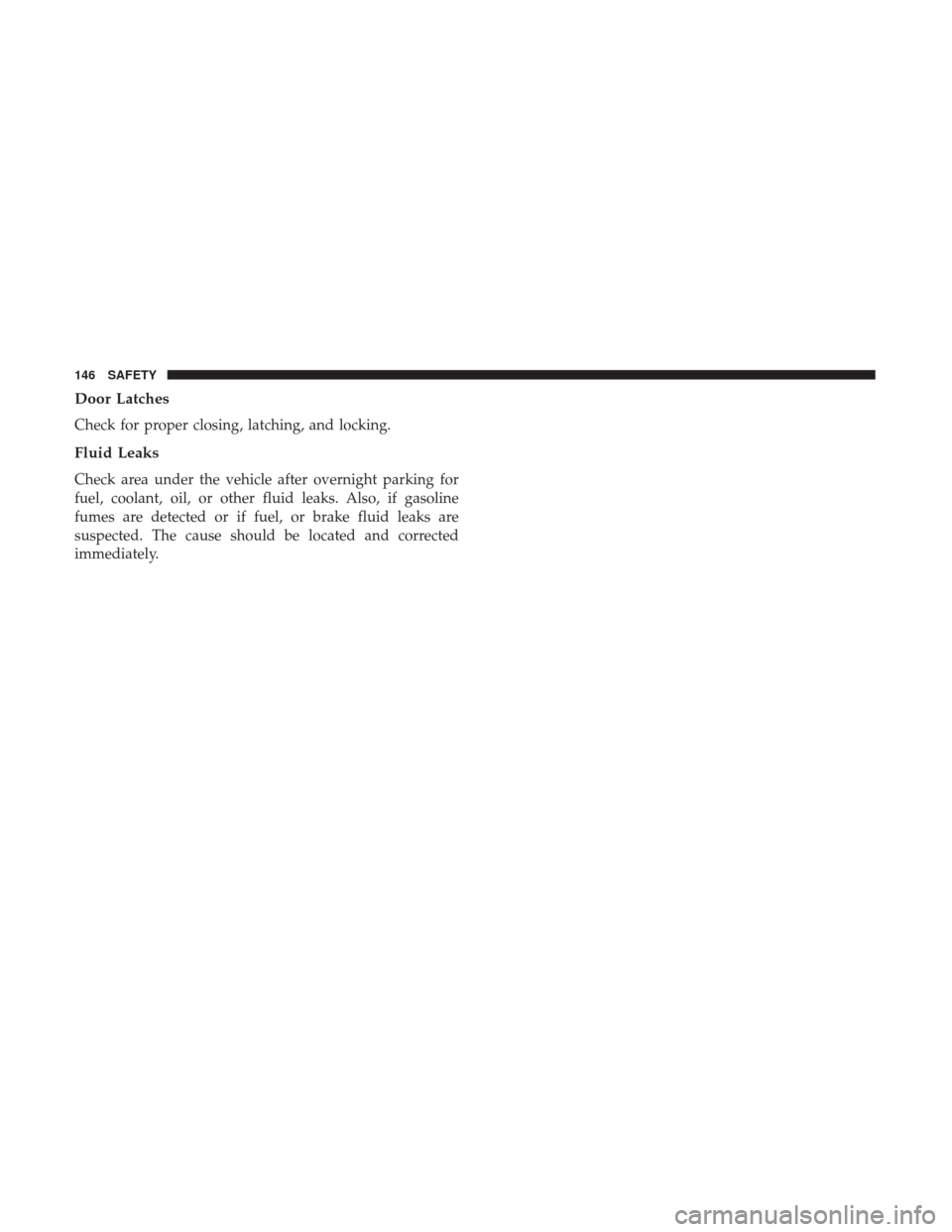

Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under the vehicle after overnight parking for
fuel, coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, or brake fluid leaks are
suspected. The cause should be located and corrected
immediately.
146 SAFETY

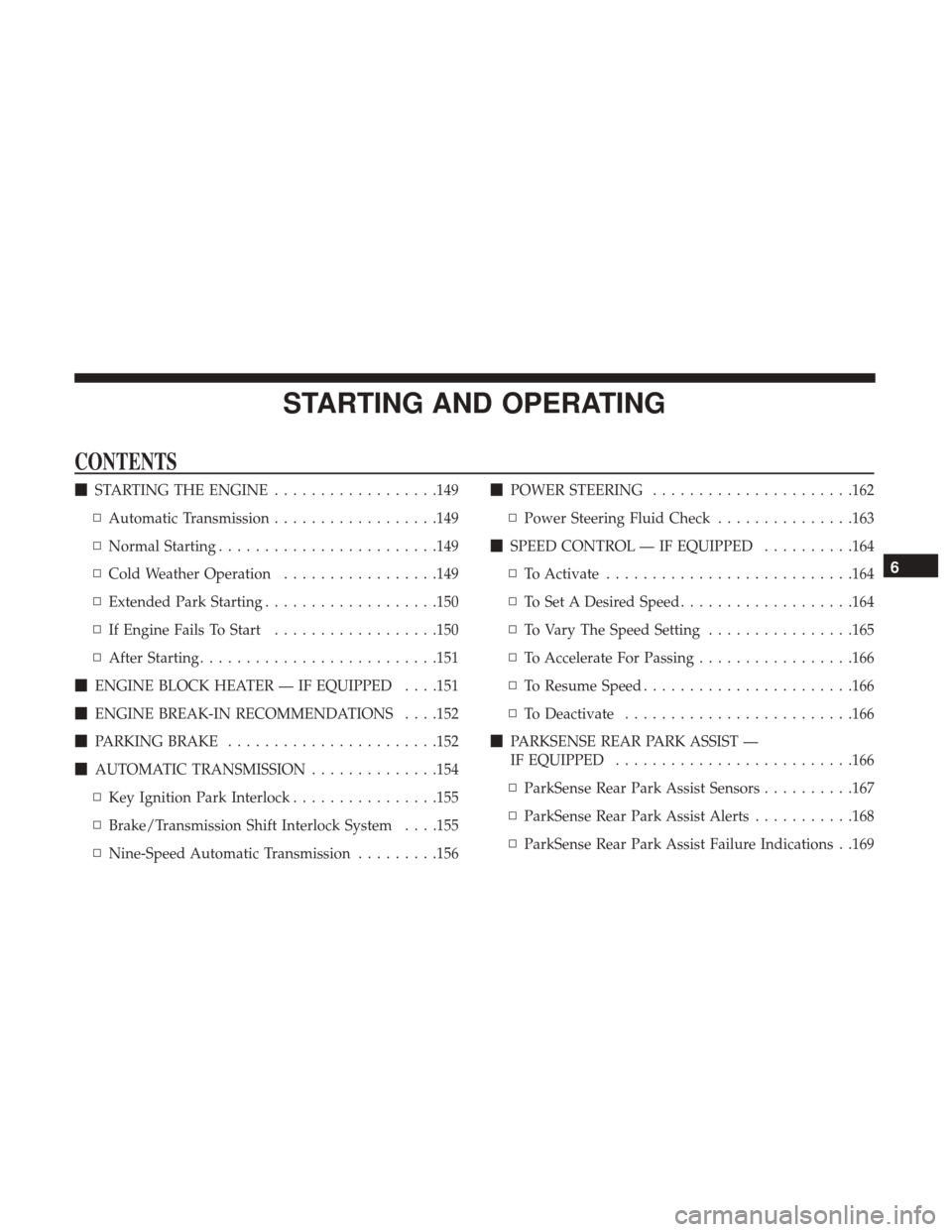

STARTING AND OPERATING
CONTENTS
STARTING THE ENGINE ..................149
▫ Automatic Transmission ..................149
▫ Normal Starting ....................... .149
▫ Cold Weather Operation .................149
▫ Extended Park Starting ...................150
▫ If Engine Fails To Start ..................150
▫ After Starting ......................... .151
 ENGINE BLOCK HEATER — IF EQUIPPED . . . .151
 ENGINE BREAK-IN RECOMMENDATIONS . . . .152
 PARKING BRAKE ...................... .152
 AUTOMATIC TRANSMISSION ..............154
▫ Key Ignition Park Interlock ................155
▫ Brake/Transmission Shift Interlock System . . . .155
▫ Nine-Speed Automatic Transmission .........156
POWER STEERING ..................... .162
▫ Power Steering Fluid Check ...............163
 SPEED CONTROL — IF EQUIPPED ..........164
▫ To Activate .......................... .164
▫ To Set A Desired Speed ...................164
▫ To Vary The Speed Setting ................165
▫ To Accelerate For Passing .................166
▫ To Resume Speed ...................... .166
▫ To Deactivate ........................ .166
 PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ......................... .166
▫ ParkSense Rear Park Assist Sensors ..........167
▫ ParkSense Rear Park Assist Alerts ...........168
▫ ParkSense

Rear Park Assist Failure Indications . .169
6

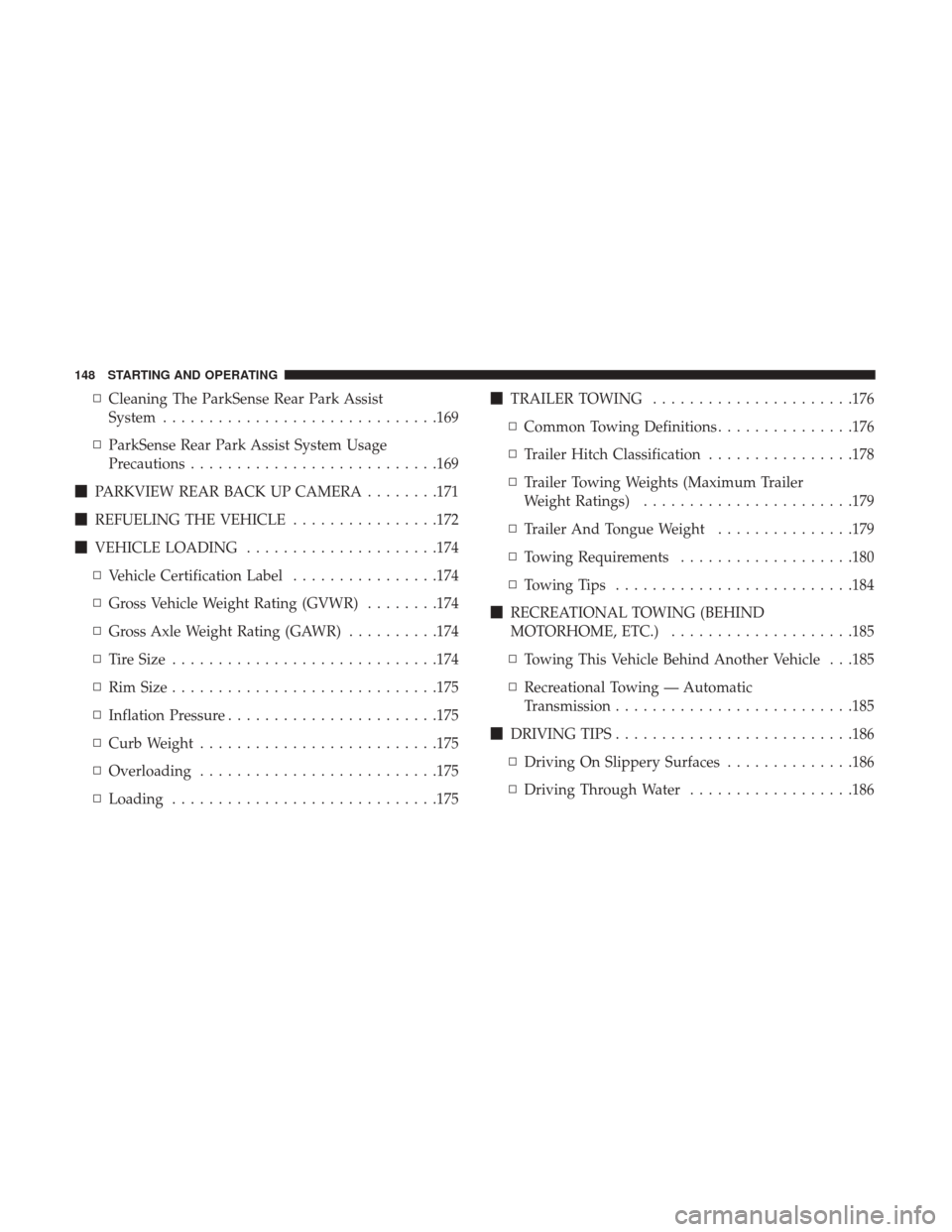

▫Cleaning The ParkSense Rear Park Assist
System ............................. .169
▫ ParkSense Rear Park Assist System Usage
Precautions .......................... .169
 PARKVIEW REAR BACK UP CAMERA ........171
 REFUELING THE VEHICLE ................172
 VEHICLE LOADING .....................174
▫ Vehicle Certification Label ................174
▫ Gross Vehicle Weight Rating (GVWR) ........174
▫ Gross Axle Weight Rating (GAWR) ..........174
▫ Tire Size ............................ .174
▫ Rim Size ............................ .175
▫ Inflation Pressure ...................... .175
▫ Curb Weight ......................... .175
▫ Overloading ......................... .175
▫ Loading ............................ .175
TRAILER TOWING ..................... .176
▫ Common Towing Definitions ...............176
▫ Trailer Hitch Classification ................178
▫ Trailer Towing Weights (Maximum Trailer
Weight Ratings) ...................... .179
▫ Trailer And Tongue Weight ...............179
▫ Towing Requirements ...................180
▫ Towing Tips ......................... .184
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ....................185
▫ Towing This Vehicle Behind Another Vehicle . . .185
▫ Recreational Towing — Automatic
Transmission ......................... .185
 DRIVING TIPS ......................... .186
▫ Driving

On Slippery Surfaces ..............186
▫ Driving Through Water ..................186
148 STARTING AND OPERATING
