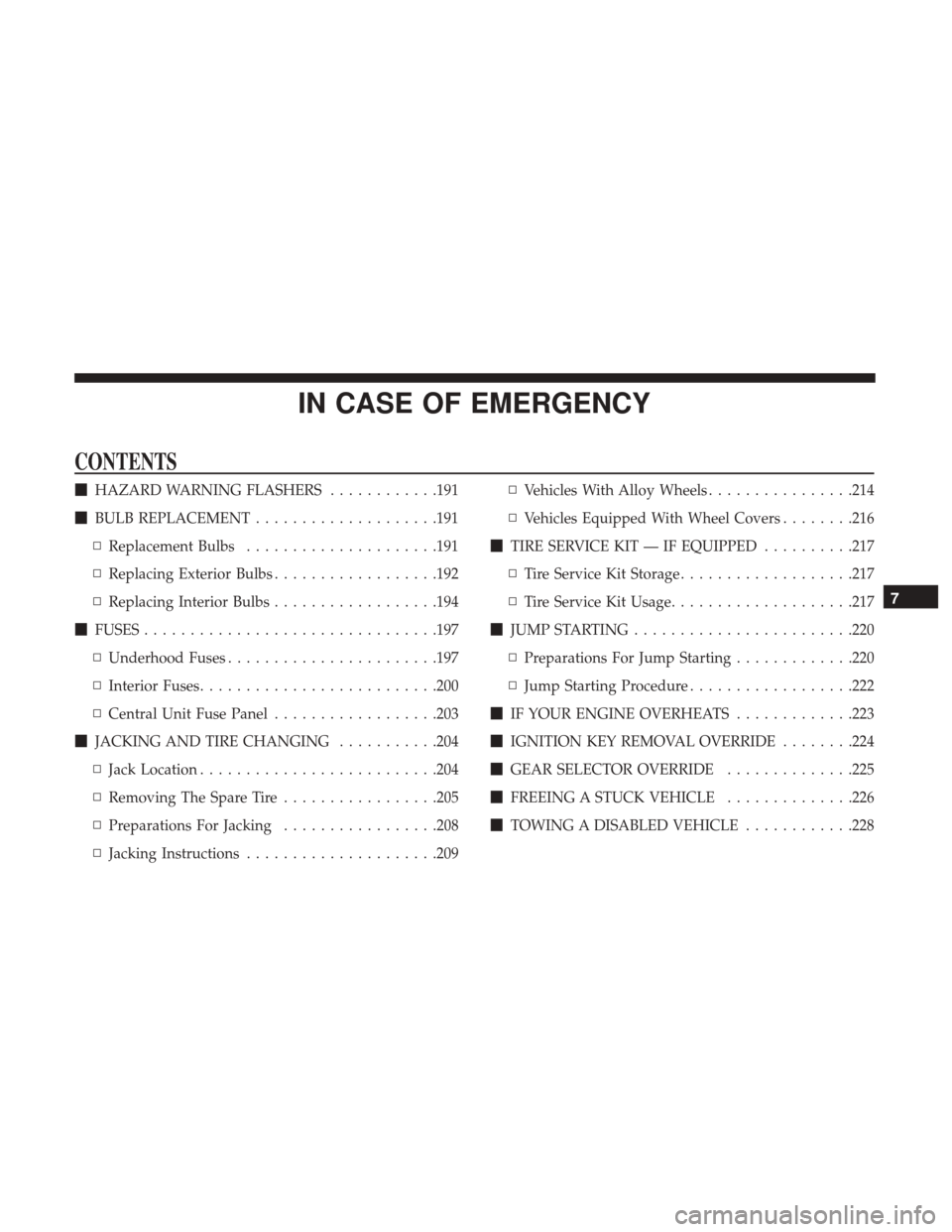

Page 191 of 348

Ram ProMaster City 2019  Owners Manual IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............191
 BULB REPLACEMENT ....................191
▫ Replacement Bulbs .....................191
▫ Replacing Exterior Bulbs ..........

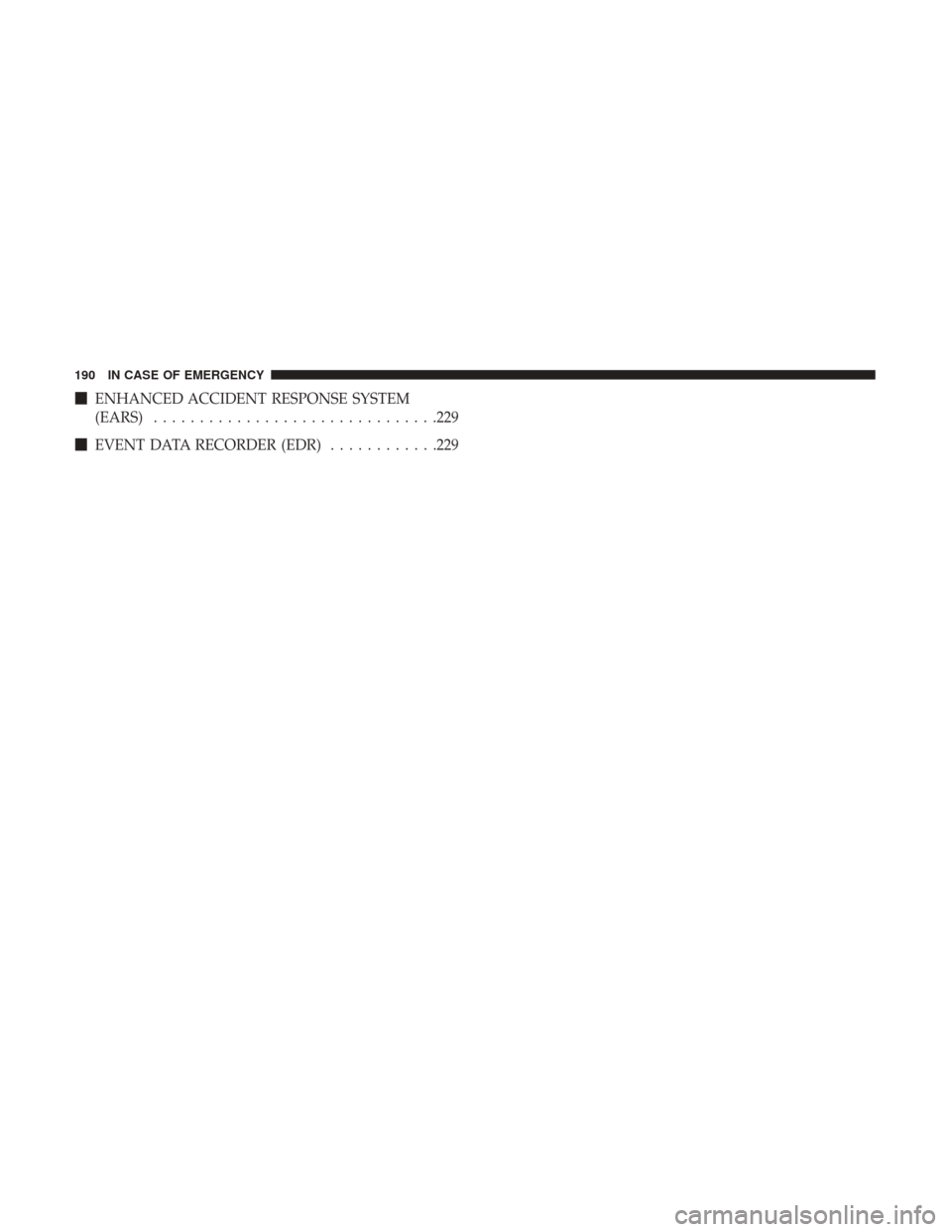

Page 192 of 348

Ram ProMaster City 2019  Owners Manual ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) .............................. .229
 EVENT DATA RECORDER (EDR) ............229
190 IN CASE OF EMERGENCY

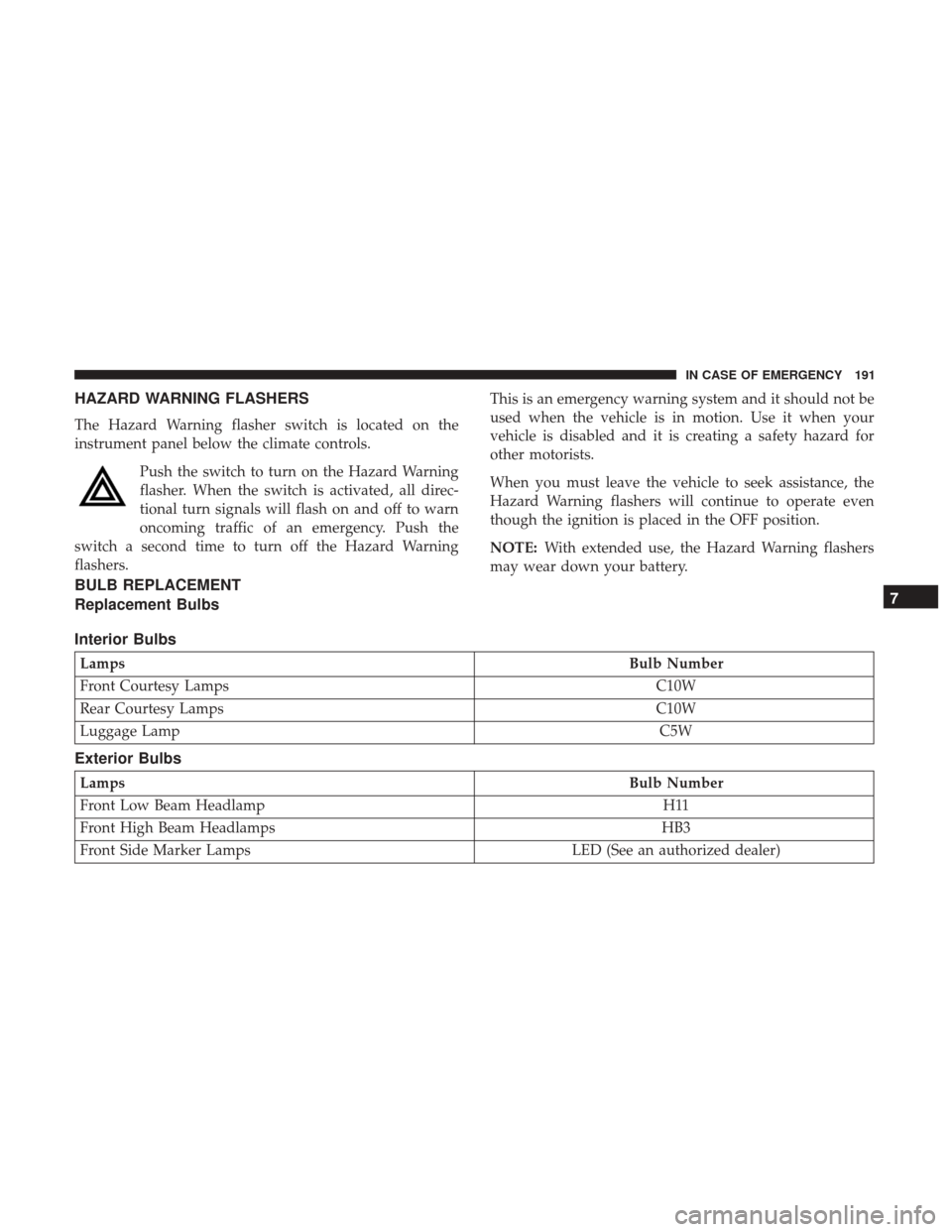

Page 193 of 348

Ram ProMaster City 2019  Owners Manual HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located on the
instrument panel below the climate controls.Push the switch to turn on the Hazard Warning
flasher. When the switch is activa

Page 194 of 348

Ram ProMaster City 2019  Owners Manual LampsBulb Number
Front Parking/Daytime Running Lamps W21W
Front Turn Signal Lamps WY21W
Rear Stop Lamp P21W
Rear Turn Signal Lamps PY21W
Rear Tail Lamps P21/5W
Rear Side Marker Lamps LED (See an autho

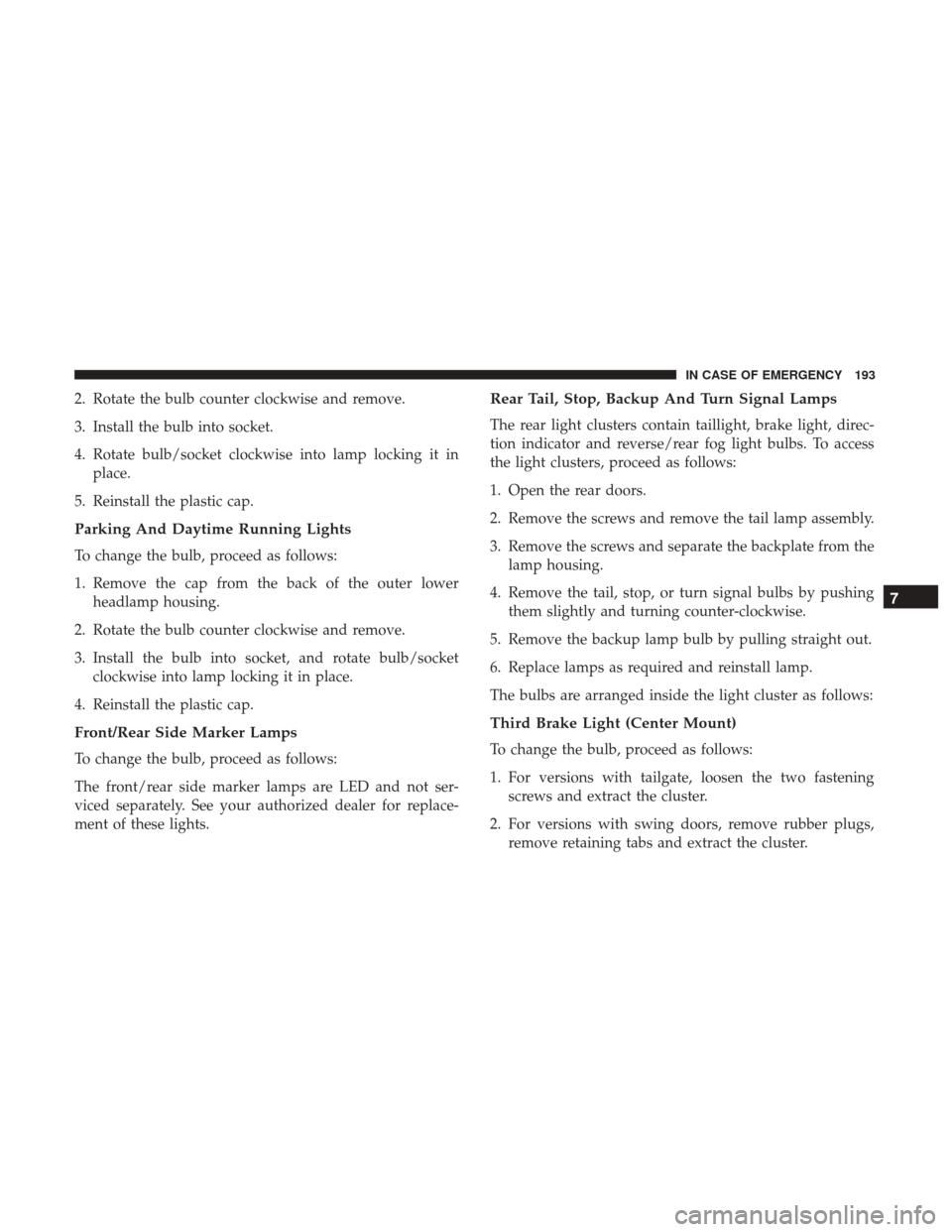

Page 195 of 348

Ram ProMaster City 2019  Owners Manual 2. Rotate the bulb counter clockwise and remove.
3. Install the bulb into socket.
4. Rotate bulb/socket clockwise into lamp locking it inplace.
5. Reinstall the plastic cap.
Parking And Daytime Runnin

Page 196 of 348

Ram ProMaster City 2019  Owners Manual 3. For versions with high roof and swing doors, removethe pressure-fit plastic guard and rubber cap using a
screwdriver, release the retaining tags as shown in the
figure and remove the unit.
4. Remov

Page 197 of 348

Ram ProMaster City 2019  Owners Manual 3. Replace the bulbs releasing them from the side contactsmaking sure that the new bulbs are correctly secured
between the contacts.
4. Close the protective cover and reposition it back into its housi

Page 198 of 348

Ram ProMaster City 2019  Owners Manual 3. Replace the bulb releasing them from the side contactsmaking sure that the new bulbs are correctly secured
between the contacts. 4. Close the protective cover and reposition it back into its
housin

Page 199 of 348

Ram ProMaster City 2019  Owners Manual FUSES
WARNING!
•When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating.

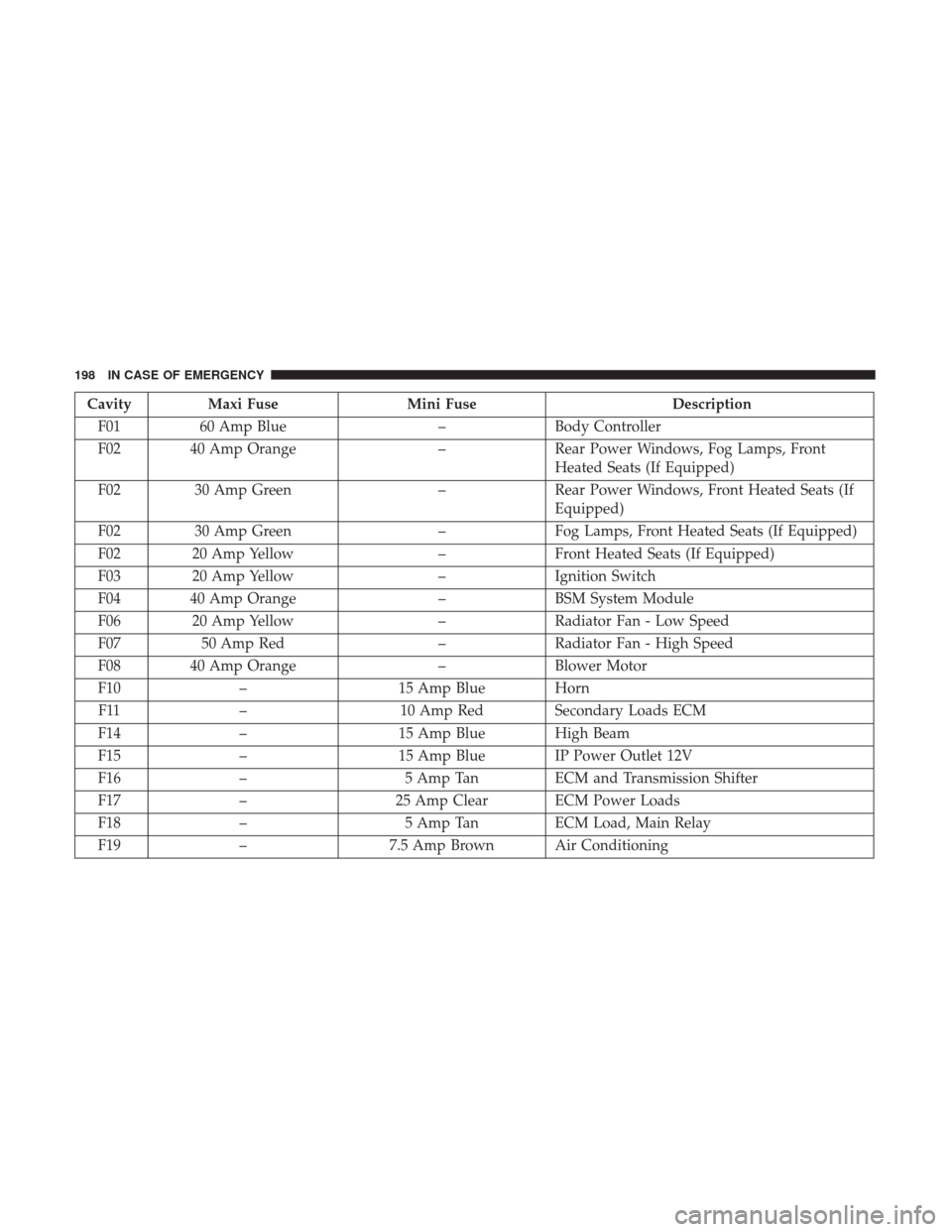

Page 200 of 348

Ram ProMaster City 2019  Owners Manual CavityMaxi Fuse Mini Fuse Description
F01 60 Amp Blue –Body Controller
F02 40 Amp Orange –Rear Power Windows, Fog Lamps, Front
Heated Seats (If Equipped)
F02 30 Amp Green –Rear Power Windows, Fr
