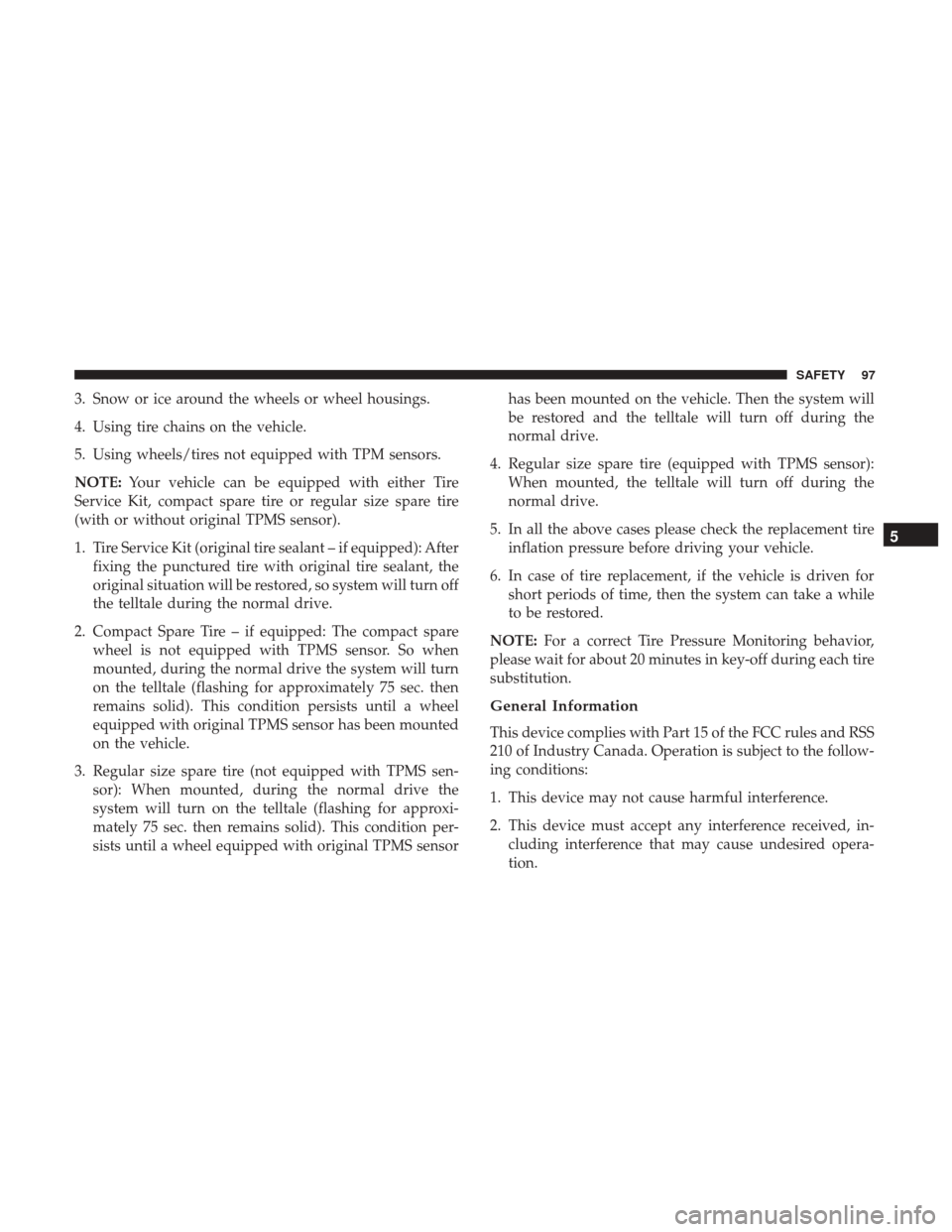

Page 99 of 348
3. Snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
NOTE:Your vehicle can be equipped with either Tire
Service Kit, compact spare tire or regular size spare tire
(with or without original TPMS sensor).
1. Tire Service Kit (original tire sealant – if equipped): After fixing the punctured tire with original tire sealant, the
original situation will be restored, so system will turn off
the telltale during the normal drive.
2. Compact Spare Tire – if equipped: The compact spare wheel is not equipped with TPMS sensor. So when
mounted, during the normal drive the system will turn
on the telltale (flashing for approximately 75 sec. then
remains solid). This condition persists until a wheel
equipped with original TPMS sensor has been mounted
on the vehicle.
3. Regular size spare tire (not equipped with TPMS sen- sor): When mounted, during the normal drive the
system will turn on the telltale (flashing for approxi-
mately 75 sec. then remains solid). This condition per-
sists until a wheel equipped with original TPMS sensor has been mounted on the vehicle. Then the system will
be restored and the telltale will turn off during the
normal drive.
4. Regular size spare tire (equipped with TPMS sensor): When mounted, the telltale will turn off during the
normal drive.
5. In all the above cases please check the replacement tire inflation pressure before driving your vehicle.
6. In case of tire replacement, if the vehicle is driven for short periods of time, then the system can take a while
to be restored.
NOTE: For a correct Tire Pressure Monitoring behavior,
please wait for about 20 minutes in key-off during each tire
substitution.
General Information
This device complies with Part 15 of the FCC rules and RSS
210 of Industry Canada. Operation is subject to the follow-
ing conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, in- cluding interference that may cause undesired opera-
tion.
5
SAFETY 97

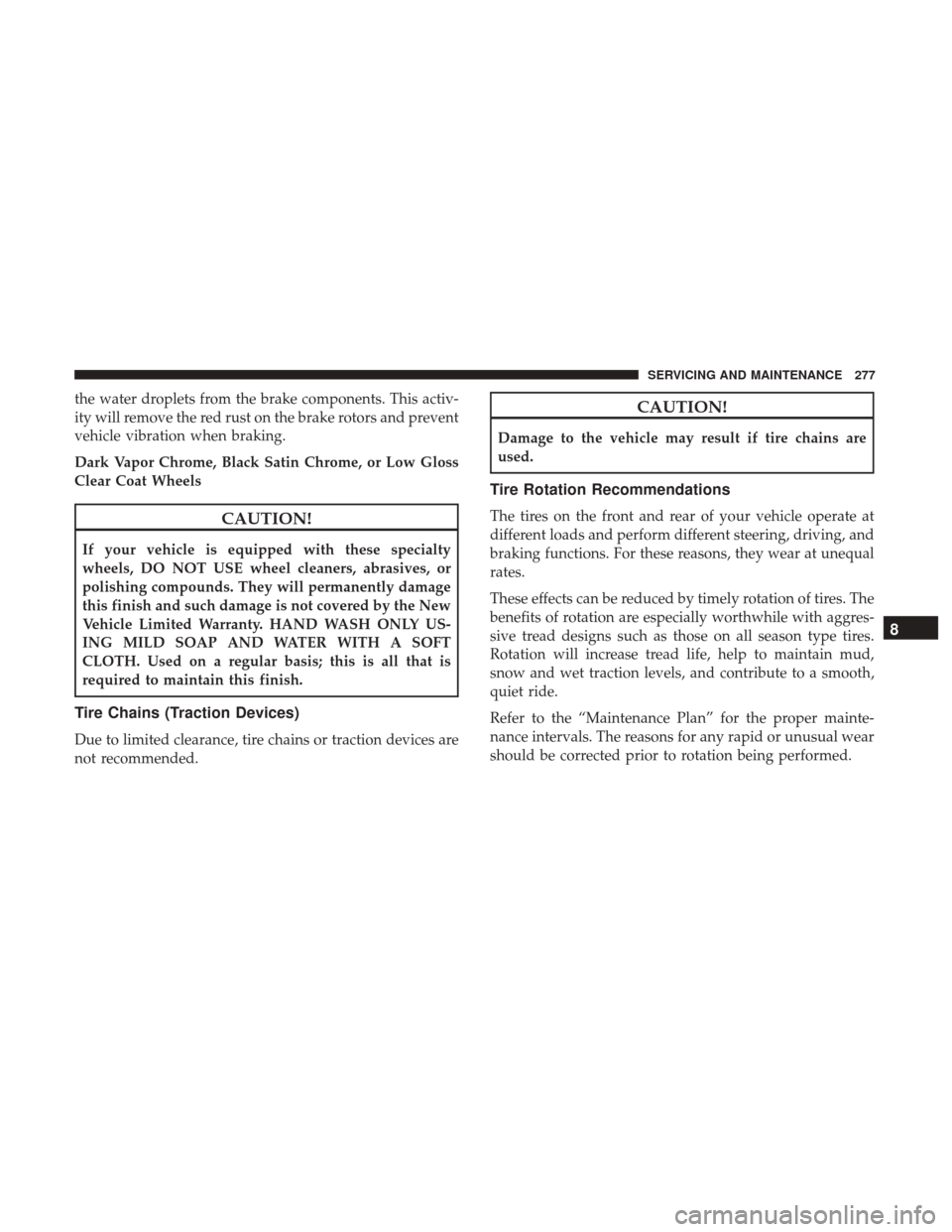

Page 279 of 348
the water droplets from the brake components. This activ-
ity will remove the red rust on the brake rotors and prevent
vehicle vibration when braking.
Dark Vapor Chrome, Black Satin Chrome, or Low Gloss
Clear Coat Wheels
CAUTION!
If your vehicle is equipped with these specialty
wheels, DO NOT USE wheel cleaners, abrasives, or
polishing compounds. They will permanently damage
this finish and such damage is not covered by the New
Vehicle Limited Warranty. HAND WASH ONLY US-
ING MILD SOAP AND WATER WITH A SOFT
CLOTH. Used on a regular basis; this is all that is
required to maintain this finish.
Tire Chains (Traction Devices)
Due to limited clearance, tire chains or traction devices are
not recommended.
CAUTION!
Damage to the vehicle may result if tire chains are
used.
Tire Rotation Recommendations
The tires on the front and rear of your vehicle operate at
different loads and perform different steering, driving, and
braking functions. For these reasons, they wear at unequal
rates.
These effects can be reduced by timely rotation of tires. The
benefits of rotation are especially worthwhile with aggres-
sive tread designs such as those on all season type tires.
Rotation will increase tread life, help to maintain mud,
snow and wet traction levels, and contribute to a smooth,
quiet ride.
Refer to the “Maintenance Plan” for the proper mainte-
nance intervals. The reasons for any rapid or unusual wear
should be corrected prior to rotation being performed.
8
SERVICING AND MAINTENANCE 277

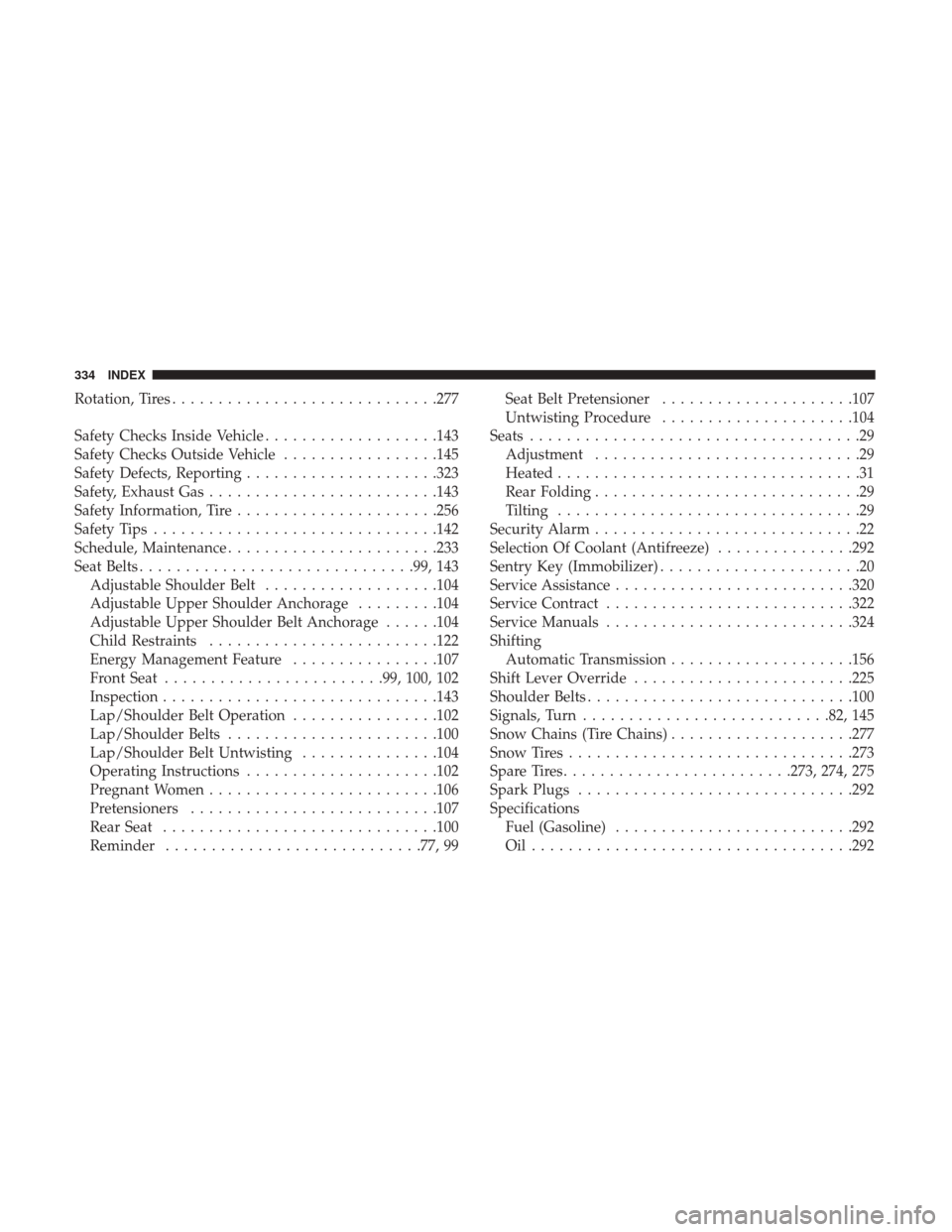

Page 336 of 348
Rotation, Tires............................ .277
Safety Checks Inside Vehicle ...................143
Safety Checks Outside Vehicle .................145
Safety Defects, Reporting .....................323
Safety, Exhaust Gas ........................ .143
Safety Information, Tire ..................... .256
Safety Tips .............................. .142
Schedule, Maintenance ...................... .233
Seat Belts ............................. .99, 143
Adjustable Shoulder Belt ...................104
Adjustable Upper Shoulder Anchorage .........104
Adjustable Upper Shoulder Belt Anchorage ......104
Child Restraints ........................ .122
Energy Management Feature ................107
Front Seat ....................... .99, 100, 102
Inspection ............................. .143
Lap/Shoulder Belt Operation ................102
Lap/Shoulder Belts ...................... .100
Lap/Shoulder Belt Untwisting ...............104
Operating Instructions .....................102
Pregnant Women ........................ .106
Pretensioners .......................... .107
Rear Seat ............................. .100
Reminder ........................... .77, 99Seat Belt Pretensioner
.....................107
Untwisting Procedure .....................104
Seats ....................................29
Adjustment .............................29
Heated .................................31
Rear Folding .............................29
Tilting .................................29
Security Alarm .............................22
Selection Of Coolant (Antifreeze) ...............292
Sentry Key (Immobilizer) ......................20
Service Assistance ......................... .320
Service Contract .......................... .322
Service Manuals .......................... .324
Shifting Automatic
Transmission ....................156
Shift Lever Override ....................... .225
Shoulder Belts ............................ .100
Signals, Turn .......................... .82, 145
Snow Chains (Tire Chains) ....................277
Snow Tires .............................. .273
Spare Tires ........................ .273, 274, 275
Spark Plugs ............................. .292
Specifications Fuel (Gasoline) ......................... .292
Oil.................................. .292
334 INDEX

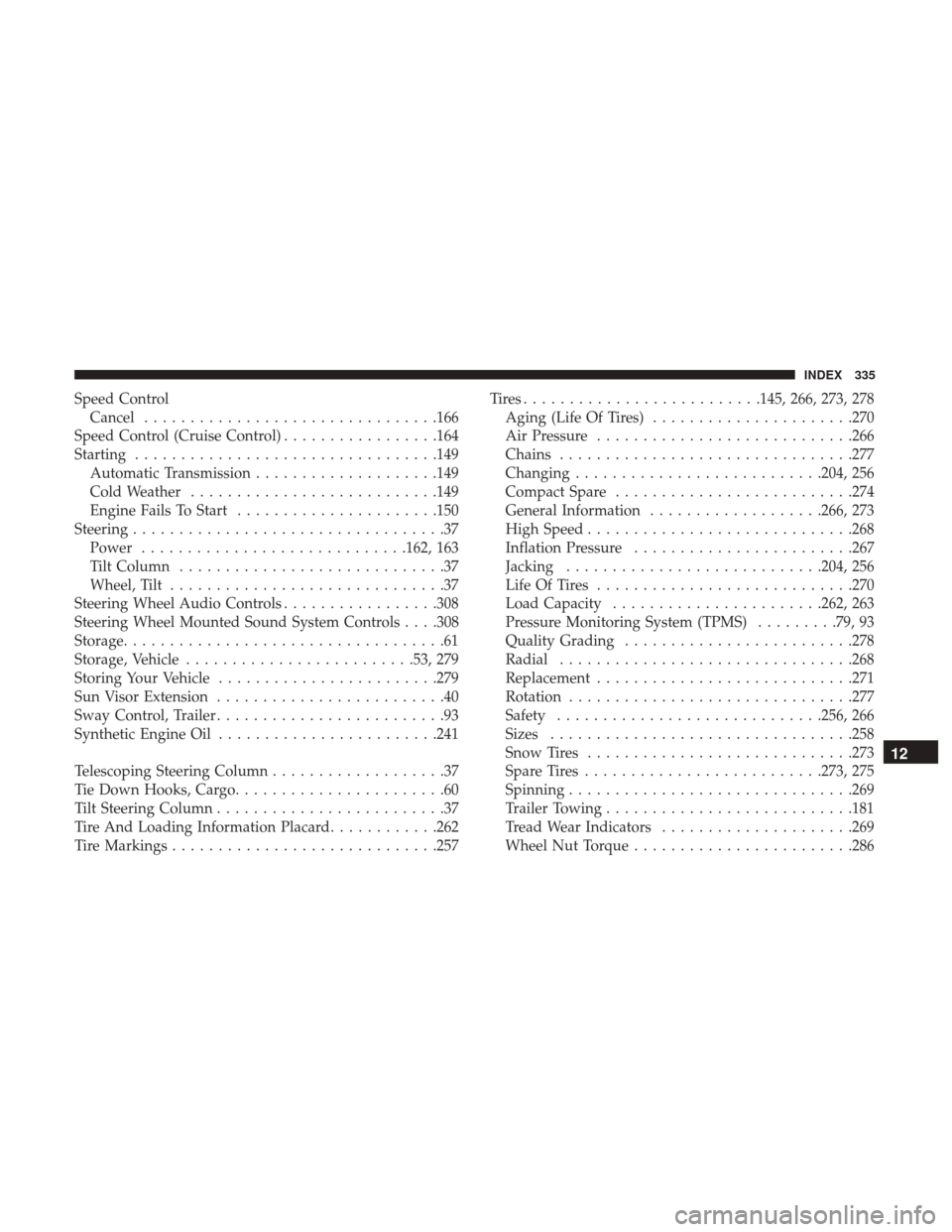

Page 337 of 348
Speed ControlCancel ............................... .166
Speed Control (Cruise Control) .................164
Starting ................................ .149
Automatic Transmission ....................149
Cold Weather .......................... .149
Engine Fails To Start ..................... .150
Steering ..................................37
Power ............................ .162, 163
Tilt Column .............................37
Wheel, Tilt ..............................37
Steering Wheel Audio Controls .................308
Steering Wheel Mounted Sound System Controls . . . .308
Storage ...................................61
Storage, Vehicle ........................ .53, 279
Storing Your Vehicle ....................... .279
Sun Visor Extension .........................40
Sway Control, Trailer .........................93
Synthetic Engine Oil ....................... .241
Telescoping Steering Column ...................37
Tie Down Hooks, Cargo .......................60
Tilt Steering Column .........................37
Tire And Loading Information Placard ............262
Tire Markings ............................ .257Tires.........................
.145, 266, 273, 278
Aging (Life Of Tires) ..................... .270
Air Pressure ........................... .266
Chains ............................... .277
Changing .......................... .204, 256
Compact Spare ......................... .274
General Information ...................266, 273
High Speed ............................ .268
Inflation Pressure ....................... .267
Jacking ........................... .204, 256
Life Of Tires ........................... .270
Load Capacity ...................... .262, 263
Pressure Monitoring System (TPMS) .........79, 93
Quality Grading ........................ .278
Radial ............................... .268
Replacement ........................... .271
Rotation .............................. .277
Safety ............................ .256,
266
Sizes ................................ .258
Snow Tires ............................ .273
Spare Tires ......................... .273, 275
Spinning .............................. .269
Trailer Towing .......................... .181
Tread Wear Indicators .....................269
Wheel Nut Torque ....................... .286
12
INDEX 335
