display RENAULT CLIO 2000 X65 / 2.G Owners Manual

1
MH
3
2



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page39
1.31
CLOCK / EXTERNAL TEMPERATURE
Clock1- setting the clock
With the ignition on, press button:
HFor hours,
MFor minutes.
External temperature
display
The formation of ice is
related to exposure, local
hygrometry and temperature.
The external temperature alone
is not sufficient to detect ice.
Clock3- setting the clock
With the ignition on:
- Briefly turn knob2to the right: the
hours will flash.
- Press knob2either briefly or
continuously to change the hour.
- Turn knob2brieflytotheright
once more: the first figure of the
minutes will flash.
- Press knob2briefly or
continuously to make the changes- Turn knob2briefly to the right
once more: the second figure of the
minutes will flash.
- Press knob2either briefly or
continuously to change the
minutes.
- To validate the clock setting, turn
button2briefly to the right.
If the electrical supply is cut
(battery disconnected, feed wire
broken, etc.), the clock display
will be incorrect.
The display must be reset.
For your safety, do not reset the
clock while you are driving.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page41
1.33
DRIVER’S LAYOUT, LEFT HAND DRIVE(continued)
The equipment fitted, described below, depends on the version, option and country.
1Demister outlet for left hand
side window.
2Left hand side vent.
3Stalk for:
• direction indicators,
• external lighting,
• front fog lights,
• rear fog lights,
• horn.
4Control instruments.
5Driver’s air bag location.
6Radio remote control.
7• Stalk for windscreen and rear
screen wash / wipe.
• On-board computer
information readout control.
8Central vents.9Display:
• clock,
• clock and temperature,
• radio, clock and temperature,
or storage tray.
10Warning lights for:
• driver’s seat belt not fastened,
• door(s) opened.
11Storage tray or passenger air
bag location.
12Right hand side vent.
13Demister outlet for right hand
side window.
14Glove box.
15Storage tray.
16Radio location or storage tray.
17Heating and ventilation,
recycled air and rear screen
de-icing controls.
18Central locking switch or
blanking cover.19Cigar lighter.
20Hazard warning lights switch.
21Handbrake.
22Ashtray.
23Gear lever.
24Ignition switch.
25Horn.
26Control for adjusting steering
wheel height.
27Storage tray.
28Controls for:
• electrical adjustment of the
headlight beam height,
• dashboard lighting rheostat,
• heated seats,
or blanking covers.
29Bonnet release control.
30Fuse box.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page43
1.35
DRIVER’S LAYOUT, RIGHT HAND DRIVE(continued)
The equipment fitted, described below, depends on the version, option and country.
1Demister outlet for left hand
side window.
2Left hand side vent.
3Storage tray or passenger air
bag location.
4Central vents.
5Display:
• clock,
• clock and temperature,
• radio, clock and temperature,
or storage tray.
6Warning lights for:
• driver’s seat belt not fastened,
• door(s) open.
7Stalk for:
• direction indicators,
• external lighting,
• front fog lights,
• rear fog lights,
• horn.
8Control instruments.
9Driver’s air bag location.10Radio remote control.
11• Stalk for windscreen and rear
screen wash / wipe.
• On-board computer
information readout control.
12Right hand side vent.
13Demister outlet for right hand
side window.
14Controls for:
• electrical adjustment of the
headlight beam height,
• dashboard lighting rheostat,
• heated seats,
or storage tray.
15Storage tray.
16Ignition switch.
17Horn.
18Control for adjusting steering
wheel height.19Central locking switch or
blanking cover.
20Cigar lighter.
21Handbrake.
22Hazard warning lights switch.
23Ashtray.
24Gear lever.
25Heating and ventilation,
recycled air and rear screen
de-icing controls.
26Radio location or storage tray.
27Storage tray.
28Glove box.
29Bonnet release control.
30Fuse box.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page49
1.41
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
8Warning light for
monitoring exhaust gas
For vehicles equipped
with this option, the light
illuminates when the ignition
is switched on and
extinguishes within 3 seconds.
- If it is permanently lit, consult
your Renault Dealer as soon
as possible.
- If it flashes, reduce the engine
speed until the light stops
flashing. Consult your
Renault Dealer as soon as
possible.
Refer to the “Special features of
petrol version” in section 2.
9Multifunction key
Resetting the trip milometer
Press the button.
Setting the clock
Refertotheinformationonthe
clock in section 1.9Display selection keyfor total
and trip mileage
10Multifunction display
Oil level display function
The vehicle must be parked on
level ground and the engine
shouldhavebeenswitchedoff
for some time to obtain an
accurate level reading.
When ignition has been
switched on for approximately
30 seconds:
-if the level is correct,the
display will show “oil OK”
(To gain a more precise
indication of the level, press
the trip melometer reset
button or the information
scroll button on the onboard
computer for vehicles fitted
with this function. The
squares in the display
indicate the level. These
squares disappear as the oil
level drops and they are
replaced by dashes.
To move to milometer
reading, press the button
again).10Multifunction display
(continued)
-if the level is at its minimum,
theword“OK”willnot
appear on the display, the
dashes and the word “oil”
will flash.
It is vital to top up with oil as
soon as possible.
General mileage and trip
mileage counter and clock
Can be read approximately 30
seconds after the ignition is
switched on.
11Low headlight
wash/wipe fluid level
warning light
Fill up with fuel as soon as
soon as possible.
Battery charge warning
light
It should go out as soon
as the engine starts. If it
illuminates while you are
driving, it indicates that the
circuit is overcharging or
discharged. Stop and have the
circuit checked.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page53
1.45
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
7Multifunction display
• Oil level display function
The vehicle must be parked on
level ground and the engine
should have been switched off
forsometimetoobtainan
accurate level reading.
When ignition has been
switched on for approximately
30 seconds:
-if the level is correct,the
display will show “oil OK”
(Togainamoreprecise
indication of the level, press
the trip milometer reset
button or the information
scroll button on the onboard
computer for vehicles fitted
with this function. The
squares which appear on the
display indicate the level.
The number of squares
displayed reduces as the oil
level drops and they are
replaced by a dash.
To move to onboard
computer reading, press the
button again).
-if the level is at its minimum,
the word “OK” will not
appear on the display, the
dashes and the word “oil”
will flash and the SERV
warning light will illuminate.
It is vital to top up the oil as
soon as possible.7• Total mileage and trip
mileage recorder
Canbereadapproximately
30 seconds after the ignition
is switched on.
or
• On board computer display
After 30 seconds, the display
will toggle depending on the
onboard computer: see the
“onboard computer” para-
graph in section 1.
8Multifunction key
• Display selection
Press briefly to move from
the total mileage to the trip
mileage and vice versa.
•Trip mileage reset button
Once the display of the the
trip mileage is selected, press
the button and hold it down.
9STOP light
It extinguishes as soon
as the engine starts.
This illuminates together with
one of the warning lights:9Engine immobiliser
warning light
This light has several
functions.
Refer to the information on the
engine immobiliser in section 1.
SERVICE warning light
This light illuminates
when the ignition is
switched on and then
extinguishes within 3 seconds.
If it illuminates when the
vehicle is being driven, it is
advisable to stop at a Renault
Dealer soon.
It illuminates together with one
of the warning lights:
Indicator light for
left-hand direction
indicator

12
3



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page58
1.50
ON-BOARD COMPUTER
1Display
2General reset and trip mileage
recorder reset button
To reset the trip mileage recorder,
the display must show the “trip
mileometer” function.
Automatic reset
Automatic resetting will occur
when the maximum of any of the
memories is exceeded.3Display selection button
Keep pressing button3to show the
following information in sequence:
a) total mileage recorder,
b) trip mileage recorder,
c) fuel used,
d) average consumption,
e) current consumption,
f) estimated range,
g) distance covered,
h) average speed.
Refer to the table on the next page
for examples of the displays.
Display flashing
If the display flashes, consult a
Renault Dealer.
Interpretation of certain values
displayed after resetting:
The values for average
consumption, range and average
speed become more stable and
more significant the further the
vehicle is driven after the last reset.In the first few miles after resetting,
you may notice:
• that the range increases as you
drive. This is normal as the average
consumption may reduce when:
- the vehicle is no longer
accelerating,
- the engine reaches normal
operating temperature (reset
when engine was cold),
- you drive from a built up area to
the open road.
If average consumption is
decreased, the expected range
will therefore increase.
• average consumption increases
when the vehicle is stationary and
idling.
This is normal as the computer
takes into account the fuel used
during idling.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page59
1.51
ON-BOARD COMPUTER(continued)
Examples of
display selections by
pressing button3Interpreting the display
a) Total mileage recorder.
b) Trip mileage recorder.
c) Fuel used(in litres or gallons) since the last reset.
d) Average consumption(in mpg or l/100 km) since the last reset.
The value is displayed after covering 400 metres taking into account the
distance covered and the fuel used since the last reset.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page60
1.52
ON-BOARD COMPUTER(continued)
Examples of
display selections by
pressing button3Interpreting the display
e) Current consumption(in mpg or litres/100 km)
The value is displayed after reaching a speed of 15 mph (25 km/h).
f) Estimated range with remaining fuel(in miles or km)
This function uses the average consumption since the last general reset.
The value is displayed after covering 400 metres.
g) Distance covered(in miles or km) since the last reset.
h) Average speed(in mph or km/h) since the last reset.
The value is displayed after covering 400 metres.

A
B
C
E
F
G
H
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page10
2.10

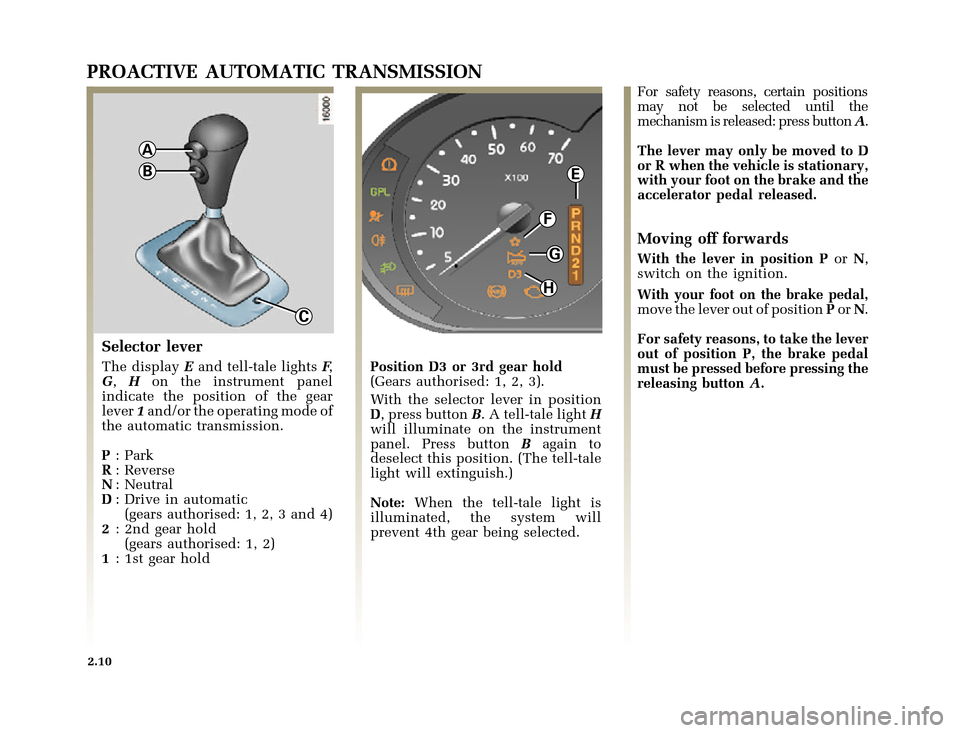

PROACTIVE AUTOMATIC TRANSMISSION
Selector lever
The displayEand tell-tale lightsF,
G,Hon the instrument panel
indicate the position of the gear
lever1and/or the operating mode of
the automatic transmission.
P: Park
R: Reverse
N: Neutral
D: Drive in automatic
(gears authorised: 1, 2, 3 and 4)
2: 2nd gear hold
(gears authorised: 1, 2)
1: 1st gear holdPosition D3 or 3rd gear hold
(Gears authorised: 1, 2, 3).
With the selector lever in position
D, press buttonB. A tell-tale lightH
will illuminate on the instrument
panel. Press buttonBagain to
deselect this position. (The tell-tale
light will extinguish.)
Note:When the tell-tale light is
illuminated, the system will
prevent 4th gear being selected.For safety reasons, certain positions
may not be selected until the
mechanism is released: press buttonA.
The lever may only be moved to D
or R when the vehicle is stationary,
with your foot on the brake and the
accelerator pedal released.
Moving off forwards
With the lever in position PorN,
switch on the ignition.
With your foot on the brake pedal,
move the lever out of positionPorN.
For safety reasons, to take the lever
out of position P, the brake pedal
must be pressed before pressing the
releasing buttonA.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T4.WIN 16/10/2000 11:23-page3
4.03
ENGINE OIL LEVEL
It is normal for an engine to use oil
for lubrication and cooling of
moving parts and it is sometimes
necessary to top up the level
between oil changes.
However, if more than 0.5 litre is
used every 625 miles (1000 km)
aftertherunninginperiodconsult
your Renault Dealer.
Oil change frequency: Check the oil
level from time to time and
certainly before any long journey,
to avoid the risk of damaging your
engine.
Reading the oil level
The car must be parked on level
ground and the engine should have
been switched off for some time
beforehand to obtain an accurate
reading.
The oil level can be read:
- on the instrument panel;
- using the dipstick.Reading the level on the instrument
panel
When ignition has been switched
on for approximately 30 seconds:
-if the level is correct, the display
will show “oil OK”: display
message1
Special note:To gain a more
precise indication of the level,
press the trip mileage counter
reset button or the information
scroll button on the onboard
computer.The squares which appear on the
display indicate the level. The
number of squares displayed
reduces as the oil level drops and
they are replaced by a dash: display
message2.
To move to onboard computer
reading, press the button again).
-if the level is at its minimum,the
word “OK” will not appear on the
display, the dashes and the word
“oil” will flash (display message3)
and the indicator light
illuminates in the instrument
panel on some versions.
It is vital to top up the oil as soon
as possible.
Message 1
Maximum
level
Message 2
Level
display
function
Message 3
Minimum
level
(flashing)
