RADIO FREQUENCY REMOTE CONTROL(continued)
The range within which the remote
control will operate
This varies according to the
environment: therefore take care
when handling the remote control
that you do not inadvertently lock
or unlock the doors.
Note:On certain vehicles, if a door
is not opened within approximately
30 seconds of unlocking the door
using the remote control, the doors
will lock again automatically.
Interference
Interference may be caused to the
operation of the remote control by
factors in the immediate vicinity
(external installations or the use of
equipment operating on the same
frequency as the remote control).If you lose your keys or need
another set of keys (or a remote
control),contact your RENAULT
Dealer.
• If a remote control unit is
replaced, it will be necessary to
take the vehicle to your
RENAULT Dealer because both
the vehicle and all the remote
control units are needed to
initialise the system.
• No more than two remote controls
can be used on one vehicle.
• Make sure that the batteries are
always in good condition - they
last for approximately two years.
Page 12 of 210
1
2
5
4
3
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T1.WIN 4/11/2002 13:44-page12
1.04
OPENING THE DOORS
Opening the doors from the
outside
Front:Use the key to unlock the
front door lock2.Slipyourhand
under the handle1and pull it
towards you.
Rear:When the front door is open,
lift the unlocking knob3from
inside and pull the door handle.
Opening the doors from inside
the vehicle
Move handle4.
Lights on warning buzzer
If you have left the lights switched
on after turning off the ignition, a
warning buzzer will sound when a
door is opened (risk of battery
discharge).
Childproof locks
To prevent the rear doors being
opened from inside the vehicle,
move lever5on each door and
check from inside the car that both
doors are securely locked.
Page 13 of 210
2
1
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T1.WIN 4/11/2002 13:44-page13
1.05
LOCKING THE DOORS
Manual locking
Front: Use the key from the outside.
Rear: Press down knob1in each
door.
Electric central locking
This enables the doors and
the luggage compartment to be
locked or unlocked simultaneously.
Lock by pressing the indicator light
on switch2.
The front door mechanism cannot
be locked if the door is open.
Opening status warning light
The warning light on switch2
informs you of the closure status of
the doors and tailgate:
- the light comes on when the doors
are locked;
- when a door is opened (or
incorrectly closed) the indicator
light goes out.
When you lock the doors using the
plip remote control, the indicator
light remains lit for approximately
one minute then goes out.
If you decide to keep the
doors locked when you
are driving, remember
that it may be more
difficult for those assisting you
to gain access to your vehicle in
the event of an emergency.
Page 14 of 210
1
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T1.WIN 4/11/2002 13:44-page14
1.06
AUTOMATIC LOCKING OF DOORS, ETC. WHEN DRIVING
You must first decide if you want to
activate this function.
To activate
With the ignition on, press the
central door locking button1for
approximately 5 seconds, until you
hear the beep.
To deactivate
With the ignition on, press the
central door locking button1for
approximately 5 seconds, until you
hear the beep.
If you decide to keep the
doors locked when you
are driving, remember
that it may be more
difficult for those assisting you
to gain access to your vehicle in
the event of an emergency.
Operating principle
When the vehicle moves off, the
system automatically locks the
doors,etc.assoonasaspeedof4
mph (6 km/h) is attained. The
indicator light on button1light ups.
Unlocking occurs automatically:
- if a front door is opened.
Note:If a rear door is opened, this
will be locked again automatically
when the vehicle attains a speed of
approximately 4 mph (6 km/h).
- by pressing the door unlocking
button1.
Operating incident
If you note that the system is not
operating correctly (automatic
locking does not take place, the
indicator light on button1does not
light up when the doors, etc. are
locked), first of all check that all the
doors, etc. are properly closed.
However, if they are closed
correctly, consult your Renault
Dealer.
Also make sure that locking has not
been deactivated inadvertently. If
this occurs, switch the ignition off
and on again and reactivate it as
described above.
Page 15 of 210
1
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T1.WIN 4/11/2002 13:44-page15
1.07
ENGINE IMMOBILISER
This prevents the engine being
started by anyone who does not
have the coded key for the vehicle.
Any operation on or
modification to the
immobiliser system
(computers, wiring, etc.)
may be dangerous. It must be
carried out by qualified
RENAULT personnel.
Operating principle
The vehicle is automatically
protected a few seconds after the
key has been removed from the
ignition.
When the ignition is switched on,
warning light1comesonforafew
seconds then goes out.
The vehicle has recognised the code
and the engine may be started.
If the code of the ignition key is not
recognised by the vehicle, warning
light1will flash continuously and
the engine cannot be started.
Indicator light
System operational indicator light
When the ignition is switched on,
indicator light1lights up
continuously for approximately
three seconds and then goes out.
You can then start the engine.
Vehicle protection indicator light
A few seconds after the ignition has
been switched off, indicator light1
will flash continuously.
The vehicle will not be protected
until the key has been taken out of
the ignition.
Page 16 of 210
1
2
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T1.WIN 4/11/2002 13:44-page16
1.08

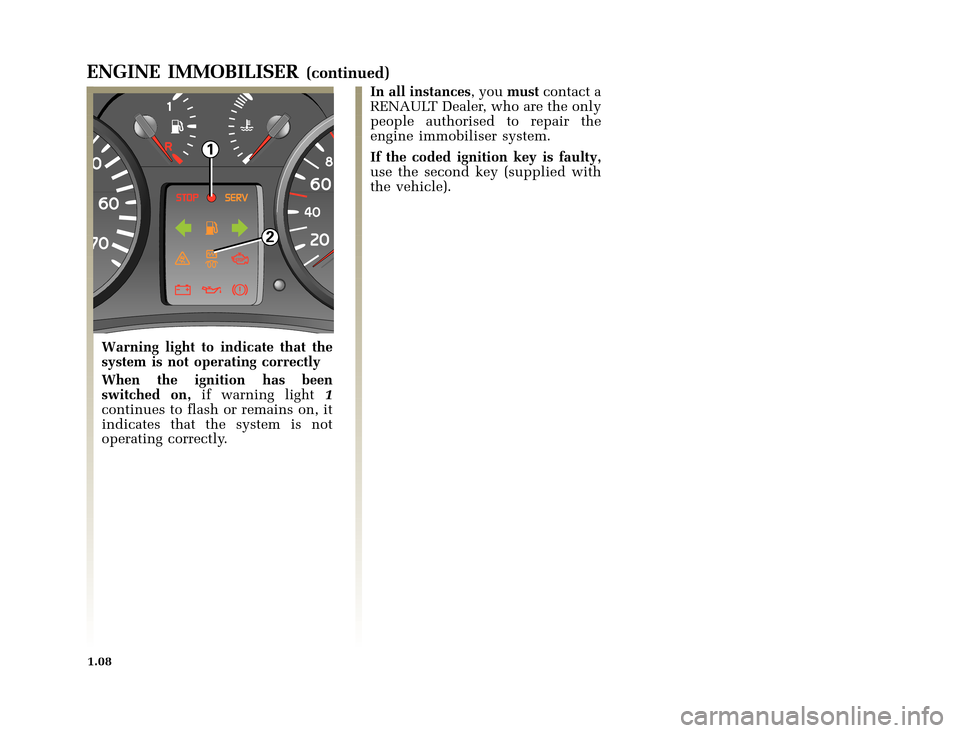

ENGINE IMMOBILISER(continued)
Warning light to indicate that the
system is not operating correctly
When the ignition has been
switched on,if warning light1
continues to flash or remains on, it
indicates that the system is not
operating correctly.In all instances, youmustcontact a
RENAULT Dealer, who are the only
people authorised to repair the
engine immobiliser system.
If the coded ignition key is faulty,
use the second key (supplied with
the vehicle).
Page 17 of 210
A1
1
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T1.WIN 4/11/2002 13:44-page17
1.09
HEAD RESTRAINTS
To raise or lower the headrest
Pull the headrest towards you (i.e.
towards the front of the vehicle) and
slide it up or down at the same time.
To adjust the angle of the headrest
On certain vehicles the angle of the
headrest can be adjusted. To do this,
move the front sectionAof the
headrest forwards or backwards
until it feels comfortable.To remove the headrest
First incline the seatback towards
the rear.
Raise the headrest until it is at the
highest possible setting. Lift up
tab1and then pull the headrest
upwards until it is released.
To refit the headrest
Insert the rods into the sleeves, with
the notches facing the front.
Lower the headrest until it locks in
position.The head restraint is
important for safety: ensure
that it is positioned
correctly. The distance
between your head and the head
restraint should be as small as
possible, and the top of the head
restraint should be as close as
possible to the top of your head.
Page 18 of 210
11
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T1.WIN 4/11/2002 13:44-page18
1.10
REAR HEAD RESTRAINTS
To adjust the height
Simply slide it up.
To remove it
Press tab1.
To refit the headrest
Insert the rods into the sleeves, with
the notches to the front, and lower
the headrest to the desired height.Storage position
When the headrest is fully lowered,
it is in the storage position;do not
use this position when someone is
sitting in the rear seats.
The head restraint is
important for safety: ensure
that it is positioned
correctly. The distance
between your head and the head
restraint should be as small as
possible, and the top of the head
restraint should be as close as
possible to the top of your head.
Page 19 of 210
2
3
4
1
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T1.WIN 4/11/2002 13:44-page19
1.11

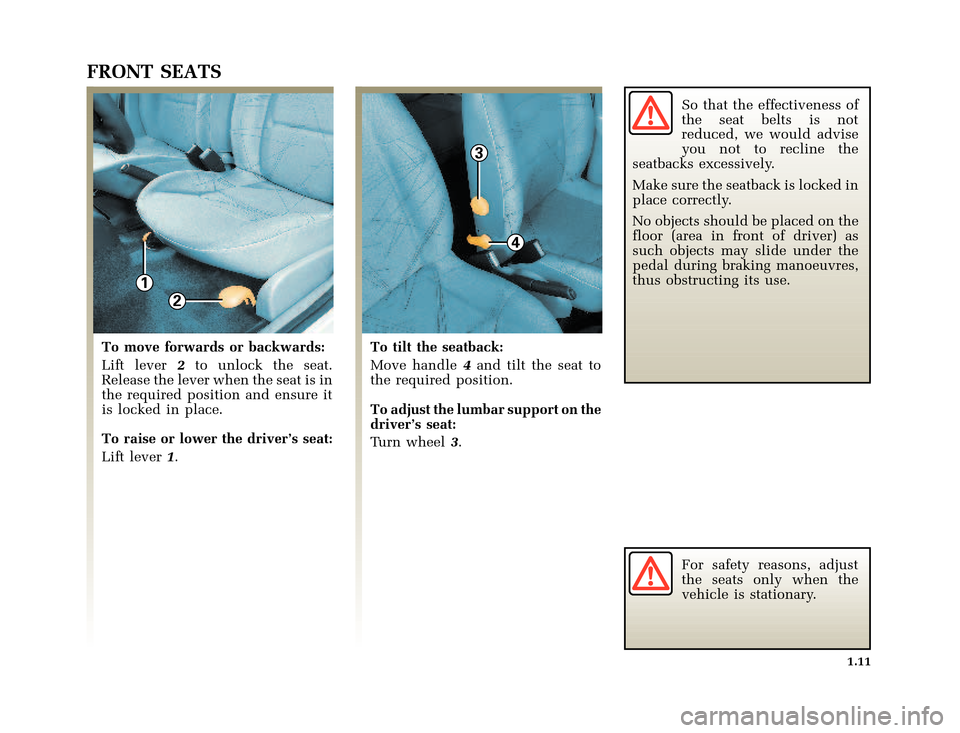

FRONT SEATS
To move forwards or backwards:
Lift lever2to unlock the seat.
Release the lever when the seat is in
the required position and ensure it
is locked in place.
To raise or lower the driver’s seat:
Lift lever1.To tilt the seatback:
Move handle4and tilt the seat to
the required position.
To adjust the lumbar support on the
driver’s seat:
Turn wheel3.So that the effectiveness of
the seat belts is not
reduced, we would advise
you not to recline the
seatbacks excessively.
Make sure the seatback is locked in
place correctly.
No objects should be placed on the
floor (area in front of driver) as
such objects may slide under the
pedal during braking manoeuvres,
thus obstructing its use.
For safety reasons, adjust
the seats only when the
vehicle is stationary.
Page 20 of 210
5
6
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T1.WIN 4/11/2002 13:44-page20
1.12
FRONT SEATS(continued)
Access to the rear seats
(three-door versions)
Lift lever5and slide the seat
forwards.
To return the seat to its original
position (memorised position) on
the driver's side, slide the seat
backwards until it locks.
Heated seats
With the ignition switched
on, press the switch located on the
rail cover6. An indicator light will
light up on the instrument panel.
The system is not necessarily
activated if the indicator light is lit
up. The system has a thermostat and
only operates when the passenger
compartment temperature is less
than 12°C (with a tolerance of plus
or minus 4°C).
