central door locking ..............................(up to the end of the DU)doors/tailgate ........................................(up to the end of the DU)locking the doors ..................................(up to the end of the DU)unlocking the doors ..............................(up to the end of the DU)closing the doors ..................................(up to the end of the DU)opening the doors .................................(up to the end of the DU)
1.15
ENG_UD14658_2Verrouillage / Déverrouillage des portes (X85 - B85 - C85 - S85 - K85\
- Renault)ENG_NU_853-3_BCSK85_Renault_1
Use of key 1 or 3
Insert the key into lock
2 then lock or unlock.
–
depending on the vehicle, use of
remote control key 1 , separate key 3, or the emergency key integrated in the card for the front left-hand door;
– manual locking of each of the doors;
– using the interior door locking/un
- locking control.
Locking/unlocking from the
outside
This is done using the RENAULT remote control unit: refer to the information on “Radio frequency remote control: gen- eral information” and “RENAULT card: general information”.
In some cases, the key/radio frequency remote control and the RENAULT card may not work:
– when the RENAULT card battery is
drained, flat battery, etc.
– use of appliances operating on the
same frequency as the card (mobile phone, etc.);
– vehicle located in an area with high
electromagnetic radiation.
There are four options:
– use of the key/remote control unit or
the RENAULT card near to the left- hand door mirror;
LOCKING/UNLOCKING THE DOORS (1/3)
1
2
3
2
Page 22 of 264
Downloaded from www.Manualslib.com manuals search engine
1.16
ENG_UD14658_2Verrouillage / Déverrouillage des portes (X85 - B85 - C85 - S85 - K85\
- Renault)ENG_NU_853-3_BCSK85_Renault_1
JauneNoirNoir texte
LOCKING/UNLOCKING THE DOORS (2/3)
Manual locking of each of the doors
With the door open, turn screw
6 using
key 4 and close the door again. This means that the doors are then locked from the outside.
The doors can only be opened from the inside or outside of the vehicle using the key for the front left-hand door.
Insert key
4 into the lock of the front left-hand door and lock or unlock.Use of emergency key 4 integrated in the RENAULT card
Insert the end of emergency key
4 into
hole 5.
Move it upwards to remove cover
A.
A
5446
Page 23 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.17
ENG_UD14658_2Verrouillage / Déverrouillage des portes (X85 - B85 - C85 - S85 - K85\
- Renault)ENG_NU_853-3_BCSK85_Renault_1
Driver’s responsibility
Never leave your vehicle with the key or RENAULT card inside.
If you decide to keep the doors locked whilst driving, remember that it may be more difficult for those as- sisting you to gain access to your vehicle in the event of an emer- gency.
To lock the vehicle leaving a door open (e.g. when transporting some- thing in the luggage compartment which prevents it from closing), or when the vehicle is located in a zone where there is a high level of electromagnetic radiation, or if the key or RENAULT card fails: with the
ignition off, press switch
7 for more than five seconds.
Doors and tailgate status
indicator
When the ignition is on, the indicator
light integrated in switch 7 informs you of the status of the doors and tailgate:
– indicator light on, the doors and tail
- gate are locked;
– light off, the doors and tailgate are
unlocked.
When the ignition is off, the indicator light remains lit and then goes out when
you lock the doors.
Using the door locking/unlocking in- terior control.
With the ignition off and a front door
open, press switch 7 for more than five seconds.
Make sure you have your key or RENAULT card with you before leaving your vehicle.
When the door is closed, all the doors and the tailgate will be locked.
Unlocking from outside the vehicle is
only possible with the key, RENAULT card or emergency key.
Locking/unlocking from the
inside: switch
7
This simultaneously controls the open- ing elements (doors and tailgate) and the fuel filler flap.
If a door is open or not properly closed, the doors lock and then quickly unlock.
LOCKING/UNLOCKING THE DOORS (3/3)
7
Page 24 of 264
Downloaded from www.Manualslib.com manuals search engine
central door locking ..............................(up to the end of the DU)doors/tailgate ........................................(up to the end of the DU)locking the doors ..................................(up to the end of the DU)RENAULT ANTI-INTRUDER DEVICE (RAID) .......(current page)closing the doors ...................................................(current page)
1.18
ENG_UD10517_1Condamnation automatique des ouvrants en roulage (X85 - B85 - C85 - S85\
- K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
Operating faults
If you find an operating fault (no auto- matic locking, the indicator light incor-
porated in button 1 does not light up when trying to lock the doors and tail- gate, etc.), firstly check that the doors and tailgate are properly closed. If they are closed correctly, contact an ap- proved Dealer.
To activate it
Depending on the vehicle, with the ignition on or the engine running, press and hold central door locking button 1 for approximately 5 seconds, until you hear a beep.
To deactivate
Depending on the vehicle, with the ignition on or the engine running, press and hold central door locking button 1 for approximately 5 seconds, until you hear a beep.

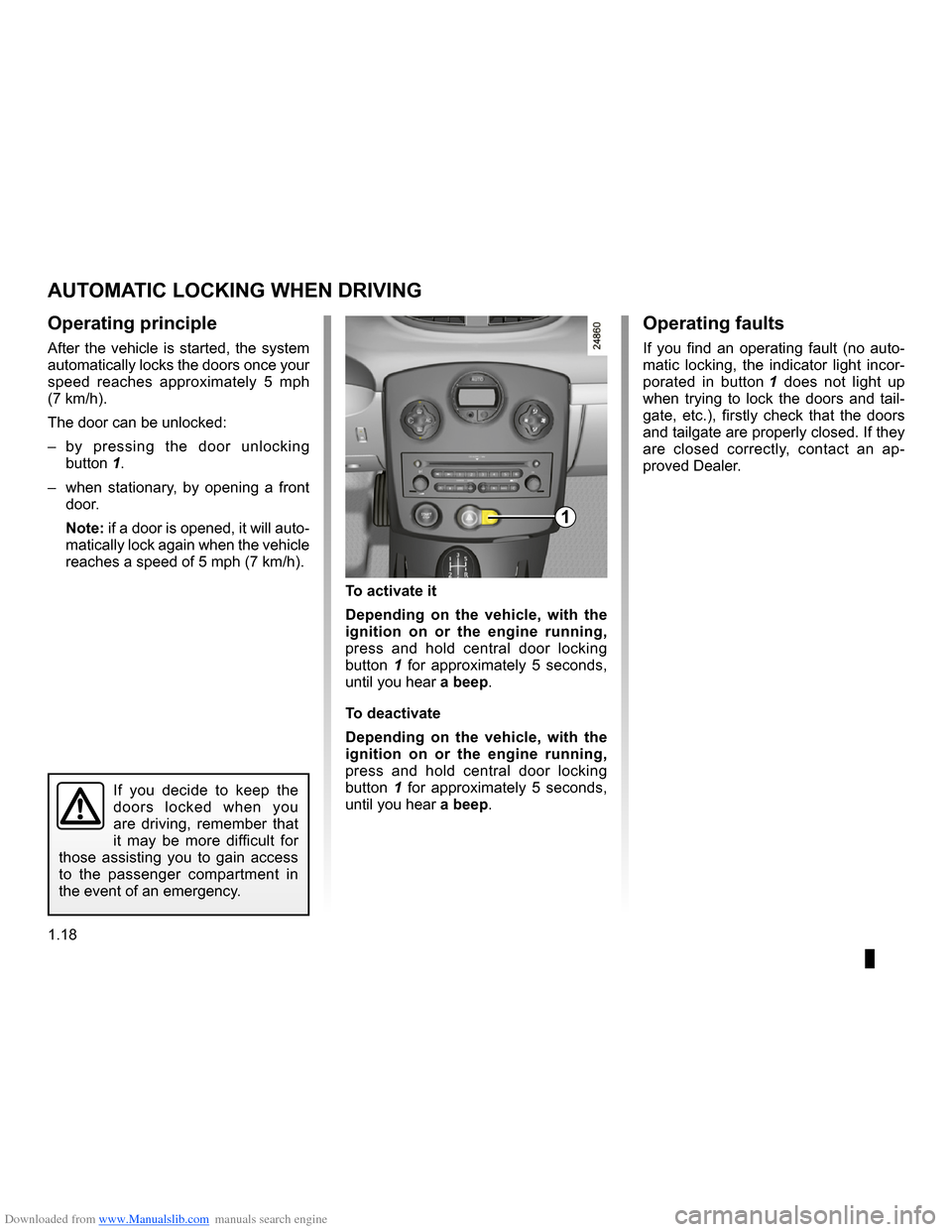

Automatic locking when driving
If you decide to keep the doors locked when you are driving, remember that it may be more difficult for those assisting you to gain access to the passenger compartment in
the event of an emergency.
Operating principle
After the vehicle is started, the system automatically locks the doors once your speed reaches approximately 5 mph
(7 km/h).
The door can be unlocked:
– by pressing the door unlocking
button 1.
– when stationary, by opening a front
door.
Note: if a door is opened, it will auto- matically lock again when the vehicle reaches a speed of 5 mph (7 km/h).
AUTOMATIC LOCKING WHEN DRIVING
1
Page 25 of 264
Downloaded from www.Manualslib.com manuals search engine
engine immobiliser................................(up to the end of the DU)engine immobiliser................................(up to the end of the DU)
1.19
ENG_UD10518_1Système antidémarrage (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
Engine immobiliser
Operating fault warning light
If the warning light continues to flash or stays lit up permanently following an at- tempt to start the engine, this indicates a fault in the system.
In this case, use the second key or card (supplied with the vehicle). If the fault is still present, contact an approved Dealer, as they are the only personnel qualified to repair the engine immobi- liser system.
If there is interference and/or the hands- free RENAULT card is not recognised, move the card or insert it fully into the card reader.Vehicle protection tell-tale
light
After the ignition has been switched off, warning light 1 flashes and the vehicle is protected.
This prevents anyone not in posses- sion of the vehicle’s coded ignition key or card from starting the engine.
Operating principle
When the engine is started, warning
light 1 remains lit for a few seconds then goes out (refer to the information on “Starting the engine” in Section 2).
The vehicle is automatically protected a few seconds after the engine is switched off.
ENGINE IMMOBILISER
1
Any unauthorised work
carried out on the engine immobiliser (computers, wiring, etc.) could be dan- gerous. Work must be carried out by qualified personnel.
Page 26 of 264
Downloaded from www.Manualslib.com manuals search engine
headrest................................................(up to the end of the DU)adjusting your driving position ..............(up to the end of the DU)
1.20
ENG_UD15288_2Appuis-tête avant (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
JauneNoirNoir texte
Headrests - Seats
To refit the headrest
If the rod setting has been altered, pull rods 3 out fully (check that they are properly aligned and clean). If you are having difficulty, check that the notches are facing the front.
Insert the headrest rods into the holes (tilt the seatback backwards if neces- sary).
Lower the headrest until it locks, press
button 1 and lower the headrest as far as possible.
Check that each rod
3 on the seatback is securely locked.
FRONT HEADRESTS (1/2)
1
2
3
Headrest (height may be
adjusted with button 1)
To raise the headrest
Pull the headrest upwards to the de- sired height.
To lower the headrest
Press button
1 and guide the headrest
down to the desired height.
To raise the headrest
Raise the headrest to its highest po- sition (tilt the seatback backwards if
necessary). Press button 2 and lift the headrest to release it.
Note: when the headrest is removed, take care not to change the positions
of rods 3.
Page 27 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.21
ENG_UD15288_2Appuis-tête avant (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
2
Fixed headrest (without
button 1)
To raise the headrest
Press button
2 and lift the headrest to release it.
To refit the headrest
Insert the headrest rods into the holes
(tilt the seatback backwards if neces- sary).Push the headrest in until it locks in po- sition.
The headrest is a safety component. Ensure that it is fitted and in the correct po- sition: the top of your head should be in line with the top of the headrest.
FRONT HEADRESTS (2/2)
Page 28 of 264
Downloaded from www.Manualslib.com manuals search engine
adjusting your driving position ..............(up to the end of the DU)front seat adjustment ............................(up to the end of the DU)front seatsadjustment ......................................(up to the end of the DU)heated seats ..........................................................(current page)
1.22
ENG_UD14659_2Sièges avant (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
JauneNoirNoir texte
To raise or lower the seat
base
Move lever 2 as many times as neces- sary upwards or downwards.
Heated seats(depending on vehicle)
With the ignition switched on, press switch 3 on the required seat. The indi- cator light in the switch lights up.The system, which has a thermostat, regulates the heating and deactivates it if necessary.
To move forwards or
backwards
Lift handle 1 underneath the seat to re- lease. Release the handle once the seat is in the correct position and ensure that the seat is fully locked into position.
FRONT SEATS (1/2)
2
1
3
For safety reasons, carry
out any adjustments when the vehicle is not being driven.Nothing should be placed on the floor (area in front of driver) as such objects may slide under the pedal during braking manoeuvres, thus obstructing its use.
To tilt the seatback
Turn control knob 5 and tilt the seat- back to the desired position.
To adjust the lumbar support
on the driver’s seat
Turn control knob 4.
4
5
We would advise you not to recline the seatbacks too far to ensure that the effec- tiveness of the seat belts is not reduced.
Page 29 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.23
ENG_UD14659_2Sièges avant (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
Access to the rear seatsthree door version
Lift handle 6, tilt the seatback and slide the seat forwards.
To return the seat to its original position (memorised position depending on ve- hicle):
– slide the seat backwards until it
locks;
– lift the seatback until it locks.
Make sure the seat is correctly locked in position.
FRONT SEATS (2/2)
6
When a person, an object or a child seat prevents the front seats from lock- ing, perform the following operations:
– ask all of the passengers to leave the vehicle and remove any bulky objects from the rear seats;
– lock the seat(s) in the initial position again;
– move the seat(s) forwards in order to create sufficient space;
– ask the passengers to get back into the vehicle, and refit the child seat or objects on the rear seats.1
Do not move handle 1 and handle 6 at the same time.
Check that no object or person prevents the front seat from locking. If so, r e m o v e a n y o b s t a c l e s behind the front seats. Adjust the seat to allow sufficient room in the rear. The rear occupants/objects should then return to the vehicle.
Repeat the above until the seat is locked correctly.
Risk of seat moving on its runners during vehicle acceleration or brak- ing.
Page 30 of 264
Downloaded from www.Manualslib.com manuals search engine
seat belts ..............................................(up to the end of the DU)adjusting your driving position ..............(up to the end of the DU)front seatsadjustment .......................................................(current page)driving positionsettings ...........................................(up to the end of the DU)
1.24
ENG_UD14660_3Ceintures de sécurité (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
JauneNoirNoir texte
Always wear your seat belt when trav- elling in your vehicle. You must also comply with the legislation of the par- ticular country you are in.
Seat belts
SEAT BELTS (1/4)
1
2
I n c o r r e c t l y a d j u s t e d o r twisted seat belts may cause injuries in the event of an accident.
U s e o n e s e a t b e l t p e r person, whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that the lap belt is not exerting too much pressure on the abdomen, but do not allow any slack.
Before starting, first adjust your driv- ing position, then ask all occupants to adjust their seat belt to ensure op- timum protection.
Adjusting your driving
position– Sit well back in your seat (having first removed your coat or jacket). This is essential to ensure your back is positioned correctly;
– adjust the distance between the seat and the pedals. Your seat should be as far back as possible while still allowing you to depress the clutch pedal fully. The seatback should be adjusted so that your arms are slightly bent when you hold the steering wheel;
– adjust the position of your head- rest. For the maximum safety, your head must be as close as possible to the headrest;
– adjust the height of the seat. This adjustment allows you to select the
seat position which offers you the best possible view;– adjust the position of the steering wheel.
Adjusting the seat belts
Sit with your back firmly against the seatback.
Shoulder strap
1 should be as close as possible to the base of the neck but not on it.
Lap belt
2 should be worn flat over the thighs and against the pelvis.
The belt should be worn so that it is as close as possible to your body, i.e.: avoid wearing heavy clothing or keep- ing bulky objects under the belts, etc.
Make sure that the rear bench seat is locked in position correctly so that the rear seat belts will operate effi- ciently. Refer to the information on the “Rear bench seat: functions” in Section 3.
