air bagdeactivating the front passenger air bags ........(current page)front passenger air bag deactivation .....................(current page)child restraint/seat .................................................(current page)child safety.............................................................(current page)child restraint/seat .................................................(current page)transporting children ..............................................(current page)
1.46
ENG_UD10530_1Sécurité enfants : désactivation/activation airbag passager ava\
nt (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
JauneNoirNoir texte
Deactivating and activating the front passenger airbag
CHILD SAFETY : deactivating/activating the front passenger air bag (1/2)
Deactivating the front
passenger airbags(on equipped vehicles)
You must deactivate the devices in ad- dition to the front passenger seat belt before fitting a child seat in the front passenger seat.
To deactivate the airbags: with the vehicle stopped and the ignition off,
push and turn lock 1 to the OFF posi- tion.
With the ignition on, you must check
that indicator light
2 ] is lit on the central display and, depending on the vehicle, that the message “Passenger airbag deactivated” is displayed.
This light remains permanently lit to let you know that you can fit a child seat.
The passenger airbag must only be deactivated or acti- vated when the vehicle is stationary.
I f i t i s i n t e r f e r e d w i t h w h e n the vehicle is being driven, indicator
lights å and © will come on.
Switch the ignition off then on again to reset the air bag in accordance with the lock.
DANGER
S i n c e f r o n t p a s s e n g e r airbag triggering and the position of a rear-facing child seat are incompatible, it is not permitted to fit such a seat in this position unless the vehicle is fitted with an airbag deactivation device. The child may suffer very serious in- juries if the airbag is triggered.
The markings on the dashboard and the sun visor remind you of these in- structions.
1
2
Page 53 of 264
Downloaded from www.Manualslib.com manuals search engine
air bagactivating the front passenger air bags ............(current page)
JauneNoirNoir texte
1.47
ENG_UD10530_1Sécurité enfants : désactivation/activation airbag passager ava\
nt (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
CHILD SAFETY : deactivating/activating the front passenger air bag (2/2)
Activating the front
passenger air bags
You should reactivate the airbags as soon as you remove the child seat from the front passenger seat to ensure the protection of the front passenger in the event of an impact.
To reactivate the airbags: with the vehicle stopped and the ignition off,
push and turn lock
1 to the ON posi- tion.
With the ignition on, you must check
that the ] warning light 2 is off.The front passenger seat belt additional
restraint systems are activated.
Operating faults
It is forbidden to fit a rear-facing child seat to the front passenger seat if the airbags activation/deactivation system is faulty.
Allowing any other passenger to sit in that seat is not recommended.
Contact your approved dealer as soon as possible.
The passenger airbag must only be deactivated or acti- vated when the vehicle is stationary.
I f i t i s i n t e r f e r e d w i t h w h e n the vehicle is being driven, indicator
lights å and © will come on.
Switch the ignition off then on again to reset the airbag in accordance with the lock position.
DANGER
S i n c e f r o n t p a s s e n g e r airbag triggering and the position of a rear-facing child seat are incompatible, it is not permitted to fit such a seat in this position unless the vehicle is fitted with an airbag deactivation device. The child may suffer very serious in- juries if the airbag is triggered.
The markings on the dashboard and the sun visor remind you of these in- structions.
1
2
Page 67 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.61
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
TRIP COMPUTER AND WARNING SYSTEM (3/10)
Resetting the trip mileage
With the display set to “trip mileage re-
corder”, press and hold button 1 or 2, or
press and hold buttons 1 and 2 simul- taneously.
Resetting the journey
parameters (reset button)
With the display set to one of the jour- ney parameters, press and hold but-
ton 1 or 2, or the two buttons simulta- neously.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con- sumption, range and average speed will become more stable and reliable the further you travel after pressing the reset button.
For the first few miles after pressing the reset key you will notice that the range increases as you travel. This range takes into account the average fuel consumption since the last time the reset button was pressed. Therefore, the average fuel consumption may de- crease when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold when reset key was pressed);
– when driving from a built-up area
onto the open road.
Automatic resetting of the
journey parameters
Resetting occurs automatically when the maximum value of any of the pa- rameters is exceeded.
1
2
Page 68 of 264
Downloaded from www.Manualslib.com manuals search engine
1.62
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
JauneNoirNoir texte
TRIP COMPUTER AND WARNING SYSTEM (4/10)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of display selections by pressing button 2
Interpreting the display selected
Display ADisplay B
251852518525161a) Total mileage recorder(visible on the first line of the display B)
251862518625161Trip mileage recorder
(visible on the second line of the display B)
251872518725162b) Journey parametersFuel consumed since the last reset.
251882518825163Average fuel consumption since the last reset.This value is displayed after driving 400 metres and takes into account the distance travelled and the fuel used since the last time the reset button was pressed.
Page 69 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.63
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
TRIP COMPUTER AND WARNING SYSTEM (5/10)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of display selections by pressing button 2
Interpreting the display selected
Display ADisplay B
251782517825158Current fuel consumptionThis value is displayed after a speed of approximately 18 mph (30 km/h) is reached.
251792517925164Estimated range with remaining fuelThis range takes into account the average fuel consumption since the last time the reset button was pressed.The value is displayed after driving 400 metres.
251802518025159Distance travelled since the last reset.
251812518125160Average speed since the last reset.The value is displayed after driving 400 metres.
Page 70 of 264
Downloaded from www.Manualslib.com manuals search engine
1.64
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
JauneNoirNoir texte
TRIP COMPUTER AND WARNING SYSTEM (6/10)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of display selections by pressing button 2Interpreting the display selected
Display ADisplay B
c) Distance before serviceDistance remaining until the next service.
There are several scenarios:
– remaining mileage less than 900 miles (1,500 km) or next service due within
two months. When the display selected is “mileage before service”,
symbol Ê appears on display A. The message “Service due” appears on
display B.
– mileage before service equal to
0 miles/km or date of serviced reached. When
the display selected is “mileage before service”, symbol Ê flashes on dis-
play
A accompanied by warning light ©. The message “Service vehicle”
appears on display
B accompanied by symbol Ê and warning light ©.
Note: depending on the vehicle, the mileage before service changes according to the driving style (frequent driving at low speed, door-to-door journeys, extensive use at idle speed, towing a trailer etc.). The distance remaining until the next service can there- fore decrease more quickly in some cases than the actual distance travel\
led.
Resetting the display after the service in accordance with the maintenan\
ce schedule.The mileage before service must only be reset after a service which complies with the recommendations in the maintenance schedule.
If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid exceeding the re- placement intervals for other parts in the maintenance schedule.
Special note: to reset the distance before service, press and hold one of the display reset buttons for approximately 10 seconds until the display shows the mileage permanently.
Page 76 of 264
Downloaded from www.Manualslib.com manuals search engine
external temperature .............................................(current page)
1.70
ENG_UD10538_1Heure (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
Vehicles fitted with navigation aid systems, telephones, etc.
Refer to the separate instructions for the function to understand the special features of this equipment.
External temperature
indicator
Special note:
When the outside temperature is –3°C to +3°C, the °C characters flash (signal- ling a risk of ice on the road).
If the electrical supply is cut (battery disconnected, broken supply wire, etc.), the clock will lose its time set- ting.
The time must then be set.
We recommend that you do not adjust these settings while driving.
External temperature in- dicator
As ice formation is related to climatic exposure, local air humidity and temperature, the external temperature alone is not sufficient to detect ice.
Display B
The display B shows:
– the radio;
– the time;
– the exterior temperature.
The time and/or external tempera- ture are displayed when the ignition is switched on.
Resetting the clock
Press button:
H for the hours, M for the minutes.
CLOCK AND EXTERIOR TEMPERATURE (2/2)
B
H
M
Page 79 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.73
ENG_UD10539_1Rétroviseurs (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

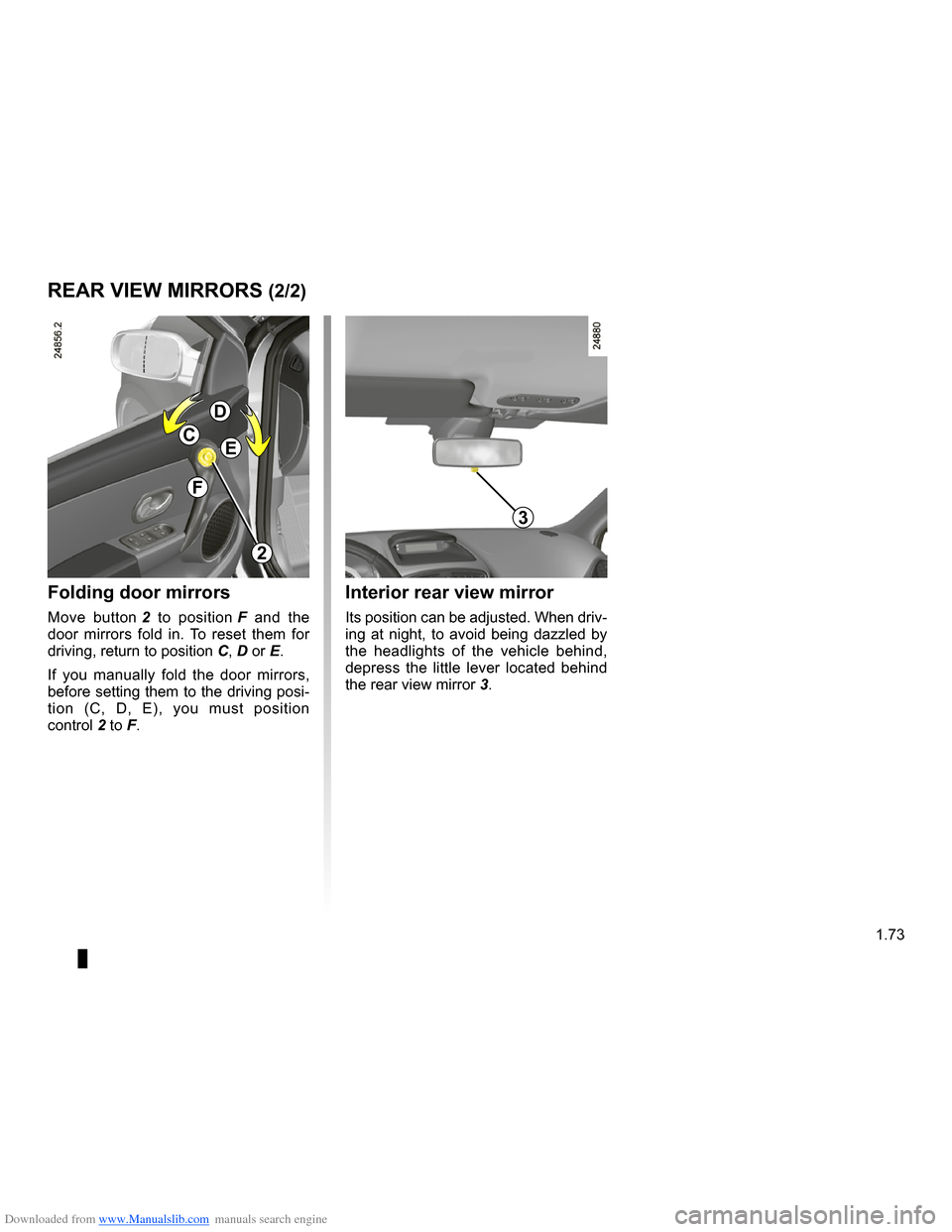

Interior rear view mirror
Its position can be adjusted. When driv- ing at night, to avoid being dazzled by the headlights of the vehicle behind, depress the little lever located behind
the rear view mirror 3.
Folding door mirrors
Move button 2 to position F and the door mirrors fold in. To reset them for
driving, return to position C , D or E.
If you manually fold the door mirrors, before setting them to the driving posi- tion (C, D, E), you must position control 2 to F.
REAR VIEW MIRRORS (2/2)
D
C
F
2
E
3
Page 151 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
3.19
ENG_UD14664_3Lève-vitres électriques / Lève-vitres impulsionnels / Lève-v\
itres manuels (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_3
ELECTRIC WINDOWS (3/3)/MANUAL WINDOWS
One-touch mode
– Briefly press the relevant switch fully: the window is lowered com- pletely.
–
Briefly lift the relevant switch fully: the window is raised completely.
Pressing the switch again while the window is moving will stop its move- ment.
Special note
For your safety your vehicle is fitted with an anti-pinch facility. When a window encounters resistance whilst closing (someone’s fingers, an animal’s paw or the branch of a tree, for example), it stops and lowers by several centime- tres.
Once the obstacle has been removed, briefly lift the switch again fully to close the window.
Normal mode
– Press the relevant switch to lower the window and release it when the window is at the required height.
–
Lift the relevant switch to raise the window and release it when the window is at the required height.
Operating faults
If a window does not close, the system will change to normal mode: lift the rel-
evant switch as many times as neces- sary to close the window, then release it. Press the switch again (still on the closing side) for one second to reset the system.
If necessary, contact an approved Dealer.
Manual window winder
controls
Turn handle 1.
1
Closing windows can cause serious injury.
Page 217 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
5.29
ENG_UD12592_2Batterie : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_5
BATTERY: troubleshooting (3/4)
Special procedures may be required to charge some batteries. Contact your ap- proved Dealer.
Avoid all risk of sparks which may cause an immediate explosion and charge the battery in a well-venti- lated area. Risk of serious injury.
If your vehicle is to be left stationary for a relatively long time, disconnect the battery or have it recharged regularly, particularly during cold weather. It will then be necessary, with the engine run- ning, to move the steering wheel slowly, from lock to lock and to reprogram the electronic equipment with a memory feature, radio, etc. The battery should be stored in a cool and dry location pro- tected from frost.
Note: if you have disconnected or re- charged a battery, move the steering wheel slowly from lock to lock to reset the system.
Have the battery’s charge status checked regularly:
– especially if you use your vehicle for
short journeys or for frequent driving in town;
– when the exterior temperature drops
(in winter), the charge decreases. In winter, only use the electrical equipment that is really necessary;
– finally, you should understand that
the charge decreases naturally as a result of certain permanent electrical consumers such as the clock, after- sales accessories, etc.
When many accessories are fitted to the vehicle, have them connected to the + after ignition feed. In this case, it is advisable to have your vehicle fitted with a battery which has an increased nominal capacity. Contact an approved Dealer.
Connecting a battery charger
The battery charger must be com- patible with a battery with nominal voltage of 12 volts.
Switch the engine off and then discon- nect both battery leads starting with the negative terminal.
Do not disconnect the battery when the engine is running. Follow the instruc- tions given by the manufacturer for the battery charger you are using.
Only a fully charged and well-main- tained battery will have a long and useful life and enable you to start the vehicle’s engine normally.
The battery must be kept clean and dry.
