Page 55 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.49
ENG_UD10531_1Poste de conduite direction à gauche (X85 - B85 - C85 - S85 - K85 - \
Renault)ENG_NU_853-3_BCSK85_Renault_1
DRIVING POSITION: LEFT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
1 Side air vent.
2 Stalk for:
– direction indicator lights;
– exterior lights;
– front fog lights;
– rear fog lights.
3 Instrument panel.
4 Driver ’s Airbag location, horn, cruise control/speed limiter con- trols.
5 – Radio remote control.
– Hands-free telephone integrated control.
6 Stalk for:
– windscreen and rear screen wash/wipe;
– trip computer and warning system information readout.
7 Ignition switch (vehicle with key).
8 Centre air vents.
9 Warning lights for:
– driver’s seat belt warning light;
– deactivating the front passenger
airbag.
10 Display (depending on the vehicle) of time, temperature, radio infor- mation, navigation system infor- mation, etc.
11 Heating or air conditioning con- trols.
12 Passenger Airbag location.
13 Side air vent.
14 Glove box.
15 Location for radio, navigation system, etc.
16 Central door locking switch.
17 RENAULT card reader (vehicle with RENAULT card).
18 Hazard warning lights switch.
19 Gear lever.
20 Cruise control and speed limiter control.
21 Cigar lighter.
22 Handbrake.
23 Location for a cup holder, ashtray, etc.
24 Engine start or stop control (vehi- cle with RENAULT card).
25 Parking distance control switch.
26 Fuse box.
27 Steering column height adjustment control.
28 Controls for:
– traction control and ESP;
– headlight beam height remote
adjustment;
– instrument panel lighting rheo- stat.
29 Bonnet release.
Page 57 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.51
ENG_UD10532_1Poste de conduite direction à droite (X85 - B85 - C85 - S85 - K85 - \
Renault)ENG_NU_853-3_BCSK85_Renault_1
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
1 Side air vent.
2 Passenger Airbag location.
3 Centre air vents.
4 Warning lights for:
– driver’s seat belt warning light;
– deactivating the front passenger
airbag.
5 Display (depending on the vehicle) of time, temperature, radio infor- mation, navigation system infor- mation, etc.
6 Heating or air conditioning con- trols.
7 Parking distance control switch.
8 Stalk for:
– direction indicator lights;
– exterior lights;
– front and rear fog lights.
9 Instrument panel.
10 Driver ’s Airbag location, horn, cruise control/speed limiter con-
trols.
11 – Radio remote control.
– Hands-free telephone integrated control.
12 Stalk for:
– windscreen and rear screen wash/wipe;
– trip computer and warning system information readout.
13 Side air vent.
14 Controls for:
– traction control and ESP;
– headlight beam height remote
adjustment;
– instrument panel lighting rheo- stat.
15 Ignition switch (vehicle with key).
16 Steering column height adjustment control.
17 Fuse box.
18 Central door locking switch.
19 RENAULT card reader (vehicle with RENAULT card).
20 Gear lever.
21 Cigar lighter.
22 Handbrake.
23 Cruise control and speed limiter control.
24 Location for a cup holder, ashtray, etc.
25 Hazard warning lights switch.
26 Engine start or stop control (vehi- cle with RENAULT card).
27 Location for radio, navigation system, etc.
28 Glove box.
29 Bonnet release.
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
Page 58 of 264
Downloaded from www.Manualslib.com manuals search engine
control instruments ...............................(up to the end of the DU)indicators:instrument panel .............................(up to the end of the DU)fuel level ...............................................(up to the end of the DU)instrument panel ...................................(up to the end of the DU)warning lights........................................(up to the end of the DU)driver’s position ....................................(up to the end of the DU)
1.52
ENG_UD10344_1Tableau de bord : témoins lumineux (X85 - B85 - C85 - S85 - K85 - Ren\
ault)ENG_NU_853-3_BCSK85_Renault_1
JauneNoirNoir texte
Instrument panel
INSTRUMENT PANEL: warning lights (1/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
cLeft-hand direction indicator tell-tale
bRight-hand direction indica-tor tell-tale
áMain beam headlight tell-
tale
kDipped beam headlight tell-tale
gFront fog light tell-tale
fRear fog light telltale
ΦSpeed limiter and cruise control indicator lightsSee the information on the “Speed lim- iter” and “Cruise control” in Section 2.
åAir bag warning lightThis lights up when the ignition is switched on and goes out after a few seconds.If it does not come on when the igni- tion is switched on, or comes on when the engine is running, there is a fault in the system.Contact your approved Dealer as soon as possible.
MLow fuel level warning lightThis lights up when the ignition is switched on and goes out after a few seconds.If it lights up when driving, fill up with fuel as soon as possible. There is only approximately 30 miles (50 km) worth of fuel left.
A
If no lights or sounds are ap- parent, this indicates a fault in the instrument panel. This indicates that it is essential to stop immediately (as soon as traf- fic conditions allow). Ensure that the vehicle is correctly immobilised and contact an approved Dealer.
The instrument panel A lights up when the ignition is switched on.In some cases, the appearance of a warning light is accompanied by a mes- sage.
The © warning light means you should drive very carefully to an approved Dealer as soon as pos- sible. If you fail to follow this recom- mendation, you risk damaging your vehicle.
Warning light ® re- quires you to stop immedi- ately, for your own safety, as soon as traffic conditions allow. Switch off the engine and do not restart it. Contact an approved Dealer.
Page 59 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.53
ENG_UD10344_1Tableau de bord : témoins lumineux (X85 - B85 - C85 - S85 - K85 - Ren\
ault)ENG_NU_853-3_BCSK85_Renault_1
INSTRUMENT PANEL: warning lights (2/4)
®STOP lightThis lights up when the ignition is switched on and goes out as soon as the engine is started. It comes on with other warning lights and/or messages, and is accompanied by a beep.
It requires you to stop immediately, for your own safety, as soon as traffic con- ditions allow. Switch off the engine and do not restart it.
Contact an approved Dealer.
xAnti-lock braking warning lightThis lights up when the ignition is switched on and goes out after a few seconds.If it lights up when you are driving, it in- dicates a fault in the anti-lock braking system.Braking will then be as normal, without the ABS. Contact an approved Dealer as soon as possible.
©Warning lightThis lights up when the ignition is switched on and goes out as soon as the engine is started. It can light up in conjunction with other indicator lights and/or messages on the instrument panel.It means you should drive very care- fully to an approved Dealer as soon as possible. If you fail to follow this recom- mendation, you risk damaging your ve- hicle.
êEngine immobiliser system warning lightRefer to the information on the “Engine immobiliser” in Section 1.
ÔCoolant temperature warn-ing light
This lights up when the ignition is switched on and goes out after a few seconds.
– If this light flashes, it indicates a fault
in the injection system. Stop as soon as traffic conditions allow and con- tact an approved Dealer;
– If it shows a steady light, stop and let
the engine idle for a minute or two.
The temperature should lower and the warning light should go out. If not, stop the engine. Let the engine cool down before checking the coolant.
Contact an approved Dealer.
äæGear change warning light
This lights up to advise you to change to a higher gear (up arrow) or lower gear (down arrow).
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
A
Page 61 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.55
ENG_UD10344_1Tableau de bord : témoins lumineux (X85 - B85 - C85 - S85 - K85 - Ren\
ault)ENG_NU_853-3_BCSK85_Renault_1
INSTRUMENT PANEL: warning lights (4/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÀOil pressure warning light
This lights up when the ignition is switched on and goes out after a few seconds.
If it comes on when you are driving ac-
companied by the ® warning light
and a beep, it is essential to stop and switch off the ignition.
Check the oil level. If the level is normal, the indicator light is being lit by something else. Contact an approved Dealer.
ÒElectronic fault warning light
This lights up when the ignition is switched on and goes out after a few seconds.
If it comes on when driving, it indicates a fault in the injection computer or the automatic transmission.
Contact your approved Dealer as soon as possible.
^Water in the diesel filter warning light
This lights up when the ignition is switched on and goes out after a few seconds.
If it comes on when driving, it indicates the presence of water in the diesel.
Contact your approved Dealer as soon as possible.
2
Door status warning light
A
ÉPreheating warning light (diesel version)
This should come on when the igni-tion is switched on. It indicates that the heater plugs are in operation.
It goes out when preheating is com-plete. The engine can be started.
ÆWarning light for serious in-jection fault
This lights up when the ignition is switched on and goes out after a few seconds.
If this light comes on when you are driv- ing, it indicates a fault in the injection system. Stop immediately, switch off the ignition and contact an approved Dealer.
UVa r i a b l e p o w e r - a s s i s t e d steering warning light
This comes on when the ignition is switched on and goes out after a few seconds.
If it lights up when you are driving, this indicates a fault in the system. Consult an approved Dealer as soon as possi- ble.
Page 74 of 264
Downloaded from www.Manualslib.com manuals search engine
1.68
ENG_UD13453_3Ordinateur de bord (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

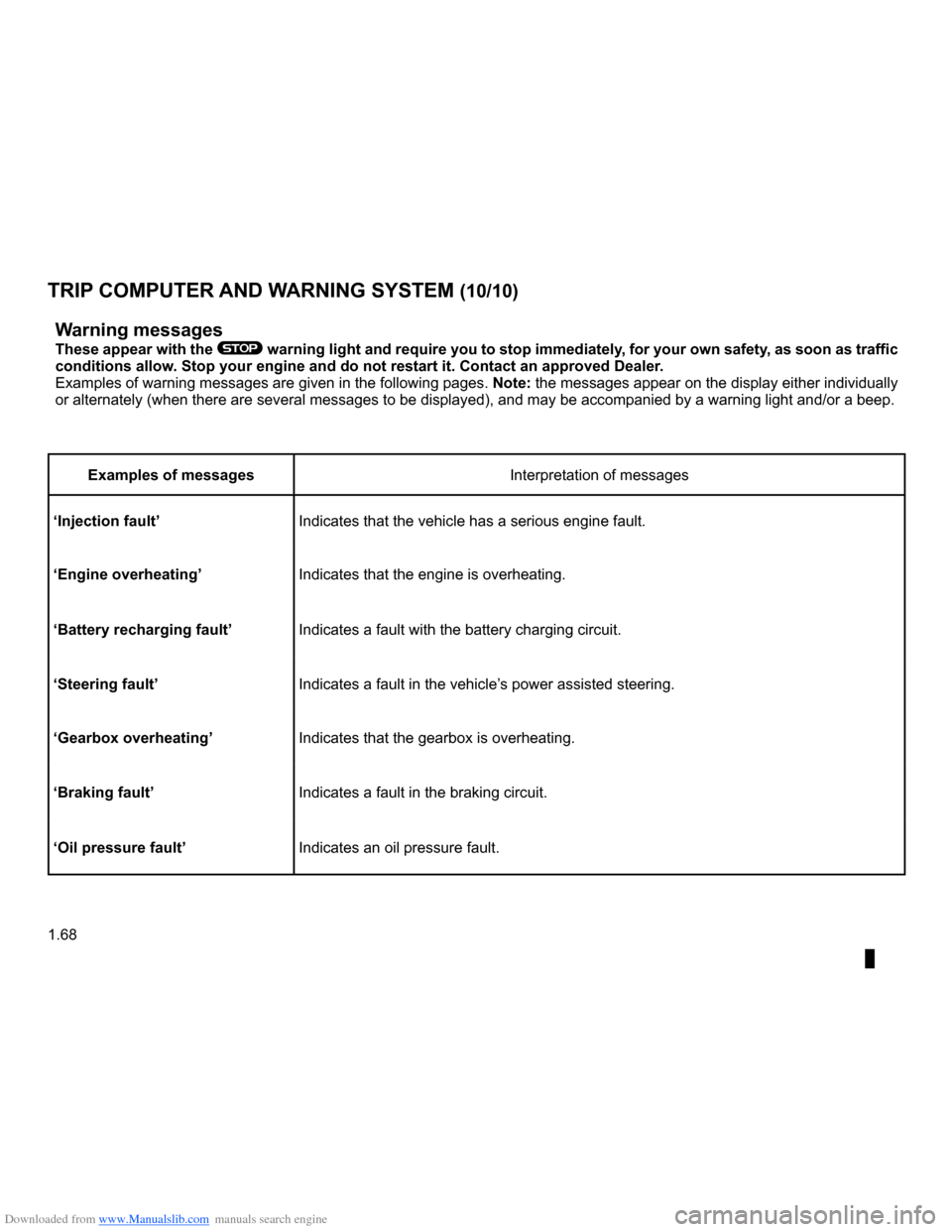

TRIP COMPUTER AND WARNING SYSTEM (10/10)
Warning messages
These appear with the ® warning light and require you to stop immediately, for your own safety, as soon as traffic conditions allow. Stop your engine and do not restart it. Contact an approved Dealer.Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually or alternately (when there are several messages to be displayed), and \
may be accompanied by a warning light and/or a beep.
Examples of messagesInterpretation of messages
‘Injection fault’Indicates that the vehicle has a serious engine fault.
‘Engine overheating’Indicates that the engine is overheating.
‘Battery recharging fault’Indicates a fault with the battery charging circuit.
‘Steering fault’Indicates a fault in the vehicle’s power assisted steering.
‘Gearbox overheating’Indicates that the gearbox is overheating.
‘Braking fault’Indicates a fault in the braking circuit.
‘Oil pressure fault’Indicates an oil pressure fault.
Page 84 of 264
Downloaded from www.Manualslib.com manuals search engine
lights-on warning buzzer........................................(current page)
1.78
ENG_UD10541_1Éclairages et signalisations extérieures (X85 - B85 - C85 - S85 -\
K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
JauneNoirNoir texte
EXTERIOR LIGHTING AND SIGNALS (4/5)
Switching off the lights
Manual operation
There are three options (depending on the vehicle):
– return stalk
1 to its initial position;
– the lights go out when the engine
is stopped, when the driver’s door is opened or when the vehicle is
locked. In this case, the next time the engine is started the lights will be switched back according to the posi- tion of the stalk 1.
– a timer will switch off the lights auto
- matically.
Automatic operation (depending on vehicle)
The lights go out when the engine is stopped, when the driver’s door is opened or when the vehicle is locked.
Lights-on reminder buzzer
If the lights are switched on after the engine is switched off, a warning beep sounds when the driver’s door is opened to warn you that the lights are still on.1
Page 91 of 264
Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte
1.85
ENG_UD14663_2Réservoir carburant (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
Filling up with fuel
Petrol versions
Using leaded petrol will damage the antipollution system and may lead to a loss of warranty.
To ensure that the fuel tank is not filled with leaded petrol, the fuel tank filler neck contains a restrictor fitted with a foolproof system which only allows the nozzle for unleaded petrol to be used (at the pump).
– Insert the nozzle so that the valve is
pushed back and then fully insert it before beginning to fill the tank (risk of splashback).
– Keep the nozzle in this position
throughout the entire filling opera- tion.
Petrol and diesel versions
When the pump cuts out automatically at the end of the filling procedure, a maximum of two further filling attempts may be made, as there must be suffi- cient space in the fuel tank to allow for expansion.
Petrol version
It is essential to use unleaded petrol. The octane rating (RON) must con- form with the specifications given on
the label inside fuel filler flap A. Refer to the information on “Engine specifica- tions” in Section 6.
Special features of vehicles running on ethanol-based fuel:
It is essential to use unleaded petrol or fuel containing a maximum of 85% eth- anol (E85).
To make it easier to start the engine in very cold conditions, it is recommended to use unleaded petrol or, on equipped vehicles, to use the heater integrated in the engine.
In this case, connect the special end of the extension piece supplied into the socket integrated into the radiator grille and the other end into a 220V socket for at least 6 hours before starting.
Note: when using ethanol-based fuel, you may notice over-consumption.
FUEL TANK (2/2)
No modifications what- soever are permitted on any part of the fuel supply system (electronic unit, wiring, fuel circuit, injector, protec- tive covers, etc.) as this may be
dangerous (unless undertaken by qualified Network personnel).
Persistent fuel odour
If you notice a persistent fuel odour you should:
– stop the vehicle as soon as traf
- fic conditions allow and switch off the ignition;
– switch on the hazard warning
lights and ask your passengers to leave the vehicle and stay clear of the traffic;
– contact an approved Dealer.
Page 93 of 264
Downloaded from www.Manualslib.com manuals search engine
2.1
ENG_UD14665_4Sommaire 2 (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_2
Section 2: Driving
(Advice on use relating to fuel economy and the environment)
Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3
Starting/stopping the engine using the key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . 2.4
Starting/stopping the engine using the RENAULT card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
Special features of petrol versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . 2.9
Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . 2.10
Special features of diesel versions with particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
2.11
Gear lever/Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . 2.12
Advice on antipollution, fuel economy and driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 2.13
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.16
Anti-lock braking system: ABS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . 2.17
Electronic Stability Program: ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . 2.19
Traction control: ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 2.21
Emergency brake assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . 2.23
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.24
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.27
Automatic gearbox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . 2.31
Quickshift gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . 2.34
Parking distance control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . 2.39
Page 95 of 264
Downloaded from www.Manualslib.com manuals search engine
engine start/stop button ........................(up to the end of the DU)ignition switch .......................................(up to the end of the DU)starting the engine ................................(up to the end of the DU)starting the engine ................................(up to the end of the DU)switching on the vehicle ignition ...........(up to the end of the DU)
2.3
ENG_UD10549_1Contacteur de démarrage : véhicule avec clé / télécommand\
e à radiofréquence (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_2
Ignition switch
Special note on vehicles with an au- tomatic gearbox
Before starting, move the lever to posi- tion N or P.
Special note on vehicles with a Quickshift gearbox
Depress the brake pedal with the lever in the N position.
Note:
If a gear other than neutral is displayed, it flashes; starting is not possible unless you depress the brake pedal, while holding the key in the starting position.
Ignition position M.
The ignition is switched on:
Start position D
If the engine fails to start at the first attempt, the key must be turned back before the starter can be activated again. Release the key as soon as the engine starts.
Note: on diesel versions, several sec- onds may pass between turning the
key and the engine starting to allow for engine preheating.
Off position S (steering lock
applied)
To lock: remove the key and turn the steering wheel until the steering column locks.
To unlock: turn the key and the steering wheel slightly.
“Accessories” position A
When the ignition is switched off, any accessories (radio, etc.) will continue to function.
IGNITION SWITCH: vehicle with key
