Remorquage : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
Towing a vehicle with an
automatic gearbox
With the engine switched off: the
transmission is no longer lubricated. It
is preferable to tow this type of vehi -
cle on a trailer or tow it with the front
wheels off the ground.
Under exceptional circumstances,
you may tow the vehicle with all four
wheels on the ground, only going
forward, with the gear lever in the
Neutral position, and for a distance
not exceeding 30 miles (50 km).
If the lever is stuck in P,
even though you are de -
pressing the brake pedal,
the lever can be released
manually.
To do this, unclip the upper section
of the cover at the base of the lever.
Press simultaneously on the mark
on the gaiter and the unlocking
button on the lever.
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Avoid accelerating or braking
suddenly when towing, as this
may result in damage being
caused to the vehicle.
– When towing a vehicle, it is ad -
visable not to exceed 15 mph (25
km/h).
– Do not push the vehicle if the
steering column is locked.
Towing procedure
Before any towing, check that the steer-
ing column is not locked.
If it is locked, insert the RENAULT card
into the reader and press the Start/Stop
button for five seconds without press-
ing on the pedals. The steering column
unlocks and the vehicle accessories
functions are supplied.
Leave the card in the reader while
towing.
Press the Start/Stop button twice in
succession once towing is finished (risk
of running down the battery).
TOWING: breakdown (2/3)
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
W h e n t h e e n g i n e i s
stopped, steering and brak-
ing assistance are not op -
erational.
Do not remove the key from
the ignition switch or the
card from the reader during
towing.
Page 232 of 268
Downloaded from www.Manualslib.com manuals search engine towingtowing a caravan .............................................. (current page)
towing towing equipment ............................................. (current page)
towing equipment fitting ................................................................ (current page)
5.40
ENG_UD16944_3
Remorquage : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
Towing a vehicle with a
Quickshift gearbox
If a gear is engaged:
– with the ignition on, select neutral
while depressing the brake pedal;
– check that neutral is engaged (e.g.
by pushing the vehicle);
– switch off the ignition.
The vehicle should always be towed
with the ignition switched off.
If you cannot engage neutral, the vehi-
cle must be towed with its front wheels
off the ground.
Permissible nose weight, maxi -
mum permissible towing weight,
braked and unbraked: refer to
the information on “Weights” in
Section 6.
For fitting and conditions of use,
refer to the equipment’s fitting in -
structions.
Please keep these instructions with
the rest of the vehicle documenta -
tion.
TOWING: breakdown (3/3)/ATTACHMENTS
A
A: 681 mm (3 or 5 door versions)
A: 901 mm (sport tourer version)
Page 233 of 268
Downloaded from www.Manualslib.com manuals search engine operating faults ..................................... (up to the end of the DU)
faults operating faults ............................... (up to the end of the DU)
5.41
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
Operating faults

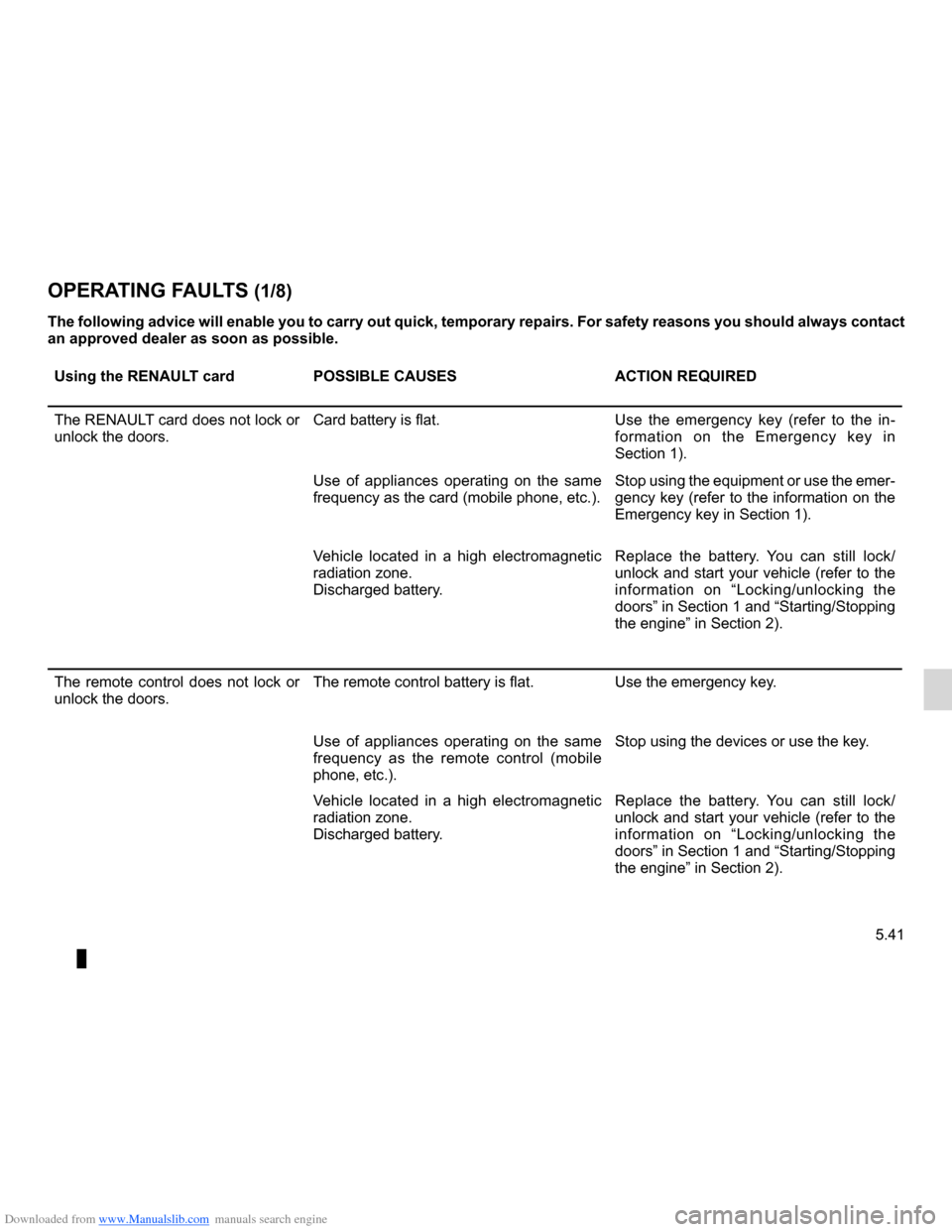

OPERATING FAULTS (1/8)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved dealer as soon as possible.
Using the RENAULT card POSSIBLE CAUSES ACTION REQUIRED
The RENAULT card does not lock or
unlock the doors. Card battery is flat.
Use the emergency key (refer to the in-
formation on the Emergency key in
Section 1).
Use of appliances operating on the same
frequency as the card (mobile phone, etc.). Stop using the equipment or use the emer-
gency key (refer to the information on the
Emergency key in Section 1).
Vehicle located in a high electromagnetic
radiation zone.
Discharged battery. Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).
The remote control does not lock or
unlock the doors. The remote control battery is flat.
Use the emergency key.
Use of appliances operating on the same
frequency as the remote control (mobile
phone, etc.). Stop using the devices or use the key.
Vehicle located in a high electromagnetic
radiation zone.
Discharged battery. Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).
Page 234 of 268
Downloaded from www.Manualslib.com manuals search engine 5.42
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
Jaune NoirNoir texte

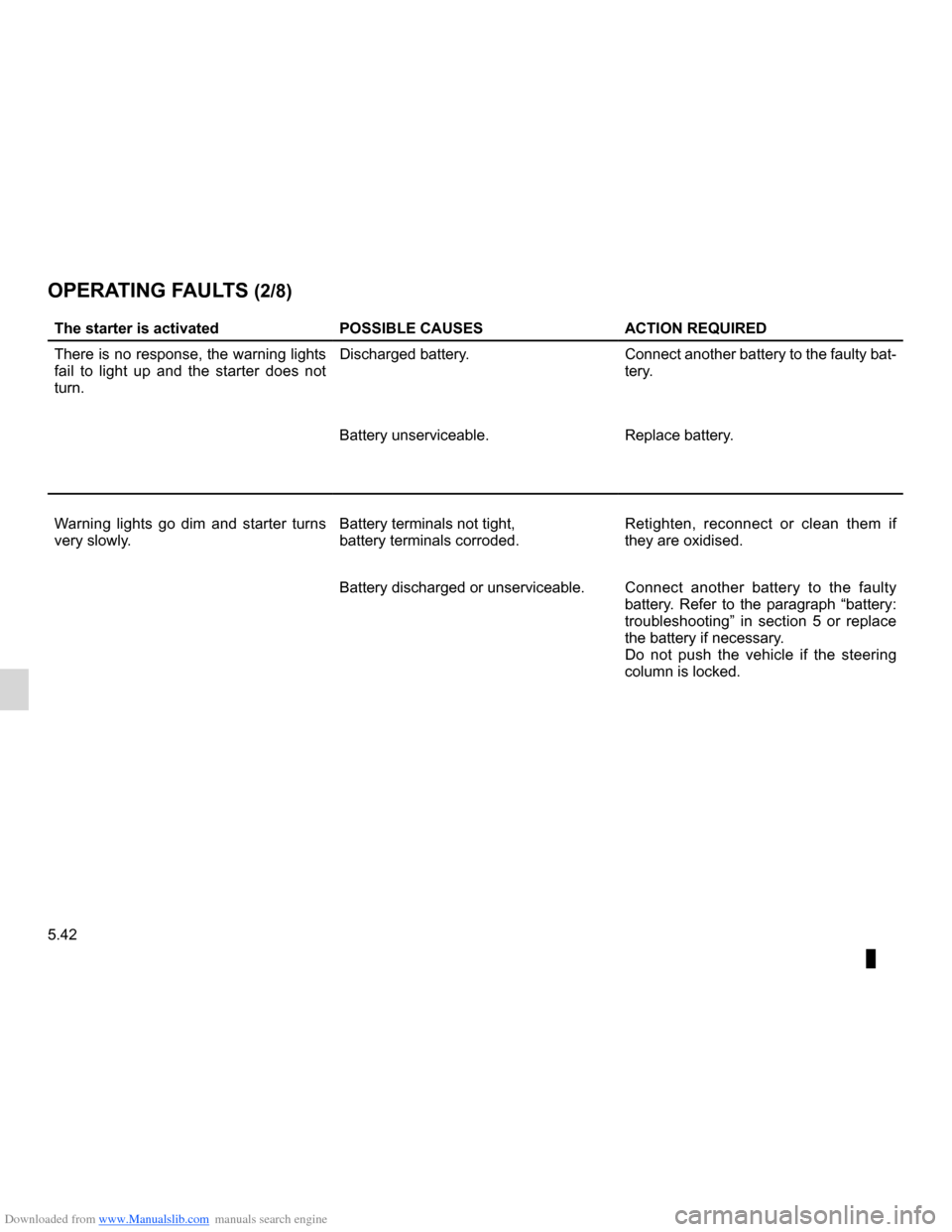

OPERATING FAULTS (2/8)
The starter is activated POSSIBLE CAUSESACTION REQUIRED
There is no response, the warning lights
fail to light up and the starter does not
turn. Discharged battery.
Connect another battery to the faulty bat-
tery.
Battery unserviceable. Replace battery.
Warning lights go dim and starter turns
very slowly. Battery terminals not tight,
battery terminals corroded.Retighten, reconnect or clean them if
they are oxidised.
Battery discharged or unserviceable. Connect another battery to the faulty
battery. Refer to the paragraph “battery:
troubleshooting” in section 5 or replace
the battery if necessary.
Do not push the vehicle if the steering
column is locked.
Page 235 of 268
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.43
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
OPERATING FAULTS (3/8)
The starter is activated POSSIBLE CAUSESACTION REQUIRED
The engine will not start
(vehicle with RENAULT card). Starting conditions are not fulfilled.
Refer to the information on “Starting/
stopping the engine” in Section 2.
The hands-free RENAULT card is not de-
tected. Move the card inside the passenger
compartment.
The hands-free RENAULT card does not
work. Insert the card in the card reader in order
to start the engine.
Refer to the information on “Starting/
stopping the engine” in Section 2.
It is difficult to start the engine in wet
weather or after washing the vehicle. Poor ignition, ignition system damp.
Dry the spark plug and coil wires.
The engine is difficult to start when hot. Faulty carburation (bubbles of vaporised
fuel in the circuit).Let the engine cool down.
Poor compression. Consult an approved dealer.
The engine cannot be switched off
(vehicle with RENAULT card). Electronic fault.
Press the starter button quickly five
times.
The steering column remains locked. Steering wheel locked.Move the steering wheel while press-
ing the engine start button (refer to the
information on Starting the engine in
Section 2).
Page 236 of 268
Downloaded from www.Manualslib.com manuals search engine 5.44
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
Jaune NoirNoir texte
On the road POSSIBLE CAUSESACTION REQUIRED
White smoke from the exhaust. This is not necessarily a fault. Smoke
may be caused by regeneration of the
particle filter.Refer to the information on “Special fea-
tures of diesel versions” in Section 2.
Vibrations. Tyres not inflated to correct pressures,
incorrectly balanced or damaged.Check the tyre pressures. If this is not the
problem, have them checked by an ap
-
proved Dealer.
Coolant boiling in the coolant reservoir. Mechanical fault: cylinder head gasket
blown, faulty coolant pump.Stop the engine.
Consult an approved dealer.
OPERATING FAULTS (4/8)
Page 237 of 268
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.45
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
OPERATING FAULTS (5/8)
On the road POSSIBLE CAUSESACTION REQUIRED
Smoke under the bonnet. Short circuit or cooling circuit leak.Stop, switch off the ignition, stand away
from the vehicle and contact an ap-
proved Dealer.
Coolant circuit fault. Consult an approved dealer.
The oil pressure warning light comes on:
– while turning or braking, The level is too low. Top up the engine oil level (refer to the
information on “Engine oil level: topping
up/filling” in Section 4).
– at idle speed, Low oil pressure. Consult the nearest approved Dealer.
– is slow to go out or remains lit when
accelerating. Loss of oil pressure.
Stop the vehicle and contact an ap-
proved Dealer.
Loss of engine power. Clogged air filter.Replace the cartridge.
Fuel supply fault. Check the fuel level.
Faulty spark plugs, incorrect electrode
gaps. Consult an approved dealer.
Unstable idle speed or the engine stalls. Poor compression (spark plugs, ignition,
air leak).Consult an approved dealer.
Page 238 of 268
Downloaded from www.Manualslib.com manuals search engine 5.46
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
Jaune NoirNoir texte
On the road POSSIBLE CAUSESACTION REQUIRED
Steering becomes heavy. – assistance overheating, Leave to cool.
– weak or dead battery. Recharge or replace the battery.
The engine overheats. The coolant tem-
perature warning light comes on (or the
indicator needle is in the red area). Coolant pump: belt stretched or broken.
Engine cooling fan not working.
Stop the vehicle, switch off the engine
and contact an approved Dealer.
Coolant leaks. Check the condition of hoses and clips.
Check the coolant reservoir: it should
contain fluid. If it does not, top it up (once
it has cooled) . Take care not to scald
yourself. This action is only temporary;
consult your approved Dealer as soon as
possible.
OPERATING FAULTS (6/8)
Radiator: if there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by our Technical Department may be used for this purpose.
Page 239 of 268
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.47
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-7_BCSK85_Renault_5

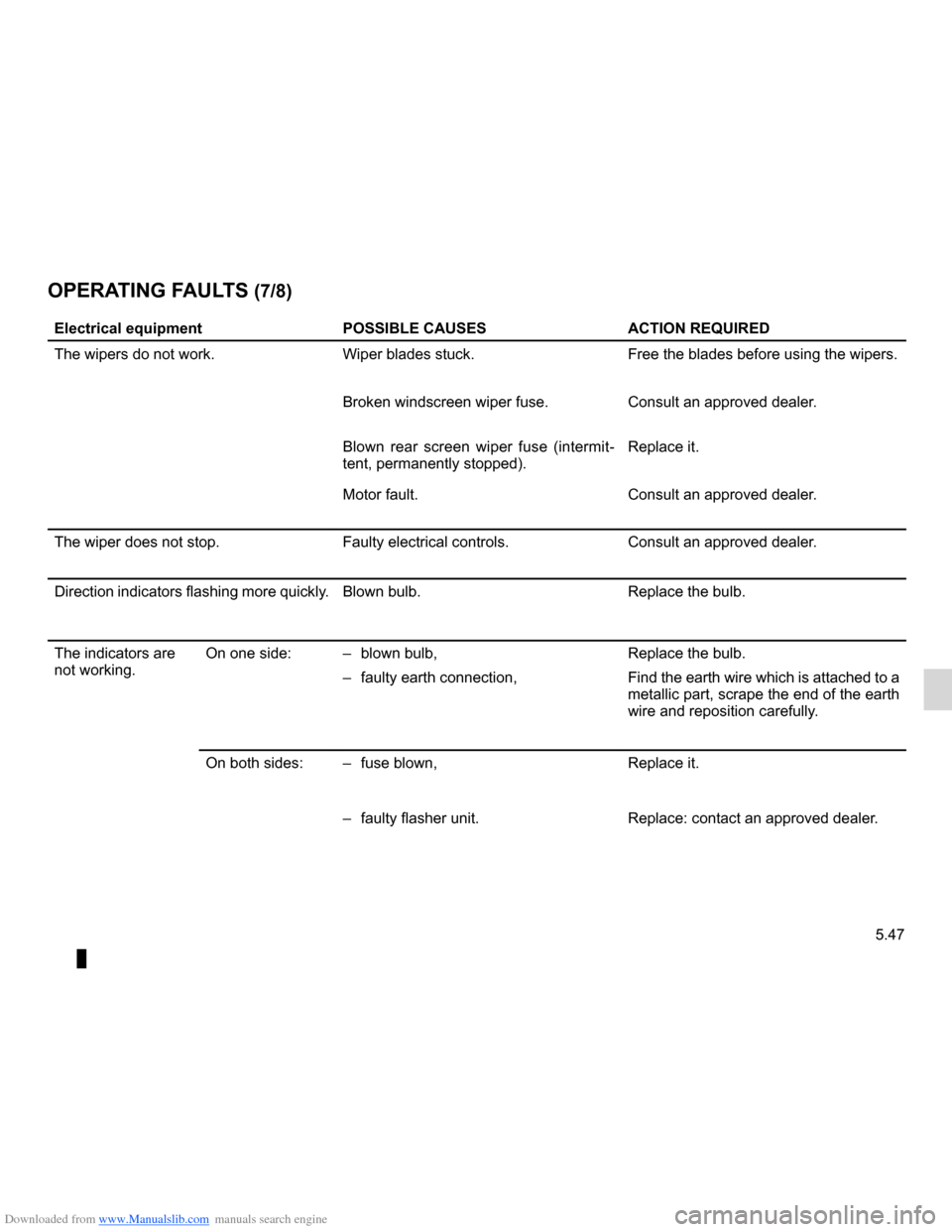

Electrical equipment POSSIBLE CAUSESACTION REQUIRED
The wipers do not work. Wiper blades stuck.Free the blades before using the wipers.
Broken windscreen wiper fuse. Consult an approved dealer.
Blown rear screen wiper fuse (intermit -
tent, permanently stopped). Replace it.
Motor fault. Consult an approved dealer.
The wiper does not stop. Faulty electrical controls.Consult an approved dealer.
Direction indicators flashing more quickly. Blown bulb.Replace the bulb.
The indicators are
not working. On one side:
– blown bulb,
– faulty earth connection, Replace the bulb.
Find the earth wire which is attached to a
metallic part, scrape the end of the earth
wire and reposition carefully.
On both sides: – fuse blown, Replace it.
– faulty flasher unit. Replace: contact an approved dealer.
OPERATING FAULTS (7/8)
Page 240 of 268
Downloaded from www.Manualslib.com manuals search engine 5.48
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
OPERATING FAULTS (8/8)
Electrical equipment POSSIBLE CAUSESACTION REQUIRED
The headlights
are not working. One only:
– blown bulb, Replace the bulb.
– disconnected wire or incorrectly-posi -
tioned connector, Check and reconnect the wire or the con-
nector.
– faulty earth connection. See above.
Both: – if the circuit is fused. Check and replace if necessary.
The headlights do not switch off. Faulty electrical controls.Consult an approved dealer.
Traces of condensation in the lights. This is not a fault. The presence of traces
of condensation in lights is a natural phe-
nomenon linked to variations in tempera-
ture.
These traces soon disappear when the
lights are switched on.
