Downloaded from www.Manualslib.com manuals search engine 6.1
ENG_UD25612_8
Sommaire 6 (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
Section 6: Technical specifications
Vehicle identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Anti-corrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.15
Page 242 of 268
![RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine 6.2
ENG_UD19798_1
Plaques d’identification véhicule (X85 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
Vehicle identification plate
Vehicle ident RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine 6.2
ENG_UD19798_1
Plaques d’identification véhicule (X85 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
Vehicle identification plate
Vehicle ident](/img/7/1573/w960_1573-241.png)
Downloaded from www.Manualslib.com manuals search engine 6.2
ENG_UD19798_1
Plaques d’identification véhicule (X85 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
Vehicle identification plate
Vehicle identification plates
a
B
a
1
2
3
4
5
10
11
7896
12
13

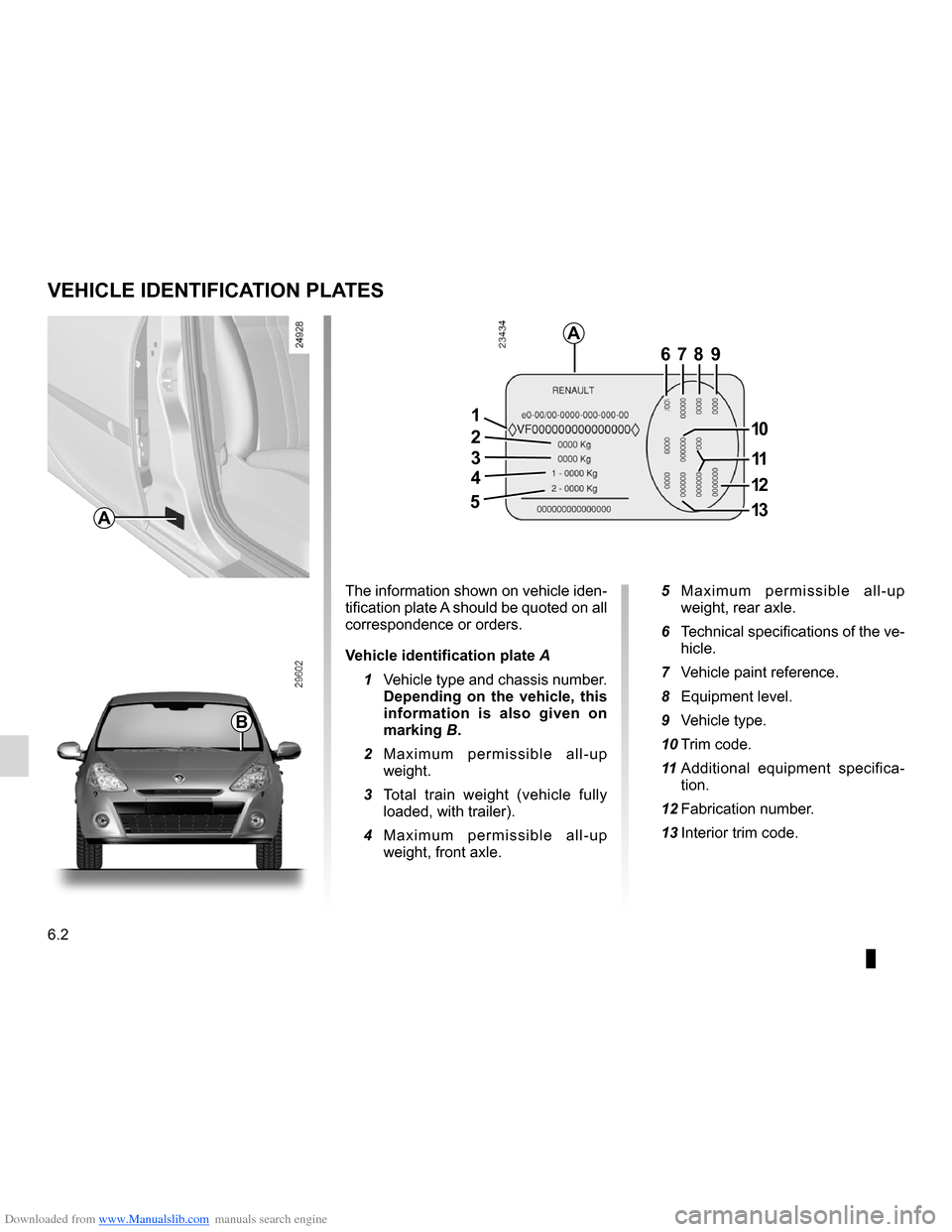

The information shown on vehicle iden -
tification plate A should be quoted on all
correspondence or orders.
Vehicle identification plate A
1 Vehicle type and chassis number.
depending on the vehicle, this
information is also given on
marking B.
2 M a x i m u m p e r m i s s i b l e a l l - u p
weight.
3 Total train weight (vehicle fully
loaded, with trailer).
4 M a x i m u m p e r m i s s i b l e a l l - u p
weight, front axle.
5 M a x i m u m p e r m i s s i b l e a l l - u p
weight, rear axle.
6 Technical specifications of the ve-
hicle.
7 Vehicle paint reference.
8 Equipment level.
9 Vehicle type.
10 Trim code.
11 Additional equipment specifica -
tion.
12 Fabrication number.
13 Interior trim code.
Page 243 of 268
![RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine 6.3
ENG_UD24925_5
Plaques d’identification moteur (X85 - B85 - C85 - S85 - K85 - Renau\
lt)
ENG_NU_853-7_BCSK85_Renault_6
please quote the RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine 6.3
ENG_UD24925_5
Plaques d’identification moteur (X85 - B85 - C85 - S85 - K85 - Renau\
lt)
ENG_NU_853-7_BCSK85_Renault_6
please quote the](/img/7/1573/w960_1573-242.png)
Downloaded from www.Manualslib.com manuals search engine 6.3
ENG_UD24925_5
Plaques d’identification moteur (X85 - B85 - C85 - S85 - K85 - Renau\
lt)
ENG_NU_853-7_BCSK85_Renault_6

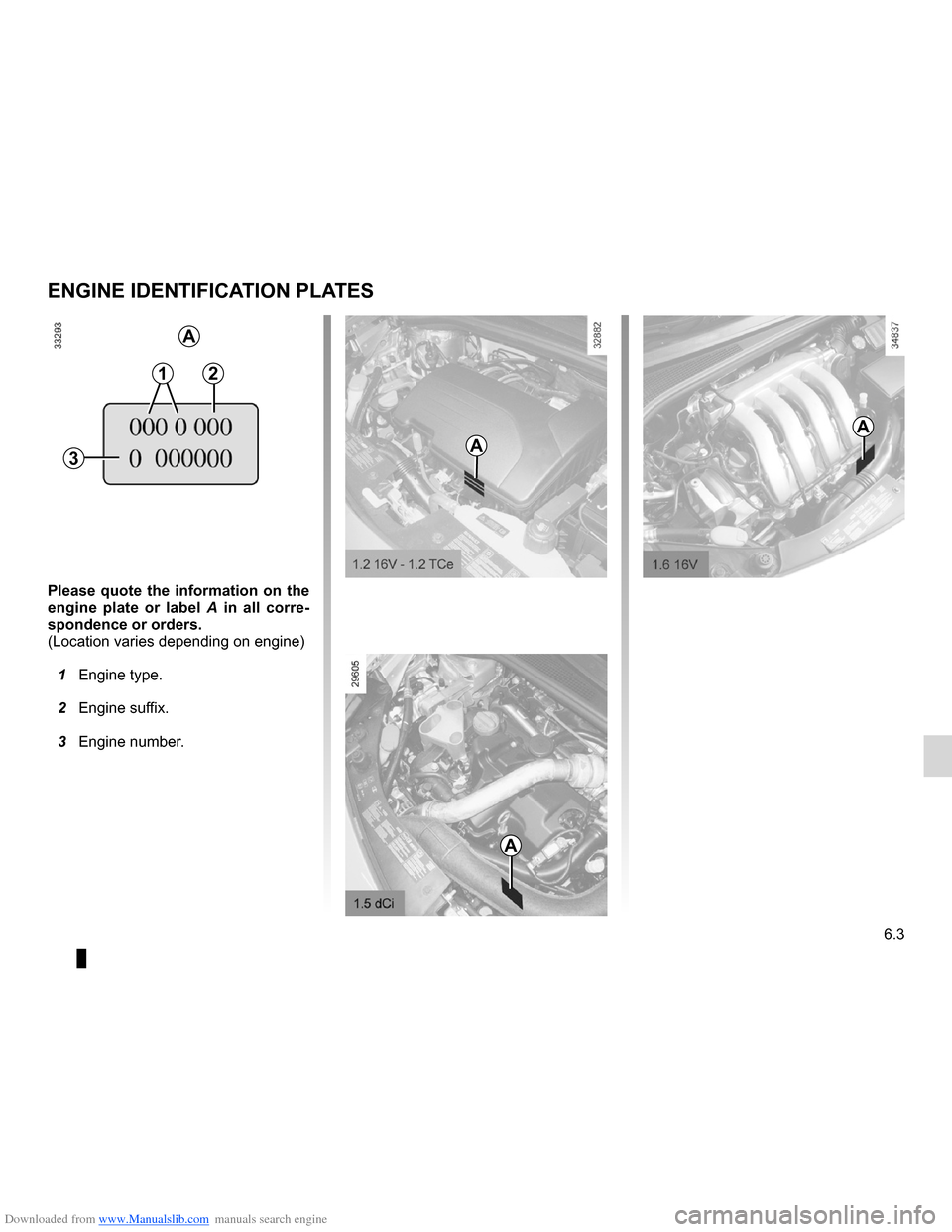

please quote the information on the
engine plate or label A in all corre -
spondence or orders.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
enGine identification plates
a
a
a
a
21
3
Page 244 of 268
![RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
dimensions ........................................... (up to the RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
dimensions ........................................... (up to the](/img/7/1573/w960_1573-243.png)
Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
dimensions ........................................... (up to the end of the DU)
6.4
ENG_UD19795_3
Dimensions (en mètres) (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
Jaune NoirNoir texte
Dimensions
1,497*
1,458 to 1,472 (1)0,805 2,5750,621
4,017

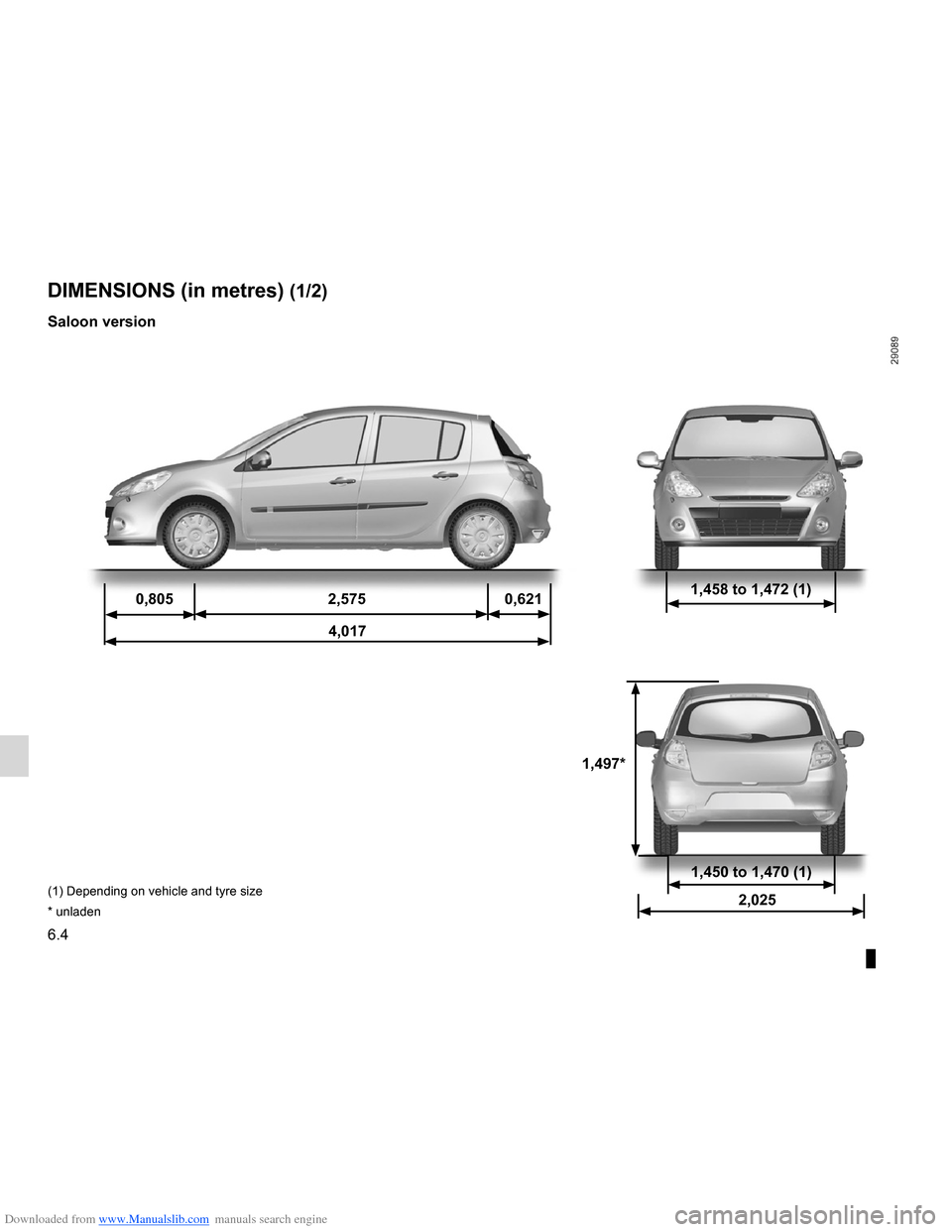

diMensions (in metres) (1/2)
1,450 to 1,470 (1) 2,025
(1) Depending on vehicle and tyre size
* unladen
saloon version
Page 245 of 268
![RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
6.5
ENG_UD19795_3
Dimensions (en mètres) (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
1,450 to 1, RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
6.5
ENG_UD19795_3
Dimensions (en mètres) (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
1,450 to 1,](/img/7/1573/w960_1573-244.png)
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
6.5
ENG_UD19795_3
Dimensions (en mètres) (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
1,450 to 1,470 (1)
2,025
0,805 2,5750,822
4,203
1,497*

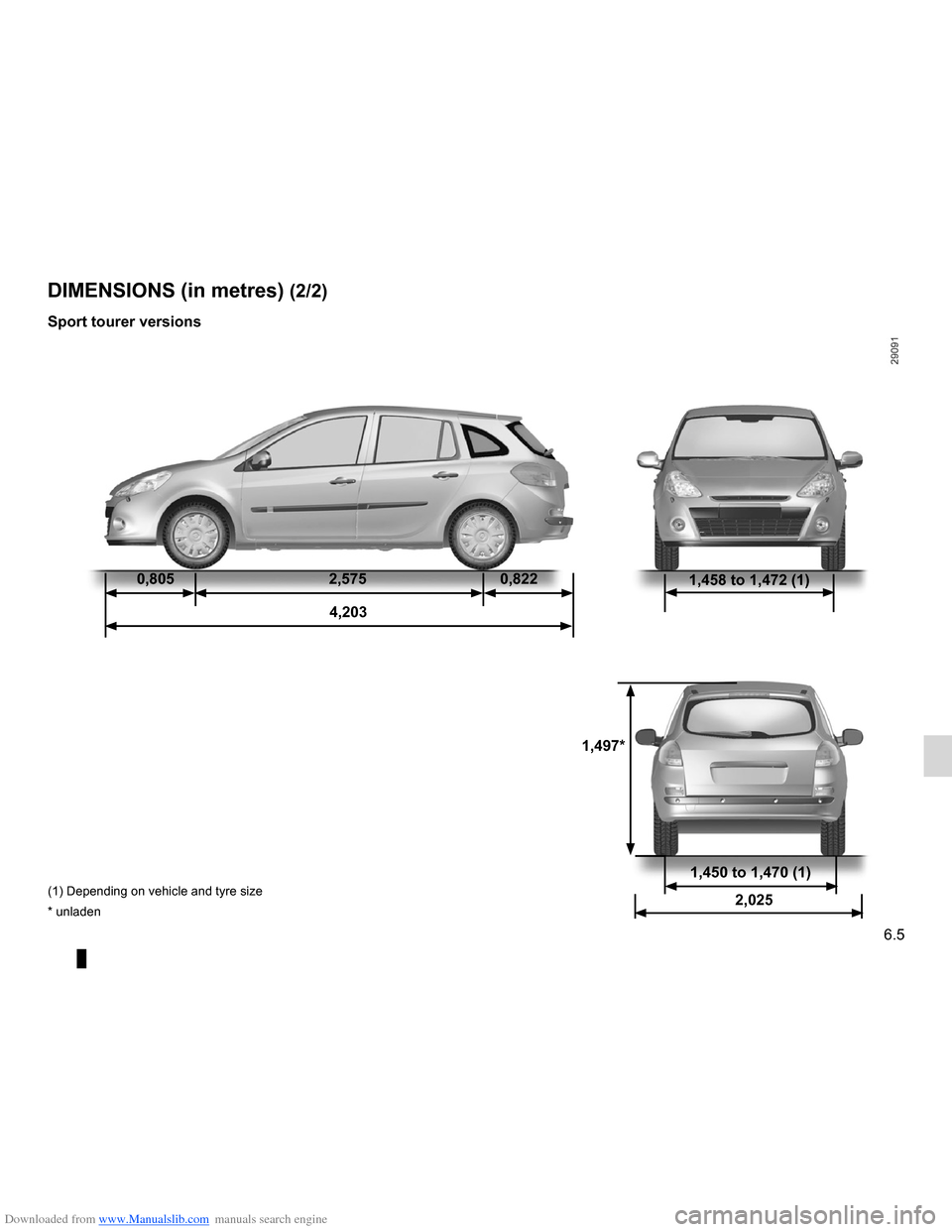

diMensions (in metres) (2/2)
1,458 to 1,472 (1)
(1) Depending on vehicle and tyre size
* unladen
sport tourer versions
Page 246 of 268
![RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
engine technical specifications ................... (up to the en RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
engine technical specifications ................... (up to the en](/img/7/1573/w960_1573-245.png)
Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
engine specifications ............................ (up to the end of the DU)
6.6
ENG_UD24924_2
Caractéristiques moteurs (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_6

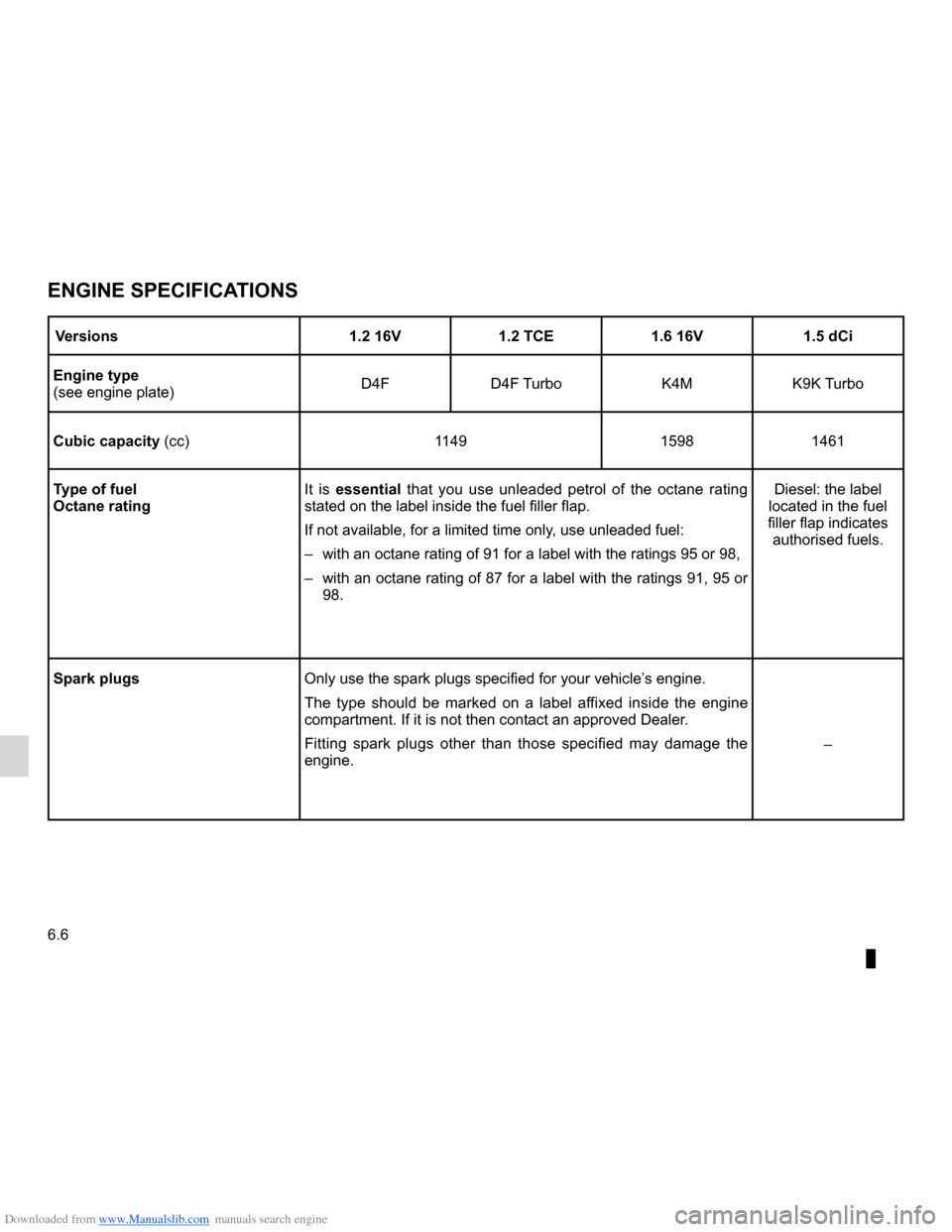

Engine specifications
enGine specifications
Versions 1.2 16V1.2 tce 1.6 16V1.5 dci
engine type
(see engine plate) D4F
D4F Turbo K4MK9K Turbo
cubic capacity (cc) 114915981461
t ype of fuel
octane rating It is
essential that you use unleaded petrol of the octane rating
stated on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an octane rating of 91 for a label with the ratings 95 or 98,
– with an octane rating of 87 for a label with the ratings 91, 95 or
98. Diesel: the label
located in the fuel
filler flap indicates authorised fuels.
spark plugs Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine
compartment. If it is not then contact an approved Dealer.
Fitting spark plugs other than those specified may damage the
engine. –
Page 247 of 268
![RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the en RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the en](/img/7/1573/w960_1573-246.png)
Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
weights ................................................. (up to the end of the DU)
transporting objects on the roof ....................................... (up to the end of the DU)
load permitted on the roof .....................(up to the end of the DU)
6.7
ENG_UD22317_4
Masses (en kg) (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
Towing weights
Weights

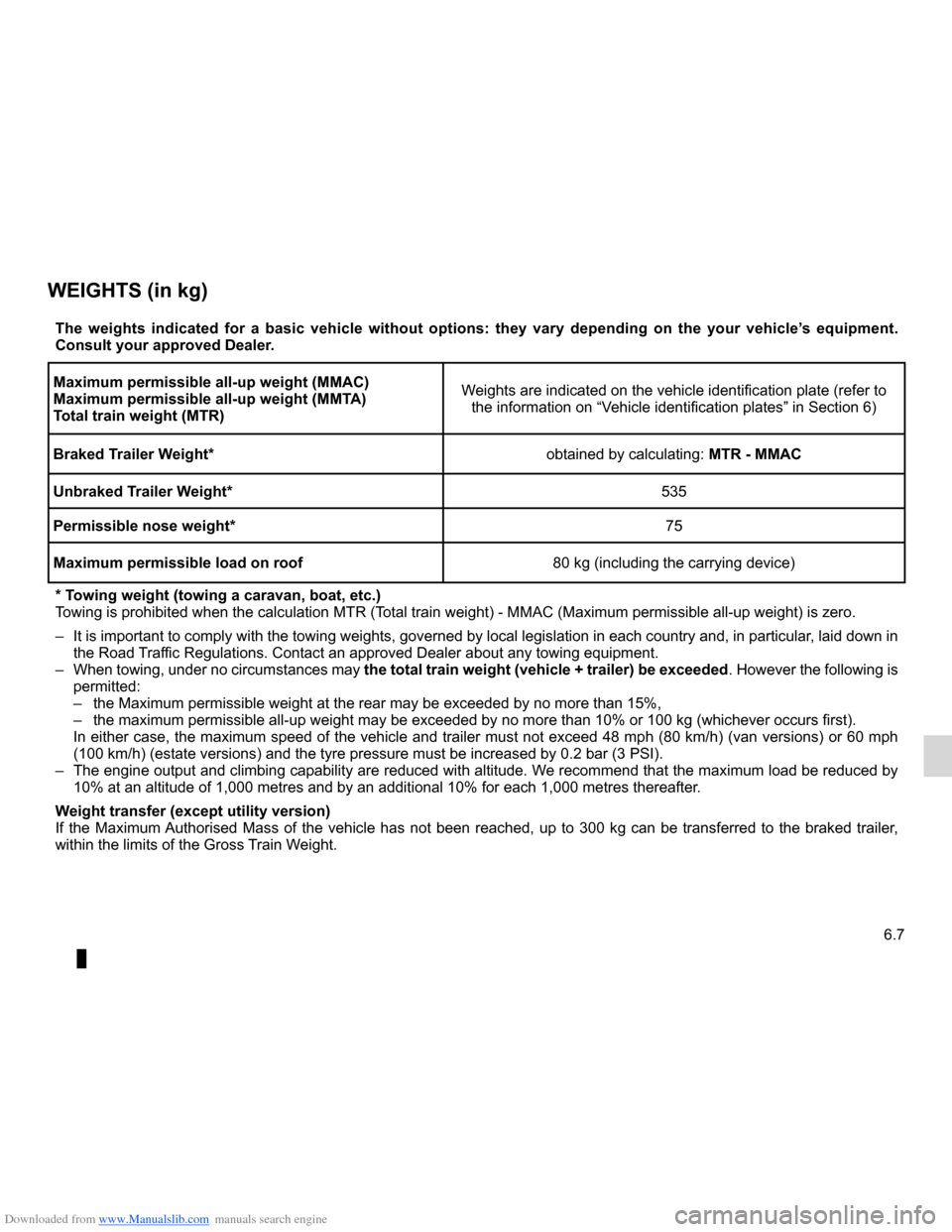

WeiGhts (in kg)
the weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment.
consult your approved dealer.
Maximum permissible all-up weight (MMac)
Maximum permissible all-up weight (MMta)
t otal train weight (MtR) Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked t railer Weight* obtained by calculating: MtR - MMac
Unbraked t railer Weight* 535
permissible nose weight* 75
Maximum permissible load on roof 80 kg (including the carrying device)
* t owing weight (towing a caravan, boat, etc.)
Towing is prohibited when the calculation MTR (Total train weight) - MMAC (Maximum permissible all-up weight) is zero\
.
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– the Maximum permissible weight at the rear may be exceeded by no more than 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In either case, the maximum speed of the vehicle and trailer must not exceed 48 mph (80 km/h) (van versions) or 60 mph
(100 km/h) (estate versions) and the tyre pressure must be increased by 0.\
2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by
10% at an altitude of 1,000 metres and by an additional 10% for each 1,0\
00 metres thereafter.
Weight transfer (except utility version)
If the Maximum Authorised Mass of the vehicle has not been reached, up to 300 kg can be transferred to the braked trailer,
within the limits of the Gross Train Weight.
Page 248 of 268
![RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the en RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the en](/img/7/1573/w960_1573-247.png)
Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.8
ENG_UD7339_1
Pièces de rechange et réparations (X76 - Renault)
ENG_NU_853-7_BCSK85_Renault_6

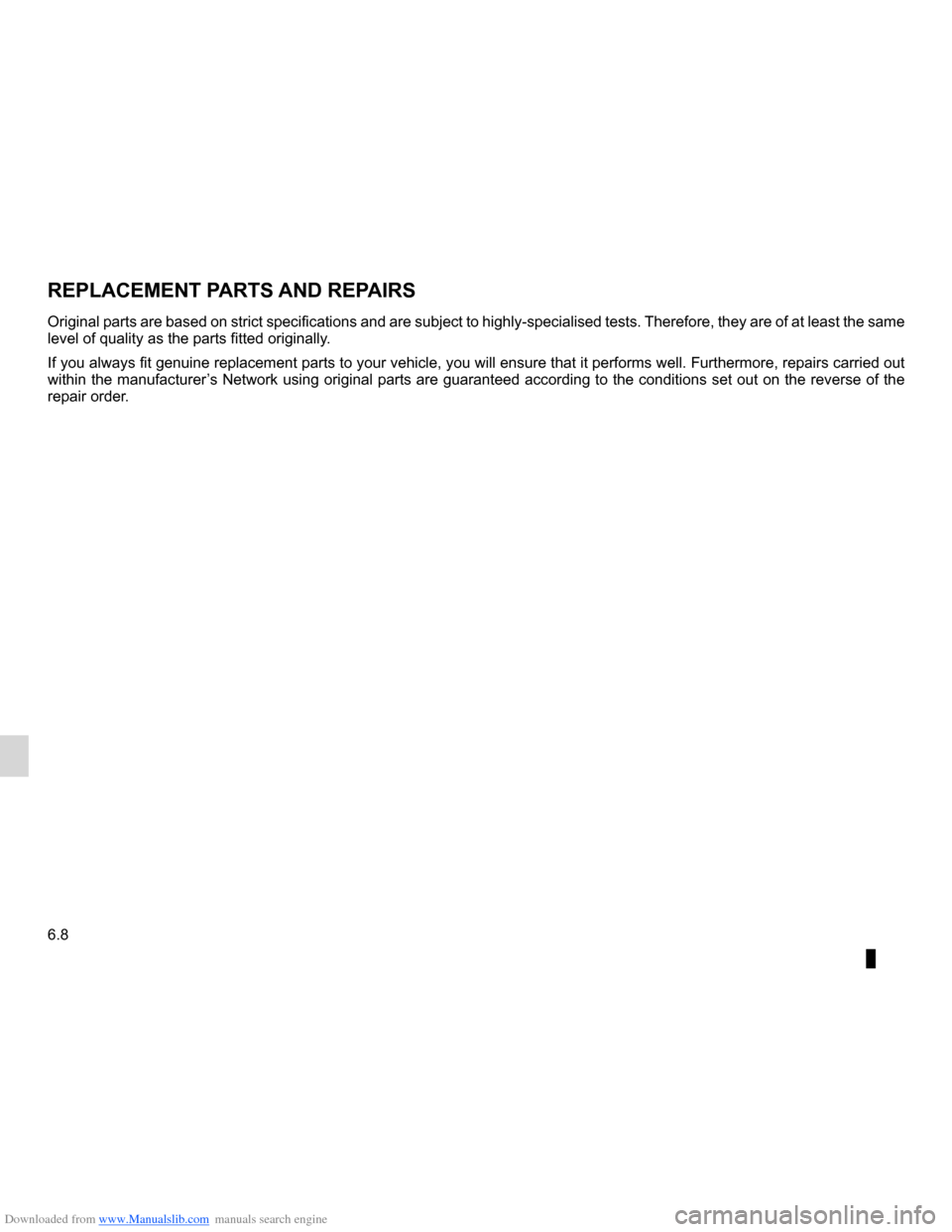

Replacement parts and repairs
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
ReplaceMent paRts and RepaiRs
Page 249 of 268
![RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine service sheets....................................... (up to the end of the DU)
maintenance: mechanical ...................................... RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine service sheets....................................... (up to the end of the DU)
maintenance: mechanical ......................................](/img/7/1573/w960_1573-248.png)
Downloaded from www.Manualslib.com manuals search engine service sheets....................................... (up to the end of the DU)
maintenance: mechanical ...................................... (up to the end of the DU)
maintenance: mileage before service .................... (up to the end of the DU)
6.9
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - L38 - L43 - L4\
7 - X61 BUp - X33 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
Service sheets
seRVice sheets (1/6)
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Vin: .......................................................................\
...........
Page 250 of 268
![RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine 6.10
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 RENAULT CLIO 2012 X85 / 3.G Owners Manual Downloaded from www.Manualslib.com manuals search engine 6.10
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77](/img/7/1573/w960_1573-249.png)
Downloaded from www.Manualslib.com manuals search engine 6.10
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - L38 - L43 - L4\
7 - X61 BUp - X33 - Renault)
ENG_NU_853-7_BCSK85_Renault_6
Jaune NoirNoir texte
seRVice sheets (2/6)
Vin: .......................................................................\
...........
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
