RENAULT CLIO 2015 X98 / 4.G Owners Manual

RENAULT CLIO 2015 X98 / 4.G Owners Manual https://www.carmanualsonline.info/img/7/1595/w960_1595-0.png RENAULT CLIO 2015 X98 / 4.G Owners Manual

Page 181 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.3
1
2
Emergency spare wheel
–  Open the tailgate;
–  lift the carpet;
–  lift the cover 1 and remove it;–  remove the tool kit by lifting it by its  handles;
The label 2  reminds you of how

Page 182 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.4
After changing a wheel, position the
replaced wheel on support 7, with the
valve facing the ground. Clip cable  5
in its housing  6, then push the wheel
under the boot.
Ensure that tab 8 is po

Page 183 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.5
NB: if the tool kit does not lock in place,
check the tightness of nut 3 and the
correct positioning of handle  4.
Special features
The emergency spare wheel holder
should always be present whe

Page 184 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.6
TYRE PRESSURE KIT (1/3)
The kit is only approved for
inflating the tyres of the ve-
hicle originally equipped
with the kit.
It must never be used to inflate
the tyres of another vehicle, or any

Page 185 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.7
TYRE PRESSURE KIT (2/3)
Depending on the vehicle, in the event
of a puncture, use the kit located in the
boot or underneath the luggage com-
partment carpet.
With the engine running and the
par

Page 186 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.8

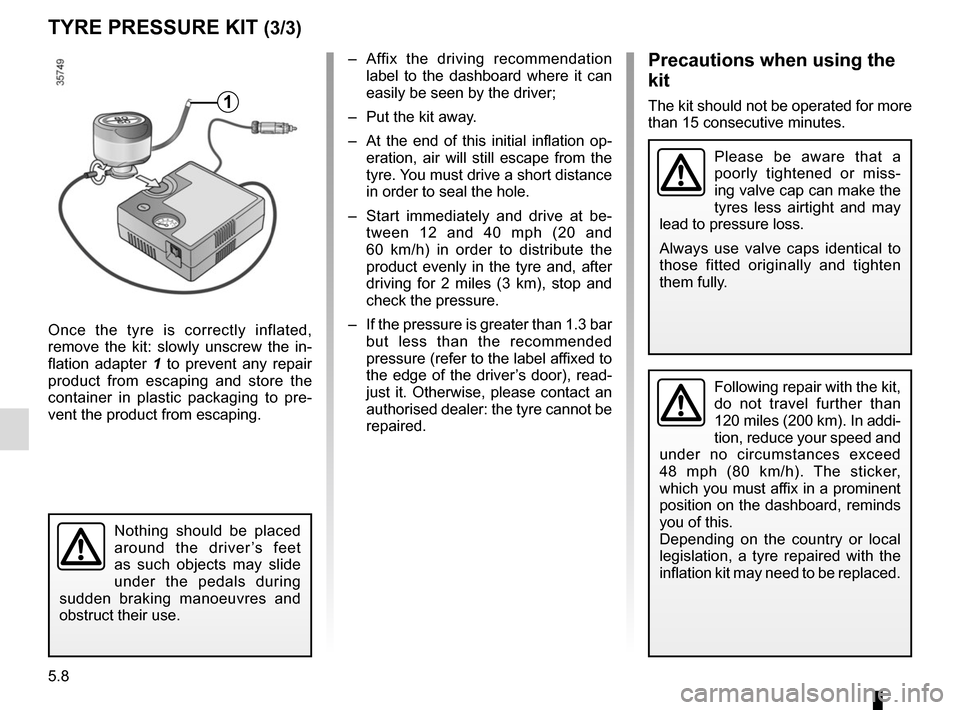

TYRE PRESSURE KIT (3/3)
Once the tyre is correctly inflated,
remove the kit: slowly unscrew the in-
flation adapter 1 to prevent any repair
product from escaping and store the
container in plas

Page 187 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.9
Jack 2Fold it correctly before refitting it in its
housing (ensure that the wheelbrace is
correctly positioned).
Hubcap tool 3
This tool is used to remove the wheel
trims.
Wheel bolt guide  4To

Page 188 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.10
Remove the wheel trim using hubcap
tool 1 (located in the tool kit) by en-
gaging the hook in the opening near
valve 2.
To refit it, align it with valve 2. Push the
retaining hooks in fully, s

Page 189 of 252

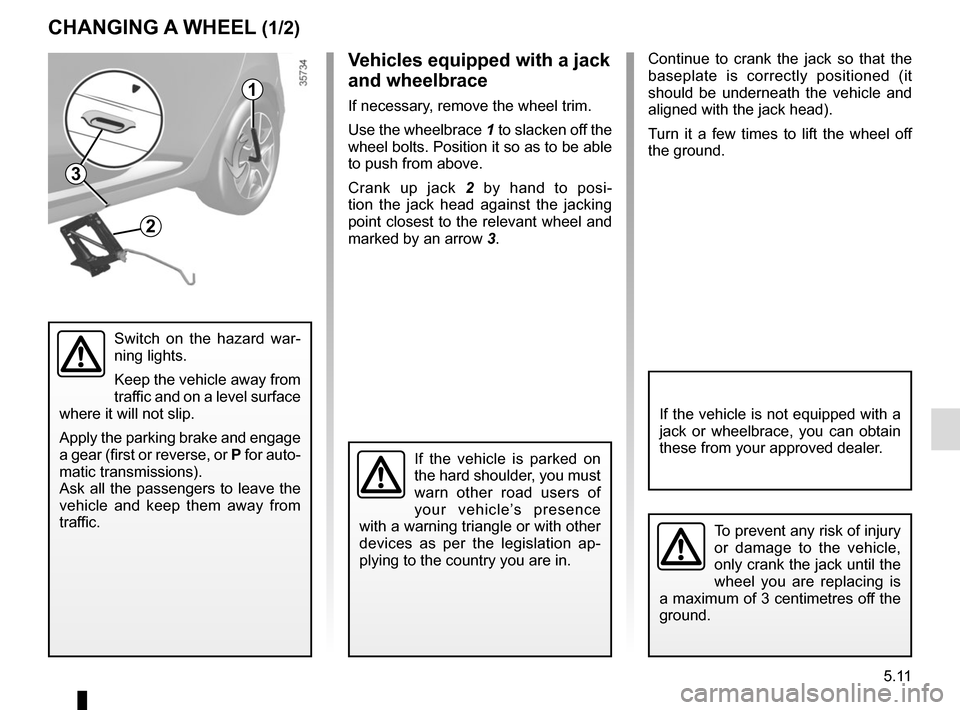

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.11
Continue to crank the jack so that the
baseplate is correctly positioned (it
should be underneath the vehicle and
aligned with the jack head).
Turn it a few times to lift the wheel off
the gr

Page 190 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.12
If you have a puncture, re-
place the wheel as soon as
possible.
A tyre which has been
punctured should always be inspec-
ted (and repaired, where possible)
by a specialist.
CHANGING A WHEEL (
