Page 211 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.33
BATTERY: breakdown recovery (2/2)
Depending on the vehicle, unclip the
battery cover.
Connect the positive cable A to the
support on the (+) terminal  1, then to the
(+) terminal 4 of the bat

Page 212 of 252

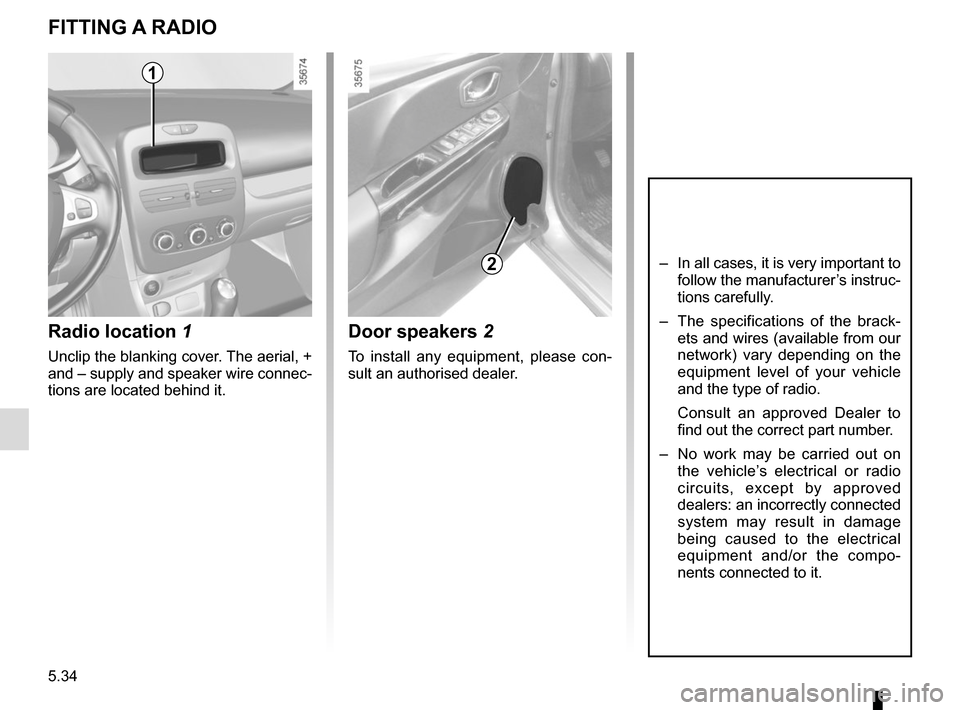

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.34
Radio location 1
Unclip the blanking cover. The aerial, +
and – supply and speaker wire connec-
tions are located behind it.
Door speakers 2
To install any equipment, please con-
sult an autho

Page 213 of 252

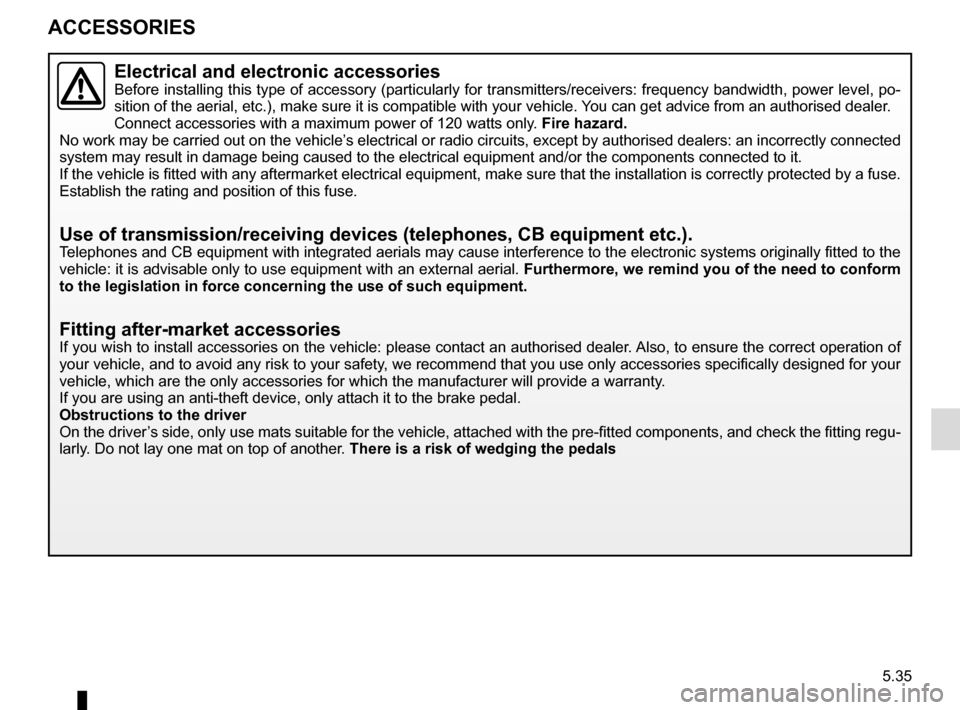

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.35
ACCESSORIES
Electrical and electronic accessoriesBefore installing this type of accessory (particularly for transmitters\
/receivers: frequency bandwidth, power level, po-
sition of the aerial, e

Page 214 of 252

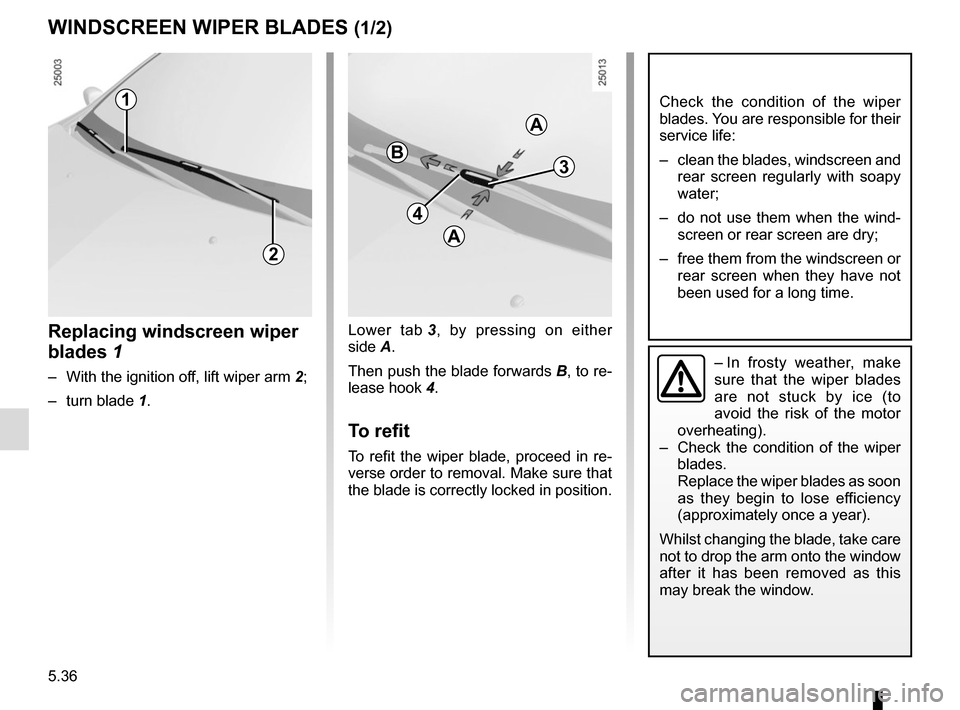

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.36
Lower tab 3, by pressing on either
side A.
Then push the blade forwards  B, to re-
lease hook  4.
To refit
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the bl

Page 215 of 252

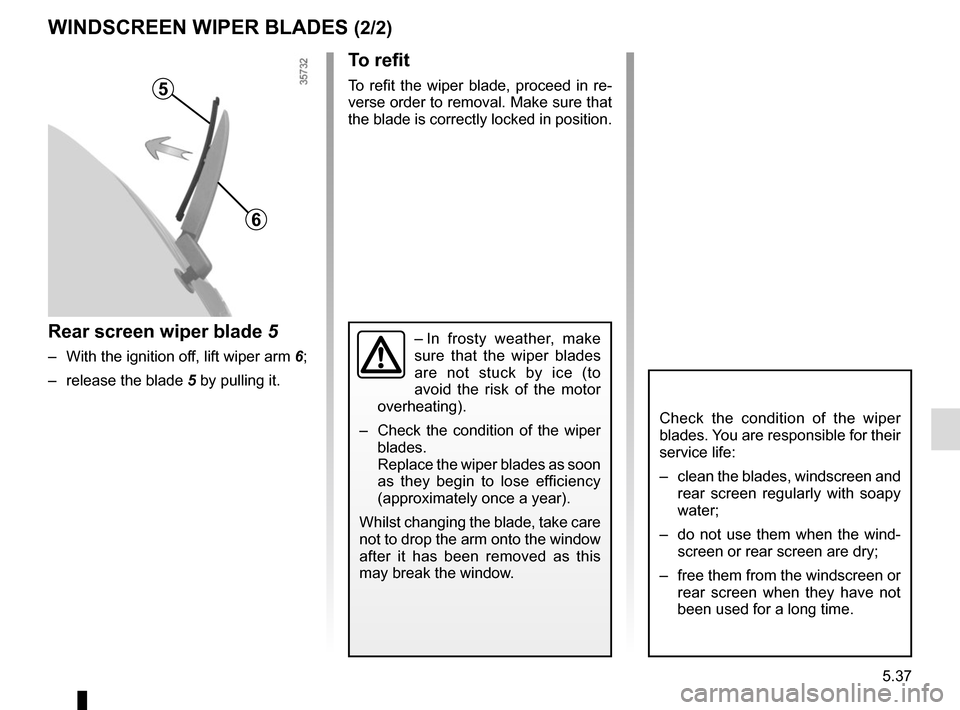

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.37
To refit
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
Rear screen wiper blade 5
–  With the ignition off, lift wip

Page 216 of 252

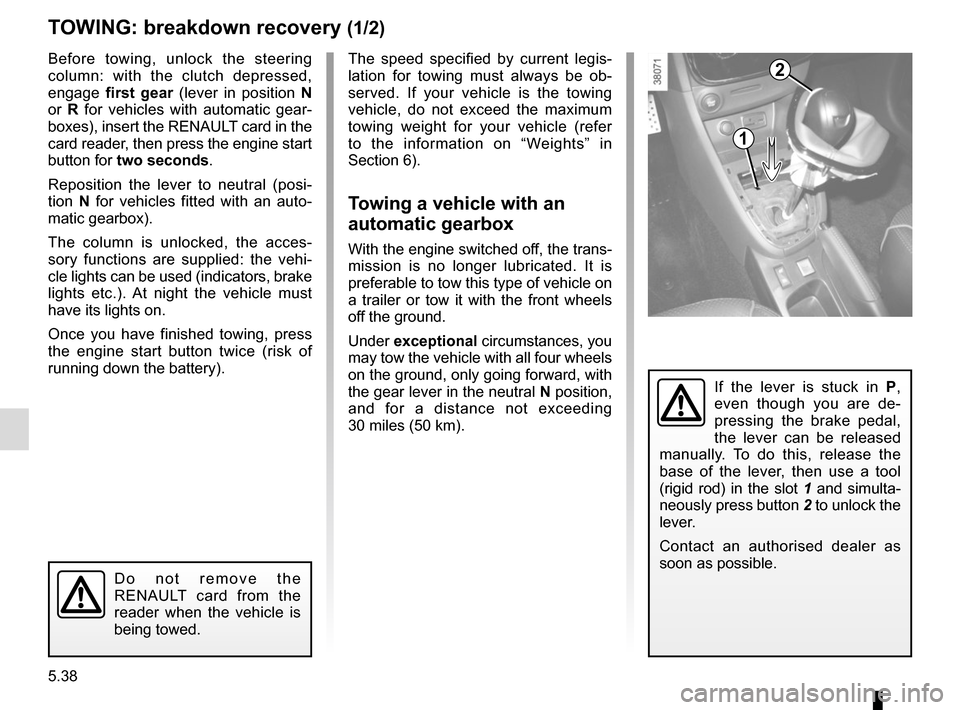

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.38
TOWING: breakdown recovery (1/2)
Before towing, unlock the steering
column: with the clutch depressed,
engage first gear  (lever in position  N
or  R for vehicles with automatic gear-
boxes),

Page 217 of 252

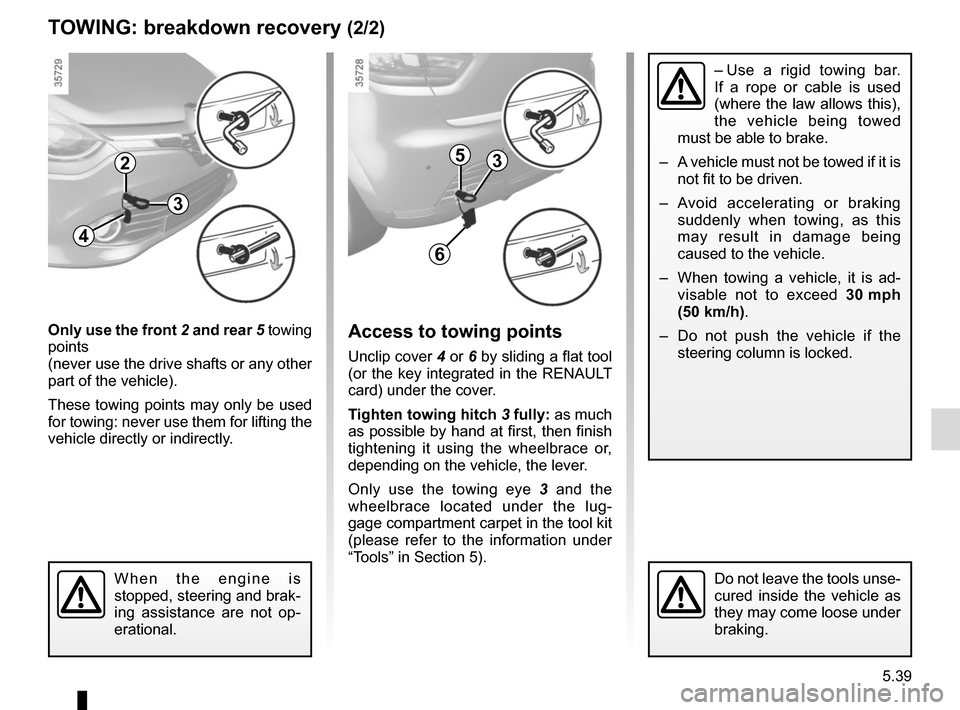

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.39
TOWING: breakdown recovery (2/2)
Only use the front 2  and rear  5 towing
points
(never use the drive shafts or any other
part of the vehicle).
These towing points may only be used
for towing:

Page 218 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.40
OPERATING FAULTS (1/6)
The following advice will enable you to carry out quick, temporary repai\
rs. For safety reasons you should always contact
an approved Dealer as soon as possible.
Using th

Page 219 of 252

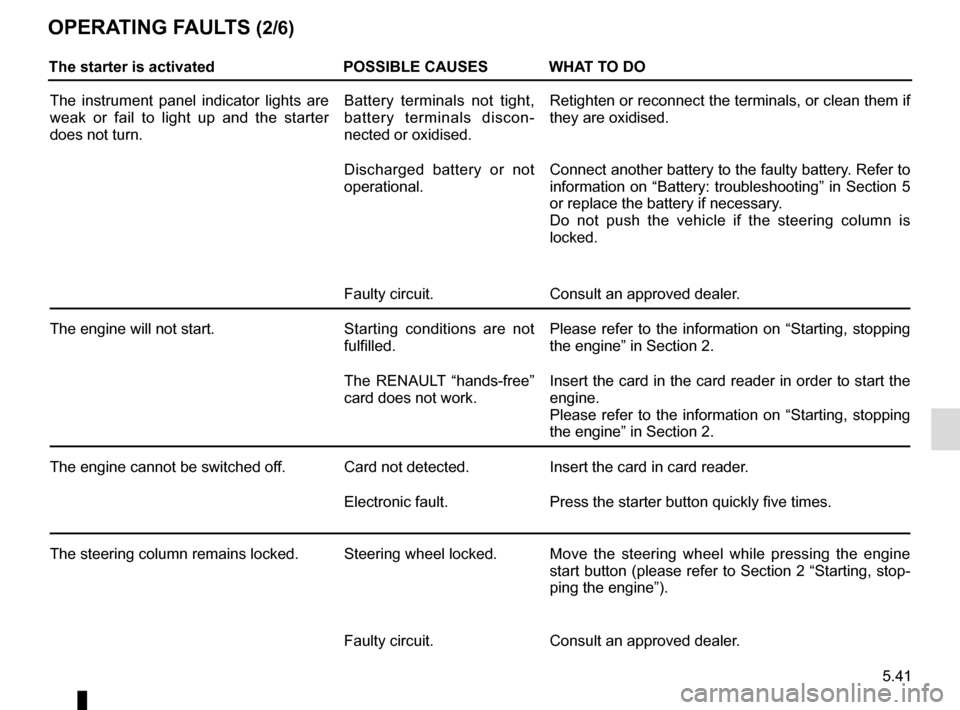

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.41
OPERATING FAULTS (2/6)
The starter is activatedPOSSIBLE CAUSES WHAT TO DO
The instrument panel indicator lights are
weak or fail to light up and the starter
does not turn. Battery terminals not

Page 220 of 252

RENAULT CLIO 2015 X98 / 4.G Owners Manual 5.42
OPERATING FAULTS (3/6)
On the roadPOSSIBLE CAUSESWHAT TO DO
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or dam-
aged. Check the tyre pressures: if this is not the
