RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual https://www.carmanualsonline.info/img/7/1596/w960_1596-0.png RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual

Page 131 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.1
Section 3: Your comfort
Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.2
Manual air co

Page 132 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.2

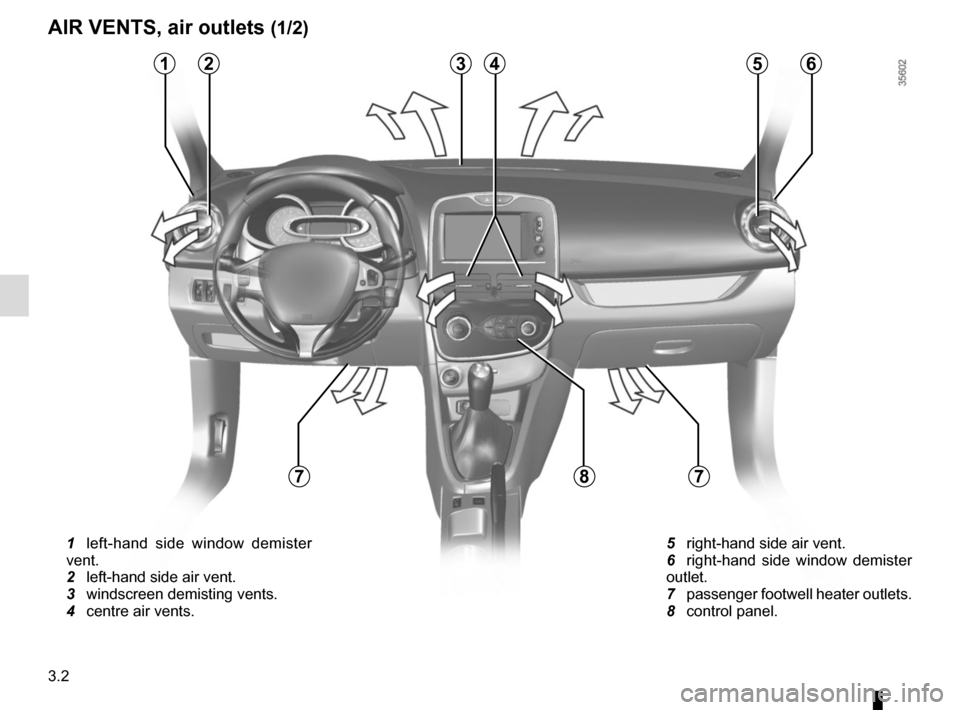

AIR VENTS, air outlets (1/2)
3
8
5612
7
 1  left-hand side window demister
vent.
  2  left-hand side air vent.
  3  windscreen demisting vents.
  4  centre air vents.
5  right-hand side air ven

Page 133 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.3
Side air vents
Air flow
To open air vent 11, press on the air
vent (point 12) until it is open as far as
required.
Direction
To direct the air flow, swivel side air
vent 11 .
Centre air vents.

Page 134 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.4
Switching air conditioning on
or off
(depending on vehicle)
The air conditioning is switched on (in-
dicator light on) or off (indicator light off)
using button 3.
Activation is not possible if

Page 135 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.5
Air recirculation is for:
–  isolating the vehicle from the exter-nal atmosphere (driving in polluted
areas, etc.);
–  lowering the passenger compart- ment temperature as quickly as pos-
sibl

Page 136 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.6
Adjusting the ventilation
speed
Move control 2. The further the control is positioned to the right, the greater the
amount of air blown into the passenger
compartment. If you want to shut off t

Page 137 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.7
Varying the ventilation speed
In automatic mode, the system uses
the most suitable amount of air to reach
and maintain the desired comfort level.
You can still adjust the ventilation
speed by t

Page 138 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.8
Clear View function
Press button 3 – the integrated indica-
tor light comes on.
This function quickly demists and de-
ices the windscreen, the rear screen,
the front side windows, and the door

Page 139 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.9
Rear screen de-icing/
demisting
Press button 8 – the integrated indica-
tor light comes on. This function en-
ables rapid demisting or de-icing of the
rear screen and de-icing of the door
mirr

Page 140 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.10
AUTOMATIC CLIMATE CONTROL (4/4)
76
Air recirculation (isolation of
the passenger compartment)
K
This function is managed automatically
(operation is confirmed by a warning
light on button 7),
