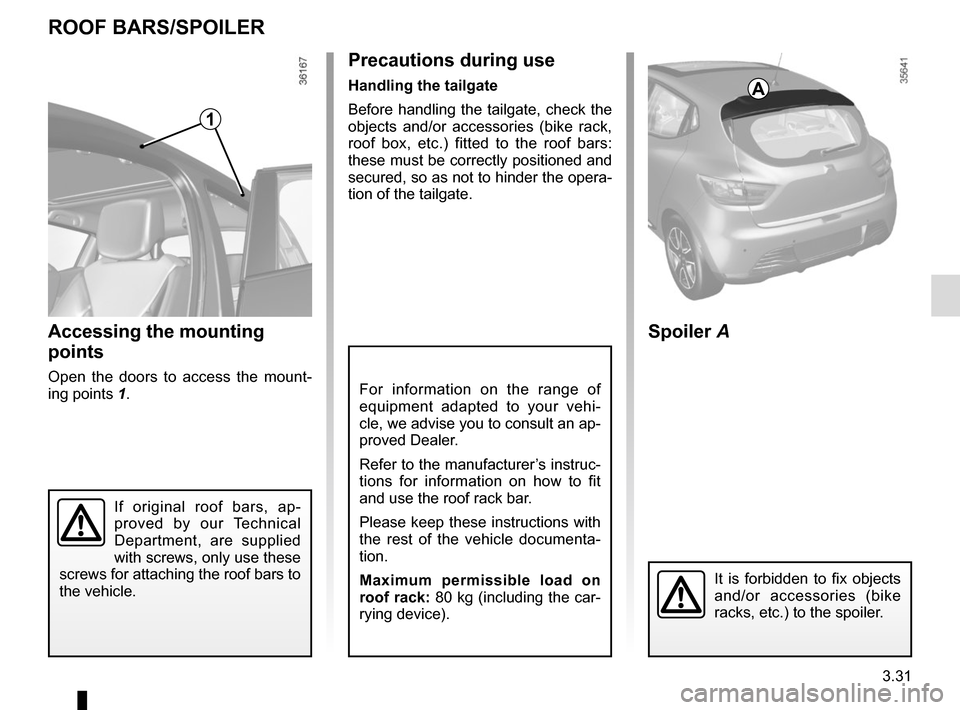

Page 161 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.31
For information on the range of
equipment adapted to your vehi-
cle, we advise you to consult an ap-
proved Dealer.
Refer to the manufacturer’s instruc-
tions for information on how to fit
an

Page 162 of 252

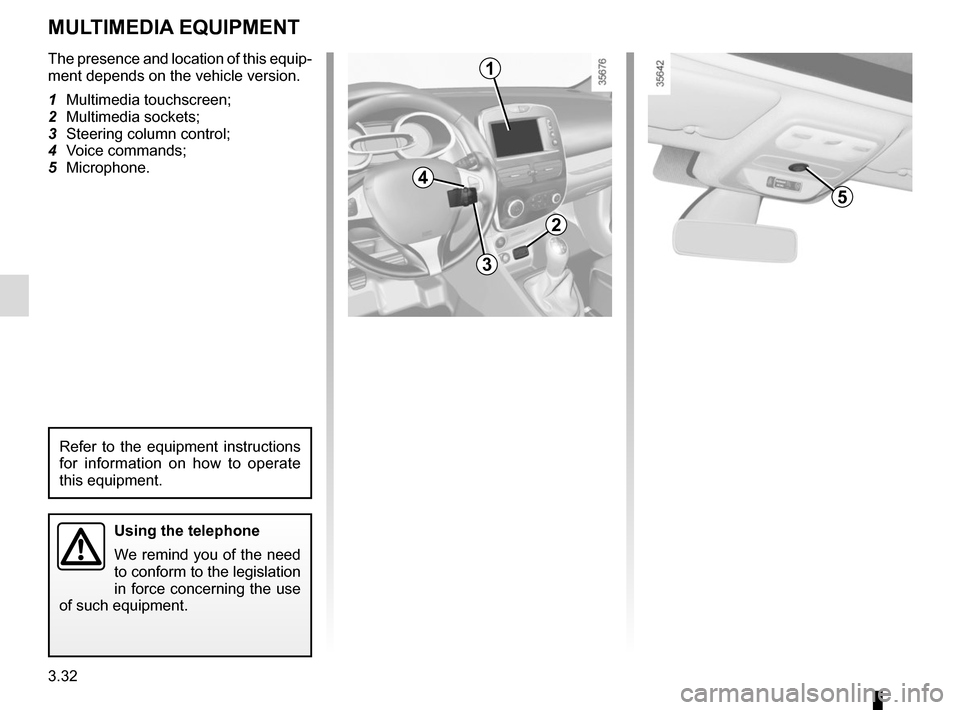

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 3.32
The presence and location of this equip-
ment depends on the vehicle version.
1 Multimedia touchscreen;
2 Multimedia sockets;
3  Steering column control;
4 Voice commands;
5 Microphone.
Using the

Page 163 of 252

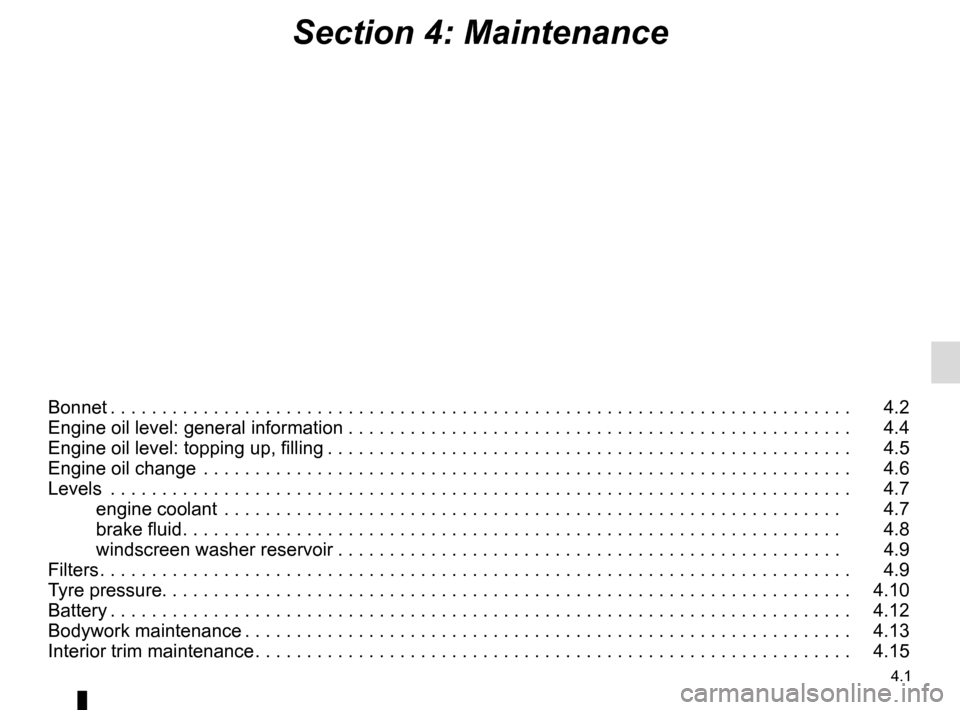

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 4.1
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   4.2
Engine oil lev

Page 164 of 252

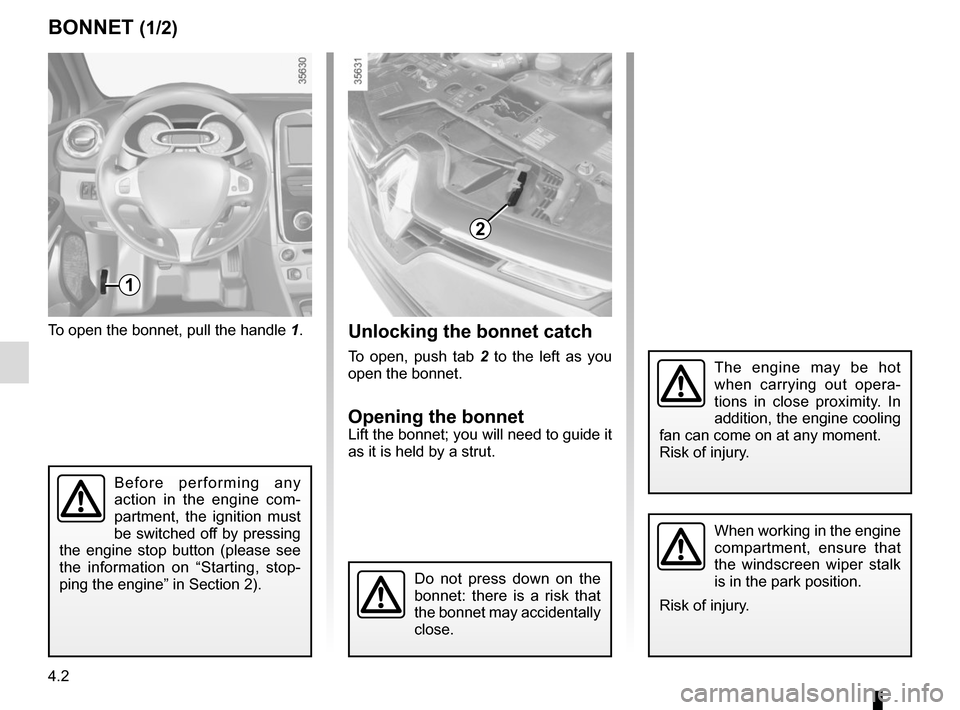

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 4.2
To open the bonnet, pull the handle 1.
BONNET (1/2)
1
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Ris

Page 165 of 252

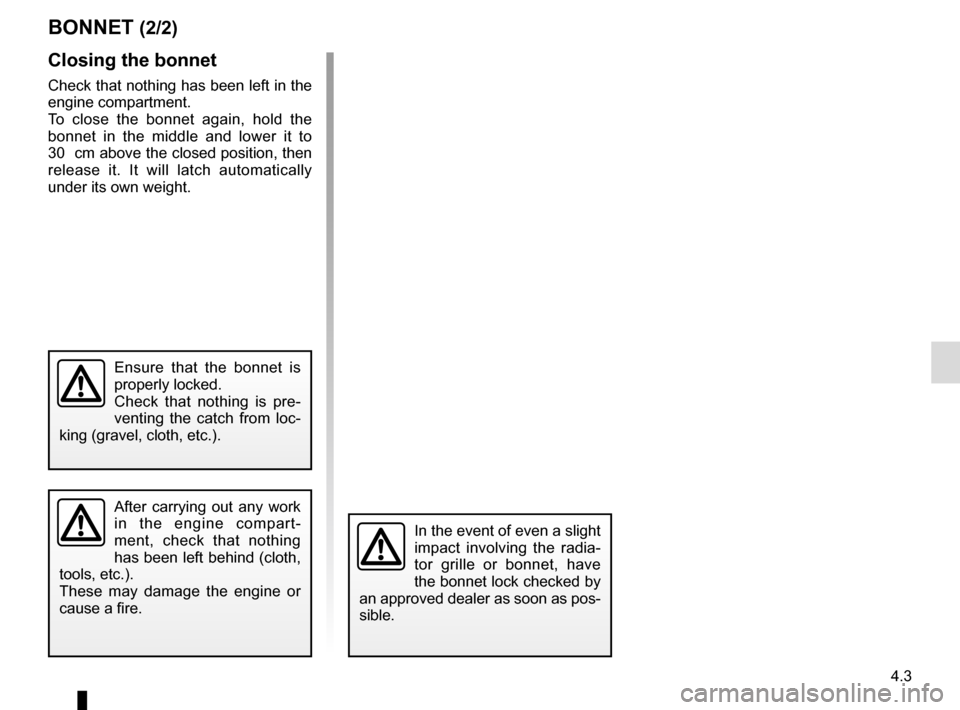

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 4.3
Closing the bonnet
Check that nothing has been left in the
engine compartment.
To close the bonnet again, hold the
bonnet in the middle and lower it to
30  cm above the closed position, then
r

Page 166 of 252

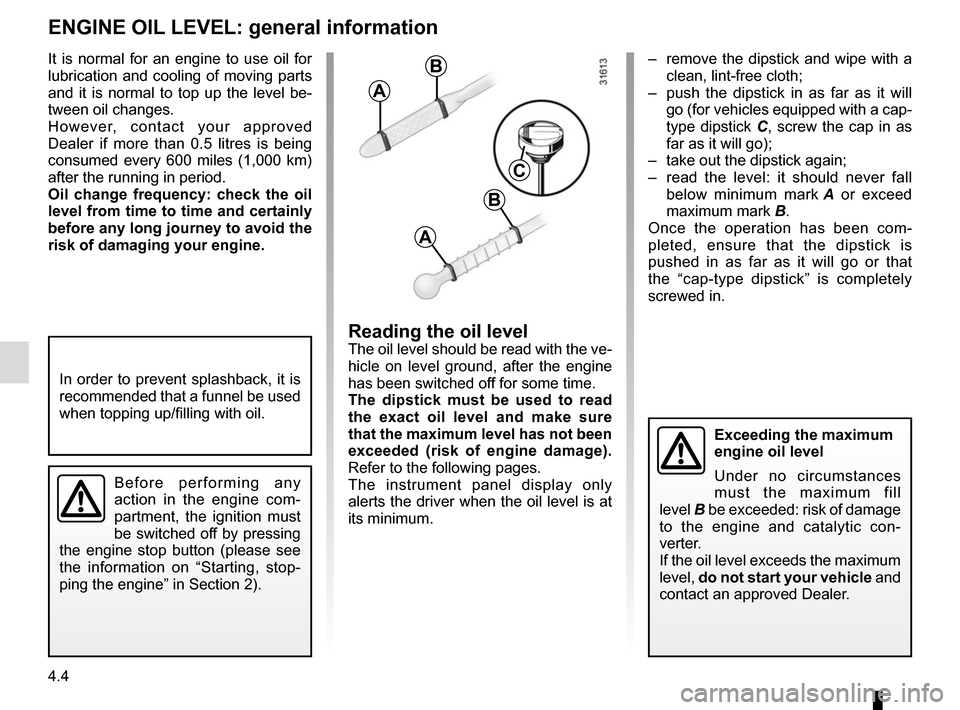

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 4.4
–  remove the dipstick and wipe with a clean, lint-free cloth;
–  push the dipstick in as far as it will  go (for vehicles equipped with a cap-
type dipstick C, screw the cap in as
far as it

Page 167 of 252

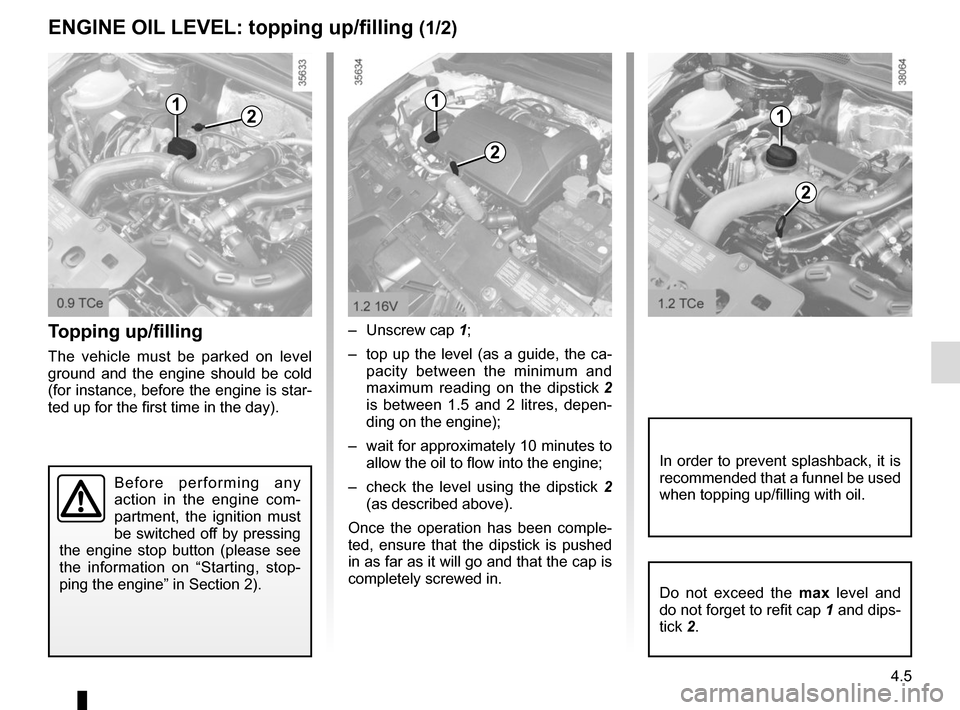

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 4.5
Topping up/filling
The vehicle must be parked on level
ground and the engine should be cold
(for instance, before the engine is star-
ted up for the first time in the day).– Unscrew cap
1;
�

Page 168 of 252

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 4.6
Engine oil gradeRefer to the Maintenance Service
Booklet for your vehicle.
ENGINE OIL LEVEL: topping up, filling (2/2)OIL CHANGE
Never run the engine in an
enclosed space as exhaust
gases are p

Page 169 of 252

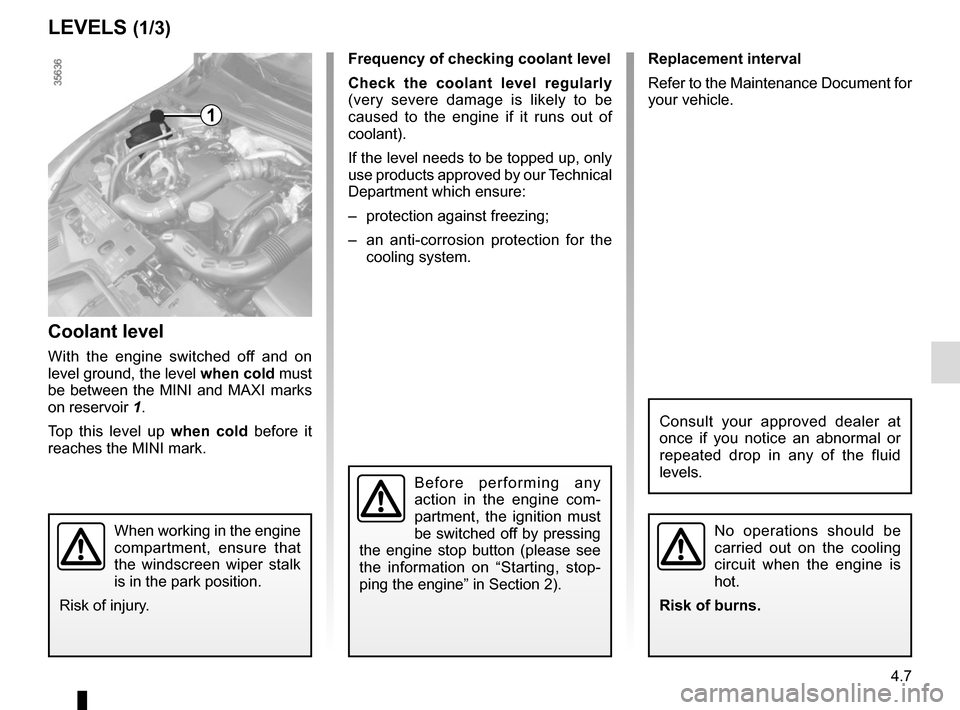

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 4.7
Frequency of checking coolant level
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If the level needs to be topped up, on

Page 170 of 252

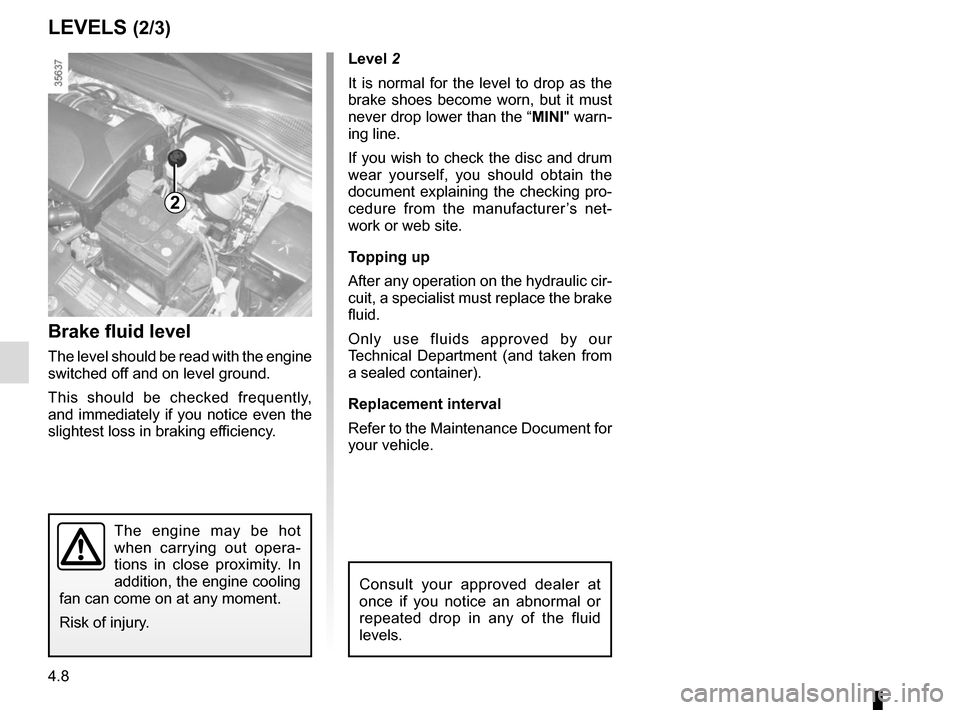

RENAULT CLIO SPORT TOURER 2015 X98 / 4.G Owners Manual 4.8
Level 2
It is normal for the level to drop as the
brake shoes become worn, but it must
never drop lower than the “MINI" warn-
ing line.
If you wish to check the disc and drum
wear yourself, y
