RENAULT DUSTER 2015 Owners Manual

JauneNoir Noir texte
2.45
ENG_UD39793_4
Boîte de vitesses automatique (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
AUTOMATIC GEARBOX (1/4)
Selector lever 1
Display 3 on the instrument panel
shows the mode and gear selected.
P: Park
R: Reverse
N: Neutral
D: Automatic mode
4: zone displaying gearbox mode or
gear engaged in manual mode.
Operation
With the selection lever 1 in position P,
switch on the ignition.
With your foot on the brake pedal, move
the lever out of position P.
Only engage D or R when the vehi-
cle is stopped, with your foot on the
brake and the accelerator pedal re-
leased.
To move out of position P the brake
pedal must be depressed before
pressing the unlocking button .2
For safety reasons, do not
switch off the ignition before
the vehicle has come to a
complete standstill.
1
2
3
4
Driving in automatic mode
Place the lever into position D.
In the majority of driving conditions, you
will no longer have to use your gear
lever: the gears change automatically,
at the right time, to a suitable engine
speed because “automatic” takes the
vehicle’s load, road profile and driving
style into account.
2
1

JauneNoir Noir texte
2.46
ENG_UD39793_4
Boîte de vitesses automatique (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
AUTOMATIC GEARBOX (2/4)
Driving in manual modeWhen the selector lever is in position D,
move the lever to the left.
Shifting the lever repeatedly allows you
to change gears manually:
– To move down through the gears,
push the lever backwards;
– to move up through the gears, push
the lever forwards.
Depending on the vehicle:
– to move down through the gears,
push the lever forwards;– to move up through the gears, push
the lever backwards.
The gear selected is displayed on the
instrument panel.
Special cases
In certain driving conditions (e.g.: to
protect the engine) the “automated
system” may change the gear automa-
tically.
Likewise, to prevent incorrect ma-
noeuvres, a gear change may be re-
fused by the automatic system: in this
case the gear display flashes for a few
seconds as a warning.
Economical driving
When driving, always leave the lever
in position D, keeping the accelerator
pedal lightly depressed to ensure auto-
matic gear changes at a lower engine
speed.
Accelerating and overtaking
Depress the accelerator pedal firmly
and fully (so that it goes beyond the
kickdown point).
This will enable you to change down
to the optimum gear within the
engine range.

JauneNoir Noir texte
2.47
ENG_UD39793_4
Boîte de vitesses automatique (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
AUTOMATIC GEARBOX (3/4)
Special circumstances
– Depending on the vehicle, snow
position: if you are driving on slip-
pery surfaces (snow, mud, etc.)
press switch 5, the operating indica-
tor light 6 comes on.
Once these special driving con-
ditions no longer apply, exit this
function by pressing switch 5
again. The warning light 6 goes
out.
5
– If the road contour and bends in
the road do not allow you to stay in
automatic mode (e.g.: in mountai-
nous areas), it is recommended that
you switch to manual mode.
This will prevent the automatic gear-
box from changing gears repeatedly
when climbing, and permit engine
braking on long descents.
– In cold weather, to prevent the
engine from stalling, wait a few sec-
onds before moving the selector
lever from position P or N and en-
gaging it in D or R.– Vehicles not fitted with traction
control: on a slippery surface or
surface with a low level of adhesion,
change to manual mode and select
second gear (or even third) before
starting the engine to avoid wheels-
pin when accelerating.
In very cold weather, the system
may prevent the gears from being
shifted in manual mode until the
gearbox reaches the right tempera-
ture.
6

JauneNoir Noir texte
2.48
ENG_UD39793_4
Boîte de vitesses automatique (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
AUTOMATIC GEARBOX (4/4)
Parking the vehicle
When the vehicle is stopped, move the
lever to position P while keeping your
foot on the brake pedal: the gearbox is
in neutral and the drive wheels are me-
chanically locked by the driveshaft.
Apply the handbrake.
Operating faults
If a vehicle with an automatic gear-
box breaks down, please refer to the
information on “Towing” in Section 5.
When setting off, if the lever is locked
in position P even though you are
pressing the brake pedal, the lever can
be released manually.
To do this, unclip the base of the lever,
simultaneously press recess 7 and the
unlocking button 2.
An impact to the under-
side of the vehicle while
manoeuvring (e.g.: stri-
king a post, raised kerb or
other street furniture) may result in
damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have
your vehicle checked by an appro-
ved Dealer.
For safety reasons, do not
switch off the ignition before
the vehicle has come to a
complete standstill.
2
7
Depending on the vehicle, unclip the
base of the lever, then insert a tool
(rigid rod) into the slot 8 and simulta-
neously press the button 2 in order to
unlock the lever.
Contact an authorised dealer as soon
as possible.
8
2

JauneNoir Noir texte
2.49
ENG_UD32147_1
Aide au parking (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
This function is an addi-
tional aid that indicates the
distance between the vehi-
cle and an obstacle whilst
reversing, using sound signals.
Under no circumstances should it
replace the driver’s care or respon-
sibility whilst reversing.
The driver should always look out
for sudden hazards during driving:
always ensure that there are no
moving obstacles (such as a child,
animal, pram, bicycle, etc.) or small,
narrow objects such as stones or
posts in your path when manoeu-
vring.
Operating principle
Ultrasonic sensors, fitted in the vehi-
cle’s rear bumper, measure the dis-
tance between the vehicle and an ob-
stacle when reversing.
This measurement is indicated by
beeps which become more frequent the
closer you come to the obstacle, until
they become a continuous beep when
the vehicle is approximately 40 centi-
metres from the obstacle.
There is a beep when reverse gear is
engaged. If the beep sounds for a long
time (3 seconds), this signals an oper-
ating fault.
NB: ensure that the ultrasonic sensors
are not obscured (by dirt, mud, snow,
etc.).
PARKING DISTANCE CONTROL (1/2)
An impact to the under-
side of the vehicle while
manoeuvring (e.g.: strik-
ing a post, raised kerb or
other street furniture) may result in
damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have
your vehicle checked by an ap-
proved dealer.

JauneNoir Noir texte
2.50
ENG_UD32147_1
Aide au parking (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
PARKING DISTANCE CONTROL (2/2)
Deactivating the system
You can deactivate the system by
pressing switch 1.
The warning light built into the switch
remains lit constantly.
The deactivated system can be reacti-
vated by pressing the switch again.
Operating faults
When the system detects an operat-
ing fault, there will be a three-second
continuous beep as a warning. Please
consult an authorised dealer.
1

JauneNoir Noir texte
2.51
ENG_UD38493_1
Caméra de recul (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
Note: make sure that the reversing
camera is not obscured (by dirt, mud,
snow, etc.).
REVERSING CAMERA (1/2)
Operation

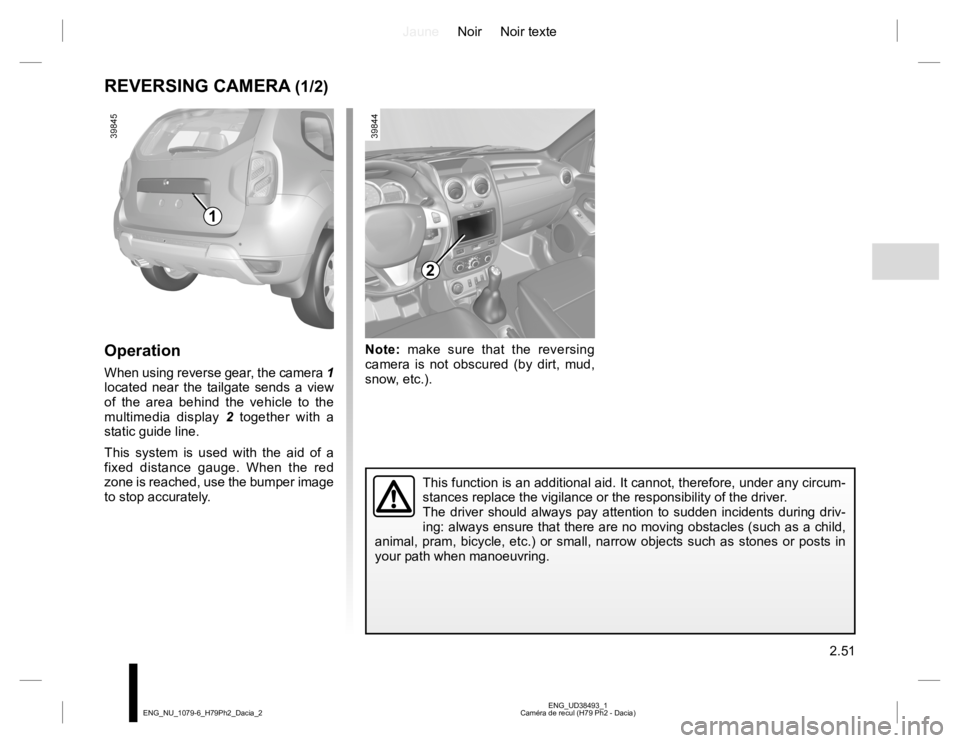

When using reverse gear, the camera 1
located near the tailgate sends a view
of the area behind the vehicle to the
multimedia display 2 together with a
static guide line.
This system is used with the aid of a
fixed distance gauge. When the red
zone is reached, use the bumper image
to stop accurately.
This function is an additional aid. It cannot, therefore, under any circum-
stances replace the vigilance or the responsibility of the driver.
The driver should always pay attention to sudden incidents during driv-
ing: always ensure that there are no moving obstacles (such as a child,
animal, pram, bicycle, etc.) or small, narrow objects such as stones or posts in
your path when manoeuvring.
1
2

JauneNoir Noir texte
2.52
ENG_UD38493_1
Caméra de recul (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
REVERSING CAMERA (2/2)

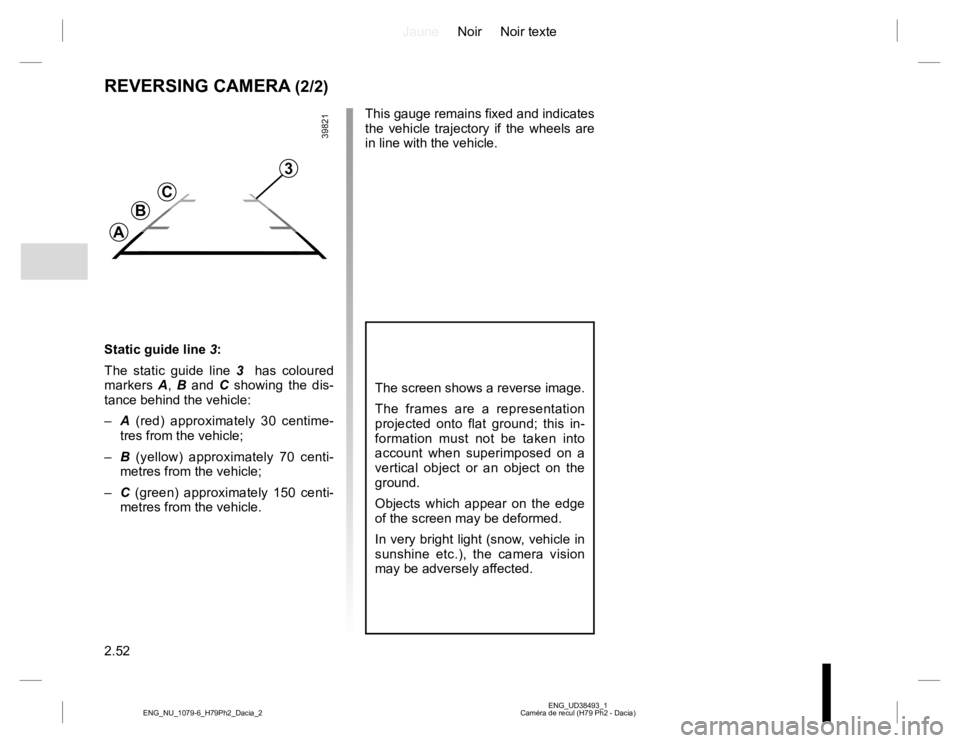

Static guide line 3:
The static guide line 3 has coloured
markers A, B and C showing the dis-
tance behind the vehicle:
– A (red) approximately 30 centime-
tres from the vehicle;
– B (yellow) approximately 70 centi-
metres from the vehicle;
– C (green) approximately 150 centi-
metres from the vehicle.This gauge remains fixed and indicates
the vehicle trajectory if the wheels are
in line with the vehicle.
The screen shows a reverse image.
The frames are a representation
projected onto flat ground; this in-
formation must not be taken into
account when superimposed on a
vertical object or an object on the
ground.
Objects which appear on the edge
of the screen may be deformed.
In very bright light (snow, vehicle in
sunshine etc.), the camera vision
may be adversely affected.
3
A
B
C

JauneNoir Noir texte
3.1
ENG_UD39329_8
Sommaire 3 (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3
Section 3: Your comfort
Air vents, air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.7
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.8
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.11
Sun visor/grab handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.13
Ashtrays, Cigarette lighter, Accessories socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.14
Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.15
Passenger compartment storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.16
Rear bench seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.20
Luggage compartment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.23
Transporting objects in the luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.24
Transporting objects: towing, towing equipment) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.26
Rear parcel shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.27
Roof bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.28
Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.29

JauneNoir Noir texte
3.2
ENG_UD38572_2
Aérateurs, sorties d’air (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3

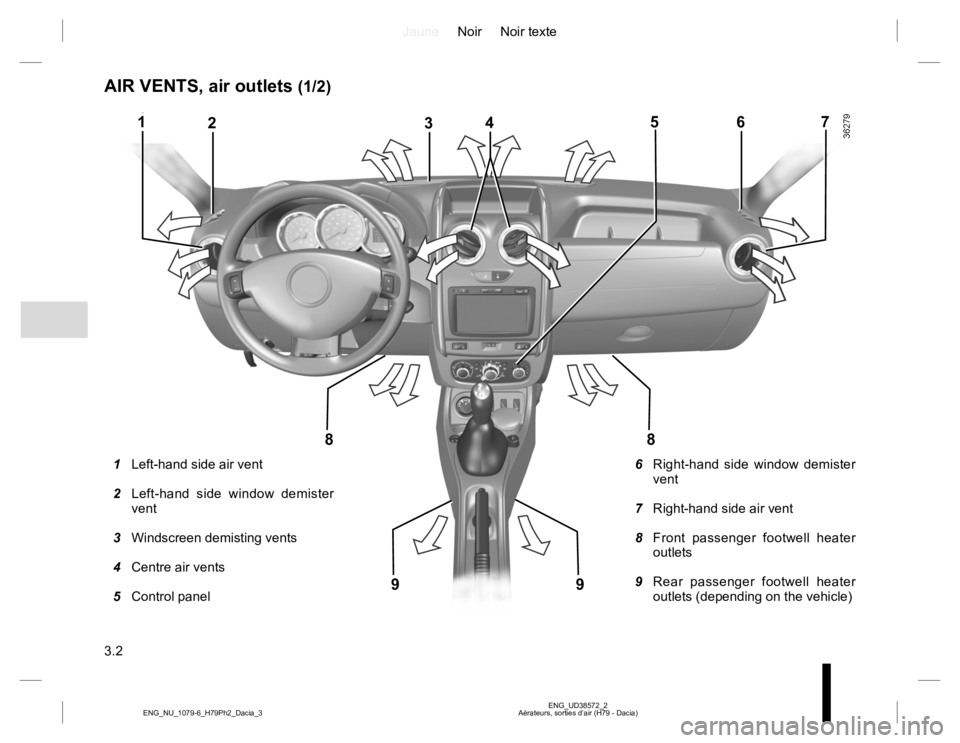

1 Left-hand side air vent
2 Left-hand side window demister
vent
3 Windscreen demisting vents
4 Centre air vents
5 Control panel 6 Right-hand side window demister
vent
7 Right-hand side air vent
8 Front passenger footwell heater
outlets
9 Rear passenger footwell heater
outlets (depending on the vehicle)
AIR VENTS, air outlets (1/2)
1234567
88
99
