RENAULT DUSTER 2015 Owners Manual

JauneNoir Noir texte
5.13
ENG_UD38377_5
Pneumatiques (H79 - H79 Ph2 - Dacia)ENG_NU_1079-6_H79Ph2_Dacia_5
TYRES (2/4)
Tyre pressures
Adhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af-
fixed to the edge of the driver’s door).
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding;
– risk of blowouts or throwing a
tread.
The tyre pressure depends on the
load and speed of use; adjust the
pressures according to the condi-
tions of use (refer to the information
on “Tyre pressures” in Section 4).
Please be aware that a poorly tightened or missing valve cap can make
the tyres less airtight and may lead to pressure loss. Always use valve
caps of the same type as the originals and tighten them fully.
Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are cold, assume an in-
crease of 0.2 to 0.3 bar.
Never deflate a hot tyre.
Special note
Depending on the vehicle, there may
be an adapter which needs to be posi-
tioned on the valve before air is added.
Your vehicle is equipped with large
wheels. These are more sensitive to
imbalance. If you experience vibra-
tion while driving, contact an appro-
ved dealer.
Vehicle fitted with a tyre pressure
loss warning system
If under-inflated (puncture, low pres-
sure, etc.), the warning light
 on
the instrument panel comes on. See
«Tyre pressure loss warning» in chap-
ter 2.

JauneNoir Noir texte
5.14
ENG_UD38377_5
Pneumatiques (H79 - H79 Ph2 - Dacia)ENG_NU_1079-6_H79Ph2_Dacia_5
TYRES (3/4)
Changing wheels around
We recommend that you swap the
wheels regularly in order to ensure that
the tyres wear evenly.
Swap the wheels as shown in the above
diagram. Refer to your vehicle’s main-
tenance document for the intervals.
Emergency spare wheel
Refer to the information on the
“Emergency spare wheel” and
“Changing a wheel” in Section 5.
Fitting new tyres
For safety reasons, this
operation must be carried
out by a specialist.
Fitting different tyres may
change your vehicle as follows:
– it may mean that your vehicle no
longer conforms to current regu-
lations;
– It may change the way it handles
when cornering;
– It may cause the steering to be
heavy;
– it may affect the use of snow
chains.

JauneNoir Noir texte
5.15
ENG_UD38377_5
Pneumatiques (H79 - H79 Ph2 - Dacia)ENG_NU_1079-6_H79Ph2_Dacia_5
TYRES (4/4)
Snow or Winter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe-
sion.
Warning: These tyres sometimes
have a specific direction of rotation
and a maximum speed index which
may be lower than the maximum
speed of your vehicle.
Studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation.
It is necessary to observe the speed
specified by current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
In all cases, we would recommend
that you contact your approved
dealer who will be able to advise you
on the choice of equipment which is
most suitable for your vehicle.
Use in winter
Chains
2-wheel drive version (2WD)
Snow chains must be fitted to the
front wheels.
4-wheel drive version (4WD)
Snow chains may be fitted to only the
front wheels, or to all four wheels.
It is forbidden to fit snow
chains to only the rear
wheels.
Snow chains may only be
fitted to tyres of the same size as
those originally fitted to your vehicle.
Only certain chains can be fitted to
tyres.
Consult an approved dealer.

JauneNoir Noir texte
5.16
ENG_UD39295_3
Feux avant : remplacement des lampes (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
FRONT LIGHTS: changing bulbs
Dipped beams
Remove cover A.
Tilt bulb holder 5 to release it and then
replace the bulb.
Bulb type: H7.
Main beam headlightRemove cover B.
Remove the bulb connector 2. Unclip
the spring 3 and take out the bulb.
Bulb type: H1.
It is essential to use anti-U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
Do not touch the bulb glass. Hold it
by its base.
Mark the bulb’s position before remo-
val to ensure correct positioning when
replacing.
When the bulb has been changed,
make sure you refit the cover correctly.
Daytime running light, front
side light
Turn the bulb holder a quarter of a
turn 1 and take out the bulb.
Bulb type: W21/5W.
Direction indicator lights
Turn the bulb holder 4 a quarter of a
turn and take out the bulb.
Bulb type: PY21W.A
B
5
1
3
2
4
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from your appro-
ved dealer containing a set of spare
bulbs and fuses.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

JauneNoir Noir texte
5.17
ENG_UD38548_2
Projecteurs antibrouillard : remplacement des lampes (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
Additional lights
If you wish to fit fog lights to your ve-
hicle, please see an authorised dealer.
FOG LIGHTS: changing bulbs
Front fog lights 1
Consult an approved dealer.
Bulb type: H16
or depending on vehicle, H11.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved Dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved Dealer.
Rear fog lights 2(depending on vehicle)
Consult an approved dealer.
Bulb type: P21W.
2

JauneNoir Noir texte
5.18
ENG_UD39296_4
Feux arrière : remplacement des lampes (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
REAR LIGHTS: replacing the bulbs(1/5)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
233
3
4
5

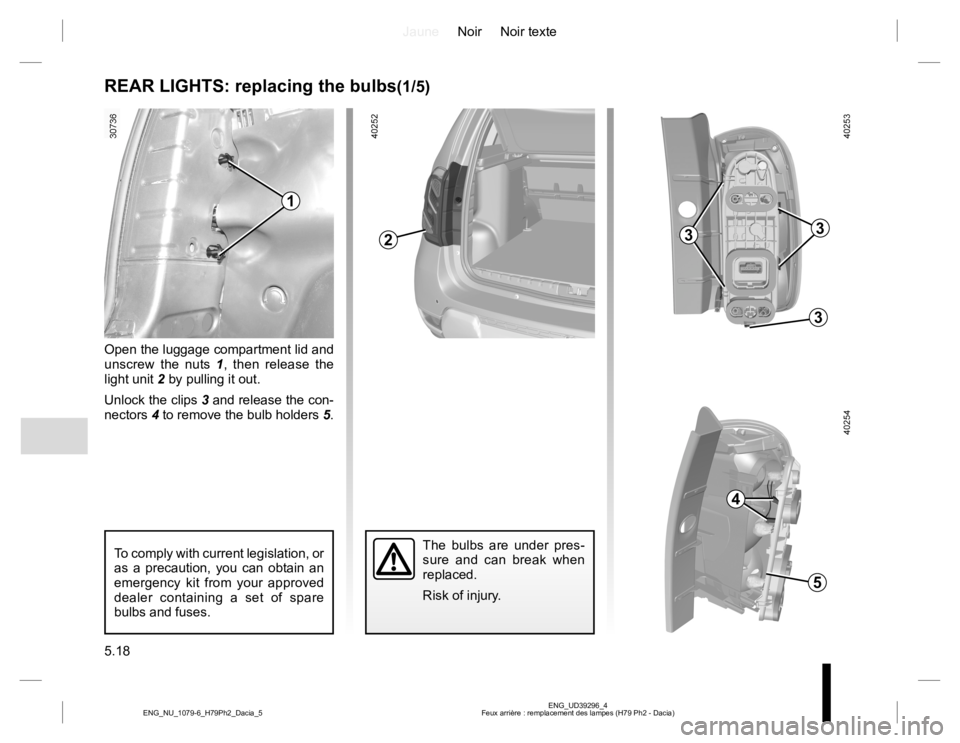

Open the luggage compartment lid and
unscrew the nuts 1, then release the
light unit 2 by pulling it out.
Unlock the clips 3 and release the con-
nectors 4 to remove the bulb holders 5.
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.

JauneNoir Noir texte
5.19
ENG_UD39296_4
Feux arrière : remplacement des lampes (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
REAR LIGHTS: replacing the bulbs(2/5)
6 Side light
Consult an approved Dealer.
7 Direction indicator lights
WY 16 W bulb.
8 Brake light
Pear-shaped, bayonet type P 21 W
bulb with two filaments.
9 Reversing light
Pear-shaped, bayonet type bulb
P 21 W.
6
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
7
8
9
5

JauneNoir Noir texte
5.20
ENG_UD39296_4
Feux arrière : remplacement des lampes (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
REAR LIGHTS: replacing the bulbs(3/5)

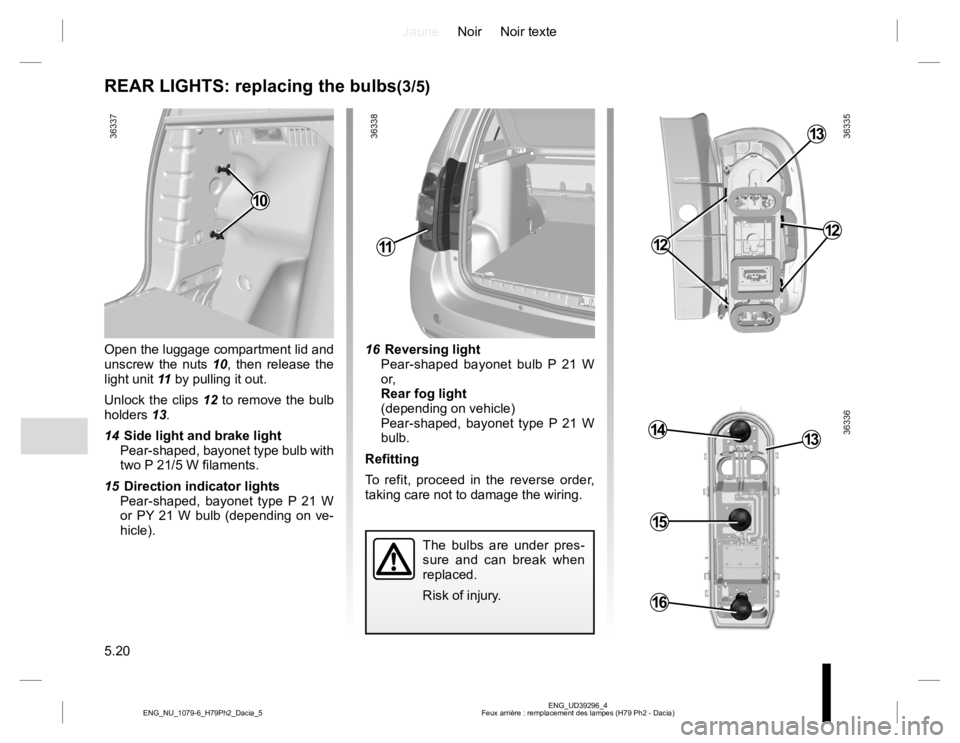

Open the luggage compartment lid and
unscrew the nuts 10, then release the
light unit 11 by pulling it out.
Unlock the clips 12 to remove the bulb
holders 13.
14 Side light and brake light
Pear-shaped, bayonet type bulb with
two P 21/5 W filaments.
15 Direction indicator lights
Pear-shaped, bayonet type P 21 W
or PY 21 W bulb (depending on ve-
hicle).16 Reversing light
Pear-shaped bayonet bulb P 21 W
or,
Rear fog light
(depending on vehicle)
Pear-shaped, bayonet type P 21 W
bulb.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
10
111212
13
14
15
16
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
13

JauneNoir Noir texte
5.21
ENG_UD39296_4
Feux arrière : remplacement des lampes (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
REAR LIGHTS: replacing the bulbs(4/5)

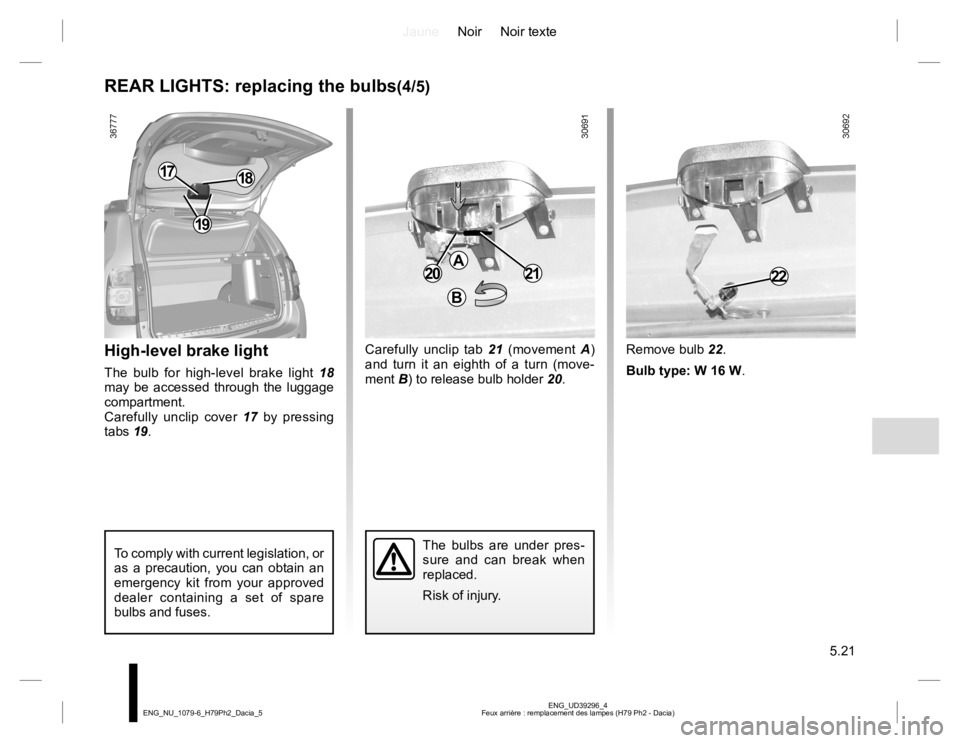

High-level brake light
The bulb for high-level brake light 18
may be accessed through the luggage
compartment.
Carefully unclip cover 17 by pressing
tabs 19.Carefully unclip tab 21 (movement A)
and turn it an eighth of a turn (move-
ment B) to release bulb holder 20.Remove bulb 22.
Bulb type: W 16 W.
1718
19
20A
B
2122
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

JauneNoir Noir texte
5.22
ENG_UD39296_4
Feux arrière : remplacement des lampes (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
REAR LIGHTS: replacing the bulbs(5/5)

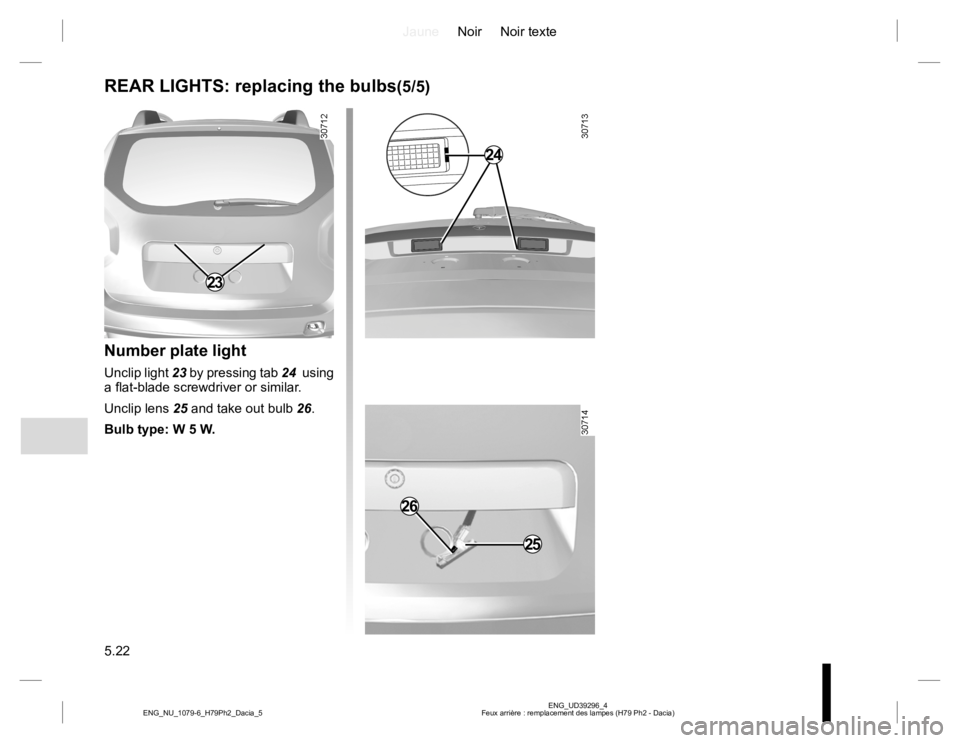

Number plate light
Unclip light 23 by pressing tab 24 using
a flat-blade screwdriver or similar.
Unclip lens 25 and take out bulb 26.
Bulb type: W 5 W.
23
24
25
26
