RENAULT DUSTER 2015 Owners Manual

JauneNoir Noir texte
6.3
ENG_UD37399_2
Plaques d’identification moteur (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_6
ENGINE IDENTIFICATION PLATES (1/2)
Quote the information on the identi-
fication plate or label A in all corre-
spondence or when ordering parts.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
A
A
21
3
A
A
12
3
A
A

JauneNoir Noir texte
6.4
ENG_UD37399_2
Plaques d’identification moteur (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_6
ENGINE IDENTIFICATION PLATES (2/2)
Please quote the information on the
engine plate or label A in all corre-
spondence or orders.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
A
21
3
A
A

JauneNoir Noir texte
6.5
ENG_UD39256_2
Dimensions (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_6

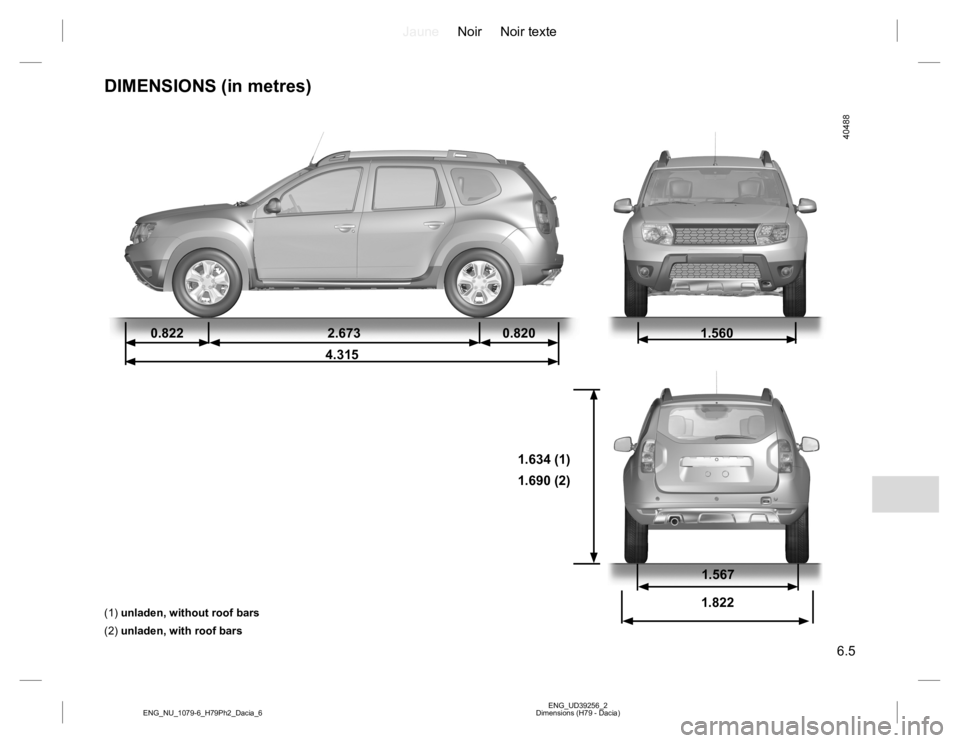

DIMENSIONS (in metres)
0.822 2.673 0.820
4.3151.560
1.634 (1)
1.690 (2)
(1) unladen, without roof bars
(2) unladen, with roof bars
1.567
1.822

JauneNoir Noir texte
6.6
ENG_UD39292_3
Caractéristiques moteur (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_6
ENGINE SPECIFICATIONS
Versions 1.6 16V 1.6 16V 2.0 16V 1.2 16V 1.5 dCi
Engine type
(see engine plate)K4M H4M F4R H5Ft K9K
Cubic capacity (cc) 1,598 1598 1 998 1 198 1,461
Type of fuel
Octane ratingPetrol
The use of unleaded petrol is essential, with the octane rating as stated
on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– Octane rating 95 for a label indicating 98;
– Octane rating 91 for a label indicating 95 or 98;
– Octane rating 87 for a label indicating 91, 95 or 98.Diesel
The label located in
the fuel filler flap in-
dicates authorised
fuels.
Spark plugsOnly use spark plugs specified for your vehicle’s engine.
The type should be marked on a label stuck inside the engine compart-
ment. If it is not then contact your authorised dealer.
Fitting spark plugs other than those specified may damage the engine.

JauneNoir Noir texte
6.7
ENG_UD32202_1
Masses/Charges remorquables (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_6
WEIGHTS (in kg)
Versions
4x2 4x4
Maximum permissible all-up weight (MMAC)
Total train weight (MTR)Weights shown on the vehicle identification plate (refer to the
information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight*found by calculating: MTR - MMAC
Unbraked trailer weight*615 680
Permissible nose weight*50 75
Maximum permissible load on roof with a
carrying device80 (including the carrying device)
*Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or when the GTW is equal to zero (or is not listed) on the
identification plate.
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an authorised dealer for any towing equipment modifications.
– For vehicles fitted with a trailer, the gross train weight (vehicle + trailer) must never be exceeded. However, the following
is tolerated:
– the Maximum permissible weight at the rear may be exceeded by no more than 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occurs first).
In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h) and the tyre pressures must
be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by
10% at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.
Weight transfer (depending on the vehicle)
If the Maximum Authorised Mass of the vehicle has not been reached, up to 200 kg can be transferred to the braked trailer, within
the limits of the Gross Train Weight. The weights shown are for a basic vehicle without options: they will vary depending on the equipment level of your vehi-
cle. Please consult an authorised dealer.

JauneNoir Noir texte
6.8
ENG_UD18209_6
Pièces de rechange et réparations (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_6
SPARE PARTS AND REPAIRS
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.

JauneNoir Noir texte
6.9
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - H79 ENG_NU_1079-6_H79Ph2_Dacia_6
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
VIN: ..................................................................................
SERVICE SHEETS (1/6)

JauneNoir Noir texte
6.10
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - H79 ENG_NU_1079-6_H79Ph2_Dacia_6
SERVICE SHEETS (2/6)
VIN: ..................................................................................
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page

JauneNoir Noir texte
6.11
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - H79 ENG_NU_1079-6_H79Ph2_Dacia_6
SERVICE SHEETS (3/6)
VIN: ..................................................................................
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page

JauneNoir Noir texte
6.12
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - H79 ENG_NU_1079-6_H79Ph2_Dacia_6
SERVICE SHEETS (4/6)
VIN: ..................................................................................
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
