RENAULT DUSTER 2016 Owners Manual

5.23
INDICATOR LIGHTS: changing bulbs
Unclip indicator light 1 (using a flat-
blade screwdriver or similar positioned
at A to move the indicator light towards
the outside of the vehicle).
Turn bulb holder 2 a quarter of a turn
(movement B ) and take out bulb 3
(movement C).
Bulb type: WY5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
A
1
B
2
3
C

5.24

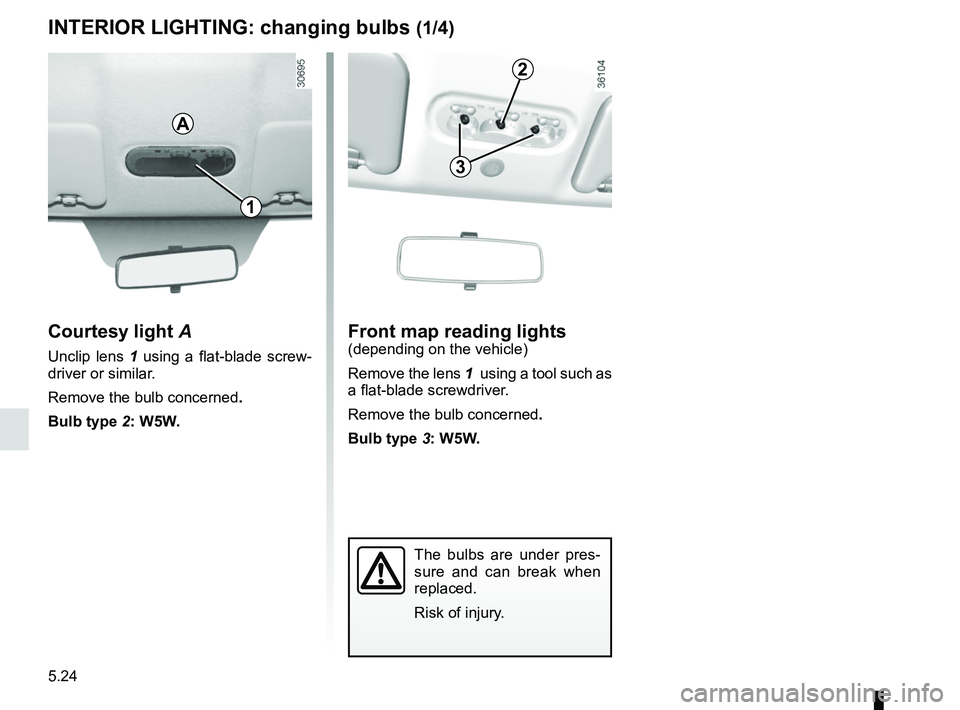

INTERIOR LIGHTING: changing bulbs (1/4)
Courtesy light A
Unclip lens 1 using a flat-blade screw-
driver or similar.
Remove the bulb concerned .
Bulb type 2: W5W.
Front map reading lights(depending on the vehicle)
Remove the lens 1 using a tool such as
a flat-blade screwdriver.
Remove the bulb concerned .
Bulb type 3: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
2
3
A

5.25

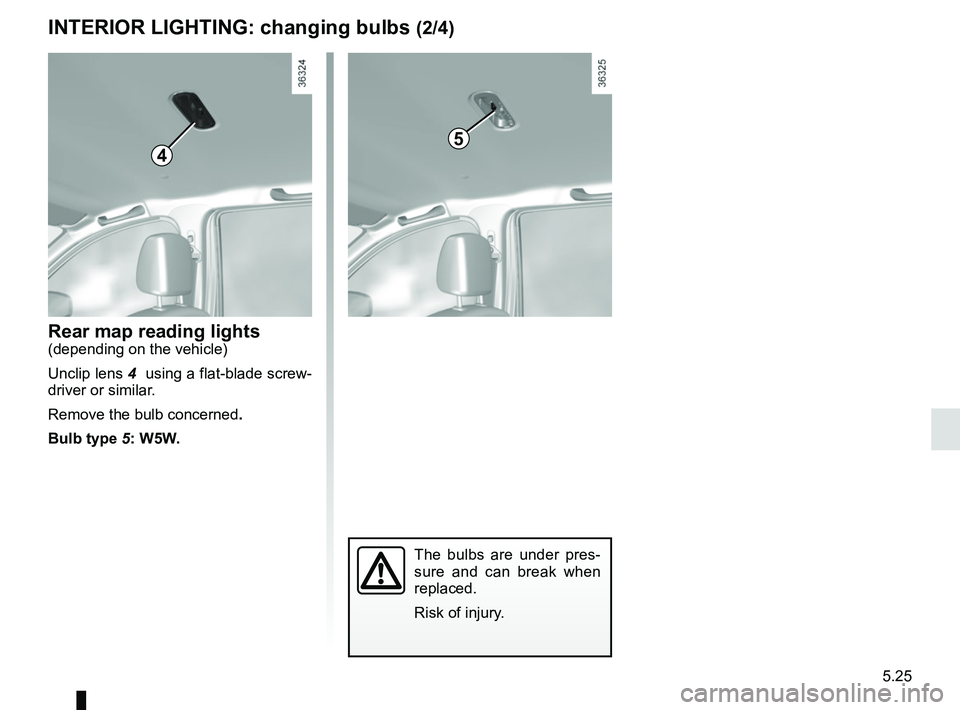

INTERIOR LIGHTING: changing bulbs (2/4)
Rear map reading lights(depending on the vehicle)
Unclip lens 4 using a flat-blade screw-
driver or similar.
Remove the bulb concerned .
Bulb type 5: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
45

5.26
INTERIOR LIGHTING: changing bulbs (3/4)
Glove box light(depending on the vehicle)
Unclip light 6 using a flat-blade screw-
driver or similar, by pressing on the tab
to move the light towards the inside of
the unit.
Disconnect the light. Press the tab 7
to release the lens 9
and gain access to the bulb 8.
Type of bulb 8: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
789
6

5.27
INTERIOR LIGHTING: changing bulbs (4/4)
Luggage compartment light
Unclip light 10 using a flat-blade screw-
driver or similar, by pressing on tab 11
to move the light towards the inside of
the luggage compartment. Press tab 12 to release lens
13.Remove the bulb 14.
Type of bulb 14: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
10
11
13
14
12

5.28
Passenger compartment fuses
If any electrical component does not
work, check the condition of the fuses.
Unclip flap A using notch 1 to help you.
Depending on the vehicle, to identify
the fuses, refer to the fuse allocation
label located at the back of the flap A
and shown on the following pages.
Check the fuse in question
and replace it, if necessary,
with a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from your appro-
ved Dealer containing a set of spare
bulbs and fuses.
FUSES (1/8)
Tweezers 2
Remove the fuse using tweezers 2, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
2
1
A

5.29
FUSES (2/8)
Fuses in engine compartment B
Some functions are protected by fuses
located in the engine compartment
(unit B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
dealer.
B
Special features of LPG versions
The specific LPG circuit shut-off fuse 3
is located in the box B.
3
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.
Deactivate the Stop and
Start function for any opera-
tion performed in the engine
compartment.

5.30

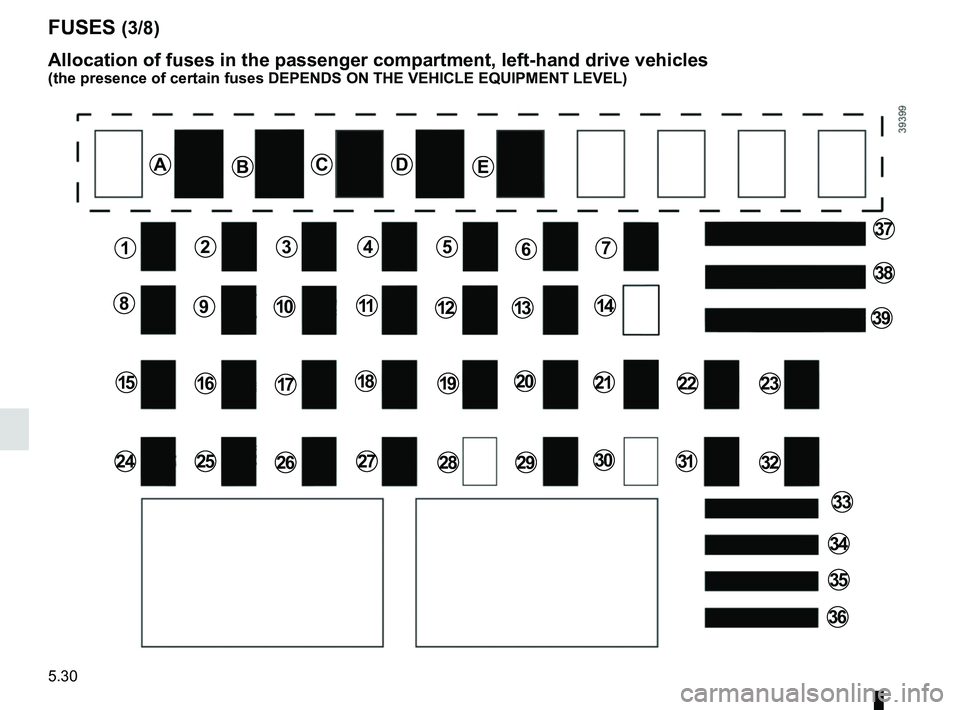

FUSES (3/8)
Allocation of fuses in the passenger compartment, left-hand drive vehicl\
es
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)\
ABCDE
1
8
15
24
2
9
16
25
3
10
17
26
4
11
18
27
5
12
19
28
6
13
20
29
7
14
21
30
22
31
23
32
37
38
39
33
34
35
36

5.31
Number Allocation
A Driver’s side window
winder
B 4-wheel drive (4WD)
transmission
C LPG
D Rear accessories socket
E Passenger compartment
ECU, starter
1 Front electric window
2 Left-hand main beam
headlight
3 Right-hand main beam
headlight
4 Left-hand dipped beam
headlight
5 Right-hand dipped beam
headlight
6 Rear lights
7 Front side lights
8 Rear electric windowsNumber Allocation
9 Rear fog lights
10 Horn
11 Automatic door locking
12 ABS-ESC, brake switch,
clutch switch
13 Interior lights, boot light,
glovebox light
14 Empty location
15 Windscreen wiper
16 Cruise control/Speed
limiter, unfastened
seat belt warning,
parking distance
control, multimedia, air
conditioning, heated seats,
automatic gearbox lever,
UCHNumber Allocation
17 Daytime running lights
18 Brake lights
19 Injection, instrument panel
or dashboard, passenger
compartment, sequential
gearbox lever
20 Airbag
21 4-wheel drive transmission
(4WD), LPG, automatic
gearbox, sequential
gearbox, reverse gear
22 Power-assisted steering
23 Heated rear windscreen,
heated seats, seatbelt
alarm, parking distance
control, additional
passenger compartment
heating, cruise control/
speed limiter, heated
windscreen
FUSES (4/8)

5.32
FUSES (5/8)
Number Allocation
24 Passenger compartment
ECU
25 Passenger compartment
ECU
26 Direction indicator lights
27 and
29 Steering column control
28 Not used
30 Not used
31 Instrument panel
32 Radio, passenger
compartment air
conditioning control panel,
passenger compartment
ventilation, rear
accessories socket
33 Cigar lighter
34 Diagnostics and radio
socket
35 Defrosting rearview mirror
36 Electric door mirrors
37 Passenger compartment
ECU, starterNumber Allocation
38 Front windscreen wiper
39 Passenger compartment
ventilation
Check the fuse in question
and
replace it, if necessary,
with a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from your appro-
ved Dealer containing a set of spare
bulbs and fuses.
