RENAULT DUSTER 2016 Owners Manual

6.3

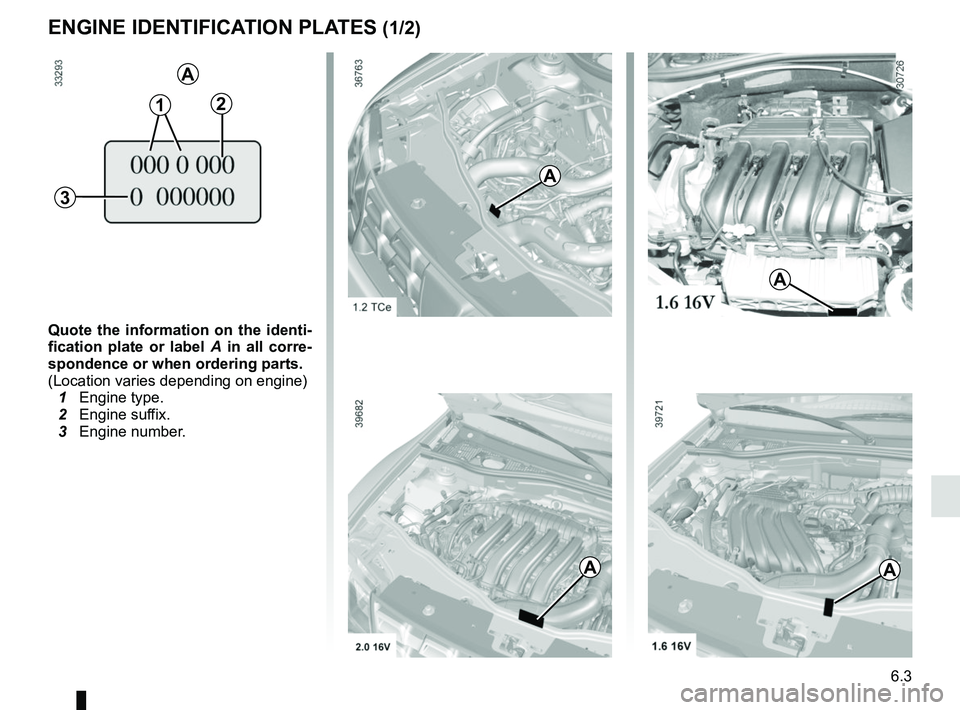

ENGINE IDENTIFICATION PLATES (1/2)
Quote the information on the identi-
fication plate or label A in all corre-
spondence or when ordering parts.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
A
A
21
3
A
A
12
3
A
A

6.4

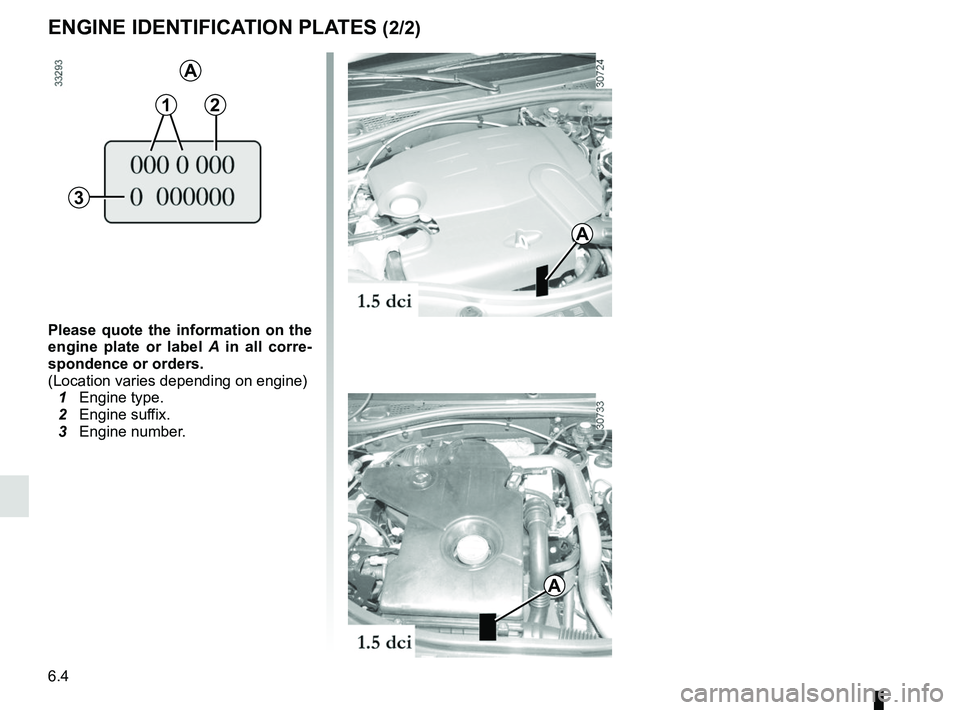

ENGINE IDENTIFICATION PLATES (2/2)
Please quote the information on the
engine plate or label A in all corre-
spondence or orders.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
A
21
3
A
A

6.5

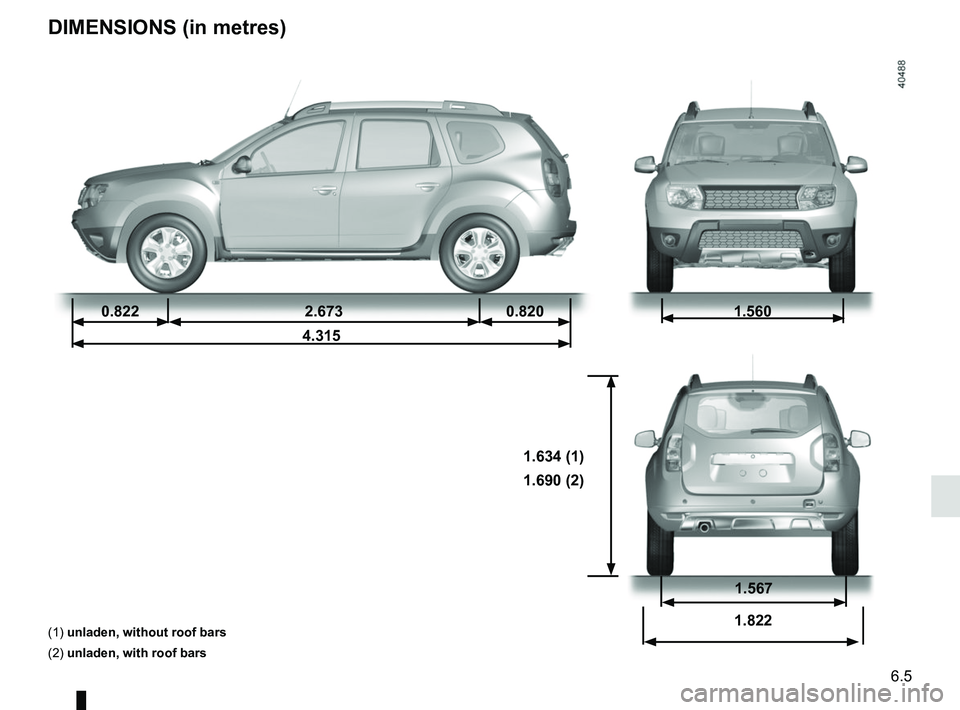

DIMENSIONS (in metres)
0.8222.6730.820
4.3151.560
1.634 (1)
1.690 (2)
(1) unladen, without roof bars
(2) unladen, with roof bars
1.567
1.822

6.6
ENGINE SPECIFICATIONS
Versions1.6 16V 1.6 16V 2.0 16V 1.2 16V 1.5 dCi
Engine type
(see engine plate) K4M
H4M F4R H5Ft K9K
Cubic capacity (cc) 1,59815981 998 1 198 1,461
Type of fuel
Octane rating Petrol
The use of unleaded petrol is essential, with the octane rating as state\
d
on the label inside the fuel filler flap. Diesel
The label located in
the fuel filler flap in-
dicates authorised
fuels.
Spark plugs Only use spark plugs specified for your vehicle’s engine.
The type should be marked on a label stuck inside the engine compart-
ment. If it is not then contact your authorised dealer.
Fitting spark plugs other than those specified may damage the engine.

6.7
WEIGHTS (in kg)
Versions4x2 4x4
Maximum permissible all-up weight (MMAC)
Total train weight (MTR) Weights shown on the vehicle identification plate (refer to the
information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight* found by calculating: MTR - MMAC
Unbraked trailer weight* 580 640
Permissible nose weight* 75
Maximum permissible load on roof with a
carrying device 80 (including the carrying device)
*Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or \
when the GTW is equal to zero (or is not listed) on th e
identification plate.
– It is important to comply with the towing weights, governed by local leg\
islation in each country and, in particular, laid down in the Road Traffic Regulations. Contact an authorised dealer for any towing equipment m\
odifications.
– For vehicles fitted with a trailer, the gross train weight (vehicle + trailer) must never be exceeded. However, the following
is tolerated:
– the Maximum permissible weight at the rear may be exceeded by no more th\
an 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10\
% or 100 kg (whichever occurs first).
In either case, the maximum speed of the vehicle and trailer must not ex\
ceed 60 mph (100 km/h) and the tyre pressures must be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10% at an altitude of 1,000 metres and by an additional 10% for each 1,0\
00 metres thereafter.
Weight transfer (depending on the vehicle)
If the Maximum Authorised Mass of the vehicle has not been reached, up to 200 kg can be\
transferred to the braked trailer, with in
the limits of the Gross Train Weight.
The weights shown are for a basic vehicle without options: they will var\
y depending on the equipment level of your ve-
hicle. Please consult an authorised dealer.

6.8

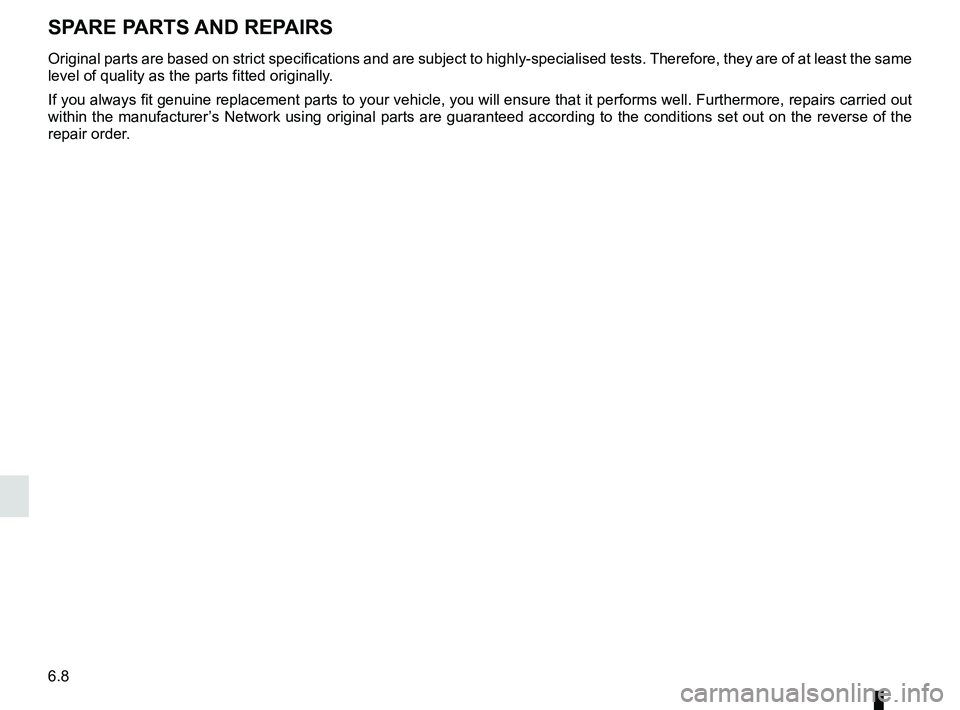

SPARE PARTS AND REPAIRS
Original parts are based on strict specifications and are subject to hig\
hly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will en\
sure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the condition\
s set out on the reverse of the
repair order.

6.9
Date: Miles (Km): \
Invoice number:Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
VIN: .......................................................................\
...........

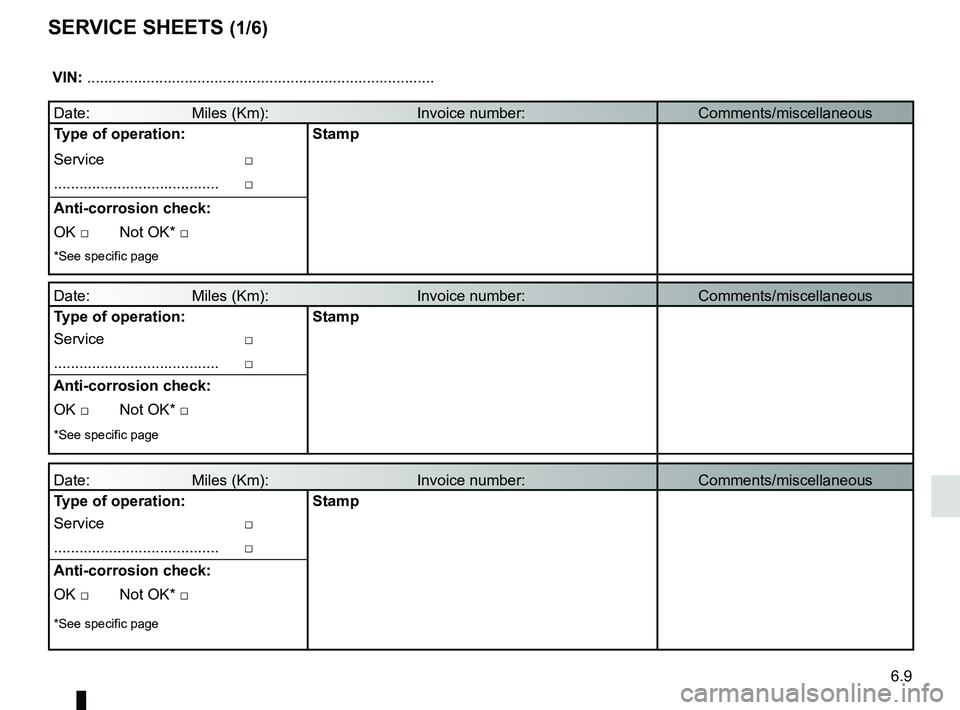

SERVICE SHEETS (1/6)

6.10

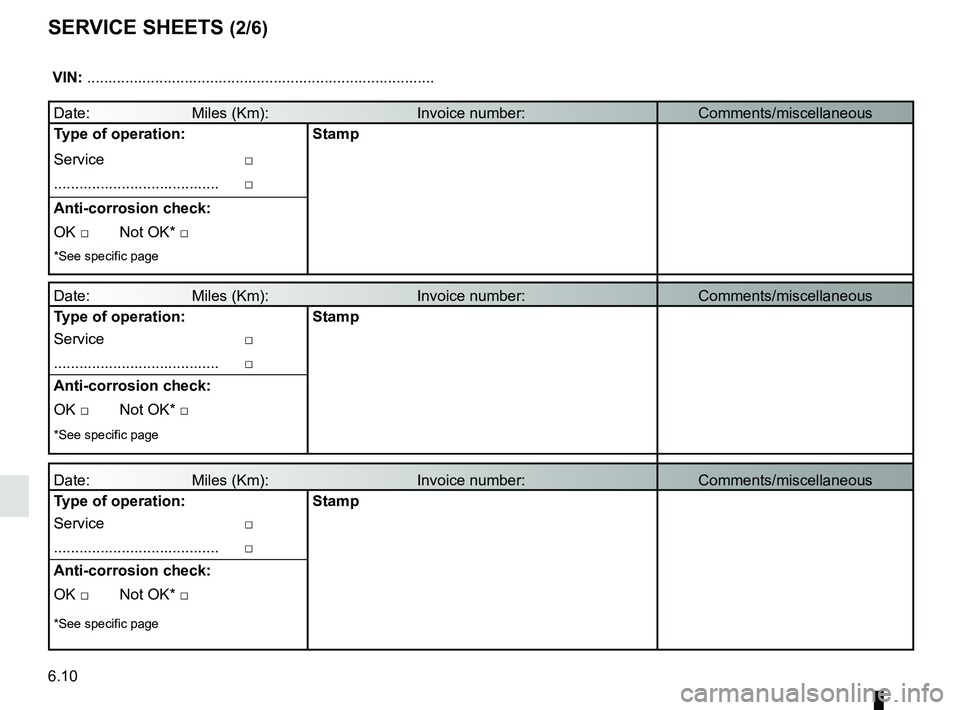

SERVICE SHEETS (2/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number:Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page

6.11

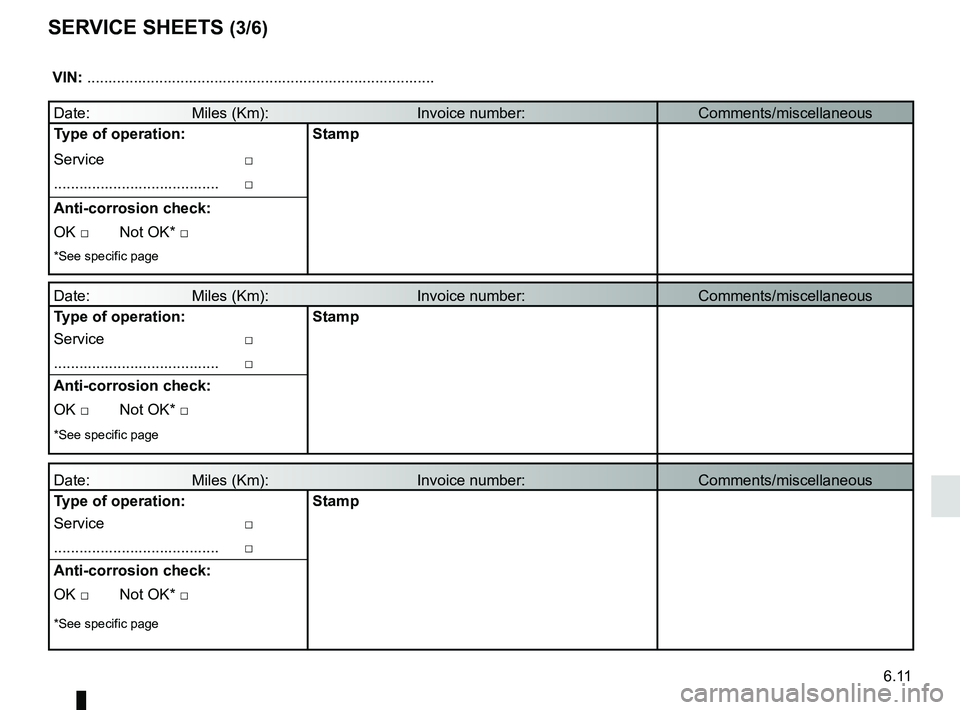

SERVICE SHEETS (3/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number:Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page

6.12
SERVICE SHEETS (4/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number:Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
